Smart Power Strip 3 - Power Strip TESLA - Free user manual and instructions

Product Type	Smart Power Strip
Brand	Tesla
Model	TSL-SPL-3+4USB (Smart Power Strip 3)
Color	White
Power Supply	AC 230V ~ 50Hz
Maximum Power	3680W
Single Outlet Current	16A max
USB Output	4 USB ports, 4.2A max total
Number of AC Outlets	3
WiFi Standard	802.11 b/g/n, 2.4 GHz
Wireless Frequency	2412 - 2472 MHz
Max Transmit Power	< 20 dBm (EIRP)
Encryption	WEP / WPA / WPA2
Operating Temperature	0°C - 35°C
Storage Temperature	-10°C - +40°C
Humidity Range	5% - 65%
Dimensions (approx.)	30 x 6 x 4 cm
Weight (approx.)	0.5 kg
Package Contents	1x Smart Power Strip, 1x User Manual
Smart Control	Via Tesla Smart App (iOS/Android)
Safety Certifications	CE, RoHS
Cleaning Instructions	Wipe with a soft, dry cloth. Do not use solvents.

Frequently Asked Questions - Smart Power Strip 3 TESLA

How do I connect the Smart Power Strip 3 to my Wi-Fi?

First, ensure the power strip is powered on. Press and hold the power button for more than 5 seconds until the indicator flashes quickly (about 2 times/second). Open the Tesla Smart app on your phone, tap '+' and select the device. Confirm that the indicator is blinking rapidly, then follow the app instructions to connect to your 2.4 GHz Wi-Fi network. The device will be added once you see 'successfully add 1 device'.

What should I do if my device is not pairing?

Make sure your mobile phone is connected to a 2.4 GHz Wi-Fi network (not 5 GHz). Check that the indicator is flashing rapidly. If not, reset the device by pressing and holding the power button for 10 seconds. Also, ensure the Tesla Smart app is up to date and try again.

What are the maximum power ratings for this power strip?

The Smart Power Strip 3 supports a maximum total load of 3680W (230V~50Hz). Each individual AC outlet can handle up to 16A. The USB ports deliver a combined maximum of 4.2A. Do not exceed these limits to avoid overheating or damage.

Can I use this power strip with 110V voltage?

No, this power strip is designed for 230V AC 50Hz only. Using it with 110V may cause malfunction or damage. Please check your local voltage before use.

How do I reset the Smart Power Strip 3 to factory settings?

To reset, press and hold the power button for about 10 seconds until the indicator light blinks rapidly then turns off and back on. The device will restart and enter configuration mode. You can then set it up again via the Tesla Smart app.

Is the Tesla Smart Power Strip 3 compatible with Amazon Alexa or Google Assistant?

Yes, it is compatible with voice assistants through the Tesla Smart app. After pairing the device in the app, you can link it to Alexa or Google Assistant by enabling the Tesla Smart skill or service in the respective assistant's app.

How do I clean and maintain the power strip?

Unplug the power strip before cleaning. Use a soft, dry cloth to wipe the surface. Do not use water, solvents, or cleaning solutions. Keep the device dry and free from dust. Ensure all outlets are clean and free of debris.

What is the warranty period for this product?

The warranty period is not explicitly stated in the manual. Typically, Tesla Smart products come with a 2-year warranty. Please contact the seller or Tesla Global Limited for warranty details.

How should I dispose of the power strip when it is no longer usable?

Do not dispose of it with regular household waste. This product is subject to the WEEE Directive (2012/19/EU). Take it to a designated collection point for recycling of electrical and electronic equipment. Proper disposal helps protect the environment.

Can I use the USB ports even when the AC outlets are turned off via the app?

Yes, the USB ports are always powered when the power strip is plugged in and the main power button is on. They are not controlled by the app's individual outlet controls. To turn off USB power, you must press the physical power button on the strip.

USER MANUAL Smart Power Strip 3 TESLA

White power strip with a plug and cord, no visible text or symbols

TESLA SMART POWER STRIP 3+4

USER MANUAL

EN

DE

CZ

SK

PL

HU

SL

Package content

1x Tesla smart power Strip

1x User Manual

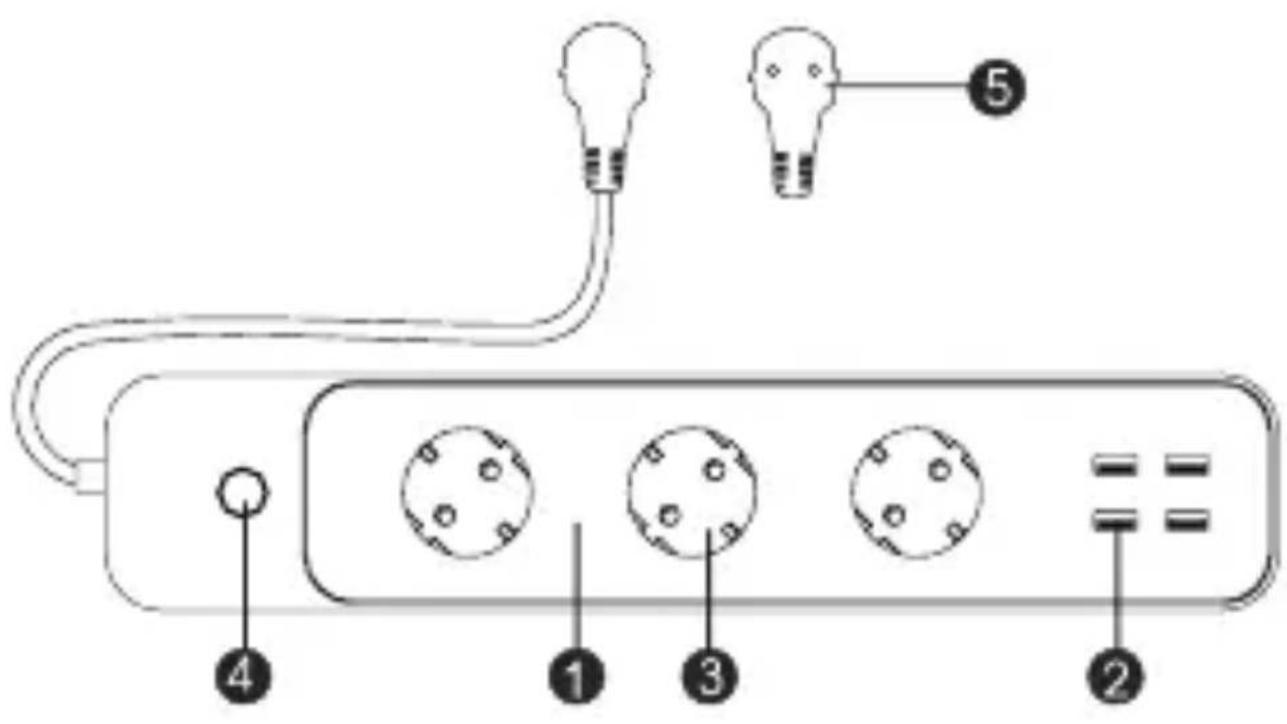

Function Diagram

1. Tesla smart power Strip
2. USB
3. Electrical Outlet
4. Power Button
5. Plug

SPECIFICATION

Power Supply AC 230V~50Hz
Max Power 3680W
Single outlet current 16A max
4 USB Output 4.2A max
Wifi-Fi standard 2.4GHz (make sure your router is 2.4GHz if the rounter has two line)
Operation Temperature	0-35 °C
Storage Temperature	-10 °C- +40 °C
Humidity in operation	5% - 65%
WLAN Specification Standard: 802.11 b/g/nEncryption: WEP / WPA / WRA2Frequency range: 2412 - 2472 MHz Max.Transmitting power: 8027.11b°: +18dBm802.119 : +16dBm 802.11n(-20MAZ): +140dBm Channel: 1-13

Safety Information

IMPORTANT: Please read and comply with all the instructions and warnings provided in this user manual before using the product. Failure to comply with the instructions and warning provided herein may result in inaccurate results and/or damage to product itself.

WARNING: DO NOT connect a device that exceeds the power ratings for this power socket. Doing so may overheat or cause possible damage to the device or other equipment.

DO NOT use the power socket if it is damaged in any way, shape, or form.

DO NOT attempt to repair, disassemble or modify this device under any circumstances. Doing so may damage the device or cause electric shock and possible injury.

DO NOT place the power socket near any heat source or in direct sunlight.

DO NOT place or operate the power socket in high-humidity environments.

DO NOT operate the power socket if there is a strange odor or heat emitting from the power socket or a connected device, contact customer support immediately.

DO NOT touch any electrical appliances with wet hands or handle appliances near liquids.

Avoid using excessive force when handling the power socket.

Keep the power socket dry and clean at all times.

DO NOT use any solvents or cleaning solutions on the power socket. Clean only with a soft, dry cloth.

Never overload electrical circuits as it may cause an electrical shock or fire.

How to Connect Wi-Fi?

Step 1: Download & Registration

• Scan the QR Code to download Tesla Smart APP. Or Search Tesla Smart in Apple store or Google Play to install the APP
• Open the Tesla Smart App, tap Register to get an account with your phone number or E-mail. Sign in the App.

Step 2: Add Devices in Easy Mode (Recommend)

• Make sure your Tesla Smart Plug is powered on
• Make sure your mobile phone is connected to your Wi-Fi
- Press the power button for more than 5 seconds until the indicator begin to flash quickly (about 2 times/second) this means the device is ready for configuration
- Open your „Tesla Sart“ APP, tap „+“ on the top right of the APP
- Select Device Type, tap „ confirm indicator rapidly blink“. It will fetch the password of the Wi-Fi network your mobile phone is connected to.

Tap „Confirm“ to connect to the device, when it appears „successfully add 1device“, then the connection is completed and your devices is listed in your APP list.

INFORMATION ABOUT DISPOSAL AND RECYCLING

This product is marked with the symbol for separate collection. The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorisation and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimise impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre or local authorities.

EU DECLARATION OF CONFORMITY

Hereby, Tesla Global Limited declares that the radio equipment type TSL-SPL-3+4USB is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: tsl.sh/doc

Connectivity: Bluetooth, Wi-Fi 2.4 GHz

Frequency band: 2.412 - 2.484 GHz

Max. radio-frequency power (EIRP): < 20 dBm

Manufacturer

Tesla Global Limited

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TT TESLA

White power strip with plug and cord, no visible text or symbols

TESLA SMART POWER STRIP 3+4

BENUTZERHANDBUCH

EN

DE

CZ

SK

PL

HU

SL

Die Packung enthält

1x Tesla smart power Strip

SPEZIFIKATION

White power strip with a plug and cord, no visible text or symbols

TESLA SMART POWER STRIP 3+4

UŽIVATELSKÁ PŘÍRUČKA

EN

DE

CZ

SK

PL

HU

SL

Děkujeme!

SPECIFIKACE

INFORMACE O LIKVIDACI A RECYKLACI

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TT TESLA

White rectangular power strip with attached plug and cord, no visible text or symbols

TESLA SMART POWER STRIP 3+4

UŽÍVATELŠKÁ PRÍRUČKA

EN

DE

CZ

SK

PL

HU

SL

Balenie obsahuje

ŠPECIFIKÁCIA

INFORMÁCIE O LIKVIDÁCII A RECYKLÁCII

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TT TESLA

White rectangular power strip with attached plug and cord, no visible text or symbols

TESLA SMART POWER STRIP 3+4

INSTRUKCJA UŻYTKOWNIKA

Zestaw zawiera

1x Inteligentne gniazdo

SPECYFIKACJA

INFORMACJE O UTYLIZACJI I RECYKLINGU

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TT TESLA

White power strip with a terminal plug and cable, no visible text or symbols

TESLA SMART POWER STRIP 3+4

HASZNÁLATI UTASÍTÁS

A csomag tartalma

SPECIFIKÁCIÓ

MEGSEMMISÍTÉSI ÉS ÚJRAHASZNOSÍTÁSI INFORMÁCIÓK

White power strip with a plug and cord, no visible text or symbols

TESLA SMART POWER STRIP 3+4

PRIROČNIK ZA UPORABO

Pakiranje vsebuje

1x Pametni vtič

SPECIFIKACIJA

Vir napajanja AC 230V~50Hz
Največja izhodna moč	3680W
Največja obremeni- tev vtičnice	16A max
4 USB Output 4.2A max
Frekvenca Wi-Fi 2.4GHz (prepričajte se, da je vaš usmerjevalnik primeren za 2,4 GHz)
Delovna temperatura 0-35 °C
Temperatura shran- jevanja	-10 °C- +40 °C
Delovna vlažnost 5% - 65%
WLAN Specifikacija Standard: 802.11 b/g/nEncryption: WEP / WPA / WRA2Frequency range: 2412 - 2472 MHz Max.Transmitting power: 8027.11b°: +18dBm802.119 : +16dBm 802.11n(-20MAZ): +140dBmChannel: 1-13

Varnostna opozorila

INFORMACIJE O ODSTRANJEVANJU IN RECIKLIRANJU

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TT TESLA

TESLA SMART PLUG

Manufacturer

Tesla Global Limited

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com
