GH-PM 51 SD - Lawn mower EINHELL - Free user manual and instructions

Product Type	Petrol Lawn Mower
Brand	Einhell
Model	GH-PM 51 SD
Motor Type	1-cylinder, 4-stroke, 139 ccm
Motor Power	2.45 kW (3.3 HP) at 2850 rpm
Fuel	Gasoline, E10 qualified
Tank Volume	1.5 litres
Oil Capacity	0.6 litres
Cutting Width	51 cm
Cutting Height Adjustment	3-fold, 30 – 60 mm
Ignition	Contact-free, rope pull start
Chassis Material	Backed-enable sheet steel
Handle	Ergonomically fold-away guidance bar
Starting System	Starting linkage on guidance bar
Discharge	Side discharge
Height Adjustment Mechanism	Mono-wheel height settings
Recommended Lawn Area	Up to 1,600 m²
Product Weight	24.53 kg
Gross Weight	28.50 kg
Packing Dimensions	780 x 420 x 560 mm
Special Accessory	Spare knife (Art.-No. 34.057.60)
Barcode	4006825 594065
Sales Unit	1 pc

Frequently Asked Questions - GH-PM 51 SD EINHELL

What type of fuel should I use?

Use unleaded gasoline E10. Do not use diesel or mixed fuel.

How do I adjust the cutting height?

Adjust via the mono-wheel height settings with 3 positions, ranging from 30 to 60 mm.

What is the oil capacity and recommended oil?

Oil capacity is 0.6 litres. Use SAE 30 or a similar 4-stroke motor oil.

How to start the lawn mower?

Engage the starting linkage on the guidance bar, then pull the rope start with a firm motion.

What is the recommended lawn area?

This mower is recommended for surfaces up to 1,600 m².

Does it have side discharge?

Yes, it features a side discharge for grass clippings.

Can the handle be folded?

Yes, the ergonomically fold-away guidance bar allows for compact storage.

What spark plug is used?

Consult the manual for the exact spark plug type. Typically, a standard 4-stroke spark plug is used.

Where can I buy spare parts?

Spare parts like the spare knife (Art.-No. 34.057.60) are available from Einhell dealers or online.

How should I maintain the mower?

Regularly change the oil, clean the air filter, sharpen the blade, and store in a dry place. Use E10 fuel and empty the tank before long storage.

USER MANUAL GH-PM 51 SD EINHELL

Abstract geometric logo with white letter 'E' on red background (no text or symbols)

Einhell

CLASSIC

GH-PM 51 SD

Petrol Lawn Mower

Art.-No. 34.024.42

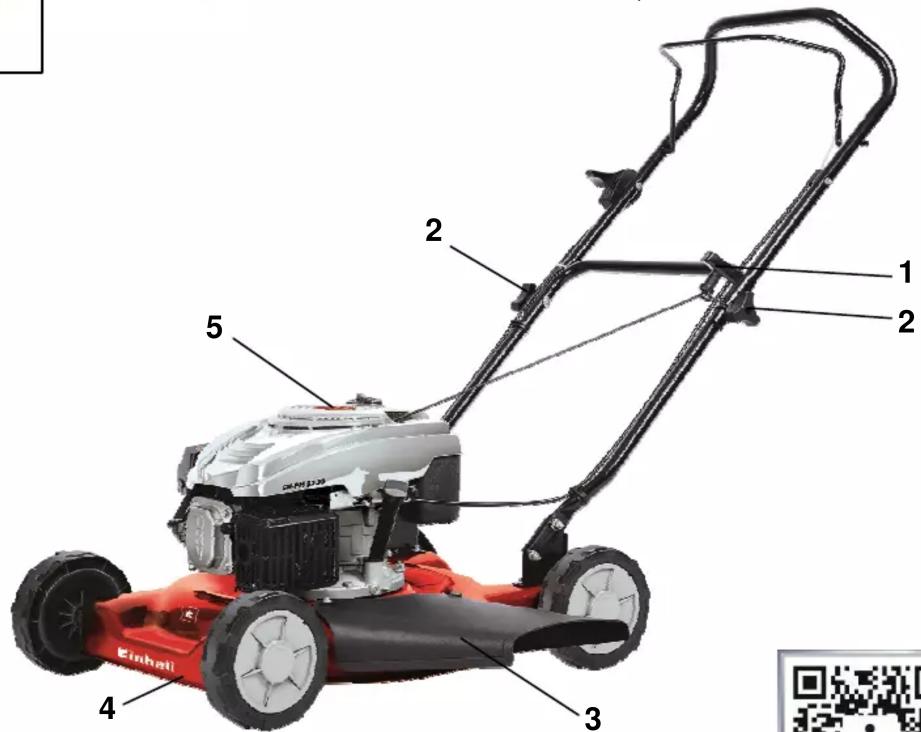

Features

■ Starting linkage on the guidance bar (1)
■ Ergonomically, fold-away guidance bar (2)
■ Throw off on the side (3)
■ Shapely, backed-enable sheet steel housing (4)
■ 1 cylinder, 4-stroke motor (5)
■ Mono-wheel height settings
Full-crankshaft
■ Recommended for surfaces up to 1,600 m²

Technical Data

Motor: 1 cylinder,
4-stroke motor, 139 ccm
■ Motor Power: 2.45 kW (3.3 HP) with 2,850 rpm
■ Fuel: gasoline, E10 qualified
Tank volume: 1.5 litres
■ Motor oil quantity: 0.6 litres
■ Cutting width: 51 cm
■ Cutting height adjustment: 3-fold (30 – 60 mm)
■ Ignition: contact free (start with rope pulling)
■ Product weight: 24.53 kg

Logistic Data

Net weight: 24.88 kg
■ Gross weight: 28.50 kg
- Packing dimensions: 780 x 420 x 560 mm
Bar code: 4006825 594065
■ Sales unit: 1 pc

As special accessory available:

Spare knife

Einhell Grey

Art.-No.: 34.057.60

Bar code: 4006825 572773
