Product Type	Guitar Amplifier
Brand	Hughes & Kettner
Model	GrandMeister RM-40
Power Output	40 Watts RMS
Amplifier Type	Tube (Preamp and Power Amp)
Channels	4 (Clean, Crunch, Lead, Ultra)
Controls	Gain, Bass, Middle, Treble, Presence, Master Volume, Reverb, Effects Loop Send/Return
Built-in Effects	Digital Reverb
DI Output	Red Box XLR with Speaker Simulation
MIDI	Yes (Channel Switching and Control)
Speaker Outputs	1x 8 Ohm, 2x 4 Ohm (Switchable)
Effects Loop	Series (Send/Return)
Power Supply	Mains Voltage (230V or 120V depending on region)
Power Consumption	Approx. 200W
Dimensions (Rackmount)	19" x 3.5" (2U) x 8.5" (W x H x D)
Weight	Approx. 8 kg (17.6 lbs)
Cooling	Ensure adequate ventilation; optional rack fan recommended
Construction	Steel Chassis, 19" Rack-Mountable
Included Accessories	Rack Mounting Brackets and Screws
Maintenance	Clean with dry cloth; avoid liquids and solvents
Safety	Class I equipment; ground connection required; do not expose to moisture; ensure proper ventilation
Spare Parts & Repairability	Contact authorized service center for spare parts and repairs
General Information	Full manual available online at notice-facile.com

Frequently Asked Questions - GrandMeister RM-40 HUGHES & KETTNER

How do I mount the GrandMeister RM-40 in a 19-inch rack?

Use the included rack mounting brackets and six provided screws. Remove three screws from each side of the amp housing, attach the brackets with the new screws, then mount the amp in the rack. Ensure proper ventilation.

What screws are used for rack mounting?

The set includes six screws that are longer than the original ones. They attach the rack mounting brackets to the enclosure, replacing six of the twelve original screws. Save the original screws for standalone use.

Can I use the GrandMeister RM-40 without rack mounting?

Yes, you can use it as a standalone head. The original screws (removed during rack installation) can be reattached to deploy the amp outside the rack.

What are the dimensions for rack mounting?

The amplifier fits a standard 19-inch rack and occupies 2U (3.5 inches) in height. Depth is approximately 8.5 inches.

How do I ensure proper ventilation for the amp?

Make sure the rack has adequate ventilation and cooling. A standard 19-inch rack fan is recommended, mounted above the amp to dissipate heat.

What is the power output of the GrandMeister RM-40?

The amplifier delivers 40 Watts RMS, suitable for stage and studio use.

How many channels does it have and what are they?

It has 4 independent channels: Clean, Crunch, Lead, and Ultra, each with its own gain and EQ settings.

Does the GrandMeister RM-40 have an effects loop?

Yes, it has a series effects loop with send and return jacks for connecting external effects pedals or processors.

How do I connect speakers to this amplifier?

The amp provides two speaker outputs: one 8 Ohm and two 4 Ohm (switchable). Use appropriate speaker cables and ensure total impedance matches.

Where can I find the full manual for the GrandMeister RM-40?

The full manual is available for free download on notice-facile.com in PDF format. Additional translations can be requested via email.

USER MANUAL GrandMeister RM-40 HUGHES & KETTNER

Rack Mount Set – 19"

ENGLISH

Mounting Instructions 1.0

Please read before use and keep for future reference!

Heads up! Make sure the rack has adequate ventilation and cooling to prevent heat buildup.

---

Note: Longer screws attach the rack mounting bracket to the enclosure, replacing six of the twelve original screws.

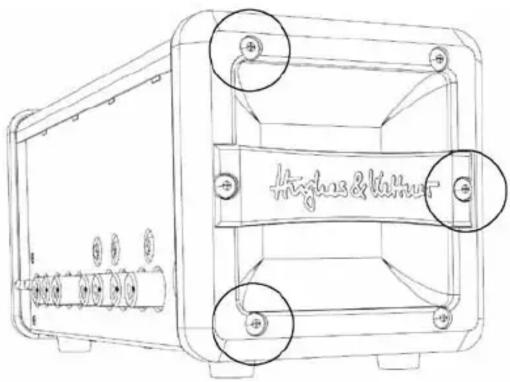

1. Place the amp on a stable surface and remove three screws each from the left and right panels of the housing as shown in the figure below. Save these screws for later use; otherwise, you won't be able to deploy the amp outside the rack.

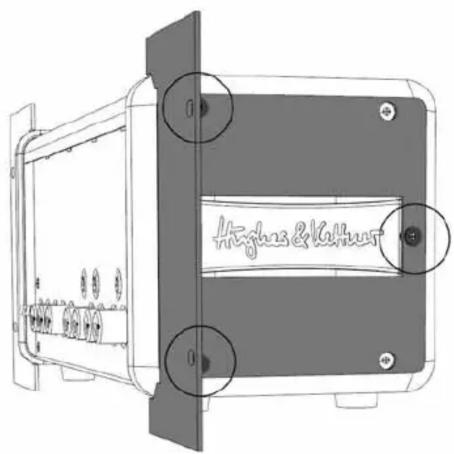

1. Use the six screws provided with this set to fasten the rack mounting brackets as shown in the two diagrams below.

1. Now you can mount the amp in a 19" rack..

Rack Mount Set – 19"

DEUTSCH

Heads up! Make sure the rack is properly cooled. Standard 19" rack fans are available in stores to this end. The fan should be mounted above the amp.
