USER MANUAL G 851 SC PLUS MIELE

Operating instructions

Novotronic

G 851 SC Plus

To prevent accidents and machine damage, read these instructions

before

installation or use.

HG01

M.-Nr. 05 431 311

IMPORTANT SAFETY INSTRUCTIONS 4

CONSIGNES DE SECURITE 7

Caring for the environment 10

Energy saving washing 10

Guide to the dishwasher 11

Wash cabinet 11

Control panel 12

Before using for the first time 13

To open the door 13

Child Safety Lock. 13

Water softener 14

Programming the water softener 15
Checking the programmed water hardness. 16

Salt indicator 18

Rinse aid 19

Adding rinse aid 19

Adjusting the dosage. 20

Rinse aid indicator 20

Loading the dishwasher 21

Items not recommended for dishwashing 22

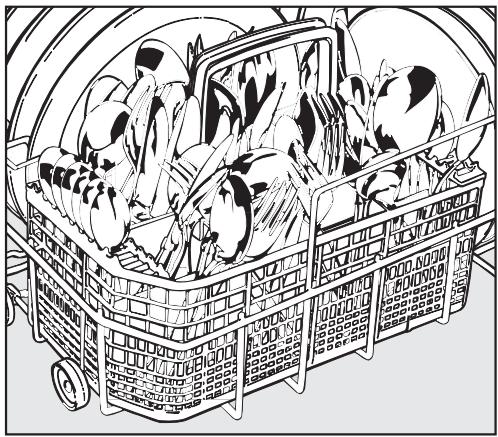

Cutlery basket 23

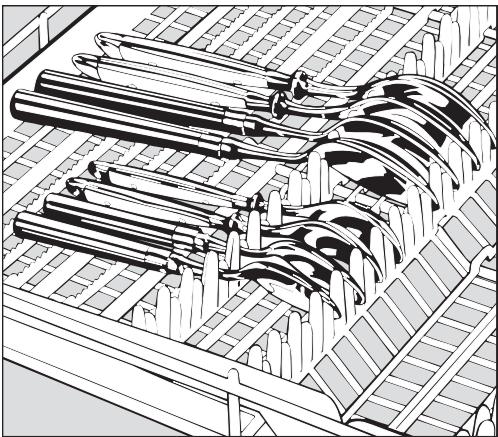

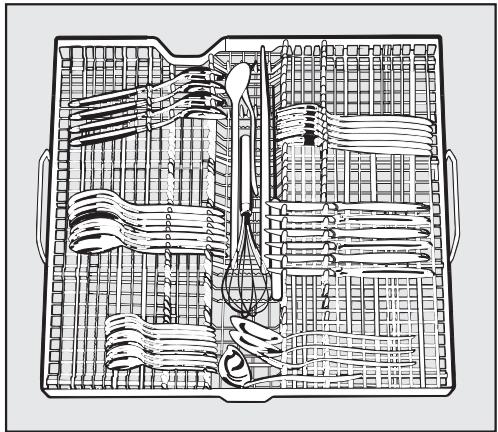

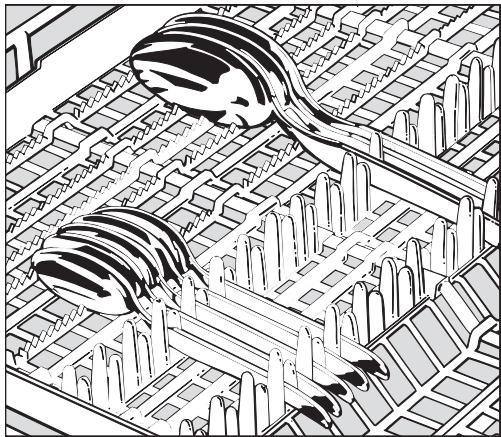

Cutlery tray (SC units) 24

Upper basket 25

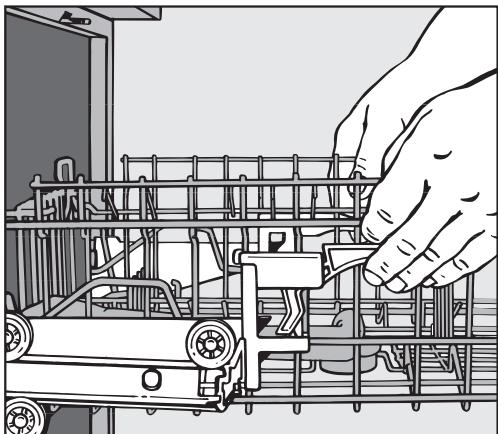

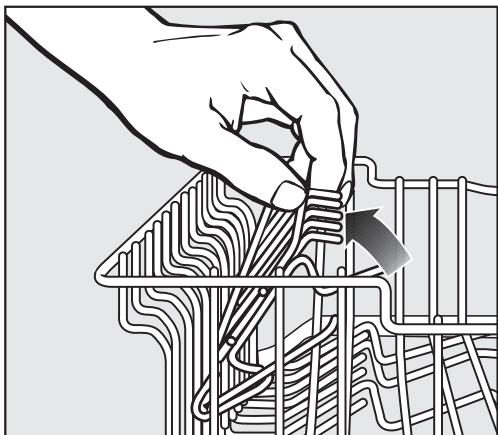

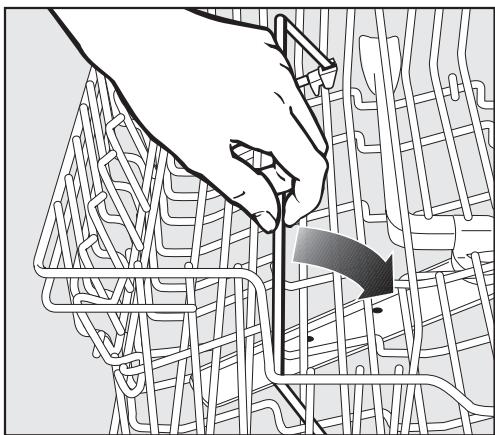

Adjusting the upper basket 25
Adjustable cup racks 26
Coffee bar 26

Lower basket 27

Lower basket inserts 28

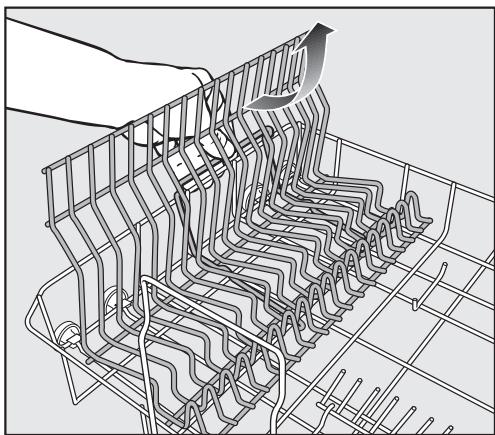

Removing an insert. 28
Inserting an insert 28

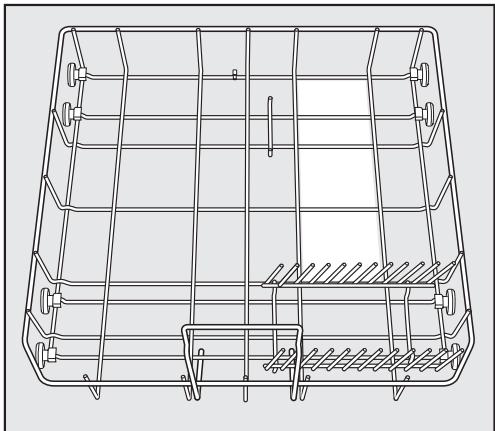

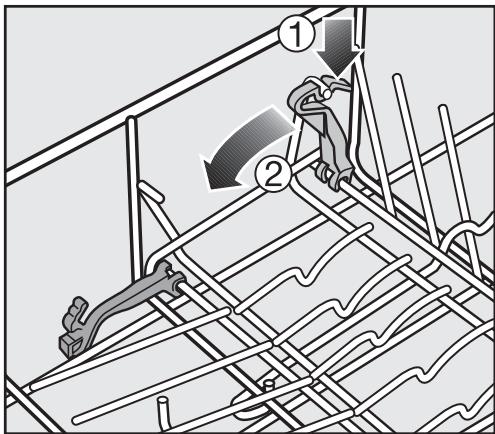

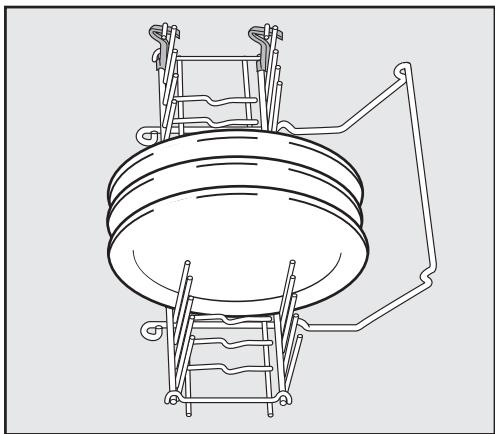

Foldable spike insert. 29

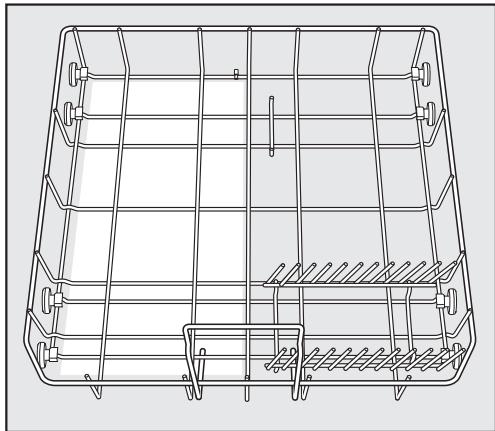

PlateGuard Plus insert 30

Basket accessories 31

Operation 32

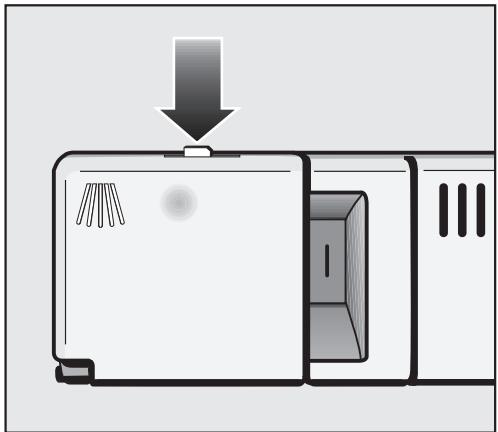

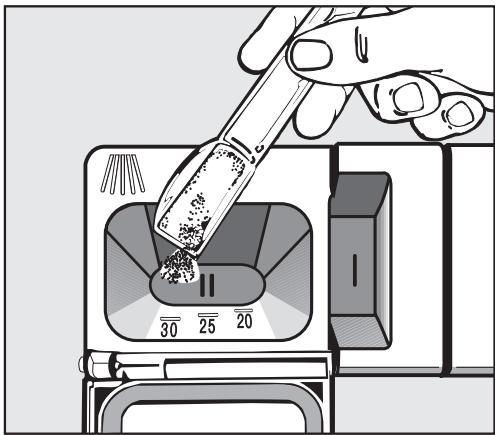

Adding detergent. 32

Running the dishwasher 33

Program sequence indicator (14) 33

At the end of a program 34

Interrupting a program 34

Changing a program 34

Program guide 35

Additional features. 36

"Top Solo" (15). 36

Extended drying 37

Frequently asked questions 38

After sales service 43

Transport 44

User Maintenance Instructions 45

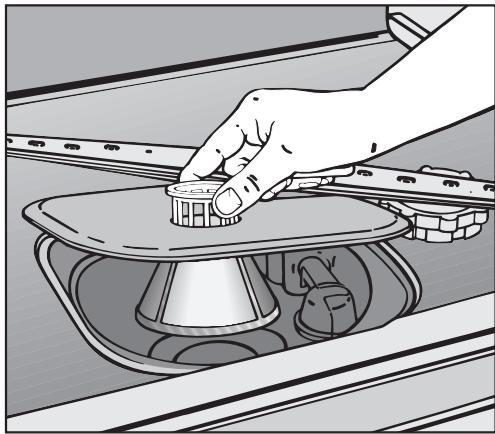

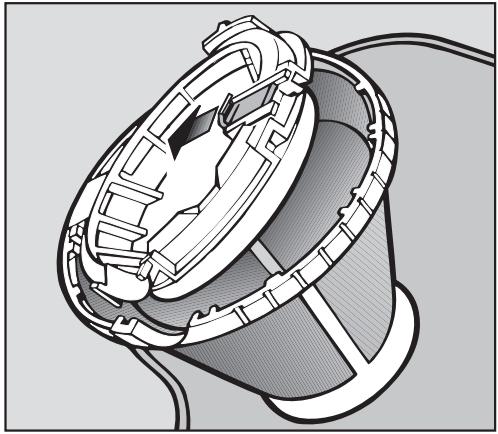

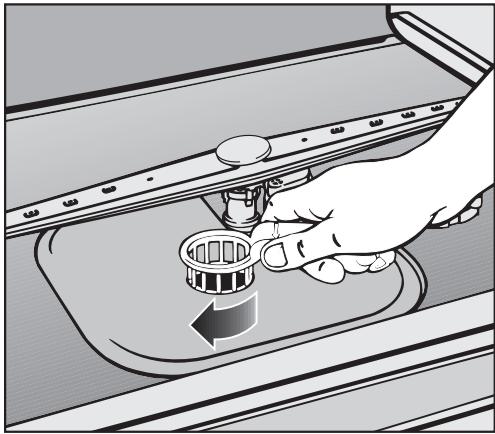

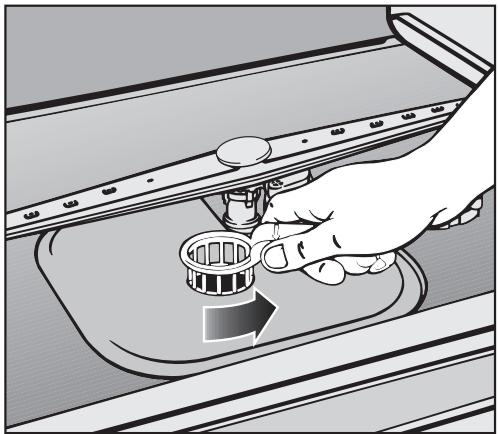

Cleaning the filter in the wash cabinet. 46

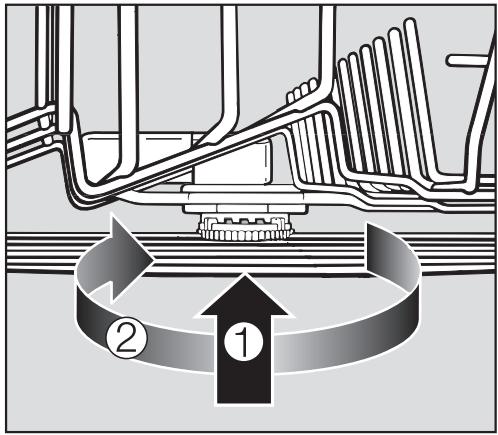

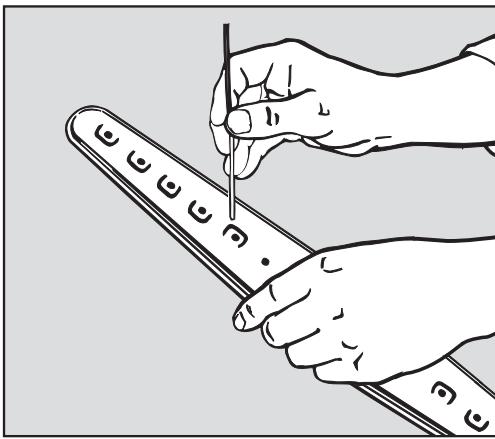

Cleaning the spray arms 48
Cleaning the wash cabinet 49
Cleaning the door and door seal 49
Cleaning the exterior 49

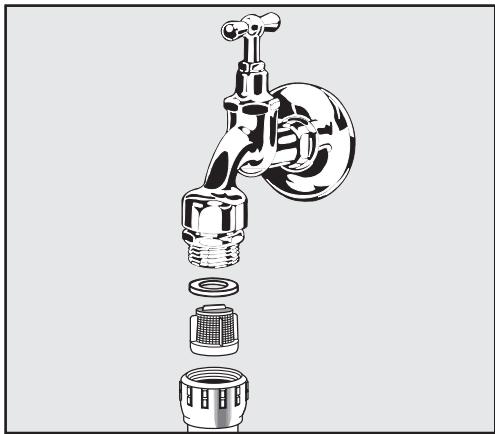

Cleaning the water inlet filter 50

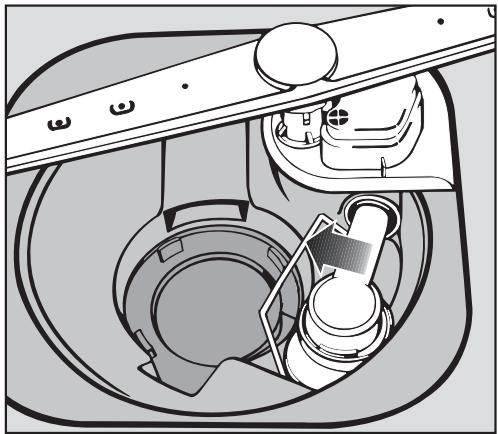

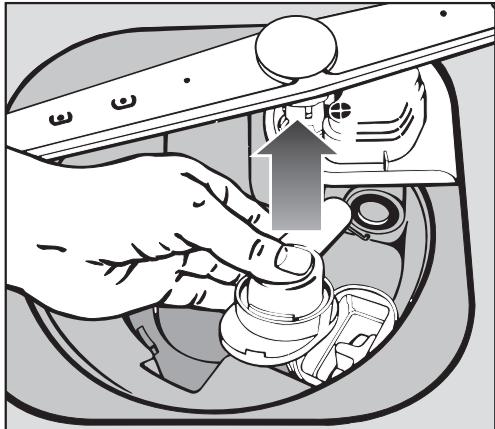

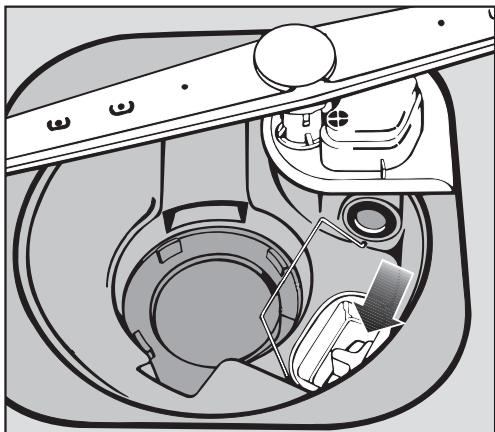

Cleaning the drain pump and non-return valve. 51

WARNING -

When using your dishwasher, follow basic precautions, including the following:

Read all instructions before installation or use of the dishwasher to prevent injury and machine damage.

The manufacturer cannot be held responsible for damage or injury caused by improper use of this appliance.

Use the dishwasher only for its intended purpose. This appliance is intended for residential use only.

Keep these operating instructions in a safe place and pass them on to any future user.

Electrical safety

Before installation make sure that the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent injury and machine damage. Consult a qualified electrician if in doubt.

Before installation or service, disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.

Do not use an extension cord to connect this appliance to electricity. Extension cords do not guarantee the required safety of the appliance (e.g. danger of overheating).
■ Be certain your appliance is properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance, continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician. The manufacturer cannot be held responsible for damages caused by the lack, or inadequacy of, an effective grounding system.

Installation

Installation and repair work should be by a Miele authorized service technician. Work by unqualified persons could be dangerous and could void the warranty.

WARNING - Fire hazard Do not cover or crush the plug of an electric appliance. Ensure that the cabinet opening for the dishwasher provides ample space for the plug. Installing the dishwasher in a tight space may crimp the power cord or put pressure on the plug which may cause overheating.

This equipment is not designed for maritime use or for use in mobile installations such as caravans or aircraft. However, under certain conditions it may be possible for an installation in these applications. Please contact the nearest Miele dealer or the Miele Technical Service Department with specific requirements.
Inspect the dishwasher for shipping damage. Do not install or operate a damaged unit. Contact the place of purchase.
Ensure that any plastic wrappings, bags etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!
This dishwasher should only be installed under a continuous countertop secured to adjacent cabinetry.
Do not install this dishwasher beneath a cooking surface, oven or any appliance that radiates heat. High temperatures from these units may damage the dishwasher.
Do not, under any circumstances cut the intake hose or submerge in liquid. This hose contains electrical components that could cause injury or property damage if cut or submerged.

Use

Only use the dishwasher if all panels are properly in place.
Do not tamper with the controls.
To reduce the risk of injury, do not allow children to play in, on, or near the dishwasher.
Do not abuse, sit, or stand on the door or baskets of the dishwasher.
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, turn on all hot water faucets and let water flow from each for several minutes before using the dishwasher. This will release any accumulated hydrogen gas. Do not smoke or use an open flame during this time.

Do not wash plastic items unless they are labeled "dishwasher safe" or the equivalent. For items not labeled, check the manufacturer's recommendations.

IMPORTANT SAFETY INSTRUCTIONS

When loading tableware, place sharp items away from the door seal to prevent damage to the seal. Load knives pointing downwards to prevent injuries.
Only use detergents and rinse aids recommended for residential dishwashers. Keep all detergents and rinse aids out of the reach of children.
Do not drink water from the dishwasher! Harmful residues could be present.

For dishwashers with visible heating element

Do not touch the heating element during or immediately after use.

Disposal of an appliance

If the appliance is removed from its installation and will not be used, the door to the wash cabinet should be removed to prevent children from being locked in the machine. When discarding an old dishwasher, unplug it from the power outlet, remove the door to the wash cabinet and cut off the power cord.

SAVE THESE INSTRUCTIONS

AVERTISSEMENT -

Energy saving washing

This dishwasher is exceptionally economical in the use of water and electricity. For best results follow these tips:

• For lowest energy consumption and the gentlest washing of china and crystal, connect the dishwasher to a cold water source.
  For fastest possible wash times, yet higher energy consumption, connect the dishwasher to a hot water source.
  Make full use of the baskets without overloading for the most economical washing.
  Choose a program that best suits the degree of soiling and the type of dishes being washed.
  For small loads: Select the "Top Solo" feature (see "Additional features").
  If baskets are only half full, select the "Economy" program.
  Use the correct amounts of detergent and rinse aid.

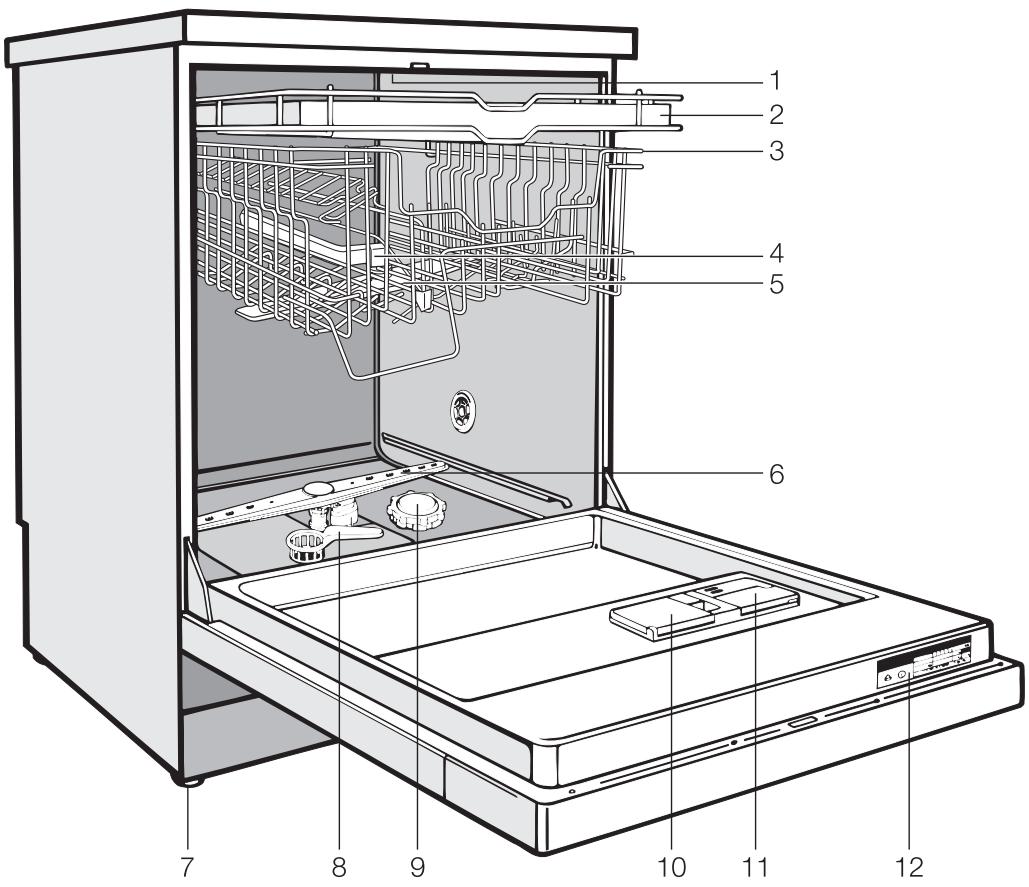

Wash cabinet

1 Upper spray arm (not visible)
2 Cutlery tray
3 Upper basket
4 Water feed for middle spray arm
5 Middle spray arm
6 Lower spray arm

7 Four height adjustable feet
8 Triple Filter System
9 Salt reservoir
10 Detergent dispenser
11 Rinse aid reservoir
12 Data plate

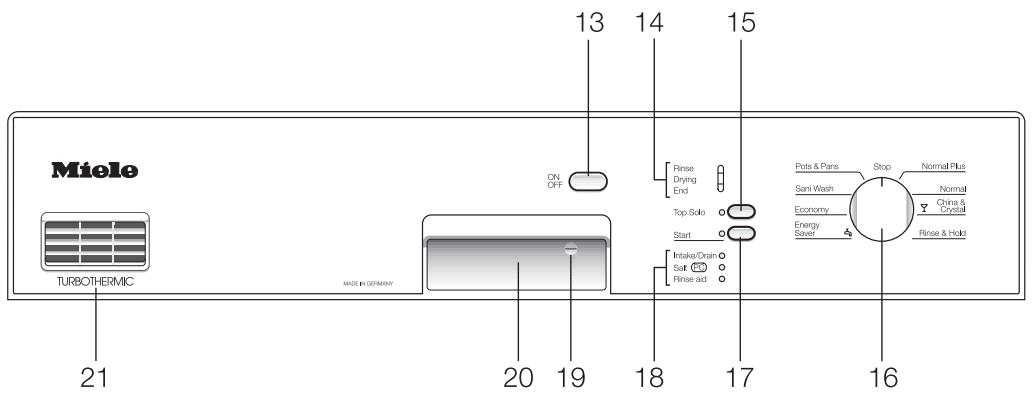

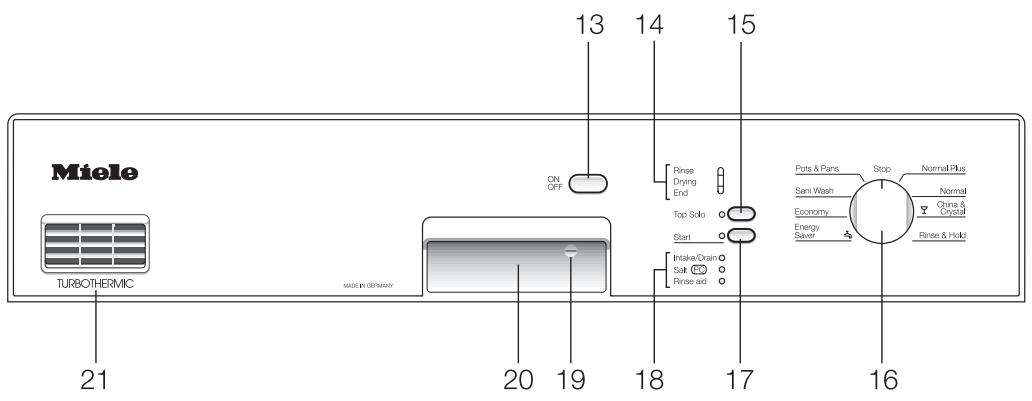

Control panel

13 "On/Off" button
14 Program sequence display
15 "Top solo" button
16 Program selector
17 "Start" button

18 Check/Refill indicators
19 Child Safety Lock
20 Door release
21 Drying vent

Every dishwasher is tested before leaving the factory. Any water remaining in the machine is from these tests and does not indicate that the machine has been used.

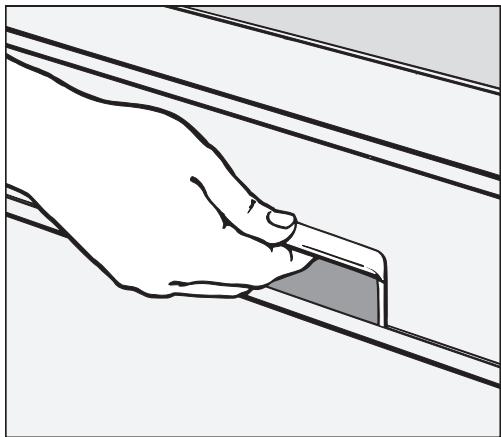

To open the door

Press the release catch inside the door grip.

If the door is opened during operation, the dishwasher will stop running. Once the door is closed the program will restart.

To close the door

Push the baskets in.
- Lift the door and push until it clicks into position.

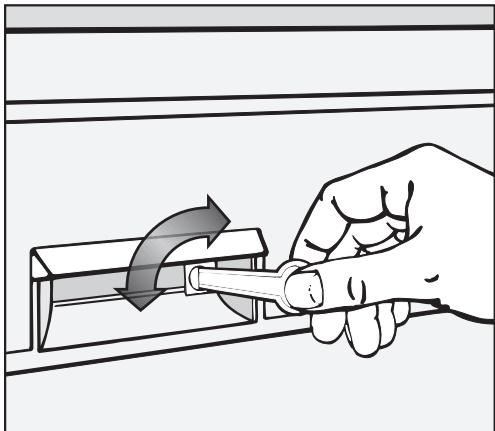

Child Safety Lock

The yellow key for the Child Safety Lock is shipped on one of the spikes at the front of the upper basket. Remove the key before using the dishwasher.

The Child Safety Lock is designed to prevent children from opening the dishwasher.
Use the provided key to lock or unlock the dishwasher.

Horizontal:

the door is locked

Vertical:

the door can be opened

Water softener

To achieve good cleaning results, the dishwasher needs soft water. Hard water results in calcium deposits on dishware and in the dishwasher. If your tap water hardness is above 8 gr/gal (values are in US gallons) (140 ppm), the water should be softened. This takes place automatically in the unit's integrated water softener.

• Your local water authority will be able to advise you of the water hardness level in your area.
• The dishwasher must be programmed to correspond to the water hardness in your area.
• The water softener must be filled with dishwasher salt for reactivation.

If your water hardness is consistently lower than 8 gr/gal (140 ppm), you do not need to add dishwasher salt. However, the dishwasher must still be programmed to correspond to the local water hardness.

Where the water hardness fluctuates e.g. between 9 - 17 gr/gal (160 - 310 ppm), always program the machine to the higher value, 17 gr/gal (310 ppm) in this example.

If there is a fault, it will help the service technician to know the hardness of your local water supply.

Please note the water hardness:

____ gr/gal

Programming the water softener

Your water hardness level must be programmed into the dishwasher using the program selector and buttons on the control panel.

Make sure the dishwasher is turned off.
Turn the program selector to "Stop".
Press and hold the "Top Solo" button and at the same time turn on the dishwasher with the "On/Off" button. Release the "Top Solo" button within two seconds.

The "Salt" indicator will flash.

If the "Rinse aid" indicator comes on, the rinse aid dispenser needs to be filled.

If any other indicator is lit or flashing, the above steps must be repeated.

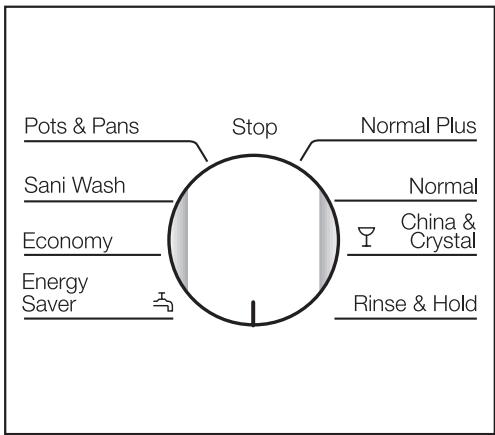

• Turn the program selector to the position which corresponds to the water hardness in your area (see table).

gr/gal*	ppm	Selector setting
1 - 4**	20 - 70	Normal Plus
5 - 7	90 - 130	Normal
8 - 10	140 - 180	China & Crystal
11 - 13	200 - 230	Rinse & Hold
14 - 16	250 - 290	5 o'clock position
17 - 22	310 - 400	6 o'clock position
23 - 35	410 - 630	7 o'clock position
36 - 70	650 - 1260	Energy Saver

• US gallons

** factory preset

Example:

Water hardness is 20 gr/gal.

Turn the program selector to the

"6 o'clock" position.

Press the "Top Solo" button.

The "Top Solo" indicator will light.

Turn the program selector to "Stop".
Turn off the dishwasher.

The programmed water hardness is stored.

Checking the programmed water hardness

Make sure the dishwasher is turned off.
Turn the program selector to "Stop".
Press and hold the "Top Solo" button and at the same time turn on the dishwasher with the "On/Off" button. Release the "Top Solo" button within two seconds.

The "Salt" indicator will flash.

If the "Rinse aid" indicator comes on, the rinse aid dispenser needs to be filled.

If any other indicator is lit or flashing, the above steps must be repeated.

Turn the program selector clockwise until the "Top Solo" indicator comes on.
The position where the "Top Solo" indicator comes on corresponds to the programmed water hardness (see table in "Programming the water softener").
Turn the program selector to "Stop".
Turn off the dishwasher.

Filling the salt reservoir

If your water hardness level is greater than 8 gr/gal, the salt reservoir should be filled before the first use and when the "Salt" indicator lights.

Only use water softener salt specially formulated for dishwashers. Other salts may contain insoluble additives which can impair the water softener.

The proper salt can be purchased from your Miele dealer or Miele's Technical Service Department.

Inadvertently filling the salt reservoir with dishwashing detergent will damage the water softener.

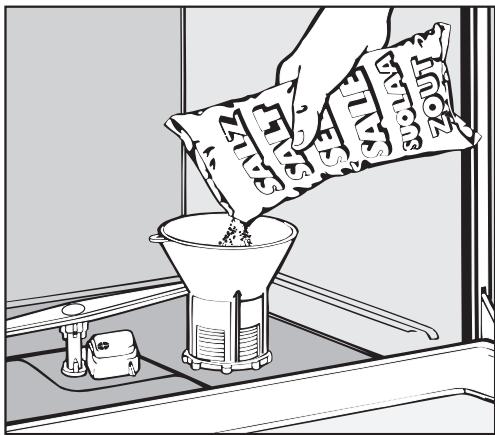

To fill the salt reservoir:

Remove the lower basket.
- Unscrew and remove the salt reservoir cap located on the floor of the wash cabinet.
- Place the provided funnel over the salt reservoir.

The salt reservoir must be filled with 2 quarts (2 l) of water before adding salt for the first time. Water does not have to be added with subsequent refills.

• Carefully fill with salt. The salt reservoir holds approximately 4.5 lbs (2 kg) of salt. As it is filled, water will run out.
  Clean any excess salt from the threads of the reservoir opening.
  Screw the cap on firmly.
  If the dishwasher will not be used immediately, run the "Rinse & Hold" program. This will remove any traces of salt from inside the wash cabinet.

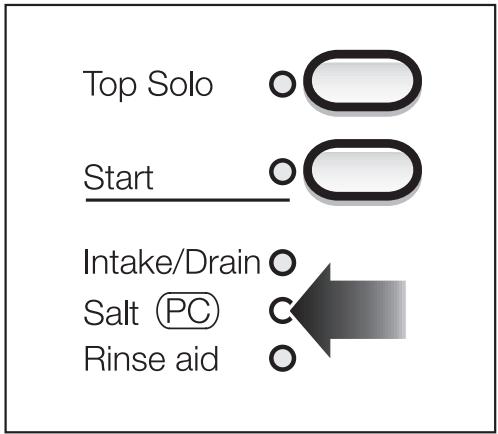

Salt indicator

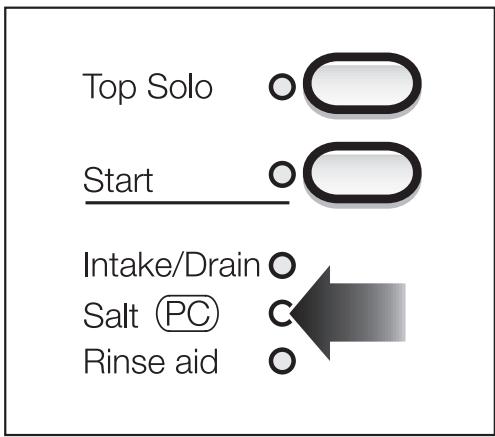

When the salt reservoir is empty, the "Salt-PC" indicator will light, indicating that it should be refilled with reactivation salt.

After the reservoir has been filled, the water softener is automatically reactivated the next time the dishwasher is started. The "Salt" indicator will be lit during this process.

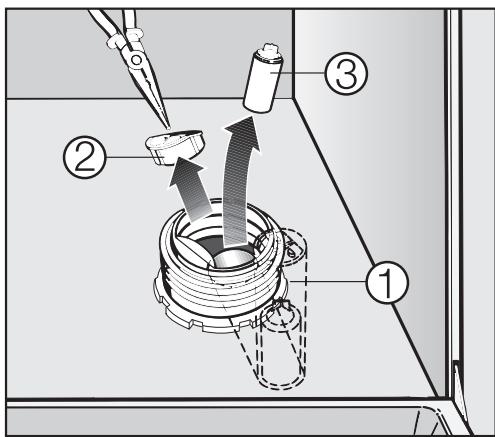

Bypassing the salt indicator

If your water is soft (below 8 gr/gal) the salt reservoir should not be filled with salt. The indicator will remain lit and should be disregarded or bypassed.

Remove the salt reservoir cap.

Looking into the salt reservoir, you will see the top of the float chamber on the right hand side, ①.

Using a screwdriver, carefully pivot the float chamber towards the center of the reservoir.
Using needle nose pliers, pull the cap, ②, off of the float chamber, and remove the float, ③.

Replace the float chamber cap, push the chamber back into its upright position, and replace the salt reservoir cap. The "Salt" indicator should no longer be lit.

Rinse aid

Rinse aid is recommended to prevent spotting on dishes and glassware.

Filling the rinse aid reservoir with detergent will damage the reservoir. Only pour rinse aid formulated for residential dishwashers into the reservoir.

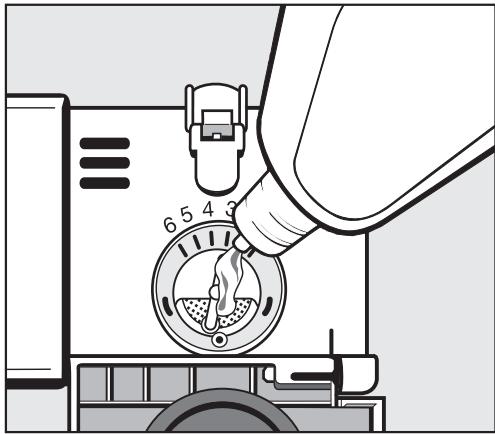

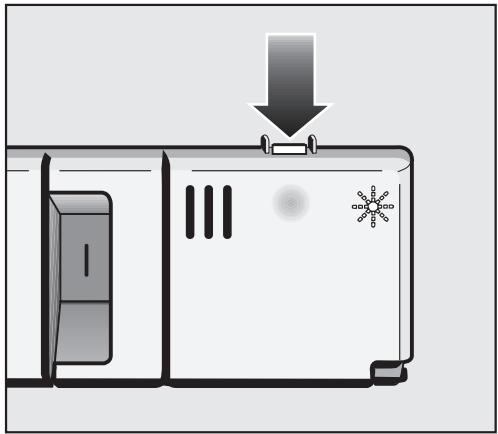

Adding rinse aid

• Add rinse aid before the first use and whenever the "Rise aid" indicator lights.
  Press the button in the direction of the arrow until the flap springs open.

Pour liquid rinse aid into the reservoir until it is visible on the surface of the screen.
Press on the flap until you hear it click shut. Failure to close it all the way will allow water to enter the reservoir during the wash program.
Wipe up any spilled rinse aid. The flap will remain closed during normal operation.

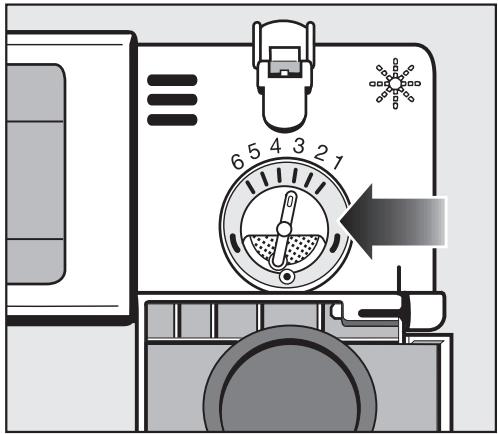

Adjusting the dosage

The dosage selector is preset to 3. This dispenses approximately 3ml of rinse aid per program. It can be adjusted from 1 to 6.

Use a higher setting if spots appear on dry glassware.
Use a lower setting if streaking appears on dishes or glasses.

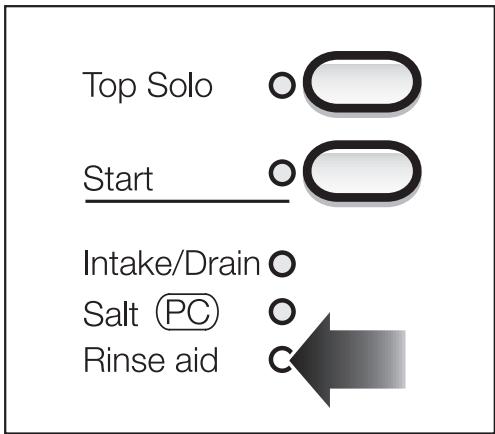

Rinse aid indicator

The rinse aid indicator on the control panel will light when the rinse aid reservoir needs refilling.

When the indicator first comes on, there will be enough rinse aid left for 2 - 3 washes.

Do not wash items soiled with ash, sand, wax, grease or paint in the dishwasher. Ash and sand do not dissolve and will be distributed through out the inside of the dishwasher. Wax, grease and paint will cause permanent discoloration or damage to the dishwasher.

Scrape food from dishes before placing in the dishwasher. Do not rinse dishes.

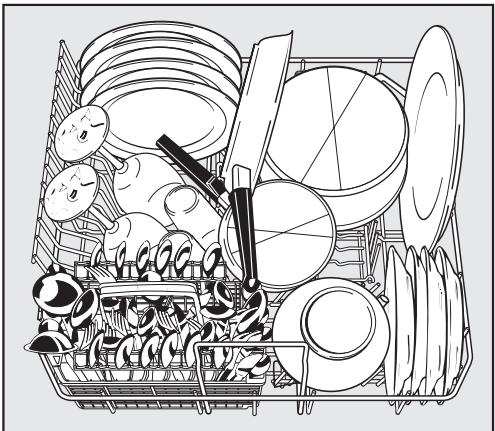

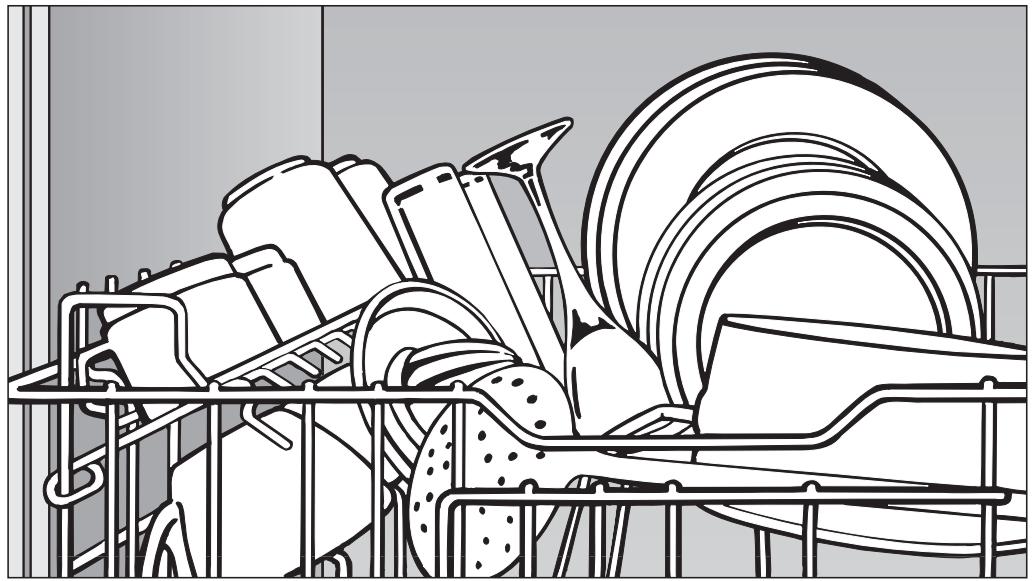

- Load dishes so that water can reach all surfaces. Do not place dishes and cutlery inside other pieces.
- Hollow items such as cups and glasses should be placed upside down in the upper basket.
- Concave based items, such as mugs or bowls, should be placed at an angle so that water does not pool.
To ensure good water coverage tall, narrow, hollow pieces, such as a vase, should be placed in the center of the basket, rather than in the corners.
- Small cups and glasses should be placed on the cup racks. Taller mugs and glasses can be placed beneath the rack.
Place very small items in the cutlery tray or basket so they do not fall to the bottom of the wash cabinet.

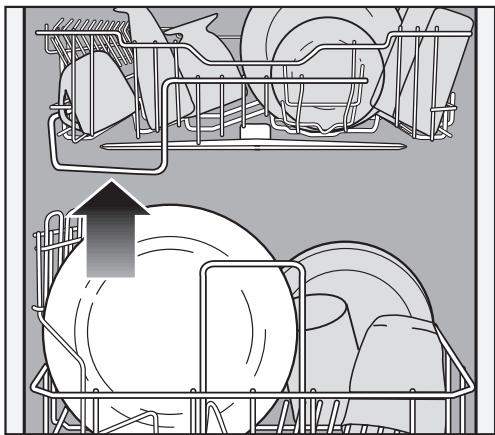

• The spray arms must not be blocked by items that are too tall or hang through the baskets. Check clearance by manually rotating the spray arms.
• Food residue and spilt liquids should be cleaned from the sides of the dishwasher door. These are outside of the wash cabinet and are not cleaned by water from the spray arms.

Items not recommended for dishwashing

• Cutlery with wooden handles.
• Wooden cutting boards.
• Glued items such as old knives with handles glued together around the shank of the blade.
• Hand made craft items, antique, metal trimmed or decorative glassware.
• Lead crystal.
  Copper, brass, tin or pewter.
• Plastic items that are not heat resistant.
• Dishes with color painted over the glaze. These dishes may fade over time.
  Cast iron pots and pans.

Glassware:

• There are no standard guidelines for washing glassware but, when in doubt wash by hand.
• Wash delicate glassware with a low temperature program and without the extended drying feature to reduce the risk of clouding. See the "Program guide".
• If crystal or delicate glasses will be washed frequently, connect the dishwasher to cold, rather than hot water.
• Clouding or etching may occur on glasses after frequent washing.
• When purchasing new dishes, glasses and cutlery, make sure they are dishwasher safe.

Silver and aluminum:

Silver or aluminum items may tarnish.
Silverware previously cleaned with a silver polish may be damp or spotted at the end of a program where water has adhered to the polish. This can be rubbed off with a soft, dry cloth. Silver that has been cleaned in an immersion dip is usually dry at the end of a program, but may tarnish.
- If left to dry, foods containing sulfur can discolor silver. These include egg yolk, onions, mayonnaise, mustard, legumes, fish, fish brine and marinades.
Silverware may tarnish or pit if washed next to stainless steel. Leave space between these metals.

Cutlery basket

For the best cleaning results, spoons and forks should be placed in the basket with handles down. Knives and other pointed objects can be loaded with their handles up to prevent injuries.

Place small spoons into the slots on either side of the cultery basket.

Cutlery tray (SC units)

The removable cutlery tray makes unloading flatware easy. Simply carry the cutlery tray to where the flatware is stored and put the entire basket away in one trip.

For easier unloading cutlery should be grouped in zones, one for knives, one for forks, one for spoons, etc.

Place knives with the cutting edge and forks with the prongs between the holders. Spoons should be placed in the opposite direction with the handles between the holders.

Longer items such as soup ladles, cake slices, mixing spoons and long knives should be placed lengthwise in the indentation of the cutlery tray.

Spoon heads should be placed in contact with at least one of the serrated retainers of the cutlery tray to ensure that water runs off freely.

Spoons with thick handles may have to be placed as knives and forks with their heads in the holders.

Upper basket

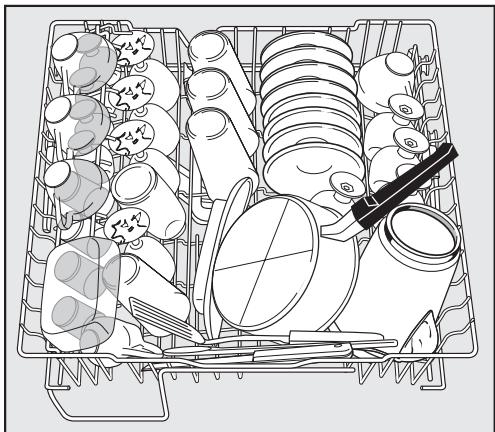

Adjusting the upper basket

On select models, the upper basket can be raised or lowered to accommodate tall items.

Slide out the upper basket.

Pull up the levers at the sides of the upper basket and adjust the basket height.
- Release the levers and the basket will lock in place.

The basket can also be angled to fit tall items in both, the lower and upper baskets. The angles should not be set to opposite extremes. This will block the middle spray arm. Take care when sliding the basket in and out in this position.

Load the upper basket with small, lightweight, or delicate items such as cups, saucers, glasses, dessert bowls and flat pans.

Long items such as soup ladles, mixing spoons and knives can be set across the front of the upper basket.

Adjustable cup racks

Raise the rack to make room for tall glasses. Lower it to double stack smaller pieces.

Coffee bar

To allow water to run off the bottom of coffee mugs, place slanted on top of the coffee bar. The bar can also be used to separate two rows of glasses. To stack wide items, flip the bar to the right.

Lower basket

For larger and heavier items such as plates, serving platters, sauce pans, bowls.

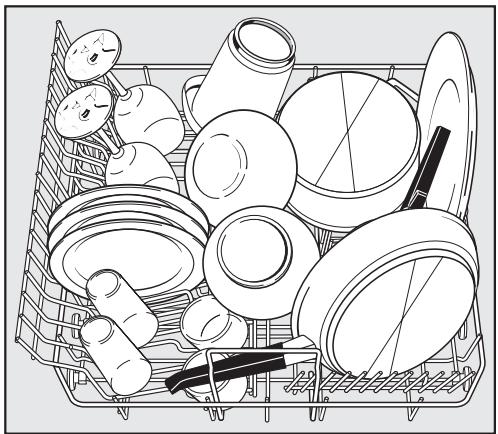

Dishwasher with cutlery tray

Dishwasher with cutlery basket

Height limit

The guide at the front of the upper basket determines the maximum height for items placed in the lower basket so that the middle spray arm is not blocked.

Various removable inserts are available for the lower basket to accomodate special items to be washed.

Removing an insert

To remove an insert, gently pull up on the handle.

Inserting an insert

Slid the hitches of the inset under the vertical struts of the lower basket.
Push down on the handle to snap the insert into position.

Foldable spike insert

A highly flexible design holds tableware securely. It can be folded out of the way for pots, pans and other large items.

This insert secures plates and platters.

Foldable spikes

Two rows of spikes can be folded down, to create more room for larger dishware e.g. pots, pans and bowls.

Press on the yellow levers, ①, to fold down the spikes, ②.

• Hook the foldable spike insert into the back right corner of the lower basket, the area marked in white.

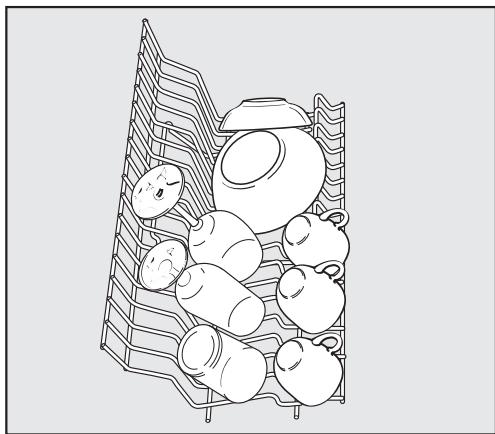

PlateGuard Plus insert

A unique design cradles plates at 3 points and can be used for washing cups, glasses, plates, bowls and pots.

• Hook the PlateGuard Plus insert into the left half of the lower basket, the area marked in white.

Additional inserts for the upper and lower baskets may be purchased from your Miele dealer or the Miele Technical Service Department.

Vase / Bottle holder	to wash milk or baby bottles attaches to the lower basket
Tall Glassware Insert	to wash a large number of glasses attaches to the lower basket
Lower Basket Cup Insert	to wash a large number of cups attaches to the lower basket
Large Diameter Plate Insert	to wash plates with a diameter up to 12 1/2" (32 cm) attaches to the lower basket
Mini Cutlery Basket	to wash additional cutlery for units with cutlery tray attaches to the lower basket
Plateguard Plus Cup Rack	to wash cups and stemware in the lower basket attaches to the Plateguard rack
Upper Basket Glassware Insert	to wash long stemmed glassware attaches to the upper basket

Adding detergent

Dishwasher detergents contain irritant and corrosive ingredients. Keep children away from detergent. Do not fill the detergent dispenser until you are ready to start the dishwasher.

Only use powder detergents or tablets formulated for residential dishwashers. The use of gel or liquid detergent is not recommended. Never fill the detergent dispenser to capacity. Do not use more than the recommended amount of detergent. Continued use of too much detergent may cause machine damage.

To open, press the latch on the detergent dispenser.

The horizontal marks in Compartment II indicate levels of approximately 1^1 / 4 , 1^3 / 4 and 2 tablespoons (20, 25 and 30 ml ) respectively.

• With the dishwasher door fully open fill compartment II with 2 tablespoon (30 ml) of powder detergent, or one detergent tablet.
• Close the cover. The cover will always open at the end of a wash program except in "Rinse & Hold".

2 tablespoon (30 ml) of detergent is enough for most normally soiled loads. For heavily soiled loads, or if food has dried on the dishes, a program containing a prewash cycle should be selected. Add an extra tablespoon (15 ml) of detergent to compartment I.

Less detergent is needed in homes with very soft water and when washing lightly soiled dishes.

Running the dishwasher

Make sure the spray arms are not blocked.
Close the door.
Turn on the dishwasher.

The "Start" (17) indicator will flash.

• Select a wash program by turning the program selector (16) to the left or right. Refer to the "Program guide" for details.
• Select "Top Solo" if desired. See "Additional features".
  Press the "Start" button (17).

The program will begin.

Do not end a program prematurely! Important program steps could be omitted (e. g. reactivating the water softener).

Waterproof System

All Miele dishwashers are specially designed to shut off the water intake and drain the wash cabinet in the rare event of an internal water valve failure.

For this feature to be active, the machine must be "On" (not necessarily running) and the door must be closed.

Program sequence indicator (14)

The current step of the program is indicated by one of the program sequence indicators (14).

At the end of a program

The "End" indicator will light when the program has finished.

• Turn the program selector (16) to "Stop".
  Turn off the dishwasher.
• Open the dishwasher door slightly to allow the dishes to cool before unloading.

It is advisable to turn off the water supply if the dishwasher will not be used for a period of time (e.g. while vacationing).

Interrupting a program

A program is interrupted as soon as the door is opened. If the door is closed, the program will continue from where it was interrupted.

Water in the dishwasher may be hot. There is a danger of being burned! Only open the door if absolutely necessary.

Changing a program

If a program is running:

Turn the program selector (16) to "Stop" for at least one second.
Turn the program selector (16) to the new program.
- Select "Top Solo" if desired (see "Additional features").
Press the "Start" (17) button to begin the wash program.

If a program has not started:

Turn on the program selector to the new program.
Press the "Start" (17) button to begin the wash program.

Program guide

Program	When to use	Program cycle
		Pre-wash 1 2	Main wash	Interim rinse 1 2	Final rinse	Dry-ing
Pots & Pans	for heavily soiled pots and pans with dried on food	X X	X	X -	X	X
	Main wash temperature 170 °F (75 °C)
	Run-time 128 min
Sani Wash	extended wash time	- X	X	X X	X	X
	for sanitizing normally soiled dishware with dried on food
	Main wash temperature 150 °F (65 °C)
	Run-time 142 min
Economy	energy saving program	- -	X	X -	X	X
	for normally soiled dishware
	Main wash temperature 130 °F (55 °C)
	Run-time 85 min
Energy Saver	for light to normally soiled dishware, only use, if the dishwasher is connected to hot water	X X	X	X -	X	X
	Run-time 65 min
Normal Plus	higher wash temperature helps to clean normally soiled dishware with stubborn dried on food or greasy residues	X X	X	X -	X	X
	Main wash temperature 150 °F (65 °C)
	Run-time 135 min
Normal 1)	for normal soiled dishware	X X	X	X -	X	X
	Main wash temperature 130 °F (55 °C)
	Run-time 118 min
China & Crystal ¥	"Gentle program" for lightly soiled and heat sensitive tableware	- X	X	X -	X	X
	Main wash temperature 115 °F (45 °C)
	Run-time 72 min
Rinse & Hold	for rinsing dishes when a complete cycle is not needed	- X	-	- -	-	-
	Run-time 11 min

1) Standard for Energy Label

When washing a full load in Pots & Pans, Sani Wash and the Normal programs use at least 2 tablespoons (30 ml) of detergent.

For the Pots & Pans program add an additional teaspoon (5 ml) to compartment I.

If "Top Solo" is selected, reduce the amount of detergent to 1^1 / 4 tablespoons (20ml)

Program times are based on a hot water connection. If the unit is connected to cold water, program times will increase by approximately 25 minutes.

Usage:

Electric 0.06 - 2.4 (kWh)

Water 1.3 - 6.3 US gallons (5 - 24 L)

Additional features

"Top Solo" (15)

Using "Top Solo" will save water and energy.

This program is recommended when there is only a small load to clean. "Top Solo" can be selected with all programs.

With this feature, water is directed only to the top and middle spray arms in the dishwasher. This means that the water jets are only aimed at items in the upper basket and the cutlery tray.

The middle spray arm also directs water downwards, so lightly soiled plates or platters can be placed in the lower basket.

When using this program, do not place pots, bowls or other hollow containers in the lower basket.

Because a smaller load is being washed the amount of detergent recommended can be reduced to 1 14 tablespoons.

Turn the dishwasher on using the "On/Off" (13) button.
The "Start" (17) indicator will flash.
Turn the program selector (16) to the left or right to the desired program.
Press the "Top Solo" (15) button.

The "Top Solo" (15) indicator will light.
Press the "Start" (17) button.

The program will begin.

Extended drying

If the desired drying results are not consistently achieved, the turbothermic cooling fan can be programmed to run an extra 14 minutes at the end of each program.

The "Extended drying" feature can also be activated to prevent condensation from collecting on the steam deflector.

Turning extended drying on/off

Turn off the dishwasher.
Turn the program selector to "Stop".
Press and hold the "Top Solo" button and at the same time turn the dishwasher on using the "On/Off" button. Release the "Top Solo" button within two seconds.

The "Salt" indicator will flash.

If the "Rinse aid" indicator comes on, the rinse aid dispenser needs to be refilled.

If any other indicator is lit or flashing, the above steps must be repeated.

Turn the program selector to the "9 o'clock" position.
If the "Top Solo" indicator is not lit: the extended drying time is off.
If the "Top Solo" indicator is lit: the extended drying time is on.
If the correct drying time is set:
Turn off the dishwasher.
If the drying time is incorrect:
Press the "Top Solo" button, to change the setting.
According to the previous setting the "Top Solo" indicator goes on or off.
Turn the program selector to "Stop".
The changed extended drying option is stored.
Turn off the dishwasher.

Frequently asked questions

With the aid of the following guide, minor problems can be fixed without a service call.

Repairs should only be carried out by a qualified and trained person in accordance with local and national safety regulations. Unauthorized repairs could cause personal injury or machine damage.

What if ...	Possible fault	Fix
the dishwasher does not start?	The door is not properly closed.	Close the door firmly.
	The machine is not plugged in.	Insert the plug.
	The fuse is defective or the breaker has tripped.	Reset the circuit breaker. Make sure it is a 15 A breaker.
the dishwasher does not start, after pressing the "Start" button and the "Start" indicator flashes?	The program selector is set to "Stop".	- Turn the program selector to the desired program. - Press the "Start" button.
the dishwasher stops during a program?	The fuse or breaker has tripped.	Reset the circuit breaker. Make sure it is a 15 A breaker.
the "Intake/Drain" indicator comes on during the "Energy Saver" program?	The intake water has not reached the required temperature of 115 °F/45 °C, the hot water system may be overloaded, see "Program guide".	- Start the program again. - If the indicator light comes on again, select a different program.
the "Intake/Drain" indicator is lit or flashing and the dishwasher may have stopped?	The water valve is closed.	Open the water valve.
	The filter in the water inlet is blocked.	See maintenance instructions.
	The flow pressure at the water inlet is less than 4.5 psi (0.3 bar).	Contact a plumber.
	The waterproof system has activated.	Call the Miele Technical Service Department.
the "Drain" indicator flashes and the program stops?	Water intake error.	- Turn off the dishwasher before fixing a problem. - Open the water valve. - Check and clean the water intake filter, see maintenance instructions. - The flow pressure at the water inlet is less than 4.5 psi (0.3 bar). Contact a plumber.
	Drain error, water left in the wash cabinet	- Turn off the dishwasher before fixing a problem. - Clean the triple filter, see maintenance instructions. - Clean the drain pump and the non-return valve, see maintenance instructions. - Remove any kinks in the drain hose.

Frequently asked questions

What if ...	Possible fault	Fix
the "End", "Start" and "Top Solo" indicators flash at the same time at the end of a program?	There may be a technical fault.	- Turn the program selector to "Stop". - Turn off the dishwasher. A few seconds later: - Turn the dishwasher on. - Select the desired program. - Press the "Start" button. If the indicators flash again, there is a technical problem. - Call the Miele Technical Service Department.
there is a knocking noise in the wash cabinet?	The spray arm is hitting an item in the basket.	Interrupt the program, rearrange items blocking the spray arms.
there is a rattling noise?	Items are not secure in the wash cabinet.	Interrupt the program and rearrange loose pieces.
there is a knocking noise in the water pipes?	This may be caused by the installation or the diameter of pipe.	This has no effect on the dishwasher. If in doubt contact a plumber.
the dishes are not dry, glasses and cutlery are spotted?	The rinse aid setting may be too low, or the rinse aid reservoir is empty.	Increase the dosage or refill the reservoir, see "Before using for the first time".
	Extended drying is not activated.	Activate the Extended drying feature.
	Dishes were taken out too soon.	Leave dishes in longer.
dishes are not clean?	The dishes were not loaded correctly.	See, "Loading the dish-washer".
	The program was not powerful enough.	Select a more intensive program see, "Program guide".
	Not enough detergent was dispensed.	Use more detergent, see, "Adding detergent".

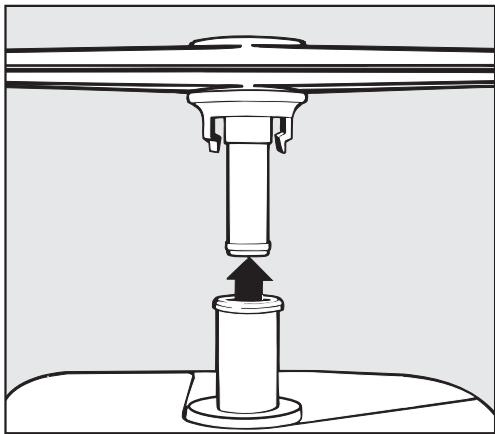

	The spray arm jets are clogged.	Clean the spray arm jets, see, maintenance instruc-tions.
	The triple filter is clogged or not correctly seated.	Clean and reseat the filter, see, maintenance instruc-tions.
tea or lipstick stains have not been completely removed?	The wash temperature of the selected program was too low.	Select a program with a higher temperature.
	Not enough detergent was used.	Use more detergent.
white residue is visible on cutlery and dishes, clouding occurs on glassware and film can be wiped off?	Not enough rinse aid was used.	Increase the dosage, see "Before using for the first time".
	The salt reservoir is empty.	Add reactivation salt, see "Before using for the first time".
	The salt reservoir cap was not correctly screwed on.	Reseat it making sure it screws back on correctly.
	The programmed setting of the water softener is too low.	Adjust the setting of the water softener, see "Be-fore using for the first time".
there is a bluish sheen on the surface of glasses and film can be wiped off?	The rinse aid dosage is set too high.	Reduce the dosage, see "Before using for the first time".
glasses are dull and dis-colored and film cannot be wiped off?	Glasses are not dish-washer safe.	There is no remedy. Only wash dishwasher safe glasses.

Frequently asked questions

What if ...	Possible fault	Fix
plastic items are discol-ored?	Natural dyes e. g. from vegetables may be the cause. Not enough deter- gent was used to break down natural dyes.	Use more detergent, see "Adding detergent". Discoloration is perma- nent.
there are rust stains on cutlery?	The salt reservoir cap was not screwed on properly.	Reseat and screw the cap on firmly.
	The affected items are not corrosion resistant.	There is no remedy. Only wash dishwasher safe cutlery.
detergent is left in the dispenser at the end of a program?	The dispenser was damp when detergent was added.	Dry the dispenser before adding detergent.
the detergent dispenser lid can not be closed properly?	Detergent residue is blocking the catch.	Remove the residue.
water remains in the wash cabinet at the end of a program?	The triple filter in the wash cabinet is clogged.	Clean the filter, see maintenance instruc- tions.
	The drain pump or the non-return valve may be blocked.	Clean the drain pump and the non-return valve, see maintenance instruc- tions.
	The drain hose is kinked.	Remove the kink.

In the event of a fault which you cannot correct yourself please contact:

• Your Miele Dealer

or

• The Miele Technical Service Department.

USA 1-800-999-1360

When contacting the Miele Technical Service Department, please quote the model and serial number of your appliance.

These can be found on the data plate on the upper inside edge of the dishwasher door.

Program update function - PC

The Program Correction (PC) allows a technician to update the dishwasher to make use of new technology.

For example, if a detergent with good wash results using only cold water becomes available, the wash programs can be modified to take advantage of this.

Transport

To transport the dishwasher, e. g. when moving to a new home, note the following:

• Empty the dishwasher.
• Secure any loose parts, e. g. hoses, cables, cutlery baskets.
• Transport the dishwasher in the upright position.

If unavoidable it may be transported on its back.

Do not transport it on its side or on the door. Residual water in the machine could leak and cause electrical damage.

User Maintenance Instructions

Triple filter system

The triple filter system in the base of the wash cabinet prevents food from being redeposited on dishes. It also protects the circulation pump from damage caused by foreign objects (e.g. broken glass, bones).

The filter system should be cleaned every 4 - 6 months or whenever a foreign object is trapped.

Cleaning the filter in the wash cabinet

Turn off the dishwasher before cleaning.
Turn the handle counterclockwise to release the triple filter system.

• Lift the filter out of the machine. Remove any solid particles and rinse under running water. Scrub with a nylon brush if necessary.

To clean the underside of the filter, the flap must be opened:

Pull back the yellow clip.
- Rinse all parts under running water. Scrub with a nylon brush if necessary.
- Close the flap so that the clip engages.

• Return the filter so it lies flat in the base of the wash cabinet.
  Lock the filter by turning the handle clockwise.

The dishwasher must not be used without the filter locked in place.

Cleaning the spray arms

Sometimes particles of food get stuck in the spray arm jets. The spray arms should be inspected and cleaned every 4 - 6 months.

Turn off the dishwasher before cleaning.
Remove the spray arms as follows:
Remove the cutlery tray (if present).
Press the top spray arm upwards to engage the inner ratchet and unscrew the spray arm.

• Lift up the middle spray arm, ①, to engage the ratchet and unscrew the spray arm, ②.

Remove the lower basket.

Pull the lower spray arm firmly upwards to remove.

Use a pointed object such as a toothpick to push food particles into the spray arm jets.
Rinse thoroughly under running water.
- Return the spray arms and check that they rotate freely.

Cleaning the wash cabinet

Generally, the wash cabinet is self cleaning if the correct amount of dishwasher detergent is used.

The wash cabinet can be cleaned with a dishwasher cleaner such as Dis Cleaner available from your Miele dealer or the Miele Technical Service Department.

Cleaning the door and door seal

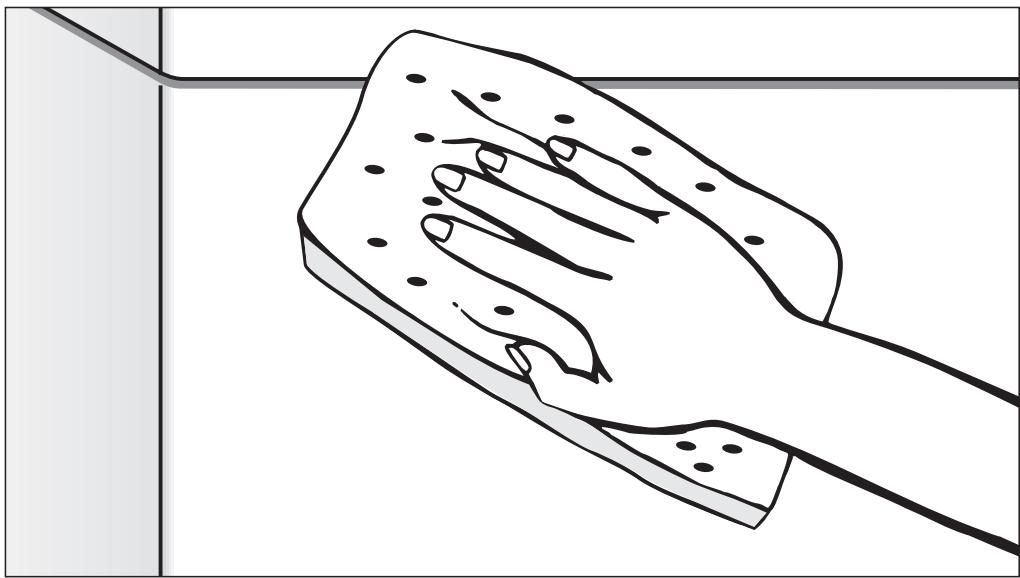

Wipe the door seal with a damp cloth to remove any food particles.
- Food residue and spilt liquids should be wiped from the sides of the dishwasher door. These are outside of the wash cabinet and are not cleaned by water from the spray arms.

Cleaning the exterior

Never use abrasive cleaners, scouring pads, steel wool or caustic (oven) cleaners on the dishwasher. They will damage the surface.

Plastic

All plastic surfaces and the control panel can be cleaned with warm water and liquid dish soap applied with a soft sponge.

Wipe dry using a soft cloth.

Do not use too much water when cleaning the controls. Water could penetrate into the electronics and cause damage.

Stainless steel

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner.

To help prevent resoiling, a conditioner for stainless steel can also be used. Apply sparingly with even pressure.

Stainless steel colored controls

These controls may become discolored or damaged if not cleaned regularly. Do not use a stainless steel cleaner on the knobs or buttons.

Wood

Panels made from wood should be cleaned using a soft damp cloth and an appropriate wood cleaner.

Cleaning the water inlet filter

A filter is incorporated in the intake hose attached to the dishwasher's shut off valve. If your water is hard, or the pipes contain sediment, this filter may clog and prevent enough water from entering the wash cabinet.

Installing an in-line water filter

If your water contains a large number of insoluble substances, a filter between the water valve and the intake hose connection is recommended. These filters can be purchased from Miele's Technical Service Department.

The plastic valve housing on the intake hose contains electrical components and should not be immersed, or run through water.

Cleaning the filter:

• Disconnect the dishwasher from electricity (unplug it or "trip" the circuit breaker).
  Turn off the water valve.
  Unscrew the intake hose.

Carefully remove the rubber seal.
Remove the filter using a needle nose plier and rinse under running water.
- Return the filter and seal. Make sure they are seated correctly.
Screw the intake hose back on the water valve, checking that it is not cross-threaded.
- Slowly turn on the valve and test for leaks.

Cleaning the drain pump and non-return valve

If the dishwasher is not completely drained at the end of a program, the drain pump or non-return valve may be blocked.

Turn off the dishwasher.
Remove the triple filter (see "Cleaning the filter in the wash cabinet").
Use a jug or bowl to scoop water out of the wash cabinet.

Tilt the locking clamp to the side.

Pull out the non-return valve and rinse well under running water.

The drain pump is beneath the non-return valve (see arrow).

Before returning the non-return valve, check that the drain pump is not blocked. Spin the propeller several times in both directions to check for obstructions.
- Carefully refit the non-return valve and secure it with the locking clamp.
■ Refit and lock the filter in place.

Miele, Inc. USA

National Headquarters

9 Independence Way

Princeton, NJ 08540

Phone: [phone]

609-419-9898

Fax: [phone]

www.mieleusa.com

Miele Limited CDN

National Headquarters

55G East Beaver Creek Road

Richmond Hill, ON L4B 1E5

Phone: [phone]

905-707-1171

Fax: [phone]

www.miele.ca

[e-mail] (general enquiries)

[e-mail] (tech.service)

Technical Service & Support

Nationwide

Phone: [phone]

Fax: [phone]

Mid-West Region

Phone: [phone]

Fax: [phone]

South-East Region

Phone: [phone]

Fax: [phone]

West-Coast Region

Phone: [phone]

Fax: [phone]

Technical Service & Support

Ontario Region

Phone: [phone]

Fax: [phone]

Quebec Region

Phone: [phone]

Fax: [phone]

British Columbia Region

Phone: [phone]

Fax: [phone]
