USER MANUAL CS-33S Super Ravanson

ENG User's manual Car Cooler

Line drawings of three different kitchen appliances: a portable box, a water heater with a lid, and a vacuum cleaner (no text or symbols present)

MODEL: CS-20S/CS-24S/CS-24S SUPER/ CS-25 S SUPER/ CS-28S SUPER/ CS-30S SUPER /CS-33S SUPER/CS-45S

Ravanson®

Ravanson Ltd. Sp. z o.o. ul. Mazowiecka 6, 09-100 Płońsk, Polska

tel.: [phone], fax: [phone]

www.ravanson.pl

Before first use, read thoroughly this operation manual. Please keep this operation manual in order to be able to use it at any time, because it contains important information.

Before first use, read carefully every warnings and safety instructions.

To reduce the risk of fire, electric shock or injury, it is necessary to follow the tips presented below.

Please keep this warnings and safety instructions in order to be able to future use.

SAFETY INSTRUCTIONS

GENERAL SAFETY

WARNING: To reduce the risk of fire, electric shock or injury, it is necessary to follow the tips presented below:

This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.

Children are not aware of dangers that may arise during the use of electric devices.

Device keep away from children.

Before every use, check the power cord for damage

Do not operate the appliance with a damaged cord.

Always disconnect the unit from the power source before removing accessories, before cleaning, after use and when the device is not working properly.

When removing the plug from an outlet, pull it out by the plug rather than the cord.

Do not allow the power cord to touch sharp edges or hot surfaces.

Damaged supply cable can cause electric shock.

Do not touch wet areas in contact with the plugged device. Unplug the device immediately.

You can not remove any part of the housing.

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

SAFETY DURING OPERATION

Before starting the device, insure that the plug and the cord were dry.

Do not place the device in close proximity to open flames or other heat source.

Do not use device in the rooms where gas or other volatile or inflammable substances can occur.

Do not insert any objects into the opening of the device's body.

Keep away from direct sunlight, humidity, raindrops and snowflakes.

Protect from humidity!

Do not submerge in water!

Use only in vertical position!

ATTENTION! Danger of overheating! Do not cover the ventilation hole. Please ensure proper device distance from walls and other objects to allow for the free circulation of air.

Do not fill liquid or ice directly inside the unit.

Protect device and power cord from heat and humidity.

NOTE!

The manufacturer is not liable for the use does not conform to specifications, or improper handling.

II. INTENDED USE

The device is designated for short-term storage of food cooled in the domestic refrigerator and for cooling drinks. The cooling system is based on the semi-conducting Peltier cells without the compressor and coolant.

ATTENTION!

The device is not designated for cooling warm or hot food!

NOTE!

The fridge cools food products to about 12 - 15°C below ambient temperature. The device is not a substitute of a domestic refrigerator.

The cooling temperature depends on multiple factors, e.g. ambient temperature, quantity of cooled products, products' temperature.

In favorable conditions, temperature decrease by 12 - 15°C below the ambient temperature may take place in about 2 hours of continuous operation. (min + 8°C)

ATTENTION!

The fridge with a heating function is not designated for heating products. It can be used solely for extending the cool-down time for products pre-heated in designated devices.

III. TECHNICAL PARAMETERS

Model	Voltage [V]	Nominal power consumption for cooling [W]	Nominal power consumption for heating [W]	Capacity [l]
CS-20S	12 V d.c.	45	-	20
CS-24S	12V d.c.	50	41	24
CS-24S Super	12V d.c.	50	41	24
	230V, 50Hz	60	56
CS-25S Super	12V d.c.	50	45	25
	230V, 50Hz	60	50
CS-30S Super	12V d.c.	50	42	30
	230V, 50 Hz	60	48
CS-28S Super	12V d.c	53	48	28
	230V, 50Hz	62	55
CS-33S SUPER	12 V d.c.	45	42	33
	220-240V	60	55
CS-45S	12V d.c.	55	50	45
	230V, 50Hz	62	55

IV. GENERAL GUIDELINES FOR USE

NOTE!

Before first use, clean the inside of the appliance by wiping with a slightly wet (not wet) cloth with mild detergent.

1. The fridge is not designated for continuous operation. Frost can accumulate on the aluminium radiator. Switch the fridge off after 6-day operating period. The device can be switched on again after 2 hours.
2. To prevent condensation, dry the surface of cooled meals and drinks thoroughly.
3. During operation (ref. 12V supply) ensure there is no recurring voltage interruption when the vehicle engine is switched on and off frequently.

ATTENTION!

When the fridge is powered by means of a vehicle battery, during stops it can discharge it significantly which can hinder vehicle engine activation.

NOTE!

Temperature change in the insulated fridge container (frequent opening or switching off) leads to natural phenomena in the form of frost or condensation on the container walls, on the cover inside and on the food products.

V. OPERATION

Place the refrigerator on a stable and level surface. Connect the power cord to the power source.

The fridge will start cooling or heating the internal chamber immediately.

ATTENTION!

After reaching the minimum/maximum temperature the device does not turn off automatically.

The cooling system operates continuously when it is connected to the power source and the function and power switches are in the work mode.

ADVICES TO ACHIEVE THE BEST COOLING PERFORMANCE:

• Choose a well ventilated place for the fridge. Protect against sunlight
  • Always put pre-cooled food/drinks in the fridge
• Do not open the refrigerator more than necessary
• Do not open for longer than is necessary

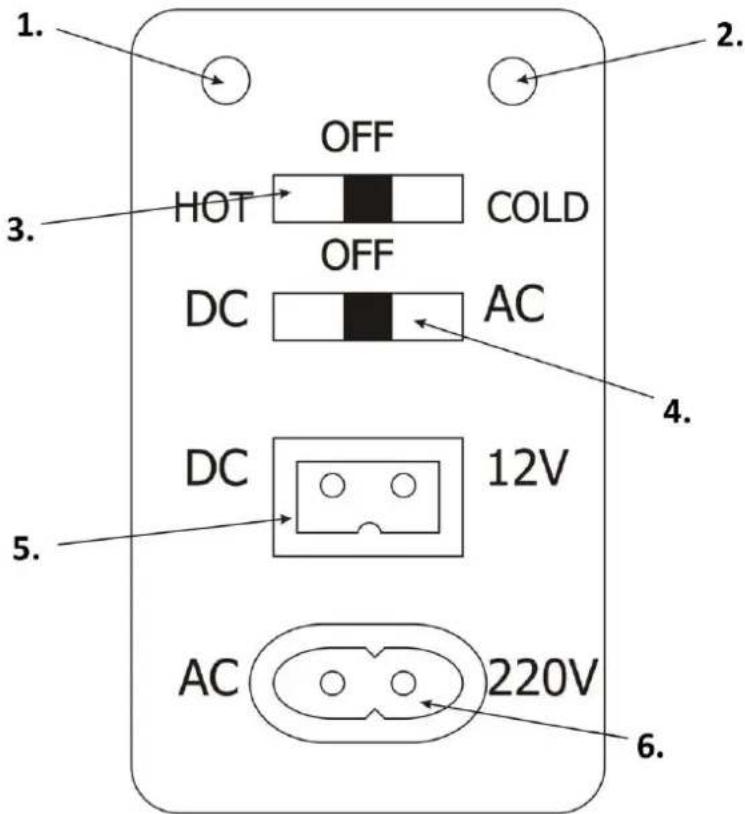

A. CONTROL PANEL

1. Cooling indicator
2. Heating indicator
3. Function switch
4. Power switch
5. Power port 12V (DC)
6. Power port 220-240V, 50Hz (AC)

NOTICE!

Depending on the fridge model, the control panels can differ.

B. POWER CONNECTION

ATTENTION!

CS-20S; CS-24S model can be powered ONLY from the vehicle lighter port (12V - DC)!

BEFORE CONNECTING:

1. Check if the FUNCTION SWITCH is in the "OFF" position
2. Check if the POWER SWITCH is in the "OFF" position

3. Connect the appropriate power cord, depending on the power source:
   a. From the vehicle lighter port 12V to the fridge port marked as "DC 12V" b. From the mains 220-240V to the fridge port marked as "AC 220V"

4. Put the POWER SWITCH in the position corresponding to the power source:

a. DC - power supply from the vehicle lighter port 12V
b. AC - from the mains 220-240V

1. Insert the plug to the power port

2. Using the FUNCTION SWITCH switch to the selected work mode ("COLD" for cooling and "HOT" for heating). The selected work position is indicated by a red LED for heating or by a green LED for cooling

The device can be switched off any time by putting the POWER SWITCH or FUNCTION SWITCH in the "OFF" position.

ATTENTION!

• Do not connect two power cables at the same time!
• Changing the power supply type with a switch during the device operation may damage the device and render the guarantee void.

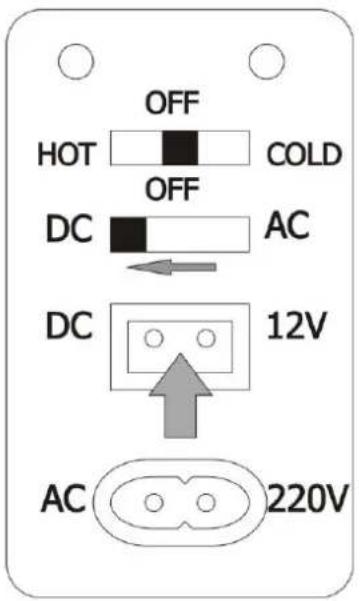

12V connection - power supply from the vehicle lighter port

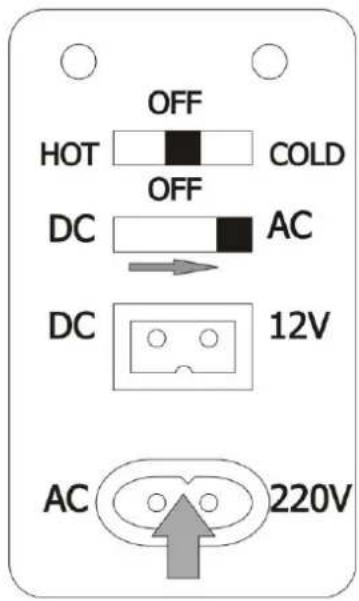

220-240V, 50Hz connection - mains power supply

C. SWITCHING THE WORK MODE

ATTENTION!

Do not switch the heating function (HOT) or cooling function (COLD) when the device operates!

Before you switch to the cooling function (COLD) from the heating function (HOT) or to the heating function (HOT) from the cooling function (COLD) you always should:

1. Switch the device off
2. Open the fridge for about 30 minutes to ensure equal temperatures
3. Switch the function and turn the device on

VI. CLEANING, MAINTENANCE, TRANSPORT AND STORAGE

ATTENTION!

1. Before any cleaning, disconnect the power cord from the outlet.
2. Never clean the device with running water.
3. clean the inside and outside of the appliance by wiping with a slightly wet (not wet), soft cloth with mild detergent. Do not use solvents, petrol, alcohol and other measures that would damage the device. For cleaning do not use harsh detergents.
4. Store out of reach of children. Protect against dust, humidity, and mechanical damage.
5. Transport in the original packaging. Protect against dust, humidity, and mechanical damage.

VII. POSSIBLE DISRUPTION

First ensure the operating instructions were followed for the fridge and then check:

• If the power cable is connected correctly and if the lighter operates as appropriate?
• If the POWER SWITCH is in the position corresponding to the power source?
- If the fridge is placed in a way ensuring unrestricted circulation of air and ventilation of the chilling unit?
- If the fuse in the power cable plug 12V is OK?
- If there is voltage in the power socket 220-240V?

If you are unable to remove any defects in operation, please contact the authorized warranty service.
