Presto - Grinder Eta - Free user manual and instructions

Product Type	Electric Food Slicer
Brand	Eta
Model	Presto (2094)
Dimensions (HxWxD)	245 x 352 x 288 mm
Weight	Approx. 4.3 kg
Voltage	230 V (typical, see type label)
Power Input	Shown on type label (typical ~150 W)
Slice Thickness Range	0 to 15 mm
Max Continuous Operating Time	5 minutes
Acoustic Noise Level	75 dB(A)
Power Cord Length	Approx. 1 m (estimated)
Cutting Knife	Round, removable with locking screw
Feeder	Removable with slider and food holder
Removable Tray	Yes
Control Panel	Main switch I/O, slice thickness knob with indicator scale
Material	Plastic body, stainless steel knife
Safety Features	Switch-off before adjustments, knife guard, non-slip feet
Cleaning	Wipe exterior with damp cloth; knife hand-washed; plastic parts dishwasher safe
Intended Use	Household only; slicing defrosted food only
Accessories Included	Feeder with slider, removable tray
Warranty	Standard manufacturer warranty (details in manual)

Frequently Asked Questions - Presto Eta

What is the maximum slice thickness?

The slice thickness can be adjusted from 0 to 15 mm using the knob on the side.

Can I slice frozen food?

No, only use the slicer for defrosted food. Frozen items can damage the blade.

How long can I use the slicer continuously?

The maximum continuous operating time is 5 minutes. Allow it to cool down before next use.

How do I clean the cutting knife?

Remove the knife by turning the locking screw. Wipe the edge with a damp cloth or paper towel. Do not wash in dishwasher as it removes grease.

Can I wash the plastic parts in the dishwasher?

Yes, the feeder slider and removable tray are dishwasher safe. Use a warm water with detergent.

What does the slice thickness indicator show?

The indicator has a reference scale from 0 to 15 mm to help you set the desired thickness.

Is the slicer safe to use?

Yes, but always switch off and unplug before cleaning or adjusting. Keep hands away from the moving blade; use the slider.

Can I slice bread or hard bakery products?

No, the slicer is not intended for dry, hard bakery products. It is for soft foods like cheese, ham, or salami.

How do I assemble the slicer?

Follow the diagram in the manual: attach the feeder and tray, then secure the knife with the nut. Refer to Fig. 1 in the manual.

What should I do if the power cord is damaged?

Do not use the appliance. Contact the manufacturer or a qualified service technician to replace the cord to avoid hazards.

USER MANUAL Presto Eta

Modern white electronic device with a circular top and tray, labeled 'eta' at the base (no visible text or symbols on the device itself)

Elektrický kráječ

eta 2094

Presto

NÁVOD K OBSLUZE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label corresponds with the voltage in your socket. The power cord plug may only be connected to the electrical socket complying with the applicable standards.

- This appliance must not be used by children. Keep the device and its supply cord out of reach of children. The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers. Children must not play with the appliance.

- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- Round knife is sharp. Care is needed when handling round knife, especially when removing the blades from its mount and during cleaning.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Never use the appliance if the power cord or power plug are damaged, if the appliance is not correctly operating or if it has fallen on the floor and been damaged, or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.

- CAUTION: Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- When the appliance is in operation, prevent pets, plants or insects from getting in contact with it.

- Do not plug the power cord in the electrical socket and do not unplug it with wet hands or by pulling the power cord!

• The appliance is intended for home use and for similar purposes (in shops, offices and similar sites, in hotels, motels and other residential premises, or in facilities providing bed and breakfast service). It is not intended for commercial use!
• This appliance is not intended for outdoor use.
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• Never leave the running appliance unattended and keep an eye on it during the whole process of food preparation!
  —Never immerse the appliance into water or wash it in running water!
• Use the appliance in the working position at places with no risk of turning over and in sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. heater, stove, etc.) and wet surfaces (e.g. sinks, wash-basins, etc.).
• Before plugging the appliance to power supply, always check whether the knife is attached properly.
• Never put fingers into the knife area or use e.g. a fork or a knife to do so. In order to move food towards the knife, always use the sliding plate with the attached pusher plate if possible, given the size or shape of foodstuff.
• Use the slicer only for slicing defrosted food! Do not use it for slicing dry, hard bakery products and bread, smoked meat with bones or meat with bones, fruit with hard stones, food packed in aluminium foil or plastic foil.
• Always switch off the slicer if you wish to set the slice thickness or take out the knife.
• Before taking out the food, let the rotating knife stop completely first. After switching the drive off, it runs down for a short time. After the operation, set the slice thickness regulator to position P.
• Do not exceed the maximum continuous operating time of the appliance, it's 5 min.
• Make sure that the power supply cable does not get in between the rotating parts of the appliance.
• Never put the power cord on hot surfaces and never let it hang over table edge or worktop edge. If the cord is caught or pulled, e.g. by children, the appliance may overturn and fall down, causing a serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• If you need to use an extension cord for justified reasons, it must be undamaged and comply with the applicable standards.
• Use only designated accessories enclosed. Using other types of accessories can present a risk for the operator.
• Only use this appliance for the purpose it was designed for, as specified in this manual. Never use the appliance for any other purpose.
• The producer does not undertake any responsibility for damage or injuries caused by improper use of the appliance and the accessories (e.g. food deterioration, injuries, cuts) and its guarantee does not cover the appliance in the case of failure to comply with the safety warnings above.

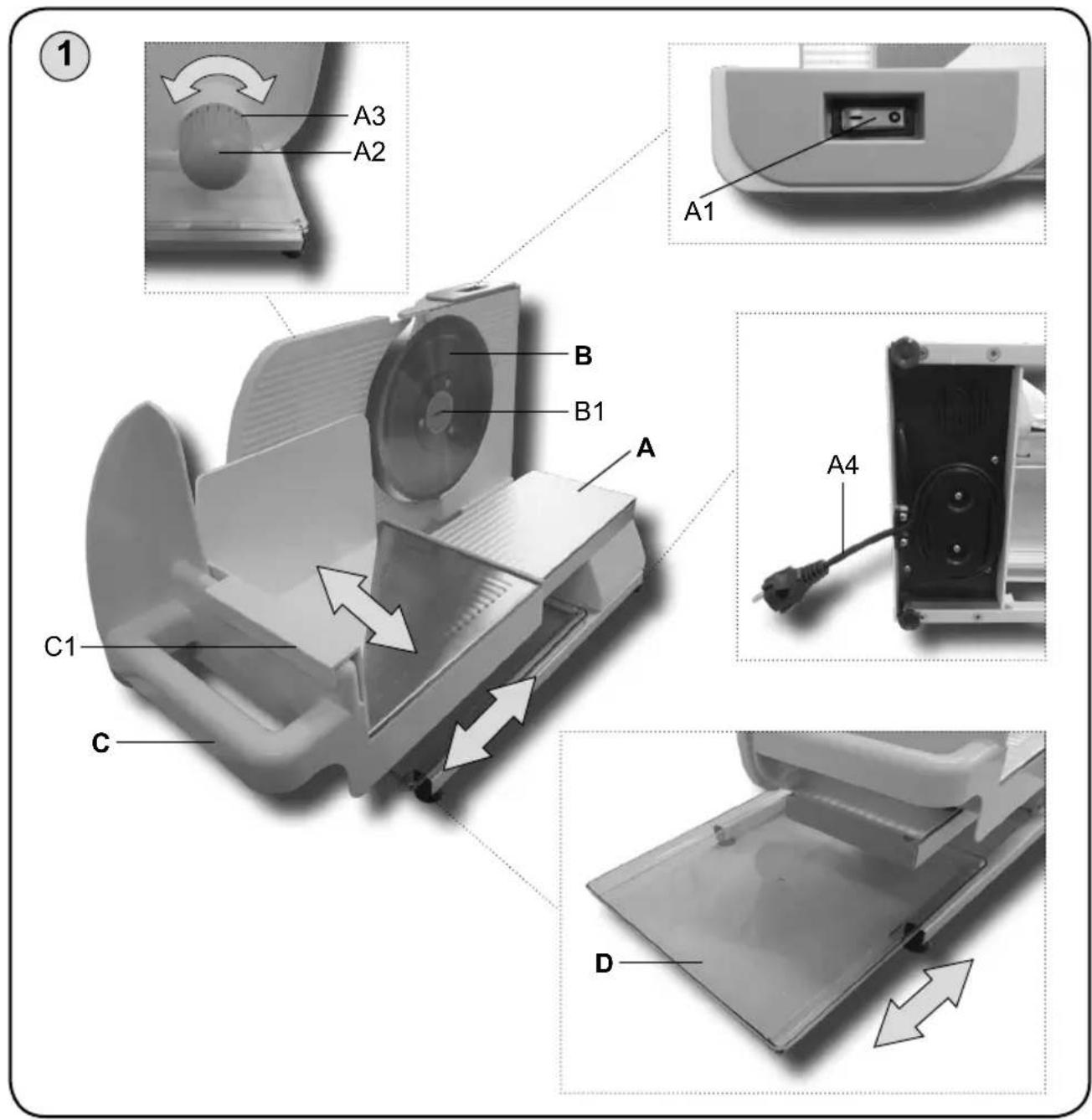

II. FEATURES OF THE DEVICE (Fig. 1)

A – slicer

A1 – main switch I/O

A2 – slice thickness knob

A3 - strip thickness indicator (reference scale)

A4 - power cord

B - cutting knife

B1 – nut

C – feeder

C1 – slider with food hold

D – removable tray

III. PREPARATION FOR USE

Remove all packaging material, remove the accessory. Remove all adhesive foils, stickers or paper from the appliance. Wash the parts which will come in contact with the food in hot water with soap before first use.

Appliance assembly

When assembling the appliance, follow the procedure indicated in Fig. 1. For disassembly proceed in reverse order.

IV. USING THE CUTTER

Switching the appliance on/off

Position "I" - appliance ON

Position "O" - appliance OFF

Setting the slice thickness

By turning the knob slightly to the left/right, you can set the slice thickness from 0 to 15 mm (see Fig. 1).

PROCEDURE FOR USE:

1. When assembled, place the slicer on a suitable and flat worktop with good surface adhesion.
2. Set the slice thickness as required.
3. Connect the slicer to the mains.
4. Put the required food in the feeder C, switch the slicer on and start slicing while applying slight pressure and moving smoothly.
5. When finished, switch the slicer off and unplug it from the mains.

Note

When slicing, we recommend that you keep turning the food as you go along.

Caution

The cutter can be used with the feeder without the slider C1. In such a case, pay extra care so as not to injure your hand or fingers!

Ingredient Recommended slice thickness of the cut food.

pastry, bread 10 mm
cheese, smoked goods (soft salami)	2 mm (wet the knife with cheese so that the slices do not stick)
smoked goods (ham, flitch) 2 mm
smoked goods (dry-hard salami. 2 mm)	mm

V. MAINTENANCE

To clean the surface of the slicer and power cord, use a wet cloth. Do not use rough and abrasive cleaning agents (e.g. sharp objects, scrapers, diluents or other dissolvents)!

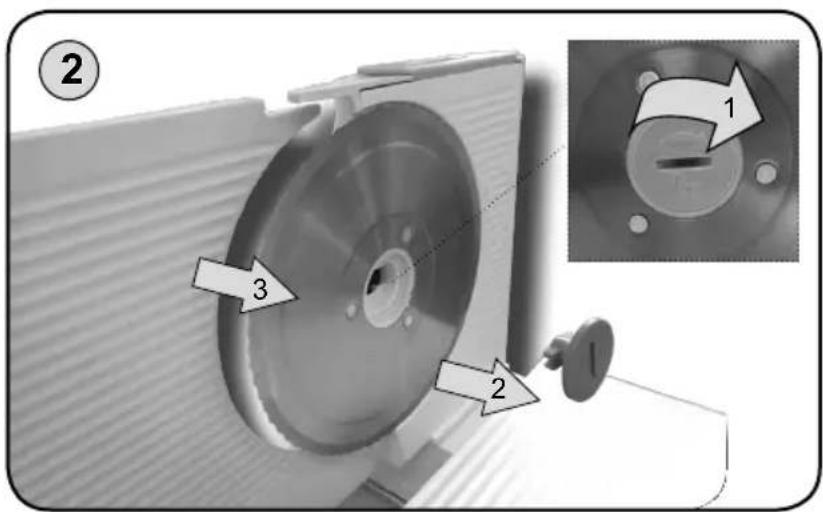

Taking out and cleaning the knife (Fig. 2)

Turn the locking screw in the direction of the arrow as far as it goes. Release it from its position by slight pressure on the knife from the opposite side and after that take the knife out of the slicer. Do not wash the knife in a washing bath as the grease would be removed from it. Only wipe the outer edge by wet cloth or paper towel. Be very careful when cleaning the slicing knife! Ensure that the cutting edges of the knife do not come in contact with hard objects which make them blunt and thus reduce their efficiency. Clean the area behind the slicing knife by a soft brush or wet cloth. Attach the knife back after cleaning and fasten it properly the other way round.

Plastic parts

Rinse the plastic parts (C1, D) in warm water with detergent (or use a dish-washer).

VI. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal of the product, hand it over at special collection places where it will be received free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

VII. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Input (W) shown on the type label of the appliance

Slicing regulation (mm) 0-15

Weight (kg) approx. 4.3

Size of the product (mm) 352 x 288 x 245

Input in off mode is < 0,50 W.

Acoustic noise level of 75 dB(A) re 1pW

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.

release this way
