MAIN FEATURES AND FUNCTIONS

• Part of the Vibell video intercom system
- 7" high resolution colour LCD screen
• Ultra-slim, hands-free monitor
- Touch screen panel
- OSD menu in Polish and English
- Memory module
- Slot for external SD card
• DVR monitoring function (recording of video sequences)
- Answering machine function
- Alarm clock and timer
- Intercom function with additional monitor
- 7 ringtones to choose from
- Adjustment of brightness, color and volume of ringing and calling
- Expandable with additional video door entry cameras and CCTV cameras
- Allows you to hold a conversation with a person at the entrance and simultaneous observation on a monitor screen
- Remote control of an electric door strike (not supplied) and an automatic gate control unit

1 2 3 4 5 6

NrLp.Functional description
1Loudspeaker
2LCD
3IndicatorPower indicator
4ButtonEntry to main menu
5MicroSD card slot
6Microphone

1. Port 2 external panel connection

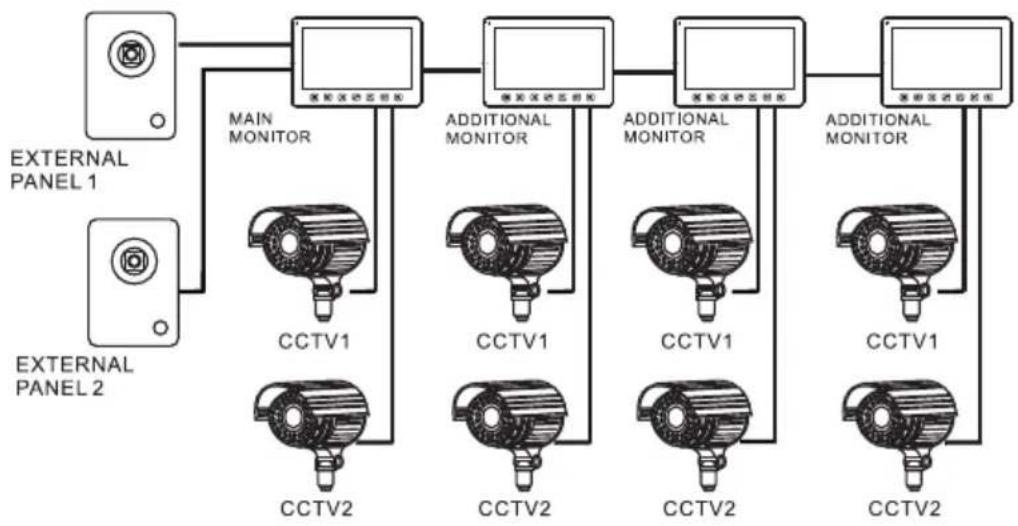

The system can support up to 1 main monitor, 3 additional monitors, 2 external panels with camera and 8 CCTV cameras.

2. Port 2 connection of CCTV cameras

The system can support up to 1 main monitor, 1 external panel with camera, 9 CCTV cameras and 3 additional monitors.

While designing the wiring system, take into account the suitable cross-section of cables:

up to 30 m - recommended cable XzTKMXpw 3 x 2 x 0.5 mm 2

from 30 m to 100 m - recommended cable XzTKMXpw 3 x 2 x 0.8 mm 2

The connection to the electromagnetic lock should be made with 2 x 1 mm 2 .

The set is compatible with any electric door strike with voltage of 12V DC (not included).

Electric strike with voltage of 12VDC and current consumption up to 450mA (not included) does not require additional power supply. When connecting, keep the correct polarity as shown in the diagram!

The total length of the installation must not exceed 100 meters.

The use of twisted-pair cables is absolutely not recommended.

Wiring diagram 1


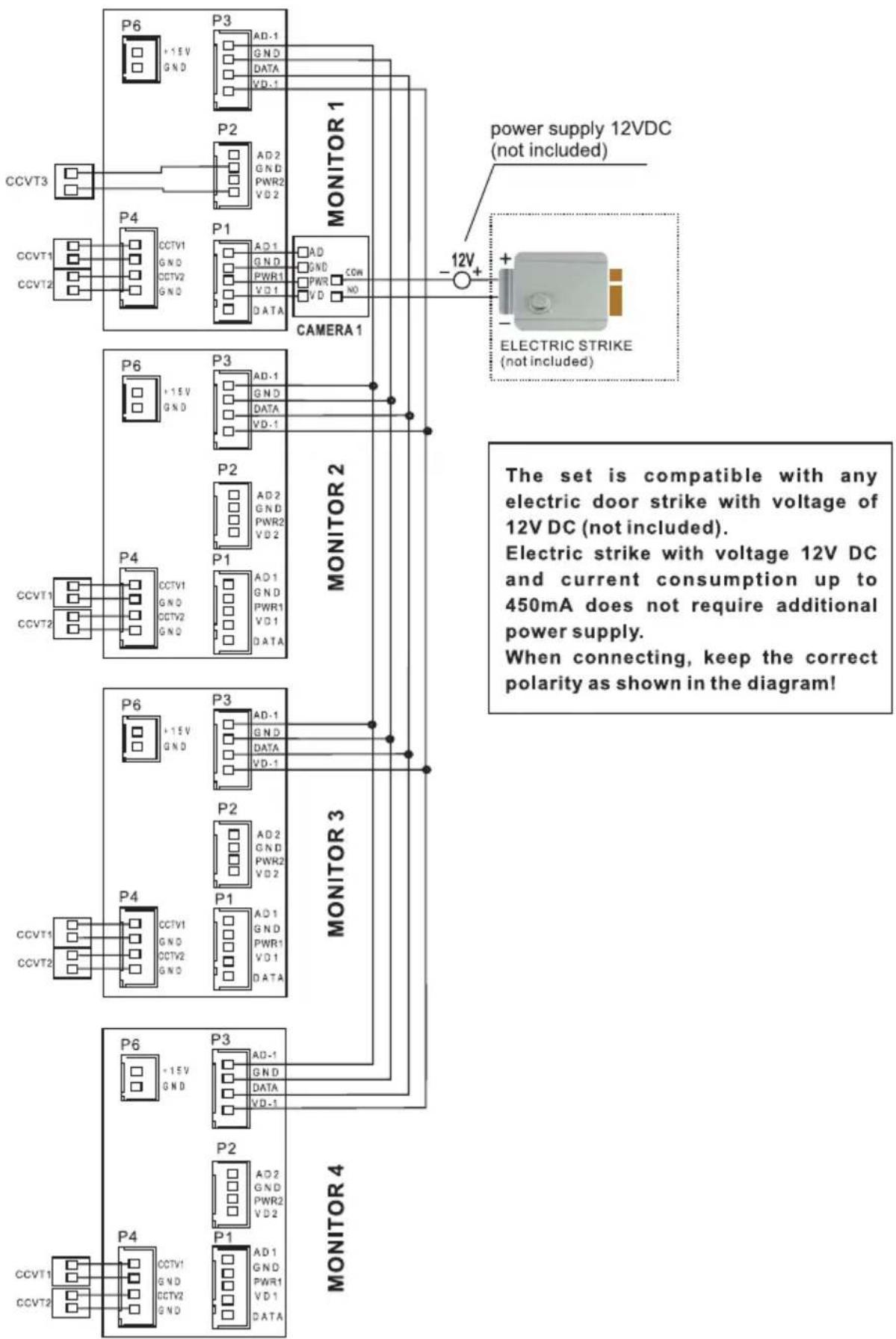

Wiring diagram 2

MOUNTING

  1. Specify the mounting position of the monitor:
  2. Suggested height 1.5\~1.6 metres;
  3. Detach the mounting frame from the back of the monitor.
  4. Mount the frame on the wall.
  5. Connect the wiring as shown in the wiring diagram.
  6. Attach the monitor to the mounting bracket.
  7. After installing the external panel, connect the power supply.

150cm

Before drilling holes it is recommended to test the operation of the device. For this purpose connect the device according to the wiring diagram. After a thorough check, proceed to making mounting holes after switching off the power supply.

CABLE SPECIFICATIONS

Video intercom cables should not be laid in one cable with cables of other installations e.g. doorbell, alarm etc. Any power and telecommunication cables emitting strong magnetic fields (e.g. loudspeakers, TV set) in direct contact with the wires connecting the external panel with the monitor may adversely affect the set's operation.

AD1 GND PWR1 VD1 DATA Czernown Niebieski Zúhy Bály 1 2 3 4 MONITOR EXTERNAL PANEL WITH CAMERA 1 Red 2 Blue 3 Yellow 4 AD GND PWR VD

Notes: Refer to the manual of the outdoor panel OR-VID-EX-1057KV, OR-VID-EX-1061KV, OR-VID-EX-1062KV, OR-VID-EX-1063KV for a detailed wiring diagram of the electric door strike.

OPERATION

ORNO OR-VID-EX-1060PMV - OPERATION - 1

In standby mode, touch the button on the monitor panel ☐ to enter the main menu. To close the menu, swipe to the left.

ORNO OR-VID-EX-1060PMV - OPERATION - 2Browse/delete saved imagesIf there are new/unviewed photos, NO will appear in the right corner.
ORNO OR-VID-EX-1060PMV - OPERATION - 3Review/delete saved moviesIf there are new/unwatched videos, NO will appear in the right corner.
ORNO OR-VID-EX-1060PMV - OPERATION - 4Browse/delete DVR files
ORNO OR-VID-EX-1060PMV - OPERATION - 5Browse/delete files stored on the Micro SD card
ORNO OR-VID-EX-1060PMV - OPERATION - 6Browse/delete recorded audio filesChange the message signalIf there are new/unwatched audio files, NO will appear in the right corner.
ORNO OR-VID-EX-1060PMV - OPERATION - 7Record audio files

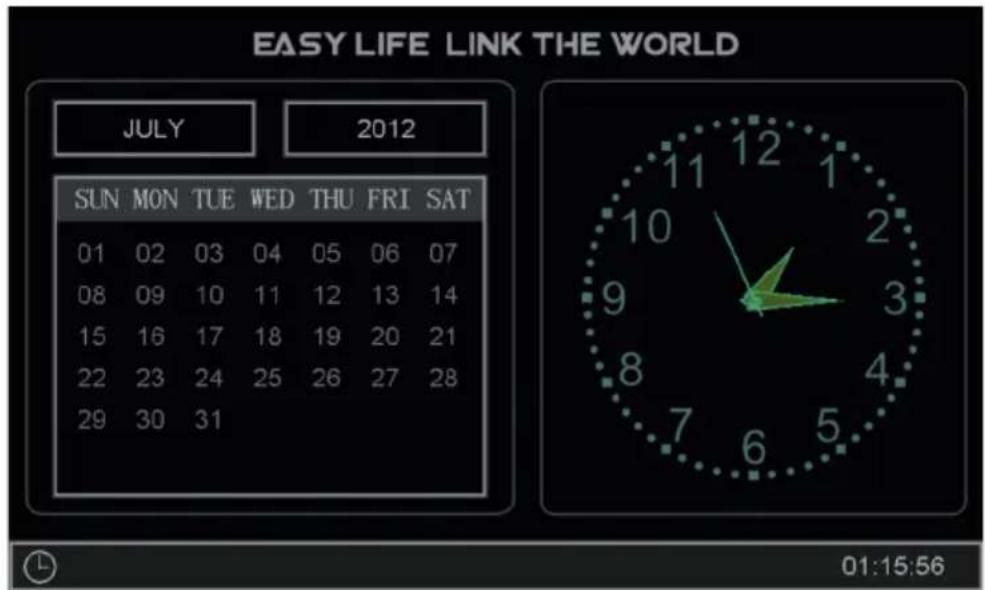

ORNO OR-VID-EX-1060PMV - OPERATION - 8CalendarDisplays date, day and time
ORNO OR-VID-EX-1060PMV - OPERATION - 9External panel viewEnter monitoring mode of external panel
ORNO OR-VID-EX-1060PMV - OPERATION - 10Call transferEnter call transfer mode
ORNO OR-VID-EX-1060PMV - OPERATION - 11AnnouncementTransmission to other monitors
ORNO OR-VID-EX-1060PMV - OPERATION - 12ListeningEnter listening mode
ORNO OR-VID-EX-1060PMV - OPERATION - 13System settingsEnter system settings

OPERATION MENU

The system supports 5 different activities:

  1. Clicking: clicking on any empty point on the screen will display the operation menu. To hide the menu, click again.
  2. Move left: Move left to return to the previous menu
  3. Move right: Hide menu in multimedia user panel / view next image.
  4. Move up: in the system settings, moves to the last page.
  5. Move down: in the system settings it moves to the last page.

If the monitor is in monitoring or talk mode the following menu will appear on the right hand side of the screen:

Descr iconsORNO OR-VID-EX-1060PMV - OPERATION MENU - 1RecordingORNO OR-VID-EX-1060PMV - OPERATION MENU - 2Call endingORNO OR-VID-EX-1060PMV - OPERATION MENU - 3Call/Transfer connectionORNO OR-VID-EX-1060PMV - OPERATION MENU - 4Switching monitorORNO OR-VID-EX-1060PMV - OPERATION MENU - 5Monitor parameters adjustmentORNO OR-VID-EX-1060PMV - OPERATION MENU - 6Image capturingORNO OR-VID-EX-1060PMV - OPERATION MENU - 7SaveORNO OR-VID-EX-1060PMV - OPERATION MENU - 8Unlock

Receiving incoming calls

Pressing the call button on the external panel will cause all connected monitors to emit a ringing tone and the LCD screen will display the message "CALL COMING".

Touch icon 📋 to start a call (call duration is 60 seconds) If you want to remotely unlock the door, tap the icon 📋. The message DOOR OPENING appears on the screen 1. If you want to open the gate remotely, touch the icon 📋.

  1. If a new call is received during the call, the message GUEST AT THE DOOR 2 will be displayed. To go to the second call, touch the icon 📁.

  2. While talking to a guest, you can transfer calls to other monitors in the system.

If you want to transfer the call to another person, click the 📋.

(The message TRANSFER TO OTHER ROOMS will appear on the screen).

Volume level adjustment

In call/intercom mode, click the icon 📁 to enter the volume control menu, then click + or - to adjust the volume.

Brightness/color/contrast adjustment

When the screen is turned on, tap the icon 📄 to adjust the volume first,

and then click on the icon again to enter the adjustment menu BRIGHT/COLOR/CONT, click + or - to adjust brightness, colour and contrast.

Monitoring - control of external panels or CCTV cameras

In standby mode, tap on the monitor □□□ to enter the main system menu, and then tap the icon. You can display images from the connected outdoor panel and CCTV cameras.

ORNO OR-VID-EX-1060PMV - Monitoring - control of external panels or CCTV cameras - 1

While monitoring the outdoor panel, you can mute the bell microphone. To do this, tap the icon If the microphone is in normal mode, click 📄 to open the door.

ORNO OR-VID-EX-1060PMV - Monitoring - control of external panels or CCTV cameras - 2

If the system is extended with additional monitors (maximum 4), the following operations can be performed.

Intercom functions

In monitor standby mode, touch ☐☐☐ to enter the main system menu and then tap the icon to activate the function. If you have more than 2 monitors connected to each other you can select the NR of the target monitor on the screen.

ORNO OR-VID-EX-1060PMV - Intercom functions - 1

Transmitting function

This function allows information to be transmitted to all monitors in the house.

In standby mode touch 📁 to enter the main system menu, then tap the icon

The screen will show SEND REQUEST and the other monitors will show SEND. You can now start transmitting.

Sound monitoring

To activate the function enter the main system menu by touching □□□, then tap the icon ▼.

If you have more than 2 internal monitors connected, you can click the NR of the target monitor on the screen.

Important:

a: In audio monitoring mode, the user can listen to the sounds in the monitored room, but the persons in the room being monitored will not hear the monitoring person's voice.

b: The audio monitoring function is only available when the MAY BE MONITORED on the desired monitor has been enabled. Check the system menu to see how to activate the MAY BE MONITORED function.

Image capturing

  1. Automatic image capture: "Automatic capture quality" should be set to 1, 2 or 3 in SYSTEM SETTINGS. The system will automatically take and save pictures when a visitor rings the doorbell.

  2. Manual image capture: In talk and monitoring mode, tap the icon, to capture an image manually. The screen displays the IMAGE CAPTURED.

Auto DVR function

To activate the function, enter the main system menu by tapping ☐☐☐, then touch the icon

ORNO OR-VID-EX-1060PMV - Auto DVR function - 1

It is possible to record video images from the camera of an external panel or CCTV camera at a preset time.

Important:

(a) DVR function does not record sound.
(b) To fully utilise the DVR function, an 8G microSD card must be connected.
(c) To obtain a high quality video image, please select the resolution: 640* 480.
(d) If you set a start date and an end date at the same time, the DVR function will start immediately within 24 hours and remain permanently on.

VIDEO manual recording

In call or monitoring mode, touch the icon 📋 to record the image manually.

Tap the icon again 📄 to complete the registration.

Answering machine

This function allows your guests to leave a voice message when no one is home. Activate the AUTOMATIC LEAVING OF VOICE MESSAGE function in the SYSTEM SETTINGS menu before leaving the house. After the guest presses the call button on the external panel and no one answers before the bell signal ends, the guest will hear the message "Good morning, no one is in home at the moment, please leave a message after the signal" and the guest will have 20 seconds to record their message.

Changing the answering machine message

If you want to change the answering machine message in the system menu, press the 📄 and register your voice message.

Then exit the current function and press the icon 📋.

The screen will display the recorded AUDIO files as shown in Figure 1.

AUDIO 28-07- 2012 14:22:30 ? 28-07- 2012 14:22:24 ? 28-07- 2012 14:22:20 ? 28-07- 2012 14:22:14 ? 28-07- 2012 13:30:40 ?

fig. 1

Touch the audio file you want to set as the start signal and then touch the icon (Signal setting) to enter the "ALARM TONE SETTING" menu. ALARM TONE" as in Fig. 2

ORNO OR-VID-EX-1060PMV - Changing the answering machine message - 2

ALARM TONE SETTING ALARM TONE SYSTEM TONE TON PLAY STARTING TONE ALARM TONE VOLUME 05 EXIT MAKE

fig. 2

To change the ALARM TYPE option, touch the SYSTEM TONE or USER TONE icon.

PLAY TONE: you can set a separate welcome message and a separate goodbye message by clicking: STARTING TONE or ENDING TONE

To change the message volume set the ALARM TONE VOLUME from 01 to 10 by clicking the desired value.

To confirm the settings touch MAKE or to cancel touch EXIT.

Alarm clock and electronic calendar

.1. Settings of the TIMER should be made in the main menu in the SYSTEM SETTINGS.
2. When the alarm clock is activated, you can turn it off by clicking the bell icon in the upper left corner of the screen.
3. When the image as shown in figure 3 appears on the screen, click on the clock in the left corner of the screen and the time displayed in the right corner, then set the appropriate parameters.

EASY LIFE LINK THE WORLD JULY 2012 SUN MON TUE WED THU FRI SAT 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 11 12 10 2 9 3 8 4 7 6 5 01:15:56

fig. 3

View photos, videos, DVRs and media files

In standby mode press to go to the main system menu. The number of unviewed files is displayed as a red icon in the right-hand corner of the screen. The file names consist of the date and time the file was created, for example 01-02-2012 11:30:20 means the file was created at 11:30:20, 1 January 2012. This makes it easy for you to check the save time and file names.

  1. Photo preview:

Touch icon 📄 to access the list of photo files, then click on the desired file.

Click ⇔ or → to view your photos.

The images will change automatically every 5 seconds.

If you want to leave the image gallery, click the icon to return to the previous menu.

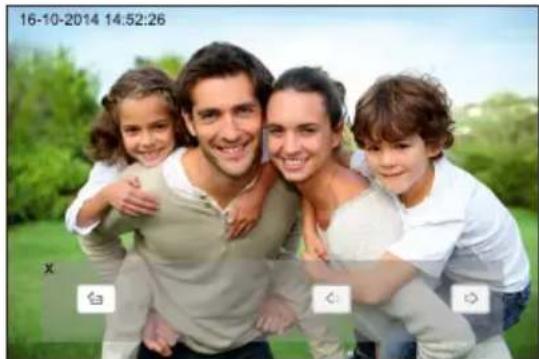

Family photo of four smiling adults and two children outdoors, with greenery and date stamp overlay (no readable text in image)

fig. 4

  1. Video preview:

Touch icon ☐ to access the list of photo files, then click on the desired file.

To play the video click on the appropriate icon,

to exit click

16-10-2014 14:52:26 X ← KI D M I - I +

fig. 5

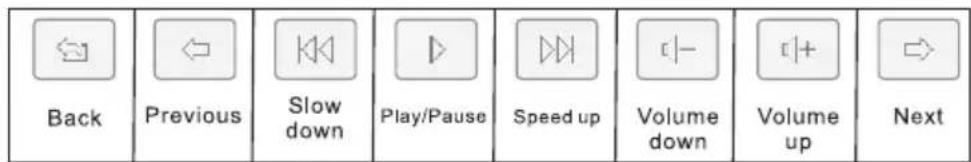

Back Previous Slow down Play/Pause Speed up Volume down Volume up Next

  1. Play from DVR:

Touch icon 📋 to access DVR files. Follow the same procedure as for playing video files (video preview).

  1. Browse multimedia files:

Touch icon 📋 to access to view media files.

By following the steps as above, you can view image files and play music (photo preview).

Important:

If a microSD card has not been installed in the unit, you can view images stored in the monitor's internal memory.

Deleting single files and folders

If you want to delete a file or folder, select the file or folder to delete from the list and then click and then DELETE to confirm or EXIT to cancel.

IMPORTANT

You can delete image, audio or DVR files in the same way.

ARE YOU SURE TO DELETE THE FILES? EXIT DELETE

fig. 6

Image capturing, video recording and DVR parameters

Image capturing function

Memory placeResolutionImage quality
Internal flash memory320x240More than 64 pieces
External microSD card640x480Depends on microSD card capacity

Video recording function

MicroSD card capacityResolutionFPS
1G320x2402
2G320x2405
4G320x24010
>8G640x48010

DVR function

MicroSD card capacityResolutionFPSVideo recording time
<2GNo DVR function
2G320x2401Over 24 hours
4G320x2401, 2, 5After setting the frame rate to 1 - more than48 hours
8G320x2401, 2, 5, 10After setting the frame rate to 1 - more than96 hours
>16G320x240 or 640x4801, 2, 5, 10After setting the frame rate to 1 and resolution 320x240 - more than192 hours

Important: (a) Video recording time will vary depending on the material being recorded (In the worst case, a 2G card can record 28 hours of video at 320*240 resolution and 1 frame per second; in the best case, over 72 hours of video can be recorded).

(b) JIf system users save the system audio in their own language, we suggest that the save time should not exceed 20 seconds; otherwise the files may be deleted when formatting the microSD card.

System settings

After entering the main system menu, click in Figures 7, 8, 9.

ORNO OR-VID-EX-1060PMV - System settings - 1

to enter the system settings menu as shown

SYSTEM SETTINGS CALL TIME 30S CALL VOLUME 50% RINGING TONE TYPE DO NOT DISTURB MONITORING PLAY KEY SOUND ICON NAME NUMBER OF AUTOMATIC CAPTURES COPY FILES TO SD CARD

fig. 7

SYSTEM SETTINGS DVR SETTINGS AUTOMATIC MESSAGE LEAVING DEVICE ADRESS PORT STATUS SYSTEM TIME SETTINGS ALARM TIME SETTINGS SYSTEM FORMATTING SOFTWARE VERSION BACKGROUND SETTING

fig. 8

SYSTEM SETTINGS RESTORE DEFAULT LANGUAGE POLSKI

fig. 9

No.Setting itemsOptionsNotes
1-1RINGING DURATION10S/15S/20S/25S/30S/35S/40S/45S/50S/55S/60SRinging time
1-2RINGING VOLUME LEVEL10~100%
1-3RINGING TYPEDOOR 1 RING TYPE DOOR 2 RING TYPE INTERCOM RING TYPE00-07
BACK TO TONEThe ringing tone will be repeated if the option is
1-4DO NOT DISTURBORNO OR-VID-EX-1060PMV - System settings - 5The internal monitor will be muted when someone presses the ringer/answers an internal call/starts a transmission
No.Setting itemsOptionsNotes
1-5MONITORINGORNO OR-VID-EX-1060PMV - System settings - 6
1-6PLAY KEY SOUNDORNO OR-VID-EX-1060PMV - System settings - 7
1-7ICONS NAMEORNO OR-VID-EX-1060PMV - System settings - 8No icon name is displayed on the screen
Icon's names are displayed on the screen
1-8AMOUNT OF AUTOMATIC CAPTUREORNO OR-VID-EX-1060PMV - System settings - 9Do not capture images automatically
ORNO OR-VID-EX-1060PMV - System settings - 10Automatic capture of 1 image
ORNO OR-VID-EX-1060PMV - System settings - 11Automatic capture of images
1-9COPYING FILES TO SD CARD
ORNO OR-VID-EX-1060PMV - System settings - 12ON
2-1RECORDER SETTINGSREG2ZAISOR TY
SORNO OR-VID-EX-1060PMV - System settings - 13IEDVR starts recording
EDVR ends recording
NUMICAGES
RESOLUTION
SCREENSAVER TIME
RECORDING SOURCE

ORNO OR-VID-EX-1060PMV - System settings - 14

No.Setting itemsOptionsNotes
2-1-1RECORDER ONORNO OR-VID-EX-1060PMV - System settings - 15DVR will start recording at START TIME
ORNO OR-VID-EX-1060PMV - System settings - 16
2-1-2MOTION SENSOR SENSITIVITYORNO OR-VID-EX-1060PMV - System settings - 17Indicates the sensitivity for starting the motion detector
ORNO OR-VID-EX-1060PMV - System settings - 18
ORNO OR-VID-EX-1060PMV - System settings - 19
ORNO OR-VID-EX-1060PMV - System settings - 20
2-1-3START TIMEHOORNO OR-VID-EX-1060PMV - System settings - 21
2-1-4END TIMEHOORNO OR-VID-EX-1060PMV - System settings - 22
2-1-5NUMBER OF CAGES1/2ORNO OR-VID-EX-1060PMV - System settings - 23Depends on MicroSD card capacity
2-1-6RESOLUTIONORNO OR-VID-EX-1060PMV - System settings - 24Depends on MicroSD card capacity
ORNO OR-VID-EX-1060PMV - System settings - 25
2-1-7RECORDING SOURCEORNO OR-VID-EX-1060PMV - System settings - 26
DOORNO OR-VID-EX-1060PMV - System settings - 27
CAMORNO OR-VID-EX-1060PMV - System settings - 28
CAMORNO OR-VID-EX-1060PMV - System settings - 29
2-1-8SCREENSAVER TIMENEVIORNO OR-VID-EX-1060PMV - System settings - 30After the set time, the screen will switch off
05/10ORNO OR-VID-EX-1060PMV - System settings - 31
40/4ORNO OR-VID-EX-1060PMV - System settings - 32
2-2AUTOMATIC MESSAGE LEAVINGORNO OR-VID-EX-1060PMV - System settings - 33
ORNO OR-VID-EX-1060PMV - System settings - 34
2-3DEVICE ADRESSRCORNO OR-VID-EX-1060PMV - System settings - 35If the same addresses are set, this option will be displayed in red
2-4STATUS PORTPOIORNO OR-VID-EX-1060PMV - System settings - 36
DOOORNO OR-VID-EX-1060PMV - System settings - 37
(ORNO OR-VID-EX-1060PMV - System settings - 38
(ORNO OR-VID-EX-1060PMV - System settings - 39
2-5SYSTEM TIME SETTINGSDATE:DAY-MONTH-YEAR
TIME:HOUR:MINUTE:SECOND
2-6ALARM TIME SETTINGSALARM TIME11. Each alarm clock can be set independently2. From the set time, the alarm will sound every 50 seconds until the alarm clock is switched off in the menu00-07
ALARM TIME 2
ALARM TIME 3
ALARM TIME 3
ALARM TIME 4
ALARM TIME 5
ALARM TIME 6
RING TYPE
2-6-1ALARM TIMESTATUS
ORNO OR-VID-EX-1060PMV - System settings - 40
ORNO OR-VID-EX-1060PMV - System settings - 41
CYCLE MODEThere are 4 cycles available:SINGLE/WEEK/MONTH/YEAR
CHOICE OF WEEKWorks only with week type
TIME
DATE
2-6-1-1STATUSORNO OR-VID-EX-1060PMV - System settings - 42
ORNO OR-VID-EX-1060PMV - System settings - 43The alarm will sound at the set time
No.Setting itemsOptionsNotes
2-6-1-2CYCLE MODESINGLE
WEEK
MONTH
YEAR
2-6-1-3CHOICE OF WEEKSUNDAYYou can set the status for each day by using on/off to create an alarm group
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
2-6-1-4TIMEHOUR: MINUTE
2-6-1-5DATEYEAR-MONTHDAYIn single mode, YEAR, MONTH, DAY options are active; in Week mode, all options are inactive; in Month mode, only the Day option is active; in Year mode, only MONTH and DAY option are active
2-7SYSTEM FORMATTINGERASING FLASH MEMORY
DELETING
2-8SOFTWARE VERSION
2-9BACKGROUND SETTINGIMAGE1: COLOR1/2/3/4/5/6/7
3-1RESTORE DEFAULT
RESTORE
3-2LANGUAGEPOLISH, ENGLISH, RUSSIAN

OR-VID-EX-1060PMV

Configuration of gate control settings

Turn the power off, turn the power back on after 30 seconds, and quickly touch and hold your finger in the centre of the display (matrix). When the message appears: "Please set the system time" remove your finger from the display, touch and hold the □□□, until the advanced settings menu appears on the screen.

UNLOCKING TIME - electric strike opening time (factory setting 05 S change to 08S)

MONITOR UNLOCKING - function used in multi-location systems

GATE CONTROL IMPULSE - factory set as closed (concealed), after connecting the gate control unit it is possible to change the opening time to 0.2 seconds or more.

Extension of the unlocking mode:

for video cameras VIBELL set 2

To exit Advanced Settings press the Main Menu button, your settings will be saved.

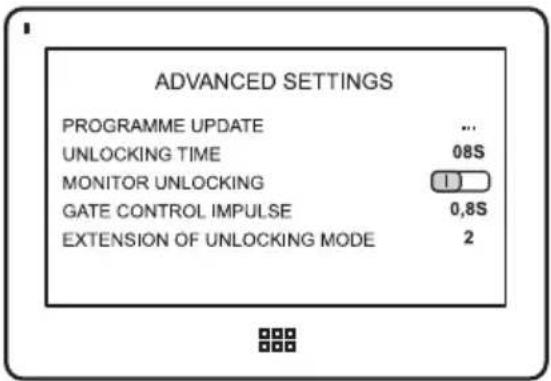

ADVANCED SETTINGS PROGRAMME UPDATE ... UNLOCKING TIME 08S MONITOR UNLOCKING 1) GATE CONTROL IMPULSE 0.8S EXTENSION OF UNLOCKING MODE 2

PROBLEM SOLVING

1. No sound or vision

a) no supply voltage,

b) broken or incorrectly connected monitor.

2. Unclear picture

a) check and adjust settings.

a) the connection cable has a cross-section not suited to its length,
b) connection too long - use shielded cable,
c) bad quality of cable,
d) strong source of electromagnetic interference - use shielded cable.

4. Audio on the monitor is coupling

a) check your installation against the technical requirements,
b) check that the installation is not exposed to water and moisture etc.

5. Electric strike does not open every time

a) check the independent operation of the electric door strike.

6. Scratched monitor

a) check that the protective film is removed from the screen.

Power source15V DC
Power consumption9W max., 1W (standby)
Working temperature0°C to +50°C
Humidity0% to 95%
Display panel7"
Intercom functionHands-free
Wiring4-wires
Dimensions185x127.5x18mm
Weight0.385kg

PRODUCER

ORNO-LOGISTIC Sp. z o.o.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ORNO

Model : OR-VID-EX-1060PMV

Category : Intercom
