| Product Type | Video Intercom System |
| Brand | ORNO |
| Model | OR-VID-WI-1068/B |
| Monitor Dimensions | 130 x 90 x 20 mm |
| Camera Dimensions | 50 x 30 x 20 mm |
| Weight (Monitor) | 200 g |
| Weight (Camera) | 100 g |
| Power Supply | 12V DC, 1A |
| Display Type | Color TFT LCD |
| Display Size | 7 inches |
| Camera Resolution | 720p HD |
| Night Vision | Infrared LEDs, up to 5m |
| Audio | Two-way full duplex |
| Door Unlock | Electric strike support |
| Intercom Function | Internal communication between units |

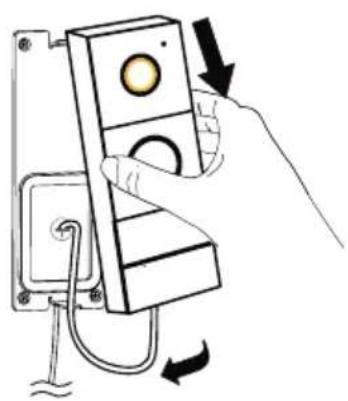

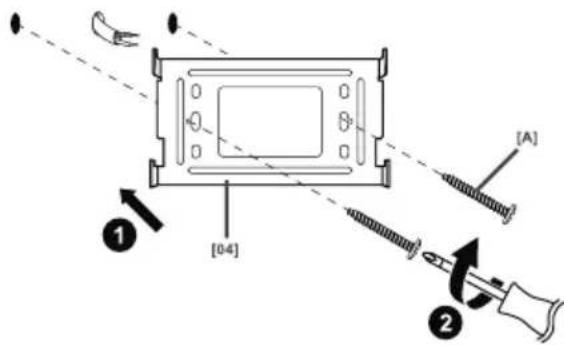

| Mounting | Wall-mounted (monitor), surface-mounted (camera) |
| Connectivity | Wired (RJ45 or screw terminals) |
| Operating Temperature | -10°C to 50°C |
| Protection Rating (Camera) | IP54 (weatherproof) |
| Maintenance | Clean with a soft, dry cloth; do not use solvents |
| Safety | Low voltage, SELV compliant |
| Spare Parts & Repairability | Contact ORNO customer service for spare parts; device designed for professional repair |
Frequently Asked Questions - OR-VID-WI-1068/B ORNO
How do I reset the OR-VID-WI-1068/B intercom?
To reset, disconnect the power supply for 10 seconds, then reconnect. For factory reset, press and hold the reset button (using a pin) for 5 seconds.

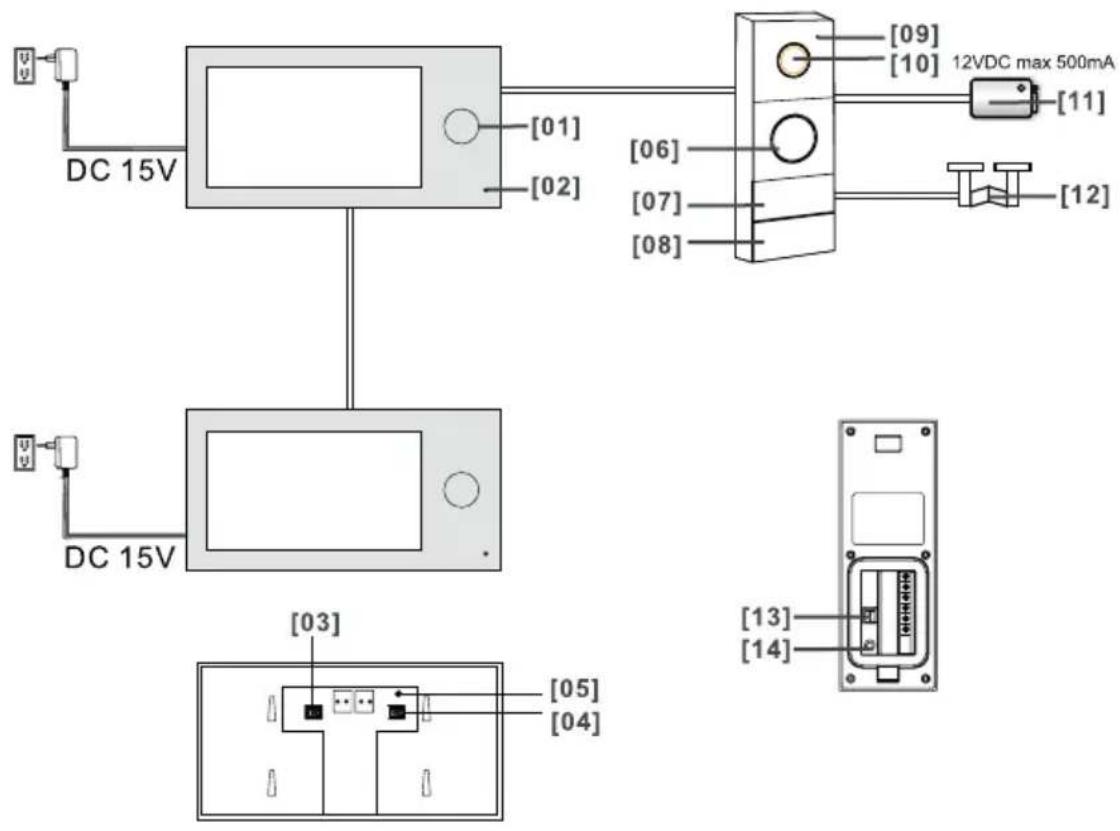

Can I connect multiple monitors to one camera?
Yes, the system supports up to 2 monitors. Refer to the manual for wiring configuration.
What is the maximum cable length between camera and monitor?
Using recommended 4-core cable, the maximum distance is 50 meters.
How do I adjust the volume on the monitor?
Press the volume up/down buttons on the side of the monitor during a call.
Does the camera work at night?
Yes, it has infrared night vision with a range of up to 5 meters.
Can I use the intercom with a smart lock?
The intercom can trigger an electric strike lock (12V). It is not compatible with smart locks directly without additional relays.

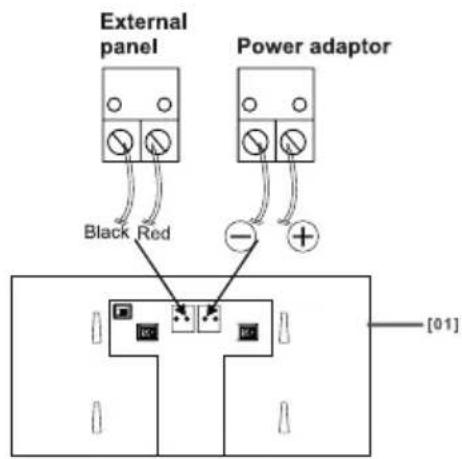

What type of wiring is required?
Use a 4-core or 6-core cable (0.5 mm² minimum). For video, use a coaxial cable if longer distances.
How do I clean the monitor screen?
Use a soft, lint-free cloth slightly dampened with water. Do not use alcohol or abrasive cleaners.
Is the camera weatherproof?
The camera has an IP54 rating, meaning it is protected against dust and water splashes.
Where can I find the user manual?
The manual is available for download on the ORNO website or via the notice-facile.com page for this model.
