Product Type	LED Panel, Recessed
Model	ZV2112
Power Consumption	6 W
Light Color	Neutral white or Warm white (selectable)
Luminous Flux	500 lm
Dimensions	75 x 75 x 20 mm (Length x Width x Height)
Ceiling Cut-Out	55 mm diameter
Input Voltage	220-240 V AC, 50/60 Hz
Lifespan	30,000 hours
IP Rating	IP65 (suitable for indoor and outdoor use)
Installation	Recessed mounting on solid base, fixed mounting only
Energy Efficiency Class	E
LED Replaceable	No (integrated LED chips)
Cover Material	Not specified; replace broken cover immediately
Wiring	Fixed wiring, connection to mains by authorized person
Safety Warning	Disconnect power before servicing; do not modify inner wiring
Standards Compliance	EU Directive, Declaration of Conformity at emos.eu

Frequently Asked Questions - ZV2112 Emos

How do I install the Emos ZV2112 LED panel?

Mount the lamp firmly onto a solid base such as a ceiling or wall. The installation must be carried out by an authorized person. Ensure the power is disconnected before installation. Connect the power cord to 230 V mains following the wiring diagram.

What is the correct ceiling cut-out size for the ZV2112?

The required ceiling cut-out diameter is 55 mm. The panel dimensions are 75x75 mm, so the cut-out must be precisely 55 mm to fit the recessed housing.

Can the ZV2112 be used outdoors?

Yes, the luminaire has an IP65 rating, meaning it is dust-tight and protected against water jets. It is suitable for both indoor and outdoor use, but must be mounted on a solid base.

Is the LED light source replaceable?

No, the LED chips are integrated and not replaceable. If the LEDs fail, the entire luminaire must be replaced.

Can I dim the ZV2112 LED panel?

The manual does not specify dimming capability. It is likely a non-dimmable model. Check the product specifications or contact Emos for confirmation.

What should I do if the cover is broken?

Discontinue use immediately and replace the broken cover with a new one. Do not operate the luminaire with a damaged cover to avoid electric shock or injury.

How do I clean the LED panel?

Disconnect the power before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or water directly on the fixture.

What is the lifespan of the ZV2112?

The LED panel has a rated lifespan of 30,000 hours, which is approximately 10 years with typical daily use of 8 hours.

Does the ZV2112 require any special wiring?

No special wiring is needed. Connect to a standard 220-240 V AC, 50/60 Hz mains supply. The installation must be done by a qualified electrician and the luminaire must be connected to a properly protected electrical distribution network.

What is the energy efficiency class of this product?

The ZV2112 has an energy efficiency class of E.
Do not dispose of the luminaire with household waste. Recycle it at designated collection points.

USER MANUAL ZV2112 Emos

Line drawing of a frying pan with a handle and a hanging object above it (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

1.

Simple line drawing of a circuit board with wires and components (no text or symbols)

ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular base and spring attached, above a flat base (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical or electrical component with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

Mounting

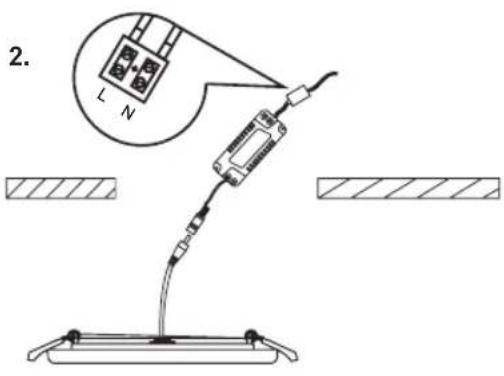

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
