ZV2122 - Light Emos - Free user manual and instructions

Product Type	Recessed LED Panel Light
Model	ZV2122
Brand	Emos
Order Code	ZV2122
Power Consumption	7.5 W
Light Color	Neutral White
Luminous Flux	650 lm
Dimensions	100 × 100 × 20 mm
Ceiling Cut-out	80 mm
Input Voltage	220-240 V AC, 50/60 Hz
Life Span	30,000 hours
IP Rating	IP65 (suitable for indoor and outdoor use)
Energy Efficiency Class	E
LED Replaceable	No (non-replaceable LED chips)
Mounting	Fixed mounting on solid base (ceiling/wall)
Cover with Insulation	Not suitable
Safety	Disconnect from AC before servicing; installation by authorized person only
Application	Indoor and outdoor (IP65) recessed installation

Frequently Asked Questions - ZV2122 Emos

How do I install the Emos ZV2122 LED panel?

Mount the lamp firmly onto a solid base (ceiling or wall). Connect the power cord to mains 220-240 V AC. Ensure the connecting conductor is not connected to mains during installation. Only an authorized person should perform the installation.

Can the ZV2122 be used outdoors?

Yes, it has an IP65 rating, making it suitable for both indoor and outdoor use. However, it must be installed in a recessed manner and not covered with insulation material.

Is the light dimmable?

No, the manual does not mention dimming capability. It is likely not dimmable. Check the product specifications or contact Emos for confirmation.

Can I replace the LED chip if it fails?

No, the LED chips inside the luminaire are non-replaceable. If the light fails, the entire unit must be replaced.

What is the color temperature of the neutral white?

The manual specifies 'Neutral White' but does not give a Kelvin value. Typical neutral white is around 4000K. Refer to the product packaging for exact specifications.

How do I clean the Emos ZV2122?

Before cleaning, disconnect the luminaire from AC power. Use a dry or slightly damp cloth. Do not use abrasive cleaners or immerse in water.

Can I cover the light with insulation material?

No, the manual states 'This luminaire is not suitable for covering with insulation material.' Keep insulation away to prevent overheating.

What is the cut-out size required for installation?

The ceiling cut-out diameter is 80 mm. Ensure the hole is exactly this size for proper fitting.

Does the ZV2122 come with a warranty?

The manual does not specify warranty details. Typically, Emos products have a standard warranty. Contact the retailer or Emos for warranty information.

Is the light energy efficient?

Yes, it has an energy efficiency class E (EU scale). With 7.5 W producing 650 lm, it is efficient for its size.

USER MANUAL ZV2122 Emos

Line drawing of a frying pan with a handle and a hanging object above it (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

1.

Simple line drawing of a circuit board with wires and components (no text or symbols)

ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular base and spring attached, above a flat base (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical or electrical component with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

Mounting

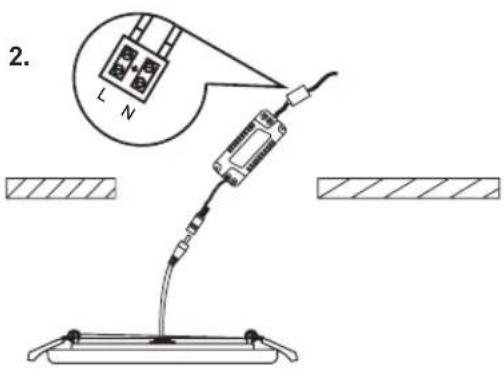

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
