Product Type	LED Panel, Recessed
Brand	Emos
Model	ZV2142
Power Consumption	13.5 W
Light Color	Neutral White
Luminous Flux	1250 lm
Dimensions (L × W × H)	155 × 155 × 20 mm
Ceiling Cut-out	135 mm
Input Voltage	220–240 V AC, 50/60 Hz
Lifespan	30,000 h
Ingress Protection	IP65
Energy Efficiency Class	E
Mounting Type	Recessed
Suitable for Insulation Cover	No
LED Replaceable	No
Connection	Fixed wiring to mains
Usage Location	Indoor and Outdoor (IP65)
Installation	By authorized person only
Disposal	Do not dispose with domestic waste; use collection points
Compliance	EU Directives; CE marked

Frequently Asked Questions - ZV2142 Emos

What is the installation procedure for the Emos ZV2142?

Mount the lamp firmly onto a solid base, such as a wall or ceiling. Connect the power cord to the mains (220–240 V AC, 50/60 Hz). Ensure the connecting conductor is not connected to the mains during installation. This operation must be carried out only by an authorized person.

Can the Emos ZV2142 be used outdoors?

Yes, it has an IP65 rating, making it suitable for both indoor and outdoor use. However, it should not be covered with insulation material.

Is the LED light source replaceable?

No, the LED chips inside the luminaire are not replaceable. If the light fails, the entire unit must be replaced.

What are the dimensions and cut-out size?

The panel dimensions are 155 × 155 × 20 mm, and the required ceiling cut-out is 135 mm (square).

Does the Emos ZV2142 support dimming?

The manual does not specify dimming capability. Typically, this model is non-dimmable unless stated otherwise. Always check the product packaging or consult the manufacturer.

What is the energy efficiency class of this luminaire?

This product contains a light source of energy efficiency class E.

How should I dispose of the Emos ZV2142?

Do not dispose of it with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points to prevent environmental harm.

What is the lifespan of the LED panel?

The rated lifespan is 30,000 hours.

Can the panel be covered with insulation material?

No, this luminaire is not suitable for covering with insulation material.

What safety precautions should be taken?

Before any manipulation or servicing, disconnect the luminaire from AC power. Do not use if any part is damaged. Do not change the inner wiring. If the cover is broken, replace it immediately. Installation must be performed by an authorized person.

USER MANUAL ZV2142 Emos

Line drawing of a frying pan with a handle and a hanging object above it (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

1.

Simple line drawing of a circuit board with wires and components (no text or symbols)

ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular base and spring attached, above a flat base (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

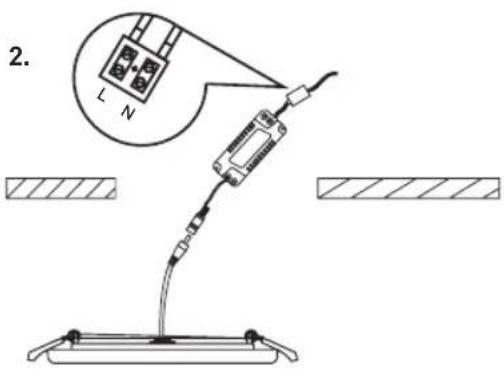

Mounting

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
