ZV1152 - Light Emos - Free user manual and instructions

Product Type	Recessed LED Panel
Model	ZV1152
Power Consumption	19 W
Light Color	Neutral white
Luminous Flux	1700 lm
Dimensions	185 × 20 mm (diameter × height)
Ceiling Cut-out	165 mm
Input Voltage	220–240 V AC, 50/60 Hz
Life Span	30,000 h
Energy Efficiency Class	E
IP Rating	IP65 (indoor and outdoor use)
Mounting	Fixed mounting on solid base (wall or ceiling)
Insulation Cover	Not suitable for covering with insulation material
LED Replaceable	No (integrated LED)
Wiring	Must be connected by authorized person only
Compliance	EU Directive, CE mark
Disposal	Do not dispose with domestic waste; use collection points

Frequently Asked Questions - ZV1152 Emos

What is the power consumption of the Emos ZV1152?

The Emos ZV1152 consumes 19 W.

What is the light output and color temperature?

It provides 1700 lumens of neutral white light.

What are the dimensions and cut-out requirements?

The panel is 185 mm in diameter and 20 mm high. The required ceiling cut-out is 165 mm.

What voltage and frequency does it require?

It operates on 220-240 V AC at 50/60 Hz.

Is this light suitable for outdoor use?

Yes, it has an IP65 rating, making it suitable for both indoor and outdoor use.

Can the LED be replaced?

No, the LED chips are integrated and not replaceable. The entire luminaire must be replaced if it fails.

How should the luminaire be installed?

It must be mounted on a solid base (wall or ceiling) and connected to mains by an authorized person. Disconnect power before installation.

Can the light be covered with insulation?

No, this luminaire is not suitable for covering with insulation material.

What is the expected lifespan?

The lifespan is 30,000 hours.

How should I dispose of this product?

Do not dispose with household waste. Use special collection points for electronic waste to prevent environmental harm.

USER MANUAL ZV1152 Emos

Line drawing of a frying pan with a handle and a hanging object above it (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

1.

Simple line drawing of a circuit board with wires and components (no text or symbols)

ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular base and spring attached, above a flat base (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

Mounting

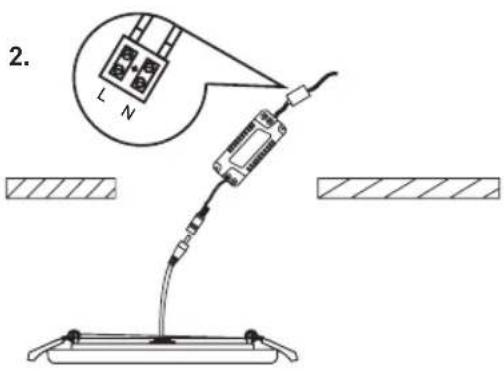

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
