Product Type	LED Recessed Panel Light
Brand	Emos
Model	ZD1322
Color Temperature	4000 K (Cool White)
Input Voltage	220-240 V AC, 50/60 Hz
Power Consumption	13 W
Luminous Flux	1000 lm
Lifespan	25,000 hours
Ceiling Cut-out Diameter	130 mm
Dimensions	∅148 × 38 mm
Ingress Protection	IP20 (indoor use only)
Mounting Type	Recessed on solid base
Light Source	Integrated LED (non-replaceable)
Dimmable	No
Energy Efficiency Class	A+ (typical)
Certifications	CE compliant
Suitable For	Indoor use on solid ceiling/wall
Maintenance	Clean with dry cloth; do not use water
Safety Warnings	Disconnect power before servicing; installation by authorized person only
Wiring	L (brown) - live; N (blue) - neutral

Frequently Asked Questions - ZD1322 Emos

How do I install the LED panel?

Mount the panel firmly onto a solid base (ceiling or wall). Connect the power cord to the mains (230 V~) using the color-coded wires: L (brown) for live, N (blue) for neutral. Ensure the mains is disconnected during installation. This operation should be carried out only by an authorized person.

Can I use this light in a bathroom?

No, this LED panel has an IP20 rating, meaning it is suitable for indoor use only and not protected against moisture. Do not use in bathrooms or other damp areas.

Is the LED panel dimmable?

This model is not dimmable. The manual does not mention dimming compatibility, so it should only be used with a standard on/off switch.

What is the color temperature?

The color temperature is 4000 K (cool white), providing a neutral, bright light suitable for task areas.

How long does the LED last?

The rated lifespan is 25,000 hours. Actual lifespan may vary depending on usage conditions.

Can I replace the LED chips if they fail?

No, the LED chips are integrated and non-replaceable. If the light fails, the entire unit must be replaced.

What is the required cut-out size for installation?

The ceiling cut-out diameter must be 130 mm for this model (ZD1322). Ensure the hole is precisely cut for a secure fit.

Does the light come with a warranty?

The manual does not specify warranty details. Please check with the retailer or manufacturer (Emos) for warranty information.

Is it safe to install the light myself?

Installation involves connecting to mains electricity. The manual states that this must be carried out only by an authorized person. If you are not qualified, hire a professional electrician.

How should I clean the LED panel?

Clean the surface with a dry cloth. Do not use water, solvents, or abrasive cleaners as they may damage the fixture. Always disconnect power before cleaning.

USER MANUAL ZD1322 Emos

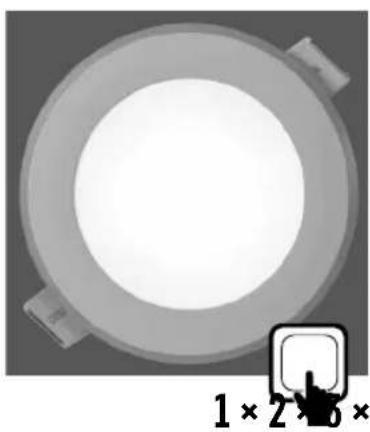

Circular recessed light fixture with a square button icon and a 3x5× magnification indicator (no text or symbols on the object itself)

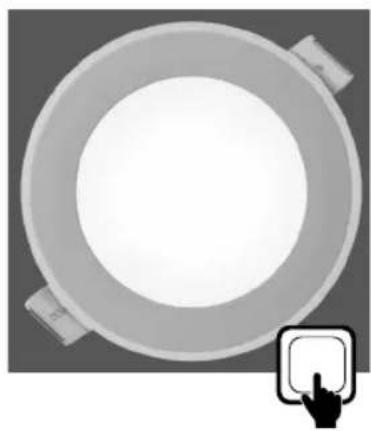

Top-down view of a circular bowl with handles and a square button icon (no text or symbols)

Top-down view of a circular ceiling lamp with a button icon (no text or symbols)

Type CCT	Input Voltage	Power consumption	Ceiling cut-out	Lifespan	Luminous flux	Dimensions
ZD1311 3 000 K	220–240 V AC, 50/60 Hz	5.5 W 65 mm	25 000 h 420 lm ∅ 82 × 44 mm
ZD1312 4 000 K
ZD1321 3 000 K		13 W 130 mm	25 000 h 1 000 lm ∅ 148 × 38 mm
ZD1322 4 000 K

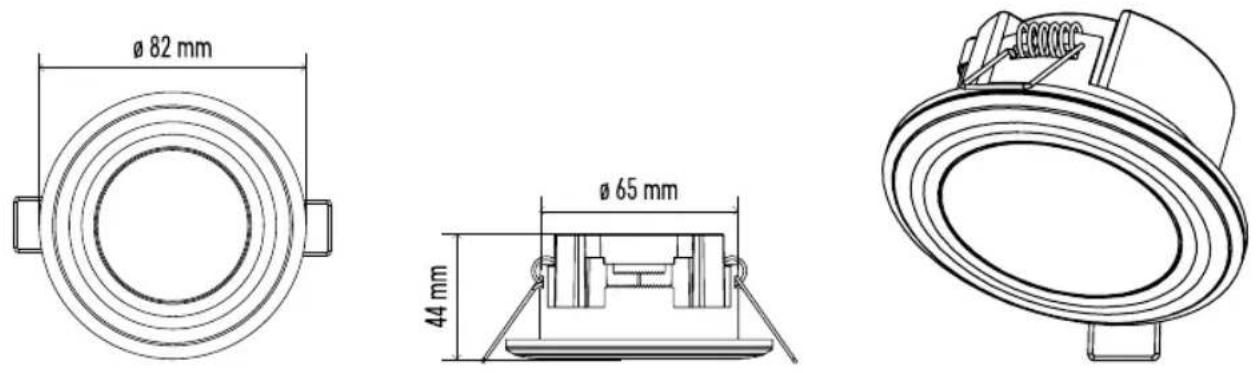

ZD1311, ZD1312

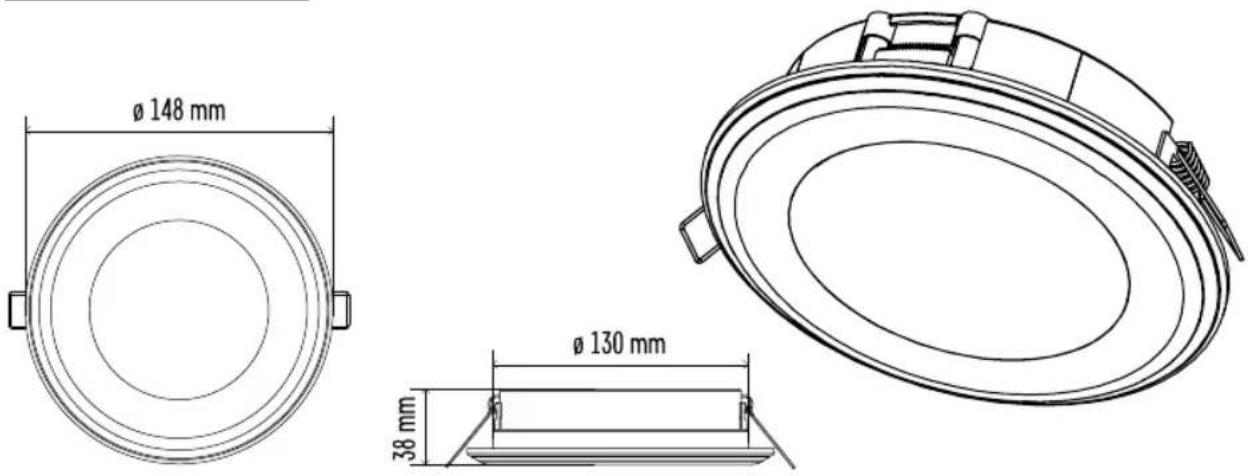

ZD1321, ZD1322

GB | LED Panel, Recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP20 – for indoor use

Mounting

Mount the LED Panel firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

L - brown - live wire N - blue - neutral wire

WARNING

• LED Panel is suitable entirely for fixed mounting.
- The LED Panel can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.

• Before any manipulation or servicing of the LED Panel disconnect the LED Panel from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the LED Panel, don't use it.
  • LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the LED Panel.
• In case of broken cover don't use the LED Panel and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED Panel, surface-mounted/recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
