Product Type	LED Panel, recessed
Model	ZV2132
Power Consumption	10 W
Light Color	Neutral white / Warm white
Luminous Flux	900 lm
Dimensions (L × W × H)	125 × 125 × 20 mm
Ceiling Cut-out Diameter	106 mm
Input Voltage	220-240 V AC, 50/60 Hz
Life Span	30,000 hours
IP Rating	IP65
Energy Efficiency Class	E
Suitable Locations	Indoor and outdoor (IP65)
Mounting Type	Fixed, recessed mounting
Base Requirement	Solid base (wall or ceiling)
LED Replaceable	No (non-replaceable LED chips)
Cover Insulation	Not suitable for covering with insulation material
Installation	By authorized person only
Safety Disconnect	Disconnect from AC power before servicing

Frequently Asked Questions - ZV2132 Emos

How do I install the ZV2132 LED panel?

Mount the lamp firmly onto a solid base such as a wall or ceiling. Connect the power cord to the mains 230 V~. This operation must be carried out only by an authorized person.

Can I use this light outdoors?

Yes, the ZV2132 has an IP65 ingress protection rating, making it suitable for both indoor and outdoor use.

What light colors are available?

The ZV2132 offers Neutral white (approximately 4000K) and Warm white (approximately 3000K) options.

How long does the LED last?

The LED has a rated life span of 30,000 hours.

Can I replace the LED chips?

No, the LED chips inside the luminaire are non-replaceable. The entire unit must be replaced if the LED fails.

What should I do if the cover breaks?

Do not use the luminaire with a broken cover. Replace it with a new one immediately to maintain safety.

Can the luminaire be covered with insulation?

No, this luminaire is not suitable for covering with insulation material.

What is the required ceiling cut-out size?

The ceiling cut-out diameter is 106 mm.

Is the light dimmable?

Dimming capability is not specified in the manual. Refer to the product specifications or consult the manufacturer for dimmer compatibility.

What is the energy efficiency class?

This product contains a light source of energy efficiency class E.

USER MANUAL ZV2132 Emos

Line drawing of a frying pan with a handle and a hanging object above it (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

1.

Simple line drawing of a circuit board with wires and components (no text or symbols)

Type | Typ | Typ | Typ | Típus | Nasvet | Tip | Typ | Tin | Tip | Tipas | Tips | Tüüp | Tin: ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular base and spring attached, above a flat base (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical or electrical component with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

Mounting

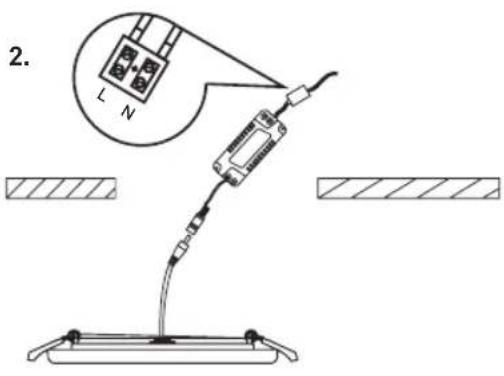

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
