Product Type	In-ceiling / In-wall Speaker
Dimensions (H x W x D)	11.3 x 8.3 x 4.2 inches (287 x 211 x 107 mm)
Weight	6.5 lbs (2.95 kg)
Power Handling	120 watts RMS / 240 watts peak
Frequency Response	45 Hz - 25 kHz ±3 dB
Impedance	8 ohms
Sensitivity	90 dB (2.83V / 1m)
Driver Configuration	1-inch tweeter, 6.5-inch woofer
Mounting Type	Flush mount with dog-leg clamps
Cutout Dimensions	10.3 x 7.3 inches (262 x 185 mm)
Finish	White, paintable
Warranty	5 years limited
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid liquid cleaners or abrasives.
Safety Warnings	Do not expose to moisture or extreme temperatures. Ensure secure mounting.
Spare Parts Availability	Contact Martin Logan customer service for replacement drivers or grilles.
Included Accessories	Mounting template, cutout saw, paint shield, user manual
Recommended Use	Home theater surround, multi-room audio, stereo music
Compatible with	Standard in-wall wiring (2-conductor speaker cable)
Certifications	UL listed, RoHS compliant

Frequently Asked Questions - Motion XT B100 Martin Logan

What tools are required for installation?

You need a drywall saw, screwdriver, wire stripper, and a level. The included mounting template helps mark the cutout.

Can I paint the speaker grille?

Yes, the grille is paintable. Use high-quality spray paint and remove the grille before painting. Allow it to dry completely before reinstalling.

What is the recommended amplifier power?

Use an amplifier rated between 20 and 120 watts RMS per channel at 8 ohms to achieve optimal performance without distortion.

How do I clean the speaker?

Wipe the speaker surface with a soft, dry cloth. Do not use liquid cleaners, sprays, or abrasive materials. For the grille, you can vacuum gently with a brush attachment.

Is the speaker suitable for outdoor use?

No, the Motion XT B100 is designed for indoor use only. Exposure to moisture or extreme temperatures can damage the speaker.

What is the cutout size required?

The cutout dimensions are 10.3 x 7.3 inches (262 x 185 mm). Use the included template to ensure a precise fit.

Can I use this speaker as a center channel?

Yes, the Motion XT B100 can be used as a center channel speaker in a home theater setup. Place it horizontally above or below the TV.

Does the speaker have a binding post or spring clip?

It features spring-loaded push terminals that accept bare wire up to 12 AWG or banana plugs.

How do I ensure proper sound isolation?

Seal any gaps around the speaker cutout with acoustic caulk or putty to prevent sound leakage between rooms.

What should I do if the sound is distorted?

Check amplifier power and ensure it matches the speaker's rating. Verify wire connections are secure and polarity is correct (+ to +, - to -). Reduce volume if clipping occurs.

USER MANUAL Motion XT B100 Martin Logan

• Refer servicing to a qualified technician.

• To prevent fire or shock hazard, do not expose this module to moisture.
- Turn amplifier off should any abnormal conditions occur.
- Do not drive speaker beyond its rated power.

The lightning bolt flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of potentially "dangerous voltage" within the product's enclosure that may be sufficient to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

In accordance with the European Union WEEE (Waste Electrical and Electronic Equipment) directive effective August 13, 2005, we would like to notify you that this product may contain regulated materials which upon disposal, according to the WEEE directive, require special reuse and recycling processing. For this reason Martin Logan has arranged with our distributors in European Union member nations to collect and recycle this product at no cost to you.

To find your local distributor please contact the dealer from whom you purchased this product, email [e-mail] or visit the distributor locator at www.martinlogan.com.

Please note, only this product itself falls under the WEEE directive. When disposing of packaging and other related shipping materials we encourage you to recycle these items through the normal channels.

Connection 6

Single Wire Connection

(C10/B10/MP10)....6

Single Wire Connection

(F200/F100/C100/B100/F20/F10) . . . 6

Jumper Clips

(F200/F100/C100/B100/F20/F10) . . . 6

Bi-Wire Connection

(F200/F100/C100/B100/F20/F10) . . . 6

Passive Bi-Amplification

(F200/F100/C100/B100/F20/F10) . . . 7

Active Bi-Amplification....7

Placement

(F200/F100/B100/F20/F10/B10) ..... 8

Frequently Asked Questions....9

Troubleshooting.... 10

Contacting Customer Service ..... 10

General Information.... 11

Warranty Information 11

Serial Number....11

Service 11

Specifications 12

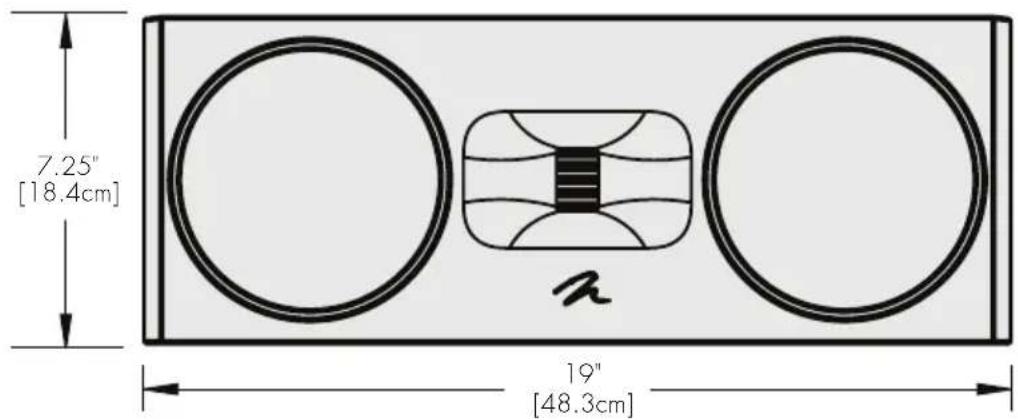

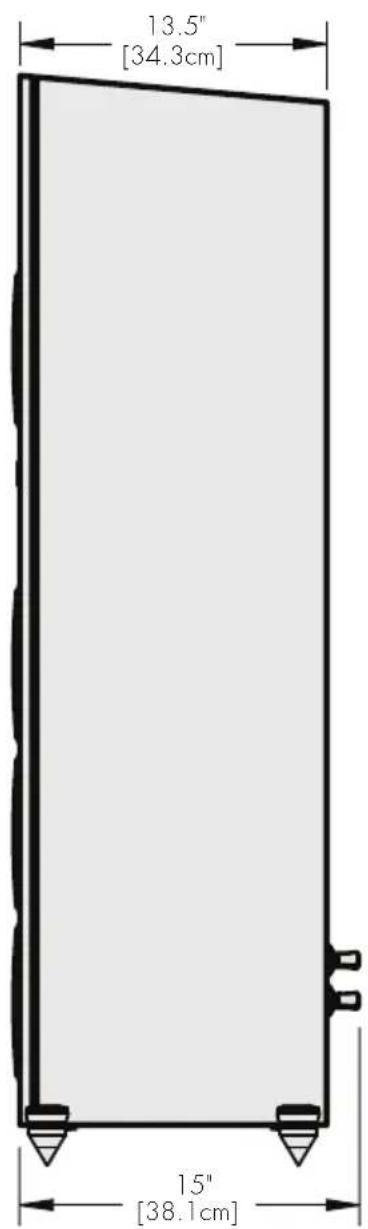

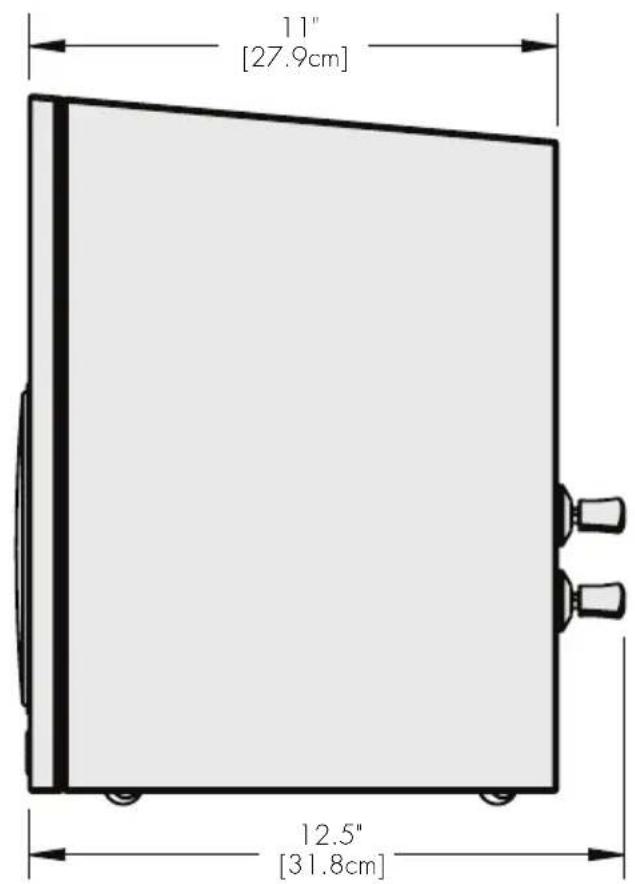

Dimensional Drawings....18

Serial Number: ____

Record your serial number here for easy reference. You will need this information when filling out your warranty registration. The serial number is located near the binding posts and on the product carton.

Motion XT F200/F100

Motion F20/F10

Diagram showing a box with internal components and an inset view of a gas stove (no text or symbols present)

Diagram showing a 3D box being rotated by a curved arrow, with no text or symbols present.

Motion XT B100 Motion B10

Isometric line drawing of a multi-tiered cardboard box assembly with no text or symbols

Motion XT C100 Motion C10

Technical line drawing of a cardboard box with internal components, shown from exploded and assembled views (no text or symbols)

Motion MP10

Line drawings of open and closed boxes with internal compartments (no text or symbols)

CONNECTION

WARNING! Turn your amplifier off before making or breaking any signal connections!

SINGLE WIRE CONNECTION (C10/B10/MP10)

JUMPER CLIPS (F200/F100/C100/B100/F20/F10)

WARNING! Only after jumper clips are removed may you connect individual runs of speaker cable from your amplifiers to the high-frequency and low-frequency signal input binding posts. Damage will occur to your amplifiers if the jumper clips are not removed.

In some countries federal law prohibits MartinLogan from supplying jumper clips. If none are found installed under your speakers binding posts, please refer to 'Bi-Wire Connection' for connection instructions.

SINGLE WIRE CONNECTION (F200/F100/C100/B100/F20/F10)

BI-WIRE CONNECTION (F200/F100/C100/B100/F20/F10)


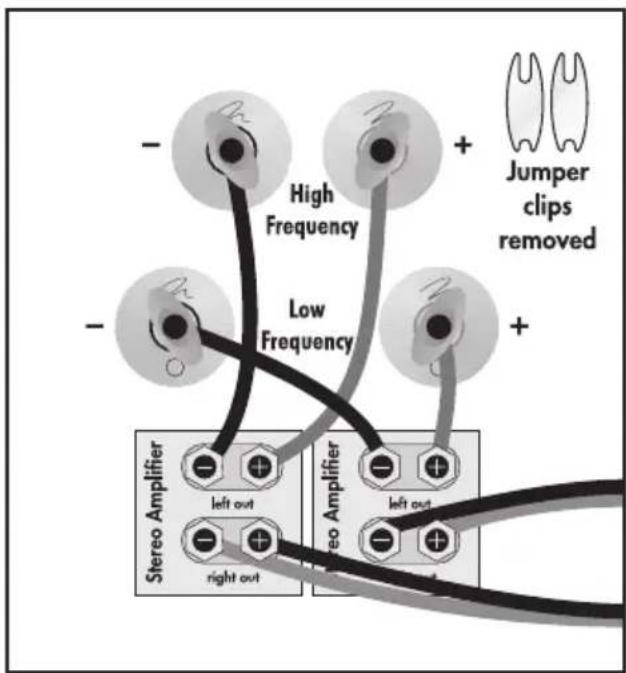

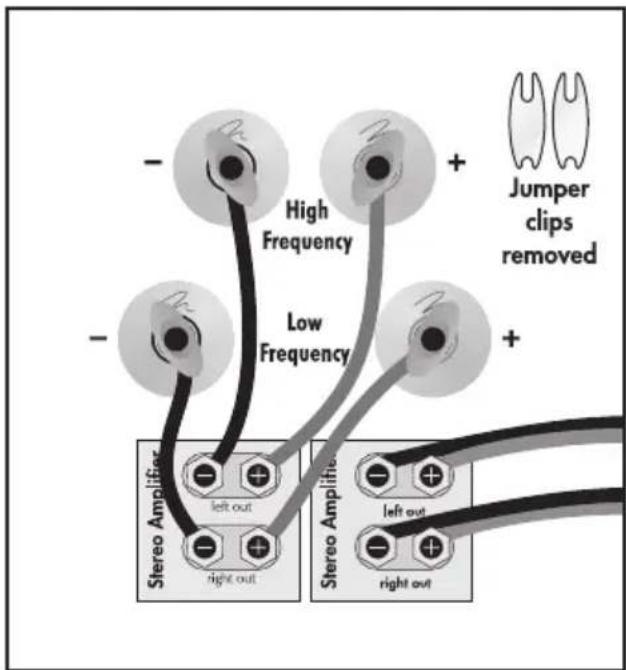

PASSIVE BI-AMPLIFICATION (F200/F100/C100/B100/F20/F10)

Horizontal Passive Bi-Amplification

Vertical Passive Bi-Amplification

ACTIVE BI-AMPLIFICATION

We do not recommend active bi-amplification. The internal crossover can not be bypassed. This connection method seriously degrades performance.

PLACEMENT

BREAK IN

72 hrs

Allow approximately 72 hours of break-in at 90 dB (moderate listening levels) before any critical listening.

PLACEMENT

FREQUENTLY ASKED QUESTIONS

How do I clean my speakers?

Use a dust free cloth (such as a micro fiber cloth) or a soft brush to remove dust from your speakers. Do not spray any kind of cleaning agent on or in close proximity to the drivers.

Could you suggest a list of suitable electronics and cables ideal for MartinLogan speakers?

We have no favorites and use electronics and cables quite interchangeably. We would suggest listening to a number of brands—and above all else—trust your ears. Dealers are always the best source for information when purchasing additional audio equipment.

Is there likely to be any interaction between my speakers and the television in my A/V system?

Yes. These speakers are not shielded and should be kept at least 2 feet away from a CRT television.

Will exposure to sunlight affect the life or performance of my speakers?

We recommend against placing any loudspeaker in direct sunlight. Ultraviolet (UV) rays from the sun can cause deterioration of cabinet, speaker cones, etc. Small exposures to UV will not cause a problem. Filtering of UV rays through glass will greatly reduce the negative effects.

Should I use a 4, 6, or 8 Ohm rated amplifier with my speakers?

All of our Motion series speakers are compatible with 4, 6 or 8 Ohm output audio amplifiers and receivers. Many of the most popular brands of AV receivers and amplifiers with 4, 6 and 8 Ohm output ratings have been thoroughly tested with all of our Motion series products and we have found no compatibility issues except under extreme listening conditions. For the best performance and sonic purity when using our Motion series products use of an amplifier or AV receiver with either a 4 or 6 Ohm output is recommended!

TROUBLESHOOTING

No Output

• Check that all system components are turned on and source material is playing.

• Check speaker wires and connections.

• Check all interconnecting cables.

• If you are unable to resolve your problem, please contact your dealer or MartinLogan customer service (see below).

CONTACTING CUSTOMER SERVICE

Phone

[phone]

Monday - Friday

8 AM - 5 PM CT

Email

[e-mail]

Social Media

GENERAL INFORMATION

WARRANTY INFORMATION

Your speakers are provided with an automatic Limited 90 Day Warranty coverage. You have the option, at no additional charge, to receive a Limited 5 Year Warranty coverage. To obtain the Limited 5 Year Warranty coverage you need to complete and return the Certificate of Registration to MartinLogan within 30 days of purchase. For your convenience MartinLogan also offers online warranty registration at www.martinlogan.com.

MartinLogan may not honor warranty service claims unless we have a completed Warranty Registration card on file! If you did not receive a Certificate of Registration with your new speakers you cannot be assured of having received new units. If this is the case, please contact your authorized MartinLogan dealer.

SERIAL NUMBER

The serial number is located on back of the speaker, directly beneath the binding posts. The serial number may also be found on the product carton.

SERVICE

Should you use your MartinLogan product in a country other than the one in which it was originally purchased, we ask that you note the following:

1 The appointed MartinLogan distributor for any given country is responsible for warranty servicing only on units distributed by or through it in that country in accordance with its applicable warranty.

2 Should a MartinLogan product require servicing in a country other than the one in which it was originally purchased, the end user may seek to have repairs performed by the nearest MartinLogan distributor, subject to that distributor's local servicing policies, but all cost of repairs (parts, labor, transportation) must be borne by the owner of the MartinLogan product.

3 If, after owning your speaker for six months, you relocate to a country other than the one in which you purchased your speaker, your warranty may be transferable. Contact MartinLogan for details.

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion Waveguide Enhanced Tweeter Dispersion (VxH) ....

Sensitivity (2.83 volts/meter) ....

Impedance Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight....

Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts.

Finishes ....

Motion XT F200

Floorstanding

27 Hz - 25k Hz ± 3 dB

45^irc × 90^irc

92 dB

4 ohms

300Hz, 2600Hz (3-way)

1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

6.5" (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.

3x 8" (20.3cm)aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction

Bottom Ported

20 - 600 watts

Custom bi-amp/bi-wire capable 5-way binding posts

86lbs / 39kg

50-3/4" × 13-3/4" × 16-1/2" 14.6cm × 34.9cm × 41.9cm

Gloss Black, Walnut, and Satin White

Motion XT F100

Floorstanding

3 1 Hz - 2 5 kHz ± 3 dB

4 5 ^ irc × 9 0 ^ irc

92 dB

4 ohms

280 Hz, 2600 Hz (3-way)

1.25" x 2.4" (3.2 x 6.1 cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

6.5" (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant sealed chamber format. Unibody cone construction.

3x 6.5" (16.5cm) aluminum cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

Bottom Ported

20 - 450 watts

Custom bi-amp/bi-wire capable 5-way binding posts

76lbs / 34.5kg

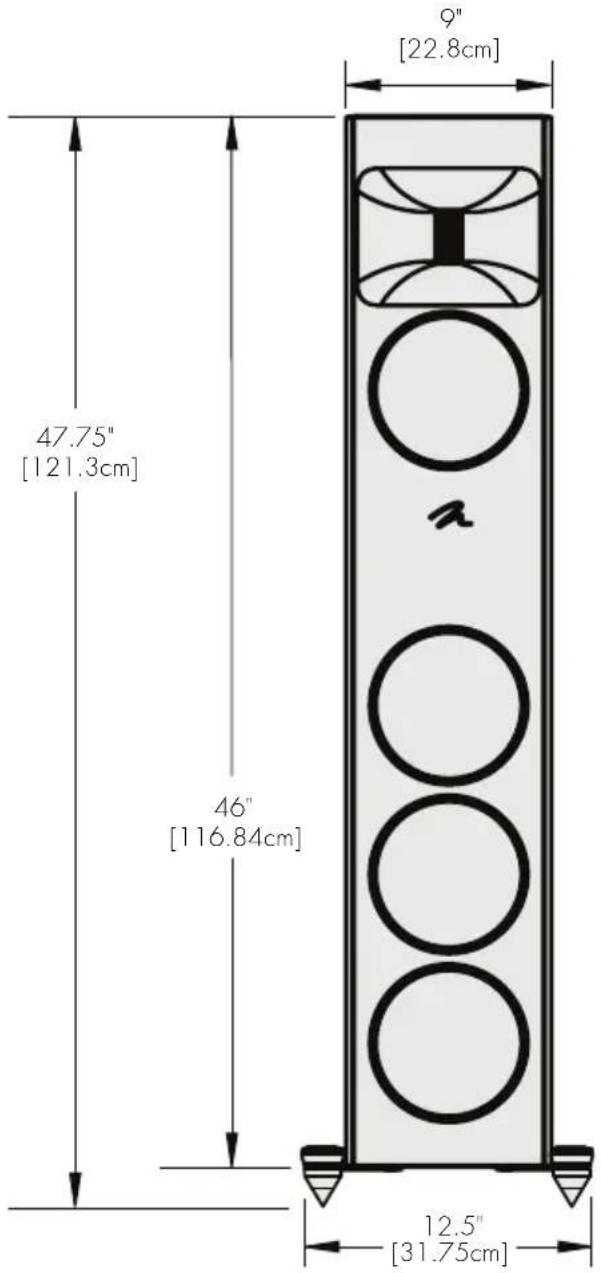

4 7 - 3 / 4 ^ × 1 2 - 1 / 2 ^ × 1 3 - 1 / 2 ^ 1 2 1. 3 cm × 8 8. 6 cm × 3 4. 3 cm

Gloss Black, Walnut, and Satin White

Motion XT C100

Center Channel

4 2 Hz - 2 5 kHz ± 3 dB

4 5 ^ irc × 9 0 ^ irc

93 dB

5 ohms

1,300 Hz, 2,500 Hz (2.5-way)

1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

2x 6.5" (16.5cm) Nomex Reinforced Kevlar ^® cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design.

-

Rear Ported

20 - 300 watts

Custom bi-amp/bi-wire capable 5-way binding posts

34lbs / 15.4kg

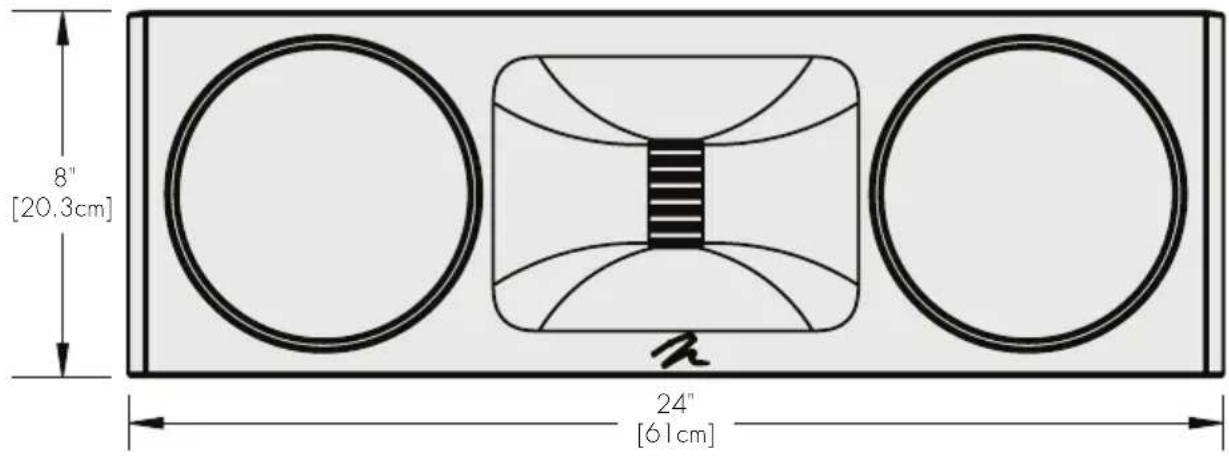

8 ^ × 2 4 ^ × 1 4 - 1 / 2 ^ 2 0. 3 cm × 6 1 cm × 3 6. 8 cm

Gloss Black, Walnut, and Satin White

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion Waveguide Enhanced Tweeter Dispersion (V×H) ....

Sensitivity (2.83 volts/meter) ....

Impedance Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight....

Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts.

Finishes ....

Motion XT B100

Bookshelf

45 Hz - 25 kHz ± 3 dB

45^irc × 90^irc

93 dB

4 ohms

2,600 Hz (2-way)

1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm

6.5" (16.5cm) Nomex Reinforced Kevlar® cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Unibody cone construction.

Rear Ported

20 - 250 watts

Custom bi-amp/bi-wire capable 5-way binding posts

20.5lbs / 9.3kg

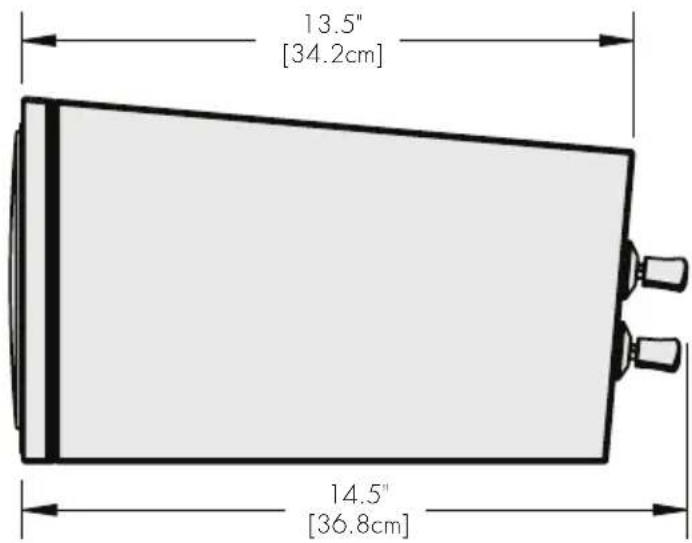

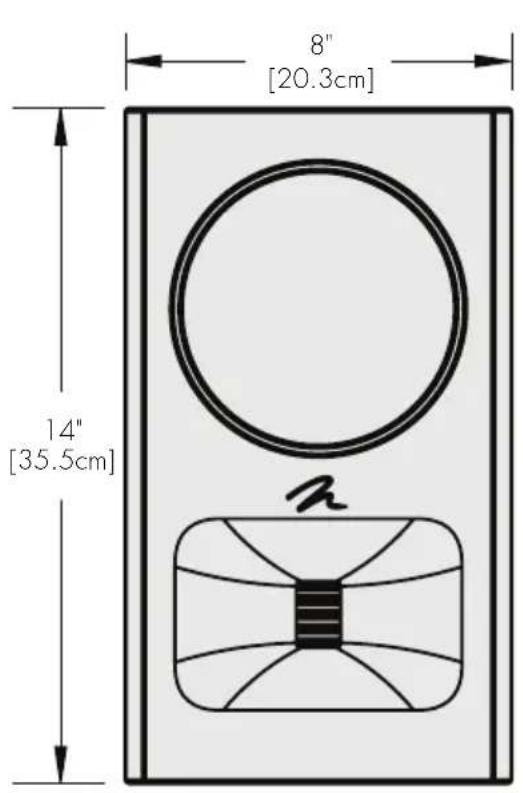

14-1/2" × 8" × 12-1/2"

36.8cm × 20.3cm × 31.8cm

Gloss Black, Walnut, and Satin White

Motion F20

Floorstanding

3 5 Hz - 2 5 kHz ± 3 dB

9 0 ^ irc × 9 0 ^ irc

92 dB

4 ohms

230 Hz, 2,600 Hz (3-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non-resonant sealed chamber format. Unibody cone construction.

2x 6.5" (16.5cm) aluminum cones with cast polymer baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

Bottom Ported

20 - 300 watts

Custom bi-amp/bi-wire capable 5-way binding posts

60lbs / 27.2kg

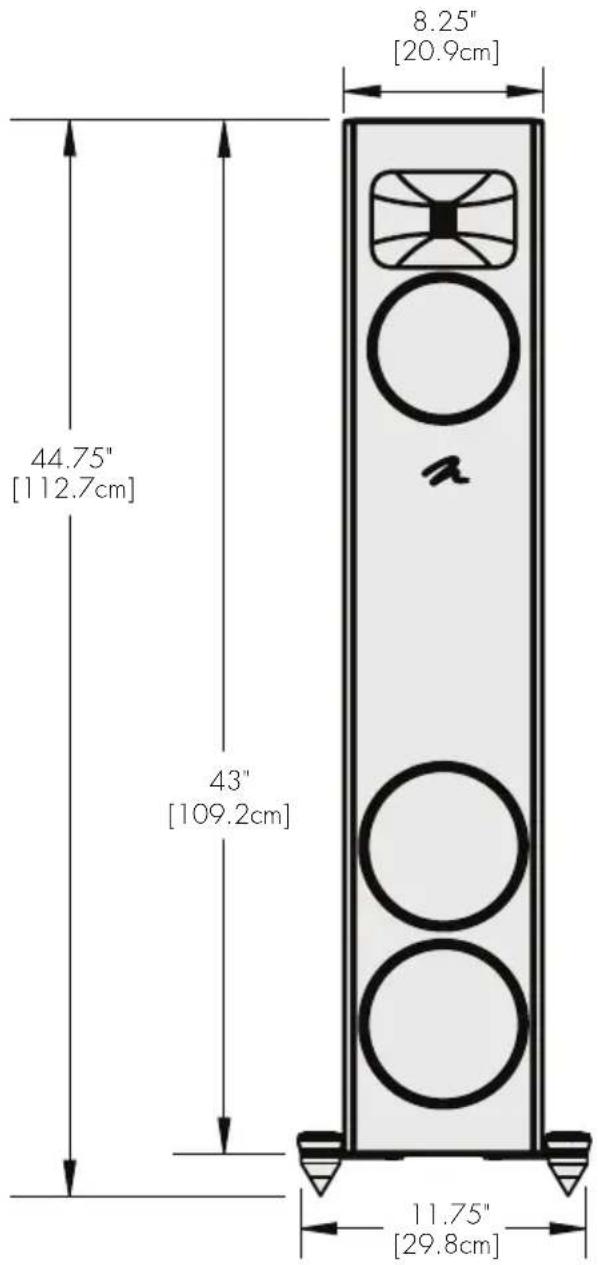

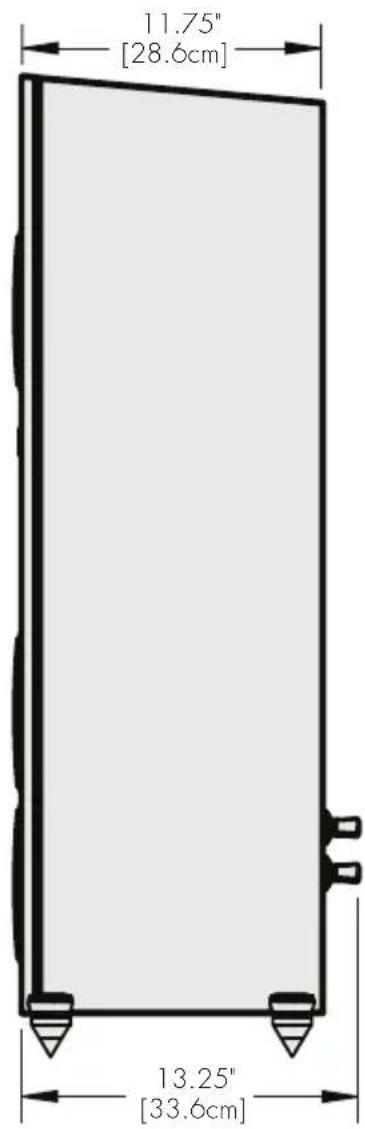

4 4 - 3 / 4 ^ × 1 1 - 3 / 4 ^ × 1 4 - 1 / 4 ^

1 1 2. 7 cm × 2 9. 8 cm × 3 6. 2 cm

Gloss Black, Walnut, and Satin White

Motion F10

Floorstanding

3 8 Hz - 2 5 kHz ± 3 dB

9 0 ^ irc × 9 0 ^ irc

92 dB

4 ohms

280 Hz, 3,000 Hz (3-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) dia-phragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non-resonant sealed chamber format. Unibody cone construction.

2x 5.5" (14cm) aluminum cones with cast polymer baskets. Non-resonant asymmetrical chamber format. Unibody cone construction.

Bottom Ported

20 - 250 watts

Custom bi-amp/bi-wire capable 5-way binding posts

50.5lbs / 22.9kg

3 8 - 1 / 4 ^ × 1 1 - 1 / 4 ^ × 1 3 - 1 / 4 ^ 9 7. 1 cm ×

28.6cm × 7.6cm

Gloss Black, Walnut, and Satin White

SPECIFICATIONS\*

Application.

Frequency Response ....

Folded Motion Waveguide Enhanced Tweeter Dispersion (V×H) ....

Sensitivity (2.83 volts/meter) ....

Impedance Compatible with 4, 6, or 8 Ohm rated amplifier

Crossover Frequency.....

High Frequency Driver ....

Mid Frequency Driver ....

Low Frequency Drivers ....

Cabinet ....

Recommended Amp Power ....

Binding Post Inputs ....

Weight....

Dimensions (HxWxD) Floorstanding model dimensions include the feet. Depth for all models include the binding posts.

Finishes ....

*Specifications are subject to change without notice.

Motion C10

Center Channel

63 Hz - 25 kHz ± 3 dB

90^irc × 90^irc

93 dB

4 ohms

1000 Hz, 2,000 Hz (2.5-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm

2x 5.5" (14cm) Woven Fiberglass cones with cast polymer baskets. Non-resonant sealed chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design.

Rear Ported

20 - 200 watts

Custom 5-way binding posts

23.5lbs / 10.7kg

7-1/4" × 19" × 11-1/2"

18.4cm × 48.3cm × 29.3cm

Gloss Black, Walnut, and Satin White

Motion B10

Bookshelf

5 6 Hz - 2 5 kHz ± 3 dB

9 0 ^ irc × 9 0 ^ irc

92 dB

5 ohms

2,370 Hz (2-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Unibody cone construction.

Rear Ported

20 - 200 watts

Custom 5-way binding posts

14.5lbs / 6.6kg

12-1/2" × 7" × 9-3/4"

31.8cm × 17.8cm × 24.8cm

Gloss Black, Walnut, and Satin White

Motion MP10

Multi-Purpose

8 1 Hz - 2 5 kHz ± 3 dB

9 0 ^ irc × 9 0 ^ irc

9

2 dB

5 ohms

2,100 Hz (2-way)

1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) dia-phragm

5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Unibody cone construction.

Stealth Rear Ported

20 - 200 watts

Custom 5-way binding posts

9.7lbs / 4.4kg

14" × 8" × 5"

Gloss Black, Walnut, and Satin White

F200

MOTION XT®

by MARTIN LOGAN®

FRONT VIEW

EW

F100

MOTION XT®

by MARTIN LOGAN®

FRONT VIEW

SIDE VIEW

C100

MOTION XT®

by MARTIN LOGAN®

FRONT VIEW

SIDE VIEW

B100

MOTION XT®

by MARTIN LOGAN®

FRONT VIEW

SIDE VIEW

F20

MOTION®

by MARTIN LOGAN®

FRONT VIEW

SIDE VIEW

F10

MOTION®

by MARTIN LOGAN®

FRONT VIEW

SIDE VIEW

C10

MOTION®

by MARTIN LOGAN ^®

FRONT VIEW

SIDE VIEW

B10

MOTION®

by MARTIN LOGAN®

FRONT VIEW

SIDE VIEW

MP10

MOTION®

by MARTIN LOGAN®

FRONT VIEW

SIDE VIEW

MARTIN LOGAN®

Lawrence, Kansas, USA tel. [phone] fax [phone] www.martinlogan.com
