ZM4328 - Light Emos - Free user manual and instructions

Product Type	LED Light
Model	ZM4328
Brand	Emos
Dimensions (LxWxH)	15 x 10 x 5 cm
Weight	0.3 kg
Power Supply	AC 220-240V, 50/60Hz
Light Source	Built-in LED
Luminous Flux	800 lm
Color Temperature	4000K (neutral white)
Beam Angle	120°
Material	Aluminum + Polycarbonate
IP Rating	IP20 (indoor use)
Rated Lifetime	25,000 hours
Dimmable	No
Power Consumption	10W
Mounting	Ceiling or wall mount
Operating Temperature	-20°C to +40°C
Cleaning Instructions	Wipe with a dry or slightly damp cloth; do not use abrasive cleaners
Safety Precautions	Do not cover; keep away from flammable materials
Spare Parts Availability	Not available; LED module is non-replaceable
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - ZM4328 Emos

How do I install the Emos ZM4328 light?

Ensure power is off. Secure the mounting bracket to the ceiling or wall using the provided screws. Connect the wires (L, N, ground) matching colors. Attach the light fixture and tighten. Restore power.

Can I replace the LED bulb in this light?

No, the LED module is integrated and non-replaceable. When the light reaches end of life, replace the entire fixture.

Is the ZM4328 dimmable?

No, this model is not dimmable. Using a dimmer may cause flickering or damage.

What should I do if the light flickers?

Check that the power supply is stable and the connections are secure. Ensure the light is not connected to a dimmer. If problem persists, contact Emos support.

What is the IP rating of this light?

The IP rating is IP20, meaning it is protected against solid objects larger than 12.5 mm but not against water. Suitable for indoor use only.

How do I clean the Emos ZM4328?

Disconnect power. Wipe the surface with a soft dry cloth. If needed, use a slightly damp cloth with mild soap. Avoid abrasive cleaners and water ingress.

What is the color temperature of the light?

The color temperature is 4000K, producing a neutral white light suitable for general indoor illumination.

What are the dimensions of the ZM4328?

The dimensions are approximately 15 cm x 10 cm x 5 cm (length x width x height).

Does the light come with a warranty?

Yes, it comes with a 2-year warranty from the date of purchase covering manufacturing defects. Retain the receipt for warranty claims.

Can I use this light outdoors?

No, the IP20 rating means it is only suitable for indoor, dry locations. Outdoor use may cause damage due to moisture or dust.

USER MANUAL ZM4328 Emos

Typ Input Voltage		Power Consumption	Life span Luminous Flux Dimensions
ZM4328	220 V–240 V AC, 50/60 Hz	15 W 30 000 h 1 500 lm ø 220 × 53 mm
ZM4329	220 V–240 V AC, 50/60 Hz	24 W 30 000 h 2 400 lm ø 330 × 53 mm

STAND BY

	1	2
I	●	●	0S
II	○	●	1 min
III	●	○	10 min
IV	○	○	+∞

●: ON

○: OFF

DAYLIGHT SENSOR

	3	4
I	●	●	Disable
II	○	●	50 Lux
III	●	○	10 Lux
IV	○	○	2 Lux

●: ON

○: OFF

TRIGGER TIME

	5	6
I	●	●	30 s
II	○	●	60 s
III	●	○	180 s
IV	○	○	10 min

: ON

O: OFF

DETECTION AREA

	7	8
I	●	●	100%
II	○	●	75%
III	●	○	50%
IV	○	○	10%

:ON

O:OFF

GB | LED Ceiling Luminaire with Microwave Sensor

The LED Luminaire is designed to be installed onto a solid base in indoor areas.

Enclosure: IP54 – for outdoor environments.

Sensor Parameters

Frequency: 5.8 GHz ±75 MHz

Radiating power: < 0.2 mW

When wall-mounted recommended mounting height: 0.8–2.5 m

When ceiling-mounted recommended mounting height: ≤ 6 m

Detection angle: 150° – when wall-mounted

360° – when ceiling-mounted

Detection range: 10 m

Sensitivity settings: 10 % / 50 % / 75 % / 100 %

Switching time: 30 s / 60 s / 3 min / 10 min

Sensitivity to surrounding lighting: 2 lux / 10 lux / 50 lux / off

Speed range of detected objects: 0.5–3 m/s

Sensor consumption in standby mode: < 0.5 W

Settings

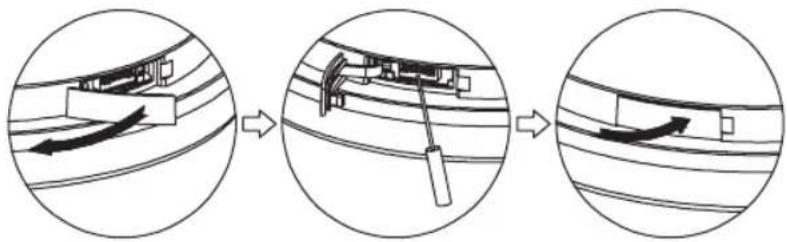

You can set the microwave sensor exactly as you need for the specific application through various combinations on the DIP switch.

A - STANBY PERIOD

Time period that the lamp is switched to low brightness (15 %) after Trigger time

B - DAYLIGHT SENSOR

Setting Sensitivity to Surrounding Lighting

C - TRIGGER TIME

The light remains on for a set period since the last movement was detected.

D - DETECTION RANGE (SENSITIVITY)

The term detection range is used to describe the range of virtual circular detection zone located on the ground when the Luminaire is mounted on the ceiling at a height of 2.5 m.

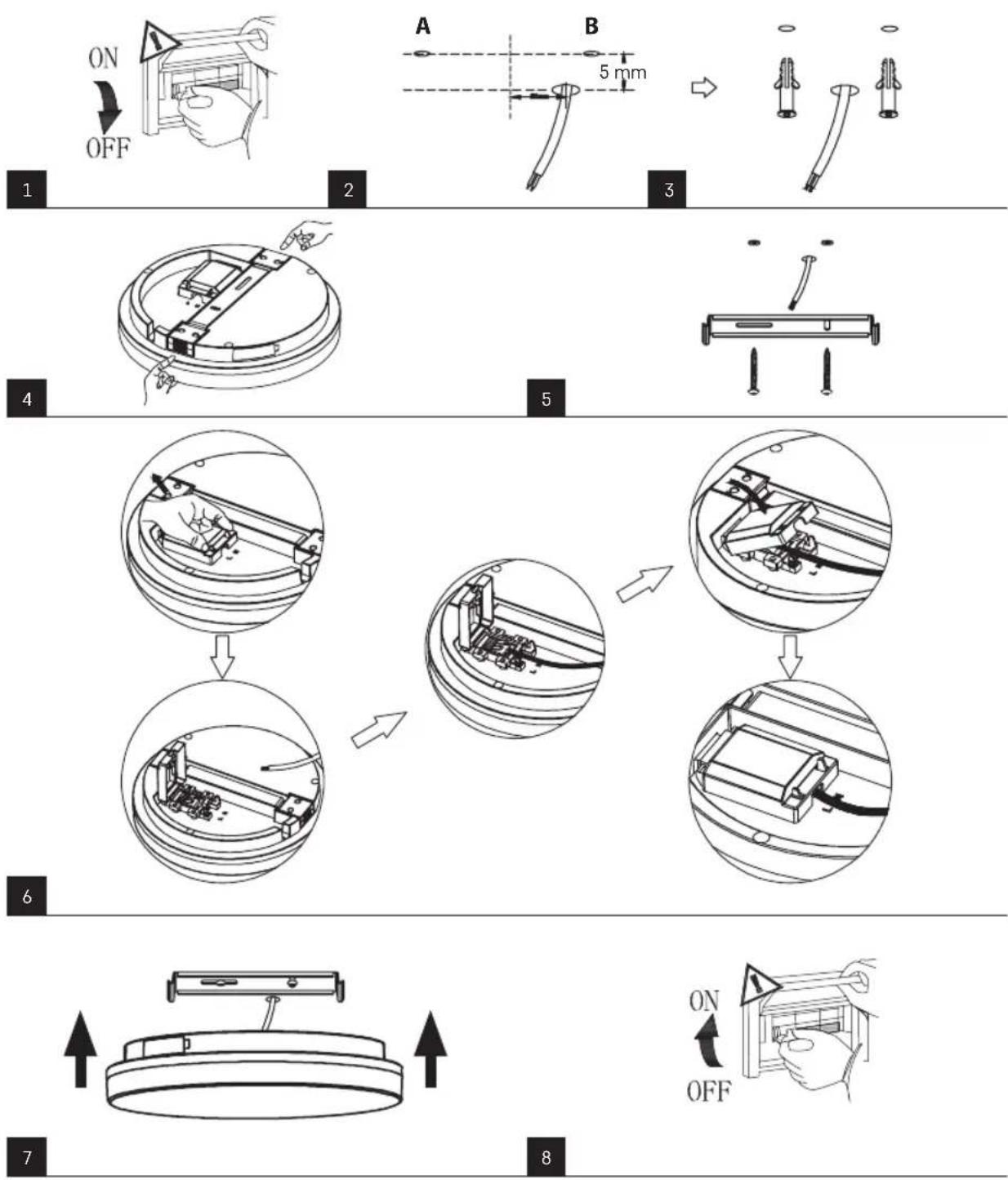

Mounting

Mount the Luminaire firmly onto a solid basis, for example a wall, a ceiling and like that.

Connect the power cord to the mains 230 V AC.

Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

L - brown - live wire

N - blue - neutral wire

WARNING

• Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
- In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
- Don't change inner wiring of the luminaire.
- In case of broken cover don't use the luminaire and replace broken cover with new one immediately.
