Product Type	Air Purifier
Brand	Tesla
Model	Air Purifier Mini TSL-AC-AP1207
Dimensions (H x W x D)	28 cm x 18 cm x 18 cm
Weight	2.0 kg
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption	30 W (max)
Filter Type	HEPA H13 + Activated Carbon Pre-filter
CADR (Clean Air Delivery Rate)	100 m³/h
Noise Level	30 - 50 dB
Coverage Area	Up to 30 m²
Operating Modes	Auto, Sleep, Turbo, Timer (2/4/8 h)
Air Quality Indicator	LED ring (Blue/Green/Orange/Red)
Filter Replacement Indicator	Yes (lamp)
Auto Shut-off	When front cover removed
Overheat Protection	Yes
Pre-filter Cleaning	Every 2 weeks (vacuum or wash)
HEPA Filter Replacement	Every 6-12 months (depending on usage)
Spare Parts Available	HEPA filter, Activated Carbon filter, Pre-filter
Warranty	2 years

Frequently Asked Questions - Air Purifier Mini TSL-AC-AP1207 TESLA

How often should I replace the HEPA filter?

The HEPA filter should be replaced every 6 to 12 months depending on usage and air quality. The filter replacement indicator will alert you when it's time.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. Only the pre-filter can be cleaned with a vacuum or water. Replacing the HEPA filter is necessary.

How do I clean the pre-filter?

Remove the pre-filter and vacuum it or wash it with water. Let it dry completely before reinserting. Clean every 2 weeks for optimal performance.

What is the coverage area of this air purifier?

The Air Purifier Mini TSL-AC-AP1207 is suitable for rooms up to 30 m² (about 320 sq ft). For larger spaces, consider using multiple units.

Is the air purifier noisy?

Noise levels range from 30 dB (sleep mode) to 50 dB (turbo mode). It is quiet enough for bedroom use.

Does it remove odors and smoke?

Yes, the activated carbon filter helps remove odors, smoke, and VOCs (volatile organic compounds).

How does the auto mode work?

In auto mode, the purifier adjusts fan speed based on the built-in particulate sensor. The LED ring changes color to indicate air quality: blue (good), green (moderate), orange (unhealthy), red (very unhealthy).

What is the power consumption?

Maximum power consumption is 30 W. In sleep mode, it uses significantly less, making it energy-efficient.

How do I replace the filter?

Turn off and unplug the unit. Remove the front cover, take out the old filter, insert the new filter (HEPA or combination filter) as per the arrow direction, and reassemble. Reset the filter indicator by pressing the button if needed.

What spare parts are available?

You can purchase replacement HEPA filters, activated carbon filters, and pre-filters. Contact Tesla customer service or authorized dealers.

USER MANUAL Air Purifier Mini TSL-AC-AP1207 TESLA

White Tesla air purifier with perforated ventilation grille (no visible text or symbols on body)

TESLA SMART AIR PURIFIER MINI

MANUAL

EN

DE

CZ

SK

PL

HU

SL

HR

UA

RU

DEAR USER

Thank you for choosing our products. Please read the instruction manual carefully for safe and efficient use of this product. First of all, thank you for choosing the Air Purifier. I hope you have a healthy and comfortable living environment.

The problem of indoor air pollution is serious, and indoor air pollution mainly comes from natural air pollution, pollen, dust mites, Harmful gases (formaldehyde, second-hand smoke, sweaty body odor and other substances and odors.)

Because of the existence of these sources of pollution, people often have adverse reactions such as dizziness, drowsiness, cough, and nausea. Air quality of the room is important to your health. We hope that by using the Air Purifier, you and your family will have a healthier and more comfortable living environment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory ormental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

SAFETY PRECAUTIONS

In order to prevent damage to users and other personnel and to avoid property damage, please be sure to observe the following:

- Never use liquids to clean air purifiers such as water, detergents or flammable solvents.

- When cleaning the air purifier, Please disconnect the purifier from the power source. Wipe it only with a soft rag.

- The air purifiers use precision components. Please use it properly to prevent it from falling or being damaged!

- Keep the air purifiers around unobstructed. Do not cover the Air Purifier's air inlet and outlet.

- For the environmental protection to do a part of your effort. Never discard the purifier with household waste.

- Bring the purifier to a nearby official garbage collection center. Filters are classified as household rubbish.

PRODUCT USAGE GUIDE

product structure (As shown below)

FUNCTION INTRODUCTION

1. Control Panel

Icon Function Description
	Power on/off
	Wind speed adjustment „Sleep” → “Low” → “High” → “Auto”
	Anion
	Filter reset
	Timing adjustment 1H → 2H → 4H → 8H

2.Standby

Insert the plug of air purifier into power source, the buzzer will ring, and all the indicators will lighten. After three seconds, air purifier is in standby mode, indicator lights up, and the other icons do not lights up.

3. Power on/off

Tap the top power icon to switch the power on and off, the default wind speed is low, and the child lock is off (negative ion off)

4. Speed button

Wind speed adjustment "Low" → "High" → "Sleep", Loop in turn. (Low match).

5. Anion/Negative Ions

Touch the negative ion icon to turn the negative ion function on or off.

6. Replace the filter

When the air purifier is turned on, it will count down, turn off the air purifier and restart, it will continue to count down. When the filter replacement is accumulated for 2000 hours, the replacement filter indicator light will flash, and the buzzer will beep. After replacing the new filter, keep pressing the filter reset icon for three seconds icons light fully light up and do not flash. At the same time the buzzer is turned off.

7. Timing Function

Touch the timing icon, adjust the countdown shutdown time 1H 2H 4H 8H Loop in turn.

8. Sleep stalls

Touch the wind speed adjustment icon, adjust to the sleep gear position, enter the sleep mode, all the lights are off, only the wind speed icon light and the sleep gear light are half bright, touch the wind speed icon to exit the sleep mode.

9. Auto Function

Touch auto mode, it automatically checks the content of particles in the air near the machine. At the same, it displayed by the light in the machine according to the surrounding air quality. There are 4 colors of air quality indicator, which are blue, green, purple and red. Blue represent the content of particulate matter in air of 0-50 ug/m3 (Excellent), green represents 51-100 ug/m3 (Good), purple represents 101 - 150 ug/m3 (Normal) and the red color represents the content of the particloes in the air is more than 151 ug/m3 (Poor)

INSTRUCTIONS

Before you turn on the machine for the first time, be sure to remove the filter bag before you use it.

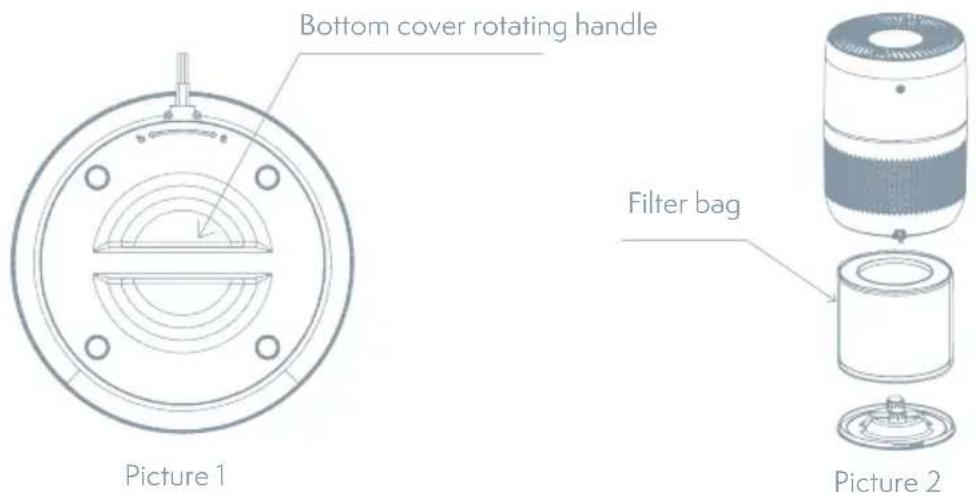

1. Air purifier filter installation

Grasp the bottom cover handle by hand (the position shown by the arrow in Figure 1) and turn the bottom cover in the direction of unlocking. Then take out the filter (the item shown by the arrow in Figure 2), remove the filter bag, and put the filters back, then insert the bottom cover into the fuselage and turn it in the direction of the lock.

2. Aromatherapy function

There are two special perfume sponges inside the bottom cover of the machine. You can drop the perfume of your favorite scent onto the sponge (as shown by the arrow in Picture 3). When the machine is working, there will be a trace of wind passing through this area, and the scent will slowly emanate with the breeze, giving you a more comfortable living environment. You can also choose to put the fragrance particles your own preferences into it. Remove the sponge when using the fragrance particles (as shown by the arrow in Picture 4).

Picture 3 Picture 4

TECHNICAL PARAMETERS

Product name: Tesla Smart Air	Purifier Mini
Model: AP1207
Power supply: AC220-240V/50HZ
Rated power: 30W
Dimension: 225x225x310mm
Weight: 2.5 kg

FAULT HANDLING

Condition Possible reasons	Solutions
Machine can't turn on Machine plug and power plug are not inserted into the power source.	Insert into the power source.
The fan doesn't work Machine inlet or outlet was blocked. Plastic packaging are not removed.	Remove other objects or contact with our customer center. Remove plastic packaging of each filte
Performance is poor or not best purification ability	The gap round the machine is not proper.Filters are not replaced.	Remove other objects or. Replace one set of new filter.
The machine beeps Filters are not replaced. Drücken Sie die Reset-Taste, um das Licht dieses Luftreini-gers ein- und auszuschalten.
Air quality indicator is always red	There is a source of pollution near the machine, such as someone smoking.	After the machine has been run- ning for a period of time, the air quality indicator will turn blue or green when the air quality is getting better.

If you can't solve the problems based on the above information you should contact the product agent immediately, do not disassemble, repair and install it by yourself.

WIFI CONNECTION GUIDE

Please keep pressing on the „Fan Speed Adjust“ button for 5 seconds after you start the machine, along with the light flashing, the machine will enter into the configuration state.

1. Scan the QR code specified above, download and install the Tesla Smart APP.
2. Open the Tesla Smart APP and choose to create a new account or log in directly.
3. Click the "+" sign in the upper right corner to add the device.
4. Select "small home appliance- air purifier"; Turn on the air purifier, and press "FAN" to enter the distribution network mode within five seconds, see the WIFI indicator on.
5. Enter the WIFI password and click ok.
6. Click „Fast flashing”; Note: please ensure that the mobile phone and air purifier are in the same WIFI environment;
7. Wait for device connection to complete.
8. "Add device success" appears to indicate that the device connection was successful.
9. Click finish to enter the control interface to control the machine.

4

INFORMATION ABOUT DISPOSAL AND RECYCLING

This product is marked with the symbol for separate collection.

The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorisation and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimise impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre or local authorities.

EU DECLARATION OF CONFORMITY

Hereby, Witty Trade s.r.o. declares that the radio equipment type AP1207 is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: teslasmart.com/declaration

Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n

Frequency band: 2.400 - 2.4835 GHz

Max. radio-frequency power (EIRP): < 20 dBm

Manufacturer

Tesla Global Limited

Gee Chang Industrial Building,

121 Des Voeux Road Central

852 00 Hong Kong

www.teslasmart.com
