Pure Life P500 TSA0115 - Air purifier Teesa - Free user manual and instructions

Product Type	Air Purifier
Brand	Teesa
Model	Pure Life P500 TSA0115
Dimensions (mm)	233 x 233 x 342
Weight (kg)	3.1
Power Supply	220-240 V, 50/60 Hz
Power Consumption (W)	38
Filtration System	3-stage: Pre-filter, HEPA 11, Carbon filter
CADR (m³/h)	136
Max Room Size (m²)	15
Operating Modes	Sleep, Low, Medium, Turbo
Timer Settings	2h, 4h, 8h
Noise Level (dB)	29 (sleep), 37 (low), 47 (medium), 55 (turbo)
Control Panel	Touch controls with LED indicators
Filter Replacement Indicator	Yes, red LED lights up when filter needs replacement
Filter Replacement Interval	Every 6 months (or more frequently depending on usage)
Filter Cleaning	Vacuum clean once a month; do not wash
Housing Cleaning	Soft, slightly damp cloth
Anti-slip Feet	Yes
Power Cord Length (m)	1.8
Safety Features	Automatic shut-off via timer; safety instructions included
Spare Parts Available	3-in-1 filter (replaceable) available from Teesa.pl or rebelelectro.com
Intended Use	Indoor household use only
Certifications	CE (implied), compliant with WEEE directive

Frequently Asked Questions - Pure Life P500 TSA0115 Teesa

How often should I replace the filter?

The filter should be replaced at least every 6 months. The filter replacement indicator will light up red when it is time to change the filter. More frequent replacement may be necessary if the air quality is poor or the unit is used extensively.

Can I wash the filter?

No, the 3-in-1 filter is not washable. Do not rinse it under water or immerse it in liquid. Clean the filter by vacuuming it once a month to remove dust and debris.

How do I reset the filter replacement indicator?

After replacing the filter, press and hold the power button for about 5 seconds. The filter replacement indicator will turn off, indicating the system has been reset.

What do the different operation modes do?

The purifier has four modes: Night (lowest fan speed, all indicators off for dark sleep), Low, Medium (default), and Turbo (highest speed, all three mode indicators on). Each mode adjusts the fan speed to balance air purification and noise.

What is the maximum room size for this air purifier?

The recommended maximum room size is 15 m². The purifier has a CADR (Clean Air Delivery Rate) of 136 m³/h, suitable for small to medium rooms.

How do I set the timer?

Press the timer button repeatedly to cycle through the options: 2 hours, 4 hours, or 8 hours. The selected time is indicated by an LED. The purifier will automatically turn off after the set time.

Is the air purifier noisy?

Noise levels vary by mode: 29 dB in sleep mode (whisper-quiet), 37 dB low, 47 dB medium, and 55 dB turbo. The purifier is designed for quiet operation, especially suitable for bedrooms in night mode.

Can I use this purifier in a large room?

This model is designed for rooms up to 15 m². Using it in a larger room may result in insufficient air exchange. For larger spaces, consider a more powerful model.

What should I do if the purifier stops working?

First, check the power connection and ensure the filter is properly installed. If the filter replacement indicator is on, replace the filter. If the problem persists, contact authorized service. Do not attempt to repair yourself.

Where can I buy replacement filters?

Replacement 3-in-1 filters are available online from Teesa.pl or rebelelectro.com. Ensure you purchase the correct model for your Pure Life P500 TSA0115.

USER MANUAL Pure Life P500 TSA0115 Teesa

White Pure Life P500 air purifier with perforated grille and ventilation grille (no text or symbols on body)

Návod k obsluze

Bedienungsanleitung

Owner's manual

Εγχειρίδιο χρήσης

Instrukcja obsługi

Manual de utilizare

Návod na použitie

Gerät

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

1. Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.
2. Before connecting the device to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.
3. Place the device on flat, stable surface.
4. Protect this device from shock and being dropped.
5. Clean this device in accordance to instructions listed in "Cleaning and Maintenance" section.
6. ALWAYS turn off the device and disconnect it from the mains supply:

• if it's not operating correctly,
- if there's an uncommon voice when using,
• before disassembling the device,
• before cleaning,
- when not in use.

1. When you disconnect the power cord of the device, grasp and pull the plug, not the cord/cable.

2. This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

3. Fixed power cable may only be replaced in an authorized service point.

4. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.

5. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.

6. Do not use the product for purposes different from displayed in this operating manual.

7. Do not use unauthorized accessories.

8. Appliance for home use; do not use it for commercial or industrial purposes. Device for indoor use only.

9. DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

10. Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. Never disassemble this device.

11. Do not insert your fingers or any other objects into the air inlet and outlet.

12. Do not block or cover air inlet and outlet.

13. Do not place anything on the top of the device.

14. Do not place the device on soft surfaces such as bed or sofa as this could cause the device to tip over.

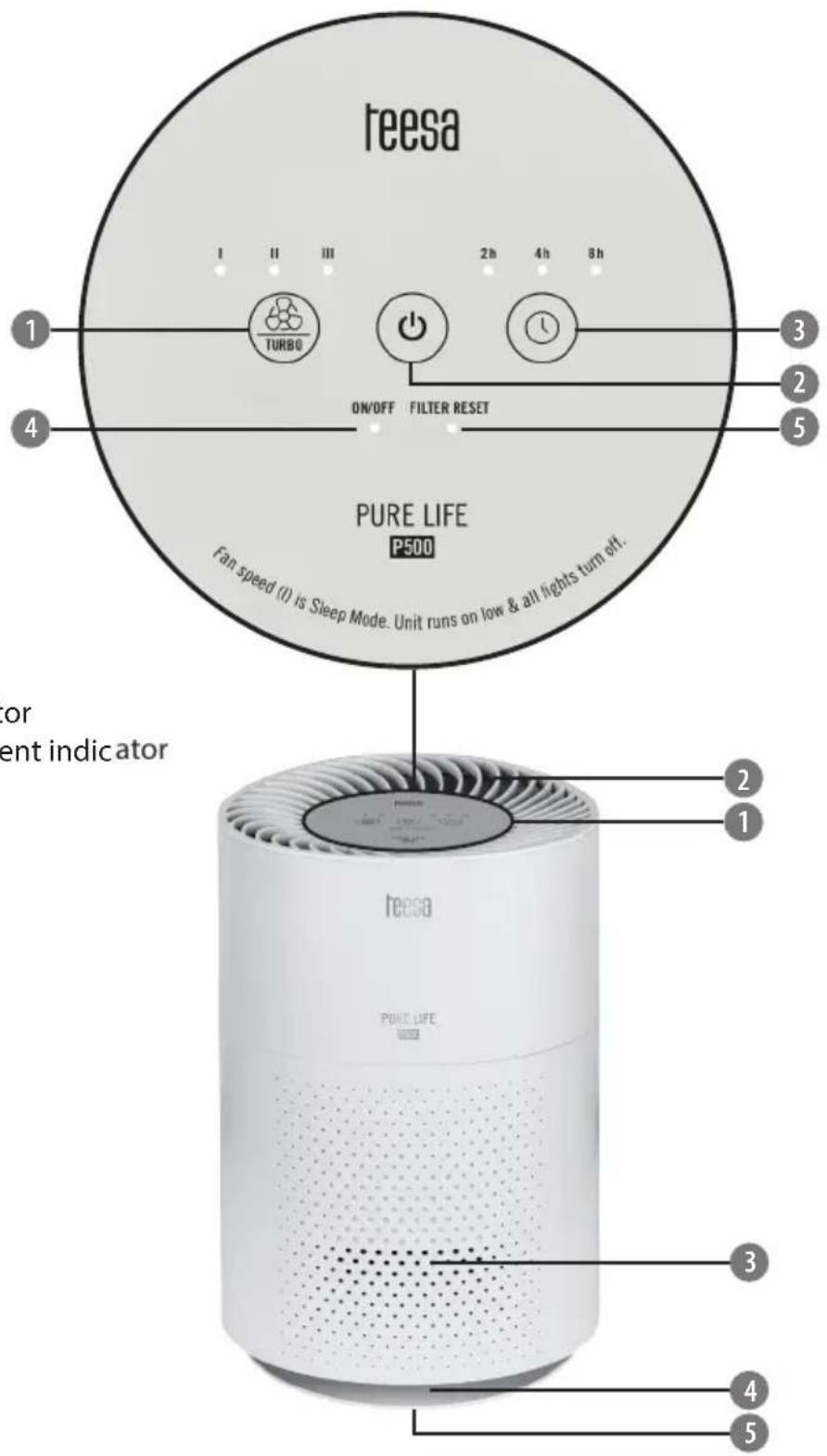

PRODUCT DESCRIPTION

Control panel

1. Mode button
2. Power button
3. Timer button
4. ON/OFF indicator
5. Filter replacement indicator

Device

1. Control panel
2. Air outlet
3. Air inlet
4. Base
5. Nut

The air is purified with a 3-in-1 filter, consisting of pre-filter, HEPA filter and carbon filter. Each layer is responsible for eliminating different type of pollution.

Pre-filter: Captures big particles such as dust and hair

HEPA 11: Eliminates 99.5% of 0,3 μm particles such as dust, smoke, pollen and other allergens

Carbon filter: Removes odors and bad smells

OPERATION

1. Prior to first use, take out the filter and remove the protective plastic bag then replace the filter (see "Filter replacement" section).
2. Place the device on a flat and stable surface. Make sure there is enough space around the device to allow free circulation (at least one meter from walls or furniture) and that air inlet and outlet are not blocked.
3. Connect the device to power mains.
4. Press the power button to turn on the device (ON/OFF indicator lights up).

Note: Press and hold the power button for about 5 seconds to reset the filter replacement indicator.

1. Keep pressing the timer button to change timer intervals. There are three available timers: 2 hours, 4 hours and 8 hours. LED light indicates selected timer. When set time is up, the device will switch off automatically. If timer function is not enabled, the device will keep operating until manual switch-off.
2. Keep pressing the mode button to change operation mode. There are four available modes: night, low, medium, turbo. LED light indicates selected mode.

Notes:

• Default operation mode is medium.
• Turbo mode is on when all three indicators are on.
• In the night mode, all indicators on the control panel are off.

1. Turn off the device by pressing the power button and disconnect it from power supply (ON/OFF indicator goes off).

FILTER REPLACEMENT

It is time to replace the filter when the filter replacement indicator lights up red. Filters should be replaced at least once each 6 months. More frequent cleaning and replacing may be required depending on environmental conditions.

1. Turn the device upside down.
2. Remove the screw from the base.

3. Take off the base.

4. Take out old filter and insert the new one.

5. Reattach the base and fasten the screw.
6. Set the device to proper position.
7. Press and hold the power button for about 5 seconds to restart the system. The filter replacement indicator will go off.

3-in-1 filter is available to be bought from the online store Teesa.pl or rebelelectro.com.

CLEANING AND MAINTENANCE

• Prior to cleaning, disconnect the device from power mains.
- Clean the housing of the device regularly with a soft, slightly damp cloth.
- 3-in-1 filter is NOT washable. Do not rinse it under water or immerse it in water. Make sure the filter is dry when installing it into the device.
• The filter should be cleaned once a month with a vacuum cleaner.

SPECIFICATION

3-stage filtration system 4 fan operation modes Sleep mode Touch control panel Filter replacement indicator Quiet operation Anti-slip feet

TECHNICAL DATA

Maximum room size: 15 m ^4

CADR: 136 ~m^3 / h

3-in-1 filter: pre-filter, carbon filter, HEPA 11

Operation modes: sleep, medium, high, turbo

Noise level: 29 dB/ 37 dB/ 47 dB/ 55 dB

Timer: 2 h/4 h/8 h

Power: 38 W

Power supply: 220 - 240 V; 50/60 Hz

Power cord length: 1,8 m

Weight: 3,1 kg

Dimensions: 233x233x342 mm

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
