Operating and Installation Instructions

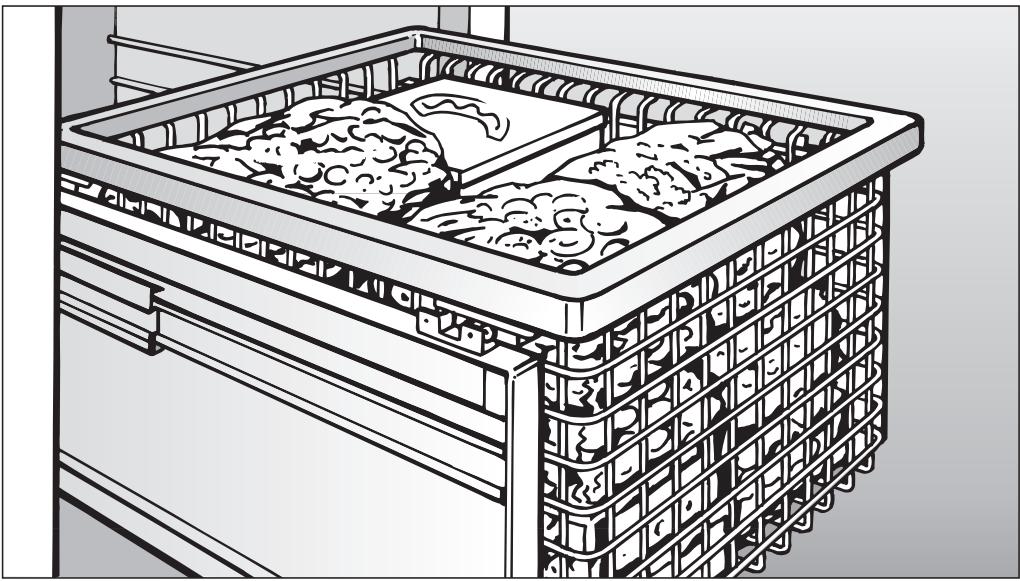

Illustration of a multi-level storage rack with circular trays filled with food items (no text or symbols visible)

Freezer

F 1801 SF

F 1811 SF

F 1901 SF

F 1911 SF

To prevent accidents and appliance damage read these instructions

before

installation or use.

en - US, CA

M.-Nr. 07 360 800

IMPORTANT SAFETY INSTRUCTIONS. 4

Guide to the freezer 7

Before use 9

Turning the appliance On/Off 9

Settings....10

Turning the button sound On/Off....11

Turning off for longer periods of time 12

Alarm....13

Temperature alarm 13

Door alarm....13

Setting the temperature.... 14

Using the freezer efficiently 16

Freezing food....16

Defrosting 17

Cooling drinks quickly 17

SuperCool....19

Ice cube maker 20

Automatic defrost 21

Adjusting the interior fittings 22

Moving the shelves 22

Freezer baskets 22

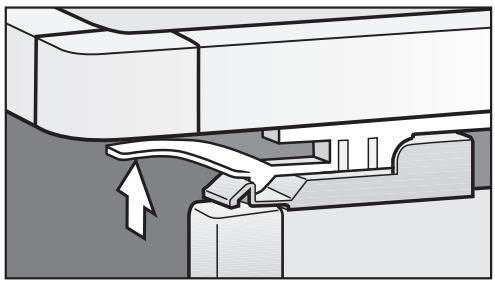

Ice cube container....23

Cleaning and care 24

Cleaning the interior and accessories....24

Appliance door 25

Ventilation slits 25

Door seals 25

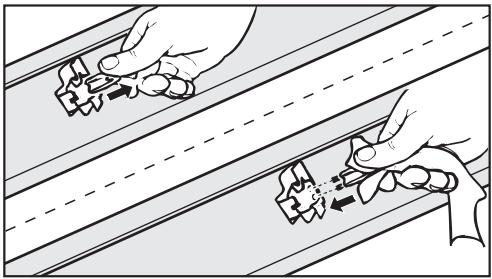

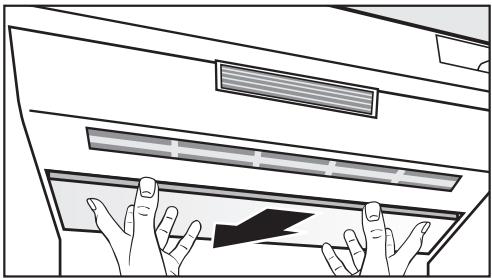

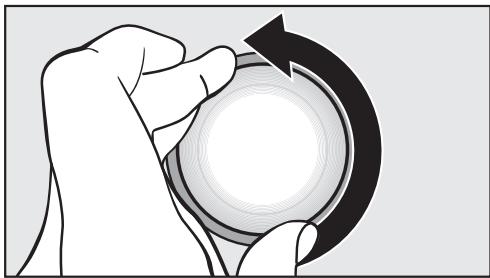

Changing the light bulb 26

Water filter 28

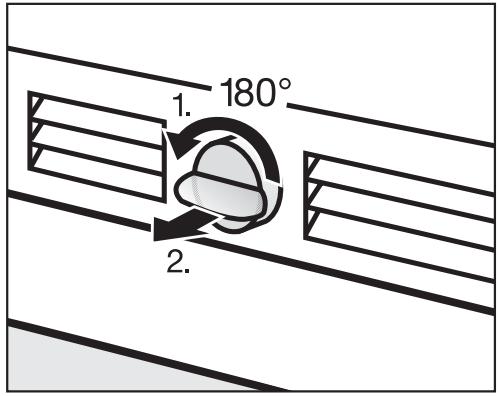

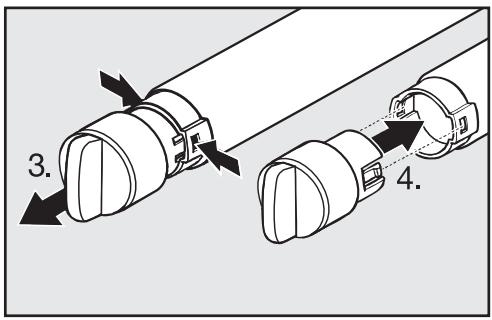

Exchanging the water filter 29

Filter Performance Data Sheet 32

Frequently asked questions 34

After sales service 41

Caring for the environment 44

Installation 45

Installation site 45

Installation options....47

Dimensions 49

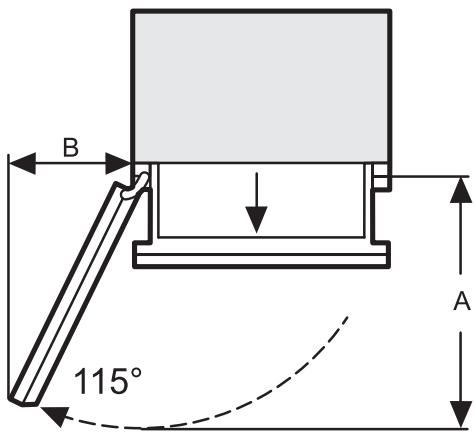

Niche dimensions 49

Installing the appliance 51

Before you begin 51

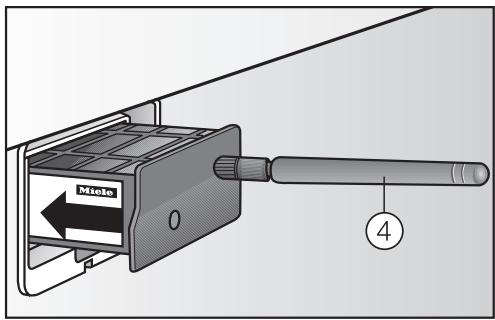

RemoteVision module installation 53

Preparing the installation niche .... 54

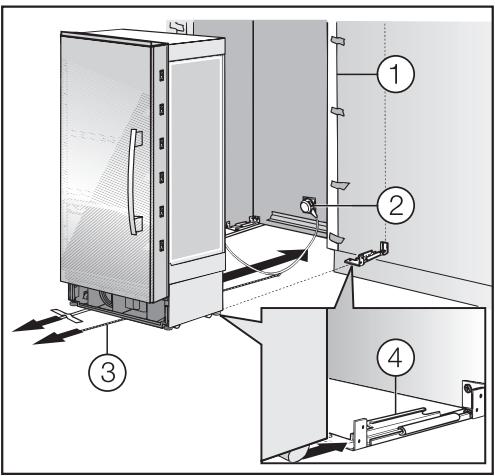

Sliding the appliance into the installation niche 57

Aligning the appliance....58

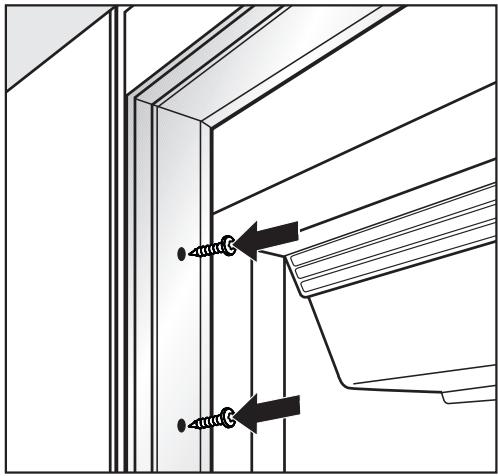

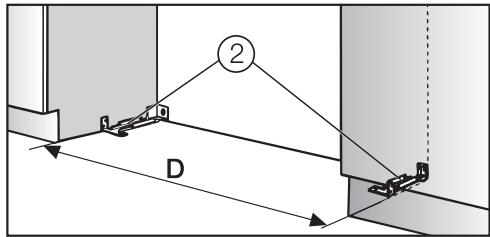

Attaching the appliance to the installation niche. 59

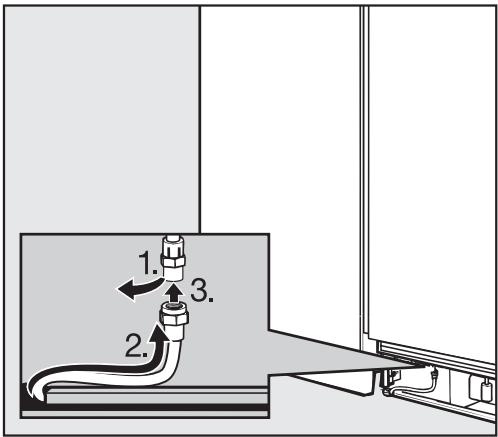

Plumbing....62

Electrical connection....65

RemoteVision 66

IMPORTANT SAFETY INSTRUCTIONS

When using the appliance, follow basic safety precautions, including the following:

Read all instructions before installation and use to prevent accidents and machine damage.

This appliance is intended for residential use only. Use only as described in this Operating manual.

Only use the appliance for its intended purpose.

This appliance complies with current safety requirements. Improper use of the appliance can lead to personal injury and material damage.

Keep these operating instructions in a safe place and pass them on to any future user.

Electrical Safety

Before installation, make sure that the voltage and frequency listed on the data plate correspond with the household electrical supply. This data must correspond to prevent injury and machine damage. Consult a qualified electrician if in doubt.

Before installation or service, disconnect the power supply to the work area by unplugging the unit, "tripping" the circuit breaker or removing the fuse.

Do not use an extension cord to connect this appliance to electricity. Extension cords do not guarantee the required safety of the appliance (e.g., danger of overheating).

Be certain your appliance is properly installed and grounded by a qualified technician. To guarantee the electrical safety of this appliance continuity must exist between the appliance and an effective grounding system. It is imperative that this basic safety requirement be met. If there is any doubt, have the electrical system of the house checked by a qualified electrician.

▶ Only connect power to the appliance when all installation and plumbing work is complete.

Installation

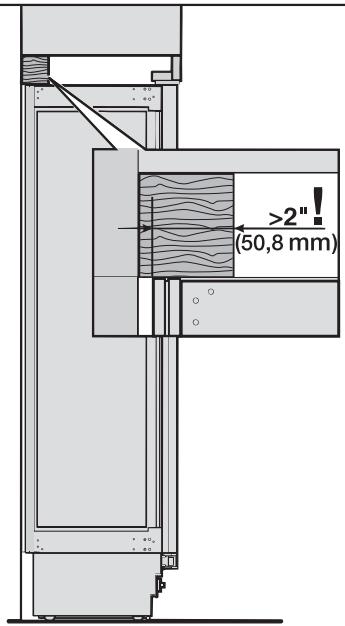

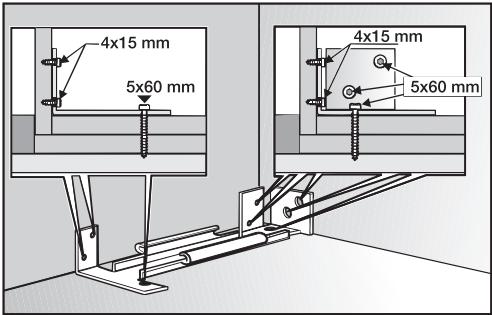

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the door closed until the appliance is completely installed and secured per installation instructions.

This appliance must be installed and connected in compliance with the installation instructions.
▶ Installation and repair work should be performed by a Miele authorized service technician. Work by unqualified persons could be dangerous and may void the warranty.
▶ Installation must comply with local plumbing regulations and state laws.
Do not operate any appliance with a damaged cord or plug, or if the appliance has been damaged in any manner. Contact Miele's Technical Service Department.
This equipment is not designed for maritime use or for use in mobile installations such as recreational vehicles or aircraft.
Do not install the freezer in a room with too low an ambient temperature, e.g., a garage, as this may lead to the appliance switching off for longer periods so that it cannot maintain the required temperature.

In appliances with an automatic ice maker, avoid contact with the moving parts of the ejector mechanism, or with the heating element located on the bottom of the ice maker. Do not place fingers or hands on the automatic ice making mechanism while the freezer is plugged in.

The ice cube maker is not suitable for connection to a hot water supply.
Do not use water that is microbiologically or chemically unsafe or of unknown quality without adequate disinfection or other treatment before or after the filter is used; the filter alone is not an adequate safeguard.

Use

▶ Persons who lack physical, sensory or mental abilities, or experience with the machine should not use it without supervision or instruction by a responsible person.
To reduce the risk of injury, do not allow children to play in, on or near the appliance, especially in the door hinge area.
▶ After your freezer is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet. Skin may adhere to these extremely cold surfaces.
Do not refreeze frozen foods which have thawed completely.

IMPORTANT SAFETY INSTRUCTIONS

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
▶ Do not deactivate the water filter display.
Do not use sharp-edged objects to remove frost and ice, or separate frozen foods and remove ice trays. They will damage the evaporator, causing irreversible damage to the appliance.
Do not use defrosting sprays or de-icers, as they might contain substances which could damage the plastic parts or which could cause a build-up of gases and pose a danger to health.
Do not use any oils or grease on the door seal, as these will cause the seal to deteriorate and become porous with time.
Do not block the ventilation gaps in the plinth or the top of the appliance housing unit, as this can impair the efficiency of the appliance, increase the electricity consumption and cause damage to the appliance.
▶ Never use a steam cleaner to clean the appliance. Pressurized steam could damage electrical components and cause a short circuit.

Disposal of your old appliance

Before disposing of an old appliance, first make the door latch or lock unusable.
▶ Take off the door.
Leave the shelves in place so that children may not easily climb inside.
▶ Consult with your municipal policy on recycling.
▶ Be careful not to damage any part of the pipework while awaiting disposal by:

• puncturing the refrigerant channels in the evaporator.
• bending any pipework.
• scratching the surface coating.

Splashes of refrigerant can damage the eyes.

Your old freezer may have a cooling system that used CFCs (chlorofluorocarbons). CFCs are believed to harm stratospheric ozone. If you intentionally release this CFC refrigerant, you can be subject to fines and imprisonment under provisions of environmental legislation. Make sure the CFC refrigerant is removed and disposed of by a qualified technician.

SAVE THESE INSTRUCTIONS

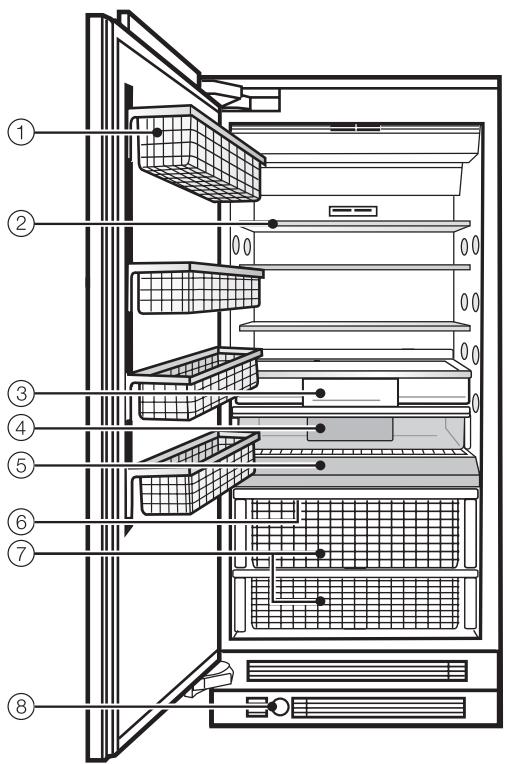

① Door shelves (height adjustable)
② Shelves (height adjustable)
③ Ice cube maker
④ Ice cube container
⑤ Control panel
⑥ Main switch to turn the appliance On/Off
⑦ Freezer basket
⑧ Water filter

Technical diagram of an refrigerator interior with numbered compartments and storage bins

Control panel

v - 15 °C F ① ②

① Access button "💡"
② Temperature display ∨ colder; ∧ warmer Allows you to set the desired temperature in the freezer
③ On/Off sensor button for the SuperCool function

④ On/Off sensor button for the ice cube maker
⑤ Sensor button for the temperature and door alarm*
⑥ Water filter change indicator*

* Only visible when the relevant function is activated

Before using for the first time

The stainless steel surface of the appliance is protected with a plastic film, which protects it during shipping.

Do not remove this protective film until the appliance has been completely installed.

After removing the protective film clean the exterior surface with the supplied stainless steel agent. This will aid in preventing resoiling.

■ Clean the inside of the appliance and the accessories with a mild solution of warm water and liquid dish soap. Dry with a soft cloth.

After installing the appliance, wait at least 30 minutes before switching the appliance on. During transport, fluids in the freezer system may have shifted and will need some time to settle.

Turning the appliance On/Off

■ Open the appliance door.

■ Turn the appliance On/Off with the main switch.

The main switch is located on the right-side underneath the control panel.

Once on, the appliance begins cooling. When the door is open, the interior lights come on.

The access button will light in the control panel.

The preset temperatures (factory default settings) are reached after a few hours. Do not put any food in the appliance until the preset temperatures are reached.

⚠ Turning off the appliance with the main switch does not safely isolate it from the power supply.

Using the settings

When a sensor button has been selected with a finger touch, it will appear yellow.

A de-selected button will appear white.

■ Touch the access button "💡" so it turns yellow.

On the control panel you will see additional sensor buttons to operate the appliance.

These buttons allow you to:

• adjust the temperature,
• select the SuperCool function, or
• turn the ice maker On/Off.

For additional information, see the corresponding sections in this manual.

■ To leave the settings menu, touch the access button "☐" so it turns white. The last settings entered are stored. If the access button is not pressed the display will go out after approx. 30 secs.

The other sensor buttons now disappear from the control panel.

Custom settings

In the custom settings mode you can select and change functions. The function possibilities are described in the respective chapters of this manual.

Function	Display text
Temperature°C - °F
RemoteVisionModule settings	r
Button sound on/off	b
Confirm filterchanges	h
Exit Custom Settingsmode	c

Turning the button sound On/Off

If you prefer the buttons to be silent when touched the button sound can be turned off.

■ Touch the access button "💡" so it turns yellow.
■ Note the position of the V button, but do not touch.
■ Touch the access button "0" again so it turns white.

Only the access button "💡" is visible.

■ Place one finger on the position of the V button and hold (the V button will not be visible).

■ While holding down the V button, press the access button "☐" once. Keep holding the V button down until the following appears in the display (approx. 5 seconds).

$$ \vee \quad \subset \quad \wedge $$

■ Tap the V button until b appears in the display.
■ Touch the access button "💡" to confirm.
■ By touching the V button, you can choose between:

b 0 : Button sound is off
61: Button sound is on
b – : Return to menu.

■ Touch the access button "☐" to confirm the setting.
■ Tap the V button until you see c in the display.
■ Touch the access button "💡".

You have now left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

Turning off for longer periods of time

If the appliance is not going to be used for an extended time (for example, during a vacation) some precautions need to be taken:

■ Shut off the water supply line, (several hours before switching off the appliance)
■ Take all food out of the appliance
■ Turn the appliance off
■ Unplug the appliance
■ Empty the ice cube container
■ Clean the interior
■ Remove and discard the water filter (secure the filter cap)
■ Leave the door open to prevent odors

The appliance is equipped with an alarm system, to ensure that the temperature does not rise unnoticed because of energy loss or an open door.

The alarm system is always operational, it does not need to be switched on.

Temperature alarm

If the temperature becomes too warm, an alarm sounds and the "alarm" indicator turns red and flashes.

The temperature display shows the highest temperature reached during the alarm.

The alarm will sound and the display will flash if:

• too much warm air flows into the appliance, for example when food is being loaded, re-arranged, or taken out.
  – large amounts of food are being frozen at once.
• the power fails.

Turning the temperature alarm Off

As soon as the alarm condition is corrected, the alarm signal turns off and the affected zone stops flashing in the display. The "alarm" indicator goes out.

■ To turn the alarm off early, press the "alarm" sensor button.

The alarm signal turns off. The "alarm" indicator remains red and the corresponding appliance zone continues to flash until the alarm condition is corrected.

If the temperature in the freezer zone reaches 0^ F ( -18^ C) or higher, check that food has not defrosted.

Door alarm

If the appliance door is left open, an alarm signal will sound and the "alarm" indicator will turn red after five minutes.

Turning the door alarm Off

Once the door is closed the alarm turns off and the "alarm" indicator goes out. If the door has not been closed properly, the alarm will sound again after five minutes.

■ To turn the alarm off early, press the "alarm" sensor button. The "alarm" indicator and signal will turn off.

Setting the temperature

■ Touch the access button "💡" so it turns yellow.

V -15°F ∧

■ Use the V and ∧ buttons next to the temperature display to set the temperature warmer or colder.

Tap the V and ∧ sensor buttons to raise/lower the temperature 1°, or hold it down to move through the temperature range more quickly.

The temperature display on the control panel always shows the desired temperature.

Temperature range

The temperature can be set within the following range:

7^ F to -9^ F ( -14^ C to -23^ C).

To freeze fresh food and store frozen food for an extended period of time, a temperature of 0^ F ( -18^ C) is suggested.

The room temperature and the installation location can affect the time it takes for the appliance to drop to the coldest temperature. If the room temperature is too high, it may not be possible for the appliance to reach the lowest temperature.

Temperature unit (Fahrenheit/Celsius)

The temperature can be displayed in degrees Fahrenheit ( ^ F) or Celsius ( ^ C).

■ Touch the access button "💡" so it turns yellow.
■ Note the position of the V button, but do not touch.
■ Touch the access button "☐" again so it turns white.

Only the access button "💡" is visible.

■ Place one finger on the position of the V button and hold (the V button will not be visible).

■ While holding down the V button, press the access button "☐" once. Keep holding the V button down until the following appears in the display (approx. 5 seconds).

$$ \vee \quad \subset \quad \wedge $$

■ Tap the V button until ↗ appears in the display.
■ Touch the access button "💡" to confirm.
■ By touching the V button you can select either Fahrenheit or Celsius for the temperature display.

Fahrenheit

F 1: Celsius

F -: return to menu.

■ Touch the access button "0" to confirm the setting.
■ Tap the V button until a c appears in the display.
■ Touch the access button "💡".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

Freezing food

Fresh food should be frozen as quickly as possible. This helps maintain the nutritional value, vitamin content, appearance and taste of the food.

Never refreeze partially or fully defrosted food. Consume defrosted food as soon as possible, it will lose its nutritional value and spoil if left for too long. Do not refreeze defrosted food unless it has been cooked.

Before placing food in the freezer

■ When you are planning to freeze large amounts of food (more than 4 12 lbs [2 kg]), switch on the SuperCool function ahead of time (see "SuperCool").
This will provide the food already in the freezer with a protective boost of cold air.

Placing food in the freezer

Food to be frozen can be placed anywhere in the freezer.

Load bearing capacity of the baskets:

	Small basket	Large basket
F 18X1Vi/SF	72 lbs(33 kg)	72 lbs(33 kg)
F 19X1Vi/SF	94 lbs(43 kg)	94 lbs(43 kg)

■ Spread the food to be frozen across the bottom of the freezer basket or across the shelves, so that it will freeze through to the core as quickly as possible.

■ When placing items in the freezer, make sure the packaging and containers are dry, to keep them from sticking together when frozen.

When freezing, try not to let frozen food come into contact with unfrozen food, this could cause the frozen food to defrost.

Defrosting

Frozen food can be defrosted in different ways:

• in a microwave oven,
• at room temperature,
  – in the refrigerator (the cold given off by the frozen food helps to keep the other food cold),
• in a steam oven.

Poultry It is especially important to observe proper hygiene when defrosting poultry. Never save the liquid from defrosted poultry. Drain it away and promptly wash the container, the sink and your hands. Danger of salmonella poisoning.

Fruit should be defrosted at room temperature in its packaging, or in a covered bowl.

Most vegetables can be cooked while still frozen. Simply place directly into boiling water or hot oil.

Cooling drinks quickly

To cool drinks quickly, switch on the SuperCool function, see "SuperCool" for more information.

Do not leave bottles in the freezer for more than 1 hour, closed containers could burst.

Freezing tips

- The following are examples of foods suitable for freezing:

Fresh meat, poultry, game, fish, vegetables, herbs, fresh fruit, pastry/dough, leftovers, and a range of pre-cooked meals.

- The following examples of foods not suitable for freezing:

Lettuce, radishes, sour cream, mayonnaise, eggs in their shells, onions, whole raw apples and pears.

- To retain color, taste and vitamin C, vegetables should be trimmed, washed, and blanched.

To blanch: bring a large saucepan of water to a boil, then submerge the vegetables in rapidly boiling water for 2-3 minutes, depending on type.

Remove, and plunge into ice-cold water to cool quickly. Drain and pack for freezing.

- Lean meat freezes better than fatty meat, and can be stored for considerably longer.

- To prevent chops, steaks, cutlets or rolled meats from freezing together in solid blocks when packed, separate with a sheet of plastic freezer wrap.

- Do not season fresh foods or blanched vegetables before freezing. Cooked food can be lightly seasoned before freezing, but care should be taken as the taste of some spices alters when frozen.

- Do not place hot foods or drinks in the freezer. This causes already frozen food to thaw, and increases the energy consumption considerably. Allow hot foods and drinks to cool down before placing them in the freezer.

Packing tips

■ Unsuitable packing material

• wrapping paper
• greaseproof paper
• cellophane
• garbage bags
• plastic shopping bags

Suitable packing material

• plastic freezer bags/wrap
• aluminum foil
• freezer containers

■ To help prevent freezer burn, expel as much air as possible from bags, etc., before sealing them.
■ Close the packaging tightly with

- plastic clips

- twist ties

- rubber bands

■ Mark the package to indicate the contents and the date of freezing.

When the SuperCool function is activated, the appliance is cooled as cold as possible (to a factory-preset temperature).

SuperCool

The SuperCool function is ideal for freezing large quantities of unfrozen food. Ideally the function should be switched on 4 - 6 hours before the food is placed in the freezer.

If the max. freezing capacity is used,

24 hours are recommended.

This helps food to freeze quickly and retain its nutrients, vitamins, flavor and appearance.

Switching on SuperCool

super

■ Touch the SuperCool sensor so that it turns yellow.

The temperature now begins to fall, with maximum cooling performance.

The new temperature setting appears in the display -22^ ( -30^ ).

Switching off SuperCool

The SuperCool function automatically switches off after approx. 52 hours. The sensor button turns white, and the appliance continues running at normal power.

To save energy, you can switch off the SuperCool function once the food is sufficiently chilled.

super

■ Touch the SuperCool sensor so that it turns white.

The temperature display returns to the original temperature setting.

The appliance now continues running at normal power.

For the automatic ice cube maker to operate, it must be connected to the household water supply. See "Plumbing".

Turning on the ice cube maker

Make sure that the ice cube container is under the ice cube maker, as far as possible.

Ice cubes will not be produced unless the container is completely closed.

■ Touch the sensor button for the ice cube maker so that it turns yellow.

As soon as the freezer has cooled to a freezing temperature, the ice cube tray fills with water. Cold air is blown directly over the tray.

As soon as the ice cubes are frozen, they fall into the ice cube container.

The ice cube maker can produce approx. 140 ice cubes within 24 hours.

After the appliance is turned on for the very first time, it can take up to 10 hours for the first ice cubes to drop out of the ice cube maker and collect in the container.

Once the ice cube container is full, the ice cube maker switches off automatically.

Do not use the ice cube container for rapid cooling of food or drinks. The ice cube maker may become blocked and be damaged.

Do not use the first batch of ice cubes from the ice cube maker. Discard the ice produced in the first 24 hours after switching on the ice cube maker. This applies for the very first use, and whenever the appliance has been out of service for an extended period of time.

The amount of ice cubes produced depends on the temperature in the freezer section. The lower the temperature, the more ice cubes will be produced in a given period of time.

Turning off the ice cube maker

The water supply line must be shut off several hours before the appliance or ice cube maker is switched off.

■ Touch the sensor button for the ice cube maker so that it turns white.

The freezer defrosts automatically.

The moisture generated in the appliance collects in the evaporator. It is automatically defrosted and dissipated by the condenser periodically.

This automatic defrosting system enables the freezer to remain permanently ice-free, while ensuring that the food stored in the freezer stays frozen.

Moving the shelves

The shelves can be adjusted according to the height of the food.

■ Using both hands, grasp the shelf from underneath and lift slightly so that the rear of the shelf is slightly above the mountings.
■ Pull the shelf forward.
■ Move the shelf to the desired height, then insert the (rear) hooks into place.
■ Make sure the shelf is level.

Adjusting the door shelves

For easier loading, unloading, and cleaning, the door shelves can be shifted or completely removed.

■ Using both hands, grasp the door shelf by the frame and tip it slightly forward.
■ Slide the tipped shelf up or down along the slide-rails, and click it into place with the lower hooks.
■ Make sure the shelf is level.

Removing a door shelf

■ Slide it upward all the way to the top of the slide-rails, until it can be removed.

■ Start at the top of the slide-rails and slide the shelf down into the desired position.

Freezer baskets

For easier loading, unloading, and cleaning, the freezer baskets can be shifted or completely removed.

■ Pull the basket forward until resistance is felt.

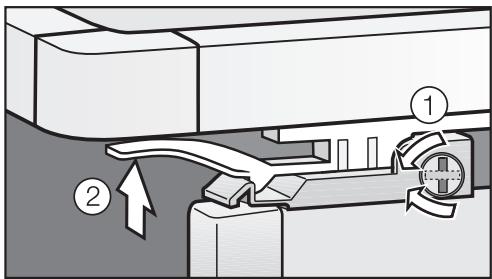

On the hinged-side of the door is a safety lock, which must be turned to a horizontal position before the drawer can be removed.

Diagram of a printer or printer mechanism with labeled parts and directional arrows indicating movement or process.

■ Using a suitable object, e.g., coin, turn the safety lock to a horizontal position ①.
■ On both sides of the basket, pull the latches ② upward and lift the basket out of the freezer.

Replacing the freezer basket

■ Fully extend the telescopic tracks.
■ Lay the basket onto the tracks so that it connects in the front and back.
■ Turn the safety lock back to the vertical position.
■ Slide the freezer basket in.

Ice cube container

The ice cube container is set on telescopic tracks, and can be removed for loading, unloading and cleaning.

■ Slide the container forward until resistance is felt.

Mechanical assembly diagram showing a component being inserted into a housing (no text or symbols present)

■ On both sides of the container, pull the latches (see arrow) upward and lift the container out of the freezer.

Push the tracks back into the freezer to avoid injury.

Replacing the ice cube container

■ Completely extend the telescopic tracks.
■ Lay the container onto the tracks so that it connects in the front and back.
■ Slide the container in.

To reduce the risk of electrical shock, disconnect the appliance from the power supply by shutting off the power main, tripping the circuit breaker or unplugging the power cord before maintenance.

Never use cleaning agents containing abrasive substances such as sand, soda, acids, chlorides or chemical solvents. Non-abrasive cleaning agents are also unsuitable, as they can cause matte areas to appear.

Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner (available from Miele).

Only use a mild solution of warm water and liquid dish soap to clean this appliance.

Do not use a steam cleaner to clean this appliance. Pressurized steam could penetrate electrical components and cause a short circuit.

Do not allow water to get into the electronic unit or lights.

Before cleaning

■ Use the main switch to turn the appliance off completely.
The main switch is located on the right side underneath the control panel.
■ Unplug the power cord.
■ Remove any food from the appliance and store it in a cool place.
■ Take out any removable parts, e.g., shelves.

Cleaning the interior and accessories

Use a mild solution of warm water and liquid dish soap. Wash all accessories and drawers by hand. Do not wash in a dishwasher.

■ Clean the appliance as needed.
■ After washing, wipe down the interior and accessories with a clean wet cloth, then dry with a soft cloth. Leave the appliance door open for a short time, so the moisture can evaporate.

Appliance door

■ Stainless steel surfaces can be cleaned using a non-abrasive stainless steel cleaner.
■ To help prevent resoiling, a conditioner for stainless steel can also be used. Apply sparingly with even pressure.

Aluminum frames

The shelf frames are made of aluminum.

■ Clean the frames with a mild solution of warm water and liquid dish soap.

Aluminum is susceptible to scratches and nicks, treat with care.

The aluminum frames may become discolored or otherwise altered if soiling is not cleaned away promptly.

Do not use stainless steel cleaners; lime removers; scouring pads, such as pot scrubbers; or used sponges that still contain abrasive cleanser residue to clean the frames.

Ventilation slits

■ Check the ventilation slits in the base panel regularly. Remove any dirt/dust with a vacuum cleaner or brush. Clean as needed.

Door seals

Do not use any oils or grease on the door seals. This may cause the seals to deteriorate and become porous over time.

■ Clean the door seals with warm water and dry thoroughly.

After cleaning

■ Return all shelves and accessories.
■ Plug in the appliance and turn it on with the main switch.
■ Switch on the SuperCool function. The freezer section will cool down quickly.
■ Once the temperature is cold enough, place food in the freezer.

Changing the light bulb

The lighting automatically switches off after the door has been open for approx. 5 minutes. This is not a fault.

After the bulb has cooled for a short time it will turn on again.

If the light does not come on when the door is opened briefly, the light bulb should be changed.

■ Use the main switch to turn the appliance off.

To reduce the risk of electric shock, disconnect the appliance from the power supply by unplugging or tripping the circuit breaker.

Upper lighting

Illustration of hands pressing down on a ventilation duct (no text or symbols)

■ Grasp the front of the light cover with both hands, and slide it back.
■ Carefully pull the cover forward and out.

Never touch a halogen bulb with bare fingers.

When inserting a glass halogen bulb always hold with a soft cloth.

Illustration of two hands adjusting a mechanical component on a rail track (no text or symbols)

■ Remove the defective light bulb.
■ Place the new bulb in the socket. Halogen bulb type: 20 W/12 V/socket GY 6.35.
■ Slip the rear of the light cover back into position, then pull it forward and into place.

Side lighting

Illustration of a hand holding a circular object with a curved arrow indicating rotation (no text or symbols)

■ Turn the light cover counterclockwise and pull out.

Never touch a halogen bulb with bare fingers. When inserting a glass halogen bulb always hold with a soft cloth.

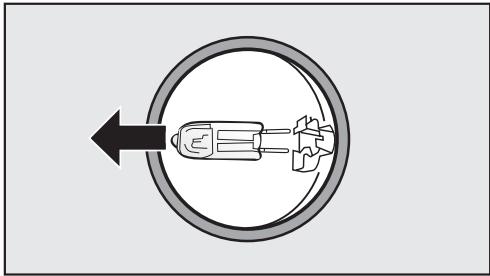

Diagram of a mechanical component inside a circular frame, with an arrow pointing left (no text or symbols)

■ Pull the defective light bulb from the socket.
■ Place the new bulb in the socket. Halogen bulb type: 5 W/12 V/socket G 4.
■ Put the light cover back on and turn clockwise into place.
■ Restore power to the appliance.

The water filter improves the taste and smell of ice cubes by removing chlorine and other substances from the incoming tap water.

It is important to change the water filter regularly.

To avoid serious illness or death, do not use water that is microbiologically or chemically unsafe or of unknown quality without adequate disinfection or other treatment before or after use of a filter.

Note:

• After installing a new water filter and switching on the ice maker, discard the first 24 hours' worth of ice production.
• If the ice maker has not been used for a prolonged time discard any ice cubes in the freezer, empty the container and discard the ice production of the next 24 hours.
• If the appliance or ice maker have not been routinely used for several weeks or months, or if the ice cubes have an unpleasant odor, change the water filter.

Note: Air trapped in the system may cause water and the filter cartridge to eject forcefully. Use caution when removing.

- Depending on how many ice cubes are produced, the filter will need to be changed approximately every 6 months.

filter

- When the filter indicator turns red, the filter will need to be changed soon.

Replacement filters can be ordered from Miele.

- When the red filter indicator flashes, it is time to change the filter.

Exchanging the water filter

1. 180° 2.

■ Push in and rotate the filter cap on the base panel of your appliance counterclockwise 180°, 1.
■ Pull the used filter cartridge out of the appliance, 2.

3. 4.

■ Remove the cap from the used filter, 3.
■ Take a new filter cartridge out of the packaging and remove the protective cap.
■ Push the cap onto the new filter cartridge, 4.

5. 6. -180°

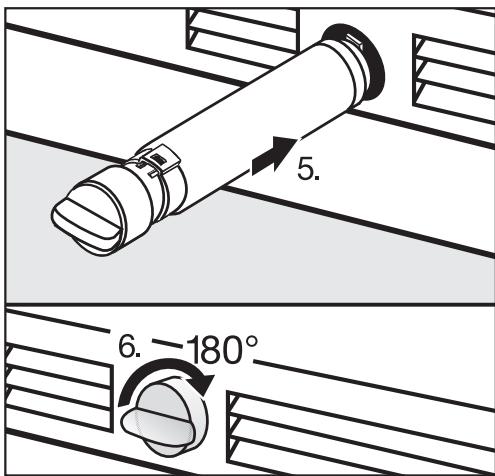

■ Push the filter cartridge with cap, in a horizontal position, all the way into the opening in the base panel, 5.
■ Rotate the filter cartridge clockwise 180^ until the cap is in a horizontal position, 6.

filter

The filter change needs to be confirmed before the "filter" indicator will go out. See "Re-setting the filter indicator".

Whenever you replace the filter, the system must be re-set. This will ensure the indicator light for the next filter change will come on at the right time.

Re-setting the filter indicator

The filter indicator still flashes in the display.

filter

■ Touch the access button "💡" so it turns yellow.
■ Note the position of the V button, but do not touch.
■ Touch the access button "0" again so it turns white.

Only the access button "☐" is visible.

■ Place one finger on the position of the V button and hold (the V button will not be visible).

■ While holding down the V button, press the access button "☐" once. Keep holding the V button down until the following appears in the display (approx. 5 seconds).

$$ \vee \quad \subset \quad \wedge $$

■ Tap the V button until an h appears in the display.
■ Touch the access button "💡" again.

By touching the V button you can select the following settings:

h 0: filter is installed

h 1: filter is not installed (external filter)

h 2: filter change confirmed

h -: return to menu

■ Tap the V button until h 2 appears in the display.

h 1 should only be selected if an external filter or bypass cartridge is being used. See "Deactivating the water filter".

■ Press and hold the access button "!” for 2 seconds to confirm the filter change.

The filter is now reset.

■ Tap the V button until h - appears in the display.
■ Touch the access button "💡".
■ Tap the V button until c appears in the display.
■ Touch the access button "💡".

You have left the Custom settings mode.

The "filter" indicator is no longer visible on the control panel.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

After installing a new water filter discard the first 24 hours of ice production.

Deactivating the water filter

The ice cube maker in this appliance can be operated without the installed water filter, for example if the household water supply already uses a water filter.

If you choose this option, it is important to insert a bypass cartridge. Only then can the performance of the appliance be ensured.

To purchase a bypass cartridge, contact Miele.

State of California

Department of Public Health

Water Treatment Device

Certificate Number

06 - 1775

Date Issued: March 10, 2006

Date Revised: April 3, 2008

Trademark/Model Designation

9000 077095

Miele 07134220

Replacement Elements

9000 077104

07134220

Manufacturer: Cuno, Incorporated

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section 116830 of the Health and Safety Code for the following health related contaminants:

Microbiological Contaminants and Turbidity

Cysts

Turbidity

Organic Contaminants

None

Inorganic/Radiological Contaminants

None

Rated Service Capacity: 740 gals

Rated Service Flow: 0.75 gpm

Conditions of Certification:

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

Performance Data Sheet For Filter Model 07134220

Using Replacement Cartridge 07134220

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42 and 53.

System tested and certified by NSF International in Model 07134220 against NSF/ANSI Standard 53 for the reduction of Cysts and Turbidity and against Standard 42 for the reduction of Chlorine Taste and Odor; Nominal Particulate Class I.

Note that while the testing was performed under standard laboratory conditions, actual performance may vary.

To a capacity of 739.68 gallons (2800 liters).

Substance	Average Influent Concentration	Influent Challenge Concentration mg/L	Product Water Concentration	Average % Reduction	Maximum Permissible Product Water Concentration	Max. Effluent	Min. % Reduction	NSF Test
Cysts*	166500	Minimum 50,000/L	1	99.99	99.95	1	99.99	516458-05
Turbidity	10.7	11 + 1 NTU	0.31	97.09	0.5 NTU	0.49	95.42	516456-05
Particulate Class I Particle size: >0.5 to < 1 um	5700000	At least 10,000 particles/ml	30583	99.52	≥ 85%	69000	98.9	511079-03
Chlorine taste and odor	1.9	2.0 mg/L ± 10%	0.05	97.3	≥ 50%	0.06	96.84	511081-03

* Based on the use of Cryptosporium parvum oocysts

Application Guidelines/Water Supply Parameters
Water pressure	30- 120 psi (207 - 827 kPa)
Water temperature*	33°F - 100°F (0.6°C - 38°C)
Service flow	0.75 gpm (2.83 lpm)

CAUTION: To avoid property damage due to water leakage, you MUST read and follow these operating instructions before installation and use of this product.

WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

NSF is a registered trademark of NSF International.

CUNO is a trademark of 3M Company used under license.

© 2007 3M Company. All rights reserved.

IMPORTANT: Must be installed and operated in accordance with application guidelines.

Failure to do so may void warranty.

Change filter at least every 6 months.

Flush new cartridge for 3 minutes.

For estimated costs of replacement elements please visit your local appliance dealer or parts distributor.

a 3M company

CUNO Engineered Products, Inc.

1000 Apollo Road

Eagan, MN 55121-2240 U.S.A.

With the aid of the following guide minor problems can be corrected without a service call.

Repairs should only be carried out by a qualified and trained person in strict accordance with local and national safety regulations. Unauthorized repairs could cause personal injury or machine damage and may void the warranty.

Problems with temperature

Issue	Possible fault	Solution
The freezer does not get cold.	The machine is not turned on.	Check whether the appliance is switched on at the main switch. The temperature display must be lit up.
	The machine is not plugged in.	Check that the plug is correctly inserted in the power outlet.
	Check that the fuse has not tripped.	Reset the circuit breaker.
	The temperature is set incorrectly.	Check the display.
The temperature in the freezer is too low.	Select a warmer temperature.	See "Selecting the correct temperature".
	The SuperCool function is still on.	SuperCool automatically shuts off after 52 hours.
	The door is not closed.	Check that the door has been closed properly.
	A large amount of food is being frozen at the same time.	This makes the compressor run longer, causing the temperature to fall automatically.
The freezer is too warm.	The room temperature is lower than the ambient temperature for which the appliance is designed.	Raise the temperature of the room. Operating the appliance in a room that is too cold will cause the cooling system to switch off for too long, causing the freezer section to become too warm.
General problems
Issue	Possible fault	Solution
Water is flowing out of the appliance.	Close the shut-off valve immediately.
	Check whether the water pipe in the appliance is defective.	Contact Miele Technical Service.
	Check whether the water pressure is too low.	Contact a plumber.
	Check whether the correct water valve has been installed.	Self-tapping valves and 3/16" (4.76 mm) saddle valves reduce the water pressure and can block the pipe.
The door to the freezer section will not open.	This is not a fault.The suction caused by opening and closing the door too many times in succession prevents it from opening.	Wait a few minutes, then try again. It should now open without force.
The compressor kicks on very frequently and for too long.	The ventilation slits are covered or dusty.	Clean with a vacuum or brush.
	The door has been opened too frequently, or a large amount of unfrozen food has been put in at once for freezing.	Once the freezer gets down to the set temperature the compressor will turn off.
	The door is not closed.	Check that the door has been closed properly.

Frequently asked questions

Alarm / Indicator warnings
Issue	Possible fault	Solution
The alarm is going off.	The appliance door(s) have been open for longer than 5 minutes.	Close the door.
The alarm is ringing and the "alarm" indicator is flashing.	The door is not closed.	Once the alarm condition has been corrected, the alarm will turn off and the "alarm" indicator will stop flashing.
	A large amount of food is being frozen at the same time.
	There has been a power failure.
The filter display is red.	This is a warning that the water filter needs to be changed soon.	Order replacement filters from Miele.
The filter display is flashing red.	The water filter needs to be changed.	See "Exchanging the water filter".
Problems with the ice maker
Issue	Possible fault	Solution
The ice cube maker will not switch on.	The appliance is not plugged in.	Check that the appliance is connected to the power supply.
The ice cube maker is not producing any ice cubes.	When the appliance is turned on for the very first time, it can take up to 10 hours for the first ice cubes to drop out of the ice cube maker and collect in the container.
	The appliance is not turned on.	Check that the appliance is switched on.
	The water supply line was not primed (purged of air) before the appliance was used for the first time.	Contact Miele.
	Check if:– the ice cube maker is switched on.– the water supply line is open.– there are ice cubes stuck together and blocking the exit.– the ice cube container is in the right position.– the freezer compartment temperature is too high.– the water pressure is too low. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).	See "Ice Cube Maker" and/or "Plumbing" for more information.
	Check whether the correct water valve has been installed.	Self-tapping valves and ^3/_16 " (4.76 mm) saddle valves reduce the water pressure and can block the pipe.

Frequently asked questions

Problems with the ice maker
Issue	Possible fault	Solution
The ice cubes are small.	Other domestic appliances that use water are in operation.	Avoid using such items as a dishwasher, washing machine or shower at the same time.
	Check whether the water filter needs changing.	See "Water filter" for more information.
	Check the water pressure. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).	Consult a plumber.
	Check whether the correct water valve has been installed.	Self-tapping valves and ^3/_16 " (4.76 mm) saddle valves reduce the water pressure and can block the pipe.
The ice cubes have an unpleasant odor/flavor.	When ice is stored for an extended period it may absorb odors, which affects the taste.	Use the ice maker more frequently.
	Check if the ice cube container is dirty.	Clean the container.
	Unsealed packages in the freezer will transfer odor/flavor particles to the ice cubes.	Check that food has been packed in airtight containers.
The ice maker is not producing enough ice or the ice cubes are misshapen.	Check the water pressure. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).	Contact a plumber.
	Check that the freezer temperature is not too low.	See "Selecting the correct temperature".
	Change the water filter.	See "Water filter".
Ice is forming in the supply hose to the ice maker.	Check the water pressure. The water pressure must be between 25 and 120 psi (1.72-8.25 bar).	Contact a plumber.
	Check whether the freezer compartment temperature is too high.	See "Selecting the correct temperature".
The appliance is making noises.
Issue	Possible fault	Solution
Brrrrr...	Humming noise made by the compressor. This noise can get louder for brief periods when the motor is switching on.	These noises are not a fault.The noise of the compressor and the coolant circulating in the system is unavoidable.
Blubb, blubb....	A gurgling noise can be heard when coolant is circulating through the pipes.
Click....	Clicking sounds are made when the thermostat switches the compressor on and off.
Sssrrrrr....	On multi-zone and frost-free appliances you can sometimes just hear the movement of air circulating inside the appliance.
Rattling, vibrating	The appliance is uneven.	Realign the appliance using a level, by raising or lowering the screw feet underneath the appliance.
	The appliance is touching another appliance or piece of furniture.	Move it away.
	Drawers, baskets or shelves are unstable or sticking.	Check all removable items and refit them correctly.
	Bottles or containers are unstable or knocking against each other.	Separate them.
	The transport cable clips are hanging loose at the back of the appliance.	Remove the clips.

In the event of a fault which you cannot easily fix yourself, please contact the Miele Technical Service Department at the address on the back of this booklet.

When contacting the Technical Service Department, please quote the model and serial number of your appliance given on the data plate inside the appliance.

MieleCare

(USA only)

MieleCare, our Extended Service Contract program; gives you the assurance of knowing that your appliance investment is covered by 5 years of worry-free ownership.

MieleCare is the only Extended Service Contract in the industry that guarantees repairs by a Miele Authorized Service Provider using genuine Miele parts. Only genuine Miele parts installed by factory-trained professionals can guarantee the safety, reliability and longevity of your Miele appliance.

Please note that unless expressly approved in writing by the Miele Service department, Extended Service Contracts offered by other providers for Miele products will not be recognized by Miele. Our goal is to prevent unauthorized (and untrained) service personnel from working on your Miele products, possibly doing further damage to them, you and/or your home.

To learn more about MieleCare Extended Service Contracts, please contact your appliance dealer or visit us online at:

http://miele.com/mielecare

Illustration of four different types of electrical fixtures: a plug, screwdriver, tap wrench, and a screw (no text or symbols present)

Installation instructions

To prevent accidents and machine damage read these instructions

before

installation or use.

Disposal of packing materials

The cardboard box and packing materials are biodegradable and recyclable. Please recycle.

Ensure that any plastic wrappings, bags, etc., are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation!

Disposal of an old appliance

Old appliances contain materials that can be recycled. Please contact your local recycling center about the possibility of recycling these materials.

Before discarding an old appliance, disconnect it from the electrical supply and cut off the power cord to prevent it from becoming a hazard.

Have the appliance installed by a qualified technician, according to the enclosed installation instructions.

WARNING

This appliance is top-heavy and must be secured to prevent it from tipping forward.

Keep the door closed until the appliance is completely installed and secured as per the installation instructions.

Empty weight of your machine:

F 18X1 SF ..... 478 lbs (217 kg)

F 19X1 SF ..... 552 lbs (237 kg)

Installation site

The appliance should be installed in a dry, well-ventilated room.

Do not install the appliance:

• outdoors
• in an environment with dripping water
• in rooms that are at risk of frost.

The installation location should not be exposed to direct sunlight, nor near a heat source, such as an oven, radiator, etc.

The ambient temperature should not drop below 55^ F ( 13^ C) or rise above 110^ F ( 43^ C), otherwise malfunctions may occur.

If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

• 1^1/_4'' (3 cm) from an electric cooktop or oven.
• 12" (30 cm) from a gas cooktop or oven.

Base

A fully loaded appliance is very heavy. The load-bearing capacity of your floor must meet the following requirements:

F 18X1 SF ..... 1,007 lbs (457 kg)

F 19X1 SF ..... 1,197 lbs (543 kg)

To ensure that the appliance is installed securely and functions properly, the base must be flat, level and made of a hard, rigid material.

If in doubt, contact Miele.

Furniture/fixtures

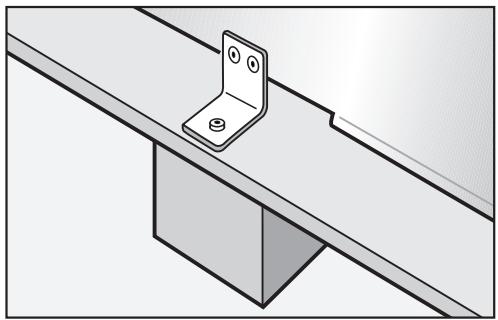

The new appliance will be mounted securely to adjacent furniture/fixtures. For this reason, it is essential that all attachable furniture/fixtures be connected securely to the floor or wall by a suitable means.

Ventilation

The air intake and outlet must not be blocked or covered in any way. They also need to be dusted/cleaned on a regular basis.

Installation niche

To ensure safe, trouble-free installation and the best possible cosmetic result, check to be sure that the installation space complies with the installation dimensions. See "Niche dimensions".

The side walls of the installation cavity must be plumb.

The minimum thickness of the side walls and the top wall must be 58 " (16 mm).

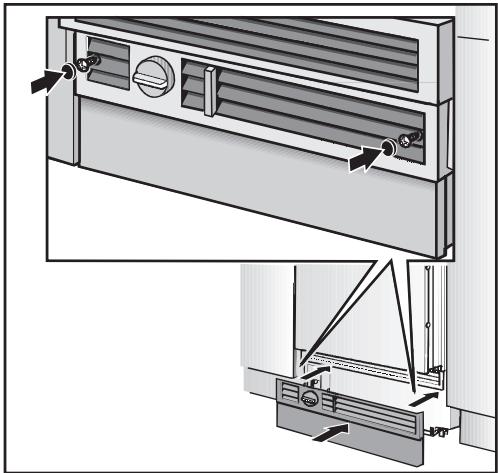

The minimum thickness of the toe-kick cover must be 12 " (13 mm). A thickness of 34 " (19 mm) is recommended.

Installation options

There are many different installation options. You are limited only by the design of the kitchen.

The door hinge cannot be exchanged.

Single column

The appliance can be installed at any preferred location in the kitchen.

However, be sure the door will open and close properly in the chosen location.

Side-by-side

This appliance can be installed "side-by-side" with another fridge/freezer using a "Merging Kit".

The "Merging Kit" can be obtained from Miele.

Contact Miele or your dealer for specific information about which combinations will work with your appliance.

... without partition

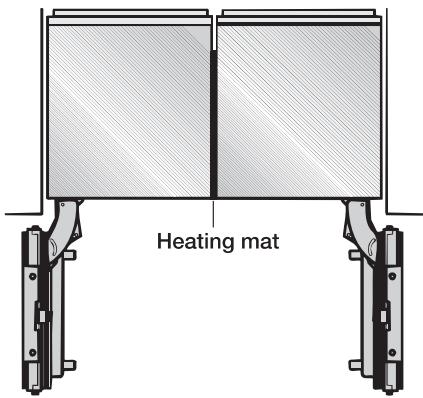

Heating mat

If the appliances are installed directly next to each other (without a partition), they will need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damage.

For instructions on how to attach the appliances and install the heating mat, please refer to the instructions included in the "Merging Kit" available from Miele.

... with partition

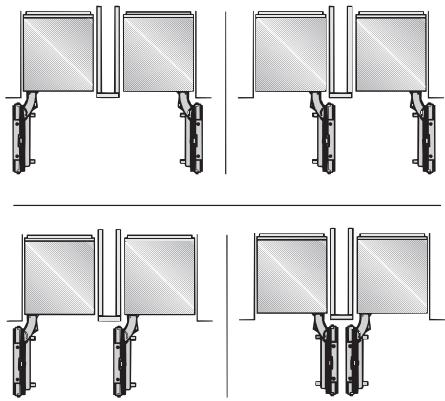

Four identical diagrams showing a mechanical or architectural component with vertical supports and horizontal beams, no text or symbols present.

The minimum thickness of the partition is 58 " (16 mm).

If there is a partition between the adjacent appliances, then each appliance is to be individually installed within its own niche.

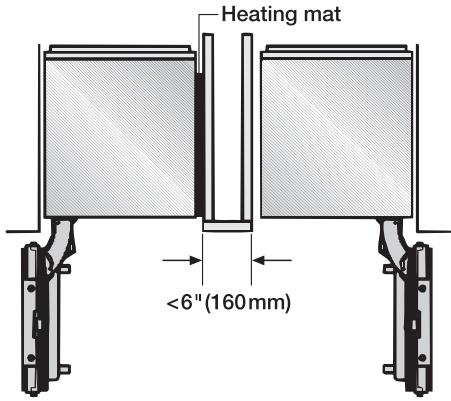

Heating mat <6"(160mm)

A heating mat must only be installed if the partition wall is less than 6" (160 mm) wide:

For instructions on how to install the heating mat please refer to the instructions included in the "Merging Kit".

The "Merging Kit" can be obtained from Miele.

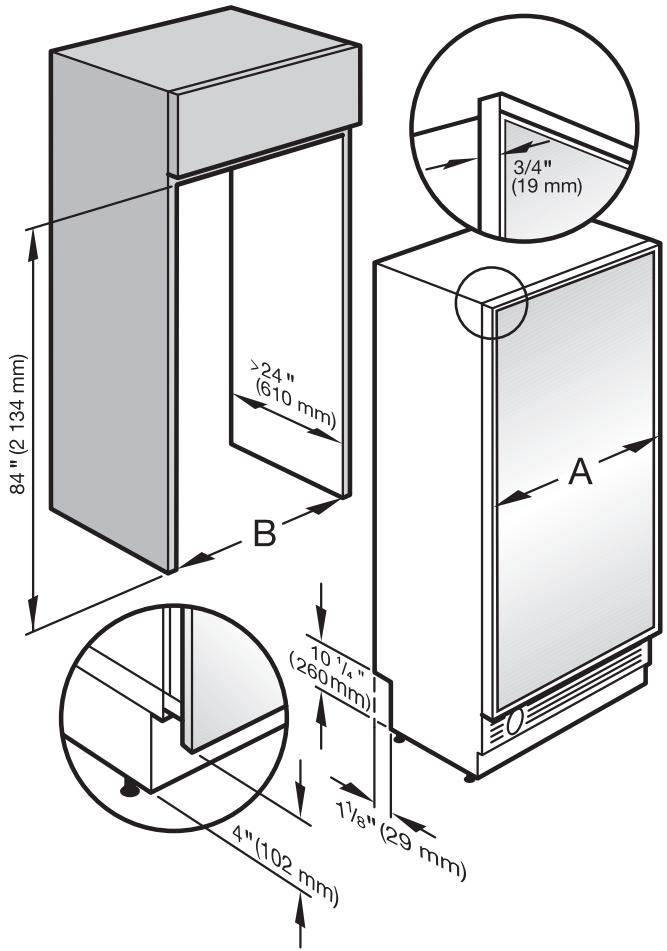

Side panels

If one side of the appliance is visible, a side panel must be used.

The side panel must be firmly secured to the wall, the floor and the overhead furniture/fixtures before the appliance is placed in the cavity.

The dimensions of the side panel are taken from the opposite wall of the installation space. During installation, ensure that the cavity is square and the measurements are correct.

Niche dimensions

84" (2 134 mm) >24" (610 mm) B 3/4" (19 mm) A 10 1/4" (260 mm) 1 1/8" (29 mm) 4" (102 mm)

	A	B
F 18X1 SF	30 1/2" (774.6 mm)	30" (762 mm)
F 19X1 SF	36 1/2" (927 mm)	36" (915 mm)

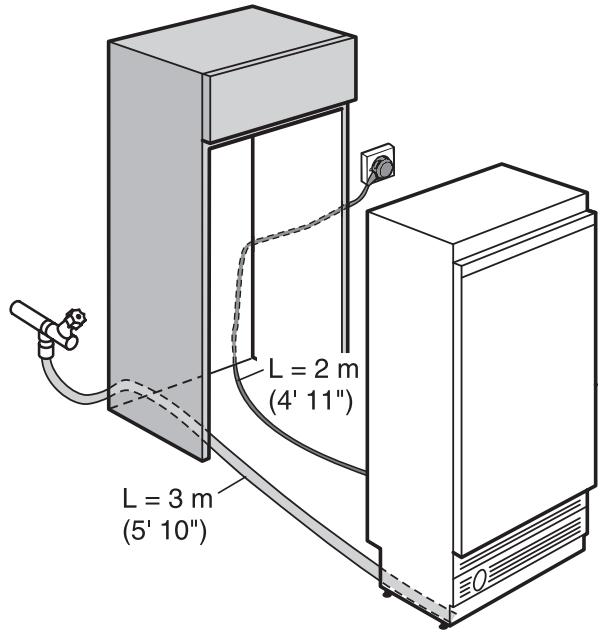

Power supply and water connection

L = 2 m (4' 11") L = 3 m (5' 10"

Door dimensions (open 115°)

B 115° A

	A	B
F 18X1 SF	32^5/_8" (829 mm)	14^5/_16" (363 mm)
F 19X1 SF	38^11/_16" (982 mm)	16^7/_8" (428 mm)

Before you begin

Read these instructions completely and carefully. Have the appliance installed by a qualified technician, according to the enclosed installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

These installation instructions are intended for use by qualified installers. In addition to these instructions, the appliance must be installed in accordance with all local codes. In the absence of a local code, the following should be used:

• In the USA, the National Electric Code, ANSI/NFPA 70 - latest edition/State and Municipal codes and/or local codes.
• In Canada, the Canadian Electric code C22.1 - latest edition/Provincial and Municipal codes and/or local codes.

Tools needed for installation

• Cutter with adjustable blade
• Cordless screwdriver T 20
• Torx screwdriver T 20
• Hammer drill for drilling holes in wall or floor
• Wood drills in different sizes
• Hammer
• Open-ended wrench 12 " (SW 13 mm)
• Box-end wrench
• ^5/_16 " (8 mm) hex nut driver
• Adhesive tape
• Multi-grip pliers
• Level
• Metal tape measure
• Square

Other

• Stepladder
• Dolly, hand truck
• Wooden beam (cross section min. 3" x 4" [75 mm x 100 mm] as an alternative tilt protection, length depends on the width of the installation cavity)
• Wood screws in different sizes

Optional Tool

- "Merging Kit" for side-by-side installation.

Check the installation niche

To ensure a safe, trouble-free installation and the best possible cosmetic result, check to be sure that the installation space complies with the installation requirements.

■ Check the base (see "Installation").
■ Check the dimensions of the cavity.
■ Check that the cavity is square.
■ Check the location of the power outlet.
■ Check the location of the water connection (see "Plumbing").
■ Check that all furniture parts in the vicinity of the appliance are securely connected to the wall.
■ Check that the adjacent furniture/fixtures do not collide with the open door.

Before installation

⚠ Caution - the appliance is very heavy. Use caution when unpacking and opening the door, danger of tipping.

■ To protect the base from damage during installation, attach a hard board, linoleum, etc., to the floor in front of the intended installation location.
■ Take the supplied accessories out of the protective packaging.

There are transportation safety devices inside the appliance to protect the shelves and storage compartments until installation is complete. Do not remove them, or parts may be damaged.

■ Check the appliance for damage in transit.

Do not install the appliance if it is visibly damaged. If in doubt, contact your dealer.

Technical illustration of a metal bracket with mounting holes and a support structure (no text or symbols)

■ Loosen the bracket that holds the appliance to the pallet.

⚠ Caution! The appliance is no longer secured and may be unstable.

■ From the rear of the appliance carefully lift it from the pallet.

Once the appliance is on the ground it can be wheeled around.

RemoteVision module installation

Always disconnect the appliance from the power supply when performing installation, maintenance or service work.

Install the RemoteVision module before placing the appliance in its installation niche.

Once connected the RemoteVision module will increase the energy consumption of the appliance.

The slot for the RemoteVision module is located in the lower area of the back of your appliance.

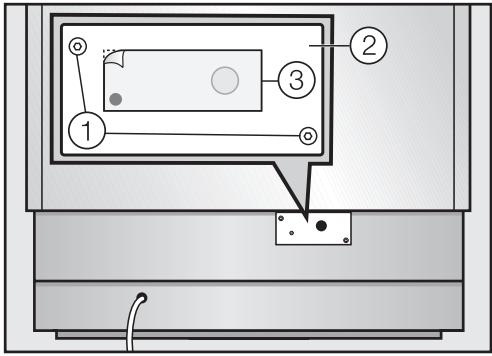

Diagram of a device with labeled components and directional arrows indicating movement or orientation

■ Unscrew the screws ① on the cover ② and pull off the sticker ③.

■ Remove the cover ②.

Mistle 0 ④

■ Push the module into the slot until it locks into place.
■ Connect the appliance to the power supply and turn it on. After several seconds the indicator light will come on.

The indicator light will display different colors one after the other; any control light at the end indicates that the module was correctly installed.

If the indicator light does not come on, installation of the module was unsuccessful. In that case, repeat the process. If that does not correct the problem, contact Miele.

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force.

■ Pull the antenna ④ straight out.
■ Guide the cover ② over the antenna ④ and screw on the cover.
■ Angle the antenna ④ so that it faces to the right or left.

If necessary, disconnect the power supply and continue installing the appliance.

Preparing the installation niche

Keep the appliance door closed until it is securely fastened in the niche. Tipping hazard.

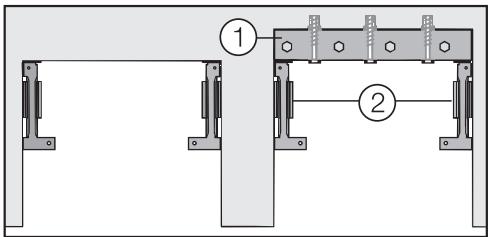

Technical diagram showing two labeled mechanical or structural components with numbered annotations

If the installation niche is deeper than the appliance, a solid wooden beam ① can be placed behind the anti-tip brackets ② so the appliance can be securely attached to the base or wall.

The length of the wooden beam ① should be to the width of the installation space.

If possible, always screw the wooden beam into existing studs.

Mounting Accessories

The mounting accessories needed for installing the appliance into the niche are included in the packaging. Several plastic bags are included which are numbered alphabetically.

The bag needed for each step will be marked with its respective letter.

■ Use the included Torx screwdriver to tighten the screws.

Anti-tip brackets

The anti-tip brackets help keep the appliance safely secured to the installation niche to prevent tipping.

Two anti-tip brackets are recommended for each appliance or appliance combination (side-by-side).

② D

The distance "D" between the anti-tip brackets ② is the width of the appliance.

■ Position the anti-tip brackets ② on the left and right walls of the appliance niche.
■ Mark the holes through the anti-tip brackets ② on the floor of the installation niche.
■ Set the brackets aside.

Assure that there are no electrical wires or plumbing in the area which the screws could penetrate - risk of injury and damage.

4x15 mm 5x60 mm 4x15 mm 5x60 mm

- Drill pilot holes:

• ^1/_8 " (3 mm) for 5 x 60 mm wood screws
• ^1/_16 " (2 mm) for 4 x 15 mm wood screws

■ Tightly secure the anti-tip brackets in the niche.

Be certain that the screws penetrate through the flooring and into the wall plate a minimum of 34 " (19 mm).

Securing an alternative anti-tip device

If the anti-tip brackets cannot be attached securely, an alternative anti-tip device can be used.

Ensure that there is no "give" between the appliance and the anti-tip device.

If possible, always screw the wooden beam to existing studs.

>2" (50,8 mm)

■ Cut a wooden beam (cross section min. 3" x 4" [75 mm x 100 mm]) to the required length.

The length is equal to the width of the installation niche.

- If the installation niche is deeper than the appliance, select a beam with a larger cross section, or attach two beams.

• The beam must cover the appliance by at least 2" (50.8 mm).
  ■ Mark the installation height (lower edge of the beam) on the rear wall of the niche.
  ■ Select screws according to the thickness of the wooden beam. Example: 3 12 " screw for 2x4 beam.
  ■ Determine the number of screws based on the cavity width, to ensure that the beam will be attached securely.
  ■ Locate wall studs near the rear wall of the cavity and mark drill holes in the beam.
  ■ Pre-drill the wooden beam.
  ■ Attach the wooden beam to the rear wall of the niche.

If a side-by-side installation is desired, connect the two appliances together. See the Installation Manual included with the "Merging Kit".

Now prepare the water connection from the appliance to the main supply line (see "Plumbing").

Sliding the appliance into the installation niche

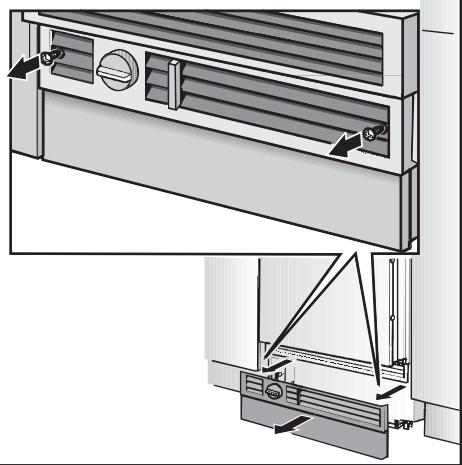

Technical diagram of a door lock assembly with mounting bracket and side panel (no text or labels)

■ Unscrew the plinth.

Technical diagram of a refrigerator with numbered parts and airflow indicators, likely for assembly or maintenance instructions.

■ To protect the corners of the installation space, attach the supplied edge protector ① on both sides with adhesive tape.
- Plug the appliance into the power outlet ②.

The plug of the appliance should be easily accessible after installation. If the plug is not accessible after the appliance has been installed, disconnection from the power supply should be completed via the circuit breaker.

In the case of side-by-side installations, a separate outlet must be used for each appliance.

■ To prevent the power cord from becoming caught:
Tie a piece of string to the middle of the power cord and feed it forward under the appliance. When sliding the appliance in, pull the cable forward ③.
■ Carefully slide the appliance into the space until the height-adjustable wheels interlock with the anti-tip brackets ④.

If resistance is felt when attempting to slide the appliance into the installation niche - for example, because the floor is uneven,

■ Turn the rear adjustable wheels slightly outward (see "Aligning the appliance"), then push the appliance in.

Be careful not to damage the water pipe or power cord attached to the floor.

■ Remove the edge protector ①.

Aligning the appliance

■ Align the appliance with the surrounding cabinets.

1 1/4" (32mm)!

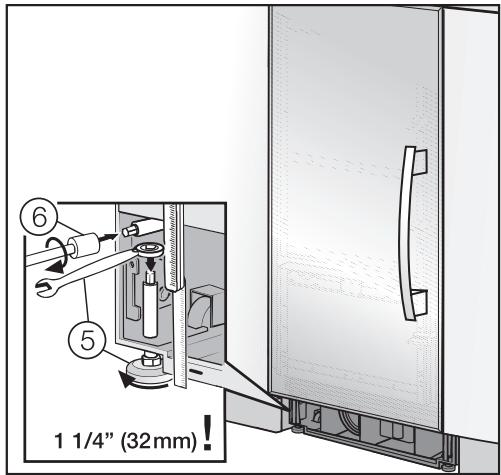

The height-adjustable feet at the front and rear can all be adjusted from the front.

- Front: with an open-ended wrench 12 " (SW 13).

The feet can be adjusted from the top and bottom ⑤.

- Rear: with a ^5/_16 " (8 mm) hex nut driver via flexible shaft ⑥.

A mark is located on the appliance base and is used as a standard gauge for height adjustment. When adjusting the height, align this mark at 1^1/_4 " (32 mm) above the floor.

■ Unscrew the height-adjustable feet until the mark on the base has reached the indicated guide dimension 1^1/_4 " (32 mm).

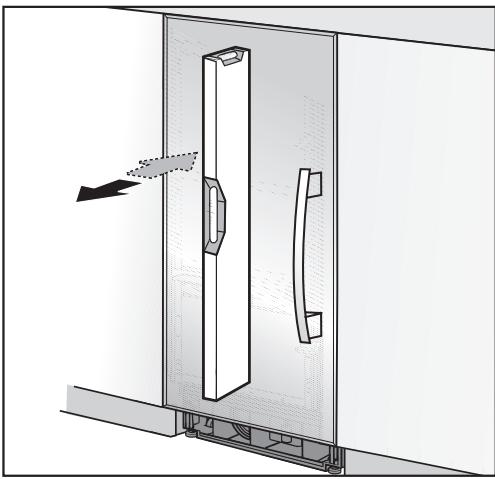

Technical line drawing of a door handle assembly with a dashed arrow indicating direction (no text or symbols)

- Check that the appliance is level with the surrounding cabinets.

Note:

• Do not twist or jam the appliance inside the niche. When unscrewing the height-adjustable feet, proceed gradually, alternating between left and right.
• The adjustment of the rear feet is aided if the appliance is lifted at the rear (tipped forward slightly).
• If using a wooden beam as an alternative anti-tip device, rotate the appliance all the way toward the wooden beam.
• Do not use a power tool to adjust the rear feet!

Attaching the appliance to the installation niche

Technical line drawing of a door frame with two screws inserted, showing alignment and mounting details (no text or symbols)

■ Open the appliance door.

■ Fasten the appliance on the left and right hand sides with the 3 (supplied) wood screws.

If there is a fairly large gap above the appliance, cut a wooden beam to fit exactly and place it in the gap.

Now connect the water supply to the appliance (see "Plumbing").

Attaching the toe-kick cover

The maximum height of the toe-kick cover is 4" from the top of the floor. Do not cover the ventilation slits in the plinth. Risk of damage to the appliance.

■ If required, cut the toe-kick cover to the required length and height.

Technical diagram of a door panel assembly with adjustment mechanism (no text or symbols)

■ Attach the plinth to the appliance.

■ Put the included cover plates in place.

3D technical illustration of a mechanical assembly with no visible text or symbols

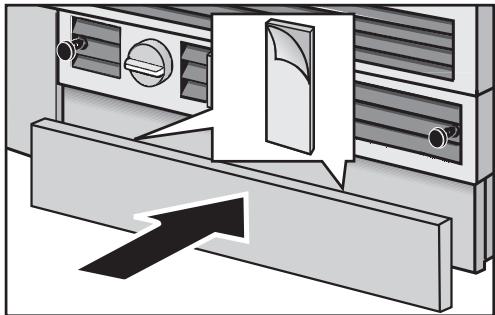

■ Remove the foil from the adhesive strips.
■ Attach the toe-kick cover to the plinth.

Mounting the air separator

The air separator keeps the supply and exhaust air separate. This prevents warm exhaust air from flowing into the machine, optimizing the energy performance of the unit.

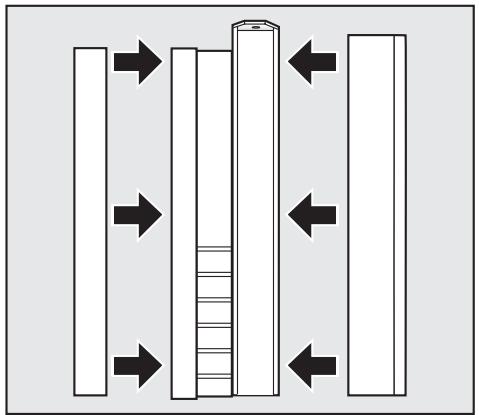

Pure diagram of vertical rectangular structures with arrows indicating direction, no text or symbols present

■ If necessary, shorten the three parts of the air separator.
■ Insert the foam pieces back into the sides.

Diagram of a door opening with arrows indicating direction of movement, showing internal components and structural details (no text or symbols)

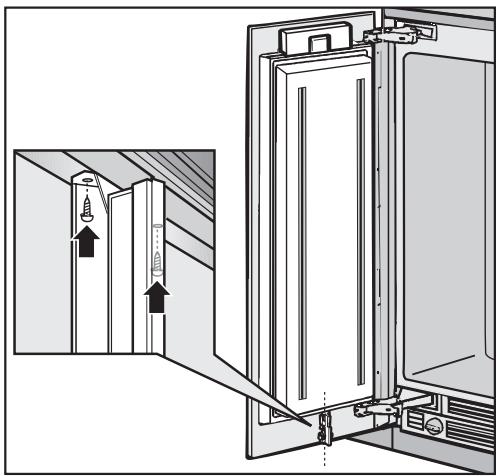

■ Position the air separator in the center of the appliance door.
■ From below, screw the air separator firmly onto the door with the 2 screws.

All plumbing work should be carried out by a suitably qualified and competent person, in accordance with all applicable local and national regulations.

The water quality must conform to country requirements for drinking water.

• The appliance is only suitable for connection to the cold water supply.
• The water pressure must be between 25 and 120 psi (1.72-8.25 bar).
• A separate shut-off valve must be installed, so that the water supply can be interrupted as needed.
• The maximum outer diameter of the water pipe (without fittings): ^3/_8 " (10 mm).

The shut-off valve for the water connection must not be located behind the appliance. It is recommended to place the shut-off valve directly next to the appliance (base unit) or in another easily accessible location.

Preparing the water connection

The connection to the household water supply must be installed before the appliance is installed.

■ Turn off the main water valve to prevent damage caused by leaking water.
■ Attach the connecting pipe to the shut-off valve, according to the instructions supplied by the manufacturer of the ice cube maker installation kit.
■ Install the connecting pipe. Always observe the indicated clearance dimensions to prevent damage to the connecting pipe when pushing in the appliance.

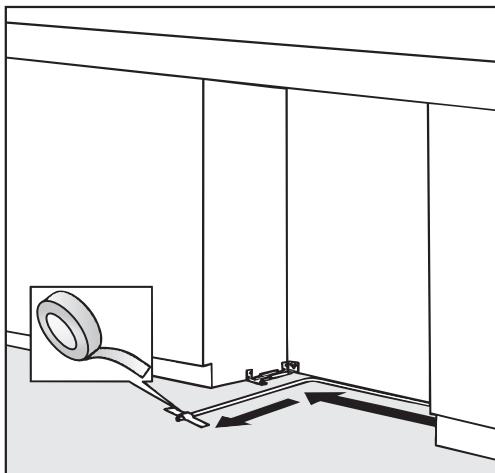

Line drawing of a room corner with a tape measure and directional arrows indicating movement (no text or symbols)

• Secure the connecting pipe to the floor with adhesive tape.
  ■ You may now proceed to install the appliance. See "Installing the appliance".

Connecting the water supply

When connecting the water pipe to the solenoid valve of the appliance, follow the instructions supplied by the manufacturer of the ice cube maker installation kit.

When bending the water pipe, be sure not to kink it, otherwise there is a risk of leaks and water damage. Use bending aids.

1. 2. 3.

■ Remove the cap from the appliance connection, 1.
■ Bend the water pipe to suit the location of the connection on the appliance, 2.

■ Push the union nut and seal onto the water pipe.
■ Push the end of the water pipe into the appliance connection and screw on the union nut, 3. First tighten by hand.
■ Then use an open-ended wrench to tighten the union nut. Do not over tighten.
■ Open the shut-off valve and the main water connection. Check for leaks at the connection for the shut-off valve and to the appliance.
■ Switch the appliance on.

After a maximum of 10 hours the first ice cubes will drop out of the ice cube maker and collect in the drawer.

⚠️ Avoid the risk of electrical shock

• Plug into a grounded 3-prong outlet.
• Do not move the ground plug.
• Do not use an adapter.
• Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Improper connection of the equipment grounding conductor may result in electric shock. If you are in any doubt as to whether the appliance has been properly grounded, have the appliance checked by a qualified electrician or service technician.

Installation, repairs and other work by unqualified persons could be dangerous.

Before installing the appliance, verify that the voltage, load and circuit rating information found on the data plate match the household electrical supply.

If there are any questions regarding the electrical connection of this appliance to the power supply, please consult a licensed electrician or call the Miele Technical Service.

USA1-800-999-1360

CDN 1-800-565-6435

The appliance comes with a UL-listed, 3-wire power supply cord.

The appliance requires a 3-wire receptacle.

The receptacle must be installed by a licensed electrician only.

In the case of side-by-side installations, a separate outlet must be used for each appliance. Ideally, the power outlet should be next to the appliance and easily accessible. Do not connect the appliance to the power supply by an extension cord. Extension cords do not guarantee the required safety of the appliance (danger of overheating).

If any changes are needed to the household wiring or power supply, this work must be performed by a qualified electrician.

Miele's RemoteVision Wi-Fi technology creates a 'virtual link' between your appliance and our monitoring center. If a fault occurs, Miele's client service center will be notified and contact you, or another trusted individual identified on your call roster, in order to gain access to your appliance to fix the problem.

For information on set-up and installation of the RemoteVision module see the "Installation" section of this manual.

Be sure your wireless system meets the following requirements

• A wireless router that supports an IEEE 802.11b protocol
• Windows XP ^ or newer operating system, Mac ^ OS X 10.3 or higher
• Cable or DSL modem
• Microsoft® Internet Explorer 6 or higher, Safari 2.0 or higher, Firefox 1.5 or higher

* Please note that each wireless router manufacturer supplies their own device drivers and setup programs. Due to the differences in manufacturers, exact router setup instructions are not included in this manual. Wording and instructions may vary.

Accessing the RemoteVision control panel

■ Touch the access button "💡" so it turns yellow.
■ Note the position of the V button, but do not touch.
■ Touch the access button "0" again so it turns white.

Only the access button "💡" is visible.

■ Place one finger on the position of the V button and hold (the V button will not be visible).
■ While holding down the V button, press the access button "☐" once. Keep holding the V button down until the following appears in the display (approx. 5 seconds).

$$ \vee \quad \subset \quad \wedge $$

Access to the Custom settings mode is now active for approximately 10 seconds.

■ Tap the V button until r appears in the display.
■ Touch the access button "💡" to confirm.

See the table on the following page for a description of each setting in the display.

■ Use the ∧ or ∨ buttons to select the RemoteVision options.

The module has been connected to the network when r appears in the display.

If r does not appear, refer to the "Network options" section of the XKM 2000 Installation Instruction manual.

■ Press and hold the access button "💡" for 2 seconds to confirm the change.
■ To return to the main menu, tap the V button until a solid r - appears in the display.
■ Press the access button "💡" to confirm.
■ Tap the V button until a c appears in the display.
■ Touch the access button "💡".

You have left the Custom settings mode.

When you are in the Custom settings mode the door alarm is turned off automatically. Once the door is closed it is reactivated.

MasterCool control panel options for RemoteVision

Status indicators	Description of function
Flashing r -	Module booting phase
Flashing r -	Not connected to network
Flashing r =	Connection to network established, no IP address assigned
Solid r =	Connected to network
Flashing r =	In Ad-Hoc Mode, not connected
Flashing r -	In Ad-Hoc Mode, connected

Selectable options	Description of function
r -	Back
r 2	Reboot the module
r 3	Reset to factory settings
r 4	Enter Ad-Hoc Mode

Note: If you cannot select any option (other than r - "Back", the module has not been installed correctly.

U.S.A.

Miele, Inc.

National Headquarters

9 Independence Way

Princeton, NJ 08540

Phone: [phone]

609-419-9898

Fax: [phone]

www.miele.com

Technical Service & Support Nationwide

Phone: [phone]

Fax: [phone]

[e-mail]

Canada

Miele Limited

Headquarters and Showroom

161 Four Valley Drive

Vaughan, ON L4K 4V8

Phone: [phone]

905-660-9936

Fax: [phone]

www.miele.ca

[e-mail] (general enquiries)

[e-mail] (commercial enquiries)

MieleCare National Service

Phone: [phone]

905-532-2272

Fax: [phone]

[e-mail] (technical enquiries)
