PHWK 1738 - Kettle Philco - Free user manual and instructions

Product Type	Electric Kettle
Brand	Philco
Model	PHWK 1738
Capacity	1.7 liters
Power	220-240 V ~ 50/60 Hz, 1500-2200 W
Dimensions (approx.)	22 x 15 x 25 cm
Weight (approx.)	0.8 kg
Material	Stainless steel body, plastic lid and handle
Base Type	360° cordless rotating base
Heating Element	Concealed stainless steel heating element
Indicator Light	Power on/off indicator
Auto Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Yes, automatic switch-off if empty
Lid Opening	One-button push-open lid
Water Level Window	Yes, with minimum and maximum markings
Filter	Removable anti-scale filter
Cord Length	Approx. 0.75 m
Care & Cleaning	Clean exterior with damp cloth; descale regularly with vinegar or citric acid
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Spare Parts Availability	Contact Philco customer support for spare parts (lid, base, filter)
Repairability	User-replaceable filter; other repairs by qualified personnel
Warranty	Check product packaging or manual for warranty details

Frequently Asked Questions - PHWK 1738 Philco

How do I use the Philco PHWK 1738 kettle?

Fill the kettle with water between the MIN and MAX marks, place it on the base, and press the switch to start. The kettle will automatically shut off when the water boils.

What is the capacity of the kettle?

The kettle has a capacity of 1.7 liters, suitable for multiple cups.

Can I open the lid while the kettle is boiling?

It is not recommended to open the lid during boiling as it may release hot steam. Use the one-button lid release only when the kettle is off.

How do I clean the scale from the kettle?

To descale, fill with a mixture of equal parts water and vinegar (or citric acid solution), boil, let it sit for 15 minutes, then rinse thoroughly. Repeat if necessary.

What does the boil-dry protection do?

The boil-dry protection automatically switches off the kettle if it is accidentally turned on without water, preventing damage to the heating element.

Why does the kettle turn off before boiling?

This may be due to scale buildup on the heating element. Descale the kettle as described. If the problem persists, check the switch or contact support.

Is the kettle cordless?

Yes, the kettle sits on a 360° rotating cordless base, allowing easy lifting and placement.

Can I use the kettle with a voltage of 110 V?

No, the kettle is designed for 220-240 V only. Using it with a different voltage may cause damage or fire.

How do I replace the filter?

The anti-scale filter is removable. Pull it out from inside the spout, rinse or replace it, and snap back into place.

Where can I get spare parts for the PHWK 1738?

Contact Philco customer service or authorized dealers. Check the manual for part numbers and ordering information.

USER MANUAL PHWK 1738 Philco

Famous for Quality the World Over

Blue and black Philips 100 water heater with digital display, no visible text or symbols on the device itself.

Exterior view of a modern glass-walled water heater with black handle and digital display (no text or symbols visible on the device itself)

PHWK 1730 / PHWK 1738

User's Manual Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató

PHILCO®

Famous for Quality the World Over

360 DEGREE ROTATION AUTOMATIC ELECTRICAL KETTLE

PHWK 1730 / PHWK 1738

User's Manual

Dear customer,

thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: GENERAL SAFETY INSTRUCTIONS....3
PART 2: SPECIAL SAFETY INSTRUCTIONS....5
PART 3: DESCRIPTION ...... 6
PART 4: FIRST USE OF THE MACHINE....7
PART 5: CLEANING....7

220 - 240 V

50 / 60 Hz

1850 - 2200 W

PART 1: GENERAL SAFETY INSTRUCTIONS

■ Before commissioning this kettle please read the instruction manual carefully.
■ Please keep the instructions, the sales receipt and, if possible, the gift box with the inner packaging.
■ Always remove the plug from the socket whenever the device is not in use. Pull on the plug, not on the cable.
■ Test the electrical kettle and cable regularly for damage. If there is any damage, please do not use it.
■ If the supply cord is damaged, it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
■ Do not repair the device by yourself, but rather consult an authorised expert.
- Keep the electrical kettle and the cable away from heat, direct sunlight, moisture, sharp edges and such like.

■ Only use original accessories.
■ If the kettle is overfilled, when boiling up the water, it may be ejected.
■ Do not use the electrical kettle outdoors.
■ Never place the electrical kettle in water or other liquid, or come into contact with such. Do not use the electrical kettle with wet hands.
■ Should the electrical kettle become moist or wet, remove the mains plug from the socket immediately.
■ In order to protect children from the dangers of electrical appliances, never leave the children unsupervised with the electrical kettle. Place your kettle in a position that children can not reach. Take care that the cable does not hang down.
■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in safe way and understand the hazards involved.

■ Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.

PART 2: SPECIAL SAFETY INSTRUCTIONS

■ Use only cold water when filling.
■ The water level must under the MAX marks.
■ Switch the electrical kettle off before removing it from the power cord base.
■ When the electrical kettle is working, make sure the lid is tightly closed.
■ The base and exterior of the machine must not become wet.

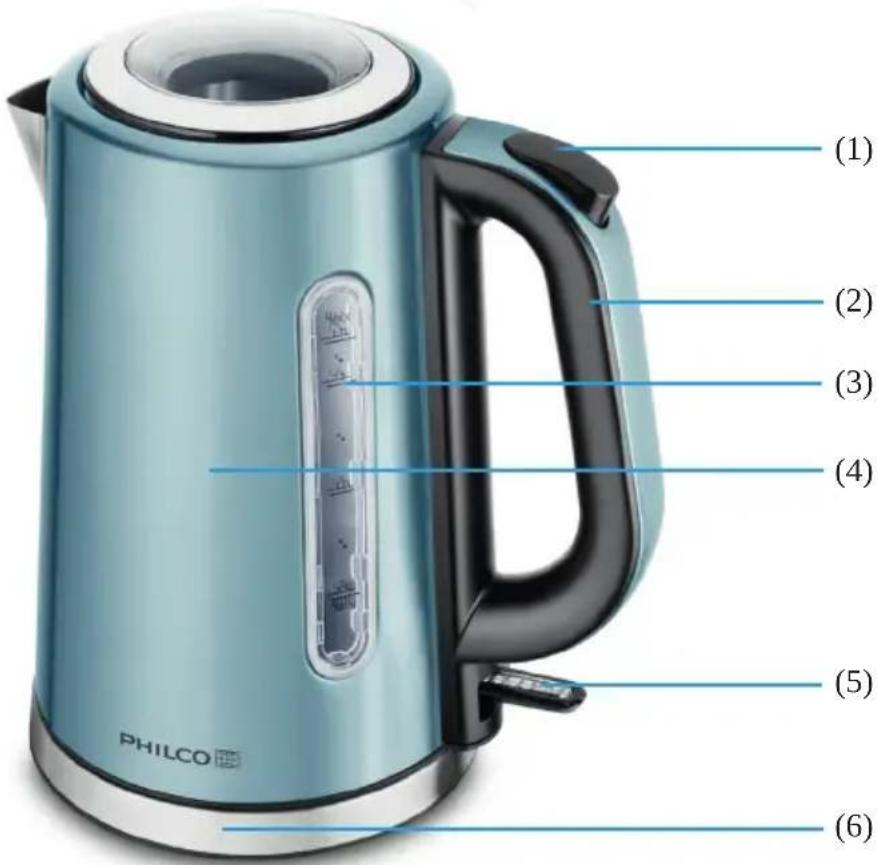

PART 3: DESCRIPTION

(1) Lid-openning Switch
(2) Cool Touch Handle
(3) Water Gauge
(4) High Quality Stainless Steel Housing
(5) On/Off Switch with LED indicator
(6) 360° Power Base with Cord Storage

PART 4: FIRST USE OF THE MACHINE

Before the first time using, please boil up the water for twice without any additives.

1. Fill the electrical kettle with water. Do not overfill, keep the water level under the MAX marks.
2. Place the kettle on the base.
3. Check whether the electrical voltage that you intend to use is the same as the electrical kettle. Details are to be found on the rating label on the base of the kettle.
4. Switch the machine to position "1" to start.
5. After boiling, the electrical kettle will switch off automatically. Take the electrical kettle away from the power cord base.
6. Do not open the lid when pouring out the water.

PART 5: CLEANING

Before your cleaning, please unplug the electrical kettle and make sure it has been cooled down. Never immerse any part of the cable, plug, power cord base or kettle in water or any other liquid.

Exterior of the kettle

Wipe the exterior of the kettle with a piece of damp cloth and then dry it with a piece of dry cloth. Never use harsh chemicals or abrasive cleaning agents as these may damage the finish of your kettle.

Interior of the kettle

Over using a period of time, lime scale would be built up inside of your kettle.

1. Half fill the kettle with water and add the juice of a lemon.
2. Boil up the water and allow it to stand for 15 minutes before discarding.
3. Repeat steps 1 and 2 several time, please using cold water only.
   Then the lime scale inside of your electrical kettle will be clean up..

PART 6: TECHNICAL SPECIFICATIONS

Capacity

1,7

Rated voltage range 220 - 240 V

Rated frequency 50 / 60 Hz

Rated power consumption 1850 - 2200 W

Cable length 75 cm

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

PHILCO®

Famous for Quality the World Over

AUTOMATICKÁ ELEKTRICKÁ RYCHLOVARNÁ KONVICE SE ZÁKLADNOU OTOČNOU O 360°

PHWK 1730 / PHWK 1738

Návod k obsluze

Vážený zákazníku,

Famous for Quality the World Over

AUTOMATICKÁ ELEKTRICKÁ RÝCHLOVARNÁ KANVICA SO ZÁKLADŇOU OTOČNOU O 360°

PHWK 1730 / PHWK 1738

Návod na obsluhu

Vážený zákazník,

Famous for Quality the World Over

AUTOMATYCZNY ELEKTRYCZNY CZAJNIK Z PODSTAWĄ OBROTOWĄ 360°

PHWK 1730 / PHWK 1738

Instrukcja obsługi

Szanowny kliencie,

Famous for Quality the World Over

AUTOMATIKUS ELEKTROMOS VÍZFORRALÓ 360°-BAN FORGATHATÓ TALPPAL

PHWK 1730 / PHWK 1738

Használati útmutató

Tisztelt vásárlónk,

Manufacturer/Importer:

Fast CR, a.s.

CZ-10000; CZECH REPUBLIC
