ELA mini - Kettle Eta - Free user manual and instructions

Product Type	Electric Kettle
Brand	Eta
Model	ELA mini
Dimensions (approx.)	22 x 18 x 25 cm
Weight (approx.)	0.8 kg
Power Supply	220-240 V, 50-60 Hz
Power Rating	1500-2200 W
Capacity	1.0 - 1.5 L
Housing Material	Plastic / Stainless Steel
Heating Element	Concealed, rapid boil
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Cordless Base	Yes, 360° rotation
Filter	Removable scale filter
Lid	Wide opening, push-button
Handle	Cool-touch, ergonomic
Water Level Indicator	Yes, transparent window
Cleaning and Descaling	Use vinegar or descaler regularly
Safety Features	Boil-dry protection, auto shut-off, cool-touch
Spare Parts Available	Filter, base, lid
Repairability	Modular, user-serviceable parts
Country of Origin	China

Frequently Asked Questions - ELA mini Eta

What is the capacity of the Eta ELA mini kettle?

The Eta ELA mini kettle has a capacity of approximately 1.0 to 1.5 liters, suitable for making 4-6 cups of tea or coffee.

Does the kettle have an automatic shut-off feature?

Yes, the Eta ELA mini is equipped with an auto shut-off function that activates when the water reaches a rolling boil or if the kettle is empty (boil-dry protection).

How do I clean the kettle and remove limescale?

To descale, fill the kettle with a mixture of equal parts water and white vinegar or use a commercial descaler. Boil, let it sit for 15 minutes, rinse thoroughly, and repeat if necessary.

Can I use the kettle on a different voltage?

The Eta ELA mini is designed for 220-240 V, 50-60 Hz. Using it on a different voltage may damage the appliance or cause unsafe operation. Check your local voltage before use.

Is the kettle cordless?

Yes, the kettle lifts off its cordless base for easy pouring. The base has a 360° rotation connector for convenient placement.

How do I replace the scale filter?

The filter is located behind the spout. Remove it by gently pulling it out. Rinse under running water or replace with a new one if damaged. Ensure it is securely fitted before use.

What materials is the kettle made of?

The housing is typically made of high-quality plastic and stainless steel, with a concealed heating element for durability and easy cleaning.

Is the handle cool to the touch?

Yes, the handle is ergonomically designed to remain cool-touch even when the water is boiling, ensuring safe handling.

Can I open the lid while boiling?

It is not recommended to open the lid during boiling to avoid steam burns. The push-button lid opens widely for easy filling and cleaning after use.

Does the kettle have a warranty?

Warranty details vary by region. Typically, Eta offers a 1-2 year warranty against manufacturing defects. Keep your purchase receipt for claims.

USER MANUAL ELA mini Eta

Exterior view of a modern silver ELA Mini water heater with a handle and spout (no signage or text on body)

Stainless steel water kettle

eta 8599/10/40

ELA mini

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

GENERAL PROVISIONS:

• Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.
• This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers.
• Children must not play with the appliance.
• The electric kettle is intended for heating the maximum of 1.2 l of water. If the water level exceeds the maximum recommended amount, hot water may be splashing out.
• WARNING: Do not open the lid if the water is boiling or if it is hot.
• CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
• When the appliance is in operation, prevent pets, plants or insects to get in contact with it.
• Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!
• Use the electric kettle with the stand designed for this type only and only for its intended purpose.
• Prevent injuries when handling (e.g. by hot water, steam).
• The appliance is equipped with the heat safety lock which disconnects power supply if the steam sensor fails, if water boils away or if an empty kettle is turned on. If it happens, unplug the appliance from power supply and let it cool down. Do not fill the kettle with cold water in order to cool it down quickly. It could reduce life of the heating element.
  – The pictures are only illustrative.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

- The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

USE OF THE APPLIANCE:

• Use the electric kettle with the stand designed for this type only.
• Never immerse the electric kettle and the stand in water and other liquids (even partially)!
• The kettle may not be used without the filter sieve.
• Never leave the appliance unsupervised and check it during the whole time of water heating!
• This appliance is not intended for outdoor use.
• The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
• Do not place the appliance near objects or under objects which could get damaged by steam, e.g. walls, kitchen cupboards, sideboards, paintings, or curtains. Leaking steam could damage them.
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• There must be water in the electric kettle before putting into operation. Do not fill the electric kettle with water if it is on the stand.
• Do not touch outer surfaces during operation of the kettle, they are hot and there is a risk of getting burned. Do not touch the lid during and after cooking!
• Before switching on the kettle ensure that the water level is between MIN and MAX marks
• If you are not going to use the electric kettle for longer time, we recommend unplugging the stand from power supply by taking the fork of the power cord out of the socket.

POWER CORD:

• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

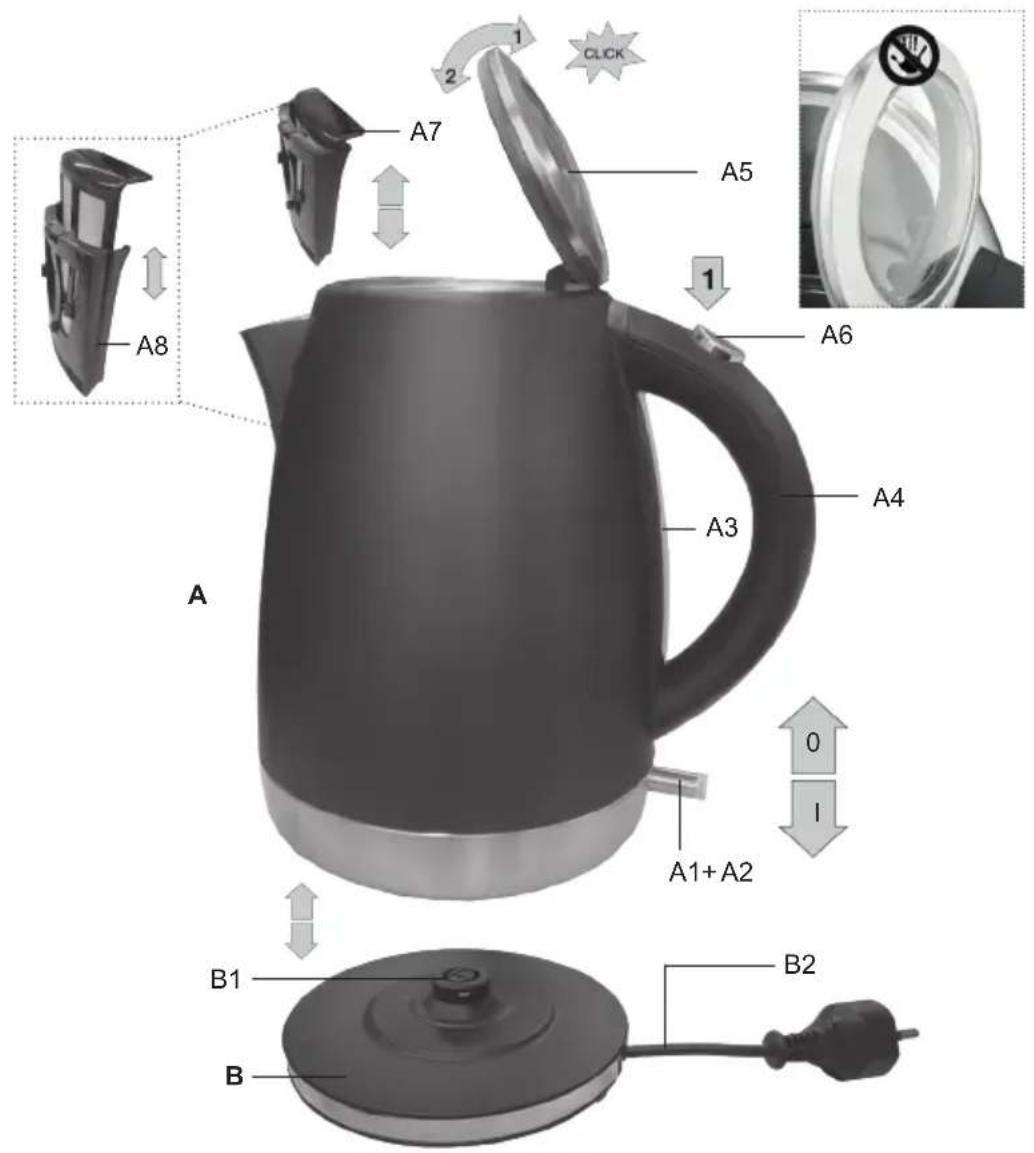

II. DESCRIPTION OF THE APPLIANCE

A - electric kettle

A1 - off/on button 0/I (steam sensor switch*) A5 - lid

A2 – control light A6 – lid lock button

A3 – water gauge A7 – filtration sieve

A4 - handle A8 - sieve cover

B – removable stand

B1 – central connector B2 – power cord

* The steam sensor ensures automatic switch off the appliance after reaching the boiling point.

III. INSTRUCTIONS FOR USE

Before the first use, fill the electric kettle with clean water to the maximum level, turn it on and let the water boil. Then pour out the water and repeat the procedure several times (at least five times).

APPLICATIONS

Open the lid A5 by pressing the lock button A6. Fill the kettle with drinking water. Close the lid by snapping. Put the electric kettle on the stand and turn it to the I position by the A1 button. Function of the electric kettle is signaled with the control light A2. After boiling the appliance switches off automatically. Before reaching the boiling point, you can switch off the appliance by turning the A1 button to the 0 position.

ATTENTION

• When heating water, the lid must be closed, otherwise the steam sensor will not be working.
• In bigger tilting of the electric kettle backwards, particularly when it is filled up to maximum, water can flow out from the electric kettle in the bottom part of the kettle. This does not affect safety or other functions and it does not mean any failure of the electric kettle. In the case of tilting the electric kettle with hot water there is a risk of scalding. Therefore do not tilt the electric kettle.
• Make sure the sieve and its cover is fit on thoroughly in the upper part of the kettle in order that it does not fall to the bottom!
• If the kettle was removed from the stand during boiling, remains in ON position. This means that if you put it back on the stand, it will immediately continue in heating.
• Recommendation: When the kettle is not used, do not place it on the stand connected to the mains. If you are going not to use the kettle for a long time, unplug the power cord from the wall socket.

IV. MAINTENANCE

Unplug the appliance from power supply by taking the fork of the power cord out of the socket! Clean the kettle only when it is cooled down! Do not use rough and aggressive detergents (e.g. sharp objects, scrapers, diluting agents or other solvents)! The casing of the electric kettle and the heating bottom is made of top-quality stainless steel, but in common use, impurities from water get stuck on them (water scale), particularly above the heating element. It is not rust or another material defect of the kettle container and the appliance is not subject to a complaint for this reason.

Cleaning the kettle

Pour about 50 g citric acid to the kettle with the water scale sediment. Fill the kettle to about one half and mix. After it dissolves, fill the kettle to 3/4 of the maximum amount of water. Place the electric kettle on the stand and turn it on. Before boiling, turn off the kettle, let the solution take effect for about 10 minutes and then pour it out. Clean the kettle thoroughly with clean water. Repeat the whole procedure if the kettle is too soiled. Clean the electric kettle regularly!

Cleaning the sieve (A7)

Take the sieve from the kettle. Clean it from possible sediments in running water using a fine brush. Then put the sieve back in the opposite way.

Expert service must do the large maintenance or to intervene into inside parts of the appliance! Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

If you are unable to fix the problem, or if you need any further information about the appliance or service centres, please contact your distributor.

V. ENVIRONMENT

Printed signs of materials used for manufacture, packing, components and accessories, as well as their recycling, are on all the pieces if their dimensions enable it. The symbols on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed together with municipal wastes. Please, hand them over to the collection points designed for their correct disposal, where they will be accepted free of charge. By correct disposal of this product you can help to preserve valuable natural resources and help to prevent possible negative impacts to the environment and to human health, which could be the results of incorrect waste disposal. For further details ask the municipal authorities or the nearest collecting point. Penalties can be charged for incorrect disposal of such wastes, according to national regulations. If the appliance is to be put out of operation definitely, we recommend cutting off the feeder cable, to disable its use.

VI. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Absorbed power (W) shown on the type label of the appliance

Max. volume (I) 1.2

Weight (kg) approximately 0,9

Protection class of the appliance I.

Size, (mm): 210 x 150 x 185

Input in off mode is 0.00 W

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG

AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN

CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT
