Product type	Combined Refrigerator-Freezer
Model	KC5212
Brand	Kunft
Dimensions (approx.)	1650 mm (H) x 550 mm (W) x 600 mm (D)
Weight (approx.)	55 kg
Power supply	220-240 V / 50 Hz
Energy consumption	Approx. 0.8 kWh/24h
Climate class	N/ST (16°C - 38°C)
Number of shelves	3 adjustable glass shelves + 1 door tray
Fruit and vegetable drawer	Yes, 1 drawer
Freezer compartment	Drawer type, 2-star rating (suitable for pre-frozen food and ice making)
Thermostat control	Rotary knob (Min/Med/Max)
Reversible door	Yes, instructions provided
Defrosting	Manual (refrigerator: automatic, freezer: manual)
Refrigerant type	Flammable (R600a approx.)
Interior light	Yes, LED (replaceable by professional)
Noise level	Approx. 40 dB(A)
Warranty	2 years (manufacturing defects)
Cleaning	Interior: baking soda solution; exterior: damp soft cloth
Safety features	Child entrapment prevention (remove doors when disposing)
Spare parts availability	Only original parts recommended, contact service center

Frequently Asked Questions - KC5212 Kunft

How do I adjust the temperature on my Kunft KC5212 refrigerator?

The thermostat knob inside the refrigerator has three settings: Min (less cool), Med (normal operation, recommended for most situations), and Max (coolest). Turn the knob to your desired setting. For initial use, set to Med and allow 24 hours to reach temperature.

Why is my refrigerator making unusual noises?

Most noises are normal. They are caused by the circulation of refrigerant liquid in the cooling system and the compressor motor. These sounds include gurgling, hissing, and a buzzing or humming from the compressor when it starts or stops. This is not a fault and will not affect performance.

How do I defrost the freezer?

This freezer requires manual defrosting. When ice/frost layer reaches 3-5 mm, turn off the refrigerator, remove all food, and let the freezer door open. Use a plastic scraper to remove ice; do not use mechanical devices or sharp objects. Clean and dry the interior before restarting.

What should I do if the interior light does not turn on?

First, check if the refrigerator is properly plugged in and receiving power. If the light still doesn't work, the bulb may be damaged. The light bulb should be replaced by a qualified professional. Contact the Customer Support Service for assistance.

Can I reverse the door swing on my KC5212?

Yes, the door is reversible. Follow the step-by-step instructions in the manual: remove knuckle guard, top hinge, doors, middle hinge, lower hinge, then reassemble on the opposite side. Detailed illustrations are provided in the user manual.

How can I save energy with this refrigerator?

Place the refrigerator in a cool, well-ventilated area away from heat sources and direct sunlight. Set the thermostat to Med under normal conditions. Keep the door closed as much as possible and avoid storing hot food. Clean the rear condenser (if external) regularly to remove dust.

Why does my refrigerator have condensation on the outside?

Condensation on the exterior surface or door seals is normal during high humidity conditions. Wipe it off with a dry cloth. If excessive or persistent, check the door gasket for proper sealing and ensure the refrigerator is level.

How do I clean the inside of my refrigerator?

Turn off the refrigerator and unplug it. Remove all food and shelves. Clean the interior with a soft cloth or sponge using a solution of two tablespoons of baking soda per quart of warm water. Rinse with clean water and dry thoroughly. Do not use harsh cleaners or organic solvents.

My refrigerator is not cooling properly. What should I check?

Ensure the thermostat is set to Med or higher. Check that the door is closing properly and gaskets are clean. Make sure there is 10 cm clearance on sides and rear for air circulation. Avoid overloading and allow 24 hours after initial startup. If problems persist, contact service.

What is the warranty period for the Kunft KC5212?

Kunft provides a 2-year warranty for manufacturing defects from the date of purchase. Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty. For service, contact the Customer Support Service at any Worten, Modelo or Continente store.

USER MANUAL KC5212 Kunft

Line drawing of a kitchen refrigerator with a small refrigerator beside it (no text or symbols on the refrigerator itself)

refrigerator combi

kunft.®

refrigerator combi

KC5212

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS....4

1.1. Power Supply ....5
1.2. Power Cord and Other Cables......6
1.3. Humidity and Water 6
1.4. Cleaning....6
1.5. General Precautions ...... 6

1. OPERATING INSTRUCTIONS....12

2.1. Product Description.... 12
2.2. Product usage....12
2.3. Maintenance 17
2.4. Troubleshooting 19

1. POST-SALE SERVICE....20

2. ENVIRONMENTAL PROTECTION 20

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user.Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting

refrigerator combi

KC5212

EN

from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service.

This appliance can be used by aged 8 years and above by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

kunft®

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the appliance, use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its

refrigerator combi

KC5212

EN

advanced features. Please keep the instructions for future reference.

• Read all instructions before using the product.
• Maintenance or service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

- WARNING: risk of fire / flammable materials.

- WARNING: During using, service and disposal the appliance, please pay attention to a similar symbol, which is located on rear of appliance (rear panel or compressor)

There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

• If the refrigerant circuit should be damaged:
• Avoid opening flames and sources of ignition.

kunft®

• Thoroughly ventilate the room in which the appliance is situated.
• It is dangerous to alter the specifications or modify this product in any way.
• Any damage to the cord may cause a short-circuit, fire, and/or electric shock.
• This appliance is intended for domestic use and similar settings such as staff kitchen areas in shops, offices and other working environments; farmhouses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance has to be unplugged after use and before undergoing user maintenance on the appliance.
• WARNING: Keep the ventilation openings in the appliance enclosure and the built-in structure clear of obstructions.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

refrigerator combi

KC5212

EN

• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use any type of electrical appliances inside the food storage compartments other than those recommended by the manufacturer.
• WARNING: Please dispose of the refrigerator according to local regulations on the use of flammable blowing gas and refrigerants.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not place multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not use extension cords or ungrounded (two prong) adapters.
• DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

- Take off the doors.

- Leave the shelves in place so that children may not easily climb inside.

• The refrigerator must be disconnected from the mains power supply before attempting to installation an accessory.
• The refrigerant and cyclopentane foaming material used in the refrigerator are flammable. Therefore, when the refrigerator is

kunft.®

scrapped it must be kept away from any fire source and be recovered by a special recovering company with the appropriate qualifications, and not be disposed of by combustion, so as to prevent damage to the environment or any other harm.

• This appliance can be used by children aged 8 and above and persons with reduced physical sensory or mental capabilities or lack of experience or knowledge if supervised or instructed concerning safe use of the appliance and the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by unsupervised children. Children aged from 3 to 8 are allowed to place/take things into/out of refrigerating appliances.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)
  • Children should be supervised to ensure that they do not play with the appliance.
• To avoid contaminating food, please respect the following instructions:
• Do not leave the door open for long periods as this can cause a significant increase in temperature inside the appliance.

refrigerator combi

KC5212

EN

• Regularly clean surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days (note 1).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drips onto other food.
  -Two-star ^** frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes (note 2).
• One-, two- and three-star compartments ( , , ** ) are not suitable for freezing fresh food (note 3).
• If the refrigerator is to be left empty for long periods of time, switch it off, defrost it, clean it, dry it, and leave the door open to prevent mould growing within the appliance.

Note 1,2,3: Please confirm whether this applies to your appliance.

kunft.

2. OPERATING INSTRUCTIONS

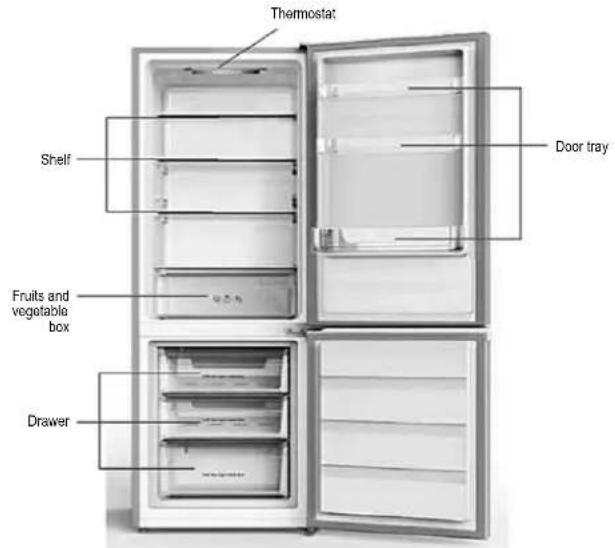

2.1. Product Description

*All images in this instruction manual are for illustration purposes only; please refer to your appliance for details.

2.2. Product usage

INSTALLATION

Installation site

When selecting an installation site for your appliance you should make sure the floor is flat and firm, and the room is well ventilated. Avoid placing your appliance near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly. This unit is not designed for use in a garage or outdoor installation. Do not cover the appliance.

When installing the unit, ensure that 10 cm of free space is left on both sides, 10 cm to the rear and 30 cm above the top of the unit. This will allow cold air to circulate and improve the efficiency of the cooling process.

refrigerator combi

KC5212

EN

Reversing the Door Swing

1. Remove the knuckle guard. 2. Remove the top hinge.

1. Remove the refrigerator door.

1. Remove the freezer door.

1. Mount the freezer door on the lower hinge.

1. Remove the middle hinge with a screw driver.

1. Remove the hinge assembly with a screw driver, Mount the lower hinge assembly on the other side of the cabinet with a screw driver.

1. Mount the middle hinge assembly on the other side of the refrigerator.

kunft®

1. Mount the refrigerator door. 10. Insert the knuckle guard.

* All images in this instruction manual are for illustration purposes only; please refer to your individual unit for details.

Door Space Requirements

The unit's door must be able to fully open as shown. W×D≥895×975mm

Levelling the Unit

To level the unit, adjust the two levelling feet at the front of the unit. If the unit is not level, the door and magnetic seal alignments will not be covered properly.

Make sure both feet touch the ground before use.

Look down from the top, loosening clockwise and tightening counter clockwise.

Cleaning Before Use

Wipe the inside of the appliance with a weak solution of bicarbonate soda. Then rinse with warm water using a 'wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water and dry completely before putting them back in the unit. Clean the outside of the unit with a damp cloth.

If you require more information refer to the Cleaning section.

Before Using Your Unit

- The refrigerator uses 220\~240V/50Hz AC power. Voltage fluctuations over the range of 187 \~ 264V will cause malfunction or even damage.

refrigerator combi

KC5212

EN

• Do not damage the power cord under any circumstance so as to ensure safe use. Do not use the appliance when the power cord is damaged or the plug is worn.
• Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damage to the product or fire accidents.
• Do not place flammable items near the refrigerator to avoid fires.
• This product is a domestic refrigerator and must only be used to store food. According to national standards, domestic refrigerators must not be used for other purposes, such as storing blood, drugs or biological products.
• Do not place items such as bottles or sealed containers with liquids such as bottled beers and beverages in the freezer to prevent bursts and damage.
• Do not store or place dry ice in the refrigerator.
• Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is operating properly at the correct temperature. Your appliance should not be overfilled.
• Do not damage the power cord under any circumstance so as to ensure safe use. Do not use the appliance when the power cord is damaged or the plug is worn.
• Do not place items such as bottles or sealed containers with liquids such as bottled beers and beverages in the freezer to prevent bursts and damage.
• Before placing any food in your appliance, turn it on and wait for 24 hours, to make sure it is operating properly at the correct temperature. Your unit should not be overfilled. Do not store or place dry ice in the refrigerator.

- Before Plugging in

You must check that you have a socket that is compatible with the plug supplied with the appliance.

- Before Turning On!

Do not turn on the unit until two hours after installing it.

Interior Accessories

Various glass or plastic storage shelves are included with your appliance - different models have different combinations.

You should always slide one of the full-size glass storage shelves into the lowest set of guides, above the fruit and vegetable containers, and keep it in this position. To do this, pull the storage shelf forward until it can be swivelled upwards or downwards and removed.

Please do the same in reverse to insert the shelf at a different height.

kunft®

To make the most of the storage available in the fresh food and frozen-food storage compartments, the user can remove one or more shelves and/or drawers from the appliance, according to daily use.

OPERATION

Operation Instructions

Setting "Min": Less Cool Temperature

Setting "Med": Normal Operation (adequate for most situations)

Setting "Max": Coolest Temperature

• During high ambient temperatures e. g. on hot summer days. It may be necessary to set the thermostat to the Coolest setting (position "Max").
• When you first install your refrigerator, set the thermostat knob to "Med".

Give your refrigerator time to cool down completely before storing food. It is best to wait 24 hours before storing food. The thermostat knob controls the temperature.

Noise Inside the Unit!

You may notice that your appliance makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system, which has become more pronounced since the gas introduction. This is not a fault and will not affect the performance of your appliance. This is the compressor motor working, as it pumps the refrigerant around the system.

Tips for Keeping Food in the appliance

• Cooked meat/fish should always be stored on a shelf above raw meat/fish to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf.
• Leave space around your food, to allow air to circulate inside the appliance. Ensure all parts of the unit are kept cool.
• To prevent transfer of flavours and dryness, pack or cover the food separately. Fruit and vegetables do not need to be wrapped.
• Always let pre-cooked food cool down before you place it in the refrigerator. This will help maintain the internal temperature of the refrigerator.
• To prevent cold air escaping from the refrigerator, try to limit the number of times you open the door. We recommend that you only open the door when you need to put food in or take food out.

ENERGY SAVING TIPS

- Try not to open the door too often, especially when the weather

refrigerator combi

KC5212

EN

is humid and hot. Once you open the door, close it as soon as possible.

• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation behind the appliance).
• In normal temperature conditions, please set the thermostat to the middle setting.
• Before loading the refrigerator with fresh food, ensure it is no hotter than ambient temperature.
• Ice accumulation layer increase energy consumption. Clean the refrigerator as soon as the ice/frost layer is 3-5 mm thick.
• The rear wall should always be free of dust or any impurities, in models with an external condenser.
• The refrigerator should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of direct sunlight.
• Let hot foods cool to room temperature before placing them in the refrigerator. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• The appliance's storage bin should not be lined with aluminium foil, wax paper, or paper towelling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

2.3. Maintenance

CLEANING

Cleaning the Inside and the Outside of the Unit

• Dust behind the refrigerator and on the ground must be cleaned frequently to improve cooling and save energy.
• Check the door gasket regularly to make sure it is free of debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The inside of the refrigerator should be cleaned regularly to avoid odour build-up.
• Please turn off the power before cleaning the inside, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

kunft®

• We recommend difficult-to-clean areas in the refrigerator (such as narrow sandwiches, gaps or corners), be wiped regularly with a soft rag, soft brush, etc., combined with an appropriate scraping tool if need be, to ensure contaminants or bacteria do not accumulate in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odours to build up inside the refrigerator or contaminate food.
• Clean the bottle compartment, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, steel cleaning balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items that may damage the outside or inside of the refrigerator. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Cleaning Tips

Condensation may appear on the outside of the unit. This may be due to a change in room temperature. Wipe off any moisture residue. If the problem continues, please contact the Customer Support Service.

MAINTENANCE

Changing the Internal Light Bulb

The light bulb should be replaced by professionals.

Care When Handling / Moving Your Unit

Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted by holding the edges of the top surface.

Technical Services

The unit should be serviced by an authorized technician and only original spare parts should be used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunction. Contact a qualified technician.

Switching Off the refrigerator for Long Periods of Time

When the refrigerator is not in use for a long period of time, disconnect it from the mains supply, remove all food and clean the appliance, leaving the door ajar to avoid unpleasant odours.

refrigerator combi

KC5212

EN

Do not cover air outlets and return air inlet openings on the refrigerator

Do not store hot/warm food close to the temperature sensor Remove the freezer drawer and place food directly in the glass partition

2.4. Troubleshooting

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not settled.

Inoperative. Check if the appliance is plugged and connected to the low voltage power supply. Power failure or short circuit.

Odour. Odorous foods should be kept in sealed containers.

Check for rotten food.
Check if the inside of the refrigerator is clean.

Long-term operation of compressor.

It is normal that refrigerator operates for longer time in summer when the ambient temperature is higher.Do not store too much food in the freezer at one time.Do not store food in the refrigerator before it has cooled down.Avoid opening the refrigerator door frequently.

No light inside the refrigerator.

Check the refrigerator is connected to the power mains.

The light bulb may be damaged.
The refrigerator The door is stuck by food packages.
door cannot be Too much food.
The refrigerator is not levelled.
Loud noises. Check whether the food is levelled.
Check if the refrigerator is level.
Check if the refrigerator parts/accessories are properly installed.

Tips regarding heat:

• The refrigerator enclosure may emit heat during operation especially in the summer. This is caused by radiation emitted by the condenser, and it is normal.
• Condensation: condensation will be present on the outside surface and door seals of the freezer when the ambient humidity is large.

kunft®

frigorífico combi

KC5212

ES

This is normal, and the condensation can be wiped away with a dry towel.

- Buzzing sound: a buzzing sound may be produced by the compressor, especially when it starts or stops running.

3. POST-SALE SERVICE

Kunft has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4.ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic.

The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Estimado cliente:

Imported, produced and distributed by:
