Product Type	Waffle Maker / Sandwich Grill
Brand	Comfee
Model	MC-JK1312P201
Voltage	AC 220V
Rated Current	10A (separate grounding socket recommended)
Power	Approximately 900W
Non-stick Coating	Yes, on baking trays
Interchangeable Plates	Yes, includes sandwich tray and tangram tray
Indicator Light	Yes (power/heating indicator)
Safety Features	Cool-touch handle; automatic thermal fuse protection
Material	Plastic body with metal heating plates
Dimensions (approx.)	250 x 200 x 100 mm
Weight (approx.)	1.5 kg
Cord Length	Approximately 1 m
Cleaning Method	Wipe with damp cloth; do not immerse in water
Usage Environment	Indoor household use only; altitude 0-2000m
Certifications	Complies with safety standards (not specified)

Frequently Asked Questions - MC-JK1312P201 COMFEE

What is the Comfee MC-JK1312P201 used for?

It is a waffle maker and sandwich grill with interchangeable plates, allowing you to make waffles, sandwiches, and more.

Can I wash the baking trays in the dishwasher?

No, do not immerse the appliance or trays in water. Wipe them with a damp cloth after use. The trays have a non-stick coating and should be handled gently.

What voltage does the appliance require?

The appliance is designed for AC 220V only. Do not use other voltages to avoid fire or electric shock.

How do I change the baking trays?

Open the lid, pull the snap up, and hold the handle. Then push the push button up to release the tray. Install the desired tray by snapping it into place.

Why does the indicator light stay on even when not heating?

If the light stays on but there is no heat, the thermostat may be damaged. Please send the appliance to a service center for repair.

Can I use metal utensils on the baking trays?

No, avoid using knives or metal utensils as they can damage the non-stick coating. Use wooden or silicone utensils instead.

How long does it take to preheat the appliance?

Preheating typically takes about 3-5 minutes. The indicator light will turn off or change to indicate readiness.

What happens if I use the appliance at high altitude?

The appliance is designed to work normally at altitudes up to 2000m. Above that, performance may vary.

Is it safe to leave the appliance unattended while cooking?

No, it is not recommended. Always supervise the appliance during use, especially around children, to avoid accidents.

Where can I get replacement parts or repairs?

For repairs or replacement parts, contact Midea's designated service center. Do not attempt to disassemble the appliance yourself.

USER MANUAL MC-JK1312P201 COMFEE

封面

Yellow and blue electric air conditioner device with control panel (no visible text or symbols)

MC-JK1312P201

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

CONTENUTO

AVVERTENZA SULLA SICUREZZA....1

PANORAMICA DEL PRODOTTO....6

ISTRUZIONI PER L'USO....7

INSTRUCTIONS FOR USE....8

GUIDA AL SERVIZIO....10

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

AVVERTENZA SULLA SICUREZZA

Consiglio

Line drawing of a small electronic device with a circular vent and side ports (no text or symbols)

Line drawing of a small electronic device with a top panel and side connectors (no text or symbols)

ISTRUZIONI PER L'USO

Line drawing of a portable electric stove or grill with open lid and side panel (no text or symbols)

Line drawing of a hand cleaning a small appliance with a lid and base (no text or symbols)

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

INSTRUCTIONS FOR USE

Yellow and blue electric air conditioner device with control panel (no visible text or symbols)

MC-JK1312P201

Sandwich Grill

Instruction Manual

IMPORTANT NOTE: For your safety and continued enjoyment of this product, always read the instruction Manual carefully before using.

comfee

CONTENT

SAFETY WARNING .... 1

PRODUCT OVERVIEW 6

CLEANING AND MAINTENANCE 6

INSTRUCTIONS FOR USE....7

SERVICE GUIDE 10

IMPORTANT NOTE: Please read the manual carefully before operating your product. Retain it for future reference.

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

SAFETY WARNING

Tip

• To avoid injury and property damage to you and others, be sure to observe the following safety precautions.
- Failure to follow the safety warnings and incorrect use may cause accidents.

Note

This product does not consider the following situations:

• Use of appliances by unattended children and the disabled
  • Children play with the appliance

Warning

• Do not boil water with this appliance.
• Do not insert pins, iron wires or other objects into the hole at the bottom of the appliance to avoid electric shock and injury.
• Do not pull or insert the plug with wet hands to avoid electric shock and injury.
• Do not use if the power cord plug is damaged in order to avoid fire, electric shock or short circuit.
• Do not allow children to operate and use it alone, and place it out of the reach of infants and children to avoid accidents such as electric shocks and burns.

SAFETY WARNING

• After use, cut off the power supply, clean up the waste inside and outside in time, but do not put the appliance in water or wash it with water, so as not to damage the insulation performance of the appliance.
• During working, it is forbidden to move or shake the appliance.
• Do not modify: Except service technicians, no one else is allowed to disassemble or repair, so as to avoid fire, electric shock, and injury.
• Do not use the following methods to avoid fire and electric shock due to damage of the power cord: bend the power cord forcibly, close to high temperatures, tie up, or carry heavy objects.
• Do not place the appliance in a place that is unstable, humid or close to other sources of fire or heat, or else it may be damaged or accidents may occur.
• If you need to repair the product or replace parts, go to a service outlet designated by Midea, so as to avoid hidden dangers due to improper maintenance or improper selection of accessories.
• Do not operate the appliance with external timer or independent remote control system.
• If the power cord is damaged, it must be replaced by professionals from the manufacturer, its service department or similar departments in order to avoid danger.

SAFETY WARNING

- During the operation of the appliance, some surfaces will become hot. It is strictly prohibited to touch the baking tray and the surface of the product with your hands to avoid scalding.

Caution

• This product is for indoor use only.
- Use separate socket with a grounding wire with rated current of 10A or more. If it is used in combination with other electrical appliances, the socket may be abnormal and cause fire and other dangers.
- Do not use voltages other than AC 220V to avoid fire and electric shock. Do not use damaged power cord.
- Do not disassemble, inspect or remove the back cover without permission. If the product fails, it must be sent to the designated service outlet for repair.
- The plug must be completely inserted into the socket to avoid fire, electric shock, or short circuit.
- If there is dust or water marks on the power plug, plug end or socket, clean it in time to avoid fire, electric shock or short circuit.

Note

- When oil overflows, please wipe it in time. Do not allow oil stains to flow into the product, so as not to affect the normal operation of the appliance.

SAFETY WARNING

Note

- In the cooking process, do not cut the food in the baking tray with a knife or metal utensil. Do not scrub the baking tray with metal or rough object, so as not to damage the non-stick coating.

- Do not use the appliance for commercial purposes, so as not to affect the product life.

Tip

- Due to internal temperature changes during use, it is normal that there is a “click” sound when the parts shrink and expand.

- When the product is used for the first time, a small amount of oily smoke will evaporate, which is normal.

- The altitude range where the product normally works is 0-2000m.

- Please keep the manual properly for future reference.

• Children being supervised not to play with the appliance

- the appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

- This appliance is for household use only. Do not use outdoors.

SAFETY WARNING

• This appliance is intended to be used inhousehold and similar applications such as:
  -Staff kitchen areas in shops, office and other working environments;
  -farm houses;
  -by clients in hotels, motels and otherresidential type environments;
  -inbed and breakfast type environments;
• Lift and open cover carefully to avoid scalding, and allow water to drip into unit.
• Extreme caution must be used when moving an appliance containing hotfood, water or other hot liquids.
• Do not place on or near a hot gas or electric burner, or in a heatedoven.

Statement

All the contents of this document have been carefully checked. If there are any printing errors or misunderstandings in the contents, please consult us.

Note: If the product has technical improvements, it will be compiled into the new version of the manual without notice. The appearance and color of the product are subject to change.

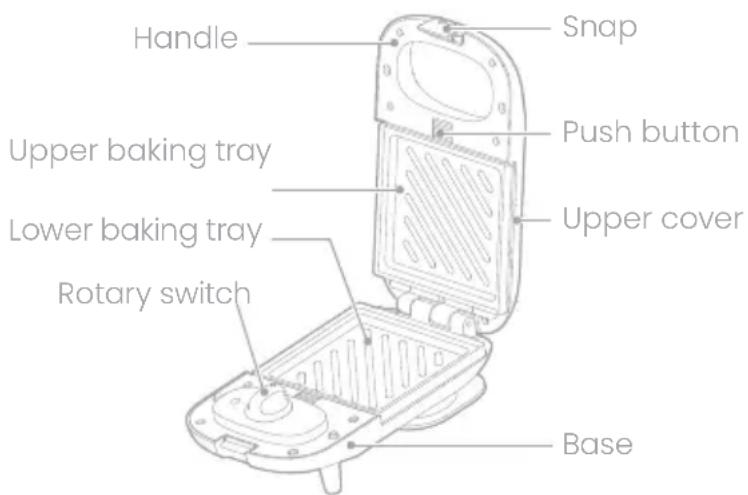

PRODUCT OVERVIEW

Parts

Note

This product does not consider the following situations:

• Use of appliances by unattended children and the disabled
  • Children play with the appliance

MC-JKI312P201 with sandwich tray, tangram tray.

Sandwich tray

Tangram tray

CLEANING AND MAINTENANCE

• After each use, be sure to unplug the power cord, wait a few minutes, and then wipe it with a damp cloth. If it is stored for a long time, it should be cleaned with detergent.
• Do not use abrasive cleaning products or solvents for cleaning.
• Pour out the oil after use, and replace with clean oil every time you cook.
• Do not wash the appliance in water to avoid electric shock and malfunctions.
• All parts should be dried before storing and placed in a safe and dry place.
• Do not place the appliance directly under the faucet for cleaning.

INSTRUCTIONS FOR USE

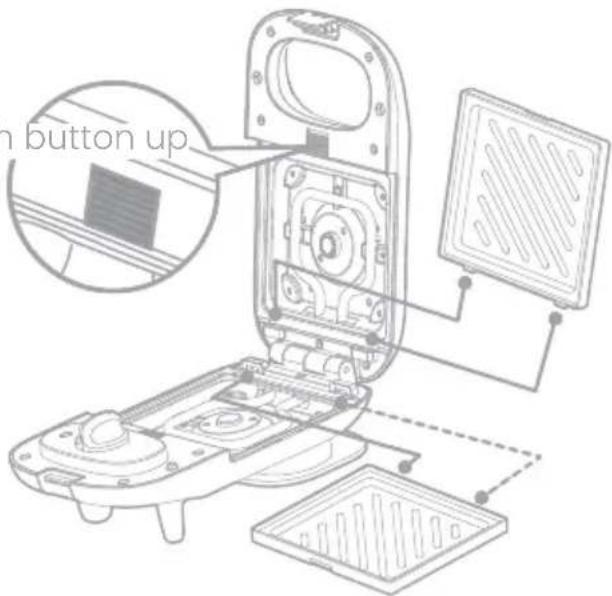

Installation and Removal

MC-JK1312P201 for example

1. Pull the snap up, and hold the handle to open the product.

Line drawing of a small electronic device with a scroll wheel and base, showing no text or symbols.

1. Correctly install/remove the baking tray.

Push the push button up.

Parts

1. Plug in the power plug properly and turn on the switch.

Line drawing of a small electronic device with a circular component and two side connectors (no text or symbols)

INSTRUCTIONS FOR USE

1. After the preheating is over, coat the surface of the baking tray with cooking oil, and put in the food after the oil is heated.

Line drawing of a portable electric stove or grill with open lid and side panel (no text or symbols)

1. After cooking, turn off the switch and unplug the power plug. After the baking tray is properly cooled, wipe the tray with a damp towel.

Line drawing of a hand cleaning a small appliance with a lid and base (no text or symbols)

Working Time Reference

Food name Ingredients		Recommended time(min)
Cheese and ham sandwich	2 slices of toast bread, 2 slices of ham, 1 slice of cheese	Sandwich tray	3-5
Cucumber ham sandwich	2 slices of toast bread, 2 slices of ham, 3 slices of cucumber		3-5
Salmon lettuce sandwich	2 slices of toast bread, 3 slices of salmon sashimi, appropriate amount of shredded lettuce, appropriate amount of salad dressing		3-5
Chocolate cheese sandwich	2 slices of toast bread, 5 pieces of chocolate, 1 slice of cheese		3-5

Abstract pattern of colorful squares arranged in a grid (no text or symbols)

INSTRUCTIONS FOR USE

Working Time Reference

Food name Ingredients		Recommended time(min)
Original waffles	55g of low-gluten flour, 1g of baking powder, 12g of corn starch, 1 egg, 35g of milk, 25g of caster sugar, 20g of butter	Sandwich tray	3-5
Matcha waffles	55g of low-gluten flour, 1g of baking powder, 12g of corn starch, 1 egg, 35g of milk, 25g of caster sugar, 20g of butter, 2g of matcha powder		3-5
Chocolate waffles	55g of low-gluten flour, 1g of baking powder, 12g of corn starch, 1 egg, 35g of milk, 25g of caster sugar, 20g of butter, 2g of cocoa powder		3-5

Note

This product does not consider the following situations:

- The names of the foods listed in the above table may be different from the customary names in different places, and the time can be adjusted according to the actual conditions such as the weight of the food.

- The above recipes are only applicable to products equipped with corresponding baking tray.

SERVICE GUIDE

Troubleshooting

Failure		Cause	Solution
Indicator light is always off	No heating	1. Power is not turned on2. Internal wire is disconnected3. Electric heating tube blows out4. Fuse blown out5. Thermostat damaged6. Rocker switch damaged	1. Check whether the plug, socket, and power cord are in good condition, and the plug and socket must be inserted in place.2, 3, 4, 5, 6. Send to service center for repair
	Normal heating	Indicator light damaged	Send to service center for repair

SERVICE GUIDE

Troubleshooting

Failure		Cause	Solution
Indicator light is always on	No heating	1. Thermostat damaged2. Internal wire is disconnected	Send to service center for repair
	Normal heating	Thermostat damaged	Send to service center for repair

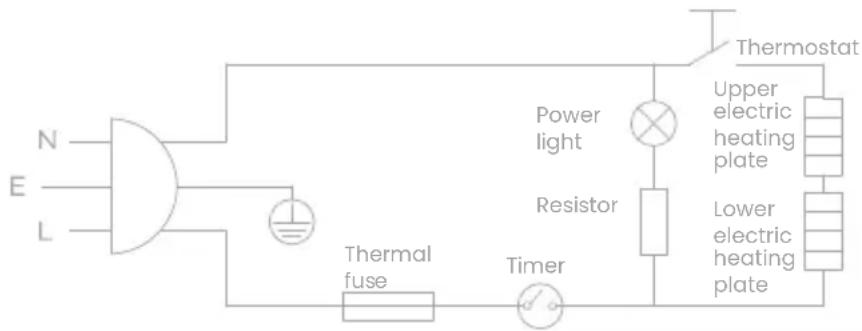

Circuit Diagram

Tip The line is subject to change without notice.

Environmental protection

The appliance must not be disposed of with regular household waste. At the end of its service life, the

appliance must be properly delivered to a collection point for the recycling of electrical and electronic equipment. By Collection and recycling of old

appliances, you are making an important contribution to the conservation of our natural resources and provide for environmentally sound and healthy disposal.
