EasyCook AE300 - Deep fryer TESLA - Free user manual and instructions

Product Type	Deep Fryer
Brand	TESLA
Model	EasyCook AE300
Power Consumption	1800 W (estimated)
Oil Capacity	2.5 L (estimated)
Temperature Range	150 – 190 °C (estimated)
Control Type	Thermostatic temperature regulator
Filtration System	Built-in oil filtration
Housing Material	Plastic with non-stick interior coating
Viewing Window	Yes, in lid
Basket	Removable with foldable holder
Lid Safety Lock	Yes, arrest button
Overheat Protection	Built-in thermostat
Cord Length	0.8 m (estimated)
Voltage	220-240 V ~ 50/60 Hz
Weight	2.5 kg (estimated)
Dimensions (W x D x H)	35 x 30 x 25 cm (estimated)
Oil Change Interval	Every 10 uses or 6 months
Cleaning Method	Wipe with damp cloth; do not immerse
Warranty	Through dealer purchase
Intended Use	Domestic only

Frequently Asked Questions - EasyCook AE300 TESLA

How do I set the temperature on the EasyCook AE300?

Use the temperature regulator (7) to set the desired temperature. The temperature indicator (9) lights up and turns off when the set temperature is reached.

Why is my food not fully cooked?

Place smaller portions in the basket. If the basket is too full, the food may be undercooked. Increase the temperature or cooking time as needed.

How should I clean the deep fryer?

Unplug and let cool completely. Wipe the inner oil container with a damp cloth. Never immerse the cable, plug or appliance in water.

How often should I change the oil?

If mostly frying potatoes and filtering the oil, it can be used up to ten times. Do not use the same oil for more than 6 months.

Can I fry frozen food without thawing?

Yes, but remove excess ice to prevent oil from boiling over. Lower the basket slowly to avoid overflowing.

What should I do if the oil foams excessively?

The oil is likely burnt. Replace it with fresh oil.

How can I prevent oil overflow when frying?

Do not exceed the MAX oil level. Dry wet food before frying. Lower the basket slowly, especially for frozen or water-rich foods.

Is it safe to leave the fryer unattended while operating?

No, the manual states: 'Do not leave the appliance unattended.' Extra caution is required, especially around children.

What if the appliance does not turn on?

Check that the appliance is properly connected to the mains power supply.

Can I use an extension cord with the EasyCook AE300?

No, the manual explicitly states: 'DO NOT USE THIS APPLIANCE WITH AN EXTENSION CORD.' Connect directly to a grounded outlet.

USER MANUAL EasyCook AE300 TESLA

Thank you for choosing the TESLA EasyCook AE300.

Please read the safe use rules carefully before use and follow all normal safety rules.

IMPORTANT SAFETY INSTRUCTIONS

THIS PRODUCT IS FOR DOMESTIC USE ONLY.

Read and understand all instructions. Failure to follow the instructions below may result in electric shock, fire, or serious injury. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur.

This appliance is a complex electromechanical device, please pay attention to the following instructions:

• Slowly lower the frying basket with food into the hot oil.
• Only pour frying fat or oil into a dry and cool container, do not combine fat and oil mixtures!
• The oil or fat level must be maintained between the MIN and MAX markings to avoid overheating the appliance or overflowing the filling.
• Never switch on the appliance empty.
• Do not add more food than the recommended amount.
• Do not allow water or other liquids to enter the appliance to avoid electric shock.
• Do not cover the air outlet openings when the appliance is in operation.
• It is not recommended that children use the appliance independently without the supervision of an adult.
• Extra caution is required when using the appliance near children.
• Do not leave the appliance unattended
  • The appliance is not designed to be operated using an external timer or a separate remote control.
• Keep the appliance away from flammable and volatile substances.
• Do not place anything on top of the appliance or place it on the hob, there is a risk of damaging it.
  • Before cleaning, unplug the power cord and let the appliance cool down.
• Do not use the appliance in an excessively warm, dusty or humid environment.
• Check that the voltage indicated on the appliance corresponds to the local nominal voltage. Connect the device only to a grounded outlet. Always make sure the plug is properly inserted into the socket.
• If the power cord is damaged, it must be replaced by a TESLA authorized service center or similarly qualified person to avoid injury.
• Do not repair the appliance, as you risk electric shock and void the warranty.
• The manufacturer and importer to the European Union is not responsible for damages caused by the operation of the device, such as injuries, scalds, fire, injuries, impairment of other things, etc.

CAUTION, HOT SURFACE

• DO NOT place the appliance on a flammable surface!
- When the appliance is in operation, the temperature of accessible surfaces may be higher. Do not

touch the heated surface, otherwise burns may occur.

• Do not move the hot appliance, you may burn yourself with hot food or oil.
• Before cleaning, unplug the appliance and let it cool down completely.

IMPORTANT INFORMATION ABOUT THE POWER CABLE

To reduce the risk of electric shock, do not attempt to modify the cable connector in any way. The length of the power cord reduces the risk of entanglement or tripping over the power cord.

DO NOT USE THIS APPLIANCE WITH AN EXTENSION CORD.

Connect the power cord directly to an electrical outlet only.

PREPARATION - BEFORE FIRST USE

1. Remove all packaging and advertising stickers.
2. Wipe the inner oil container with a damp cloth and dry it thoroughly.

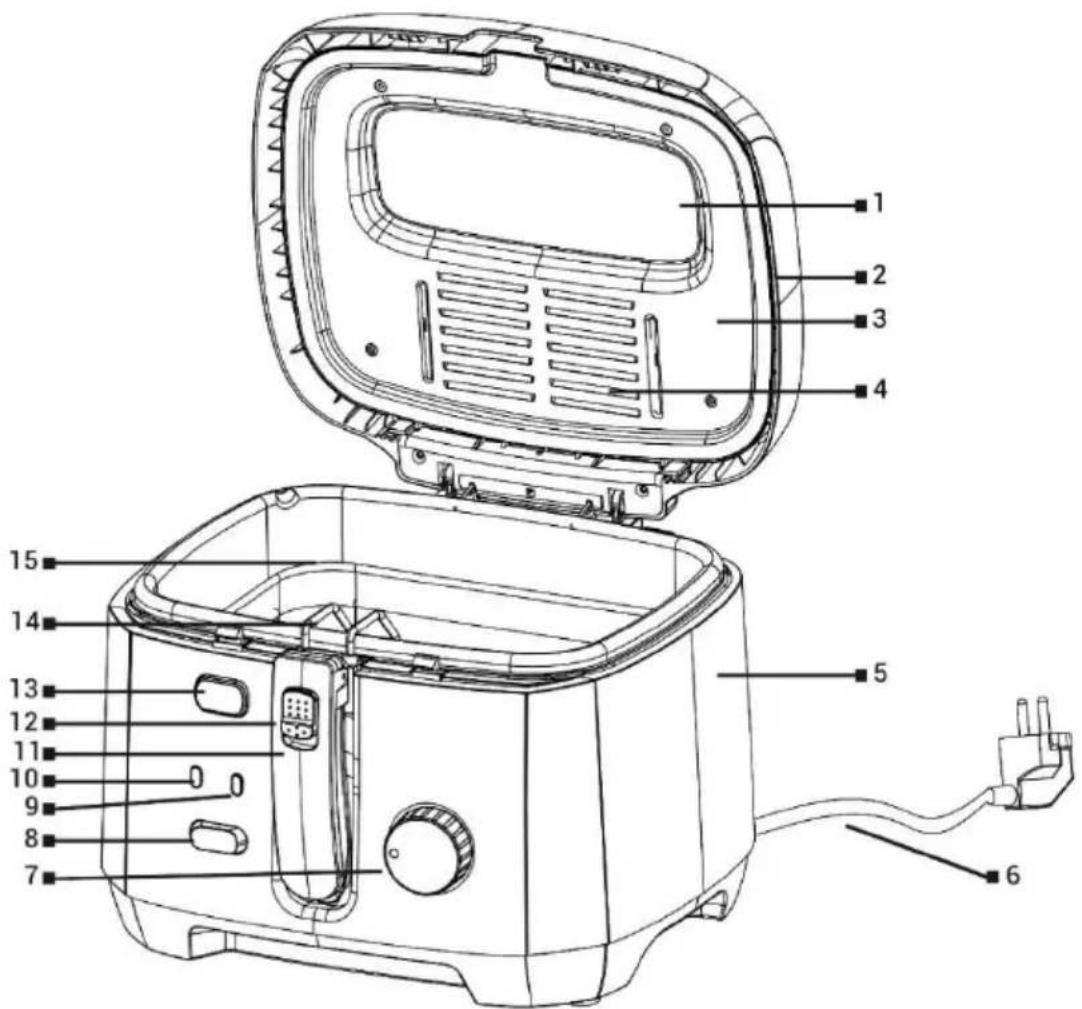

1 Control window
2 Cover
3 Inner cover
4 Filtration system
5 Fryer body
6 Power cable
7 Temperature controller
8 Turn on/off the fryer

9 Temperature indicator
10 Fryer power on indicator
11 Basket holder
12 Arrest button
13 Button to open the lid
14 Internal oil container
15 Frying basket

USING THE APPLIANCE

The fryer contains an internal oil container that cannot be removed. The frying basket is equipped with a foldable holder to save space. Place the appliance on a stable, level and heat-resistant surface and connect it to the mains. The fryer power on indicator lights up. Pour oil into the inner container and do not exceed the MAX mark in the inner oil container (14). Set the desired temperature with the Temperature Regulator (7). When the temperature is reached, the Temperature Indicator (9) turns off. Place the food in the deep-frying basket, dip it slowly into the oil and close the lid. After frying, turn off the fryer with the button (8), carefully open it and remove the basket and hang it in the storage position.

Note: During frying, the thermostat may turn on and off and steam may escape from the lid, this is not a defect.

PREPARATION OF FOOD FOR FRYING

• Wet food intended for deep-frying must be dried, for example in a paper towel.
• The best fries are made by frying them in two stages. Allow the fries to cool before frying a second time.
• For frozen foods, remove excess ice as it may cause the oil to boil over.
• When deep-frying pre-fried foods, use a higher temperature and a shorter time than for raw foods.
• Do not fill the frying basket more than half, because the temperature of the oil will drop and the frying result will not be optimal.
• When deep-frying food containing a large amount of water or frozen food, lower the basket into the filling slowly to prevent the frying filling from overflowing.

OIL CHANGE

The oil does not need to be changed after each use. If you fry mostly potatoes and filter the oil, it can be used up to ten times. Do not use the same oil for more than 6 months. When filtering or changing, pour the completely cooled oil into another container of suitable volume and then pour the oil back through a suitable filter paper.

CLEANING AND MAINTENANCE

NEVER immerse the cable, plug or appliance in water or any other liquid.

• Before cleaning, unplug the appliance and let it cool down completely.
- To maintain the non-stick layer as long as possible, do not use sharp or metal objects, abrasive cleaning materials or rough sponges and wire brushes.
- It is normal for the surface color to change over time. However, this change does not change the properties of the surface in any way and is not a reason to complain about the appliance.

TROUBLESHOOTING

Problem	Solution
The appliance does not work.	Check that the device is really connected to the mains.
The food is not fully cooked.	Place smaller portions of food in the removable basket.If the basket is too full, the food may be undercooked.
	Increase the temperature or cooking time.
The food is not evenly cooked.	Ingredients that are stacked on top of each other or close to each other need to be shaken or turned during cooking.
The steam also comes out from places other than just the vents in the lid.	Place the lid correctly on the fryer.
The oil foams excessively when deep-frying.	The oil is already burnt, replace it.

TECHNICAL SUPPORT

Do you need advice on setting up and operating the TESLA EasyCook AE300?

Contact us: www.tesla-electronics.eu

WARRANTY REPAIR

For warranty repair, contact the dealer where you purchased the TESLA product.

The warranty does NOT apply to:

• using the appliance for other purposes
• normal wear and tear of the appliance
- failure to observe the "Important Safety Instructions" listed in the user manual
• electromechanical or mechanical damage caused by improper use
• damage caused by natural elements such as water, fire, static electricity, overvoltage, etc.
• damage caused by unauthorized repair
- unreadable device serial number

DECLARATION OF CONFORMITY

We, TESLA Electronics LTD, org. složka, we declare that this device complies with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of device.

This product meets the requirements of the European Union.

If this crossed-out wheelie bin symbol is attached to a product, it means that the product is covered by the European Directive 2002/96/EC. Please inquire about your local separate collection system for electrical and electronic products. Please follow local regulations and do not dispose of old products in normal household waste. Proper disposal of the old product helps prevent potential negative consequences for the environment and human health.

As the product is being developed and improved, we reserve the right to modify the user manual.

Design and specifications are subject to change without notice, printing errors reserved.
