PMD 178 BiX - Microwave Philco - Free user manual and instructions

Product Type	Built-in Microwave Oven with Grill
Brand	Philco
Model	PMD 178 BiX
Capacity	17 liters
External Dimensions (W x H x D)	595 x 320 x 388 mm
Net Weight	Approximately 15 kg
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1050 W
Rated Output Power (Microwave)	700 W
Rated Input Power (Grill)	1000 W
Turntable Diameter	245 mm
Cooking Modes	Microwave, Grill, Combination (3 levels), Defrost by Weight/Time, Auto Menu (8 programs), Multi-section Cooking
Control Type	Rotary knob and push buttons
Display	LED digital display
Child Lock	Yes
Kitchen Timer	Yes
Clock Function	24-hour system
Installation Type	Built-in (requires cabinet with min. 85 cm height)
Accessories Included	Glass tray, Turntable ring assembly, Grill rack, Instruction manual
Cleaning Tips	Lemon steam cleaning (10 min at 100% power) for easy cleaning
Safety Features	Door interlock system, automatic power cut-off, child lock
Color/Finish	Black and stainless steel

Frequently Asked Questions - PMD 178 BiX Philco

How do I set the clock on the Philco PMD 178 BiX microwave?

Press Clock/Kitchen Timer once. The hour digits will flash. Use the rotary knob to set the hour (0-23). Press Clock/Kitchen Timer again to set minutes (0-59). Press once more to confirm. The colon will flash and the time will be displayed.

How can I cook using only the microwave function?

Press Micro./Grill/Combi. repeatedly to select power level (P100, P80, P50, P30, or P10). Press Start/+30Sec./Confirm to confirm, then set cooking time using the rotary knob. Press Start/+30Sec./Confirm again to start.

How do I use the grill or combination cooking?

Press Micro./Grill/Combi. repeatedly until G (grill only), C-1 (55% microwave + 45% grill), or C-2 (36% microwave + 64% grill) appears. Confirm, set time, and start. For grilling, the oven will pause halfway and beep twice so you can turn food over.

How does the defrost function work?

For defrost by weight, press Weight/Time Defrost once to select dEF1, then set weight (100-2000g). For defrost by time, press twice for dEF2, then set time up to 95 minutes. Cooking power is fixed at 30%.

What are the Auto Menu programs and how do I use them?

Turn the rotary knob right to select from A-1 (Pizza) to A-8 (Popcorn). Press confirm, then set the weight according to the menu chart. The oven automatically sets power and time. Example: for fish, choose A-6 and set 350g.

How do I lock the microwave to prevent children from using it?

In standby mode, press and hold Stop/Clear for 3 seconds. A long beep indicates the child lock is active. The display will show the current time or '……'. To unlock, press and hold Stop/Clear again for 3 seconds.

Can I use metal containers or aluminum foil in this microwave?

No. Metal containers and aluminum foil can cause arcing and damage the oven. Only use microwave-safe containers. Refer to the manual's list of allowed materials.

How do I clean the microwave interior?

Unplug the appliance. Wipe the cavity with a damp cloth. For stubborn stains, heat half a lemon in 300 ml water at 100% power for 10 minutes, then wipe clean. Do not use abrasive cleaners or steam cleaners.

What should I do if the microwave does not start?

Check that the power cord is plugged in securely. If the fuse blew or circuit breaker tripped, replace/reset them. If the outlet is faulty, test with another appliance. Ensure the door is fully closed.

Is this microwave suitable for built-in installation?

Yes, the PMD 178 BiX is designed for built-in installation only. Minimum cabinet dimensions are provided in the manual. The oven requires a properly grounded outlet and must not have a back wall behind it.

USER MANUAL PMD 178 BiX Philco

Famous for Quality the World Over

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: SAFETY INFORMATION....2

Utensils....7

Materials you can use in microwave oven 7

Materials to be avoided in microwave oven....8

PART 2: SETTING UP YOUR OVEN....9

Names of Oven Parts and Accessories....9

Turntable Installation....10

Installation and connection 10

PART 3: INSTALLATION INSTRUCTIONS ....11

A. Built-in furniture 12

B. Prepare the cabinet....14

C. Install the oven....15

PART 4: OPERATION INSTRUCTION ....16

1. Clock Setting 16

2. Microwave Cooking....16

3. Grill or Combi. Cooking ....17

4. Quick Start....18

5. Defrost By Weight....18

6. Defrost By Time ....18

7. Kitchen Timer ....18

8. Auto Menu ....19

9. Multi-section cooking....20

10. Inquiring Function 20

11. Lock-out Function for Children 20

PART 5: TROUBLE SHOOTING ....21

PART 6: SPECIFICATIONS ......22

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS......23

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES....23

This appliance has been tested in accordance with the directives in force in the European Union. This appliance conforms to the relevant safety provisions for electrical appliances in force in the European Union.

PART 1: SAFETY INFORMATION

• THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTIONS CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED.
  • CHILDREN MUST NOT PLAY WITH THE APPLIANCE.
• CLEANING AND USER MAINTENANCE CANNOT BE PERFORMED BY CHILDREN WITHOUT SUPERVISION.
• IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTRE IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE AN APPLIANCE WITH THE SUPPLY CABLE DAMAGED.

IMPORTANT SAFETY PRECAUTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

CAUTION:

IF THE DOOR OR DOOR SEAL GET DAMAGED, THE OVEN MUST NOT BE USED UNTIL THEY ARE REPAIRED BY TRAINED PERSONNEL.

CAUTION:

IT IS DANGEROUS FOR ALL PEOPLE OTHER THAN TRAINED PERSONNEL TO PERFORM ANY REPAIRS OR MAINTENANCE INVOLVING REMOVAL OF ANY COVERS ENSURING PROTECTION AGAINST EMISSION OF MICROWAVES.

CAUTION:

LIQUIDS AND OTHER FOOD SHOULD NOT BE HEATED UP IN CLOSED CONTAINERS, BECAUSE THEY ARE PRONE TO EXPLOSION.

• THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS
- KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES;
- AGRICULTURAL FACILITIES;
- HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES WHERE APPLIANCES ARE USED BY GUESTS;
- BED AND BREAKFAST FACILITIES.

- THIS MICROWAVE OVEN IS AN IN-BUILT APPLIANCE INTENDED TO BE BUILT INTO A CABINET. MINIMUM REQUIRED CABINET DIMENSIONS AND INSTALLATION REQUIREMENTS ARE INCLUDED IN THIS MANUAL.

- ONLY CONTAINERS SUITABLE FOR USE IN MICROWAVE OVENS CAN BE USED.

• IT IS NOT ALLOWED TO USE METAL FOOD OR DRINK CONTAINERS FOR COOKING IN MICROWAVE OVENS.
• WHEN HEATING UP FOOD IN PAPER OR PLASTIC CONTAINERS, CHECK THE OVEN FROM TIME TO TIME TO PREVENT IGNITION.
• MICROWAVE OVEN IS INTENDED FOR HEATING UP FOOD AND DRINKS. DRYING FOOD OR CLOTHES AND HEATING UP HEATING PADS, SLIPPERS, WASHING SPONGES, WET CLOTHES AND SIMILAR OBJECTS CAN LEAD TO INJURIES, IGNITION OR FILE.
• IF THERE IS SMOKE, TURN OFF OR UNPLUG THE APPLIANCE AND LEAVE THE DOOR CLOSED TO PREVENT POSSIBLE FIRE FROM SPREADING.
  • HEATING UP DRINKS USING A MICROWAVE CAN CAUSE DELAYED BOILING WHICH MUST BE KEPT IN MIND WHEN HOLDING THE CONTAINER.
• BEFORE CONSUMPTION, THE CONTENT OF BABY BOTTLES AND BABY FOOD MUST BE STIRRED OR SHAKEN UP AND THEIR TEMPERATURE MUST BE CHECKED TO PREVENT BURNING.

• EGGS IN SHELLS AND WHOLE HARD-BOILED EGGS MUST NOT BE HEATED UP IN MICROWAVE OVENS BECAUSE THEY CAN EXPLODE EVEN AFTER HEATING UP USING MICROWAVES HAS BEEN COMPLETED.

• DETAILS REGARDING CLEANING DOOR SEAL, OPERATION AREAS AND ADJACENT AREAS:

• THE OVEN SHOULD BE CLEANED CORRECTLY AND POSSIBLE FOOD REMAINS SHOULD BE REMOVED.
• NOT KEEPING THE OVEN CLEAN COULD LEAD TO THE SURFACE FINISH DAMAGE WHICH COULD ADVERSELY AFFECT THE APPLIANCE'S SERVICE LIFE AND LEAD TO DANGEROUS SITUATIONS.
  • DO NOT USE TEMPERATURE PROBES.
• PLEASE ENSURE THAT THE ROTATING TRAY DOES NOT CHANGE ITS POSITION WHEN REMOVING CONTAINERS FROM THE APPLIANCE.
• THE APPLIANCE MUST NOT BE CLEANED USING STEAM CLEANERS.
• MINIMUM CABINET DIMENSIONS ARE INCLUDED IN THIS MANUAL.
• IF THE CABINET IS EQUIPPED WITH DECORATIVE DOORS, THE APPLIANCE CAN ONLY BE USED WITH THESE DOORS OPENED.

CLEANING

BE SURE TO UNPLUG THE APPLIANCE FROM THE POWER SUPPLY.

1. CLEAN THE CAVITY OF THE OVEN AFTER USING WITH A SLIGHTLY DAMP CLOTH.
2. CLEAN THE ACCESSORIES IN THE USUAL WAY IN SOAPY WATER.
3. THE DOOR FRAME AND SEAL AND NEIGHBOURING PARTS MUST BE CLEANED CAREFULLY WITH A DAMP CLOTH WHEN THEY ARE DIRTY.
4. DO NOT USE HARSH ABRASIVE CLEANERS OR SHARP METAL SCRAPERS TO CLEAN THE OVEN DOOR GLASS SINCE THEY CAN SCRATCH THE SURFACE, WHICH MAY RESULT IN SHATTERING OF THE GLASS.
5. CLEANING TIP: FOR EASIER CLEANING OF THE CAVITY WALLS THAT THE FOOD COOKED CAN TOUCH: PLACE HALF A LEMON IN A BOWL, ADD 300ML (1/2 PINT) WATER AND HEAT ON 100% MICROWAVE POWER FOR 10 MINUTES. WIPE THE OVEN CLEAN USING A SOFT, DRY CLOTH.

Utensils

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions. Should be labeled „Microwave Safe“. Some plastic containers soften, as the food inside gets hot. „Boiling bags“ and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture.Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

PART 2: SETTING UP YOUR OVEN

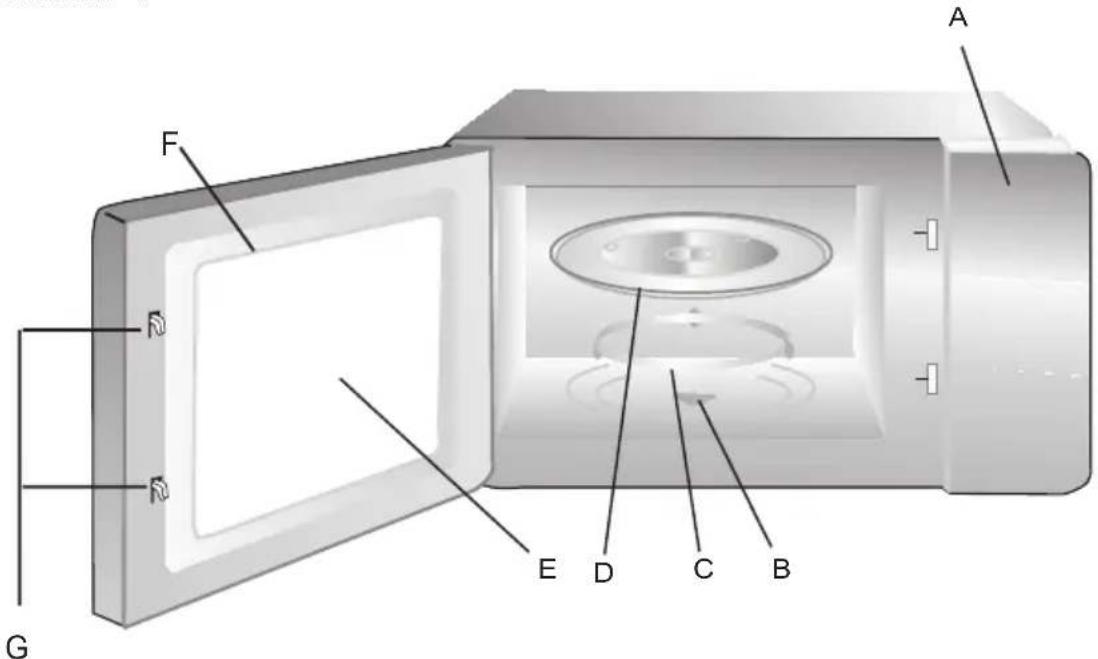

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass

tray

1

Turntable ring assembly 1

Instruction Manual 1

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

Simple line drawing of a speech bubble with three legs and a striped interior (no text or symbols)

Grill Rack (Can not be used in microwave function and must be placed on the glass tray)

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Installation and connection

1. This appliance is only intended for domestic use.

2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.

3. Please observe the special installation instructions.

4. The appliance can be installed in a 60cm wide wallmounted cupboard.

5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.

6. The mains voltage must correspond to the voltage specified on the rating plate.

7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.

8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

PART 3: INSTALLATION INSTRUCTIONS

Please Read the Manual Carefully Before Installation.

Please note

Electrical connection

The oven is fitted with a plug and must only be connected to a properly installed earthed socket. The socket must only be installed and the connecting cable must only be replaced by a qualified electrician, and in accordance with the appropriate regulations. If the plug is no longer accessible following installation, an all-pole isolating switch must be present on the installation side with a contact gap of at least 3 mm.

The fitted cabinet must not have a back wall behind the appliance.

A gap must be maintained between the wall and the base of the unit above.

Specific gap size could be referenced by the diagrams.

Minimum installation height: 85 cm

Do not cover ventilation slots and suction holes.

Note:

Do not trap or bend the power cable.

Screw

Screw

Mounting plate

Trim-kit plastic cover

Line drawing of a microwave oven with front panel and side door (no text or symbols)

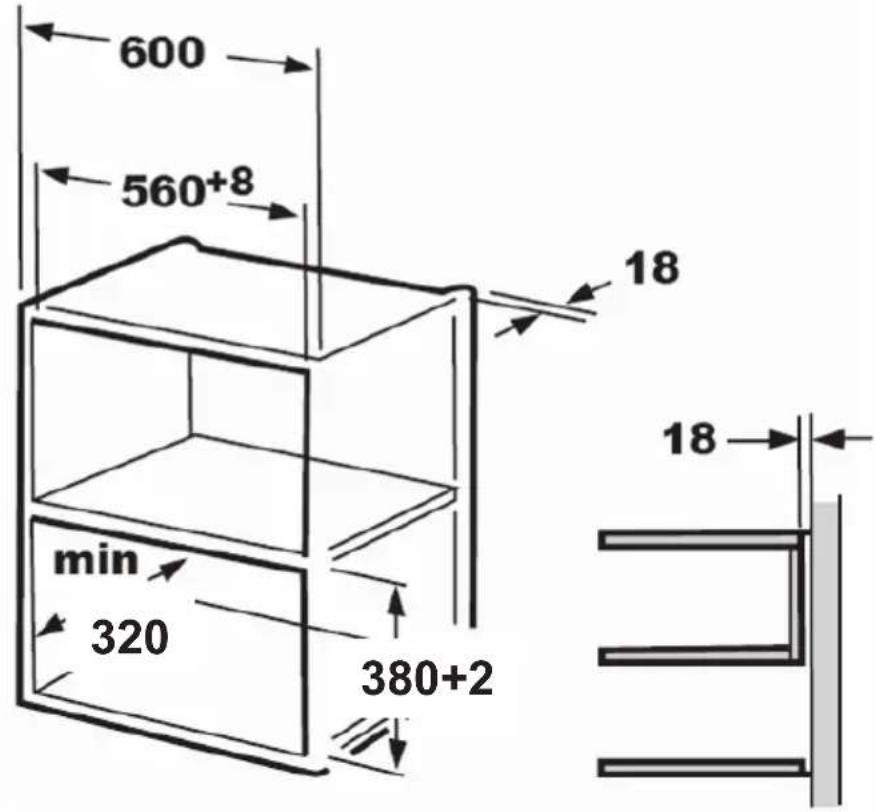

A. Built-in furniture

1.

1.

Note:
The bracket and bottom cabinet template are needed when installing in both installations.

B. Prepare the cabinet

Skip this step if the cabinet depth is within the range of 320-340mm.

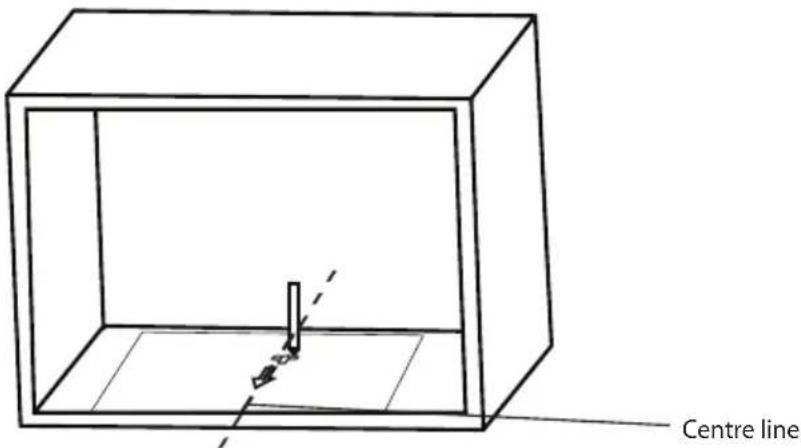

1. Read the instruction on the BOTTOM CABINET TEMPLATE, put the template on the bottom plane of cabinet.

Simple line drawing of a 3D rectangular box (no text or symbols)

1. Make the marks on the bottom plane of cabinet according to marks "a" of the template.

1. Remove the bottom cabinet template and fix the mounting plate with screw.

C. Install the oven

1. Install the oven to the cabinet.

2. Make sure the back of the oven is locked by mounting plate.

3. Do not trap or kink the power cord.

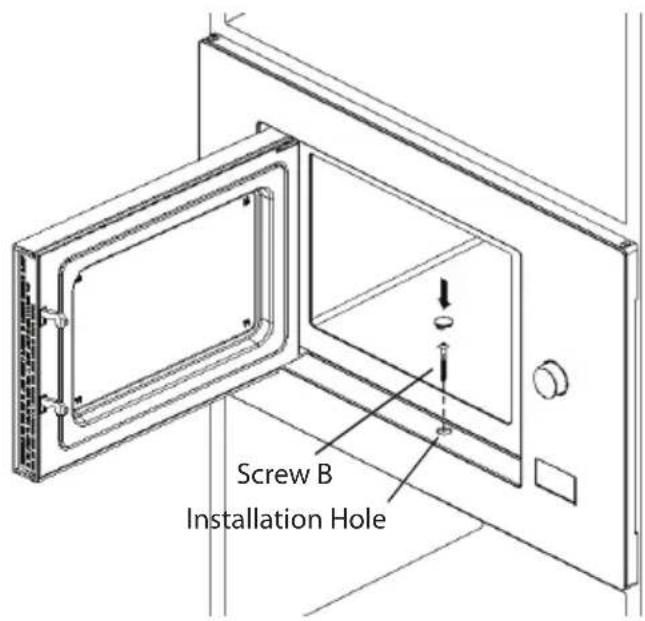

1. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.

Then fix the Trim-kit plastic cover to the installation hole.

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press "Clock/Kitchen Timer" once to select clock function, the hour figures will flash.
2) Turn " to adjust the hour figures, the input time should be within 0--23.
3) Press "Clock/Kitchen Timer", the minute figures will flash.
4) Turn " to adjust the minute figures, the input time should be within 0--59.
5) Press "Clock/Kitchen Timer" to finish clock setting. ":" will flash, and the time will light.

Note:

1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press "Micro./Grill/Combi." once, the screen will display "P100. Press "Micro./Grill/Combi." repeatedly or turn "to choose the power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press. Then press "Strat/+30Sec./Confirm" to confirm, and turn "to set cooking time from 0:05 to 95:00. Press "Strat/+30Sec./Confirm" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press the "Micro./Grill/Combi." once, the screen displays "P100".
2) Press the "Micro./Grill/Combi." once again or turn "to choose 80% microwave power.
3) Press the "Strat/+30Sec./Confirm" to confirm, and the screen displays "P 80".
4) Turn " [icon] to adjust the cooking time until the oven displays "20:00".
5) Press the "Strat/+30Sec./Confirm" to start cooking.

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

0 - 1 min: 5 seconds

1 - 5 min: 10 seconds

5 - 10 min: 30 seconds

10 - 30 min: 1 minute

30 - 95 min: 5 minutes

"Micro./Grill/Combi." Order	Pad instructions Display Microwave Power Grill Power
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%
6 G 0% 100%
7 C-1 55% 45%
8 C-2 36% 64%

3. Grill or Combi. Cooking

Press "Micro./Grill/Combi." the LED will display "P100", and press "Micro./Grill/Combi." repeatedly or turn the "###" to choose the power you want, and "G""C-1" or "C-2" will display for each added press. Then press "Strat/+30Sec./Confirm" to confirm, and turn "###" to set cooking time from 0:05 to 95:00. Press "Strat/+30Sec./Confirm" again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press "Micro./Grill/Combi." once, the screen display "P100".
2) Press "Micro./Grill/Combi." for times or turn "to choose combi. 1 mode.
3) Press "Strat/+30Sec./Confirm" to confirm, and the screen displays "C-1".
4) Turn "to adjust the cooking time until the oven displays "10:00".

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Strat/+30Sec./Confirm" to continue cooking. If no operation, the oven will continue working.

4. Quick Start

1) In waiting state, Press “Strat/+30Sec./Confirm” to start cooking with 100% power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave, grill, combination cooking or time defrost state, each press of "Strat/+30Sec./Confirm" can increase 30 seconds of cooking time.
3) In waiting state, turn " Strat/+30Sec./Confirm" left to set cooking time with 100% microwave power. After choosing the cooking time, press "Strat/+30Sec./Confirm" to start cooking.

5. Defrost By Weight

1) Press "Weight/Time Defrost" once, and the oven will display "dEF1".
2) Turn " [icon] to select the weight of food from 100 to 2000g .
3) Press "Strat/+30Sec./Confirm" to start defrosting.

6. Defrost By Time

1) Press "Weight/Time Defrost" twice, and the oven will display "dEF2".
2) Turn " " to select the defrost time. The MAX time is 95 minutes.
3) Press "Strat/+30Sec./Confirm" to start defrosting. The defrost power is P30, and it will not be changed.

7. Kitchen Timer

1) Press "Clock/Kitchen Timer" twice, LED will display 00:00.
2) Turn " to enter the correct timer.(The maximum cooking time is 95 minutes.)
3) Press "Strat/+30Sec./Confirm" to confirm setting.

4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock has been set (24-hour system), LED will display the current time.

Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1) Turn " right to choose the menu, and "A-1" to "A-8" will display.
2) Press "Strat/+30Sec./Confirm" to confirm.
3) Turn " to choose the default weight as the menu chart.
4) Press "Strat/+30Sec./Confirm" to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " clockwise till "A-6" display.
2) Press "Strat/+30Sec./Confirm" to confirm.
3) Turn " [icon] to select the weight of fish till "350" display.
4) Press "Strat/+30Sec./Confirm" to start cooking.

The menu chart:

Menu Weight Display
A-1 Pizza	200 g 200
	400 g 400
A-2 Meat	250 g 250
	350 g 350
	450 g 450
A-3 Vegetable	200 g 200
	300 g 300
	400 g 400
A-4 Pasta	50g (with 450 ml cold water) 50
	100g (with 800 ml cold water) 100
A-5 Potato	200 g 200
	400 g 400
	600 g 600
A-6 Fish	250 g 250
	350 g 350
	450 g 450
A-7 Beverage	1 cup (120 ml) 1
	2 cups (240 ml) 2
	3 cups (360ml) 3
A-8 Popcorn	50 g 50
	100 g 100

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section automatically.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press "Weight/Time Defrost" twice, and the oven will display "dEF2".
2) Turn " to select the defrost time till "5:00" display.
3) Press "Micro./Grill/Combi." once, the screen display "P100".
4) Press "Micro./Grill/Combi." once again or turn "to choose 80% microwave power.
5) Press " Strat/+30Sec./Confirm " to confirm, and the screen displays "P 80".
6) Turn " to adjust the cooking time till the oven displays "7:00".
7) Press "Strat/+30Sec./Confirm" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

10. Inquiring Function

1) In states of microwave, grill and combination cooking, press "Micro./Grill/Combi.", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
2) In cooking state, press "Clock/Kitchen Timer" to inquire the time and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock:

In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display "……".

Lock quitting:

In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.

PART 5: TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light In low power microwave cooking, oven light may become dim.It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents.But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble Possible cause Remedy
Oven can not be started. (1) Power	cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet. Test outlet	with other electrical appliances.
Oven does not heat. (4) Door not closed well. Close door well.

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

PART 6: SPECIFICATIONS

Model: PMD 178 BIX
Rated Voltage: 230 V~50 Hz
Rated Input Power (Microwave): 1050 W
Rated Output Power (Microwave): 700 W
Rated Input Power (Grill): 1000 W
Oven Capacity: 17 l
Turntable Diameter: ø 245 mm
External Dimensions: 595 x 320 x 388 mm
Net Weight: Approx 15 kg

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

MIKROVLNNÁ TROUBA

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

Vážený zákazníku,

Simple line drawing of a round object with diagonal hatching and two legs (no text or symbols)

Line drawing of a microwave oven with front panel and side door (no text or symbols)

Simple line drawing of a 3D rectangular box (no text or symbols)

Famous for Quality the World Over

Vážený zákazník,

ČAST 3: POKYNY NA INSTALÁCIU ....11

Simple line drawing of a circular object with diagonal hatching and two legs (no text or symbols)

ČASŤ 3: POKYNY NA INŠTALÁCIU

Pred inštaláciou si pozorne prečítajte návod na obsluhu.

Line drawing of a microwave oven with front panel and side door (no text or symbols)

A. Vstavaný nábytok

1.

1.

Poznámka:

Simple line drawing of a 3D rectangular box (no text or symbols)

Manufacturer/Importer:

Fast ČR, a.s.

CZ-10000; CZECH REPUBLIC
