Product Type	Television
Brand	Samsung
Model	UE43RU7452
Screen Size	43 inches (108 cm diagonal)
Display Resolution	3840 x 2160 (4K UHD)
Sound Output	20 W
Dimensions (Without Stand)	970.2 x 563.2 x 58.1 mm
Dimensions (With Stand)	970.2 x 648.0 x 343.7 mm
Weight (Without Stand)	9.5 kg
Weight (With Stand)	12.1 kg
Operating Temperature	10°C to 40°C
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C
Storage Humidity	5% to 95%, non-condensing
Power Supply	AC voltage (refer to product label)
Typical Power Consumption	Measured according to IEC 62087; refer to label rating
Eco Sensor	Yes (ambient light detection)
Smart TV	Yes (Smart Hub)
Wi-Fi	Built-in (2.4 GHz/5 GHz)
Bluetooth	Yes (for remote and devices)
Remote Control	Samsung Smart Remote (Bluetooth)
Wall Mount VESA	200 x 200 mm
Wall Mount Screw Size	M8 (length C: 43-45 mm)
CI Slot	CI+ 1.4
HDMI	Yes (multiple ports)
USB	Yes (standard ports)

Frequently Asked Questions - UE43RU7452 SAMSUNG

How do I set up the TV for the first time?

When you turn on the TV for the first time, the Initial Setup starts automatically. Follow the on-screen instructions to configure basic settings such as broadcast reception, channel search, and network connection. You can also use the SmartThings app on your mobile device for setup.

How do I connect the TV to Wi-Fi?

Go to Settings > General > Network > Open Network Settings. Select your wireless network, enter the password, and connect. The TV also supports wired connection via LAN cable.

How do I pair the Samsung Smart Remote?

The remote pairs automatically when you turn on the TV for the first time. If it doesn't, point the remote at the TV and press and hold the Return and Play/Pause buttons simultaneously for 3 seconds.

How do I mount the TV on a wall?

Use a VESA-compliant wall mount kit (200x200 mm). Follow the instructions in the manual: attach the wall mount adapter, use M8 screws of appropriate length, and ensure proper ventilation (at least 10 cm clearance). Always have two people for mounting.

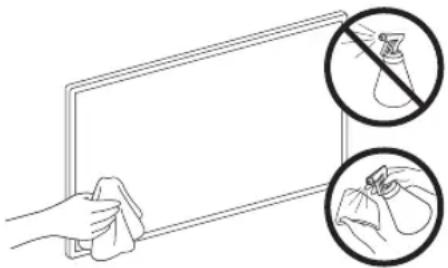

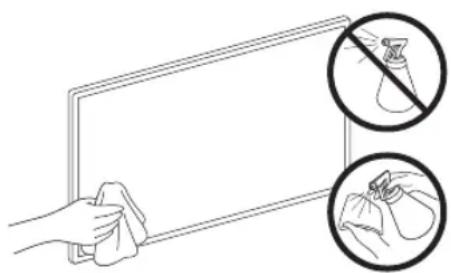

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry micro-fiber cloth to gently wipe the screen. For stubborn smudges, lightly dampen the cloth with water or a screen cleaner. Never spray liquid directly on the TV or use chemicals like benzene or alcohol.

What should I do if there is no picture or sound?

First, check that all cables are securely connected and the correct input source is selected. Run the Self Diagnosis in Settings > Support. Try rebooting connected devices. If using an antenna, run Auto Tuning to search for channels.

How do I update the TV software?

Go to Settings > Support > Software Update. Select Update Now to check for updates manually, or enable Auto Update to install updates automatically.

How do I access the e-Manual?

Press the Home button on the remote, then go to Settings > Support > Open e-Manual. The e-Manual includes detailed information about features, troubleshooting, and settings.

How do I reset the TV to factory settings?

Go to Settings > General > Reset. Enter your PIN (default is 0000) and confirm. This erases all personal settings and data.

How can I reduce power consumption?

Enable Eco Sensor (ambient light detection) in Settings > General > Eco Solution. The TV automatically adjusts brightness to save energy. Also, unplug the TV when not in use for long periods to avoid standby power draw.

USER MANUAL UE43RU7452 SAMSUNG

Before Reading This User Manual

This TV comes with this user manual and an embedded e-Manual.

Before reading this user manual, review the following:

	User Manual	Read this provided user manual to see information about product safety, installation, accessories, initial configuration, and product specifications.
	e-Manual	For more information about this TV, read the e-Manual embedded in the product.To open the e-Manual,Settings > Support > Open e-Manual

On the website (www.samsung.com), you can download the manuals and see its contents on your PC or mobile device.

Learning the e-Manual's assistance functions

• Some menu screens cannot be accessed from the e-Manual.

	Search	Select an item from the search results to load the corresponding page.
	Index	Select a keyword to navigate to the relevant page.- The menus may not appear depending on the geographical area.
	Recent pages	Select a topic from the list of recently viewed topics.

Learning the functions of the buttons that appear on e-Manual topic pages

	Try Now	Allows you to access the corresponding menu item and try out the feature right away.
[287G]	Link	Access an underlined topic referred to on an e-Manual page immediately.

Warning! Important Safety Instructions

Please read the Safety Instructions before using your TV.

Refer to the table below for an explanation of symbols which may be on your Samsung product.

CAUTION			Class II product: This symbol indicates that a safety connection to electrical earth (ground) is not required. If this symbol is not present on a product with a mains lead, the product MUST have a reliable connection to protective earth (ground).
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.			AC voltage: Rated voltage marked with this symbol is AC voltage.
	This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.		DC voltage: Rated voltage marked with this symbol is DC voltage.
	This symbol indicates that this product has included important literature concerning operation and maintenance.		Caution. Consult instructions for use: This symbol instructs the user to consult the user manual for further safety related information.

- The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus and to protect it from overheating, these slots and openings must never be blocked or covered.

• Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.
• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

• Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or electric shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc.). If this apparatus accidentally gets wet, unplug it and contact an authorised dealer immediately.

• This apparatus uses batteries. In your community, there might be environmental regulations that require you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling information.
• Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in fire or electric shock.
• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and at the point where they exit from the appliance.

- To protect this apparatus from a lightning storm, or when left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

- Before connecting the AC power cord to the DC adaptor outlet, make sure that the voltage designation of the DC adaptor corresponds to the local electrical supply.

- Never insert anything metallic into the open parts of this apparatus. This may cause a danger of electric shock.

- To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

- Be sure to plug in the power cord until it is firmly seated. When unplugging the power cord from a wall outlet, always pull on the power cord's plug. Never unplug it by pulling on the power cord. Do not touch the power cord with wet hands.

- If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorised dealer or service centre.

- Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are going to leave the house for an extended period of time (especially when children, elderly, or disabled people will be left alone in the house).

- Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat or by causing the insulation to deteriorate.

- Be sure to contact an authorised Samsung service centre for information if you intend to install your TV in a location with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate 24 hours a day such as in an airport, a train station, etc. Failure to do so may lead to serious damage to your TV.

• Use only a properly grounded plug and wall outlet.

- An improper ground may cause electric shock or equipment damage. (Class I Equipment only.)

- To turn off this apparatus completely, disconnect it from the wall outlet. To ensure you can unplug this apparatus quickly if necessary, make sure that the wall outlet and power plug are readily accessible.

- Store the accessories (batteries, etc.) in a location safely out of the reach of children.

- Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a Samsung service centre.

- To clean this apparatus, unplug the power cord from the wall outlet and wipe the product with a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, aerial fresheners, lubricants, or detergents. These chemicals can damage the appearance of the TV or erase the printing on the product.

• Do not expose this apparatus to dripping or splashing.

• Do not dispose of batteries in a fire.

- Do not short-circuit, disassemble, or overheat the batteries.

- There is danger of an explosion if you replace the batteries used in the remote with the wrong type of battery. Replace only with the same or equivalent type.

* Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may change without notice.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for customers in EU region.

Contents

Before Reading This User Manual 2

Warning! Important Safety Instructions 3

01 What's in the Box?

02 TV Installation

Mounting the TV on a wall 7

Providing proper ventilation for your TV 8

Attaching the TV to the Stand 9

Safety Precaution: Securing the TV to the wall to

prevent falling 9

03 The Samsung Smart Remote

About the Buttons on the Samsung Smart Remote 10

Pairing the TV to the Samsung Smart Remote 11

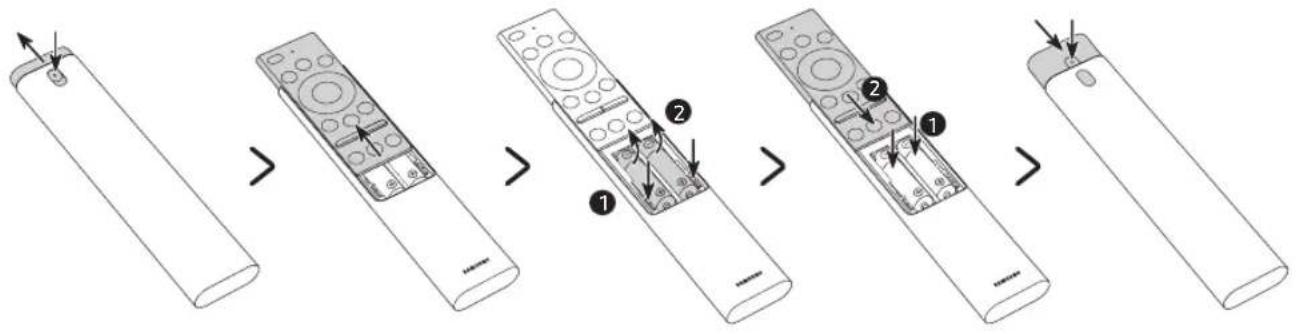

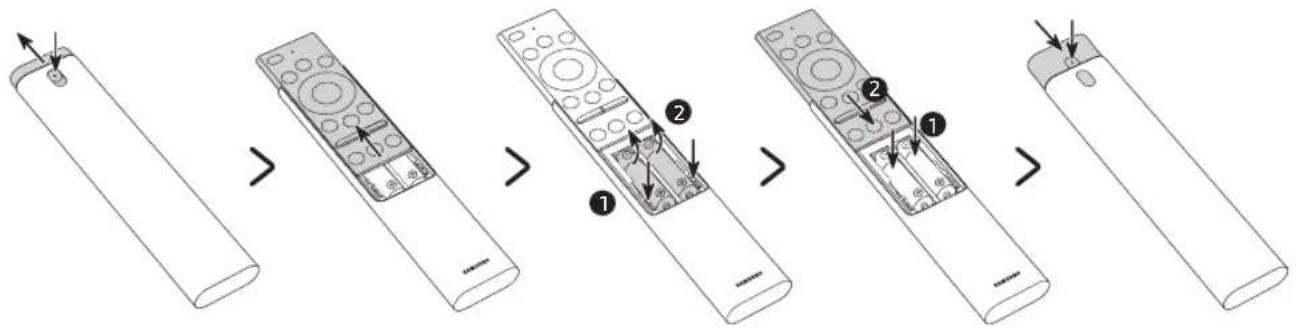

Installing batteries into the Samsung Smart Remote 11

04 Running the Initial Setup

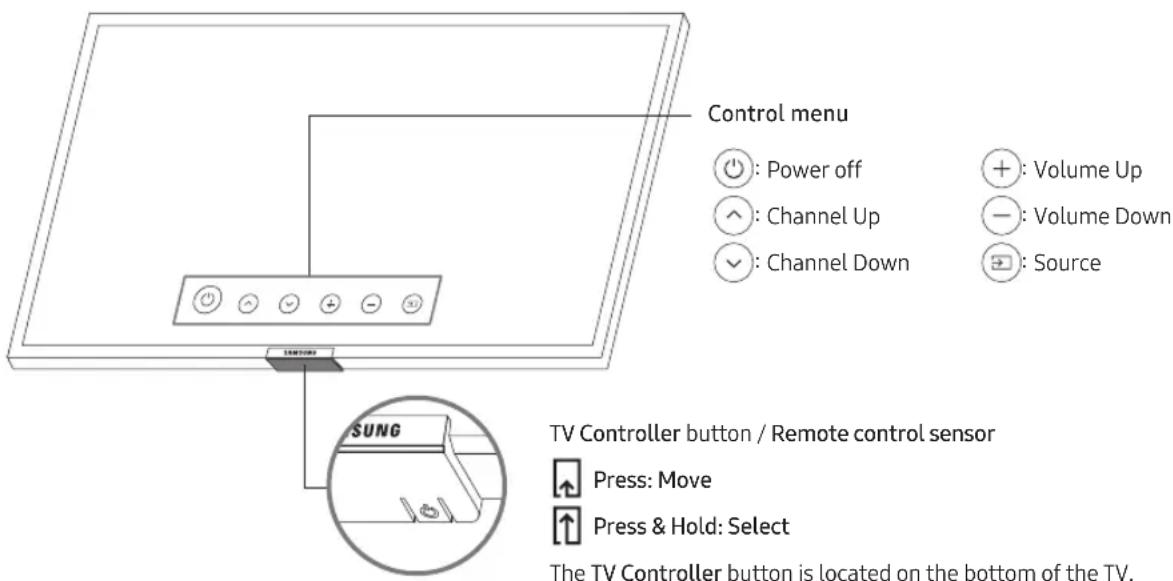

Using the TV Controller 12

05 Connecting to a Network

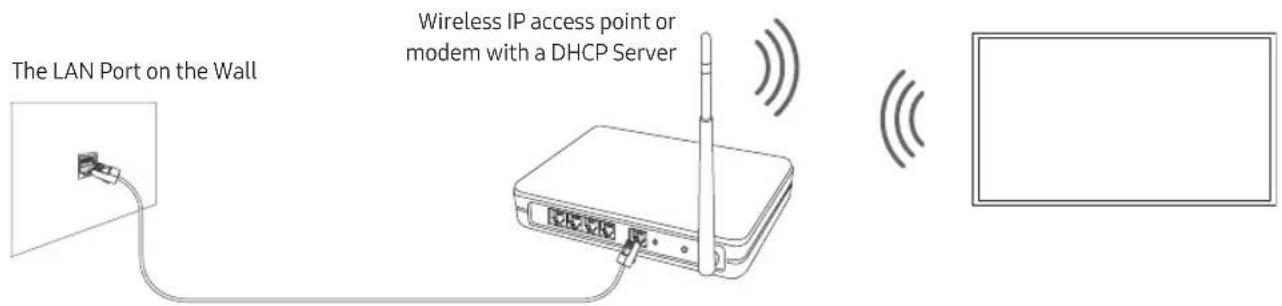

Network Connection - Wireless 13

Network Connection - Wired 13

06 Troubleshooting and Maintenance

Troubleshooting 14

What is Remote Support? 16

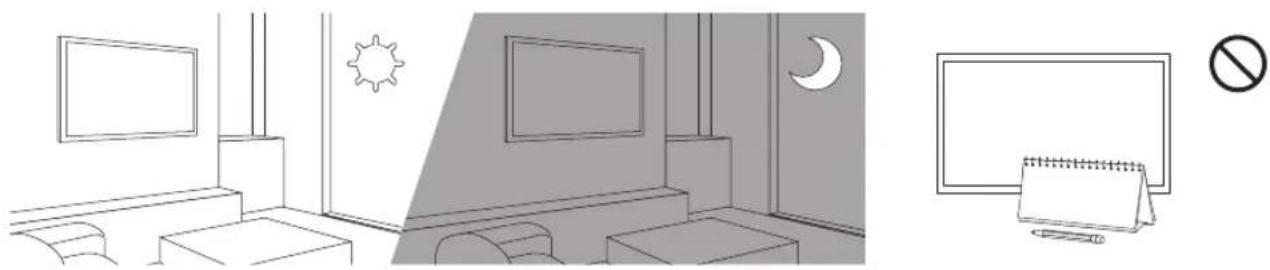

Eco Sensor and screen brightness 16

Caring for the TV 17

07 Specifications and Other Information

Specifications 18

Environmental Considerations 18

Decreasing power consumption 19

Licences 19

01 What's in the Box?

Make sure the following items are included with your TV. If any items are missing, contact your dealer.

• Samsung Smart Remote & Batteries (AAA x 2)
- User Manual

Simple line drawing of a cylindrical object with a circular top and label 'x 4' below (no other text or symbols)

Wall Mount Adapter CI Card Adapter

• Warranty Card / Regulatory Guide (Not available in some locations)

• TV Power Cable

• The items' colours and shapes may vary depending on the models.
  • Cables not included can be purchased separately.

• Check for any accessories hidden behind or in the packing materials when opening the box.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e., where the user manual has not been read).
(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e., where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

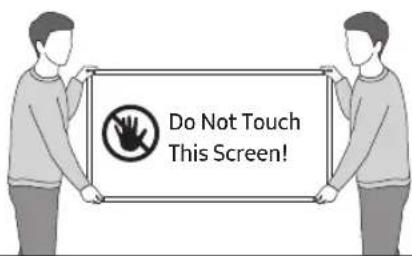

Warning: Screens can be damaged from direct pressure when handled incorrectly. We recommend lifting the TV at the edges, as shown.

02 TV Installation

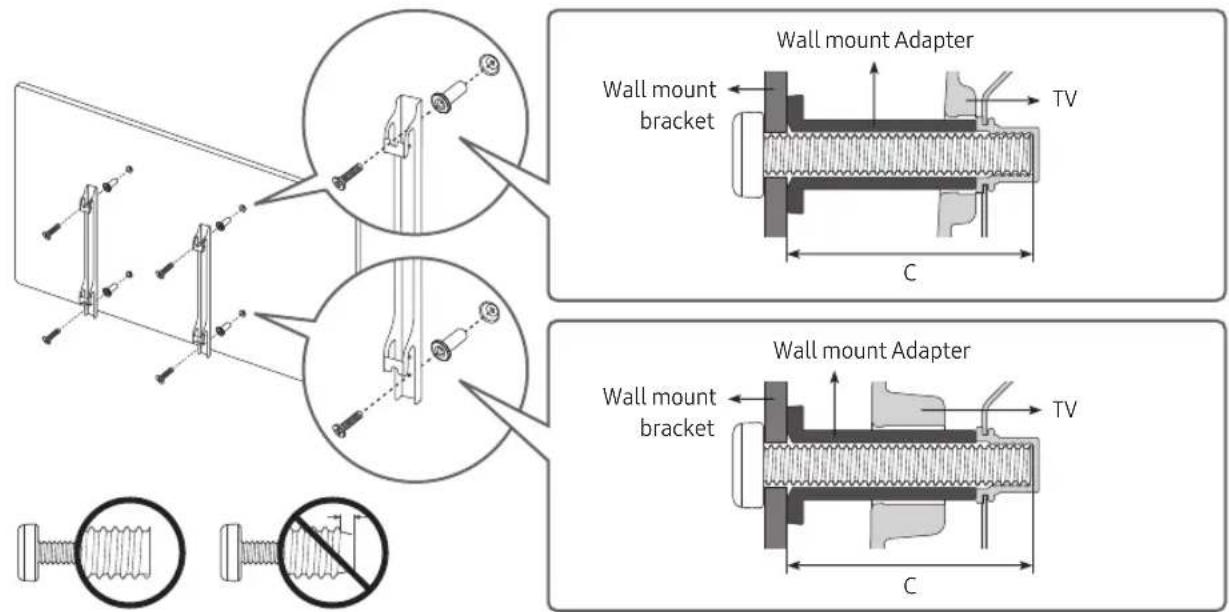

Mounting the TV on a wall

If you mount this TV on a wall, follow the instructions exactly as set out by the manufacturer. Unless it is correctly mounted, the TV may slide or fall and cause serious injury to a child or adult and serious damage to the TV.

For models providing wall mount adapters, install them as shown in the figure below before installing the wall mount kit.

• Refer to the installation manual included with the Samsung wall mount kit.

• Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you choose to install the wall mount on your own.
• You can install your wall mount on a solid wall perpendicular to the floor. Before attaching the wall mount to surfaces other than plaster board, contact your nearest dealer for additional information. If you install the TV on a ceiling or slanted wall, it may fall and result in severe personal injury.
• Standard dimensions for wall mount kits are shown in the table on the next page.
• If you are installing a third-party wall mount, note that the length of the screws you can use to attach the TV to the wall mount is shown in column C in the table on the next page.
• When installing a wall mount kit, we recommend you fasten all four VESA screws.
• If you want to install a wall mount kit that attaches to the wall using two top screws only, be sure to use a Samsung wall mount kit that supports this type of installation. (You may not be able to purchase this type of wall mount kit, depending on the geographical region.)

TV size in inches	VESA screw hole specs (A * B) in millimetres	C (mm)	Standard Screw	Quantity
43-55 200	x 200	43-45 M8 4
65 400 x	400

Do not install your wall mount kit while your TV is turned on. This may result in personal injury from electric shock.

• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set.
• For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications.
• Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.
• Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or when the consumer fails to follow the product installation instructions.
• Do not mount the TV at more than a 15 degree tilt.
  • Always have two people mount the TV onto a wall.

Providing proper ventilation for your TV

When you install your TV, maintain a distance of at least 10 cm between the TV with other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product caused by an increase in its internal temperature.

- When you install your TV with a stand or a wall mount, we strongly recommend you use parts provided by Samsung Electronics only. Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused by the product falling.

Installation with a stand Installation with a wall mount

Attaching the TV to the Stand

Make sure you have all the accessories shown, and that you assemble the stand following the provided assembly instructions.

Safety Precaution: Securing the TV to the wall to prevent falling

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang on or destabilise the TV. This action may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the Safety Flyer included with your TV. For added stability and safety, you can purchase and install the anti-fall device as described below.

WARNING: Never place a television set in an unstable location. The television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as

• Using cabinets or stands recommended by the manufacturer of the television set.
• Only using furniture that can safely support the television set.
• Ensuring the television set is not overhanging the edge of the supporting furniture.
• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If you are retaining and relocating the television set that you are replacing with this new set, you should apply the same precautions to the old set.

Preventing the TV from falling

1. Using the appropriate screws, firmly fasten a set of brackets to the wall. Confirm that the screws are firmly attached to the wall.

- You may need additional material such as wall anchors depending on the type of wall.

1. Using the appropriately sized screws, firmly fasten a set of brackets to the TV.

- For the screw specifications, refer to the standard screw part in the table under "Mounting the TV on a wall".

1. Connect the brackets fixed to the TV and the brackets fixed to the wall with a durable, heavy-duty string, and then tie the string tightly.

- Install the TV near the wall so that it does not fall backwards.

- Connect the string so that the brackets fixed to the wall are at the same height as or lower than the brackets fixed to the TV.

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Diagram showing a mechanical setup with a bracket and a magnified inset of a cylindrical component (no text or symbols)

- The product colour and shape may vary depending on the model.

03 The Samsung Smart Remote

About the Buttons on the Samsung Smart Remote

• The images, buttons, and functions of the Samsung Smart Remote may differ depending on the model.
• The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the TV.

(Power)

Press to turn the TV on or off.

(Number button)

When pressed, a number strip appears on the bottom of the screen. Select numbers and then select Done to enter a numeric value. Use to change the channel, enter a PIN, enter a ZIP code, etc.

- When pressed for 1 second or more, the TTX menu appears.

Select

Selects or runs a focused item. When pressed while you are watching a broadcast programme, detailed programme information appears.

(Return)

Returns to the previous menu. When pressed for 1 second or more, the running function is terminated. When pressed while you are watching a programme, the previous channel appears.

(Play/pause)

When pressed, the playback controls appear. Using these controls, you can control the media content that is playing.

(Smart Hub)

Returns to the Home Screen.

(Bixby)

Runs Bixby. Press and hold the button, say a command, and then release the button to run Bixby. When you press the button, the Explore Now menu appears at the bottom of the screen.

• The supported Bixby's languages and features may differ by geographical region.

(Colour button)

Use these coloured buttons to access additional options specific to the feature you are using.

Directional pad (up/down/left/right) Moves the focus and changes the value seen on the TV's menu.

VOL (Volume)

Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 1 second or more, the Accessibility Shortcuts menu appears.

CH (Channel)

Move the button up or down to change the channel. To see the Guide screen, press the button.

- When pressed for 1 second or more, the Channel List screen appears.

SAMSUNG

Press each button to run its function.

Pairing the TV to the Samsung Smart Remote

When you turn on the TV for the first time, the Samsung Smart Remote pairs to the TV automatically. If the Samsung Smart Remote does not pair to the TV automatically, point it at the remote control sensor of the TV, and then press and hold the buttons labelled 📋 and 🌐 shown in the figure on the left simultaneously for 3 seconds or more.

Installing batteries into the Samsung Smart Remote

1. Press the ▲ button at the top rear of the Samsung Smart Remote. The body will pop out slightly from the body cover.
2. Turn the remote over, and then slide the body of the remote upwards until the battery compartment is revealed.
3. If there are batteries in the remote, press the ▶ and ◀ buttons on both sides of the battery compartment to remove the existing batteries.
4. Insert two new batteries (1.5V AAA type) into the battery compartment making sure that the batteries' polarities (+, -) are oriented correctly. When done, slide the body of the remote until it is nearly in its original position.
5. Turn the remote over, press and hold the ▲ button on the top rear, and then slide the body of the remote down into place.

- Alkaline batteries are recommended for longer battery life.

04 Running the Initial Setup

When you turn on your TV for the first time, it immediately starts the Initial Setup. The Initial Setup allows you to configure the basic settings for the TV to operate, such as broadcast reception, channel search, and network connection, at one time.

• Before starting the Initial Setup, be sure to connect external devices first.
• To use the TV's smart features, the TV must be connected to the Internet.
• To perform Initial Setup using the SmartThings app, you must connect your mobile device via Wi-Fi.
• If the pop-up for setup does not appear automatically on the SmartThings app on your mobile device, continue setup manually after adding the TV using Add Device on the dashboard of the SmartThings app.
• The SmartThings app is available for mobile devices running Android 6.0 or higher or iOS 10 or higher.
• Noise may occur temporarily when the TV communicates with mobile devices.

You can also start the Initial Setup using the TV's menu (图标 > ⚙️ Settings > General > Reset).

Follow the instructions displayed on the Initial Setup screen and configure the TV's basic settings to suit your viewing environment.

Using the TV Controller

You can turn on the TV with the TV Controller button at the bottom of the TV, and then use the Control menu. The Control menu appears when the TV Controller button is pressed while the TV is On. For more information about its usage, refer to the figure below.

- The screen may dim if the protective film on the SAMSUNG logo or the bottom of the TV is not detached. Please remove the protective film.

05 Connecting to a Network

Connecting the TV to a network gives you access to online services, such as Smart Hub, as well as software updates.

Network Connection - Wireless

Connect the TV to the Internet using a standard access point or modem.

LAN Cable (Not Supplied)

Network Connection - Wired

Connect your TV to the network using a LAN cable.

• The TV will not be able to connect to the Internet if your network speed is below 10 Mbps.
  • Use Cat7 (*STP Type) cable for the connection.
  * Shielded Twisted Pair

06 Troubleshooting and Maintenance

Troubleshooting

If the TV seems to have a problem, first review this list of possible problems and solutions. Alternatively, review the Troubleshooting Section in the e-Manual. If none of these troubleshooting tips apply, please visit "www.samsung.com" and click on Support, or contact the call centre listed on the back cover of this manual.

• This TFT LED panel is made up of sub pixels which require sophisticated technology to produce. There may be, however, a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.
• To keep your TV in optimum condition, upgrade to the latest software. Use the Update Now or Auto update functions on the TV's menu (图标 > Settings > Support > Software Update > Update Now or Auto update).

The TV won't turn on.

• Make sure that the AC power cord is securely plugged in to the TV and the wall outlet.
• Make sure that the wall outlet is working and the power indicator at the bottom of the TV is lit and glowing a solid red.
• Try pressing the TV Controller button at the bottom of the TV to make sure that the problem is not with the remote control. If the TV turns on, refer to "The remote control does not work".

There is no picture/video/sound, or a distorted picture/video/sound from an external device, or "Weak or No Signal" is displayed on the TV, or you cannot find a channel.

• Make sure the connection to the device is correct and that all cables are fully inserted.
• Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible.
• Confirm that the correct input source has been selected (☐ > ☐ Source).
• Perform a TV self diagnosis to determine if the problem is caused by the TV or the device ( Settings > Support > Self Diagnosis > Start Picture Test or Start Sound Test).
• If the test results are normal, reboot the connected devices by unplugging each device's power cord and then plugging it in again. If the issue persists, refer to the connection guide in the user manual of the connected device.
• If you are not using a cable box or satellite box, and your TV is receiving TV signals from an antenna or a cable wall connector, run Auto Tuning to search for channels > Settings > Broadcasting > (Auto Tuning Settings) > Auto Tuning).

- The Auto Tuning Settings may not appear depending on the model or geographical area.

- If you are using a cable box or satellite box, please refer to the cable box or satellite box manual.

The Cl+ does not work.

• Your Samsung TV conforms to the CI+ 1.4 standards.
• Where a Cl+ Common Interface module is incompatible with this device, then please remove the module and contact the Cl+ operator for assistance.

The remote control does not work.

• Check if the power indicator at the bottom of the TV blinks when you press the remote's Power button. If it does not, replace the remote control's batteries.
• Make sure that the batteries are installed with their poles (+/−) in the correct direction.
• Try pointing the remote directly at the TV from 1.5-1.8 m away.
• If your TV came with a Samsung Smart Remote (Bluetooth Remote), make sure to pair the remote to the TV.

The cable box or satellite box remote control doesn't turn the TV on or off or adjust the volume.

- Programme the cable box or satellite box remote control to operate the TV. Refer to the cable box or satellite box user manual for the SAMSUNG TV code.

The TV settings are lost after 5 minutes.

- The TV is in the Retail Mode. Change the Usage Mode in the General Menu to Home Mode (☐ > Settings > General > System Manager > Usage Mode > Home Mode).

Intermittent Wi-Fi

• Make sure the TV has a network connection ( ⓝ > Settings > General > Network > Network Status).
  • Make sure the Wi-Fi password is entered correctly.
• Check the distance between the TV and the modem or access point. The distance should not exceed 15.2 m.
• Reduce interference by not using or turning off wireless devices. Also, verify that there are no obstacles between the TV and the modem or access point. (The Wi-Fi strength can be decreased by appliances, cordless phones, stone walls/fireplaces, etc.)

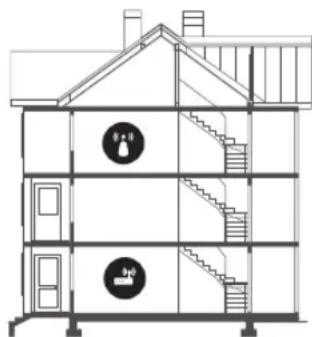

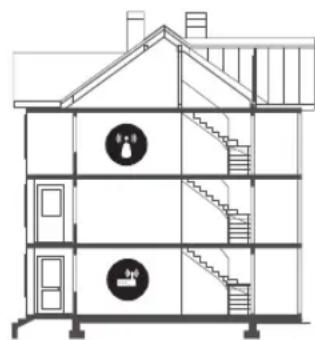

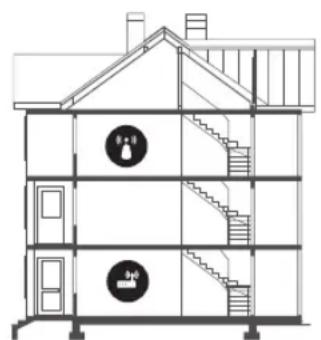

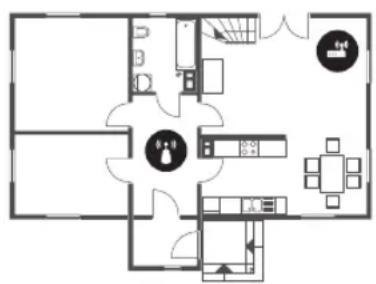

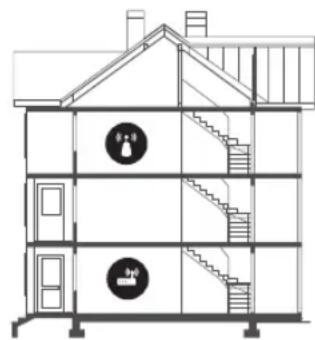

Single story Multi story

Floor plan diagram of a residential area with furniture layout (no text or labels)

Architectural cross-section diagram of a multi-story building with staircases and stairs (no text or labels)

Wireless access point

Wireless repeater

- Contact your Internet Service Provider (ISP) and ask them to reset your network circuit to re-register the MAC addresses of your new modem or access point and the TV.

Video Apps problems (Youtube etc)

- Change the DNS to 8.8.8.8. Select > Settings > General > Network > Network Status > IP Settings > DNS setting > Enter manually > DNS Server > enter 8.8.8.8 > OK.

- Reset by selecting > Settings > Support > Self Diagnosis > Reset Smart Hub.

What is Remote Support?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely:

• Diagnose your TV
• Adjust the TV settings for you
  • Perform a factory reset on your TV
  • Install recommended firmware updates

How does Remote Support work?

You can easily get Samsung Remote Support service for your TV:

1. Call the Samsung Contact Centre and ask for remote support.
2. Open the menu on your TV and go to the Support section. ( ⓗ > ⚙ Settings > Support)
3. Select Remote Management, then read and agree to the service agreements. When the PIN screen appears, provide the PIN number to the technician.
4. The technician will then access your TV.

Eco Sensor and screen brightness

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols)

Eco Sensor adjusts the brightness of the TV automatically. This feature measures the light in your room and optimises the brightness of the TV automatically to reduce power consumption. If you want to turn this off, go to 📄 > Settings > General > Eco Solution > Ambient Light Detection.

- If the screen is too dark while you are watching TV in a dark environment, it may be due to the Ambient Light Detection function.

- The eco sensor is located at the bottom of the TV. Do not block the sensor with any object. This can decrease picture brightness.

Caring for the TV

• If a sticker was attached to the TV screen, some debris can remain after you remove the sticker. Please clean the debris off before watching TV.
• The exterior and screen of the TV can get scratched during cleaning. Be sure to wipe the exterior and screen carefully using a soft cloth to prevent scratches.
• Do not spray water or any liquid directly onto the TV. Any liquid that goes into the product may cause a failure, fire, or electric shock.
• To clean the screen, turn off the TV, then gently wipe away smudges and fingerprints on the panel with a micro-fiber cloth. Clean the body or panel of the TV with a micro-fiber cloth dampened with a small amount of water. After that, remove the moisture with a dry cloth. While cleaning, do not apply strong force to the surface of the panel because it can damage the panel. Never use flammable liquids (benzene, thinner, etc.) or a cleaning agent. For stubborn smudges, spray a small amount of screen cleaner on a micro-fiber cloth, and then use the cloth to wipe away the smudges.

Illustration of a hand cleaning a rectangular board with two circular insets showing a cloth swab and a pair of gloves (no text or symbols)

07 Specifications and Other Information

Specifications

Model Name	UE43RU7442 / UE43RU7452 / UE43RU7472	UE50RU7442 / UE50RU7452 / UE50RU7472
Display Resolution	3840 x 2160 3840 x 2160
Screen Size	43 inches	50 inches
Measured Diagonally	108 cm	125 cm
Sound (Output)	20 W 20 W
Dimensions (W x H x D)
Body	970.2 x 563.2 x 58.1 mm	1124.8 x 650.2 x 59.0 mm
With stand	970.2 x 648.0 x 343.7 mm	1124.8 x 735.8 x 346.7 mm
Weight
Without Stand	9.5 kg	13.8 kg
With Stand	12.1 kg	16.5 kg
Model Name	UE55RU7442 / UE55RU7452 / UE55RU7472	UE65RU7442 / UE65RU7452 / UE65RU7472
Display Resolution	3840 x 2160 3840 x 2160
Screen Size	55 inches	65 inches
Measured Diagonally	138 cm	163 cm
Sound (Output)	20 W 20 W
Dimensions (W x H x D)
Body	1238.6 x 714.2 x 58.6 mm	1457.5 x 837.3 x 59.0 mm
With stand	1238.6 x 800.0 x 360.6 mm	1457.5 x 922.8 x 387.3 mm
Weight
Without Stand	17.2 kg	25.1 kg
With Stand	19.7 kg	28.0 kg

Environmental Considerations

Operating Temperature	10°C to 40°C (50°F to 104°F)
Operating Humidity	10% to 80%, non-condensing
Storage Temperature	-20°C to 45°C (-4°F to 113°F)
Storage Humidity	5% to 95%, non-condensing

• The design and specifications are subject to change without prior notice.
• For information about the power supply, and more information about power consumption, refer to the label-rating attached to the product.
  • Typical power consumption is measured according to IEC 62087.
• You can see the label-rating attached to the back of the TV. (For some models, you can see the label-rating inside the cover terminal.)

Decreasing power consumption

When you shut the TV off, it enters Standby mode. In Standby mode, it continues to draw a small amount of power. To decrease power consumption, unplug the power cord when you don't intend to use the TV for a long time.

Licences

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Recommendation - EU Only

CE

Hereby, Samsung Electronics, declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.samsung.com go to Support > Search Product Support and enter the model name.

This equipment may be operated in all EU countries. BT max transmitter power : 100mW at 2.4GHz – 2.4835GHz Wi-Fi max transmitter power : 100mW at 2.4GHz–2.4835GHz

For information on Samsung's environmental commitments and product-specific regulatory obligations, e.g. REACH, WEEE, Batteries, visit http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of the batteries in this product

(Applicable in countries with separate collection systems)

This marking on battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

This page is intentionally left blank.

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Diagram showing a mechanical setup with a lever and a magnified inset of a cylindrical component (no text or symbols)

Floor plan diagram of a residential area with furniture layout (no text or labels)

Architectural cross-section diagram of a multi-story building with staircases and stairs (no text or symbols)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing a hand holding a cloth and another applying a cloth to a bag (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Simple line drawing of a cylindrical object with a circular top and side hole, labeled 'x 4' below (no other text or symbols)

Diagram showing a mechanical setup with a lever and a magnified inset of a cylindrical component (no text or symbols)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand positions (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Simple line drawing of a cylindrical object with a circular top and cross-sectional details, labeled 'x 4' below (no other text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up of a component (no text or symbols)

Diagram showing a mechanical setup with a lever and a magnified inset of a cylindrical component (no text or symbols)

Floor plan diagram of a residential area with furniture layout (no text or labels)

Architectural cross-section diagram of a multi-story building with staircases and stairs (no text or labels)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand cleaning and cleaning (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Σύσταση - Μόνον EU

CE

Simple line drawing of a cylindrical object with a circular top and side hole, labeled 'x 4' below (no other text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up of a component (no text or symbols present)

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical object (no text or symbols)

Architectural cross-section diagram of a multi-story building with staircases and stairs (no text or labels)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols)

Illustration of a hand cleaning a rectangular board with two circular insets showing a hand holding a cloth and another with a cloth (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Oprez: potezanje, guranje ili penjanje na televizor može uzrokovati njegov pad. Naročito pripazite da se djeca ne ljuljaju na televizoru i da ga ne destabiliziraju. To može dovesti do prevrtanja televizora i rezultirati ozbiljnim ozljedama ili smrću. Slijedite sve sigurnosne upute navedene u sigurnosnom letku koji je isporučen s televizorom. Radi povećanja stabilnosti i sigurnosti montirajte uređaj protiv pada koji je opisan u nastavku.

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Diagram showing a mechanical setup with a bracket and a magnified inset of a cylindrical component (no text or symbols)

- Boja i oblik proizvoda mogu varirati ovisno o modelu.

Kad uključite televizor prvi put, upravljač Samsung pametni daljinski upravljač automatski se uparuje s televizorom. Ako se upravljač Samsung pametni daljinski upravljač ne upari automatski, usmjerite ga prema senzoru daljinskog upravljača na televizoru, a zatim istovremeno pritisnite gumbe i i ko što je prikazano na slici slijeva i držite ih pritisnutima 3 sekunde ili duže.

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a rectangular board with two circular insets showing a hand holding a cloth and another with a cloth (no text or symbols)

07 Specifikacije i ostale informacije

Specifikacije

Naziv modela	UE43RU7442 / UE43RU7452 / UE43RU7472	UE50RU7442 / UE50RU7452 / UE50RU7472
Rezolucija zaslona	3840 x 2160 3840 x 2160
Veličina zaslona	43 inča	50 inča
Mjereno po dijagonali	108 cm	125 cm
Zvuk (izlaz)	20 W 20 W
Dimenzije (š x v x d)
Kućište	970,2 x 563,2 x 58,1 mm	1124,8 x 650,2 x 59,0 mm
S postoljem	970,2 x 648,0 x 343,7 mm	1124,8 x 735,8 x 346,7 mm
Težina
Bez postolja	9,5 kg	13,8 kg
S postoljem	12,1 kg	16,5 kg
Naziv modela	UE55RU7442 / UE55RU7452 / UE55RU7472	UE65RU7442 / UE65RU7452 / UE65RU7472
Rezolucija zaslona	3840 x 2160 3840 x 2160
Veličina zaslona	55 inča	65 inča
Mjereno po dijagonali	138 cm	163 cm
Zvuk (izlaz)	20 W 20 W
Dimenzije (š x v x d)
Kućište	1238,6 x 714,2 x 58,6 mm	1457,5 x 837,3 x 59,0 mm
S postoljem	1238,6 x 800,0 x 360,6 mm	1457,5 x 922,8 x 387,3 mm
Težina
Bez postolja	17,2 kg	25,1 kg
S postoljem	19,7 kg	28,0 kg

Uvjeti u okruženju

Radna temperatura	10°C až 40°C (50°F až 104°F)
Radna vlažnost	10% do 80%, bez kondenzacije
Temperatura pohrane	-20 °C až 45 °C (-4 °F až 113 °F)
Vlažnost prilikom pohrane	5% do 95%, bez kondenzacije

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Preporuka – samo za EU

CE

Tvrtka Samsung Electronics ovime izjavljuje kako je ova oprema u skladu s Direktivom 2014/53/EU. Cjelokupan tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: http://www.samsung.com odaberite Podrška > Potraži podršku i unesite naziv modela. Ova se oprema smije koristiti u svim državama EU-a. BT maks. snaga odašiljača: 100 mW pri 2,4GHz – 2,4835 GHz Wi-Fi maks. snaga odašiljača: 100 mW pri 2,4 GHz – 2,4835 GHz

Informacije o obvezama tvrtke Samsung u vezi s okolišem i regulatornim obvezama specifičnim za uređaj, npr. REACH, WEEE ili onima o baterijama, potražite na adresi http://www.samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

UPOZORENJE – KAKO NE BI DOŠLO DO POŽARA, UVIJEK DRŽITE SVIJEĆE I DRUGE IZVORE OTVORENOG PLAMENA PODALJE OD UREĐAJA.

Technical diagram of a mechanical assembly with tool icons and a magnified inset showing detail (no text or labels)

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical component (no text or symbols)

Floor plan diagram of a residential area with furniture layout (no text or labels)

Architectural cross-section diagram of a multi-story building with staircases and staircase (no text or labels)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand positions (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Simple line drawing of a cylindrical object with a circular top and label 'x 4' below (no other text or symbols)

Technical diagram showing a mechanical assembly with a magnified inset of a component detail (no text or symbols)

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical object (no text or symbols)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Eko senzor automaticky nastavuje jas televízora. Táto funkcia meria svetlo v miestnosti a automaticky optimalizuje jas televízora, aby sa znížila spotreba energie. Ak chcete túto funkciu vypnút, prejdite na Nastavenia > Všeobecné > Eko riešenie > Detekcia okolitého osvetlenia.

Illustration of a hand cleaning a blank board with two circular insets showing hand positions (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Simple line drawing of a cylindrical object with a circular top and side hole, labeled 'x 4' below (no other text or symbols)

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical object (no text or symbols)

Punct de acces wireless

Repetor wireless

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing a hand holding a cloth and another with a cloth (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical component (no text or symbols)

- Boja i oblik proizvoda mogu da se razlikuju u zavisnosti od modela.

03 Samsung pametni daljinski

Prilikom prvog uključivanja televizora, daljinski upravljač Samsung pametni daljinski automatski će se upariti sa televizorom. Ako se daljinski upravljač Samsung pametni daljinski ne upari automatski sa televizorom, usmerite ga ka senzoru za daljinski upravljač na televizoru, pa istovremeno pritisnite i zadržite najmanje 3 sekunde dugmad sa oznakama 🚫 i 📄 način prikazan na slici levo.

Stavljanje baterija u daljinski upravljač Samsung pametni daljinski

1. Pritisnite dugme ▲ na vrhu zadnje strane daljinskog upravljača Samsung pametni daljinski. Kućište daljinskog upravljača će skliznuti kada skinete poklopac.

2. Okrenite daljinski upravljač, a zatim gurajte kućište daljinskog upravljača nagore dok ne otkrijete odeljak za baterije.

3. Ako se u daljinskom upravljaču nalaze baterije, pritisnite dugme ▶ i ◀ na obema stranama odeljka za baterije da biste uklonili postojeće baterije.

4. Stavite dve nove baterije (tip AAA od 1,5 V) u odeljak vodeći računa o ispravnom položaju polova na baterijama (+,-). Kada završite, gurnite kućište daljinskog upravljača u prvobitni položaj.

5. Okrenite daljinski upravljač, pritisnite i zadržite dugme ▲ na vrhu zadnje strane, a zatim gurnite kućište daljinskog upravljača na mesto.

- Alkalne baterije se preporučuju zbog dužeg radnog veka.

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols)

Eko senzor automatski podešava osvetljenost ekrana. Ova funkcija meri osvetljenje u prostoriji i automatski prilagođava osvetljenost ekrana televizora da bi smanjila potrošnju struje. Ako želite da isključite ovu funkciju, izaberite > Podešavanja > Opšte > Eko rešenje > Otkrivanje osvetljenja okruženja.

• Ako je ekran previše taman kada televizor gledate u zamračenoj prostoriji, uzrok može biti funkcija Otkrivanje osvetljenja okruženja.
• Eko senzor se nalazi na dnu televizora. Vodite računa da senzor ne bude prekriven. Na taj način se može smanjiti osvetljenost slike.

Održavanje televizora

• Ako se na ekranu televizora nalazi nalepnica, nakon njenog uklanjanja mogu da ostanu tragovi. Očistite ove tragove pre gledanja programa na televizoru.
• Spoljašnjost i ekran televizora mogu da se ogrebu tokom čišćenja. Spoljašnjost i ekran pažljivo obrišite mekanom krpom kako biste sprečili grebanje.
• Nemojte prskati vodu ili drugu tečnost direktno na televizor. Ako tečnost dospe u unutrašnjost proizvoda, može da dođe do kvara, požara ili strujnog udara.
• Da biste očistili ekran, isključite televizor, pa nežno krpom od mikrovlakana obrišite mrlje i otiske prstiju sa panela. Kućište ili panel televizora očistite krpom od mikrofibera koju ste pokvasili sa malo vode. Nakon toga, suvom krpom osušite površinu.
  Nemojte jako da pritiskate površinu panela tokom čišćenja jer na taj način možete da ga oštetite. Nikada nemojte koristiti zapaljive tečnosti (npr. apotekarski benzin, razređivač itd.) niti sredstva za čišćenje. Ako mrlje ne možete lako da očistite, naprskajte na krpu od mikrovlakana malu količinu sredstva za čišćenje ekrana, pa krpom obrišite mrlje.

Illustration of a hand cleaning a rectangular board with two circular insets showing a bag being cleaned (no text or symbols)

07 Specifikacije i druge informacije

Specifikacije

Naziv modela	UE43RU7442 / UE43RU7452 / UE43RU7472	UE50RU7442 / UE50RU7452 / UE50RU7472
Rezolucija ekrana	3840 x 2160 3840 x 2160
Veličina ekrana	43 inča	50 inča
Mereno po dijagonali	108 cm	125 cm
Zvuk (izlaz)	20 W 20 W
Dimenzije (Š x V x D)
Kućište	970.2 x 563.2 x 58.1 mm	1124.8 x 650.2 x 59.0 mm
Sa postoljem	970.2 x 648.0 x 343.7 mm	1124.8 x 735.8 x 346.7 mm
Težina
Bez postolja	9.5 kg	13.8 kg
Sa postoljem	12.1 kg	16.5 kg
Naziv modela	UE55RU7442 / UE55RU7452 / UE55RU7472	UE65RU7442 / UE65RU7452 / UE65RU7472
Rezolucija ekrana	3840 x 2160 3840 x 2160
Veličina ekrana	55 inča	65 inča
Mereno po dijagonali	138 cm	163 cm
Zvuk (izlaz)	20 W 20 W
Dimenzije (Š x V x D)
Kućište	1238.6 x 714.2 x 58.6 mm	1457.5 x 837.3 x 59.0 mm
Sa postoljem	1238.6 x 800.0 x 360.6 mm	1457.5 x 922.8 x 387.3 mm
Težina
Bez postolja	17.2 kg	25.1 kg
Sa postoljem	19.7 kg	28.0 kg

Uticaj na životnu sredinu

Radna temperaturaVlažnost vazduha pri raduTemperatura pri skladištenjuVlažnost pri skladištenju

Od 10°C do 40°C (Od 50°F do 104°F)Od 10% do 80%, bez kondenzacijeOd -20°C do 45°C (Od -4°F do 113°F)Od 5% do 95%, bez kondenzacije

- Dizajn i specifikacije mogu se promeniti bez najave.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Preporuka – samo za EU

CE

Simple line drawing of a cylindrical object with a circular top and label 'x 4' below (no other text or symbols)

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical object (no text or symbols)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand cleaning and bag cleaning (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Simple line drawing of a cylindrical object with a circular top and side hole, labeled 'x 4' below (no other text or symbols)

Diagram showing a mechanical setup with a pin and a magnified inset of a cylindrical component (no text or symbols)

Floor plan diagram of a residential area with furniture layout (no text or labels)

Architectural cross-section diagram of a multi-story building with staircases and stairs (no text or labels)

Безжична пристапна точка

Interior and exterior views of a modern living room with monitor, lamp, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a rectangular board with two circular insets showing a hand holding a cloth and another pointing at a pair of gloves (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Препорака - само ЕУ

CE

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical object (no text or symbols)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand positions (no text or symbols)

07 Specifikacije in druge informacije

Specifikacije

Ime modela	UE43RU7442 / UE43RU7452 / UE43RU7472	UE50RU7442 / UE50RU7452 / UE50RU7472
Ločljivost zaslona	3840 x 2160 3840 x 2160
Velikost zaslona	43 palci	50 palci
Izmerjeno diagonalno	108 cm	125 cm
Zvok (izhod)	20 W 20 W
Dimenzije (Š x V x G)
Osrednji del	970,2 x 563,2 x 58,1 mm	1124,8 x 650,2 x 59,0 mm
S stojalom	970,2 x 648,0 x 343,7 mm	1124,8 x 735,8 x 346,7 mm
Teža
Brez stojala	9,5 kg	13,8 kg
S stojalom	12,1 kg	16,5 kg
Ime modela	UE55RU7442 / UE55RU7452 / UE55RU7472	UE65RU7442 / UE65RU7452 / UE65RU7472
Ločljivost zaslona	3840 x 2160 3840 x 2160
Velikost zaslona	55 palci	65 palci
Izmerjeno diagonalno	138 cm	163 cm
Zvok (izhod)	20 W 20 W
Dimenzije (Š x V x G)
Osrednji del	1238,6 x 714,2 x 58,6 mm	1457,5 x 837,3 x 59,0 mm
S stojalom	1238,6 x 800,0 x 360,6 mm	1457,5 x 922,8 x 387,3 mm
Teža
Brez stojala	17,2 kg	25,1 kg
S stojalom	19,7 kg	28,0 kg

Okoljski vidiki

Delovna temperatura	10–40 °C (50–104 °F)
Delovna vlažnost	10–80 %, brez kondenzacije
Temperatura shranjevanja	-20-45 °C (-4-113 °F)
Vlažnost pri shranjevanju	5–95 %, brez kondenzacije

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Simple line drawing of a cylindrical object with a circular top and label 'x 4' below (no other text or symbols)

Diagram showing a mechanical setup with a cylindrical component and a magnified inset of a cylindrical object (no text or symbols)

(Bixby)

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand positions (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

leteikumi – tikai ES

CE

Simple line drawing of a cylindrical object with a circular top and side hole, labeled 'x 4' below (no other text or symbols)

Sieninio laikiklio adapteris

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Diagram showing a mechanical setup with a lever and a magnified inset of a cylindrical component (no text or symbols)

Floor plan diagram of a residential area with furniture layout (no text or labels)

Architectural cross-section diagram of a two-story building with staircases and staircase (no text or labels)

Belaidis prieigos taškas

Belaidis kartotuvas

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand holding a cloth and a bag (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Rekomendacija (tik ES)

CE

Simple line drawing of a cylindrical object with a circular top and cross-sectional view, labeled 'x 4' below (no other text or symbols)

Seinakinnituse adapter CI CARD-i adapter

Technical line drawing of a mechanical assembly with a magnified inset showing a close-up detail (no text or symbols)

Diagram of a mechanical setup with a lever and a magnified inset showing a cylindrical component (no text or symbols)

Raadiopääsupunkt

Traadita järgur

Interior and exterior views of a modern living room with TV, night sky, and no-smoking sign (no text or symbols on main objects)

Illustration of a hand cleaning a blank board with two circular insets showing hand positions (no text or symbols)

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

If you have any questions or comments relating to Samsung products, please contact the Samsung service centre.

Country	Samsung Service Centre	Web Site
AUSTRIA 0800 72 67 864 (0800-SAMSUNG) www.samsung.com/at/support
BELGIUM 02-201-24-18		www.samsung.com/be/support (Dutch)www.samsung.com/be_fr/support (French)
BOSNIA 055 233 999 www.samsung.com/support
ALBANIA 045 620 202 www.samsung.com/al/support
BULGARIA	*3000 Цена в мрежата0800 111 31, Безплатна телефонна линия	www.samsung.com/bg/support
CROATIA 072 726 786 www.samsung.com/hr/support
CZECH	800 - SAMSUNG (800-726786) www.samsung.com/cz/support
	Samsung Electronics Czech and Slovak, s.r.o. V Parku 2323/14, 148 00 - Praha 4
DENMARK 707 019 70 www.samsung.com/dk/support
FINLAND 030-6227 515 www.samsung.com/fi/support
FRANCE 01 48 63 00 00	www.samsung.com/fr/support
GERMANY	06196 77 555 77	www.samsung.com/de/support
CYPRUS	8009 4000 only from landline, toll free	www.samsung.com/gr/support
GREECE	80111-SAMSUNG (80111 726 7864) only from land line([phone] from mobile and land line
HUNGARY	0680SAMSUNG (0680-726-7864)	www.samsung.com/hu/support
ITALIA	800-SAMSUNG (800.7267864)	www.samsung.com/it/support
LUXEMBURG	261 03 710	www.samsung.com/be_fr/support
MONTENEGRO	020 405 888	www.samsung.com/support
SLOVENIA	080 697 267 (brezplačna številka)	www.samsung.com/si/support
NETHERLANDS	088 90 90 100	www.samsung.com/nl/support
NORWAY	21629099	www.samsung.com/no/support
POLAND	801-172-678* lub [phone]** (opłata według taryfy operatora)	www.samsung.com/pl/support
PORTUGAL	808 207 267	www.samsung.com/pt/support
ROMANIA	*8000 (apel in retea)08008-726-78-64 (08008-SAMSUNG) Apel GRATUITAtenție: Dacă efectuați apelul din rețeaua Digi (RCS/RDS),vă rugăm să ne contactați formând numărul Telverde fărăultimele două cifre, astfel: 0800872678.	www.samsung.com/ro/support
SERBIA	011 321 6899	www.samsung.com/rs/support
SLOVAKIA	0800 - SAMSUNG (0800-726 786)	www.samsung.com/sk/support
SPAIN	91 175 00 15	www.samsung.com/es/support
SWEDEN 0771 726 786	www.samsung.com/se/support
SWITZERLAND	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
UK	0330 SAMSUNG (7267864)	www.samsung.com/uk/support
IRELAND (EIRE)	0818 717100 www.samsung.com/ie/support
LITHUANIA	8-800-77777	www.samsung.com/lt/support
LATVIA	8000-7267	www.samsung.com/lv/support
ESTONIA	800-7267	www.samsung.com/ee/support
TURKEY	444 7711	www.samsung.com/tr/support
