Product Type	Measuring Wheel
Model	48-22-5012
Brand	Milwaukee
Wheel Diameter	12 inches (30.5 cm)
Measurement Range	Typically up to 9999.9 feet / 999.99 meters
Measurement Increment	0.1 ft or 0.01 m (depending on model)
Power Source	None (manual operation)
Weight	Approximately 2.5 lbs (1.13 kg)
Material	Steel frame, rubber wheel
Foldable Handle	Yes, for compact storage
Reset Button	Yes, to zero the counter
Kickstand	Yes, allows upright storage
Zero Indicator	Yes, aids in precise starting point
Lock Tab	Secures the wheel during transport
Maintenance	Clean with damp cloth; lubricate moving parts lightly
Storage	Store in a dry place, avoid extreme temperatures
Service Kits Available	Lock Tab, Kick Stand, Zero Indicator kits
Replaceable Parts	Lock tab, screws, rubber pad, spring, kick stand, washer, needle
Safety Precautions	Wear safety glasses; do not use near traffic
Country of Origin	China

Frequently Asked Questions - 48-22-5012 MILWAUKEE

How do I reset the measurement counter on the Milwaukee 48-22-5012?

Press the reset button located on the hub of the wheel. This will zero the counter to start a new measurement.

What is the maximum distance the 48-22-5012 can measure?

The measuring wheel can record up to 9999.9 feet or 999.99 meters, depending on the unit setting.

Can I fold the handle for storage?

Yes, the handle is foldable. Release the locking mechanism and fold the handle back for compact storage.

How do I replace the lock tab?

Use the 44-20-5012 Lock Tab Service Kit. Remove the old lock tab and screw, then install the new parts as shown in the manual.

What maintenance does the measuring wheel require?

Clean the wheel and frame with a damp cloth. Periodically lubricate moving parts with light oil. Check screws and tighten if needed.

Is the kickstand replaceable?

Yes, use the 14-74-5012 Kick Stand Service Kit. It includes screws, rubber pad, spring, and kickstand assembly.

How do I zero the indicator needle?

The zero indicator can be adjusted using the 43-82-5012 Zero Indicator Service Kit. Loosen the screw, align the needle, then retighten.

What is the warranty period for the Milwaukee 48-22-5012?

Milwaukee offers a limited lifetime warranty for defects in material and workmanship. Check your local dealer for details.

Can I use the measuring wheel on uneven terrain?

The 12-inch wheel is designed for moderately uneven surfaces. For rough terrain, consider a larger wheel model.

Where can I download the manual for the 48-22-5012?

The manual is available for free download at notice-facile.com in PDF format. Search for 'Milwaukee 48-22-5012 manual'.

USER MANUAL 48-22-5012 MILWAUKEE

SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS		REVISED BULLETIN	DATEFeb. 2017
12" MEASURING WHEEL
CATALOG NO. 48-22-5012

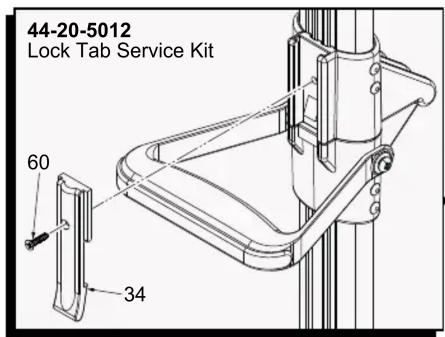

44-20-5012 LOCK TAB SERVICE KIT

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

34 ---- Lock Tab (1)
60 ---- KA3 x 13mm Flat Hd. Phillips Screw (1)

14-74-5012 KICK STAND SERVICE KIT

FIG. PART NO. DESCRIPTION OF PART NO. REQ.

14 ---- PA3 x 10mm Pan Hd. Phillips Screw (4)
21 ---- Rubber Pad
22 Spring
23 Kick Stand Assembly

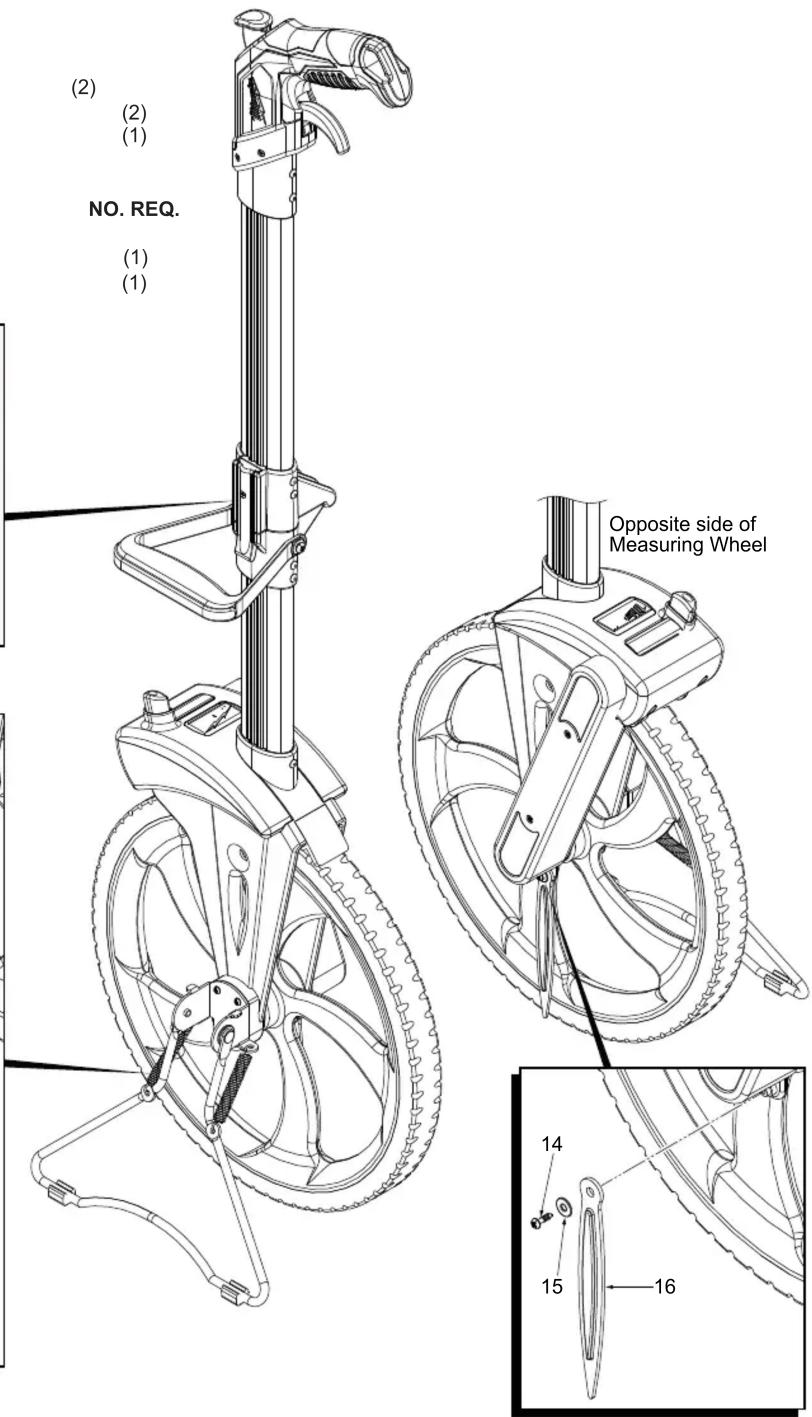

43-82-5012 ZERO INDICATOR SERVICE KIT

FIG. PART NO. DESCRIPTION OF PART

14 ---- PA3 x 10mm Pan Hd. Phillips Screw (1)
15 Washer
16 Needle

(2)

(2)

(1)

(1)

(1)

43-82-5012
Zero Indicator Service Kit
