9065 - Alarm system OLYMPIA - Free user manual and instructions

Product Type	Wireless Alarm System
Model	Olympia 9065
Dimensions (Base Unit)	172 x 105 x 31 mm
Weight (Base Unit)	228 g (without batteries)
Power Supply	5 V DC, 1.2 A plug power adapter
Backup Batteries	3 x AAA alkaline (base unit)
Remote Control Battery	Lithium CR2032, 3 V
Frequency	868 MHz
Maximum Sensors	32
Display	Large LC display with 1 numeric line (7 segments, 24 characters) and 1 alphanumeric line (5x7 dot matrix, 13 characters) plus 11 icons
GSM Dialling Unit	Quad-band, supports up to 10 alarm call numbers and 1 SOS number
Voice Messages	Individual outgoing message per sensor
Alarm Modes	Alarm Mode, At Home Mode, Silent Mode, Disarmed Mode
Emergency Functions	SOS emergency call, Panic alarm
Remote Access	Via telephone with PIN
Key Lock	Automatic (10 sec inactivity) or manual
Alarm Duration	1 to 10 minutes (adjustable)
Trigger Delay	0 to 240 seconds
Arming Delay	0 to 240 seconds
Languages	Multiple European languages (depending on version)
Installation	Free-standing (with legs) or wall-mounted
Cleaning	Disconnect from power, wipe with soft lint-free cloth
Maintenance	Monthly function test, annual battery replacement
Safety	CE mark, complies with Directive 1999/5/EC
Scope of Delivery	Base unit, power adapter, remote control, batteries (3x AAA, 1x CR2032), assembly material, manual

Frequently Asked Questions - 9065 OLYMPIA

How do I change the default PIN on the Olympia 9065 alarm system?

To change the PIN, enter the current PIN (default is 1234 or as labeled inside the battery compartment) and press OK. Then press the menu button (▲≡), navigate to Entry Code, press OK, enter a new 4-digit PIN, and confirm with OK. Keep your new PIN secure.

Can I use the alarm system without a SIM card?

Yes, the alarm system can operate without a SIM card, but the GSM dialling unit will not function. In that case, alarms will only trigger the local siren, not phone calls.

How do I register a new sensor to the base unit?

Enter your PIN and press OK. Press menu (▲≡), navigate to Register, press OK. The display shows Search.... Activate the sensor (e.g., open the door/window contact or press its learn button). Once recognized, you can record a custom voice message or keep the default.

What should I do if the display shows 'SIM Locked'?

If the SIM card PIN is entered incorrectly three times, the SIM becomes locked. Contact your mobile phone provider to obtain the PUK code to unlock it. Follow their instructions.

How can I adjust the trigger delay before an alarm sounds?

Enter your PIN, press menu, go to Trigger Delay. Set Duration from 0 to 240 seconds and choose whether a Trigger Tone (beep) is on or off. This gives you time to disarm the system after entering.

How do I activate 'At Home' mode?

On the base unit, enter your PIN and press OK, then press the * button. On the remote control, press the At Home button (a house icon). In this mode, only the acoustic alarm sounds (no GSM call) except for smoke/flood detectors if configured.

Can I use the alarm system with a landline phone?

No, the Olympia 9065 uses an integrated GSM dialling unit (mobile network) only. It does not have a landline connection. You need a SIM card for telephone alerts.

How do I perform a factory reset?

Disconnect the power and open the battery compartment on the underside. Use a screwdriver to press the RESET button. An acoustic signal confirms the reset. Note: all user settings are deleted, but sensor registrations are retained. The PIN becomes 1234.

Why does the alarm sound briefly when I test the siren?

The alarm signal is limited to a maximum of 120 seconds due to legal requirements. It automatically turns off after that. Use ear protection when testing and avoid prolonged exposure to the loud siren.

How do I clean and maintain the alarm system?

Disconnect the base unit from power before cleaning. Use a soft, lint-free cloth. Do not use chemicals or scourers. Perform a function test monthly and replace batteries annually or when prompted by a low battery warning.

USER MANUAL 9065 OLYMPIA

OLYMPIA® Protect 9xxx Wireless Alarm System

Operating Manual

09.2015 en

Exemption From Liability 5.

Intended Use 6.

Product Features 6.

Scope of Delivery 7.

Warnings 7......

Installation 9.

Information on Selecting the Installation Location 10

Preparing and Connecting the Base Unit ... 10

Positioning the Base Unit 11.

Operating Elements and Indicators 12

Keys on the Base Unit 12

Display Icons 14.

Overview of LEDs 15

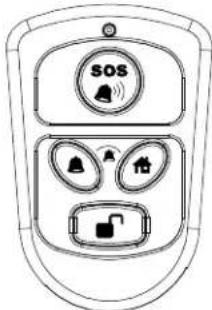

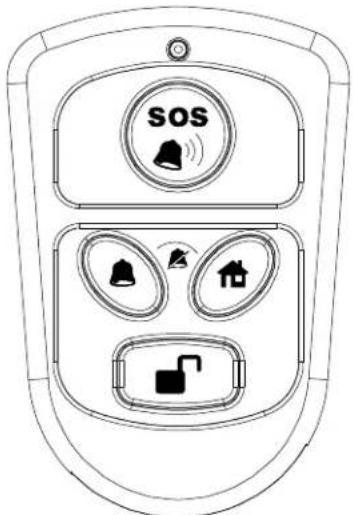

Buttons on the Remote Control 15

Menu Structure 16

Configuration 18

Navigating Through the Menu 18

Language 18

Date and Time 18

PIN (Personal Identification Number) ..... 18

Key Lock 19

Individual Outgoing Messages 19

GSM Dialling Unit 20

Trigger Delay 24

Arming Delay 24

Alarm Period 24

Key Tone 25

Display Contrast 25

Remote Control 25

Water Leak (Flood) and Smoke Detectors .. 26

Registering Sensors 26

Deregistering Sensors 27

Resetting the Factory Settings (RESET) .... 27

GB

Monitoring Functions 28.....

Switching the Monitoring Functions On/Off 28.

Alarm Mode 29.

At Home Mode 29.

PIR At Home Mode 29.

Silent Mode 30.

Disarmed Mode 30.

Panic Alarm 30.

Emergency. Call. (SOS) 31

Remote Access Via Telephone 31

Appendix 32

System Extension 32

Changing the Batteries 32

Regular Maintenance and Service ..... 34

Information on Disposal 34

Technical Data 35.

Technical Modifications 36

CE Mark 36

Newsletter 36

Manufacturer 36

Introduction

Introduction

Guarantee

Dear Customer,

we are pleased that you have chosen this equipment.

In the case of a defect, please return the device together with the receipt and original packing material to the point-of-sale.

User Information

The alarm system is a passive security product and has been conceived as a deterrent. Additional measures are necessary to prevent and hinder burglary and theft. You can obtain all the necessary information on this from your local police station.

Read the operating instruction manual thoroughly before connecting and starting the system for the first time. The operating instruction manual will help prevent application errors and, at the same time, ensure you can exploit all the technical options provided by the wireless alarm system to the full.

Exemption From Liability

We cannot guarantee that the information which relates to the technical properties of the product or to the product itself contained in this document is correct. The product and its accessories described in this document are subject to constant improvement and further development. For this reason, we reserve the right to modify components, accessories, technical specifications and related documentation of the product described herein at any time without notice.

GB

Introduction

Intended Use

The wireless alarm systems from the Protect 9XXX Series enable you to monitor rooms and buildings as long as the local conditions are such that they enable a reliable transmission link to the sensors (e.g. door/window contact, smoke detector). In addition, all doors and windows must be equipped with door/window contacts. A condition for complying with the intended use is that the equipment is installed correctly and the information in the instruction manual is observed and maintained.

Any other use is considered unintended use. Unauthorised modifications or reconstructions not described in the operating manual are not permitted and could cause the product to be damaged. Furthermore, risks through short-circuits, fire, electric shock etc. cannot be ruled out.

i This operating instruction manual contains important information on setting up and handling the equipment. The manual must be enclosed with the equipment if handed over to others.

Product Features

• Wireless alarm system with emergency call, panic, screening and handsfree functions.
• Integrated GSM dialling unit with outgoing message for alarm messages via the mobile network.
• Up to 10 alarm call numbers and 1 emergency call number (SOS).
• Individual voice message for each sensor.
• Automatic dialling of the next number when the number called is "engaged".
• Handsfree function on the base unit in the case of an SOS.
• Alarms can be issued via the telephone (silent alarm) individually or combined.
• Large LC display, 1 numeric line in 7 segments for 24 characters, 1 alphanumeric line in 5x7 dot matrix for 13 characters, 11 icons as status indicators.
• Display lighting in yellow and blue.
• Warning in the case of a low battery charge.
• Power failure backup in the base unit.
• Base unit has a remote control facility.
• Upgradable for operation with max. 32 sensors.
• Simple integration of new sensors using plug-and-play technology.

Warnings

Scope of Delivery

Please check the contents of the package carefully. If anything is missing or has been damaged during transport, DO NOT put the wireless alarm system into operation! Keep the packaging in a safe place to protect the equipment from damage should it need to be dispatched in future.

Base unit 1

Power adapter plug 1

Remote control 1

Batteries 3 x alkaline AAA

1 x lithium CR2032 3 V

Assembly material Screws, dowels, adhesive tape

Operating manual 1

Warnings

The following warning information applies to the entire document. Read and observe all the warning information to protect yourself and the environment from any harm.

The following warning information indicates potentially dangerous situations which could lead to serious injuries or even fatal injuries if the information is ignored.

WARNING!

• Risk of fatal injury from electric shock!
  ▶NEVER use the device if you suspect damage to the power cable or power plug or there are visible signs of damage to the power cable or power plug.
  →NEVER complete any repairs to the device yourself. Contact our Service department.
  ▶ Only use the device at those installation locations described in Chapter "Installation".

WARNING!

• Risk of suffocation!
  →Children can swallow small parts, packaging and protective foils.
  →Keep the device and packaging out of reach of children.

GB

Warnings

WARNING!

• Risks to health through batteries!
• Keep batteries out of reach of children. Do not swallow batteries. If any type of battery is swallowed, seek medical attention immediately.

WARNING!

• Risk of explosion!
  Improper storage of batteries can put your health and the environment at risk. Batteries may contain toxic, ecologically hazardous heavy metals.
  ▶Never open, damage or swallow batteries or allow them to pollute the environment.

The following warning information indicates potentially dangerous situations which could lead to minor or slight injuries if the information is ignored.

CAUTION!

• Hearing damage through loud alarm signal!
Due to legal requirements, the alarm signal continues for maximally 120 seconds. The alarm signal switches off automatically after approx. 120 seconds if the user does not interrupt it.
→Use ear protectors when testing the device.
Do not remain in the vicinity of the acoustic alarm for a longer period when it has been triggered.

The following warning information indicates potentially dangerous situations which could lead to property damage if the information is ignored.

ATTENTION!

• Property damage through the use of inappropriate batteries!
The use of inappropriate batteries can cause a loss of function of the device.
→Only use batteries of the type described in Section "Technical Data".

ATTENTION!

• Property damage through environmental influences!
→Prevent environmental influences such as exposure to smoke, dust, vibration, chemicals, moisture, heat and direct sunlight.

Installation

Installation

GB

Installation

Information on Selecting the Installation Location

Do not place the base unit on or in the direct vicinity of large metallic objects or electrical sources of interference which could impair the function of the base unit. Examples of sources of interference include radiators, concrete steel walls, metal doors, loudspeaker systems, motors and other unshielded electronic devices.

• Position the base unit as centrally as possible in the area to be monitored to ensure optimum radio transmission of all components.
• Position the base unit near a properly installed power socket (230 V / 50 Hz).
• Position the base unit and alarm system components in such a way that a distance of at least 20 cm is maintained to you and/or other persons. This is a useful way of reducing any exposure to radio waves.
• Position the base unit in an area which, when accessed, triggers the alarm. This prevents intruders being able to approach the base unit and manipulate it.

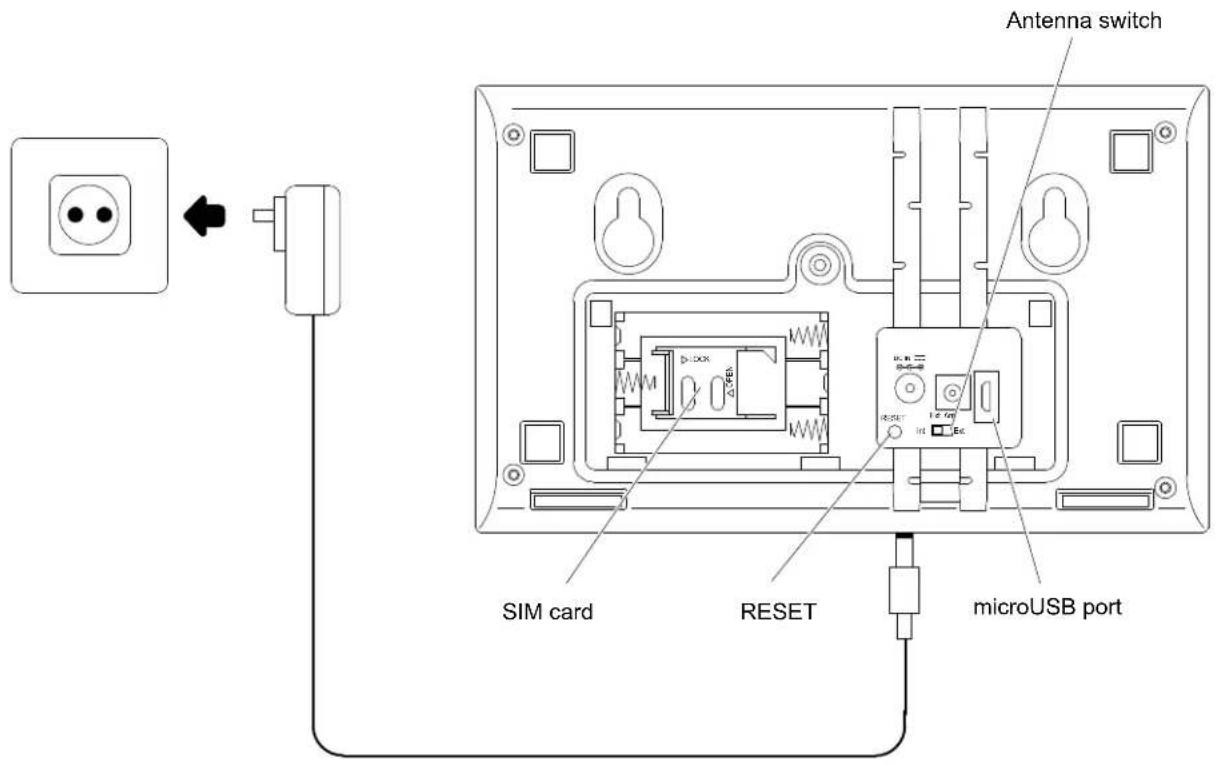

Preparing and Connecting the Base Unit

1. Use a screwdriver to loosen the screw in the battery and connection socket compartment on the underside of the base unit.
2. Remove the cover from the battery and connection socket compartment.

1. Slide the SIM card holder to the left to unlock it (A).
2. Pivot the holder up and insert the SIM card in the holder (B).
3. Pivot the holder with the SIM card back and slide the holder to the right to lock it (C).
4. Insert three batteries in the battery compartment (pay attention to correct polarity).

i The use of batteries serves as a safeguard against failure. In the case of normal power supply using the power adapter plug, the batteries are not affected. In the event of a power failure, the base unit is battery powered until the power supply is restored.
7. Set the Antenna switch to Int.
8. Connect the power adapter plug to the base unit.
9. Place the cover on the battery and connection socket compartment and tighten the screw in the battery and connection socket compartment.

Positioning the Base Unit

It is possible to setup the device in a user-friendly, inclined position on a table or desk. To do this, insert the two legs (1) supplied in the recesses for the wall installation bracket (2) on the rear of the base unit.

Technical line drawing of a mechanical component with labeled part 1 (no text or symbols beyond label)

Installing the Base Unit on a Wall

After having found a suitable location for the base unit, you can begin with the installation.

WARNING!

• Risk of fatal injury through electric shock or gas explosion!
  →During installation, pay attention to the possibility of electrical cables and gas pipes running in the walls.
  →Pay attention that you do not damage electric cables or gas pipes.

• At the installation location, insert two screws in the wall, 100 mm apart and aligned horizontally. (It may be necessary to drill the holes first and then insert dowels in which to tighten the screws, depending on the properties of the wall.)

• Screw the screws in the wall using a screwdriver until there is approx. 3 mm clearance from the bottom edge of the screw head to the wall.
• Hook the recesses in the wall bracket (2) for the base unit over the screws.
• Plug the power adapter in a properly installed power socket. The base unit is then ready to use.

GB

Operating Elements and Indicators

Operating Elements and Indicators

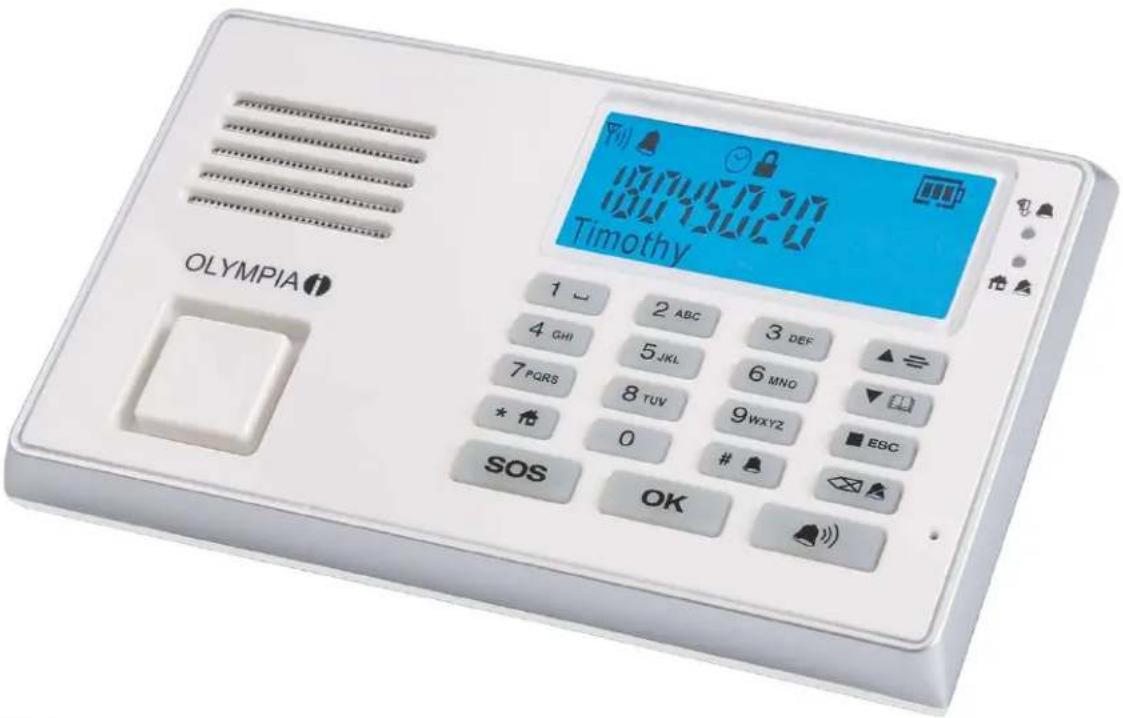

The base unit is equipped with an SOS (emergency call) button SOS for use in emergency situations and a Panic button 🔍 for use in the event of a direct threat. The remote control unit is provided with a button which can be configured either as an Emergency Call or Panic button (refer to "Configuring the Remote Control").

The Panic button ⚡️ triggers an acoustic alarm immediately, regardless of whether the alarm system is armed or not. The acoustic alarm can be switched off via the base unit or the remote control.

The SOS button (SOS) activates the GSM dialling unit if phone numbers of contact persons have been entered and saved. Activation is independent of whether the alarm system is armed or disarmed.

The emergency call number is dialled first, then up to 10 stored phone numbers in succession. A voice message requests the subscriber answering to press the [1] button on their phone.

The handsfree function is automatically activated on the base unit and enables communication between the caller and subscriber called.

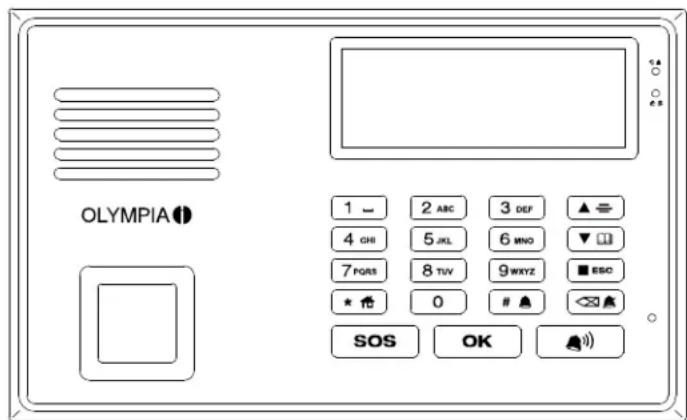

Keys on the Base Unit

Button Function

sos SOS button: activate the GSM dialling unit
OK Confirm input
Panic button: trigger an acoustic alarm signal
Open the menu; navigate in the menu; increase the loudspeaker volume in Hands-free mode

Operating Elements and Indicators

Open the save mode for phone numbers; navigate in the menu; reduce the loudspeaker volume in Handsfree mode

Disarmed mode: the system is deactivated; close the menu; stop the countdown

Silent mode: the system is armed; when the alarm is triggered, the GSM dialling unit is activated; deletes digits and letters

Alarm mode: the system is armed; on burglary, the acoustic alarm is issued and the dialling unit is activated

At Home mode: the system is activated; on burglary, the acoustic alarm is issued

0-9, *, # Digit keys: on pressing the # button >3 sec., a 2 sec. dialling pause is activated

* In Text mode: switch between upper and lower case

àáâÇ

0, 1 Special characters

Operating Elements and Indicators

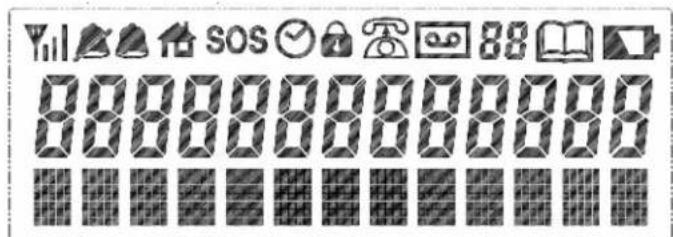

Display Icons

Symbol Significance Explanation

Yill	Mobile network	Yill full signal,
		Y weak signal,
		Y no signal

Silent mode When the alarm system is triggered, no acoustic alarm is issued; GSM dial-alling unit is active.

	Alarm mode When the alarm system is triggered, an acoustic alarm is issued; GSM dialling unit is active.
	At Home mode When the alarm system is triggered, an acoustic alarm is issued.
SOS Emergency call GSM dialling unit is active.
	Time delay Time delay is activated.
	Key lock Key lock is activated.
	GSM dialling unit Connection is being made. is active.
	Recording mode Voice message is being recorded.
	Memory location Indicates the memory location of the phone number.
	Save icon
	Battery indicator Battery capacity of base unit is low.

Operating Elements and Indicators

Overview of LEDs

Operation via power adapter		Operation via battery
Top	Bottom	Top	Bottom
LED	LED	LED	LED

Silent mode On Flashes On Flashes

Alarm mode Flashes Off Flashes Off

At Home mode On On Off On

Disarmed mode On Off Off Off

Buttons on the Remote Control

Key Function

Emergency call or panic function (can be configured on the base unit)

Alarm mode: When the alarm system is triggered, an acoustic alarm is issued and the GSM dialling unit is activated

At Home mode: When the alarm system is triggered, an acoustic alarm is issued

Deactivate key lock on base unit; stop alarm; switch alarm system to disarmed

Silent mode by pressing the Alarm and At Home mode buttons simultaneously

GB

Menu Structure

Menu Structure

(Open the menu)	Review Open Sensor01 Voice RecordRemote:1 Voice Record
↓	Register Search... Open Sensor01 Voice RecordRemote:1 Voice Record
↓	Trigger Delay Duration Delay: 0-240STrigger Tone OnOff
↓	Arming Delay Delay: 0-240S
↓	Flood & Smoke StandardActivate
↓	PIR Home Mode OnOff
↓	Remote Key Remote: SOSRemote: PANIC
↓	Entry Code 1234

Menu Structure

↓	Key Tone Key Tone-OnKey Tone-Off
↓	KeyLock Delay 20S - 40S
↓	Contrast Contrast-1-5
		LB1 LB2 LB3 LB4 LB5Language** Deutsch Deutsch Deutsch Deutsch Deutsch English English English English English EnglishFrançais Polski Türke Polski ČeskyNederlands Pyccknič Česky Slovenski SlovenskiEspañol Română SlowenskýPortuguês Italiano Magyar Eλληνικά Dansk Svenska Magyar Eλληνικά Polski Slowenský
↓	Date/Time	01-01-2010	00:00
↓	Alarm period	Time:1-10Min
↓	Check SIM $	SIM Service #

* The language range (LB 1 - LB 5) provided by your alarm system is indicated on the labels on the packaging and on the rear of the base unit.

Configuration

Configuration

Navigating Through the Menu

→Press ▲≡ to open the menu.
→ Press ▲≡ and ▼[ ] to navigate in the menu.
→Press OK to confirm your entries.
→ Press 🔒 to correct texts or numbers entered.
→Press ■ESC to move one level back in the menu.
The key lock is automatically activated if there is no input for a period exceeding 10 seconds.

Language

There is a range of languages available for selection:

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Language menu option. Confirm it by pressing OK.
4. Select the language required by pressing the ▲≡ and ▼[1] buttons.

Confirm your selection by pressing OK.

Date and Time

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Date/Time menu option. Confirm it by pressing OK.
4. Display: 01-01-2010
5. Enter the day, month and year. Confirm it by pressing OK.
6. Display: 00:00
7. Enter the time as hour and minute. Confirm it by pressing OK.

PIN (Personal Identification Number)

The base unit is protected by a 4-digit PIN (Personal Identification Number) to prevent access to data by unauthorised third-parties.

The predefined PIN is active when the factory settings are set. The predefined PIN is provided in the battery compartment of the base unit and on the last page of this operating manual.

Configuration

i For reasons of security, we recommend that you change the predefined PIN and enter your own personal PIN.
1. Enter the predefined PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Entry Code menu option. Confirm it by pressing OK. The predefined PIN appears in the display. The first digit flashes. Enter your own personal, 4-digit PIN. Confirm it by pressing OK.
i Note down your new PIN and keep it where it cannot be accessed by third-parties.

Key Lock

Before beginning to operate the base unit, deactivate the key lock function.

1. Enter your PIN. Confirm it by pressing OK.

The key lock is reactivated automatically when no buttons are pressed for a period of 10 seconds. You can also activate the key lock function manually by pressing the 1 button.

i The SOS and Panic buttons are excluded from the key lock function and are always functional!

Time for Automatic Key Lock

You can define the period of time which should elapse before the key lock is automatically activated when you do not operate the base unit.

You set a delay of between 20 and 40 seconds.

When the default setting is set, the key lock is activated after 20 seconds.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the KeyLock Delay menu option. Confirm it by pressing OK.
4. Set the delay time 20S - 40S using the ▲≡ and ▼□□ buttons. Confirm it by pressing OK.

Individual Outgoing Messages

i An individual outgoing message can be recorded for each sensor (door/window contact, smoke detector, etc.). The standard message is replaced by your individual voice message and played when the GSM dialling unit is activated!

Proceed as follows to record an individual messages for each respective sensor:

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.

GB

Configuration

1. Select the Review menu option. Confirm it by pressing OK.
2. Select the respective sensor required by pressing the ▲≡ and ▼[□] buttons. Confirm it by pressing OK.
3. The first letter of the sensor selected flashes. You can rename the sensor (e.g. BalconyDoor, KitchenWindow,, etc.). Confirm it by pressing OK.
4. Voice Record appears in the display. Confirm it by pressing OK.
5. Speak your individual voice message for the selected sensor into the unit (e.g. BalconyDoor). Press the OK button to confirm the message and end recording.
   →Your individual message is played back.

GSM Dialling Unit

Function of the GSM Dialling Unit

The GSM dialling unit (quad band) establishes a connection between the Protect 9XXX Series alarm system and the mobile network.

It enables a telephone link to be set up without access to a landline.

A SIM card is required to operate the GSM dialling unit. This is not included in the equipment supplied.

i The alarm system can also be operated without a SIM card connection. However, in the event of an alarm, there is no alert via the mobile network!

If you use a SIM card, pay attention to the following:

→Check the contractual terms of your SIM card. Please note that, as a result of using a SIM card in the base unit, contract-related costs could ensue.
→The card must be topped up at regular intervals.
Most prepaid SIM cards must be used at a charge within a certain period of time, otherwise they are blocked. More detailed information is available from your mobile phone provider.

Configuration

Unlocking the SIM Card (Entering the SIM PIN)

SIM cards are normally protected against unauthorised access by a 4-digit PIN. When the SIM card is used for the first time, it must be unlocked.

1. If the SIM card is locked by means of a PIN, the SIM Card PIN? message appears in the display.

2. Enter the PIN which you received together with the SIM card.

When the PIN entered is correct, Search... appears in the display.

The PIN is then permanently deactivated. If you insert the SIM card again or connect the base unit again, the PIN need not be re-entered.

1. When the PIN entered is incorrect, Enter again appears in the display. Enter the PIN again.

If the PIN is entered incorrectly 3 times, SIM Locked appears in the display. In this case, contact your mobile phone provider to release the lock.

Checking the SIM Card

Check SIM \$ appears in the display on 1st January, 1st April, 1st July and 1st October.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Check SIM \$ menu option. Confirm it by pressing OK.
4. SIM Service # appears in the display.
5. Enter the service number of the mobile phone provider. Confirm it by pressing OK. The service number is dialled.
6. Follow the instructions from the mobile phone provider.
7. End the connection by pressing OK.

Preventing the SIM Card Bing Locked

Most prepaid SIM cards must be used at a charge within a certain period of time, otherwise they are blocked. You can use the function requesting the credit status to make a call liable for costs.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Check SIM \$ menu option. Confirm it by pressing OK.
4. SIM Service # appears in the display.

GB

Configuration

1. Enter the number of your conventional phone or mobile phone. Confirm it by pressing OK. The number is dialled.
2. Take the call on your conventional phone or mobile phone.
3. End the connection by pressing OK.

Activating the GSM Dialling Unit

You can store up to 10 phone numbers or mobile phone numbers of contact persons. Agree on procedures in the event of an alarm with these contact persons.

In the event of an alarm, the GSM dialling unit automatically dials the phone numbers stored in succession (starting with memory location 0) and provides information regarding the alarm by means of an automatic voice message.

In the case of an "engaged" signal or no connection is possible, the next phone number is automatically dialled.

A total of three dialling cycles are completed!

The GMS dialling unit is deactivated when a subscriber called answers the call made and presses the digit key [1] on their telephone or 3 dialling cycles have been completed.

Saving Phone Numbers

Save the phone numbers of your contact person in the memory locations 0 - 9 (assigned to keys 0 to 9wxyz).

Each phone number can be composed of up to 20 digits and the associated name up to 13 characters.

Do not save any public emergency call numbers! Unjustified requests for police, fire and rescue services are liable for costs!

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▼ Location Key appears in the display.
3. Select a memory location. If you have not yet stored a phone number, Empty appears as information in the display. Confirm it by pressing OK.
4. Enter the phone number including the access code. Confirm it by pressing OK.
5. Enter the name associated with the phone number. Confirm it by pressing OK.

SOS (Emergency Call) Numbers

You can save an SOS (emergency call) number which is subsequently called first by pressing the SOS button or, depending on the configuration, the SOS button on the Remote control.

Following this, the other stored phone numbers are dialled in succession.

Configuration

Do not save any public emergency call numbers! Unjustified requests for police, fire and rescue services are liable for costs!

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▼ Location Key appears in the display.
3. Press the SOS button as the selected memory location. If you have not yet stored a phone number, Empty appears as information in the display. Confirm it by pressing OK.
4. Enter the phone number including the access code. Confirm it by pressing OK.
5. Enter the name associated with the phone number. Confirm it by pressing OK.

Testing the GSM Dialling Unit

After having entered phone numbers, ensure that they are correct in respect of the alarm calls. For this purpose, you can trigger a silent alarm.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ⬇️. Silent mode is activated. Silent mode is indicated in the display by the 🔊 icon.
3. Now trigger the silent alarm on any of the door/window contacts (e.g. open door/window).

i The display lights up yellow and indicates which sensor has been triggered. The GSM dialling unit is activated.
The subscriber called lifts the receiver and hears the individual outgoing message.
The subscriber called is also requested to press digit key [1] on their telephone. The screening function is activated. This function enables the subscriber to screen the room in which the base unit is located.
If the subscriber called does not initiate a function within 24 seconds, the next phone number is automatically dialled.
Silent mode is deactivated by pressing the button on the remote control, entering your PIN on the base unit and confirming by pressing the OK button or when the subscriber called ends the call.

Configuration

Trigger Delay

You can define that the alarm to be triggered should be actually sounded after a delay.

This provides you with sufficient time to enter your apartment or house and disarm the alarm system.

You can set a trigger delay between 0 and 240 seconds.

If one of the sensors is tripped, the system must be switched to be disarmed for this period so that no alarm is triggered.

You can select whether an acoustic signal should be issued from the base unit during this period or not.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Trigger Delay menu option. Confirm it by pressing OK.
4. Select the Duration menu option. Confirm it by pressing OK.
5. Use the ▲≡ and ▼□□ buttons to set the required delay time.
6. Confirm it by pressing the OK button.
7. Select the Trigger Tone menu option. Confirm it by pressing OK.
8. Set the trigger delay tone with the ▲≡ and ▼[v] and switch it Off or On. Confirm it by pressing the OK button.

Arming Delay

You can set the alarm system to be armed following a defined delay.

This provides you with sufficient time to leave your apartment or house through the alarm-protected front door before the alarm system is actually armed.

You can set an activation delay between 0 and 240 seconds.

During the delay period, you will hear a signal tone issued at intervals of one second.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Arming Delay menu option. Confirm it by pressing OK.
4. Use the ▲≡ and ▼□ buttons to set the required delay time. Confirm it by pressing OK.

Alarm Period

The base unit is equipped with an integrated siren.

The duration of the acoustic alarm can be selected between a minimum of 1 minute to a maximum of 10 minutes. The standard setting for the alarm period is 3 minutes.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Alarm period menu option. Confirm it by pressing OK.

Configuration

i Observe any locally applicable regulations regarding limitation of alarm times from burglar alarms.

1. Use the ▲≡ and ▼102 buttons to set the required alarm time. Confirm it by pressing OK.

Key Tone

It is possible to switch the key tone feature for the base unit on and off.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Key Tone menu option. Confirm it by pressing OK.
4. Press ▲≡ and ▼ to switch the Key Tone-On or Key Tone-Off. Confirm it by pressing OK.

Display Contrast

The display contrast can be adjusted to one of five different settings.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Contrast menu option. Confirm it by pressing OK.
4. Press the ▲≡ and ▼☐ buttons to set the required contrast setting. Confirm it by pressing OK.

Remote Control

GB

Configuration

The ☑ button on the remote control can be configured as an Emergency Call or Panic button via the base unit.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Remote Key menu option.

Confirm it by pressing OK.

1. Use the ▲≡ and ▼□□ buttons to select the Remote: SOS or Remote: PANIC function.

Confirm it by pressing OK.

Water Leak (Flood) and Smoke Detectors

You can set-up the base unit so that flood and smoke detectors trigger an alarm when the base unit is disarmed.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the Flood & Smoke menu option. Confirm it by pressing OK.
4. Use the ▲≡ and ▼□□ buttons to select the Standard or Activate setting. Confirm it by pressing OK.

The table below indicates how the flood and smoke detectors are triggered according to the various settings.

Standard Activate

	Phone call	Alarm signal	Phone call	Alarm signal
Disarmed mode	No No Yes Yes
At Home mode	No Yes No Yes
Silent mode	Yes No Yes Yes
Alarm mode	Yes Yes Yes Yes

Registering Sensors

You can register up to 32 sensors on the alarm system base unit.

If you purchase optionally available sensors, such as additional remote controls, smoke detectors etc., they must be registered manually.

1. Enter your PIN. Confirm it by pressing OK.

2. Press ▲≡ to open the menu. Use the ▲≡ and ▼ button to select the Register menu option. Confirm it by pressing OK.

3. Search... appears in the display

4. Activate the sensor to be registered.

Configuration

i More detailed information is provided in the operating manual supplied with the respective sensor.
5. Open Sensor01 or SmokeSensor01 appears in the display, for example. Confirm it by pressing OK.
6. Voice Record appears in the display.
7. Press the ■ESC button if you want to retain the standard message

or

1. Press OK to record an individual outgoing message.

→Your individual message is played back.

Deregistering Sensors

1. Enter your PIN. Confirm it by pressing OK.
2. Press the ▲≡ button. Review appears in the display.
3. Press the buttons ▲≡ and ▼↓↓ to select the sensor to be deregistered.
4. Press the ⏻ button. Delete? appears in the display. Confirm it by pressing OK.

Resetting the Factory Settings (RESET)

i Please note that on restoring the factory settings, all the user settings will be deleted. The registration of the sensors is retained!
When you have reset the factory settings on the base unit, the 4-digit PIN is 1-2-3-4!

1. Use a screwdriver to loosen the screw in the battery and connection socket compartment on the underside of the base unit.
2. Press the RESET button. The alarm system acknowledges a RESET by means of an acoustic signal.
3. Close the battery and connection socket compartment and tighten the screw.

Monitoring Functions

Monitoring Functions

Monitoring functions	Acoustic alarm signal	GSM dialling unit active
Silent mode No Yes,		with screening function
Alarm mode Yes Yes
At Home mode Yes No
Disarmed mode No No
Emergency call (SOS)	No Yes,	with handsfree function
Panic alarm Yes No

Switching the Monitoring Functions On/Off

Before switching any functions on, inform all the other people living in the residence regarding the location and method of operation of the wireless alarm system.
The alarm system distinguishes between 4 types of alarm:

→▲Alarm mode

When Alarm mode is active and an alarm is triggered, an acoustic alarm signal is issued and the dialling unit is activated.

→ At Home mode

When At Home mode is active and an alarm is triggered, only an acoustic alarm signal is issued.

→Silent mode

When Silent mode is active and an alarm is triggered, only the GSM dialling unit is activated. A person called receives a voice message requesting them to press the [1] button on their phone. The screening function is activated.

→Disarmed mode

When Disarmed mode is set, the alarm system is deactivated.

The monitoring functions are confirmed by a voice message.

When triggered, the smoke detector always issues an acoustic alarm signal (immediately) regardless of the wireless alarm system! The response of the base unit

Monitoring Functions

depends on the type of alarm set and the setting defined in the Flood & Smoke menu option.

i If an outdoor siren is registered on the base unit, the alarm can only be stopped by the remote control unit after 15 seconds at the soonest.

Alarm Mode

You should activate Alarm mode when you leave your apartment or house. Before doing so, check that all the doors and windows provided with a door/window contact are closed.

You can activate the required alarm type on the base unit or via the remote control supplied as follows:

Base Unit

1. Enter your PIN. Confirm it by pressing OK.
2. Press the # button.

Remote Control

1. Press the Ⓞ button.

At Home Mode

During the night, before you go to sleep, you should activate At Home mode. Before doing so, check that all the doors and windows are closed.

You can activate the required alarm type on the base unit or via the remote control supplied as follows.

Base Unit

1. Enter your PIN. Confirm it by pressing OK.
2. Press the * button.

Remote Control

1. Press the ⓤ button.

PIR At Home Mode

Using the optional PIR At Home mode, the alarm caused by the motion detectors in At Home mode is deactivated. This mode can only be activated on the base unit.

When PIR At Home mode is activated, the motion detectors registered on the base unit are deactivated in At Home mode. This means that false alarms caused by unavoidable movements within the area monitored (by residents, pets, etc.) can be prevented.

1. Enter your PIN. Confirm it by pressing OK.
2. Press ▲≡ to open the menu.
3. Select the PIR Home Mode menu option. Confirm it by pressing OK.
4. Use the ▲≡ and ▼≡ buttons to switch the function On or Off. Confirm it by pressing OK.

GB

Monitoring Functions

Silent Mode

When you leave your apartment or house, you can activate Silent mode instead of Alarm mode. Before doing so, check that all the doors and windows provided with a door/window contact are closed.

You can activate the required alarm mode on the base unit or via the remote control supplied as follows.

Base Unit

1. Enter your PIN. Confirm it by pressing OK.

→Press the 🔒 button.

Remote Control

1. Press the ⚙ and ⏻ buttons simultaneously.

Disarmed Mode

When the system is disarmed, you can move freely within the living quarters without triggering any alarms.

You can activate the required alarm mode on the base unit or via the remote control supplied as follows.

Base Unit

1. Enter your PIN.

Confirm it by pressing OK

Remote Control

1. Press the button.

Panic Alarm

You can activate a panic alarm as a deterrent by pressing the ⏻ button on the base unit or the ⏱ button on the remote control unit, depending on the configuration.

CAUTION!

• Hearing damage through loud alarm signal!
  Due to legal requirements, the alarm signal continues for maximally 120 seconds. The alarm signal switches off automatically after approx. 120 seconds if the user does not interrupt it.
  →Use ear protectors when testing the device.
  Do not remain in the vicinity of the acoustic alarm for a longer period when it has been triggered.

The panic alarm is triggered immediately without any delay. To switch off the panic alarm, enter your 4-digit PIN on the base unit. Confirm it by pressing OK. Or, you can press the button on the remote control.

Emergency Call (SOS)

You can trigger the SOS (emergency call) function by pressing the SOS button on the base unit or the SOS button on the remote control unit, depending on the configuration.

The GSM dialling unit is activated when phone numbers are stored. The emergency call number is dialled first, then up to 10 stored phone numbers in succession. A voice message requests the subscriber answering to press the [1] button on their phone.

The handsfree function of the base unit is activated and enables communication between the caller and subscriber called.

There are three ways to end the SOS function:

→Enter your 4-digit PIN on the base unit and confirm it by pressing the OK button.
→ Press the button on the remote control.

or

The subscriber called takes the call, executes a function within 24 seconds and then ends the call.

Remote Access Via Telephone

The wireless alarm system can be operated by remote access using a telephone.

1. Dial the mobile phone number of the SIM card installed in the alarm system.
2. Wait until the alarm system takes your call. A longer acoustic signal is issued.
3. Enter the 4-digit PIN of the base unit. Two short acoustic tones are issued.
4. Complete various functions using the phone's keypad (refer to the table). The monitoring functions are confirmed by a voice message.

Key Function

[1] Activate the handsfree function
[2] Activate call screening
[3] Activate Alarm mode
[4] Activate At Home mode
[5] Activate Silent mode
[6] Activate Disarmed mode
[#] End the handsfree or screening function
[#], [#] End remote access via telephone facility

GB

Appendix

Appendix

System Extension

You can order accessories and options for the wireless alarm system via the following website

Changing the Batteries

If the battery charge of the sensors is low or practically empty, the following status messages appear in the display:

Battery Capacity Low

1. bAtt Lo appears in the display. The sensor affected is displayed.
   If you activate the alarm system, 5 successive, short acoustic signals are issued.
   i Change the batteries! A connection between the sensor and base unit is no longer guaranteed!

Battery Capacity Exhausted

1. bAtt off appears in the display. The sensor affected is displayed.
   If you activate the alarm system, 5 successive, short acoustic signals are issued.
   i Change the batteries! A connection between the sensor and base unit is no longer guaranteed!

Appendix

Remote Control

ATTENTION!

• Property damage through the use of inappropriate batteries!
  The use of inappropriate batteries can cause a loss of function of the device.
  →Only use batteries of the type described in Section Technical Data.

• Use a suitable screwdriver to loosen the screw in the battery compartment on the underside of the remote control.

• Remove the cover of the battery compartment.
• Remove the battery contained.
• Insert a new battery in the battery compartment (pay attention to correct polarity).
• Replace the cover on the battery compartment.
• Replace and tighten the screw.

Base Unit

The use of batteries serves as a safeguard against failure. In the case of normal power supply using the power adapter plug, the batteries are not affected. In the event of

a power failure, the base unit is battery powered until the power supply is restored.

The ▼ icon in the display indicates that the batteries in the base unit are almost fully discharged. Change the batteries.

ATTENTION!

• Property damage through the use of inappropriate batteries!
  The use of inappropriate batteries can cause a loss of function of the device.
  →Only use batteries of the type described in Section Technical Data.

• Use a screwdriver to loosen the screw in the battery and connection socket compartment on the underside of the base unit.

• Remove the cover from the battery and connection socket compartment.
• Remove the batteries contained.
• Insert three new batteries in the battery compartment (pay attention to correct polarity).
• Replace the lid on the battery and connection socket compartment.
• Replace and tighten the screw.

Regular Maintenance and Service

Regular Maintenance and Service

→Disconnect the base unit from the power outlet before cleaning it!
→Clean the surface of the housing with a soft, lint-free cloth. Never use any chemicals or scouring agents.
→Complete a function test once a month and after changing the batteries.
→Change the batteries on an annual basis or when the corresponding message is issued by the alarm system at the latest.

Information on Disposal

The adjacent symbol indicates that electrical and electronic apparatus and batteries no longer required must be disposed of separate from domestic waste in accordance with legal directives.

You are obliged to dispose of batteries and power packs at shops which sell batteries or collection points which provide the corresponding containers. Disposal is free of charge. The symbols indicate that the batteries must not be disposed of in normal domestic waste and that they must be brought to collection points provided by local public waste authorities.

Packaging materials must be disposed of according to local regulations.

Technical Data

Technical Data

The wireless alarm systems in the Protect 9XXX Series operate within the frequency band specially reserved for security technology in the 868 MHz frequency range. This ensures that interference to the alarm system through other consumer products, such as baby alarms, can be ruled out. However, it cannot be ruled out that the radio transmission suffers intermittent or continuous interference due to defective components of other electrical or electronic products, such as ventilators and antenna amplifiers. In addition, radio transmission can be interfered from external sources with malicious intent.

Main base

Weight 228 g (without batteries)

Dimensions 172 x 105 x 31 [mm]

Frequency 868 MHz

Battery 3 x alkaline, AAA

Power adapter 5 V _DC , 1.2 A plug

Sensors Max. 32

Remote control

Weight 24 g

Dimensions 40 x 60 x 14.5 mm

Frequency 868 MHz

Battery Lithium CR2032, 3 V

Technical Data

Technical Modifications

This instruction manual serves purely for information purposes. Its content is not part of any contract for sale.

All the data relates to nominal values. The equipment and options described may differ from country to country according to national requirements.

CE Mark

Olympia Business Systems Vertriebs GmbH, Zum Kraftwerk 1, 45527 Hattingen hereby declares that this device fulfils the requirements and complies with the regulations stipulated in the Directive 1999/5/EC. The CE Mark on the device confirms conformity. The Declaration of Conformity related to this product can be viewed on our website at www.olympia-vertrieb.de.

Newsletter

You can register on our website so that you are automatically informed in respect of extensions to the range of accessories and product updates.

Register now under: www.olympia-vertrieb.de.

Manufacturer

Blank gray image with no visible content, text, or symbols

Abstract gray curved shape on white background (no text or symbols)

Blank gray image with no visible content, text, or symbols

Abstract gray curved shape on white background (no text or symbols)

Blank gray image with no visible content, text, or symbols

Abstract gray curved shape on white background (no text or symbols)

This is your individual, predefined PIN (Personal Identification Number)!

If you want to change this predefined PIN code, please refer to Chapter "Configuration" in this operating manual.

Keep this operating manual in a safe place away from the wireless alarm system!

Please note that the Copyright of this operating instruction manual is by Olympia and, therefore, must not be further copied, published or sold in any form. The information contained in the operating instruction manual is only intended for personal use.

All rights reserved.
