Product Type	Washing Machine
Brand	Ariston Thermo
Model	AVSL125
Dimensions (HxWxD)	85 x 60 x 60 cm
Weight	70 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	2000 W
Water Consumption	55 L per cycle
Maximum Spin Speed	1200 rpm
Load Capacity	7 kg
Number of Programs	15
Programs	Cotton, Synthetics, Delicates, Wool, Quick 30', Eco, Intensive, Rinse & Spin, Drain, Spin, Steam, Allergy Safe, Duvet, Shirts, Jeans
Temperature Control	Cold to 90°C
Delay Start	Up to 24 hours
Child Lock	Yes
Overflow Protection	Yes
Unbalanced Load Detection	Yes
Noise Level (Wash/Spin)	58 dB / 75 dB
Energy Efficiency Class	A+++
Annual Energy Consumption	180 kWh
Annual Water Consumption	9,900 L
Maintenance	Clean filter monthly, run descaling cycle every 3 months
Safety Features	Child lock, overflow protection, door lock during operation
Spare Parts Available	Drum, belt, pump, door seal, control board
Warranty	2 years

Frequently Asked Questions - AVSL125 Ariston Thermo

How do I install the washing machine?

Place the machine on a flat, stable surface. Remove the transit bolts at the back. Connect the water inlet hose to a cold water tap with 3/4 inch thread, and the drain hose to a standpipe or sink. Plug into a grounded outlet. Refer to the user manual for detailed steps.

What do I do if the machine displays an error code?

Error codes indicate specific issues. Common ones: E01 (door not closed), E02 (drain problem), E03 (overfill). Check the troubleshooting section in the manual. Reset by turning off and unplugging for 1 minute.

How often should I clean the filter?

Clean the drain pump filter every month to prevent clogs. Turn off and unplug, open the lower flap, unscrew the filter, remove debris, and replace firmly.

Can I wash wool or delicate fabrics?

Yes, use the Wool or Delicates program with cold water and low spin. Always check garment labels.

How do I use the delay start function?

Select a program, then press the Delay Start button repeatedly to set delay in hours (up to 24). Press Start. The machine will begin at the set time.

What detergent should I use?

Use high-efficiency (HE) detergent. For front-loaders, use powder or liquid. Adjust amount based on load size and soil level. Avoid overdosing.

Why is the machine vibrating excessively?

Ensure the machine is level. Adjust the feet. Also check that transit bolts are removed and the load is balanced (mix small and large items).

How do I descale the machine?

Run an empty cycle at 90°C with a descaling agent or white vinegar (500 ml) every 3 months. Then run a rinse cycle.

What is the maximum spin speed?

The maximum spin speed is 1200 rpm. Lower speeds are available for delicate fabrics.

How do I activate the child lock?

Press and hold the Child Lock button for 3 seconds until the indicator lights. Repeat to deactivate. This prevents accidental setting changes.

USER MANUAL AVSL125 Ariston Thermo

Unpacking and levelling, 2

Electric and water connections, 2-3

The first wash cycle, 3

Technical details, 3

Washing machine description, 4-5

Control panel, 4

Leds, 5

Starting and Programmes, 6

Briefly: how to start a programme, 6

Programme table, 6

Personalisations, 7

Setting the temperature, 7

Setting the spin cycle, 7

Functions, 7

Detergents and laundry, 8

Detergent dispenser, 8

Preparing your laundry, 8

Special items, 8

Woolmark Platinum Care, 8

Precautions and advice, 9

General safety, 9

Disposal, 9

Saving energy and respecting the environment, 9

Care and maintenance, 10

Cutting off the water or electricity supply, 10

Cleaning your appliance, 10

Cleaning the detergent dispenser, 10

Caring for your appliance door and drum, 10

Cleaning the pump, 10

Checking the water inlet hose, 10

Troubleshooting, 11

Service, 12

Before calling for Assistance, 12

!Keep this instruction manual in a safe place for future reference. Should the appliance be sold, transferred or moved, make sure the instruction manual accompanies the washing machine to inform the new owner as to its operation and features.

!Read these instructions carefully: they contain vital information on installation, use and safety.

Unpacking and levelling

Unpacking

1. Unpack the washing machine.
2. Check whether the washing machine has been damaged during transport. If this is the case, do not install it and contact your retailer.

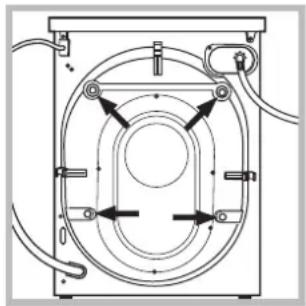

Technical diagram of a mechanical or electrical component with concentric circular and radial features, no visible text or symbols.

1. Remove the four protective screws and the rubber washer with the respective spacer, situated on the rear of the appliance (see figure).

2. Seal the gaps using the plastic plugs provided.

3. Keep all the parts: you will need them again if the washing machine needs to be moved to another location.

!Packaging materials are not children's toys.

Levelling

1. Install the washing machine on a flat sturdy floor, without resting it up against walls, furniture cabinets or other.

Line drawing of a car door corner with a spiral-shaped button and directional arrow (no text or symbols)

1. If the floor is not perfectly level, compensate for any unevenness by tightening or loosening the adjustable front feet (see figure); the angle of inclination, measured according to the worktop, must not exceed 2^ .

Levelling your appliance correctly will provide it with stability and avoid any vibrations, noise and shifting during operation. If it is placed on a fitted or loose carpet, adjust the feet in such a way as to allow enough room for ventilation beneath the washing machine.

Electric and water connections

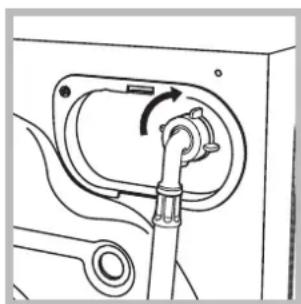

Connecting the water inlet hose

1. Insert seal A into the end of the inlet hose and screw the latter onto a cold water tap with a 3/4 gas threaded mouth (see figure). Before making the connection, allow the water to run freely until it is perfectly clear.

Diagram of a mechanical valve or connector with a rotating knob (no text or symbols)

1. Connect the other end of the water inlet hose to the washing machine, screwing it onto the appliance's cold water inlet, situated on the top right-hand side on the rear of the appliance (see figure).

2. Make sure there are no kinks or bends in the hose.

!The water pressure at the tap must be within the values indicated in the Technical details table (on the next page).

!If the water inlet hose is not long enough, contact a specialist store or an authorised serviceman.

Connecting the drain hose

Connect the drain hose, without bending it, to a draining duct or a wall drain situated between 65 and 100 cm from the floor;

Diagram of a pipe connection with a magnified inset showing a connector (no text or symbols)

alternatively, place it over the edge of a basin, sink or tub, fastening the duct supplied to the tap (see figure). The free end of the hose should not be underwater.

! We advise against the use of hose extensions; in case of absolute need, the extension must have the same diameter as the original hose and must not exceed 150 cm in length.

Electric connection

Before plugging the appliance into the mains socket, make sure that:

- the socket is earthed and in compliance with the applicable law;

- the socket is able to sustain the appliance's maximum power load indicated in the Technical details table (on the right);

- the supply voltage is included within the values indicated on the Technical details table (on the right);

- the socket is compatible with the washing machine's plug. If this is not the case, replace the socket or the plug.

! The washing machine should not be installed in an outdoor environment, not even when the area is sheltered, because it may be very dangerous to leave it exposed to rain and thunderstorms.

! When the washing machine is installed, the mains socket must be within easy reach.

! Do not use extensions or multiple sockets.
! The power supply cable must never be bent or dangerously compressed.
! The power supply cable must only be replaced by an authorised serviceman.

Warning! The company denies all liability if and when these norms are not respected.

The first wash cycle

Once the appliance has been installed, and before you use it for the first time, run a wash cycle with detergent and no laundry, setting the 90^ C programme without a pre-wash cycle.

Technical details
Model	AVSL 125
Dimensions	59.5 cm wide85 cm high40 cm deep
Capacity	from 1 to 4,5 kg
Electric connections	voltage 220/230 Volts 50 Hzmaximum absorbed power 1850 W
Water connections	maximum pressure 1 MPa (10 bar)minimum pressure 0.05 MPa (0.5 bar)drum capacity 40 litres
Spin speed	up to 1200 rpm
Control programmes according to IEC456 directive	programme 3; temperature 60°C;run with a load of 4,5 kg.
	This appliance is compliant with the following European Community Directives:- 73/23/CEE of 19/02/73 (Low Voltage) and subsequent amendments- 89/336/CEE of 03/05/89(Electromagnetic Compatibility) and subsequent amendments- 2002/96/CE

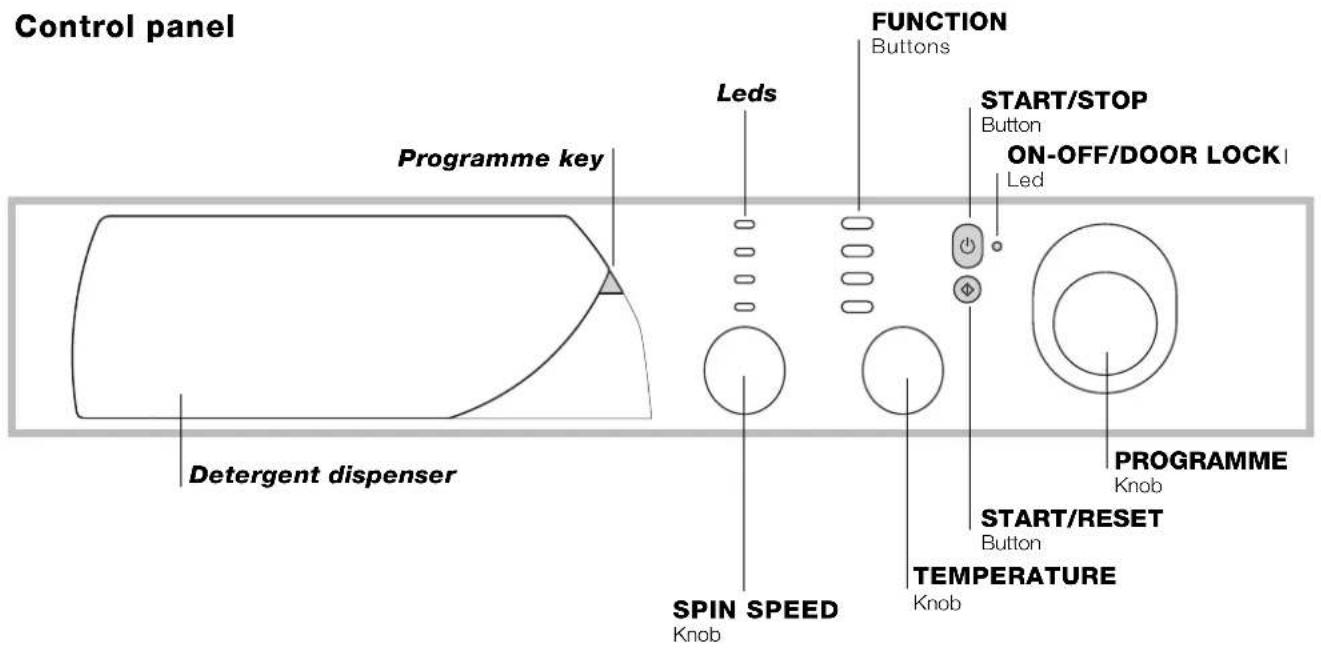

Washing machine description

GB

Detergent dispenser: to add detergent and fabric softener (see page 8).

Programme key: to consult a straightforward chart of the different programmes available: pull the grey tab outwards to open it.

LEDS: to find out which wash cycle phase is under way.

If the Delay Timer function has been set, the time left until the programme starts will be indicated (see page 5).

SPIN SPEED knob: to set the spin speed or exclude the spin cycle completely (see page 7).

FUNCTION buttons: to select the functions available. The button corresponding to the function selected will remain on.

TEMPERATURE knob: to set the temperature or the cold wash cycle (see page 7).

START/STOP button: to turn the washing machine on and off.

START/RESET button: to start the programmes or cancel any incorrect settings.

ON-OFF/DOOR LOCK Led: to find out whether the washing machine is on and if the appliance door can be opened (see page 5).

PROGRAMME knob: to select the wash programmes. The retractable control knob: press the centre of the knob for it to pop out. The knob stays still during the cycle.

Leds

The LEDS provide important information.

This is what they can tell you:

Delay set:

If the Delay Timer function has been enabled (see page. 7), once you have started the programme, the LED corresponding to the delay set will begin to flash:

As time passes, the remaining delay will be displayed, and the corresponding LED will flash:

Once the set delay is complete, the flashing LED will turn off and the programme set will start.

Cycle phase under way:

During the wash cycle, the LEDs gradually illuminate on to indicate the cycle phase under way:

Note: during draining, the LED corresponding to the Spin cycle phase will be turned on.

Function buttons

The FUNCTION BUTTONS also act like LEDS.

When a function is selected, the corresponding button is illuminated.

If the function selected is incompatible with the programme set, the button will flash and the function will not be enabled.

If you set a function that is incompatible with another function you selected previously, only the last one selected will be enabled.

-ON-OFF/DOOR LOCK led:

If this LED is on, the appliance door is locked to prevent it from being opened accidentally; to avoid any damages, wait for the LED to flash before you open the appliance door.

! The rapid flashing of the ON-OFF/DOOR LOCK Led together with the flashing of at least one other LED indicates there is an abnormality. Call for Technical Assistance.

Briefly: starting a programme

1. Switch the washing machine on by pressing button ⏻. All the LEDS will light up for a few seconds and the ON-OFF/DOOR LOCK Led will begin to flash.
2. Load your laundry into the washing machine and shut the appliance door.
3. Set the PROGRAMME knob to the programme required.
4. Set the wash temperature (see page 7).
5. Set the spin speed (see page 7).

Programme table

1. Add the detergent and any fabric softener (see page 8).
2. Start he programme by pressing the START/RESET button. To cancel it, keep the START/RESET button pressed for at least 2 seconds.
3. When the programme is finished, the ON-OFF/DOOR LOCK Led will flash to indicate that the appliance door can be opened. Take out your laundry and leave the appliance door ajar to allow the drum to dry thoroughly. Turn the washing machine off by pressing button ⏻.

Type of fabric and degree of soil	Program-mes	Wash temperat.	Detergent		Fabric softener	Cycle length (minutes)	Description of wash cycle
			Pre-wash	Wash

Cottons

Extremely soiled whites (sheets, tablecloths, etc.)	1	90°C • • 137				Pre-wash, wash cycle, rinse cycles, intermediate and final spin cycles
Extremely soiled whites (sheets, tablecloths, etc.)	2	90°C • • 120				Wash cycle, rinse cycles, intermediate and final spin cycles
Heavily soiled whites and fast colours	3	60°C • • 105				Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly soiled whites and delicate colours (shirts, jumpers, etc.)	4	40°C • • 72				Wash cycle, rinse cycles, intermediate and final spin cycles
Slightly soiled delicate colours	5	30°C • • 65				Wash cycle, rinse cycles, intermediate and final spin cycles

Synthetics

Heavily soiled fast colours (baby linen, etc.)	6	60°C • 77				Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Fast colours (all types of slightly soiled garments)	6	40°C • 62				Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Heavily soiled fast colours (baby linen, etc.)	7	50°C • 73				Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Delicate colours (all types of slightly soiled garments)	8	40°C • 58				Wash cycle, rinse cycles, anti-crease or delicate spin cycle
Delicate colours (all types of slightly soiled garments)	9	30°C • 30				Wash cycle, rinse cycles and delicate spin cycle

Delicates

Wool	10	40°C •	50				Wash cycle, rinse cycles and delicate spin cycle
Very delicate fabrics (curtains, silk, viscose, etc.)	11	30°C •	45				Wash cycle, rinse cycles, anti-crease or draining cycle

PARTIAL PROGRAMMES

Rinse • Rinse cycles and spin cycle
Delicate rinse cycle •	Rinse cycles, anti-crease or draining
Spin cycle						Draining and heavy duty spin cycle
Delicate spin cycle						Draining and delicate spin cycle
Draining						Draining

Notes

For the anti-crease function: see Easy iron, opposite page. The information contained in the table is purely indicative.

Special programme

Daily 30' (programme 9 for Synthetics) is designed to wash lightly soiled garments in a short amount of time: it only lasts 30 minutes and allows you to save on both time and energy. By setting this programme (9 at 30°C), you can wash different fabrics together (except for woollen and silk items), with a maximum load of 3 kg.

We recommend the use of liquid detergent.

Setting the temperature

Turn the TEMPERATURE knob to set the wash temperature (see Programme table on page 6).

The temperature can be lowered, or even set to a cold wash ( ).

Setting the spin speed

Turn the SPIN SPEED knob to set the spin speed for the programme selected.

The maximum spin speeds for each programme are as follows:

Programmes Maximum spin speed

Cottone 1200 rpm

Synthetics 800 rpm

Wool 600 rpm

Silk no

The spin speed can be lowered, or the spin cycle can be excluded altogether by selecting symbol ☒. The washing machine will automatically prevent you from selecting a spin speed higher than the maximum speed for each programme.

Functions

To enable a function:

1. press the button corresponding to the desired function, according to the table below;
2. the function is enabled when the corresponding button is illuminated.

Note: The rapid flashing of the button indicates that the corresponding function cannot be selected for the programme set.

Function Effect	Comments		Enabled with programmes:
^[30/40] Delay Timer	Delays the start of the wash by up to 9 hours.	Press the button repeatedly until the LED corresponding to the desired delay is turned on.The fifth time the button is pressed, the function will be disabled.N.B.: Once you have pressed the Start/Reset button, the delay can only be decreased if you wish to modify it.	All
^[4872] Super Wash	Allows for an impeccable wash, visibly whiter than a standard Class A wash.	This function is incompatible with the RAPID function.	1, 2, 3, 4,5, 6, 7, 8
^ Easy iron	This option reduces the amount of creasing on fabrics, making them easier to iron.	When this function is set, programmes 6, 7, 8, 11 and Delicate rinse will end with the laundry left to soak (Anti-crease) and the Rinse cycle phase LED will flash.- to conclude the cycle, press the START/RESET button;- to run the draining cycle alone, set the knob to the relative symbol and press the START/RESET button.	All programmes except for 1, 2, 9, 10 and Draining.
^[7082] Rapid	Cuts the duration of the wash cycle by 30%.	This function is incompatible with the SUPER WASH function.	1, 2, 3, 4,5, 6, 7, 8

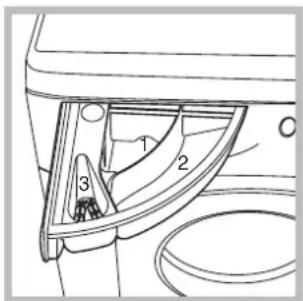

Detergent dispenser

Good washing results also depend on the correct dose of detergent: adding too much detergent won't necessarily make for a more efficient wash, and may in fact cause build up on the interior of your appliance and even pollute the environment.

Open up the detergent dispenser and pour in the detergent and fabric softener, as follows.

compartment 1: Detergent for pre-wash (powder)

compartment 2: Detergent for the wash cycle (powder or liquid)

Liquid detergent should only be poured in immediately prior to the wash cycle start.

compartment 3: Additives (fabric softeners, etc.)

The fabric softener should not overflow from the grid.

! Do not use hand wash detergent because it may form too much foam.

Preparing your laundry

• Divide your laundry according to:
• the type of fabric/the symbol on the label.
• the colours: separate coloured garments from whites.
• Empty all pockets and check for loose buttons.
• Do not exceed the weight limits stated below, which refer to the weight when dry:
  Sturdy fabrics: max 4,5 kg
  Synthetic fabrics: max 2.5 kg
  Delicate fabrics: max 2 kg
  Wool: max 1 kg

How much does your laundry weigh?

1 sheet 400-500 g
1 pillow case 150-200 g
1 tablecloth 400-500 g
1 bathrobe 900-1,200 g
1 towel 150-250 g

Special items

Curtains: fold curtains and place them in a pillow case or mesh bag. Wash them separately without exceeding half the appliance load. Use programme 11 which excludes the spin cycle automatically.

Quilted coats and windbreakers: if they are padded with goose or duck down, they can be machine-washed. Turn the garments inside out and load a maximum of 2-3 kg, repeating the rinse cycle once or twice and using the delicate spin cycle.

Trainers: remove any mud. They can be washed together with jeans and other tough garments, but not with whites.

Wool: for best results, use a specific detergent, taking care not to exceed a load of 1 kg.

Woolmark Platinum Care

As gentle as a hand wash.

Ariston sets a new standard of superior performance that has been endorsed by

The Woolmark Company with the prestigious Woolmark Platinum Care brand. Look for the Woolmark Platinum Care logo on the washing machine to ensure you can safely and effectively wash wool garments labelled as "hand wash" (M.0303):

Set programme 10 for all "Hand wash" garments, using the appropriate detergent.

! The washing machine was designed and built in compliance with the applicable international safety regulations. The following information is provided for your safety and should consequently be read carefully.

General safety

• This appliance has been designed for non-professional, household use and its functions must not be changed.
• This washing machine should only be used by adults and in accordance with the instructions provided in this manual.
• Never touch the washing machine when barefoot or with wet or damp hands or feet.
• Do not pull on the power supply cable to unplug the appliance from the electricity socket. Pull the plug out yourself.
• Do not open the detergent dispenser while the appliance is in operation.
• Do not touch the drain water as it could reach very high temperatures.
• Never force the washing machine door: this could damage the safety lock mechanism designed to prevent any accidental openings.
• In the event of a malfunction, do not under any circumstances touch internal parts in order to attempt repairs.
  • Always keep children well away from the appliance while in operation.
• The appliance door tends to get quite hot during the wash cycle.
• Should it have to be moved, proceed with the help of two or three people and handle it with the utmost care. Never try to do this alone, because the appliance is very heavy.
• Before loading your laundry into the washing machine, make sure the drum is empty.

Disposal

• Disposing of the packaging material: observe local regulations, so the packaging can be re-used.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment, requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce

the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Saving energy and respecting the environment

Environmentally-friendly technology

If you only see a little water through your appliance door, this is because thanks to the latest Ariston technology, your washing machine only needs less than half the amount of water to get the best results: an objective reached to respect the environment.

Saving on detergent, water, energy and time

• To avoid wasting resources, the washing machine should be used with a full load. A full load instead of two half loads allows you to save up to 50% on energy.
• The pre-wash cycle is only necessary on extremely soiled garments. Avoiding it will save on detergent, time, water and between 5 and 15% energy.
• Treating stains with a stain remover or leaving them to soak before washing will cut down the need to wash them at high temperatures. A programme at 60°C instead of 90°C or one at 40°C instead of 60°C will save up to 50% on energy.
• Use the correct quantity of detergent depending on the water hardness, how soiled the garments are and the amount of laundry you have, to avoid wastage and to protect the environment: despite being biodegradable, detergents do contain ingredients that alter the natural balance of the environment. In addition, avoid using fabric softener as much as possible.
• If you use your washing machine from late in the afternoon until the early hours of the morning, you will help reduce the electricity board's peak load. The Delay Timer option (see page 7) helps to organise your wash cycles accordingly.
• If your laundry has to be dried in a tumble dryer, select a high spin speed. Having the least water possible in your laundry will save you time and energy in the drying process.

Cutting off the water or electricity supply

• Turn off the water tap after every wash. This will limit the wear of your appliance's water system and also prevent leaks.
• Unplug your appliance when cleaning it and during all maintenance operations.

Cleaning your appliance

The exterior and rubber parts of your appliance can be cleaned with a soft cloth soaked in lukewarm soapy water. Do not use solvents or abrasives.

Cleaning the detergent dispenser

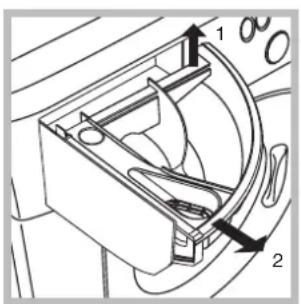

Remove the dispenser by raising it and pulling it out (see figure). Wash it under running water; this operation should be repeated frequently.

Caring for your appliance door and drum

- Always leave the appliance door ajar to prevent unpleasant odours from forming.

Cleaning the pump

The washing machine is fitted with a self-cleaning pump that does not require any maintenance. Sometimes, small items (such as coins or buttons) may fall into the pre-chamber that protects the pump, situated in the lower part of the same.

! Make sure the wash cycle has ended and unplug the appliance.

To access the pre-chamber:

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

1. using a screwdriver, remove the cover panel on the lower front of the washing machine (see figure);

Pure technical line drawing of a mechanical component with no text or symbols

1. unscrew the lid rotating it anti-clockwise (see figure): a little water may trickle out. This is perfectly normal;

2. clean the interior thoroughly;

3. screw the lid back on;
4. reposition the panel, making sure the hooks are securely in place before you push it onto the appliance.

Checking the water inlet hose

Check the water inlet hose at least once a year. If you see any cracks, replace it immediately: during the wash cycles, water pressure is very strong and a cracked hose could easily split open.

! Never use hoses that have already been used.

Your washing machine could fail to work. Before calling for Assistance (see page 12), make sure the problem can't easily be solved by consulting the following list.

Problem

The washing machine won't start.

The wash cycle won't start.

The washing machine fails to load water.

The washing machine continuously loads and unloads water.

The washing machine does not drain or spin.

The washing machine vibrates too much during the spin cycle.

The washing machine leaks.

The ON-OFF/DOOR LOCK Led flashes rapidly at the same time as at least one other LED:

There is too much foam.

Possible causes/Solution:

• The appliance is not plugged into the socket, or not enough to make contact.
  • There has been a power failure.
• The appliance door is not shut properly.
• The ⏻ button has not been pressed.
• The START/RESET button has not been pressed.
• The water tap is not turned on.
• A delayed start has been set (using the Delay Timer, see page 7).
• The water inlet hose is not connected to the tap.
• The hose is bent.
• The water tap is not turned on.
  • There is a water shortage.
• The water pressure is insufficient.
• The START/RESET button has not been pressed.

- The drain hose is not fitted between 65 and 100cm from the floor (see page 3).

- The free end of the hose is underwater (see page 3).

- The wall drainage system doesn't have a breather pipe. If the problem persists even after these checks, turn off the water tap, switch the appliance off and call for Assistance. If the dwelling is on one of the upper floors of a building, there may be drain trap problems causing the washing machine to load and unload water continuously. In order to avoid such an inconvenience, special anti-drain trap valves are available in shops.

- The programme does not foresee the draining: some programmes require enabling the draining manually (see page 6).

- The Easy iron option is enabled: to complete the programme, press the START/RESET button (see page 7).

- The drain hose is bent (see page 3).

- The drain duct is clogged.

- The drum was not unblocked correctly during installation (see page 2).

- The washing machine is not level (see page 2).

- The washing machine is closed in between furniture cabinets and the wall (see page 2).

- The water inlet hose is not screwed on correctly (see page 2).

- The detergent dispenser is obstructed (to clean it, see page 10).

- The drain hose is not secured properly (see page 3).

- Call for Assistance because this means there is an abnormality.

- The detergent is not suitable for machine washing (it should bear the definition "for washing machines" or "hand and machine wash", or the like).

- You used too much detergent.

Before calling for Assistance:

- Check whether you can solve the problem on your own (see page 11);

- Restart the programme to check whether the problem has been solved;

- If this is not the case, contact an authorised Technical Service Centre on the telephone number provided on the guarantee certificate.

!Always request the assistance of authorised servicemen.

Notify the operator of:

• the type of problem;

• the appliance model (Mod.);

• the serial number (S/N).

This information can be found on the data plate situated on the rear of the washing machine.

Český

Obsah

Instalace, 14-15

Technical line drawing of a mechanical or electrical component with concentric circular and radial features (no text or symbols)

Line drawing of a car door corner with a spiral-patterned button and directional arrow (no text or symbols)

Diagram of a mechanical device with a valve and handle, showing rotational motion (no text or symbols)

Diagram of a pipe connection with a hanging device (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Woolmark Platinum Care (Caşmir Platinum), 32

Technical line drawing of a mechanical or electrical component with concentric circular and radial features (no text or symbols)

Line drawing of a car door corner with a circular vent or scroll detail and an arrow indicating rotation (no text or symbols)

Diagram of a mechanical valve or pump assembly with directional arrow (no text or symbols)

Diagram of a pipe connection with a hanging device (no text or symbols)

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Woolmark Platinum Care (Kasmir Platinum), 44

Technical diagram of a mechanical or electrical component with concentric circular and oval shapes, no visible text or symbols.

Line drawing of a car door corner with a scroll wheel and directional arrow (no text or symbols)

Diagram of a mechanical valve or pump assembly with directional arrow (no text or symbols)

Diagram of a pipe connection with a hanging device (no text or symbols)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Woolmark Platinum Care (Kašmir Platinum), 56

Opatrenia a rady, 57

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a car door corner with a circular vent and directional arrow (no text or symbols)

Diagram of a mechanical valve or pump mechanism with directional arrow (no text or symbols)

Diagram of a pipe connection with a bulb and handle, no text or symbols present

Simple line drawing of a screwdriver inserted into a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Line drawing of a car door corner with a spiral-patterned opening and directional arrow (no text or symbols)

Technical diagram of a mechanical component with labeled section A (no text or symbols beyond label)

Diagram of a mechanical valve mechanism with rotation arrow (no text or symbols)

Diagram of a pipe connection with a connector, showing fluid flow and support structure (no text or labels)

Simple line drawing of a tool interacting with a bracket (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols
