MCR-50MK2 - DJ Mixer DENVER - Free user manual and instructions

Product Type	DJ Mixer
Brand	Denver
Model	MCR-50MK2
Dimensions (approx.)	180 x 150 x 50 mm
Weight (approx.)	0.5 kg
Power Supply	USB 5V or DC adapter (not included)
Number of Channels	2
Inputs	2x RCA line input, 1x 3.5mm mic input
Outputs	1x RCA line output, 1x 3.5mm headphone output
Equalization	2-band EQ per channel (bass, treble)
Crossfader	Yes, with curve adjust
Main Functions	Channel volume, cue, master volume, gain control
Compatibility	Works with DJ software and standalone devices
Maintenance & Cleaning	Clean with a soft dry cloth; keep away from moisture
Safety Instructions	Use only with supplied cables; avoid exposure to water
Spare Parts and Repairability	Contact Denver customer support for service
Manual Language	English (PDF available for download)

Frequently Asked Questions - MCR-50MK2 DENVER

How do I power the Denver MCR-50MK2 DJ mixer?

The mixer can be powered via USB (5V) or using an optional DC adapter. Connect the USB cable to a computer or USB power source.

Can I connect a microphone to this mixer?

Yes, the mixer has a 3.5mm microphone input. You can connect a dynamic or electret mic with a compatible plug.

How do I adjust the sound levels?

Each channel has volume and gain knobs. Use the master volume to control overall output. The crossfader blends between channels.

What software can I use with this mixer?

It works with most DJ software like Virtual DJ, Serato Lite, or Traktor. Connect via USB or audio cables as needed.

Does it have a built-in sound card?

The mixer does not include a USB audio interface. You need to connect line-level sources separately or use an external sound card.

How do I clean the mixer?

Use a soft, dry cloth to wipe the surface. Avoid liquid cleaners. Keep the mixer away from dust and moisture.

What should I do if there is no sound output?

Check power, cable connections, and volume levels. Ensure the master volume is up and the correct input is selected.

Can I use the mixer without a computer?

Yes, you can connect turntables or media players via RCA inputs. The mixer works as a standalone unit for analog sources.

How do I download the user manual?

Visit the notice-facile.com page for MCR-50MK2 and click the download button. The manual is in PDF format.

Where can I find spare parts or get repairs?

Contact Denver customer service for support. Spare parts may be available through authorized service centers.

USER MANUAL MCR-50MK2 DENVER

Vintage wooden radio with black textured back panel and digital display, no visible text or symbols on the device itself.

USER MANUAL

MCR-50MK2

WWW.DENVER-ELECTRONICS.COM

Please read this user manual carefully before start using the product.

CAUTION

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The LIGHTNING FLASH with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The exclamation point within an equilateral triangle is in-tended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read, keep and follow all these instructions in this manual.
2. Clean only with dry cloth.
3. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus(including amplifiers) that produce heat.
5. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and point where they exit from the apparatus.
6. Unplug this apparatus during lightning storms or when unused for long periods of time.
7. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
8. This appliance shall not be exposed to dripping or splashing water and no object filled with liquids such as vases shall be placed on the apparatus.
9. Do not overload wall outlet.
10. Operate controls and buttons as described in the manual.
11. Store your CDs, cassettes in a cool area to avoid damage from heat.
12. When moving the set, be sure to first disconnect the power cord.

CLEANING THE CABINET

If the wooden cabinet becomes dusty please wipe it with a soft, non-abrasive dust cloth. Also don't use water or spray cleaners as this can damage the cabinet and the plastic/metal parts of the unit.

TECHNICAL SPECIFICATION

• Turntable speed: 33/45/78 RPM (Disc size 17.5/25/30cm)
• CD can play CD/CD-R/CD-RW/MP3
- USB can play MP3
• Cassette: C60 & C90 (C120 cassette is not recommended)
• Output power: 2x2.5W

PREPARATION FOR USE

• Carefully remove the unit from the carton and remove all packing material from the unit.
• Unwind the AC power cord and extend it to its full length.
• Unwind the FM Antenna wire and extend to it to its full length.

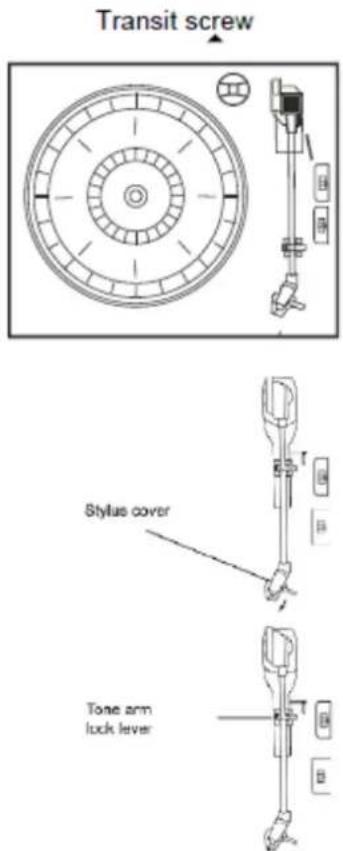

• Raise the lid to expose the turntable. The turntable has been secured for shipment with a transit screw. Use a coin or a screwdriver to turn the transit screw clockwise. This will allow the turntable to "float".

- Remove the opaque white plastic stylus cover from the phonograph stylus by sliding it in the direction of the arrow.

- Please pay attention to the stylus during operation because stylus damage is not covered by the warranty.

- Remove the twist-tie that was used to secure the tone arm during shipment.

- Release the tone arm lock lever.

- Connect the power plug to your AC 220V, 50HZ outlet.

IMPORTANT: RAISING AN LOWERING THE TURNTABLE LID

To open the lid. Raise it as far as it can go until the lid support bracket locks in the position.

To close the lid. Pull forward the lid support bracket to release and then gently lower the lid.

TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE THE LID CLOSED. ALWAYS RAISE THE LID TO RELEASE THE LID SUPPORT BRACKET.

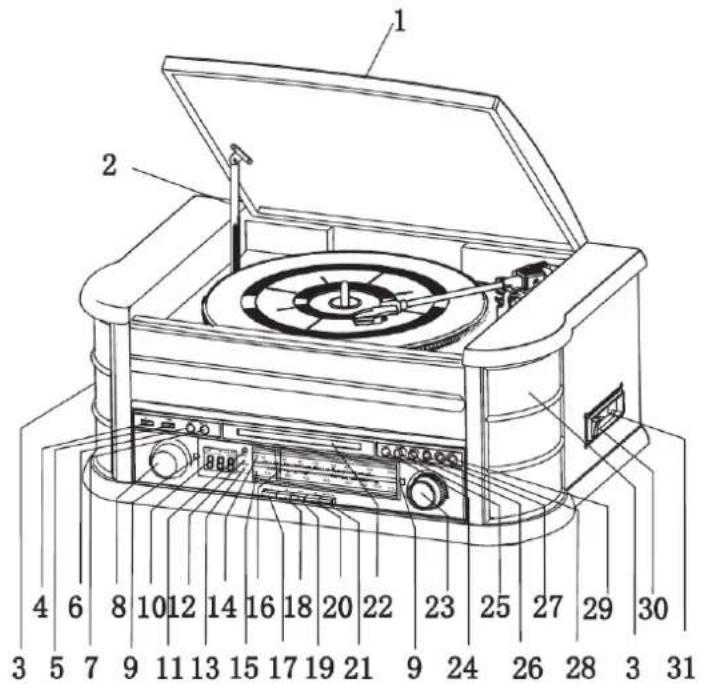

LOCATIONS OF CONTROLS AND INDICATORS

1. TURNTABLE LID

2. TURNTABLE LID SUPPORT BRACKET

3. SPEAKERS

4. USB

5. POWER BUTTON

6. RECORD BUTTON

7. FUNCTION BUTTON

8. VOLUME CONTROL

9. TUNER BACKLIGHT

10. LCD DISPLAY

11. REMOTE CONTROL SENSOR

12. POWER INDICATOR

13. FM ST./REC INDICATOR

14. FM DIAL SCALE

15. AM DIAL SCALE

16. TUNING POINTER

17. AM BUTTON (MW)

18. FM BUTON (UKW)

19. CD/USB BUTTON

20. TAPE BUTTON

21. PHONO/AUX IN BUTTON

22. CD DRAWER

23. TUNING CONTROL

24. PLAY/PAUSE BUTTON ( )

25. STOP BUTTON ( )

26. DN/F.R BUTTON ( )

27. UP/F.F BUTTON ( )

28. PLAY MODE BUTTON ( )

29. OP/CL BUTTON ( ) (CD OPEN/CLOSE BUTTON)

30. CASSETTE EJ/F.F BUTTON (EJECT/FAST FORWARD)

31. CASSETTE PLAYER SLOT

32. TRACK+10

33. TRACK-10

34. DELETE

35. REPEAT

36. DN/FB (Skip Reverse)

37. UP/FF (Skip Forward)

38. RANDOM

39. PROGRAM

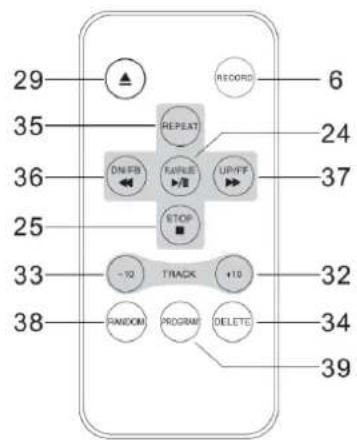

Note 1: All buttons on the remote control have the same function as the buttons on the unit. This remote control is just used for CD/MP3 and USB mode.

Note 2: Long pressing PLAY/PAUSE on remote control for 2 seconds will change between CD and USB.

Note 3: Long pressing DELETE on remote control for 2 seconds will delete file in USB mode.

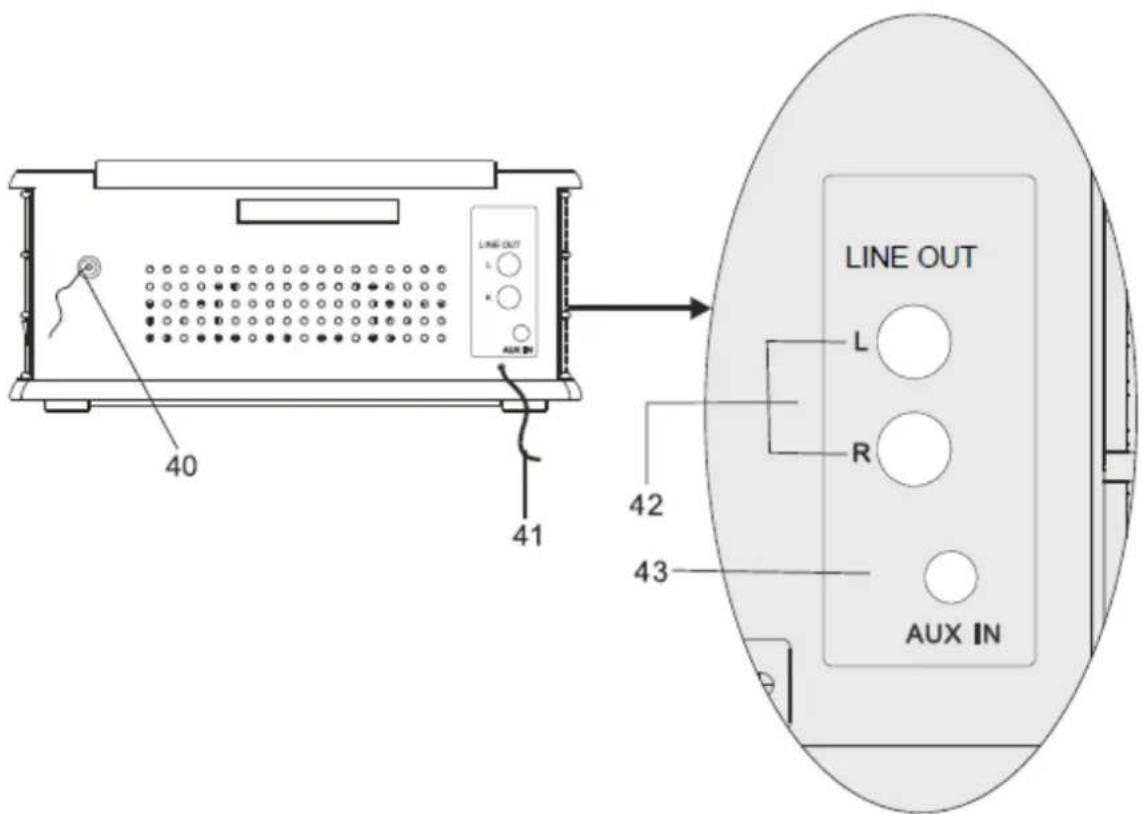

1. FM antenna
2. AC power cord
3. LINE OUT (L/R)
4. AUX IN

INFORMATION

The AM antenna is inside the cabinet. IF AM reception is unsatisfactory try repositioning the cabinet slightly until the internal antenna is picking up the strongest signal.

The FM wire is located back of the cabinet. If necessary adjust the position and direction of this antenna until you find the position that provides the best reception.

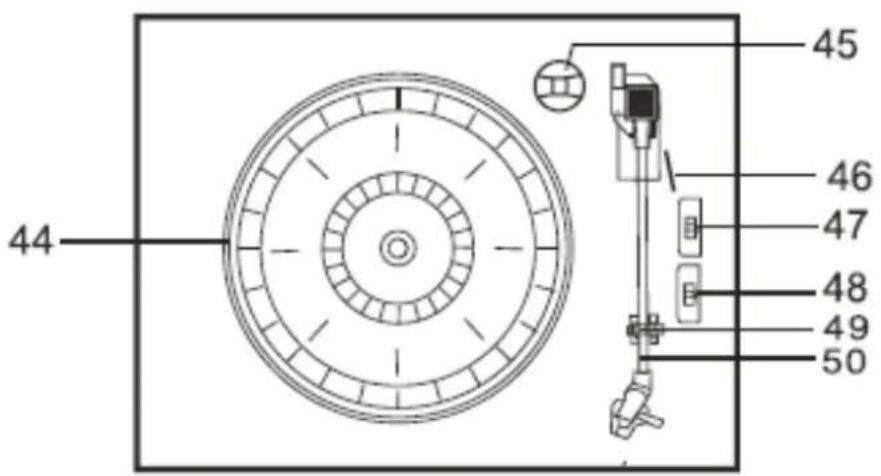

1. Turntable
2. 45 rpm adapter
3. Cue lever
4. Auto Stop control
5. Speed selctor (33/45/78 rpm)
6. Tone arm lock
7. Tone arm with stylus

POWER ON/OFF

1. Press POWER to turn the system on. The power indicator lights up.
2. Press the function selector buttons (AM/FM/CD/USB/TAPE/PHONO/AUX IN) to select the desired function.
3. Start to adjust the volume by using the volume control button.
4. When finished listening press POWER again to turn off the system. The power indicator goes off.

Please note that this unit will turn to standby mode if there is no operation on the unit after 15 mins.

Please press POWER button 2 times if you want to restart the unit.

RADIO OPERATION

1. Press POWER to turn the system on.
2. Make sure you connected the FM antenna cable on the rear side of the unit.

3. Press MW button for AM or UKW button for FM radio.

4. Rotate the TUNING control to tune the desired radio station, the FM ST/REC indicator will light.

CD OPERATION

1. Press the CD/USB button to enter CD mode, the “---” and ‘DISC’ icon will be shown on the screen. The unit can play CD, CD-R and CD-RW.

1. Press the OP/CL button top open the CD drawer.

2. Place your disc in the CD drawer with the label side facing up.

3. Press the OP/CL button again to close the CD drawer. Playback will automatically start from the first track.

4. MP3 icon will be shown if MP3 file is detected in the disc.

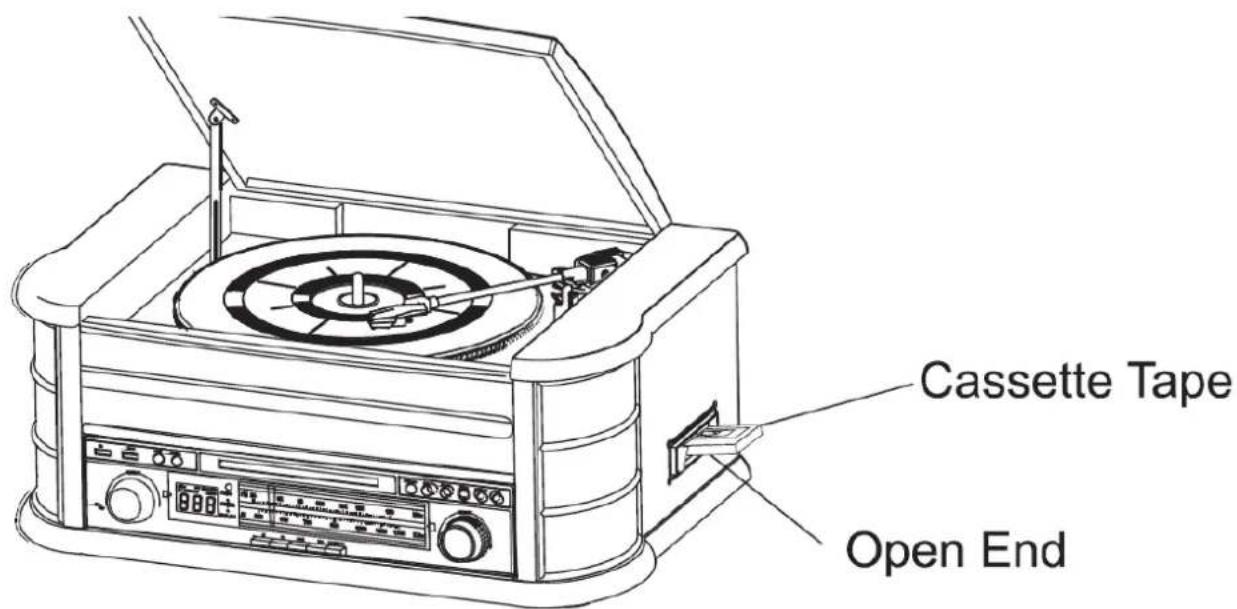

PLAYING CASSETTE

Note: Before inserting the tape in the player be sure that there is no excess slack in the cassette that could jam the mechanism.

1. Press POWER to turn the system on.

2. Press TAPE button to enter TAPE mode.

3. Insert your cassette into the slot loacated on the right side of the cabinet, as shown in the illustration, with the side you wish to play facing up and the open end on the right side.

1. Cassette playback begins as soon as the tape is inserted. Adjust the VOLUME control to the desired level.

1. To advance the tape rapidly, depress the button approximately half way. The tape will move forward rapidly as long as the button is depressed. Normal playback will resume when the button is released.

1. When the tape ends, the player stops automatically. Depress the button completely to remove the tape from the player. You may depress button to stop playing the tape at any time.

2. Press POWER again to turn the system off.

PLAYING VINYLS RECORDS

The system includes a full-size, 3 speed, belt-drive turntable. You can play 33, 45 and 78rpm records.

1. Press POWER to turn the system on.
2. Press the PHONO button to enter the PHONO mode.

3. Make sure you have removed the stylus cover from the stylus and have released the tone arm lock that secured the tone arm to the tone arm rest.

4. Set the turntable speed selector to appropriate speed 33, 45 or 78rpm. If you are playing 45 rpm singles, place the 45rpm adapter on the centre spindle.

5. Place your record on the centre spindle.
6. Raise the cue lever to lift the tone arm of its rest. Move the tone arm to the edge of the record. The turntable starts automatically. Use the cue lever to gently lower the tone arm onto the record.
7. Adjust the volume control to the desired level.
8. Press POWER again to turn the system off. The POWER indicator goes OFF.

Note: Do not turn or stop the turntable manually. Moving or jarring the turntable without securing the tone arm clamp could result in damage to the tone arm.

AUX IN OPERATION

Conenct the audio system into the AUX IN jack on the rear panel, Press the PHONO/AUX IN button. Start playing from the connected device.

USB OPERATION

1. Press the CD/USB button first and the FUNCTION button to enter USB mode. The '---' and USB icon will be shown.
2. Insert a USB flash device into the USB socket.
3. PLAY/PAUSE, DN/UP and stop functions are the same as CD functions.

Note: You may press the FUNCTION on the panel or long press PLAY/PAUSE button on the remote control for 2 seconds to change the playing mode between CD and USB.

PLAYING IN MP3 MODE (CD/USB)

1. Press PLAY/PAUSE button to start or pause playback selected track.
2. While playing the song, the song number and folder number of the selected track will be shown in the display.
3. You can stop the playback at any time by pressing the STOP button.

TRACK SKIP AND HIGH SPEED TRACK SEARCH IN CD/USB MODE

During CD/USB playback press UP/F.F ( ) or DN/F.R ( ) button on the unit front panel or on the remote control repeatedly to change track. To rapidly search forward or backwards within a track press and hold UP/F.F ( ) or DN/F.R ( ) button. To skip 10 tracks back or forth then press TRACK-10 or TRACK+10 on the remote control.

USB RECORDING

1. CD recording

Insert USB flash drive into the USB socket. Then press CD/USB button. Place CD into the CD drawer and play the track which will be recorded. Press RECORD button twice to start recording. If all CD is played, Then all tracks will be recorded.

NOTE: Recording will fail if pressing STOP button during recording

2. MP3 DISC recording

Insert USB flash drive into the USB socket. Then press CD/USB button. Place CD with MP3 files into the CD drawer and play the MP3 track which will be recorded. Press RECORD button twice to start recording. If all MP3 files is played, Then all tracks will be recorded.

NOTE: Recording will fail if pressing STOP button during recording

3. Cassette recording

Insert USB flash drive into the USB socket. Then press TAPE button. Place the cassette into the socket. Play cassette. Press RECORD button twice to start recording. Press STOP button to stop recording.

4. Vinyl recording

Insert USB flash drive into the USB socket. Then press PHONO/AUX IN button. Play the vinyl and press RECORD button twice to start recording. Press STOP button to stop recording.

5. AUX IN recording

Insert USB flash drive into the USB socket. Connect the external audio device into the AUX jack on the rear panel. Then press PHONO/AUX IN button and play audio and press RECORD button twice to start recording.

DELETE TRACKS FROM USB DISC

Press CD/USB button on the front panel or long press PLAY/PAUSE on remote control to select USB mode. Select the track and press delete for 2 seconds and the track is deleted.
