Product Type	Freestanding Dishwasher
Model	DYM 896T WIFI
Brand	Hoover
Energy Class	D (on a scale of A to G)
Number of Place Settings	14
Dimensions (H x W x D)	85 cm x 60 cm x 62 cm
Weight	45 kg
Noise Level	46 dB(A)
Water Consumption per Cycle	9.5 L
Annual Energy Consumption	294 kWh
Number of Programs	8
Programs	Eco 50°C, Intensive 70°C, Normal 60°C, Quick 30 min, Glass, Pre-wash, Auto, 1h Wash
Drying System	Condensation drying
Wi-Fi Connectivity	Yes (via hOn app)
Smart features	Remote start, cycle status, notifications
Water Safety System	AquaControl (anti-leak)
Child Lock	Yes
Self-cleaning Filter	Yes (auto-clean)
Salt and Rinse Aid Indicator	Yes
Delay Start	Up to 24 hours
Cutlery Basket	3rd cutlery rack
Adjustable Upper Basket	Yes (height adjustable)
Power Consumption (Off-mode)	0.50 W
Voltage / Frequency	220-240 V, 50 Hz

Frequently Asked Questions - DYM 896T WIFI HOOVER

How do I connect my dishwasher to Wi-Fi?

Download the hOn app, create an account, and follow the in-app instructions to pair your dishwasher. Ensure your mobile device is connected to a 2.4 GHz network.

What should I do when the salt indicator lights up?

Open the salt container cap, fill with dishwasher salt (use a funnel), then screw the cap back on. Reset the indicator in the settings if needed.

How often should I clean the filter?

Clean the filter assembly after every few cycles, or at least once a month. Remove coarse food residues under running water and reassemble.

Why is my dishwasher not drying properly?

Ensure you use rinse aid and that the dispenser is filled. Select a program with drying phase. Also check that the heat exchanger is not clogged.

Can I use regular dish soap in the dishwasher?

No, only use dishwasher-specific detergent in powder, gel, or tablet form. Regular dish soap creates excess foam and can damage the machine.

What does error code E15 mean?

Error E15 indicates a water leakage detection. Turn off the water supply, unplug the dishwasher, and check for leaks. If persists, contact service.

How do I adjust the upper basket height?

Pull out the upper basket, press the side levers on the rails, and lift or lower the basket to the desired position. Ensure both sides click into place.

What is the 'Auto' program?

The Auto program automatically detects soil level and adjusts water temperature, duration, and pressure for optimal cleaning and efficiency.

How do I enable child lock?

Press and hold the 'Delay' and 'Program' buttons simultaneously for 3 seconds until the indicator lights up. Repeat to deactivate.

Where can I find spare parts for my dishwasher?

Visit the Hoover spare parts website or contact authorized service centers. Use the model number DYM 896T WIFI to find compatible parts.

USER MANUAL DYM 896T WIFI HOOVER

EN User instructions

www.wizardservice.candy-hoover.com.

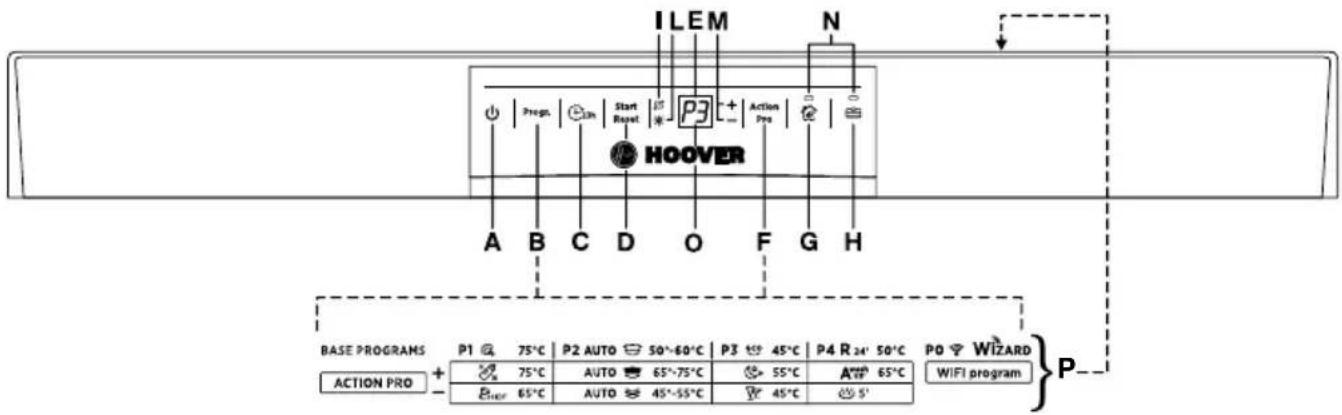

DESCRIPTION OF THE CONTROL PANEL

A "ON/OFF" button
B "PROGRAMME SELECTION" button
C "DELAY START" button
D "START"/"RESET" button (start/cancelling programme)
E DIGITAL DISPLAY
F "ACTION PRO" button
G "SUPER ECO" option button

H "ALL IN 1" option button
I "SALT EMPTY" light
L "RINSE AID EMPTY" light
M "ACTION PRO" lights
N "OPTION SELECTION" lights
O Wi-Fi light ( WiZARD )
P Programme guide

DIMENSIONS
	With working top Without working top
Width x Height x Depth (cm) 60 x 85 x 60		59,8 x 82 x 57,3
Depth with door open (cm) 120		117
TECHNICAL DATA
EN 50242 place load		16
Capacity with pans and dishes		9 persons
Water supply pressure (MPa)		Min. 0,08 - Max. 0,8
Fuse / Power input / Supply voltage		See rating plate
CONSUMPTION (main programmes)*
Programme Energy (kWh) Water (L)
INTENSIVE	2,07	21
UNIVERSAL	1,46	15
ECO	0,95	10
RAPID 24'	0,59	9
Power consumption of the off-mode and of the left-on mode: 0,45 W / 0,45 W
*Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage).

PROGRAMME SELECTION AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide)

"ACTION PRO" button

Action Pro

This button allows you to modify the wash intensity, according to how dirty your dishes are, by modifying the wash time and temperature.

Press the button to increase the intensity of wash cycle (+ indicator light) or to reduce the intensity of wash, this also allows you to decrease the wash length time (- indicator light).

The combination of the button with the 4 main wash programmes enables to have 8 additional wash cycles (achieving a total of 12 programmes of washing).

IMPORTANT

When the dishwasher is switched on, the setting last used will be indicated.

Programme settings

■ Open the door and place the dirty dishes inside the appliance.

■ Press the "ON/OFF" button ⏻ . The display will show two lines.

■ Choose a programme by pressing the "PROGRAMME SELECTION" button.

■ If you wish, press the "ACTION PRO" button.

■ If you wish to select an option, press the corresponding button (the indicator light will turn on).

■ Press the "START" button. The length of the program will be shown on the display alternating hours with minutes [l.e: 1 h (1 hour) / 25 (25 minutes)].

■ When the door is shut, after an audible signal has sounded, the programme will start automatically. The display will show the time remaining to the end of the cycle.

"AUTOMATIC" programmes

The dishwasher is equipped with a dirt sensor, able to analyse water murkiness during all "AUTOMATIC" programme phases (see programme list); thanks to this sensor the washing cycle parameters are automatically adapted to the real quantity of dirt on dishes. Thus excellent washing results are guaranteed while optimising water and energy consumption.

"IMPULSE" programmes

The “IMPULSE” programmes use an impulse washing technology, which reduces consumption, noise and increases performances.

IMPORTANT

The “intermittent” working of the washing pump MUST NOT BE considered a malfunction, it is a characteristic of the impulse washing so must be considered a normal function of the programme.

Programme interruption

Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically and the display will flash the remaining time before the end of the cycle. Close the door, without pressing any buttons. The cycle will start from where it left off.

IMPORTANT

A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off.

WARNING!

If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.

Changing a running programme

Proceed as follows to change or cancel a running program:

■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound.
■ The running programme will be cancelled. The display will show two lines.
■ At this point a new programme can be set.

WARNING!

Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser.

Programme operations

Whilst a programme is running, the display shows the time remaining to the end of the cycle, which is automatically updated.

If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

Programme end

A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended.

The display and all the indicator lights will switch off.

Option buttons

"SUPER ECO" button

This button provides an energy and time saving of 25% on average (according to the select cycle) reducing the wash water temperature and the drying time during the final rinse.

This programme is recommended for light soil washes, and for slightly wet dishes that are not fully dry, & improved drying results. We advise you to leave the door of the Dishwasher half-open at the end of the cycle, to allow for a natural circulation of air inside the dishwasher.

"ALL IN 1" button

This option optimises the use of "ALL in 1" ("3 in 1"/"4 in 1"/"5 in 1", ecc.) combined detergents.

By pressing this button, the selected washing programme is modified to get best performance from combined detergents (furthermore, the salt and rinse aid shortage lights are de-activated).

WARNING!

Once selected, this option keeps being on (light on) also for next washing cycles and it can be de-activate (light off) only by pressing the button once again.

IMPORTANT

This option is recommended when using the RAPID 24' program, the duration of which will be extended for about 15 minutes, allowing the detergent tablets to achieve a better performance.

"DELAY START" button

Dishwasher start time can be set with this button, delaying start from 1 to 23 hours.

Proceed as follows to set a delayed start:

■ Press the "DELAY START" button ("00" will appear on the display).
■ Press the button again to increase the delay in hours (each time the button is pressed the delay is increased by 1 hour to a maximum of 23).
■ To start the countdown, press the "START" button.

The display will show the time remaining to the begin of the programme.

At the end of the countdown, the programme will automatically start and the length of the selected cycle will be shown in the display.

Proceed as follows to cancel a delayed start:

■ Hold the "RESET" button down for at least 5 seconds. "00" will appear on the display and some audible signals will sound.
■ The delayed start and the selected programme will be cancelled. The display will show two lines.
■ At this point, a new programme and option buttons must be set to start a new programme as indicated in the "PROGRAMME SETTINGS" section.

Alarm mute for the PROGRAMME END

The alarm for the programme end may be muted as follows:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 15 seconds (during this time 2 audible signals will sound).
3. Release the button when the second audible signal sounds ("b1" will appear on the display to indicate that the alarm is on).
4. Press the same button again ("b0" will appear on the display to indicate that the alarm is off).
5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To turn the alarm on again, follow the same procedure.

Wizard

WIZARD

For details on Wi-Fi settings, please refer to the appropriate section of this user manual.

Memorization of the last programme used

The last programme used can be memorized by following the below:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 30 seconds (during this time, 3 audible signals will sound).

3. Release the button when the THIRD audible signal sounds ("A0" will appear on the display to indicate that the memorization is off).

4. Press the same button again ("A1" will appear on the display to indicate that the memorization is on).

5. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

To disable the memorization, follow the same procedure.

IMPORTANT

This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur.

WARNING!

To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.

The dishwasher is able to signal a series of faults in the display.

AUTOMATIC FAULT SIGNALS

FAULTS CAUSE SOLUTION
E2 appears on the display and the alarm sounds.	No water (inlet hose closed).	Turn off the dishwasher, open the inlet hose and reset the cycle.
E3 appears on the display and the alarm sounds.	The machine cannot drain water.	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E4 appears on the display and the alarm sounds.	Water leak	Check if the drain tube is bent or if the siphon or filters are clogged.If the problem persists, contact Customer Service.
E5,E6,E7,Ef or EL appears on the display and the alarm sounds.	Electronic control fault.	Contact Customer Service.
E8 or Ei appear on the display and the alarm sounds.	The water heating element is not working correctly or the filter plate is clogged.	Clean the filter plate.If the problem persists, contact Customer Service.

PROGRAMME GUIDE

Wash with prewash

For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine.

◆/ (; ≈"AUTOMATIC" PROGRAMMES ARE OPTIMISED THANKS TO THE DIRT SENSOR THAT ADAPTS WASHING PARAMETERS TO DISH DIRT LEVELS.

PO = is the program which allows you to access the WIZARD functions

P1ACTION PRO +		Hygiene+75°C	An antibacterial cycle, intended for washing and sterilising dishes (even heavily stained ones) babies' bottles etc.
P1BASE PROGRAMS		STEAM75°C	Cycle with alternated action of water jets and steam. Effective in softening and removing dried up soil and bacteria, with no need to pre-wash pots and dishes.
P1ACTION PRO -		Chef65°C	Intended for rapid washing of very dirty dishes.

P2ACTION PRO +	AUTO	Family 65 - 75°C	◆ Intended for everyday dishwashing. Two final rinses ensure a high level of hygiene and cleanliness.
P2BASE PROGRAMS	AUTO	UNIVERSAL 50 - 60°C	◆ Once a day - for normal soiled pans and any other items that have been left all day for washing.
P2ACTION PRO -		Daily 45 - 55°C	◆ Fast cycle, for “normally” dirty dishes - intended for frequent washes and normal loads.

P3ACTION PRO +		Night 55°C	Quietest washing cycle. Ideal for functioning by night and for taking advantage of reduced energy fares.
P3BASE PROGRAMS		ECO 45°C	Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware).Programme standardised to EN 50242.
P3ACTION PRO -		Cristal 45°C	Suitable for delicate crockery and glassware. Also for less soiled items excluding pans.

P3ACTION PRO +

Awash 59'

A Wash 59'65°C

Suitable for heavily soiled items that are to be washed straight after a meal (Max 8 place load).

P3BASE PROGRAMS

R 24'

RAPID 24'50°C

Quick wash for dishes which are to be washed immediately after the meal. Wash load of 4/6 persons.

P3ACTION PRO -

Pre-wash

Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load.

Check list

Programme contents

Avarage duration in minutes

Special function buttons available

Detergent for soaking (Prewash)

Detergent for washing

Clean filter

Check rinse aid dispenser

Check salt container

Hot pre-wash

Cold pre-wash

Main wash

First cold rinse

Second cold rinse

Hot rinse with rinse aid

* With cold water (15°C) -Tolerance ± 10%-

"DELAY START" button

"SUPER ECO" button

"ALL IN 1" button

●

●

●●

○

●

75°C

○

○

○

140

YES

YES

YES

●

●

●●

○

●

75°C

○

○

○

130

YES

YES

YES

●

●

●●

○

●

65°C

○

○

85

YES

YES

YES

●

●

●●

○

●

65°C/75°C

○

(○)

○

115/125

YES

YES

YES

●

●●

(○)

(50°C/60°C

○

○

100/120

YES

YES

YES

●

●●

(○)

45°C/55°C

○

○

70/80

YES

YES

YES

●

●●

○

55°C

○

○

240

YES

YES

YES

●

●

●●

○

45°C

○

170

YES

YES

YES

●

●●

○

45°C

○

○

85

YES

YES

YES

●

●

●●

○

●

65°C

○

59

YES

YES

YES

●

●●

●

50°C

○

24

YES

N/A

YES

●

○

5

YES

N/A

AQUASTOP-SYSTEM

The water-stop device protects against water damages caused by leaks on the fill hose which could develop due to natural ageing of the hose.

In the water-stop system the leaking water fills the corrugated hose and activates a stop valve which cuts off the water supply to the machine.

This fault is shown by a red sector on the window Ⓐ.

Would this occur, please refer to your Service Agent.

If the hose is not long enough for correct connection, it must be replaced with a longer one. The hose can be obtained from your Service Agent.

B Safety antitwist device (press and twist to remove the washer).

WATER SOFTENER UNIT

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company.

Regulating the water softener

The water softener can treat water with a hardness level of up to 90° fH (French grading) or 50° dH (German grading) through 8 settings.

The settings are listed in the table below:

Level	Water hardness		Use of regenerating salt	Water softener setting
	°FH (French)	°dH (German)
0	0-5	0-3	NO	d0
1	6-10	4-6	YES	d1
2	11-20	7-11	YES	d2
3	21-30	12-16	YES	d3
*4	31-40	17-22	YES	d4
5	41-50	23-27	YES	d5
6	51-60	28-33	YES	d6
7	61-90	34-50	YES	d7

* The softener unit is set in the factory at level 4 (d4) as this satisfies the requirements of the majority of users.

Regulate the setting of your water softener unit according to the degree of hardness of your water as follows:

IMPORTANT

The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).
2. Keep the "PROGRAMME SELECTION" button pressed for at least 5 seconds, UNTIL a brief audible signal sounds. The current water softener setting level will be shown on the display.
3. Press the same button again to select the required water softener level: each time the button is pressed, the setting will increase by one level. When you have reached "d7", the display will go back to "d0".
4. Turn off the dishwasher by pressing the "ON/OFF" button to confirm the new setting.

WARNING!

If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Salt loading indicator

This model is provided with an indicator light on the control panel which will light up when it is necessary to reload the salt container.

IMPORTANT

The appearance of white stains on dishes is generally an important sign that the salt container needs filling.

DISHWASHER ENROLMENT

Terminology and tools

- Wi-Fi SYSTEM:

You can activate the remote control system of the dishwasher via Wi-Fi, this will allow you to control various aspects of the dishwasher's operation. For example, selecting and starting a wash cycle or stopping a wash cycle that's in progress. If the remote control system is disabled, then the app will still allow you to track the progress of a wash cycle and see how much time is left until it completes. However you cannot control any of the dishwasher functions through Wi-Fi.

- REGISTRATION PROCEDURE:

This is the process by which the dishwasher is connected to a wireless router and enables communication with the app.

- ON/OFF BUTTON:

If the dishwasher is switched off (via the "ON/OFF" button or disconnected from the mains supply, then functionality through the remote control system will not be available. To reactivate the Wi-Fi system, restore power to the dishwasher, select the P0 programme and then press the "START/RESET" button.

- RESET:

To restore the Wi-Fi system to factory settings, you need to press two buttons simultaneously until display the message AP. On freestanding models, you should press the "SUPER ECO" and "ALL IN 1" buttons. On built-in models, you should press the "ACTION PRO" "+ " and "-" buttons.

- MODEM SETTING:

To activate the Wi-Fi capabilities of your dishwasher, you will need to link it to your internet router or hub. To establish a wireless connection, you will need to input the router/hub ID and password. The dishwasher will only be compatible with a modem that has the specifications shown in the table below. If it doesn't, then you may not get a Wi-Fi signal.

Wi-Fi uncertified routers may fail to establish the connection.

Parameter	Specifications
Frequency	2,402 ~ 2,480 MHz
Modulation	802.11b compatibility: DSSS (CCK-11, CCK-5.5, DQPSK-2 and DBPSK-1)802.11g: OFDM (default)
Channel intervals	5 MHz
Channels	1-14
Transmission rate (over the air)	1-11 Mbps for 802.11b6-54 Mbps for 802.11g
Receive sensitivity	-83 dBm typical
Output level (Class1)	0 to +12 dBm (software configurable)

FUNCTIONS

The app allows you to manage the dishwasher from either indoors or outdoors.

To comply with relevant standards, the door of the dishwasher needs to be closed to control the appliance remotely. If the door is not closed, then it will not be possible to start a wash cycle, but it is possible to use the app.

Within the app there are several different functions:

- PROGRAMMES/OPTIONS:

Through the menu "Programme Wizard" you can select up to 12 programmes and up to 4 options (depending on the wash cycle that is selected) and save them under "Playlist". The "Rapid Selection" function allows you to quickly access a list of previously selected wash cycles and quickly set the same one again.

- DELAY START:

Through the menu "Time Manager", you can modify the start time of the wash cycle. Furthermore, the application allows you to display the time remaining, keeping you constantly updated on the remaining time until the end of the wash.

- NOTIFICATION:

The app will inform you about the progress of a wash cycle (i.e. washing, rinse, drying phase) and communicate any problems that arise during the course of a cycle (e.g. problems with water supply). At the end of the wash cycle, the dishwasher will go into stand-by and the app will return to its home screen.

- ENERGY WIZARD:

The app is able to show the levels of energy consumption at various stages of the wash cycle and then provide weekly and monthly energy reports.

- DIAGNOSTICS:

The app informs the user about any errors or problems that may occur during the wash cycle (e.g. failure to water load/unload). The user will be provided with practical advice on how to solve the problem (e.g. make sure the filter is clean, add salt or rinse aid) before calling the Customer Care Department.

With this the Candy Hoover Group, declares that this appliance marked with CE 0051 complies with the essential requirements of the R&TTE Directive 1999/5/EC. To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com

For detailed information about HOW TO CONNECT your WIZARD appliance and HOW TO USE it at its best, go to www.hooverwizard.com or visit the dedicated WIZARD Customer Service website:

www.wizardservice.candy-hoover.com.

DESCRIPCION DE LOS MANDOS

●

●

●●

○

●

75°C

○

○

○

140

SIM

SBMM

●

●

●●

○

●

75°C

○

○

○

130

SIM

SBMM

●

●

●●

○

●

65°C

○

○

85

SIM

SBMM

●

●

●●

○

●

65°C/75°C

○

(○)

○

115/125

SIM

SIMM

●

●●

(○)

(50°C/60°C)

○

○

100/120

SIM

SIMM

●

●●

(○)

45°C/55°C

○

○

70/80

SIM

SIMM

●

●●

○

55°C

○

○

240

SIM

SBMM

●

●

●●

○

45°C

○

170

SIM

SBMM

●

●●

○

45°C

○

○

85

SIM

SBMM

●

●

●●

○

●

65°C

○

59

SIM

SIM

SIM

●

●●

●

50°C

○

24

SIM

N.D.

SIM

●

○

5

SIM

N.D.

●

●

●●

○

●

75°C

○

○

○

140

JA JAJA

●

●

●●

○

●

75°C

○

○

○

130

JA JAJA

●

●

●●

○

●

65°C

○

○

85

JA JAJA

●

●

●●

○

●

65°C/75°C

○

(○)

○

115/125

JA

AJA

●

●●

(○)

(50°C/60°C

○

○

110/120

JA

AJA

●

●●

(○)

45°C/55°C

○

○

70/80

JA

AJA

●

●●

●○

55°C

○

○

240

JA

AJA

●

●

●●

●○

45°C

○

170

JA

AJA

●

●●

●○

45°C

○

○

85

JA

AJA

●

●

●●

○

●

65°C

○

59

JA

AJA

●

●●

●

50°C

○

24

JA

N.V.

JA

●

○

5

JA

N.V.

AQUASTOP-SYSTEM

WASSERENTHÄRTER

www.wizardservice.candy-hoover.com.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

To consult the product fiche, please refer to the manufacturer website.
