EBO 960 - Oven BOMANN - Free user manual and instructions

Brand	Bomann
Model	EBO 960
Product Type	Built-in Electric Oven
Installation Type	Built-in
Energy Type	Electric
Total Power Consumption	Approx. 2.5 kW
Voltage	220-240 V ~ 50/60 Hz
Oven Capacity	Approx. 65 liters
Number of Functions	8 (including defrost, grill, convection, etc.)
Temperature Range	50°C - 250°C
Control Type	Rotary knobs
Display Type	Analog with indicator lights
Interior Light	Yes
Door Type	Drop-down with glass window
Cooling System	Tangential fan
Cleaning Type	Manual (standard enamel interior)
Safety Features	Child lock, thermal cut-off, cool-touch door handle
Dimensions (H x W x D)	595 x 595 x 548 mm
Niche Dimensions (H x W x D)	590 x 560 x 550 mm
Weight	Approx. 32 kg
Color/Finish	Stainless steel / black glass
Accessories Included	Baking tray, wire grill, rotisserie spit
Spare Parts Availability	Control knobs, heating elements, door gasket, thermostat
Reparability Index	High (common parts, DIY-friendly)
Energy Efficiency Class	A (typical)
Manufacturer	C. Bomann GmbH, Germany

Frequently Asked Questions - EBO 960 BOMANN

How do I install the Bomann EBO 960 oven?

Ensure the niche dimensions are 590 x 560 x 550 mm. Connect to a 220-240 V outlet. Use the provided screws and brackets to secure the oven. Refer to the installation diagram in the manual for precise positioning.

What are the main cooking functions?

The oven offers 8 functions including: defrost, conventional heat, top heat, bottom heat, grill, convection grill, fan-assisted cooking, and rotisserie. Select the desired function with the knob.

How do I clean the oven interior?

Use a mild detergent and a soft cloth. Avoid abrasive cleaners. For the enamel interior, wipe after each use. The glass door can be removed for thorough cleaning. Do not use steam cleaning devices.

What safety features are included?

The oven has a child lock (activate by pressing the lock button for 3 seconds), thermal cut-off to prevent overheating, and a cool-touch door handle. The oven automatically shuts off after prolonged operation.

Can I replace the oven light myself?

Yes. Disconnect power, remove the glass cover, and replace the bulb (type: G9, 25W). Ensure the new bulb is rated for high temperatures (up to 300°C). Reassemble and restore power.

The oven is not heating up. What could be wrong?

Check if the oven is properly connected to power and the circuit breaker is on. Ensure the thermostat is set correctly. If still not heating, the heating element or thermostat may be faulty. Contact a qualified technician.

How do I use the rotisserie function?

Insert the rotisserie spit through the food, secure with forks, place the spit into the rotisserie motor socket inside the oven, and close the door. Select the rotisserie function and set temperature. The spit will rotate automatically.

What spare parts are available?

Common spare parts include control knobs, heating elements, door gasket, thermostat, oven light bulbs, and glass door. Contact Bomann customer service or authorized dealers for genuine parts.

Can I bake on two levels simultaneously?

Yes. Use the convection function for even heat distribution. Place trays on different shelf levels. Baking time may need adjustment. Avoid using top and bottom heat for multi-level baking.

How do I activate the child lock?

Press and hold the child lock button (marked with a padlock symbol) for 3 seconds. A beep will confirm activation. Repeat to deactivate. The lock prevents accidental operation of the oven.

USER MANUAL EBO 960 BOMANN

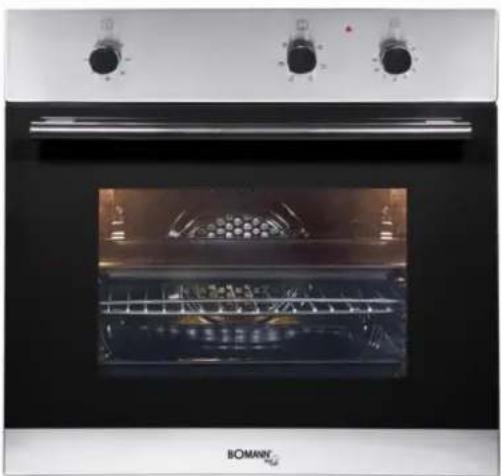

Exterior view of a modern stainless steel oven with control knobs and a visible interior grating (no text or symbols)

Exterior view of a modern stainless steel oven with control knobs and an open oven (no visible text or symbols)

© C. Bomann GmbH

Heinrich-Horten Str. 17

D-47906 Kempen

Tel.: [phone]

Fax: [phone]

8 Installation....26

8.1 Installation 26

Close-up of a glass grating with internal grid lines and directional arrows indicating flow or movement (no text or symbols)

Close-up of an oven interior with a grid and ventilation grating, showing heat transfer arrows (no text or symbols)

Interior view of an oven with a metal door and a white arrow pointing to a component (no text or symbols visible)

Diagram of a layered material sample with two labeled components (1 and 2), showing internal structure and an arrow indicating direction (no text or symbols beyond labels)

Close-up of a metallic tray with a white arrow pointing to a labeled section (no text or symbols beyond label)

Close-up of a car's front bumper with a circular lens and arrow indicator (no text or symbols)

Close-up of a car's front panel showing a circular component with an arrow and label '2' (no readable text or symbols beyond the label)

Interior view of an oven with visible structural lines and a numbered label '1' (no text or symbols beyond the number)

Abb. 31: Bohrlöcher

Abb. 32: Installation

9 Technische Daten
