Product Type	Ash Vacuum Cleaner
Brand	Fieldmann
Model	FDU 2002-E
Power Input	1200 W
Voltage / Frequency	230 V / 50 Hz
Container Capacity	20 L
Container Material	Metal
Filter Type	HEPA filter
Hose Length	1 m (metal)
Tube Length	0.15 m (aluminum)
Number of Castors	4
Weight	4 kg
Power Cord Length	4.3 m
Noise Level	80 dB(A)
Maximum Ash Temperature	40 °C
Suction Type	Dry only
Filter Cleaning	Monthly or when visibly dirty; shake out only
Assembly	Tool-free; attach castors, hose, and tube
Included Accessories	HEPA filter, metal hose, aluminum tube, 4 castors, fastening disk, filter securing bolt
Warranty	24 months

Frequently Asked Questions - FDU 2002-E Fieldmann

Can I vacuum hot ashes with this vacuum cleaner?

How do I clean the filter?

What is the container capacity?

Is this vacuum cleaner suitable for wet vacuuming?

What type of filter does it use?

How do I assemble the castors?

Can I use the vacuum cleaner without the filter?

What is the warranty period?

How do I disconnect the power cord safely?

What should I do if the vacuum cleaner loses suction?

USER MANUAL FDU 2002-E Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

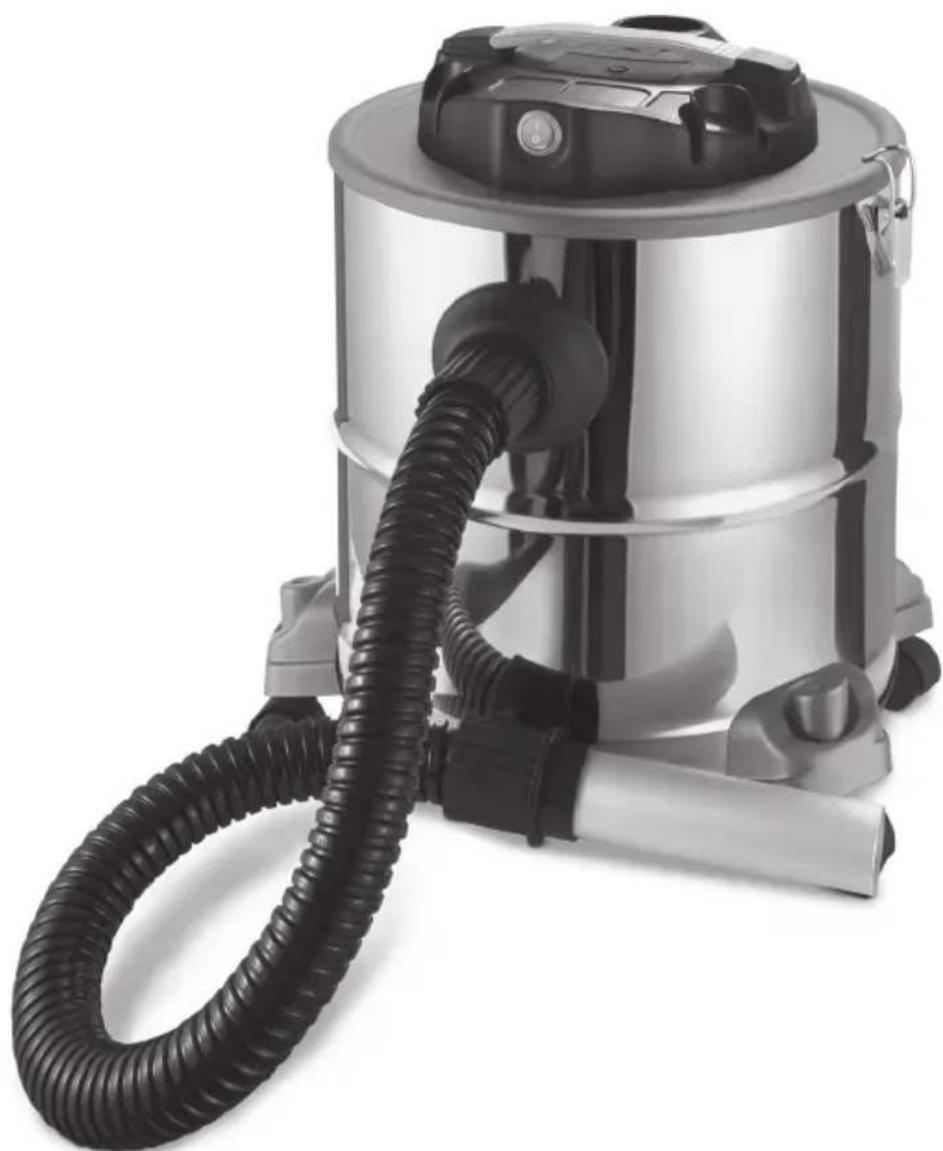

Close-up of a stainless steel vacuum cleaner with coiled black tubing (no visible text or symbols)

FDU 2002-E

1

Four identical black spherical objects with stems, each labeled with the number 9 below (no text or symbols on objects)

Close-up of a cylindrical object with textured surface and labeled dimension '10' (no readable text or symbols beyond label)

Cylindrical object with a mesh pattern and a labeled dimension line (11), no readable text or symbols beyond the label.

Simple line drawing of a vertical rectangular object with a diagonal line and the number 16 below it (no text or symbols on the object itself)

2

Diagram showing a car tire lock mechanism and a mechanical component with four spherical parts (no text or symbols)

A

Two grayscale images showing a white rectangular object and a cylindrical object with a black arrow pointing to its left side (no text or symbols)

B

Close-up of a black threaded screw fastener inserted into a cylindrical housing (no text or symbols visible)

C

Close-up of a mechanical component with two upward arrows indicating motion (no text or symbols)

D

3

Close-up of a wall socket with an arrow pointing to the socket (no text or symbols visible)

Close-up of a car's dashboard key dial with no visible text or symbols

Close-up of a hand using a tool to scrape or scrape material on a dark, textured surface (no visible text or symbols)

4

5

Close-up of a mechanical component with a meshed cylindrical part and a curved arrow indicating direction (no text or symbols visible)

A

Close-up of a mechanical component with a mesh cylindrical feature and an arrow indicating direction (no visible text or symbols)

B

Close-up of a mechanical component with mesh texture and a downward arrow indicating motion (no text or symbols)

C

6

A

Simple line drawing of a kitchen appliance with a hand pouring liquid from a chimney (no text or symbols)

B

Hand inserting a plug into an electrical outlet (no text or symbols visible)

C

Abstract black-and-white graphic with arrows and a stylized robot-like symbol (no text or symbols)

Ash Vacuum Cleaner OPERATING INSTRUCTIONS

Thank you for buying this ash vacuum cleaner. Before using it, please read carefully this operating manual and retain it for further use.

CONTENTS

FIGURES 3

1. GENERAL SAFETY REGULATIONS .... 10
2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE 11
3. MACHINE DESCRIPTION AND SCOPE OF DELIVERY 12
4. IMPORTANT SAFETY INSTRUCTIONS 13
   5 SAFETY MEASURES 14
5. VACUUM CLEANER ASSEMBLY 14
6. OPERATING INSTRUCTIONSI 15
7. MAINTENANCE AFTER USE 15
8. FILTER CLEANING 15
9. TECHNICAL DATA 16
10. DISPOSAL 17

1. GENERAL SAFETY INSTRUCTIONS

Important safety warnings

* Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
- Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE

This product is made in compliance with approved standards.

This product keeps safety certificate.

Before use of the machine please read carefully the operating instructions.

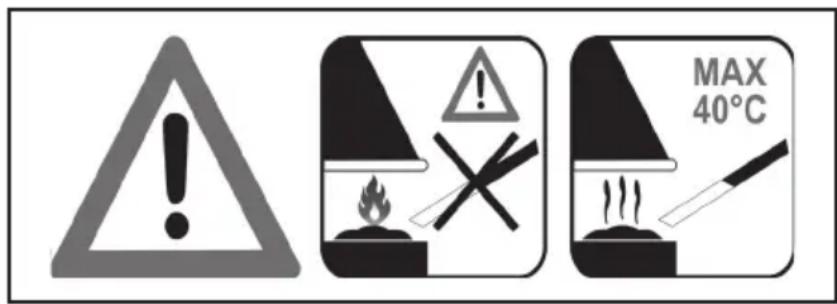

Do not v acuum-clean hot embers, burning items and the items with temperature exceeding 40 °C (104 °F).

3. MACHINE DESCRIPTION AND SCOPE OF DELIVERY

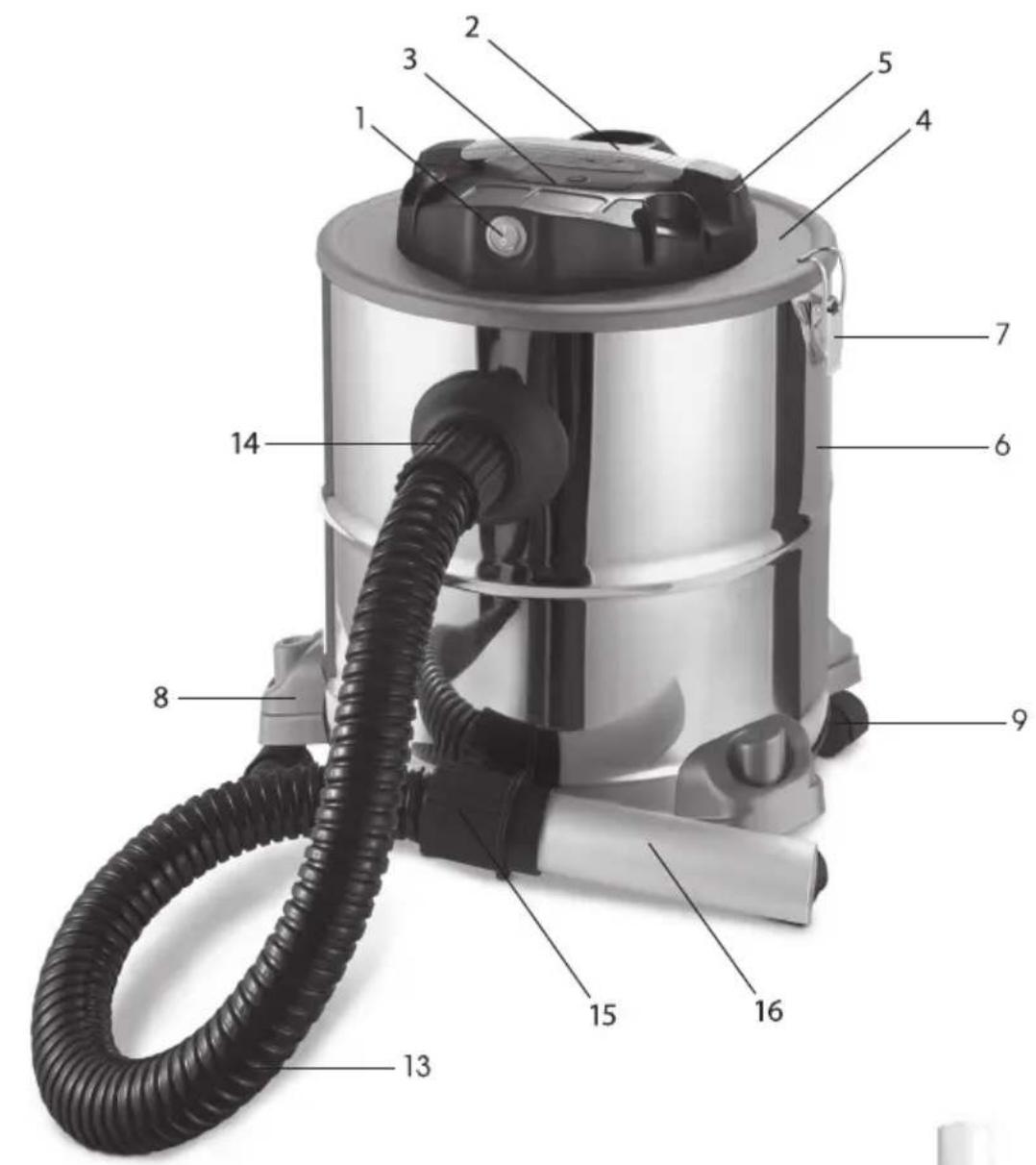

Machine Description (see Fig. 1)

1 - Switch
2 - Handle
3 - Motor Top Cover
4 - Motor Body Coverr
5 - Power Cord
6 – Collecting Container
7 - Clamps
8 - Protective Guard
9 - Castors

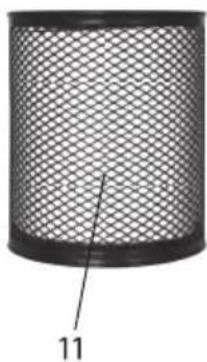

10 - Filter

11 - Filter Cover

13 - Metal Hose

14 - Hose Connector

15 - Hose Handle

16 - Aluminum Tube

Scope of delivery

Remove the machine carefully from the packaging and check whether the following parts are complete:

Ash Vacuum Cleaner
4x Castors
HEPA Filter
Fastening Disk
Filter Securing Bolt
Metal Hose
Aluminum Tube
Warranty Certificate
User Manual

If any parts are missing or damaged, please contact the dealer from whom you purchased the machine.

4. IMPORTANT SAFETY INSTRUCTIONS

⚠ WARNING! In order to prevent the risk of fire, electric shock and injury please adhere to the following instructions:

* Never vacuum-clean burning or fuming items such as embers, cigarette butts or matches.

Do not use vacuum-cleaner without installed filter.
Never leave the appliance without surveillance when energized. Pull out the plug from mains socket when not using the appliance for longer period as well as before each activity related to its maintenance.
Never use the appliance outdoors and on wet surface due to the risk of electric shock. This appliance is not a toy for kids. When the appliance is operated by a kid or is used near children, close supervision over the children must be secured.
Do use the appliance exactly in line with the instructions that are contained in this instruction manual and use just the accessories recommended by the manufacturer.
No not use the appliance when its power cord or socket shows any signs of damage. Contact our customer service when you detect a function failure of your appliance after the appliance fell to the ground, got damaged, was left outdoors or got in touch with water.
Do not pull the power cord nor use the cord as a strap when carrying the appliance. Make sure the door is not closed on the cord or the cord is not drawn over sharp edges and corners. Make also sure that the wheels do not pass at work over the appliance cord. Protect the cord against the contact with hot surfaces.

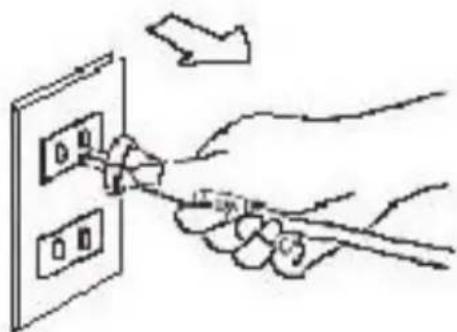

When disconnecting the appliance from electric power supply do not pull out the plug from the socket by holding the cord, always hold the plug instead.
When handling the appliance always keep your hands dry.
Do not insert any foreign items into appliance holes and when the holes are clogged, do not switch the appliance on. Keep the holes dry and remove any dust, deposited remains, hairs and all other impurities that would have an adverse impact on air flow.
- Keep your hair, loose clothing, fingers and all other body parts out of reach of appliance moving elements.
Switch off all appliance controls first and only then disconnect the plug from mains socket.
Pay special attention to the vacuum-cleaning of stairs.

* Never vacuum-clean liquids, flammable or explosive substances such gasoline, and do not use the vacuum cleaner near such substances.
When you need to reel the cord, hold its plug firmly in your hand. During cord reeling do not leave its plug to flutter freely in the air.
Before you put on the vacuum-clean hose, first pull out the plug from mains socket.
* Never use the vacuum-cleaner without installed dust bag and/or filter.
A damaged supply cord of this appliance must be, for safety reasons, replaced by the service department of the manufacturer.
This appliance is not designed for being operated by the persons (including the children of up to 8 years of age) with limited physical, sensory and mental abilities or by the persons with insufficient experience and/or knowledge. The operation of this appliance by those persons is only possible assuming their safety is overseen by a competent person or this person instructs them how to operate this appliance. Children must be under supervision to make sure they do not play with the appliance.
This vacuum cleaner is intended just for dry vacuum-cleaning.

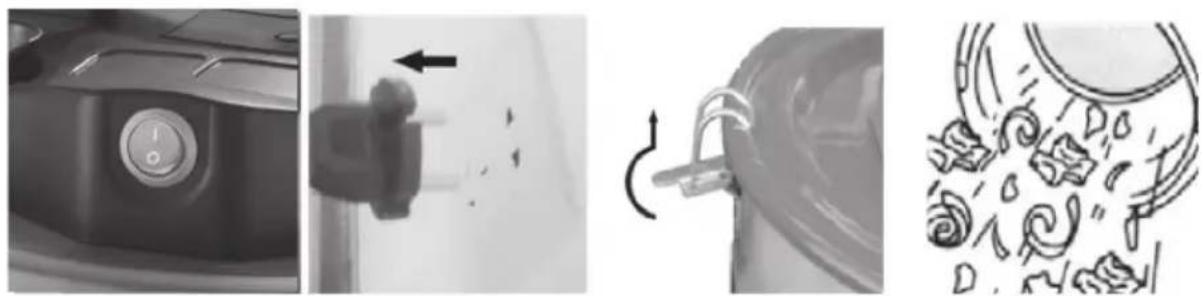

5. SAFETY MEASURES (FIG. 6)

* Never vacuum-clean hot embers, burning items or the items with temperature exceeding 40 °C (104°F).

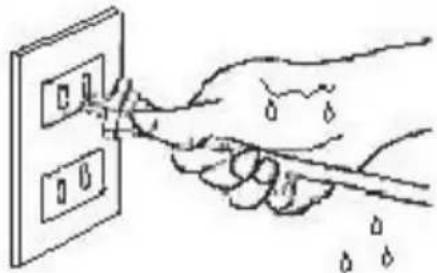

Make sure your hands are dry and only then connect the plug into mains socket.
* Never disconnect the appliance from mains by pulling power cord, always disconnect it by pulling the plug.

6. VACUUM CLEANER ASSEMBLY (FIG. 2)

Before assembly or disassembly of accessories individual parts always first disconnect the plug from mains socket.

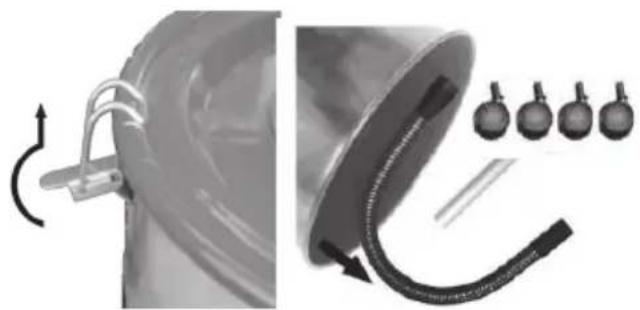

Prepare all accessory parts (Fig. 2/A).
Put the tube on the hose handle (Fig. 2/B).
Assemble the flexible hose according to the figure and insert its ending with a connector into the suction hole on vacuum cleaner upper side. Push inwards and a click is heard at the right position (Fig. 2/C).
Connect wheels (Fig. 2/D).

7. OPERATING INSTRUCTIONS

Turning on/off

The vacuum cleaner turns on using the ZAP/VYP switch (ON/OFF) (Fig. 3).

After turning the vacuum cleaner off

After vacuum cleaning is finished, turn off the appliance using the switch and pull the plug from mains socket. Remove the hose from the sucking hole; hose removal requires applying small force. Finally remove accumulated dust from the collecting container (Fig. 4).

8. MAINTENANCE AFTER USE

* Unscrew the filter securing bolt and remove the filter.
* Then clean or replace the filter.

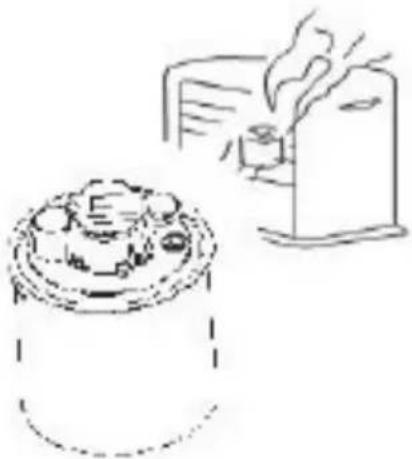

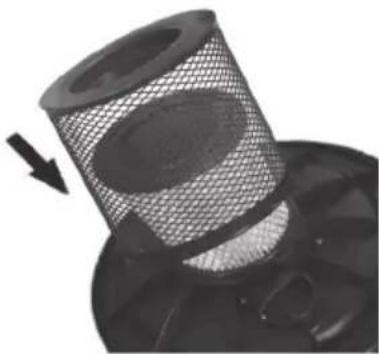

When disassembling the filter proceed in steps according to Figures 5/A, 5/B, 5/C.
When assembling the filter proceed in steps according to Figures 5/C.

9. FILTER CLEANING

We recommend to clean filter at least once a month or when it is visibly fouled or vacuum cleaning force is reduced and motor noise is higher than usual.
* Never use vacuum cleaner without installed filter. Operating vacuum cleaner without installed filter leads to motor damage.
Before filter cleaning always disconnect the vacuum cleaner from power supply.
Filter cannot be cleaned in a dish washer.
Do not use a hairdryer for filter drying.
The best cleaning method is to shake out the filter.

10. TECHNICAL SPECIFICATIONS

ASH VACUUM CLEANER:
Voltage / Frequency 230V/50Hz
Input Power 1 200W
Ash Vacuum-Cleaning up to 40°C
Filter HEPA filter
Metal Container 20L
Metal Hose 1m
Aluminium Hose 0.15m
Castors	4pcs
Weight	4kg
Power Supply Cord	4.3m
Noise Level 80dB(A)

User Manual – Language version only.

11. DI SPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING.

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

For companies in the European Union countries

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information.

Disposal in other countries outside the European Union

Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method.

This product fulfils all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.
