Product Type	DVB-T2 Digital Decoder with USB PVR
Brand	TV Star
Model	T2 517 HD USB PVR
Dimensions (approx.)	140 x 100 x 35 mm
Weight (approx.)	250 g
Power Supply	DC 5V, 1A (via USB or adapter)
Power Consumption	5 W (typical)
Video Output	HDMI 1.4, CVBS (RCA)
Audio Output	HDMI, stereo RCA
Supported Resolutions	720p, 1080i, 1080p
Tuner Type	DVB-T2/T (MPEG-4/H.264)
USB Port	1 x USB 2.0 for recording and media playback
Recording Features	Timeshift, one-touch recording, scheduled recording
Media Playback	USB: MP4, AVI, MKV, MP3, JPEG
Electronic Program Guide	7-day EPG (subject to broadcaster)
Teletext	Yes
Subtitle Support	DVB subtitles, Teletext subtitles
Parental Control	Channel lock, rating lock
Operating Temperature	0°C to 40°C
Care & Cleaning	Wipe with dry cloth. Do not use liquid cleaners.
Safety	Place on flat surface. Keep ventilation slots clear. Avoid exposure to moisture.
Spare Parts & Repairability	Remote control, power adapter available from manufacturer. No user-serviceable parts inside.
General Information	Freeview compatible. Requires UK DVB-T2 signal. Sold as standard definition box.

Frequently Asked Questions - T2 517 HD USB PVR TV Star

How do I set up the T2 517 HD USB PVR for the first time?

Connect the decoder to your TV via HDMI or RCA cables. Plug in the power adapter. Scan for channels by going to Menu > Installation > Auto Scan. Ensure your aerial is connected.

Can I record TV programs to a USB flash drive?

Yes, insert a USB drive (formatted as FAT32) into the USB port. Press the Record button on the remote to start recording the current channel. You can also schedule recordings via the EPG.

Why is there no signal on some channels?

Weak aerial signal can cause missing channels. Ensure your aerial is properly installed and aimed. Perform a manual scan or check signal strength in the menu. You may need a signal amplifier.

How do I pause live TV (timeshift)?

Insert a USB drive first. When watching live TV, press the Pause button on the remote. To resume, press Play. The decoder will save the paused content to the USB drive temporarily.

What file formats can I play from USB?

The decoder supports common formats: video in MP4, AVI, MKV; audio in MP3; images in JPEG. For best compatibility, use FAT32 formatted drives.

How do I reset the decoder to factory settings?

Go to Menu > Settings > System Reset. Confirm the reset. This will erase all saved channels and preferences. You will need to rescan channels afterward.

The remote control is not working. What should I do?

Check if the batteries are inserted correctly and have charge. Point the remote directly at the decoder. If still not working, try replacing the batteries or using a universal remote.

How do I update the software?

Software updates can be downloaded from the TV Star website (if available) to a USB drive. Connect the USB, go to Menu > Settings > Software Update > USB. Follow on-screen instructions.

Can I use a USB hub to connect multiple devices?

The decoder may not support USB hubs reliably. It is recommended to connect only one USB device directly. Some high-power devices may require a powered hub.

Why does the decoder get warm during use?

It is normal for the decoder to become warm. Place it in a well-ventilated area, away from soft surfaces. Do not cover the ventilation slots. If too hot, turn it off and let it cool.

USER MANUAL T2 517 HD USB PVR TV Star

High Definition Digital Receiver

USER MANUAL

Important Safety Instructions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
8) Operate this product only from the type of power source indicated on the label. If you are not sure of the type of power connected to your home, consult your bcal power company. Disconnect the unit from the mains before any maintenance or installation procedure.
9) Protect the mains cord from damage and stress.
10) Only use attachments/accessories specified by the manufacturer.
11) Unplug this apparatus during lightning storms or when unused for long periods of time.
12) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, including damage to the mains cord or plug, if the unit has been exposed to liquid or moisture, has been dropped or is not operating correctly.
13) Do not impede the air flow into the unit by blocking the ventilation slots.
14) Attention should be drawn to the environmental aspects of battery disposal.
15) Use the apparatus in moderate climate.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
WARNING: The batteries shall not be exposed to excessive heat soh as direct sun light, fire, etc.

This symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling. For more information, please contact the local authority or your retailer where you purchased the product.

Table of Contents

Front and RearPanel 1

Remote Control....2

Connecting to a Television....4

First Time Installation.... 5

Troubleshooting....17

Front and Rear Panel

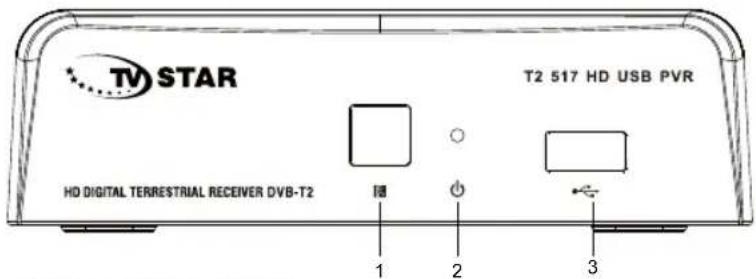

1. Front panel

1. REMOTE CONTROL SENSOR:

POWER2.

1. USB

2. Rear panel

1. RF IN: This socket connects to your external Aerial.
2. HDMI: High definition audio and video output used to connect to a HDMI device
3. SCART

1

©

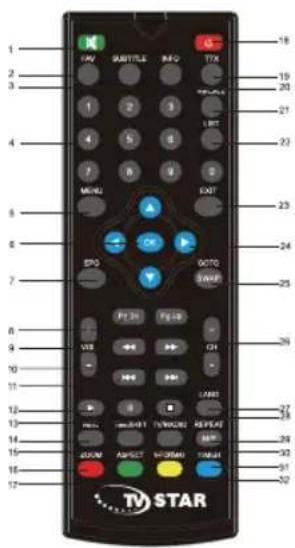

Remote Control

1. MUTE: To navigate inside the menus.
2. FAV: Displays your favorite channels list. Press FAV again to access to the other favorite lists.
3. SUBTITLE: Display subtitle options (availability depends on the channel).
4. <0>-<9>: Numeric keys.
5. MENU: Display main menu on TV screen, and press again to disappear menu.
6. OK: To confirm current setting, or display all programs in no-menu mode.
7. EPG: Shows the Electronic Program Guide.
8. PAGE+/PAGE -: To navigate inside the menus.
9. VOL-/VOL+: To increase / decrease volume.
10. REV/FWD: Fastbackward/Fastforward.
11. PREV/NEXT: Skip backward/Fast forward.
12. PLAY
13. PAUSE
14. REC: Record button. (Optional)
15. TIMESHIFT: If the unit has attached an USB device goes to Timeshift mode. (Optional)
16. ZOOM: Increases the size of the image.
17. ASPECT:Switch 4:3/16:9.
18. POWER: Switch the receiver in and out of Standby mode.
19. TTX: Switch on Teletext, if current channel has this option, and use EXIT key to quit Teletext.
20. INFO: Display information about the current channel.
21. RECALL: Go back to the previous viewed channel.
22. LIST: List of channels.
23. EXIT: Use this key to quit current menu.
24. ◀▶▲▼: Press to move the cursor
25. GOTO/SWAP: Select time.
26. CH-/CH+: Program changing keys.
27. LANG: Change the Audio language and Left/Right channel (availability depends on the channel).
28. STOP
29. REPEAT/M/P : Repeat play.
30. TV/RADIO: Switch between Digital Radio and DVB-T modes.
31. TIMER: Access to the timer.
32. V-FORMAT: Switch the HDMI 720P and 1080i.

Installing the Batteries

Remove the battery cover from the rear of the Remote Control and place 2xAAA size batteries inside the compartment.

Please make sure the battery polarities match the polarity markings inside the compartment.

1.Open the cover

1. Install batteries

2. Close the cover

Using the Remote Control

To use the Remote Control, point it towards the front of the Digital Set Top Box. The Remote Control has a range of up to 7 metres from the Set Top Box at an angle of up to 60 degrees.

The Remote Control will not operate if its pa h is blocked.

Sunlight or very bright light will decrease the sensitivity of the Remote Control.

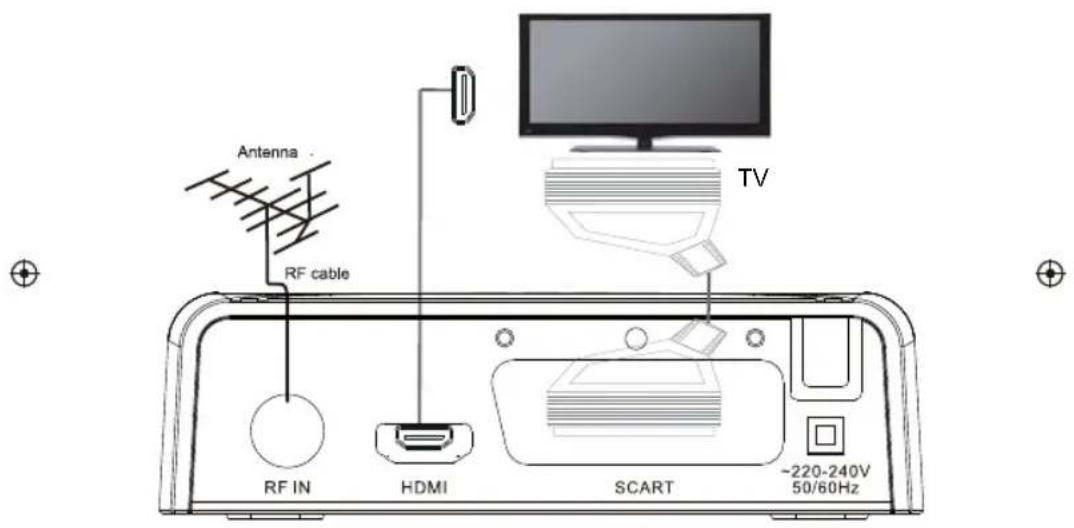

Connecting to a Television

For a basic connection from your Set Top Box to the television, use the Composite connection outlined below.

For a higher quality connection, use the Component Video connection outlined below combined with the Composite Audio Connection.

For the highest quality connection use a direct HDMI connection, see below.

4

[NO TEXT]

- 1

1

First Time Installation

After all connections have been made properly, switch on TV and make sure the unitis connected to the Main Power. Press Power button to switch the unit on.

If you are using the unit for the first time or have restored the unit to factory default, the installation guide menu will appear on your TV screen.

Select 'On' Power Antenna if you're using Active Antenna. Make sure Antenna's 'quality bar' is more than 45% up. Press 'OK' to start to do channel searching.

(1) [OSD Language] press RIGHT/LEFT key to select a language.
(2) [Province/Area] press RIGHT/LEFT key to select your province/area of residence.
(3) [Antenna Power] press RIGHT/LEFT key to select antenna power on or off.
(4) [Channel No.] press RIGHT/LEFT key to select a channel.
(5) Once channel tuning is complete, you can start watching TV programs.

Basic Operation

(1). Program Manage Settings

To access the Menu, press the MENU button and select [Program]. using the RIGHT/LEFT keys to navigate through the menu.

The Menu provides option to adjust the Program Manage Settings. Select an option and press OK or RIGHT to adjust that setting. Press the EXIT button to exit the Menu.

(a) Program Edit

To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '0000'. The master unlock password is '8888'.

First Time Installation

Set Favourite Channels

You can create a short list of favourite programs that you can easily access.

Set Favourite TV or Radio program:

1. Select your desired channel then press the FAVOURITE button. Aheart-shaped symbol will appear and the channel is marked as a favourite.
2. Repeat the previous step to select more Favourite channels.
3. To confirm and exit the Menu, press the EXIT key.

Disable Favourite TV or Radio channel :

Select the Favorite channel and press Favorite button on the remote control to cancel.

View Favourite Channel:

1. While in normal viewing mode, press favourite button and the favourite menu will appear.
2. Press UP/DOWN to browse through your favourite channels.
3. Press OK to select your favourite channel.

Delete a TV or radio program

1. Select the program and then press the BULE button. a warning message will appear, press OK to delete the channel.
2. Repeat the previous step to select more channels to delete.

Skip TV or radio channel

1. Select the channel you would like to skip and press the green button. a skip symbol is displayed the channel is marked as s skip.
2. Repeat the previous step to skip more channels.
3. To save your settings and exie the menu, press exit key.

Disable the skip channel function:

Select the skip channel and press the green button on the remote control to cancel.

Move a TV or Radio Program

1. Select the preferred channel then press the RED button. A move symbol will appear.
2. Press UP/DOWN to move the channel.
3. Press OK to confirm.
4. Repeat the above steps to move more channels.

Lock Program

You can lock selected programs for restricted viewing.

First Time Installation

Lock a TV or Radio channel :

1. Select the preferred channel then press the YELLOW button. A lock-shaped symbol is displayed. The channel is now marked as locked.
2. Repeat the previous step to select more channels.
3. To confirm your settings and exit the menu, press the EXIT button.
4. Press the YELLOW button to disable the locked channels function.
5. To view the locked channels, you will be required to enter either the default password '0000' or your last set password. The master unlock password is '8888'.

(b) EPG (Electronic Programming Guide)

This feature shows the TV program listings for each channel for the following 7 days. By default, when the EPG is opened, the current channel's listings are shown. To view listings for other channels, press the LEFT and RIGHT arrow keys. The display shows the buttons to press to go forward or backward in the programs listing.

Note: Please see section (d) "Scheduling" to learn how to schedule program recordings and channel preview.

Preview Channel:

To set the receiver to change to a channel at a specific time (e.g. at the start of your favourite program) while you are watching another channel, please follow these steps:

• Press EPG to open the full listings.
• Select the TV channel using the LEFT / RIGHT arrow keys.
• Select the TV program you want to watch later.
• Press OK. On the window that pops up, you are able to modify the channel, date and time, as well as optionally selecting to repeat this action on a regular basis.
• Select "View" in the "Mode" option.
  -Press EXIT

A few seconds before changing channels, a warning message with a count-down is displayed on screen, which will change to the programmed channel when the count-down ends.

(c) Sort

Sort your channels from the following options:

[By LCN] - Sort the channels in ascending order.

[By Service Name] - Sort the channels in alphabetical order.

7

⊕

First Time Installation

[By Service ID] - Sort the channels according to the station.

[By ONID] - Sort the channels according to ONID.

To access the Menu, press MENU then select [Picture] using the RIGHT/LEFT key. The Menu provides options to adjust the video settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust that setting. Press EXIT to exit the menu.

(a) Aspect Ratio

Change the aspect ratio of Video. [Auto], [16:9 PillarBox], [16:9 Pan&Scan], [4:3 LetterBox],

[4:3 Pan&Scan], [4:3 Full], [16:9 WideScreen]

(b) Resolution

You can change this setting if the picture resolution does not appear to be correct. This setting is to match the most common setting for HDMI.

[480P]: for NTSC TV system.

[480i]: for NTSC TV system

[576P]: for PAL TV system.

[576i]: for PAL TV system.

[720P]: for NTSC or PAL TV system.

[1080I]: for NTSC or PAL TV system.

[1080P(50HZ)]: for NTSC or PAL TV system.

[1080P(60HZ)]: for NTSC system.

(c) TV Format

If the picture does not appear to be correct you can change this setting.

This should match the most common setting for TVs in your country.

[NTSC]: for NTSC system TV.

[PAL]: for PAL system TV.

(d) Video Output

Change the video output. [CVBS], [RGB]

8

©

First Time Installation

[Side by Side]Set 3D Output format SBS

[Auto] Set 3D Output Auto

[Top/Bottom]Set 3D Output format T/B

(e) OSD Transparency

Change OSD Transparency. [0%], [20%], [40%], [60%], [80%].

(3). Channel Search

To access the menu, press MENU and select [Search Channel] using the RIGHT/LEFT keys.

This menu provides options to adjust the search channel settings.

Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the setting.

Press EXIT to exit the menu.

(a) Auto Search

This option will automatically search for channels and save them once the scanning is complete.

All previously saved channels and settings will be deleted.

1. Select [Auto Search] and press OK or RIGHT to start channel search.
2. To cancel channel search, press EXIT. Any channels that have been found will be saved.

(b) Manual Search

This option allows you to scan for new channels without deleting previously saved channels and settings.

1. Select [Manual Search] then press OK or RIGHT. The channel search screen will appear.

9

⊕

First Time Installation

1. Press the RIGHT/LEFT key to select the channel frequency.

2. Press OK to start searching channels.

If a channel is found, it is saved and added to the channels list. If channels can not be found during searching, the unit will exit automatically.

(c) Country

Select your country of residence.

(d) Antenna Power

Enable Antenna Power if an external active antenna is connected.

(e) PMT Monitor

Enable PMT Monitor if you need.

(4). Time Setting

To access the menu, press MENU then select [Time] using the RIGHT/LEFT keys. The menu provides options to adjust the time settings.

Press UP/DOWN to select an option and press RIGHT/LEFT to adjust the settings. press exit to exit the menu.

(a) Time offset

Select auto ormanual for GMT offset adjustments.

(b) Country Region

Select the Country Region when [Time Offset] is set to Auto.

(c) Time Zone

Select the Time Zone Offset when [TimeOffset] is set to Manual.

10

©

First Time Installation

(d) Sleep

Set auto stanby timer.

[Off], [1 Hour], [2 Hour], [3 Hour], [4 Hour], [5 Hour], [6 Hour], [7 Hour], [8 Hour], [9 Hour], [10 Hour], [11 Hour], [12 Hour]

(e) Power On/Off

Enable Power On or Off.

(f) ADV Timer

Schedule a Recording.

(5). Option

To access the menu, press MENU select [Option] using the RIGHT/LEFT keys. The menu provides options to adjust the OSD Language, Subtitle Language and Audio Language.

Select an option and press RIGHT/LEFT to adjust the setting.

Press EXIT to exit the menu.

(a) OSD (On Screen Display) Language

Select an OSD language.

(b) Subtitle Language

Select the preferred subtitle language.

(c) Subtitle Type

Off/Normal/Hard of hearing

(d) First Audio

Select first audio language

(e) Second Audio

Select second audio language

(f) Digital Audio

Select the digital audio for watching TV channels. [PCM], [RAW HDMI ON], [RAW HDWI OFF], [Off].

(6). System Setting

To access the menu, press MENU and select [System] using the RIGHT/LEFT keys. The menu provides options to adjust the system settings.

Press the UP/DOWN key to select an option and press RIGHT/LEFT to adjust the setting. Press EXIT to exit the menu.

11

©

First Time Installation

(a) Set Password

Set or change the password for locked programs. Enter your old password or the default password '0000'. You will then be asked to enter your new password. Press OK button to confirm your new password.

Once it is confirmed, press EXIT to exit the Menu. The master unlock password is '8888'.

(b) Restore Factory Default

Reset your Set Top Box to the Default Factory Settings.

In Main Menu select [Restore Factory Default] using the RIGHT/LEFT keys and press OK or RIGHT to select. Enter your password or the default password '0000' and press OK to confirm. This option will delete all preset channels and settings. The master unlock password is '8888'.

(c) Information

View model, hardware and software information.

(7). USB

To access the Menu, press the MENU button and select [USB] using the RIGHT/LEFT keys. The menu provides options to playback Music, Photo and Multimedia files. It can support AVI, MP3, JPEG and BMP formats.

The unit will only support USB device with FAT32 / NTFS file system.

(a) Multimedia:

When a USB device is attached you can select from the Music, Photo or Movie options in this menu using theRIGHT/LEFT keys and OK to select. If a USB device is not connected, the warning message "No USB device is Found" will appear.

12

©

First Time Installation

(b) Photo configure:

-Slide Time: adjust slide show interval to 1\~8 seconds.
-Slide Mode: adjust slide show effect as mode 0\~59 or random.

-Aspect Ratio:

[Keep]: Play picture in its original aspect.
[Discard]: Play picture in full screen mode.

(c) Movie Configure:

- Aspect Ratio:

[Keep]: Play movie in its original aspect.
[Discard]: Play movie in full screen mode.

- Subtitle Specific:

[Small]: Displays the subtitle as small mode.
[Normal]: Displays the subtitle as normal mode.
[Big]: Displays the subtitle as big mode.

- Subtitle BG:

[White]: Displays the subtitle in white background.
[Transparent]: Displays the subtitle in transparent background.
[Grey]: Displays the subtitle in grey background.
[Yellowgreen]: Displays the subtitle in yellowgreen background.

13

⊕

⊕

First Time Installation

- Subtitle Font Color:

[Red]: Displays Subtitle in red font.

[Blue]: Displays Subtitle in blue font.

[Green]: Displays Subtitle in green font.

d) USB RECORDING.

This function is available only when a USB storage device is connected to the receiver.

Instant recording:

If you want to start recording a live show, which is currently being broadcast, go to the desired channel and press the REC button. Press again to stop recording.

Schedule a Recording:

To schedule a recording before broadcast (e.g. record your favourite show while you're out), follow these steps:

- Press EPG to open the full listings.

- Select the TV channel using the LEFT / RIGHT arrow keys.

- Select the TV show you want to record.

- Press OK. On the window that pops up, you are able to modify the channel, date, recording start -time and recording end-time, as well as optionally selecting to repeat this action on a regular basis.

- Select "OTHER RECORDING" in the "Mode" option.

- Press EXIT.

A few seconds before starting to record, a warning message with a count-down is displayed on screen, which will change to the programmed channel when the count-down ends. Once the recording has finished, a confirmation message appears on screen.

To view the scheduled events, press the blue button.

To delete a scheduled event, select the event and press the blue button.

The recording files can be deleted on this unit, you can go to the PVR, and press yellow bottom to delete it. the TV program is recorded to file at PVR format, which can be played back on this unit and PC using a suitable player, but can not be played back on DVD or PDVD.

For recording the high definition TV programs, the version of usb device should be 2.0 or above, otherwise the unit may can not record the hd programs correctly.

14

©

First Time Installation

When recording to usb stick or external hard disc on this model, you have to wait a few seconds before pushing rec. after inserting the media. Otherwise the unit can freeze in the signal. If that happens, then please take off power and connect again to fix this.

Note:

Scheduled recording only works when the unit power is on, it can not work when the unit is standby.

Note:

• We cannot guarantee compatibility (operation and/or bus power) with all USB mass storage devices and assume no responsibility for any loss of data that may occur when connected to this unit.
• With large amounts of data, it may take longer for the system to read the contents of a USB device.
• Some USB devices may not be properly recognised.
• Even when they are in a supported format, some files may not play or display depending on the content.

(e) Timeshift

When you are playing the program, you can insert the USB, and at any time you can press the [Time shift] button, the frame will be paused, and you may press the [PLAY] button after a second, it will start to timeshift now. You may press the PLAY button to return the normal program playing, and the timeshift is continuing, you may see from the below picture's bottom which is showing the time shift status. In this case, you may make the unit to play the recorded program from the start. Press [Info] key to see time shift information as below:

	INFO
PVR Mode	RECORD
Total Disk Space	3.60 GB
Disk Free Space	1.68 GB
File System	FAT32
Cluster Size	4 KB
File Name	TMESNULIS
Max Record Size	1.73 GB
Max Record Time	00:53:56
Record Bitrate	559 KB/S
Cur Play Size	0 XB
Cur Record Size	43.72 MB

15

⊕

First Time Installation

You can press [fast forward]/[fast back] to move the slide to left or right of the current recording. Note: Time Shifting will only be available when USB HDD is connected to the system and read/write speed is high enough to do that. Press [Stop] button to end the timeshift, and it will back to the normal playing of the program.

Troubleshooting

Problem Potential Reasons What to do
No picture	Power isn't connected	Connect the power
	The power switch is not on	Switch on the power
Screen shows “No Signal”	DVB-T or DVB-T2 cable not connected	Plug in the DVB-T or DVB-T2 cable
	Aerial cable is faulty	Check aerial cable and connections
No sound from speaker	No or incorrect connection with audio cable	Connect the audio cable correctly
	Sound on mute	Turn off mute function
Only sound, no image on the screen	No or incorrect connection with AV cable	Make sure cables are connected correctly
	The program is a radio program	Presskey to shift into TV mode
Remote Control is not responding	The battery is exhausted	Change battery
	Remote Control is not facing or close enough to the Set Top Box	Adjust the position of the Remote Control and move closer to the unit
Picture is breaking up	The signal is too weak	Check aerial cable and connections

17

[NO TEXT]

Technical Specifications

Item	Sub Item	Parameter
Tuner	Input Frequency	110~230MHz470~860MHz
	RF Input level	-7 ~ 0 8 2 d B m
	IF Bandwidth	6MHz/7MHz/8MHz
	Modulation	QPSK,16QAM,64QAM,256QAM.
Video	Decoder Format	MPEG4 AVC/H.264 HP@L4MPEG2 [e-mail]
	Output Format	576P , 720P, 1080i, 1080P,4:3 and 16:9
	Output Port	HDMI(V1.3), SCART
Audio	Decoder Format	MPEG-1 (layer1&2&3 )
	Audio output	L/R
USB 2.0	Supported Capacity	2T
	Supported Media MP	3, JPEG, BMP, AVI
Power	Supply Voltage	~220-240V 50/60Hz
	Maximum Power Consumption	MAX 6W
	Standby Power Consumption	MAX 0.5 W
Weight	0.20 kgs
Size	125x103.5x40mm

18

©

Notice about recycling

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic products.

Please help us to conserve the environment we live in!
