Notice PHILIPS Minicells CR1616 - page 1
1 / 2
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Lithium Coin Cell Battery
Brand Philips
Model Minicells CR1616
Chemical System Lithium Manganese Dioxide (Li/MnO2)
Nominal Voltage 3 V
Nominal Capacity 50 mAh
Dimensions (Diameter) 16.0 mm
Dimensions (Height) 1.6 mm
Weight 1.1 g
Temperature Range -20°C to +70°C
Self-Discharge Rate <1% per year at 25°C
Shell Life (Install Before) 10 years from manufacture
Interchangeable With DL1616, 1616
Intended Applications Miniature products, watches, calculators, key fobs, medical devices
Maintenance None required; store in cool, dry place
Safety Precautions Do not recharge, short circuit, or dispose of in fire. Keep away from children. Dispose of according to local regulations.
Spare Parts Availability Not applicable; battery is a single-use consumable
Packaging Blister card, 1 battery per pack
EAN Code 8711500858276
12 NC Code 929900035916

Frequently Asked Questions - Minicells CR1616 PHILIPS

What is the voltage of the Philips Minicells CR1616 battery?
The Philips Minicells CR1616 is a 3V lithium coin cell battery.
What devices use a CR1616 battery?
CR1616 batteries are commonly used in watches, calculators, key fobs, medical devices (like glucometers), and other small electronics requiring a compact power source.
How long does the CR1616 battery last?
The nominal capacity is 50 mAh. Actual life depends on device power consumption, but shelf life is up to 10 years when stored properly.
Can I recharge the CR1616 battery?
No, this is a primary lithium battery and is not rechargeable. Attempting to recharge may cause leakage or explosion.
Is the CR1616 interchangeable with other battery models?
Yes, it is interchangeable with DL1616 and 1616 designations. Always check device compatibility.
What is the temperature range for operating the CR1616?
The battery operates reliably between -20°C and +70°C.
How should I store unused CR1616 batteries?
Store in a cool, dry place away from direct sunlight and extreme temperatures. Avoid contact with metal objects to prevent short circuits.
What are the disposal recommendations for spent CR1616 batteries?
Do not dispose of in household waste. Recycle at designated battery collection points according to local regulations.
Are there safety risks with CR1616 batteries?
Lithium batteries pose fire and chemical burn hazards if damaged, short-circuited, or swallowed. Keep away from children and follow safety instructions.
What is the weight of the CR1616 battery?
Each Philips CR1616 battery weighs approximately 1.1 grams.

User questions about Minicells CR1616 PHILIPS

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Battery in PDF format for free! Find your manual Minicells CR1616 - PHILIPS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Minicells CR1616 by PHILIPS.

USER MANUAL Minicells CR1616 PHILIPS

• Quality Lithium, Silver, Alkaline button and photo cells
• High performance and reliability
- For miniature products and watches

PHILIPS Minicells CR1616 - 1

PHILIPS Minicells CR1616 - 2

PHILIPS Minicells CR1616 - 3

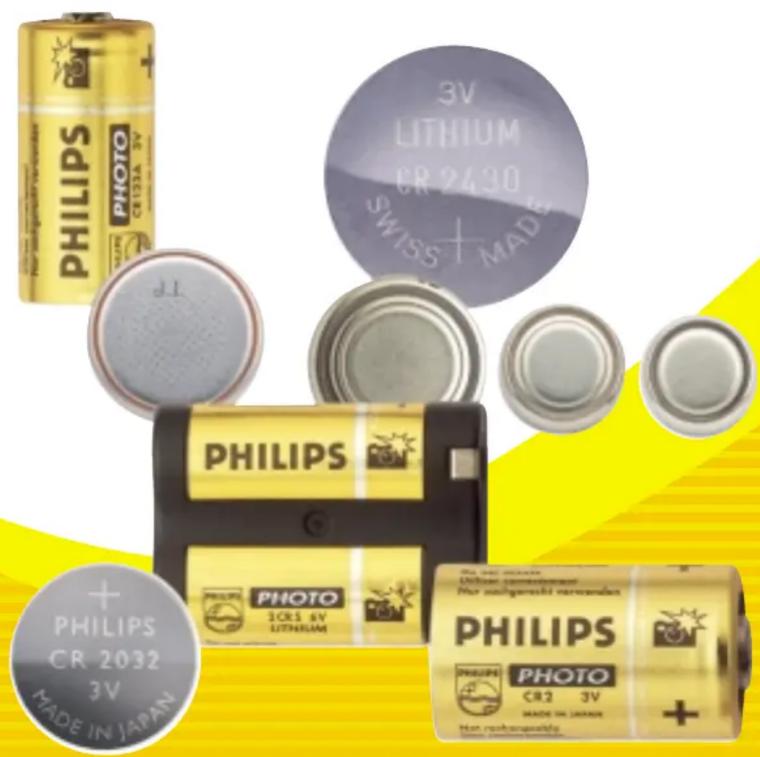

PHILIPS PHOTO C1032A 3V 3V LITHIUM CR 2430 SWISS+MAD PHILIPS PHOTO 3RD15 6V LITHIUM PHILIPS PHOTO CR2 3V MADE IN JAPAN PHILIPS PHOTO CR2 3V MADE IN JAPAN

LITHIUM PHILIPS PHOTO PHILIPS INC CRI23A 5W OL123A, EL123AP

Let's make things better.

PHILIPS Minicells CR1616 - 6

PHILIPS

Minicells ALKALINE186625A8LR932A76Minicells LITHIUMCR1220CR1616CR1620CR2016CR2025CR2032CR2430
IECTYPELR43LR9"8LR932"LR44IECTYPECR1220CR1616CR1620CR2016CR2025CR2032CR2430
Chemical systemAlkalineAlkalineAlkalineAlkalineChemical systemLi/MnO2Li/MnO2Li/MnO2Li/MnO2Li/MnO2Li/MnO2Li/MnO2
Nominal Voltage1.5V1.5V12V1.5VNominal Voltage3V3V3V3V3V3V3V
Nominal Capacity73 mAh170 mAh25 MAh105 mAhNominal Capacity38 mAh50 mAh68 mAh75 mAh148 mAh220 mAh285 mAh
Closed circuit Voltage1.30 V min.(at 100 Ω, 0.1-2 sec.)1.35 V min.(at 100 Ω, 1-2 sec.)9 V min.(at 400 Ω, 1-2 sec.)1.35 V min.(at 100 Ω, 1-2 sec.)Temperature Range-20°C→+70°C-20°C→+70°C-20°C→+70°C-20°C→+70°C-20°C→+70°C-20°C→+70°C-20°C→+70°C
Seildischarge<1% per year<1% per year<1% per year<1% per year<1% per year<1% per year<1% per year
Weight1.7 g3.0 g7.2 g2.2 g(at 25°C)(at 25°C)(at 25°C)(at 25°C)(at 25°C)(at 25°C)(at 25°C)
Shelflife2 years1.5 years2 years2 yearsWeight0.8 g1.1 g1.2 g1.7 g2.5 g3.0 g3.9 g
Interchangeable withVG12A, RW48EPX625, PX625, V625UEL12,VR22, MS21, V23VA,A23VG13GA, RW82Shelflife (install before)10 years10 years10 years10 years10 years10 years10 years
Dim. (mm) MAXH= 4.2, ∅ 11.6H= 6.2, ∅ 15.6H= 28.5, ∅ 10H= 5.4, ∅ 11.6Interchangeable withDL1616; 1616DL1620; 1620DL2016; 2016DL2025; 2025DL2032; 2032DL2430; 2430
CTV code186/00B625A/00B8LR932/00BA76/00BDim. (mm) MAXH= 2.0, ∅ 12.5H= 1.6, ∅ 16.0H= 2.0, ∅ 16.0H= 1.6, ∅ 20.0H= 2.5, ∅ 20.0H= 3.2, ∅ 20.0H= 3.0, ∅ 24.5
12 NC code929900030027929900033216929900030927929900030127CTV codeCR1220/00BCR1616/00BCR1620/00BCR2016/00BCR2025/00BCR2032/00BCR2430/00B
PackBlisterblisterBlisterBlister12 NC code929900038522929900035916929900036416929900035027929900035427929900035137929900036516
Batt/pack2122Packblisterblisterblisterblisterblisterblisterblister
EAN code 18711500812711871150085627287115008126818711500812957Batt/pack1112221
Inner carton1010810EAN code 18711500812988871150085827687115008293448711500812896871150081286587115008127428711500829351
EAN code 28711500812728871150085628987115008126988711500812964Inner carton10101010101010
Outer carton100100080100EAN code 28711500812955871150085828387115008295978711500812902871150081287287115008127598711500829566
EAN code 38711500812735871150085630287115008127048711500812971Outer carton200200200100100100200
Dim. blister (mm)83x12040x6083x12083x120EAN code 38711500813008871150085830687115008296108711500812919871150081288987115008127668711500829580
Dim. inner carton(mm)121x86x4661x41x62121x86x46121x86x46Dim. blister(mm)40x6040x6040x6083x12083x12083x12040X60
Dim. outer carton(mm)260x185x130370x280x240470x220x130260x185x130Dim. inner carton(mm)61x41x6261x41x6261x41x62121x86x46121x86x46121x86x4661x41x62
Dim. outer carton(mm)260x185x130260x185x130260x185x130260x185x130260x185x130260x185x130343x182x72
Minicells PHOTO2CR5CR123ACR2CR-P2Minicells SILVER357371377386389391399
IECTYPE2CR5CR17345CR2CR-P2IECTYPESR44SR69SR626SR43SR54SR55SR57
Chemical systemLi/MnO2Li/MnO2Li/MnO2Li/MnO2Chemical systemZinc-SilverZinc-SilverZinc-SilverZinc-SilverZinc-SilverZinc-SilverZinc-Silver
Nominal Voltage6V3V3V6VOxideOxideOxideOxideOxideOxideOxide
Nominal Capacity1300 mAh1300 mAh750 mAh1300 mAhNominal Voltage1.55V1.55V1.55V1.55V1.55V1.55V1.55V
Temperature Range-20°C→+60°C-20°C→+60°C-20°C→+60°C-20°C→+60°CNominal Capacity190 mAh38 mAh28 mAh130 mAh80 mAh50 mAh55 mAh
Selfdischarge<1% per year (at 25°C)<1% per year (at 25°C)<1% per year (at 25°C)<1% per year (at 25°C)Internal Resistance<20 Ω (at 20°C)<50 Ω (at 20°C)<90 Ω (at 20°C)<20 Ω (at 20°C)<20 Ω (at 20°C)<20 Ω (at 20°C)<20 Ω (at 20°C)
Temperature Range0°C→+60°C0°C→+60°C0°C→+60°C0°C→+60°C0°C→+60°C0°C→+60°C0°C→+60°C
Weight37 g17 g11 g37 gWeight2.25 g0.60 g0.39 g1.78 g1.26 g0.92 g0.67 g
Shelflife (install before)10 years10 years10 years10 yearsShelflife (install before)3 years3 years3 years3 years3 years3 years3 years
Interchangeable withDL245; 2CR5MDL123ADL2DL223AInterchangeable withV357, D357V371, D371V377, D377V386, D386V389, D389V391, D391V399, D399
Dim.(mm) MAXH=45.0W=34.0 D=17.0H=34.5 ∅17.1H=27.0, ∅15.6H=36.0 W=35.0 D=19.5Dim.(mm) MAXH=5.4, ∅ 11.6H=2.1, ∅ 9.5H=2.6, ∅ 6.8H=4.2, ∅ 11.6H=3.1, ∅ 11.6H=2.1, ∅ 11.6H=2.6, ∅ 9.5
CTV code2CR5/00BCR123A/00BCR2/00BCR-P2/00BCTV code357/00B371/00B377/00B386/00B389/00B391/00B399/00B
12 NC code92990003552092990003572092990003832092990003582012 NC code929900032227929900037316929900036327929900032116929900032416929900032516929900038217
PackblisterblisterBlisterblisterPackblisterblisterblisterblisterblisterblisterblister
Batt/pack1111Batt/pack2121111
EAN code 18711500803290871150055821387115008068338711500558220EAN code 1871150081292687115008580788711500812834871150080258387115008026138711500802620871150080527
Inner carton10101010Inner carton10101010101010
EAN code 28711500852724871150085270087115008068408711500852762EAN code 28711500812933871150085808587115008128418711500827036871150082712887115008271598711500805034
Outer carton100100100100Outer carton100200100200200200200
EAN code 38711500825919871150082748787115008068578711500827517EAN code 38711500812940871150085810887115008128588711500827050871150082714287115008271738711500805041
Dim. Blister (mm)83x12083x12083x12083x120Dim. Blister (mm)83x12040x6083x12040x6040x6040x6040x60
Dim. inner carton (mm)120x98x12590x98x12590x88x125110x88x125Dim. inner carton (mm)121x86x4661x41x62121x86x4661x41x6261x41x6261x41x6261x41x62
Dim. outer carton (mm)470x220x150470x210x150470x210x150470x220x130Dim. outer carton (mm)260x185x130260x185x130260x185x130260x185x130260x185x130260x185x130260x185x130
