SV-3011 - Pliers Concept - Free user manual and instructions

Product Type	Combination Pliers
Brand	Concept
Model	SV-3011
Material	Carbon Steel
Handle Material	PVC with Ergonomic Grip
Surface Treatment	Black Oxidized
Overall Length	200 mm
Weight	200 g
Jaw Type	Combination (Flat, Round, Cutting)
Cutting Capacity (Hard Wire)	1.6 mm
Cutting Capacity (Soft Wire)	2.5 mm
Max Jaw Opening	35 mm
Grip Type	Non-slip Comfort Grip
Drop Protection	Yes, impact resistant
Corrosion Resistance	Yes, anti-rust coating
Maintenance	Clean with dry cloth; oil pivot occasionally
Safety Features	Insulated handles (not for live electrical work)
Spare Parts Availability	Contact Concept customer service
Warranty	2 years (check manual for details)

Frequently Asked Questions - SV-3011 Concept

What is the Concept SV-3011 used for?

The Concept SV-3011 is a combination plier designed for gripping, bending, and cutting wires. It is suitable for DIY, electrical, and general maintenance tasks.

Can I cut hardened steel wire with these pliers?

No, the cutting edges are intended for soft and medium-hard wires only. For hardened steel, use dedicated wire cutters.

Are the handles insulated for electrical work?

The handles are coated for comfort and grip, but they are not rated for electrical insulation. Do not use on live circuits.

How do I maintain the pliers?

Wipe clean after each use with a dry cloth. Apply a drop of oil to the pivot joint periodically to keep the action smooth.

What is the maximum wire gauge that can be cut?

The pliers can cut soft wire up to 2.5 mm diameter and hard wire up to 1.6 mm diameter.

Does the product come with a warranty?

Yes, Concept typically offers a 2-year warranty. Check the user manual for exact terms and conditions.

Can I replace the cutting blades?

No, the cutting edges are integrated and cannot be replaced separately. If damaged, the entire tool should be replaced.

Are these pliers suitable for heavy-duty use?

They are designed for occasional to moderate use. For professional heavy-duty applications, consider industrial-grade pliers.

How do I clean rust off the pliers?

Light rust can be removed with a fine abrasive pad or steel wool, then apply a rust preventer oil. Avoid harsh chemicals.

Where can I download the user manual?

The user manual is available for free download on notice-facile.com in PDF format.

USER MANUAL SV-3011 Concept

White conceptual electric grill device with gray buttons and a handle (no visible text or symbols)

SV 3010RE

CZSKPLHU

UKROLV

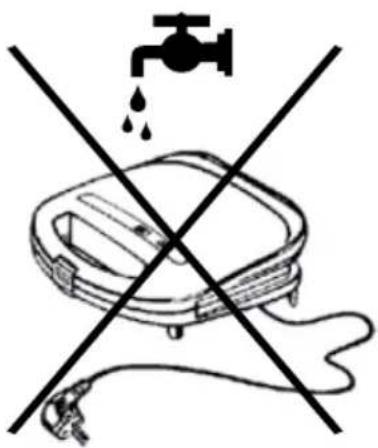

Crossed diagram showing a faucet above a water tank with a plug, symbolizing water pollution or discharge (no text or labels)

NIKDY NEPONOŘUJTE SPOTŘEBIČ DO VODY ANI DO ŽÁDNÉ JINÉ KAPALINY!

CZ

concept

SERVIS:

Cross-sectional diagram of a faucet with water droplets, no text or symbols present

NIKDY NEPONÁRAJTE SPOTREBIČ DO VODY ANI DO ŽIADNEJ INEJ KVAPALINY!

SK

concept

SERVIS:

Crossed diagram showing a faucet above a washing machine and a plug, symbolizing water pollution (no text or labels)

NIGDY NIA ZANURZAĆ URZĄDZENIA W WODZIE LUB INNYM PŁYNIE!

PL

concept

SERWIS:

Crossed diagram showing a faucet above a water tank with liquid, and a plug below (no text or symbols)

A KÉSZÜLÉKET SOHA NE TEGYE VÍZBE VAGY MÁS FOLYADÉKBA!

HU

concept

SZERVIZ:

Before using the appliance read all the instructions carefully. Especially in the presence of children be sure to follow the safety warnings.

• Check if the voltage on the rating plate of the appliance is the same as the voltage in the mains.
  ● Do not touch the hot surfaces of the appliance; use the grip handle to open it.
  ● Never immerse the appliance into water or other liquid.
• The appliance is not intended for and should not be accessible to children or persons with reduced capabilities.
• The appliance is not intended for use by persons with reduced physical, sensory or mental capabilities or lack of knowledge, unless under the supervision of an acquainted person responsible for their safety.
  ● Take extra care when using the unit near children.
• Do not use the appliance as a toy.
• Do not use an appliance whose cable has been damaged or if it has been damaged in another way.
  ● The appliance is intended only for use in the household.
• Do not use the appliance in the open air.
• Prevent the cable from hanging over the edges of the table or from touching hot surfaces like stove etc.
• Do not put the appliance down near gas burners or electrical plates or on an oven that is switched on.
• Be extremely cautious when handling an appliance containing hot oil or other hot liquids.
• When unplugging from the socket, pull the plug, not the electric cable.
  ● Do not use the appliance for other purposes than it is intended for.
• In the case of its damage, the electric cable may only be replaced by an expert or professional service company.
• Keep in mind that the temperature of accessible surfaces may be high when the appliance is operated.

Note:

Be cautious when using a short lead-in extension cable; its parameters must conform to the voltage and power input of the appliance. Prevent the extension cable from hanging over the edges of the table so that it could not be pulled by children or one could not trip over it.

UK

concept

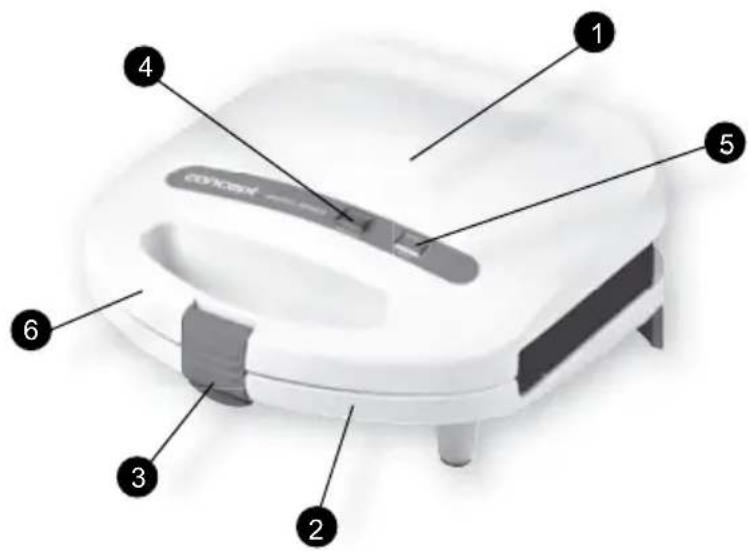

PRODUCT DESCRIPTION

1 Hinged top cover
2 Bottom cover
3 Safety closure
4 "Power On" indicator lamp
5 "Heat On" indicator lamp
6 Grip handle
7 Electric cable

OPERATING INSTRUCTIONS

Before using the appliance for the first time, wash the toasting surfaces using a wet cloth; in spite of that, we recommend that the first two pairs of sandwiches should not be eaten.

Preparation procedure:

1. Plug the appliance into a socket. Make sure that the mains voltage conforms to the voltage of the appliance. Both the "Power On" indicator lamp 4 and "Heat On" indicator lamp 5 will be on.
2. Close the top cover of the sandwich maker (during its warming-up, you can prepare your food).
3. When the green "Heat On" indicator lamp 5 goes off, the sandwich maker is ready.
4. Open the top cover of the sandwich maker and put sandwiches on the lower part of the sandwich maker.
5. Your food will be ready to be served in approximately 4 minutes or longer as per your taste.

Note:

• Do not close the sandwich maker by force. A cloud of steam may rise from in between the toasting surfaces during the toasting process.

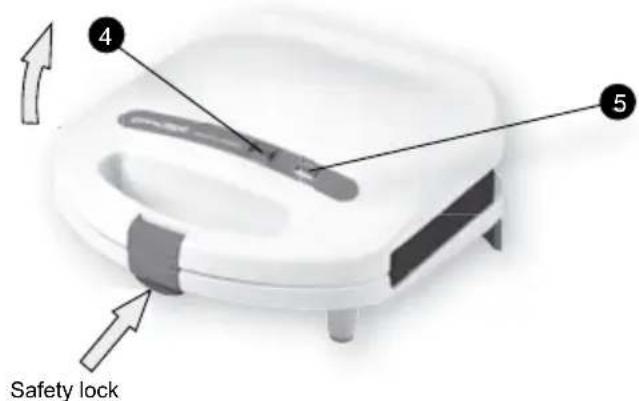

• During the toasting process, the sandwich maker must be closed using the safety closure ③. Keep in mind that the "Heat On" indicator lamp will go on and off as the thermostat keeps the sandwich maker at proper temperature.
• Open the sandwich maker and remove the sandwiches using a plastic or wooden spatula. Never use a metal knife as it might damage the non-adhesive coating.
• Close the top cover in order keep the surfaces hot for further toasting.
  ● During the toasting process, you can prepare your food.
  ● After finishing the toasting, unplug the appliance.

CLEANING AND MAINTENANCE:

• Before cleaning, unplug the appliance and let it cool down. Wipe the inner parts and edges of grating using a paper towel or soft cloth.
• Wipe the sandwich maker surface only using a slightly wet cloth and prevent water, grease or oil from entering the cooling openings.
• Do not clean the inner and outer parts using a rough sponge or pot scourer, as this might damage the parts.

NEVER IMMERSE THE APPLIANCE INTO WATER OR OTHER LIQUID!

UK

concept

SERVICING:

The large-scale maintenance or repairs must be performed by a professional service company.

ENVIRONMENTAL PROTECTION:

• Prefer the recycling of packaging materials and old appliances.
  ● Take the appliance box to a waste collection facility.
  ● Take polyethylene (PE) plastic bags to a waste collection facility for recycling.

Recycling of the appliance after its useful life:

• Plastic materials identified as such, as well as other materials, can be recycled after the useful life of the appliance.
• For more detailed information, contact the local authorities.

Parametrii tehnici
Alimentare	230 V
Putere	640 W

SFATURI IMPORTANTE PT SIGURANTA

Crossed diagram showing a faucet above a device with liquid, and a plug below (no text or symbols)

NU INTRODUCETI APARATUL IN APA SAU IN ALTE LICHIDE

RO

concept

SERVICE

Operatiile complexe de intretinerea sau reparatiile trebuie efectuate de catre un service autorizat.

POLITICA DE MEDIU

EKSPLUATĀCIJAS NORĀDĪJUMI

Crossed diagram showing a faucet above a washing machine and a plug, with no text or symbols present.

NEIEGREMDĘJIET IERİCI ÜDENİ VAI CITĄ ŠKIDRUMĄ!

APKALPE
