215190010 - Pliers Eta - Free user manual and instructions

Product Type	Pliers
Brand	Eta
Model	215190010
Type	Combination Pliers
Material	High-carbon steel
Length	200 mm
Weight	300 g
Handle Material	Plastic/TPR coated
Jaw Type	Serrated
Cutting Capability	Yes (wire cutter)
Wire Stripping	No
Functions	Gripping, bending, cutting
Cleaning	Wipe with dry cloth
Storage	Dry place
Safety	Wear protective eyewear; not for electrical work unless insulated
Maintenance	Lightly oil pivot joint

Frequently Asked Questions - 215190010 Eta

What is the Eta 215190010 pliers used for?

The Eta 215190010 pliers are versatile combination pliers designed for gripping, bending, and cutting wire. They are suitable for DIY and professional tasks.

Can these pliers cut nails?

No, the cutting edge is designed for soft wires up to 2mm. Using it on nails may damage the tool. Use dedicated bolt cutters instead.

Are the handles insulated?

The handles are coated with a plastic/TPR material for comfort, but they are not insulated for electrical work. Do not use on live circuits.

How do I clean and maintain these pliers?

Wipe the pliers with a dry cloth after use. Apply a drop of light oil on the pivot joint to prevent rust and ensure smooth operation.

What is the length and weight of the pliers?

The pliers are approximately 200 mm long and weigh about 300 grams.

Can these pliers be used for stripping wire?

No, these combination pliers do not have a wire stripping notch. Use dedicated wire strippers for that purpose.

Are replacement parts available?

Spare parts for Eta pliers may be available through the manufacturer. Contact Eta customer support for availability.

What is the warranty period for Eta 215190010?

Warranty terms vary by region. Check the product packaging or contact Eta directly. Typically, hand tools carry a 1-year warranty against defects.

How should I store the pliers?

Store the pliers in a dry environment to prevent corrosion. A tool pouch or drawer is ideal.

Can I use these pliers on copper wire?

Yes, they are suitable for cutting and gripping copper, aluminum, and other soft metals.

USER MANUAL 215190010 Eta

Black rectangular food grater with a recessed lid and side panel (no text or symbols visible)

White rectangular electronic device with a circular vent and side slots, shown against a plain background (no text or symbols visible)

NÁVOD K OBSLUZE

I. BEZPEČNOSTNÍ UPOZORNĚNÍ

• Before the first use, read all the instructions for use carefully, look at the picture and keep the instructions.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

- Do not insert or take out the plug to or from a socket with wet hands and do not pull the power cord!

- The appliance is intended for use in households only and for similar use (heating and preparing food)! It is not designed for commercial use!

- The appliance is not intended for use by people (including children) whose physical, sensual or mental inability or lack of experience and knowledge makes safe use of the appliance impossible, if they are not supervised or if they have not been instructed regarding the use of the appliance by a person responsible for their safety. Children should be supervised to make sure they will not be playing with the appliance.

- Never leave the appliance unsupervised and check it during the whole time of preparing meals!

- Do not use the appliance for heating a room!

- Never immerse the appliance into water (even its parts)!

- Use the appliance in the working position at places with no risk of turning over and in sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. heater, stove, etc.) and wet surfaces (e.g. sinks, wash-basins, etc.).

- The product is equipped with a safety fuse which protects it against overheating.

- When handling the appliance, try to prevent injury (e.g. burning, scalding).

- After finishing work, always disconnect the appliance from power supply by taking the connector of the power cord out of the electric socket.

- The power cord must not be damaged with sharp or hot objects, open fire and it must not be sunk into water.

- Make sure that the power cord does not hang over the edge of the working table where children could reach it.

- The appliance is portable and it is equipped with a movable connector with a plug which ensures double-pole disconnection from power supply.

- With regards to fire safety, the appliance complies with EN 60 335-2-6. Within the intention of the standard, this appliance can be operated on a table or on a similar surface while safe distance must be maintained from flammable materials of at least 500 mm in the direction of the main heat radiation and 100 mm in the other directions.

- Use only uncorrupted and proper extension power cords.

- If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Never use the appliance for any other purpose than for that described in these instructions for use!

- The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. deterioration of food, injury, burning, scalding, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

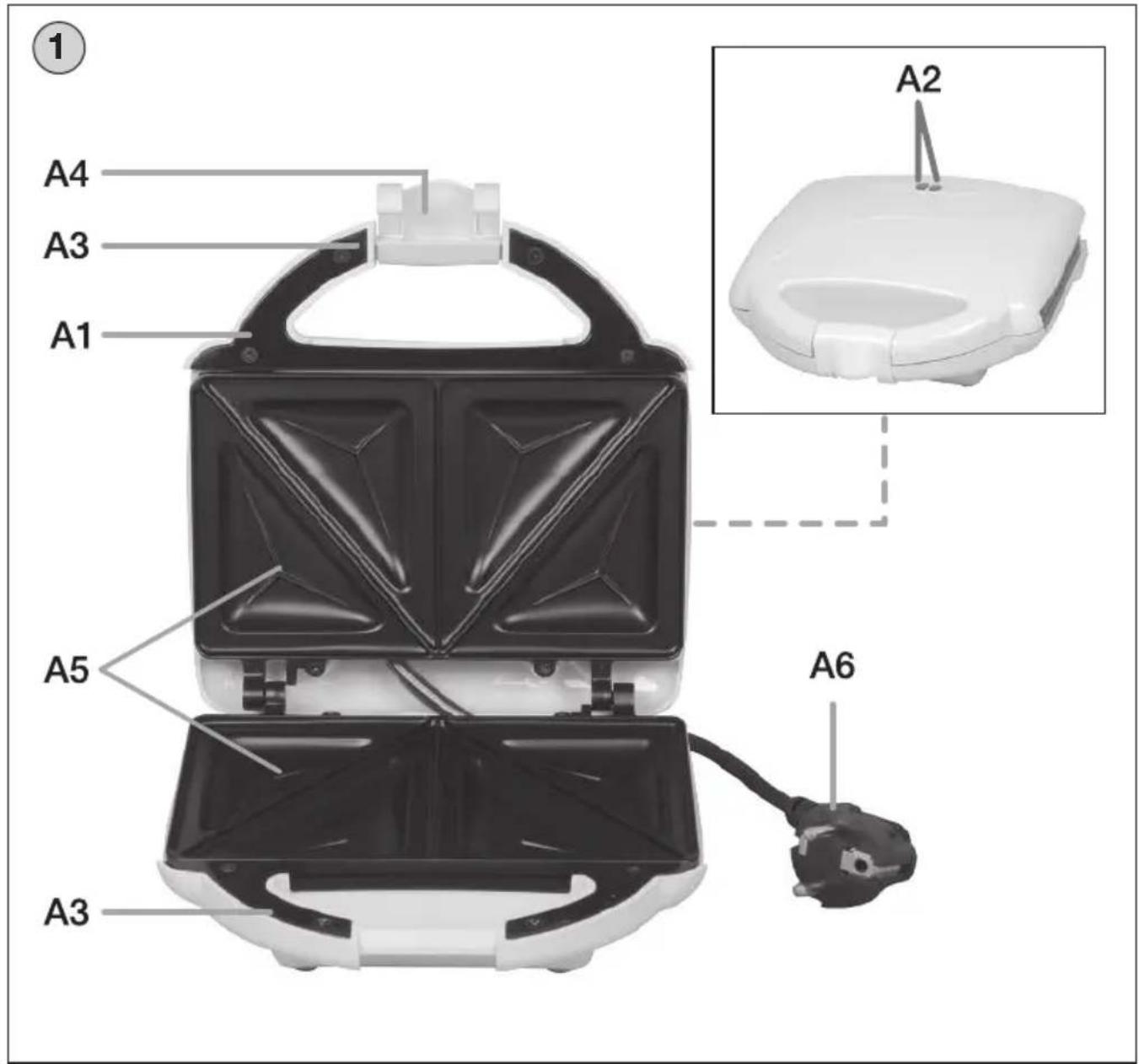

II. DESCRIPTION OF THE APPLIANCE (Fig. 1)

A1 - hinged lid A4 - lock

A2 – signaling lights A5 – plates

A3 – handle A6 – power cord

III. PREPARATION FOR USE

Remove all the packing material and take out the toaster. Remove all possible adhesion foils, stick-on labels or paper from the toaster. Before the first use, clean all parts of the appliance that will be in contact with food with a soft wet cloth.

IV. INSTRUCTIONS FOR USE

Place the toaster on flat and dry surface (e. g. kitchen table) at least 85 cm high, out of reach of children. Plug the power cord connector A6 to an electric socket.

A red signaling light A2 will come on, signaling connection to electric power supply. The plates will start to heat. When the operating temperature is reached, the green signaling light A2 will come on. When the appliance is used for the first time, short and slight smoke may occur which does not mean any defect. Open the lock A4 and lift off the lid A1 using the handle A3. Put the prepared food on the bottom plate A5, close the lid and secure it with the lock A4. Do not close the lid by excessive force! During preparation of food, the green signaling light will come on and off which means that the thermostat keeps the proper temperature. When the preparation is complete, open the lid and remove the food (using e.g. a wooden spatula). Do not use sharp metal tools to take the food out. Never cut the prepared food on the plates!

Notes

Always let the plates A5 heat up to the operating temperature before putting food in. When heating the plates, keep the lid closed. Do not touch the plates as they are HOT! Be specially careful and prevent children and incapable persons from touching the plates! The following tips for processing are examples and for your inspiration. The time of preparing food is in minutes (about 3 - 5 minutes). You can adjust the preparation time to your taste; the longer the preparation takes, the crispier the food will be.

• For better taste and smell, spread the outer sides of the sandwich (e.g. with butter, margarine, fat).
• A teaspoon of sugar sprinkled on the outer side of a sandwich will make the sandwich crispier (suitable for sandwiches with fruit filling).
• For soft or liquid fillings, use medium-size bread slices (white/dark). When there is not much filling, use the toast bread.

V. MAINTENANCE

Unplug the appliance from power supply by taking the plug of the power cord out of the socket! Clean the toaster only when it has cooled down! Clean the appliance

regularly after each use. Do not use rough and aggressive detergents (e.g. sharp objects, peelers, caustic agents for cleaning ovens, or other solvents). For

cleaning the cover, use detergents for cleaning plastic surfaces. Clean the surface by wiping it with a soft and wet cloth.

VI. ENVIRONMENT

If the dimensions allow, there are marks of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electrical or electronic products must not be disposed of together with municipal waste. For proper disposal, hand them over at the special collection places where they will be accepted free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authority or at a collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation, after disconnecting it from power supply we recommend its cutoff and in this way it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VII. TECHNICAL DATA

Voltage (V) specified on the type label

Input (W) specified on the type label

Weight about (kg) 1.6

The product has received ES declaration of conformity according to Act as amended.

The product matches the requirements of the below statutory order as amended.

- Committee Regulation No. 2006/95/ES as amended, setting the technical requirements of the electrical appliance as low.

- Committee Regulation No. 2004/108/ES as amended, setting the technical requirements of products in terms of their electromagnetic compatibility.

The product is in conformity with the European Parliament and European Committee

Regulation No. 1935/2004/ES re. Materials and objects designed for contact with food.

The manufacturer reserves the right for any insignificant deviations from the standard finished product which do not have any effect on the functioning of the product.

DO NOT COVER.

DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS.

THIS BAG IS NOT A TOY.

ETA a.s., Poličská 444, 539 01 Hlinsko, Czech Republic.

HASZNÁLATI UTASÍTÁS

I. BIZTONSÁGI ELŐÍRÁSOK

Guarantee certificate is valid only for Czech Republic and Slovak Republic.
