| Product Type | Coax-DVI Receiver (AV Extender) |
| Brand | Kramer |
| Model | 650R |
| Dimensions (W x D x H) | 12.0 cm x 7.0 cm x 2.4 cm (4.7" x 2.8" x 1.0") |
| Weight | 0.3 kg (0.7 lbs) approx. |
| Power Source | 12V DC, 160mA (alone); 590mA (pair with 650T powered from 650R) |
| Power Supply Included | Yes (12V DC adapter) |
| Inputs | 5 BNC connectors (Red, Green, Blue, Clock, Power/IR), 1 DVI connector, 1 IR (3.5mm mini jack), 1 RS-232 (9-pin D-sub) |
| Outputs | 1 DVI connector |
| Maximum Data Rate | 6.75 Gbps (2.25 Gbps per channel), supports up to 720p with HDCP |
| Standards Compliance | HDCP |
| EDID Pass-through | Yes |
| Bi-directional IR and RS-232 | Yes (requires 5-plug coax cable and power coax line connected) |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | -40° to +70°C (-40° to 158°F) |
| Humidity | 10% to 90% RH, non-condensing |
| Accessories Included | Power supply, quick start sheet, rubber feet |
| Optional Accessories | External IR receiver (C-A35M/IRR, C-A35M/IRE, C-A35M/2IRE), RK-3T rack mount |
| Warranty | 7 years limited |
| Maintenance | No operator serviceable parts; clean with dry cloth; disconnect power before servicing |
| Safety | Use only provided power adapter; indoor use only; avoid moisture, excessive sunlight, dust |
| Installation | Attach rubber feet or mount in rack (RK-3T); always switch off power before connecting |
Frequently Asked Questions - 650R Kramer
User questions about 650R Kramer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Prolongateur AV in PDF format for free! Find your manual 650R - Kramer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 650R by Kramer.
USER MANUAL 650R Kramer
DVI-Coax Transmitter
650R
Coax-DVI Receiver

650T/650R Quick Start Guide
This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.
Step 1: Check what's in the box

650T and/or 650R DVI/Coax
Transmitter/Receiver

1 Power supply (12V DC)

1 Quick Start sheet
4 Rubber feet per unit
Step 2: Install the 650T/650R
Attach the rubber feet and place on a table or mount the machine in a rack (using an optional RK-3T rack mount).
Step 3: Connect the inputs and outputs
Always switch off the power on each device before connecting it to your 650T/650R.

Always use Kramer high-performance cables for connecting AV equipment to the 650T/650R.
Step 4: Connect the power
Connect the 12V DC power adapter to the 650T/650R and plug the adapter into the mains electricity.

Contents
1 Introduction 1
2 Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 3
2.3 Recycling Kramer Products 3
3 Overview 4
3.1 650T DVI-Coax Transmitter 4
3.2 650R Coax-DVI Receiver 5
4 Your 650T/650R DVI/Coax Transmitter/Receiver 6
4.1 Your 650T DVI-Coax Transmitter 6
4.2 Your 650R Coax-DVI Receiver 7
5 Connecting the 650T/650R 8
6 Technical Specifications
10
Figures
Figure 1: 650T/650R HDMI/Coax Transmitter/Receiver 6
Figure 2: 650R Coax-DVI Receiver 7
Figure 3: DVI-to-Coax Transmitter and Receiver System 9
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!
Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.
Thank you for purchasing the Kramer DigiTOOLS ^® 650T DVI-Coax Transmitter and/or Kramer DigiTOOLS ^® 650R Coax-DVI Receiver, which are ideal for:
• Boardroom and projection applications
- Long-range multimedia extension for schools, hospitals, security, and stores
- Upgrading a legacy analog installation to a digital installation
2 Getting Started
We recommend that you:
- Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
- Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
- Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
- Do not secure the cables in tight bundles or roll the slack into tight coils
- Avoid interference from neighboring electrical appliances that may adversely influence signal quality
- Position your Kramer 650T/650R away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.
2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit
Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit
Warning: Disconnect the power and unplug the unit from the wall before installing
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.
3 Overview
This section describes the:
• 650T DVI-Coax Transmitter, see Section 3.1
• 650R Coax-DVI Receiver, see Section 3.2
3.1 650T DVI-Coax Transmitter
The Kramer DigiTOOLS ^® 650T is an DVI-coax transmitter that receives an DVI signal, codes it, and transmits red, green, blue, clock and data signals, as well as power, infrared and RS-232 control signals over coax cable to the 650R receiver.
Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE.
The 650T features:
- A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel) and up to 720P with HDCP
• Digital signal transmission without compression or conversion
• HDTV compatibility and HDCP compliance
• EDID pass-through that passes the EDID between the source and display - Bi-directional IR (Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE) and RS-232 interfaces
IR and RS-232 data is available only when using a 5-plug coax cable and the power coax line is connected.
• Power feeding to the 650R
- Plug and Play installation with no adjustments
3.2 650R Coax-DVI Receiver
The Kramer DigiTOOLS® 650R is a coax-DVI receiver that receives a coded coax signal transmitted by the 650T. It decodes the R-G-B, clock and data components and converts them to an DVI output.
The 650R features:
- A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel) and up to 720P with HDCP
• HDTV compatibility and HDCP compliance
• EDID pass-through that passes the EDID between the source and display - Bi-directional IR (Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE) and RS-232 interfaces
IR and RS-232 data is available only when using a 5-plug coax cable and the power coax line is connected.
• Power feeding to the 650T
- Plug and Play installation with no adjustments
4 Your 650T/650R DVI/Coax Transmitter/Receiver
This section defines the 650T DVI-Coax Transmitter (see Section 4.1) and the 650R Coax-DVI Receiver (see Section 4.2)
4.1 Your 650T DVI-Coax Transmitter
Figure 1 defines the 650T:

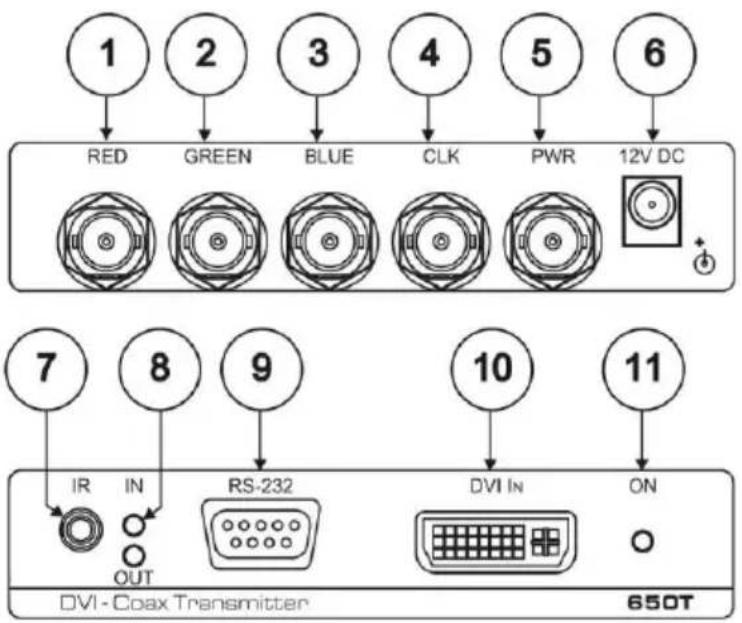

Figure 1: 650T/650R HDMI/Coax Transmitter/Receiver
| # | Feature | Function |
| 1 | RED Output BNC Connector | Transmits the red signal to the 650R |
| 2 | GREEN Output BNC Connector | Transmits the green signal to the 650R |
| 3 | BLUE Output BNC Connector | Transmits the blue signal to the 650R |
| 4 | CLK Output BNC Connector | Transmits the clock signal to the 650R |
| 5 | PWR Output BNC Connector | Transmits power and the IR signal to the 650R |
| 6 | 12V DC | +12V DC connector for powering the unit |
| 7 | IR Connector | Connects to an IR sensor or transmitterCompatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE |
| 8 | IN / OUT LED | The IN LED Illuminates when an input source is connected. The OUT LED illuminates when an output acceptor is connected |
| 9 | RS-232 9-pin D-sub Connector | Connects to an RS-232 computer source |
| 10 | DVI IN Connector | Connects to a DVI source |
| 11 | ON LED | Illuminates when receiving power |
4.2 Your 650R Coax-DVI Receiver
Figure 2 defines the 650R:

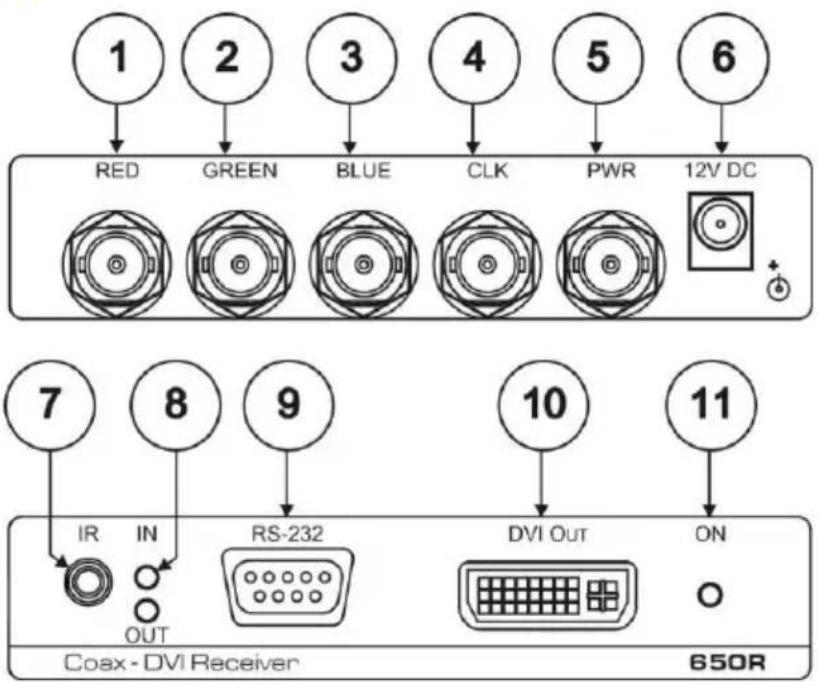

Figure 2: 650R Coax-DVI Receiver
| # | Feature | Function |
| 1 | RED Input BNC Connector | Receives the red signal from the 650T |
| 2 | GREEN Input BNC Connector | Receives the green signal from the 650T |
| 3 | BLUE Input BNC Connector | Receives the blue signal from the 650T |
| 4 | CLK Input BNC Connector | Receives the clock signal from the 650T |
| 5 | PWR Input BNC Connector | Receives power and the IR signal from the 650T |
| 6 | 12V DC | +12V DC connector for powering the unit |
| 7 | IR Connector | Connects to an IR sensor or transmitterCompatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE |
| 8 | IN / OUT LED | The IN LED Illuminates when an input source is connected. The OUT LED illuminates when an output acceptor is connected |
| 9 | RS-232 9-pin D-sub Connector | Connects to an RS-232 computer source |
| 10 | DVI OUT Connector | Connects to a DVI acceptor |
| 11 | ON LED | Illuminates when receiving power |

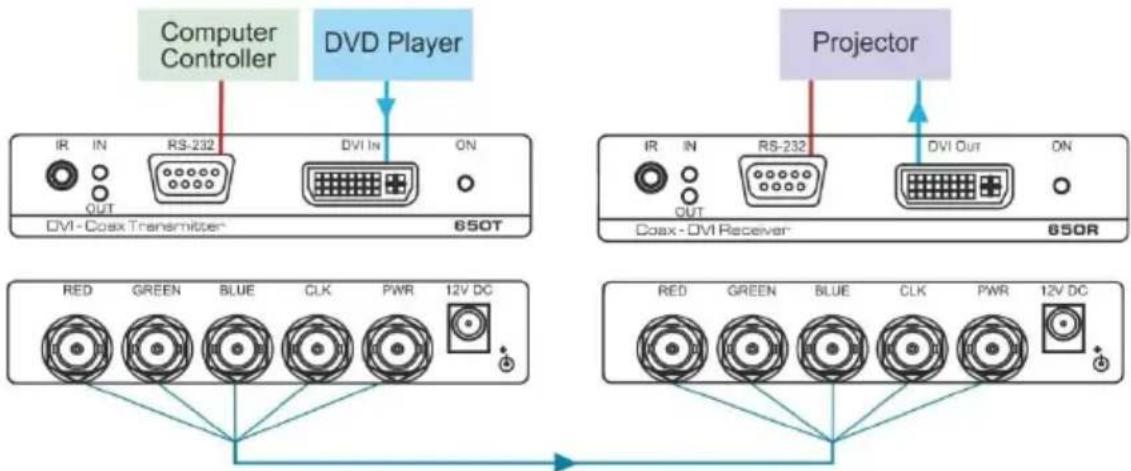

5 Connecting the 650T/650R
You can use the 650T DVI-Coax Transmitter and the 650R Coax-DVI Receiver to configure an DVI-to-Coax Transmitter and Receiver system (see Figure 3).

Always switch off the power to each device before connecting it to your 650T/650R. After connecting your 650T/650R, connect its power and then switch on the power to each device.
To connect the DVI-to-Coax Transmitter and Receiver system as shown in the example in Figure 3, do the following:
- Connect an DVI source, for example, the DVI output from a Blu-ray DVD player, to the 650T DVI IN connector.
- Connect the 650R DVI OUT connector to the DVI acceptor, for example, a projector.
-
If using a 4-plug coax cable or 4 coax cables:
-
Connect the 650T red, green, blue, and clock BNC connectors to the 650R red, green, blue and, clock BNC connectors
-
Connect 12V DC power supplies to both the 650T and the 650R (not shown in Figure 3). The remote power and IR remote control functions are not available
-
If using a 5-plug coax cable or 5 coax cables:
-
Connect the 650T red, green, blue, clock, and power BNC connectors to the 650R red, green, blue, clock, and power BNC connectors
- Connect one 12V DC power supply to either the 650T or the 650R (not shown in Figure 3). Power and the IR remote control function are transmitted over the power coax connection to the second device
Note: All coax cables must be the same length. There can be no more than 6 inches (15cm) difference in length between any of the cables.
- Connect the power supply(s) to the mains electricity.
After all connections are made and the units are powered ON, the system operates.


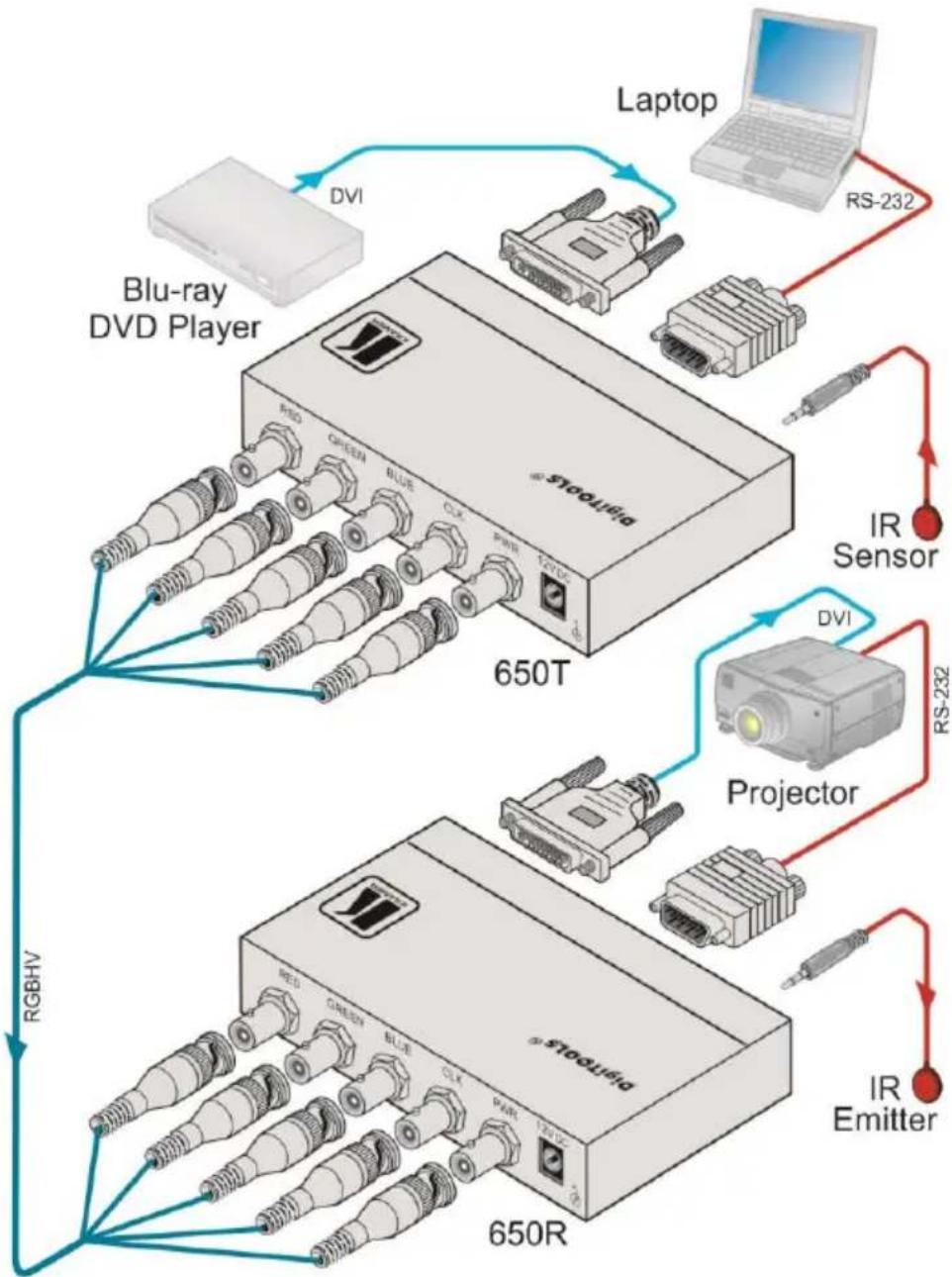

Figure 3: DVI-to-Coax Transmitter and Receiver System
6 Technical Specifications
| INPUTS: | 1 DVI connector | 5 BNC connectors |
| OUTPUTS: | 5 BNC connectors | 1 DVI connector |
| PORT: | IR on a 3.5mm mini jack,RS-232 on a 9-pin D-sub connector | |
| MAX. DATA RATE: | Supports up to 6.75Gbps (2.25Gbps per graphic channel)and up to 720P with HDCP | |
| STANDARDS COMPLIANCE: | HDCP | |
| POWER SOURCE: | 12V DC, 270mA (650T)12V DC 450mA (650T /650R pair when poweredfrom 650T via PowerConnect with 60m cable) | 12V DC, 160mA (650R)12V DC 590mA (650T /650R pair when poweredfrom 650R via PowerConnect with 60m cable) |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F) | |
| STORAGE TEMPERATURE: | -40° to +70°C (-40° to 158°F) | |
| HUMIDITY: | 10% to 90%, RHL non-condensing | |
| DIMENSIONS: | 12.0cm x 7.0cm x 2.4cm (4.7" x 2.8" x 1.0"), W, D, H | |
| WEIGHT: | 0.3kg (0.7lbs) approx. | |
| ACCESSORIES: | Power supply | |
| OPTIONS: | Kramer external remote IR receiver,C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE | |
| Specifications are subject to change without notice at http://www.kramerelectronics.com | ||
| 650T/650R Range Chart | |
| Cable Type | Max Range |
| BC-5 (28 AWG) | 50m |
| BC-5 (26 AWG) | 60m |
| RG-59 | 115m |
| RG-6 | 150m |
LIMITED WARRANTY
The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:
What is Covered
This limited warranty covers defects in materials and workmanship in this product.
What is Not Covered
This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.
Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.
How Long Does this Coverage Last
Seven years as of this printing; please check our Web site for the most current and accurate warranty information.
Who is Covered
Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.
What Kramer Electronics will do
Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:
- Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
- Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
- Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.
What Kramer Electronics will not do Under This Limited Warranty
If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.
How to Obtain a Remedy under this Limited Warranty
To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.
In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.
If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.
Limitation on Liability
THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.
Exclusive Remedy
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A 'CONSUMER PRODUCT' UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.
Other Conditions
This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.
This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at
www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.
Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.
We welcome your questions, comments, and feedback.
Web site: www.kramerelectronics.com
E-mail: info@kramerel.com



SAFETY WARNING
Disconnect the unit from the power supply before opening and servicing
P/N: 2900-000536


Rev: 10
