USER MANUAL 673R/T Kramer

HD-SDI Optical Receiver

This guide helps you install and use your product for the first time. For more detailed information, go to http://www.kramerelectronics.com/support/product_downloads.asp to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

673T, 673R HD-SDI Optical Transmitter/Receiver 1 Power supply per unit (5V DC)

4 Rubber feet 1 Quick Start sheet

Save the original box and packaging materials in case you need to return your 673T, 673R for service.

Step 2: Install the 673T, 673R

Attach the rubber feet and place on a table or mount the 673T, 673R in a rack (using an optional RK-3T rack mount).

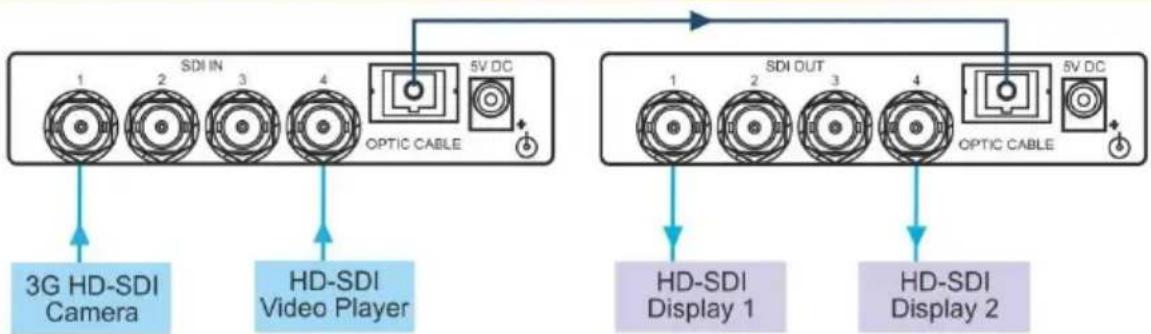

Step 3: Connect the inputs and outputs

Always switch off the power on each device before connecting it to your 673T, 673R.

Always use Kramer high-performance cables for connecting AV equipment to the 673T, 673R.

Step 4: Connect the power

Connect the 5V DC power adapter to the 673T, 673R and plug the adapter into the mains electricity.

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3 Overview 4

3.1 Defining the 673T, 673R HD-SDI Optical Transmitter/Receiver 5

4 Connecting the 673T, 673R 7

5 Technical Specifications 9

Figures

Figure 1: 673T HD-SDI Optical Transmitter 5

Figure 2: 673R HD-SDI Optical Receiver 6

Figure 3: Connecting the 673T, 673R HD-SDI Optical Transmitter/Receiver 8

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products.

Congratulations on purchasing your Kramer 673T, 673R HD-SDI Optical Transmitter/Receiver, which is ideal for the following typical applications:

• Home theater, presentation and multimedia applications
- Long range multimedia distribution for cinemas, stores, and entertainment centers
• Video production and broadcast facilities
• Retail stores and other point-of-sale systems

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
• Position your Kramer 673T, 673R away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall before installing

Warning: Avoid direct eye exposure into the optic connectors when powered, although this product is regulated strictly enough to operate under the Laser Class 3R for eye safety

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The 673T is a high-performance fiber optic transmitter for 3G HD-SDI, HD-SDI, SDI, and dual-link SDI signals. The unit converts up to four channels of serial digital signals on gold-plated BNC connectors to light pulses that are transmitted over a single multimode fiber optic cable to a 673R receiver that converts them back to serial digital signals. The 673T and 673R pair has a transmission range of 1000 meters (more than 3,200ft).

Both the 673T and 673R:

• Feature a maximum data rate of up to 3Gbps, enabling it to be used for standard definition, high definition and the new 3G high definition serial digital video signals (SD/HD-SDI)
  • Feature a single multimode OM3 fiber optic with SC connectors
• Include four HD-SDI signals on gold-plated BNC connectors each for the transmitter and the receiver
• Support SDI, HD-SDI, 3G HD-SDI and dual-link and support data rates of 270Mbps, 1483.5Mbps, 1485Mbps and 2970Mbps
• Are strictly regulated in accordance with Class 3R Laser Eye Safety in compliance with ANSI Z136 and IEC 60825-1:2007
  • Feature HDTV compatibility
• Include cable equalization up to 350m for SD signals, 140m for 1.5GHz HD signals, and 120m for 3GHz HD signals

Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL) lines of interlaced video. High Definition (HD) means a video format, consisting of 720 active lines of progressive video or 1080 lines of progressive or interlaced video

• Feature fiber optic, output and input indication LEDs
• Include reclocking and equalization on each channel
• Include 5V DC power adapters and housing in Kramer DigiTOOLS ^® enclosures
• Can be rack mounted in a 1U rack space with the optional RK-3T rack adapter

3.1 Defining the 673T, 673R HD-SDI Optical Transmitter/Receiver

This section describes the:

• 673T HD-SDI Optical Transmitter, see Section 3.1.1
• 671R HD-SDI Optical Receiver, see Section 3.1.2

3.1.1 Your 673T HD-SDI Optical Transmitter

Figure 1 defines the 673T HD-SDI Optical Transmitter.

Figure 1: 673T HD-SDI Optical Transmitter

#	Feature	Function
1	CONNECTED INPUT LEDs	Lights when a valid input is connected (from 1 to 4)
2	FIBER LED	Lights when the fiber optic cable is connected
3	ON LED	Illuminates when receiving power
4	SDI IN BNC Connector	Connects to the SDI source (from 1 to 4)
5	OPTIC CABLE Connector	Connects to the optical connector on the 673R via multimode fiber cable
6	5V DC	+5V DC connector for powering the unit

3.1.2 Your 673R HD-SDI Optical Receiver

Figure 2 defines the 673R HD-SDI Optical Receiver.

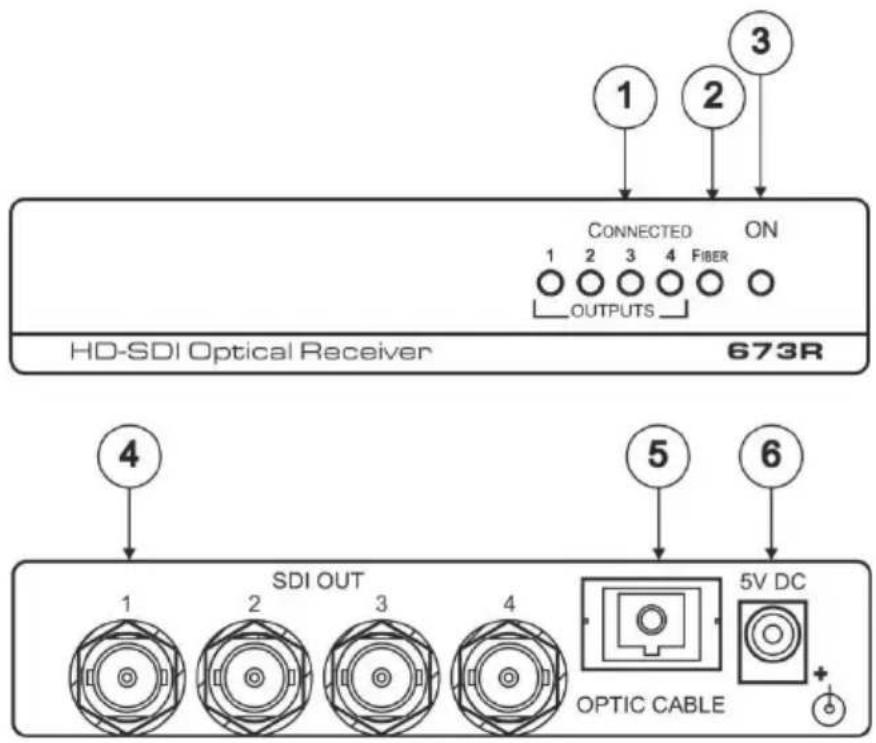

Figure 2: 673R HD-SDI Optical Receiver

#	Feature	Function
1	CONNECTED OUTPUT LEDs	Illuminates to show the valid input signals connected on the transmitter (from 1 to 4)
2	FIBER LED	Illuminates when the fiber optic cable is connected
3	ON LED	Illuminates when receiving power
4	SDI OUT BNC Connector	Connects to the SDI acceptor (from 1 to 4)
5	OPTIC CABLE Connector	Connects to the optical connector on the 673T via multimode fiber cable
6	5V DC	+5V DC connector for powering the unit

Always switch off the power to each device before connecting it to your 673T, 673R. After connecting your 673T, 673R, connect its power and then switch on the power to each device.

Warning:

Avoid direct eye exposure into the optic connectors when powered, although this product is regulated strictly enough to operate under the Laser Class 3R for eye safety.

To connect the 673T and 673R, as illustrated in the example in Figure 3, do the following:

1. Connect up to four SDI sources (for example video players and/or HD-SDI cameras) to the four SDI IN connectors.
   You do not have to connect all the inputs and outputs.
2. Connect the four SDI OUT connectors to up to four SDI acceptors (for example, HD-SDI displays).
3. Remove the dust caps and connect the OPTIC CABLE connector of the 673T to the OPTIC CABLE connector of the 673R, via OM3 cabling with SC connectors (maximum range of 900 meters (2950ft)).
4. Connect the 5V DC power adapter to the power socket on each unit and connect the adapter to the mains electricity (not shown in Figure 3).


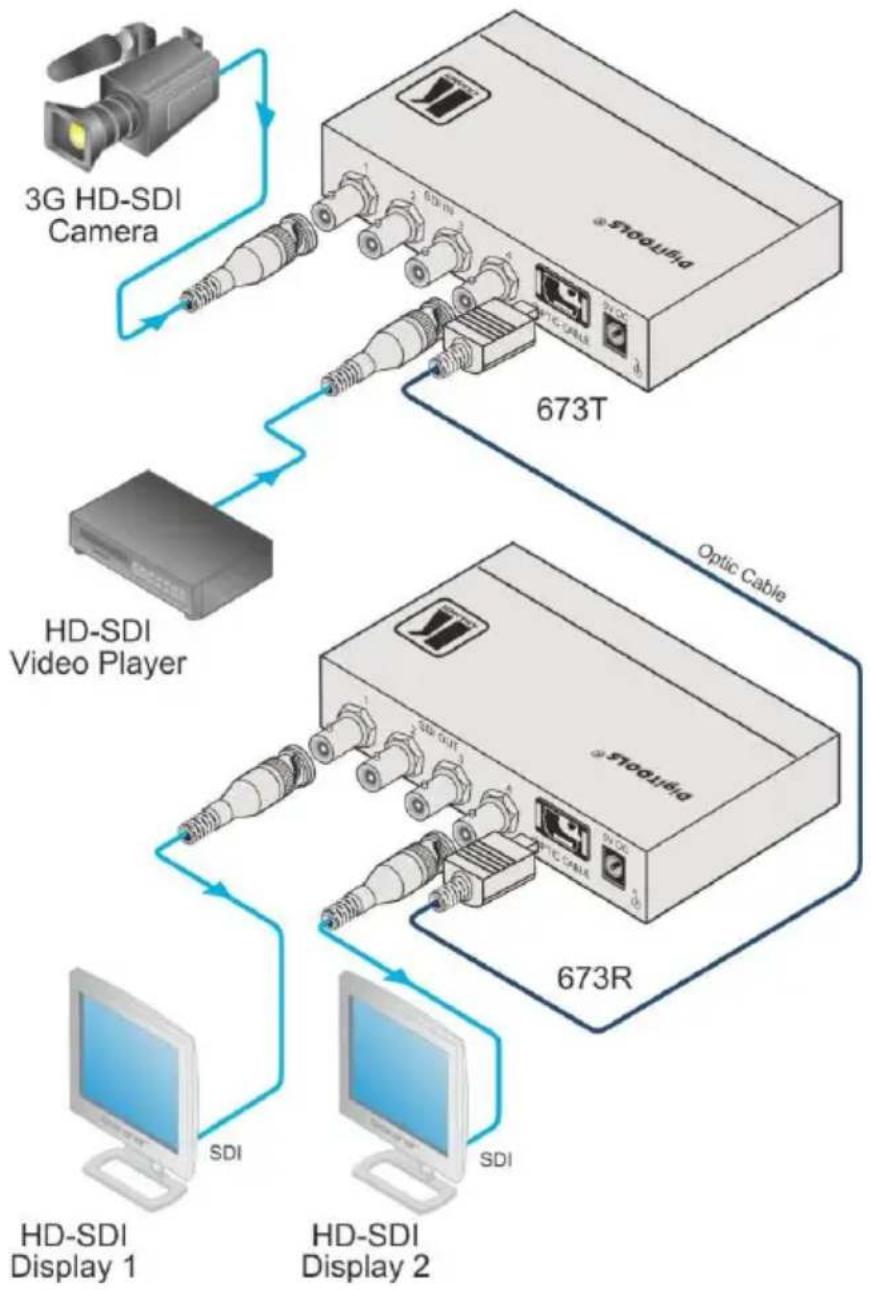

Figure 3: Connecting the 673T, 673R HD-SDI Optical Transmitter/Receiver

5 Technical Specifications

	673T	673R
INPUTS:	SD/HD/3G-HD-SDI/Dual link, 75Ω on BNC connectors	1 optical connector
OUTPUTS:	1 optical connector	SD/HD/3G-HD-SDI/Dual link, 75Ω on BNC connectors
BANDWIDTH:	Supports up to 3Gbps bandwidth for each input
FIBER OPTIC RANGE:	Up to 1000m (>3200 feet) for 3G HD-SDI
INPUT CABLE EQUALIZATION (673T):	350m for SDI, 140m for HD-SDI, 120m for 3G HD-SDI
FIBER OPTIC CONNECTION:	SC connectors for multimode (OM3) fiber cable
INSERTION LOSS FROM TRANSMITTER TO RECEIVER:	Must not exceed 10dB
INDICATOR LEDs:	VIDEO, SOURCE, FIBER and ON LEDs
POWER CONSUMPTION:	5V DC, 520mA	5V DC, 780mA
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
DIMENSIONS:	12cm x 7.95cm x 2.76cm (4.7" x 3.1" x 1.08", W, D, H)
WEIGHT:	0.3kg (0.67lbs) approx. each
ACCESSORIES:	2 power supplies, bracket installation kit
OPTIONS:	RK-3T 19" rack mount
Specifications are subject to change without notice at http://www.kramerelectronics.com

LIMITED WARRANTY

The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long Does this Coverage Last

Seven years as of this printing; please check our Web site for the most current and accurate warranty information.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics will do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.
2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.
3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics will not do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy under this Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation on Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A 'CONSUMER PRODUCT' UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at

www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

Web site: www.kramerelectronics.com

E-mail: [e-mail]

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

P/N: 2900-000485

Rev: 4
