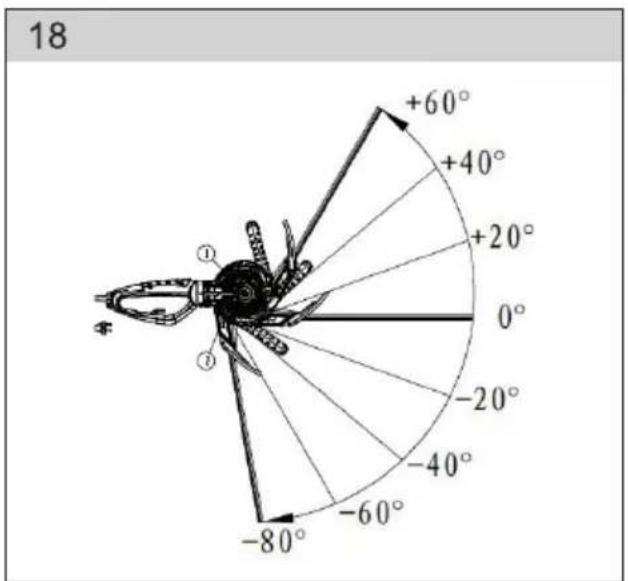

| Cutting Head Swivel Range | ±90° rotation; +60° to -80° tilt in 20° increments |
| Handle Rotation | 180° (rear handle) |
| Safety Features | Two-hand safety switch, protective shield, blade guard, lockout buttons |
| Power Cable | With cable support and strain relief |
| Recommended Extension Cable | Outdoor-rated, comply with HD 516 |
| Intended Use | Cutting hedges, shrubs, and low-lying plants in private gardens |
| Maintenance | Grease blades with low-viscosity oil; clean with damp cloth |
| Protection Class | Double insulated (no earth connection) |
| Included Accessories | Blade safeguard, instruction manual, warranty card |
Frequently Asked Questions - FZN 2002-E Fieldmann
User questions about FZN 2002-E Fieldmann
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge Trimmer in PDF format for free! Find your manual FZN 2002-E - Fieldmann and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FZN 2002-E by Fieldmann.
USER MANUAL FZN 2002-E Fieldmann
Home & Garden Performance
English 7
Čeština 23
Slovenčina 39
Magyarul 55
Polski 73
Русский 91
1
2
Electric Hedge Trimmer
INSTRUCTION MANUAL
Thank you for your purchase of the electric hedge trimmer. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.
CONTENTS
PICTORIAL APPENDIX 2
- GENERAL SAFETY INSTRUCTIONS 8
Important Safety Instructions
Package
Instruction Manual
-
SYMBOLS AND WARNINGS ON MACHINE 9
-
MACHINE DESCRIPTION AND ITEMS DELIVERED 10
-
ELECTRIC HEDGE TRIMMER APPLICATION 10
-
SAFETY INSTRUCTIONS .... 11
-
ADDITIONAL SAFETY INSTRUCTIONS 14
-
ASSEMBLY 15
-
OPERATION 16
-
WORKING POSITIONS ...... 16
-
STORAGE 18
-
MAINTENANCE 18
-
TROUBLESHOOTING 19
-
DECLARATION OF CONFORMITY 20
-
TECHNICAL SPECIFICATIONS 21
-
DISPOSAL 22
1. GENERAL SAFETY INSTRUCTIONS
Important safety warnings
- Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
- Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.
Packaging
The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.
Instructions for use
Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).
Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.
The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.
2. SYMBOLS AND WARNINGS ON MACHINE
WARNING!
Should the electrical cable get dam or cut, unplug the cable off the so immediately.
Do not expose the electric hedge trimmer to rain or moisture. If raining, do not leave the hedge trimmer outdoor.
3. MACHINE DESCRIPTION AND ITEMS DELIVERED

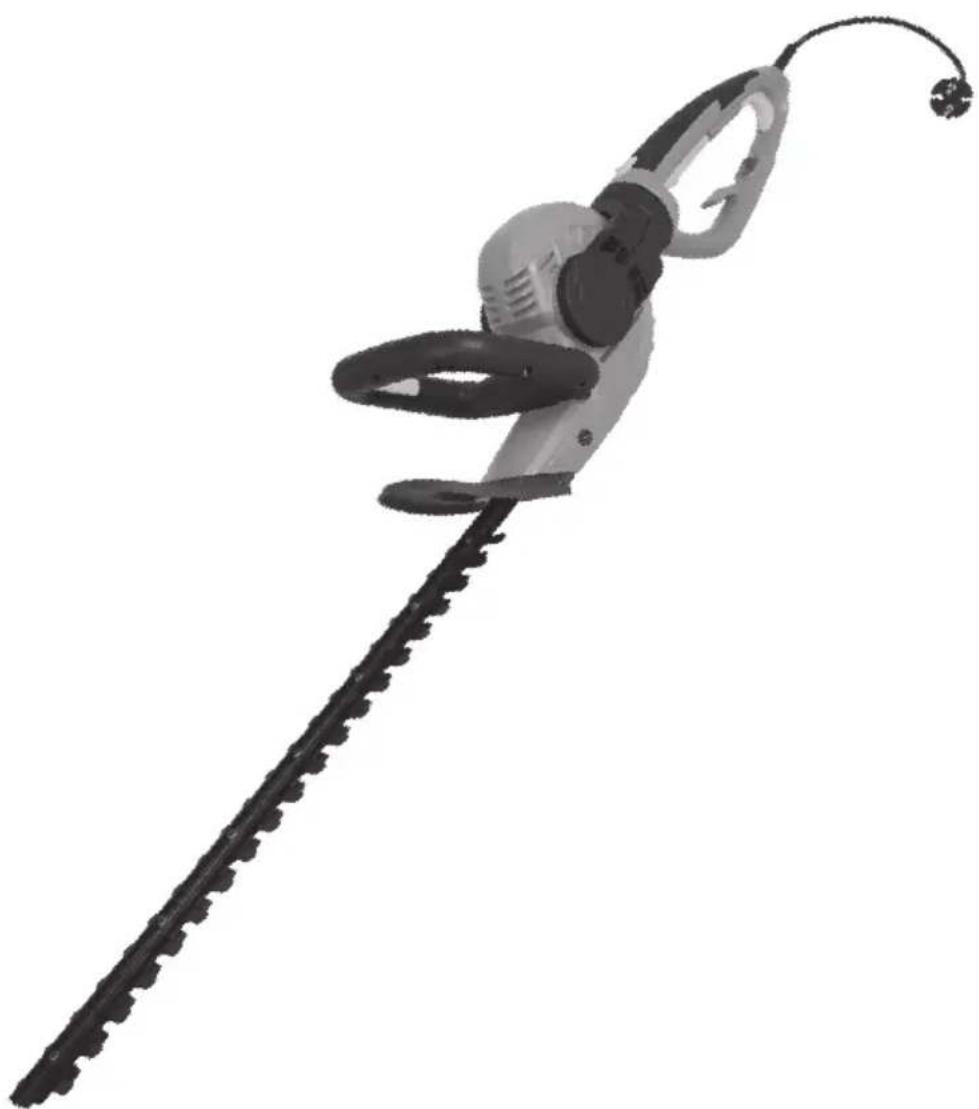

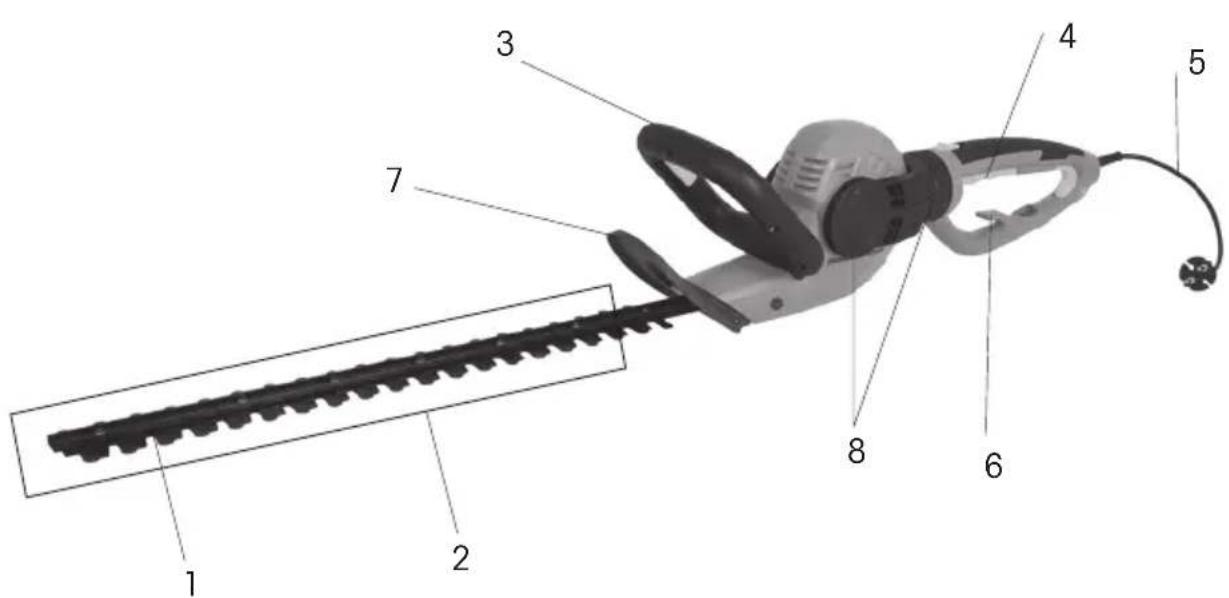

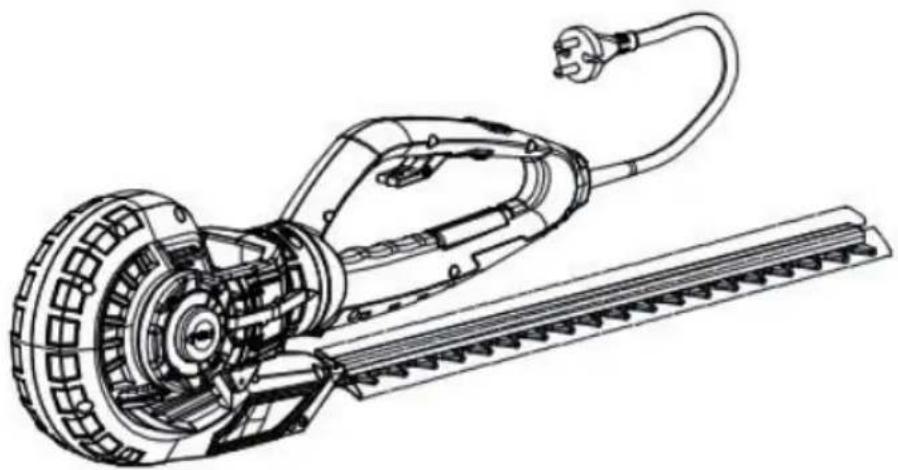

Machine Description (See fig. 1)
1 - Cutter blades
2 - Blade safeguard
3 - Trigger lockout
4 - Trigger
5 - Power cable
6 - Cable support
7 - Protective shield
8 - Swivel hinge (horizontal & vertical)
Items Delivered
Remove all contents from the box and inspect to ensure no damage was incurred during shipping, and that the items listed below are included.:
Electric hedge trimmer
Blade safeguard
Instruction Manual
Warranty card
Should the components be missing or damaged, contact the dealer of the machine.
4. ELECTRIC HEDGE TRIMMER APPLICATION
Appropriate Application
The electric hedge trimmer is intended for cutting hedges, shrubs and low-lying plants in private domestic gardens and allotments. Appropriate application of the electric hedge trimmer is conditioned by keeping of the instructions mentioned in the Instruction Manual.
⚠ WARNING! Risk of injury! Do not use the electric hedge trimmer to mow grass/lawn edges, or to cut the organic material for composting.
5. SAFETY INSTRUCTIONS
⚠ WARNING! For safety reasons, children under the age of 16 and people not familiar with these operating instructions must not use the electric hedge trimmer. Persons with reduced physical or mental abilities may use the electric hedge trimmer only if they are supervised or instructed by a responsible person.
WARNING! If not used properly, this product can be dangerous. The warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using the product. The operator is responsible for following the warnings and instructions in the Instruction Manual and on the product. Never use the product unless the guards provided by the manufacturer are in the correct position.
* Wear the appropriate eye protection.
* General warnings on the electric tool safety.
⚠ WARNING! Read all the safety warnings and instructions carefully.
⚠ WARNING! Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
⚠ WARNING! Save all warnings and instructions for future reference.
⚠ WARNING! The term "electric tool" in the warnings refers to your mains operated (corded) electric tool or battery-operated (cordless) electric tool.
Work Area Safety
* Keep the work area clean and well lit.
* Cluttered or dark areas invite accidents.
Do not operate electric tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Electric tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating an electric tool.
* Distractions can cause you to lose control of the equipment.
Electrical Safety
Electric tool plug must match the mains outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) electric tools.
* Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions.
Water entering a machine will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the electric tool. Keep cord away from heat, oil, sharp edges or moving parts.
* Damaged or entangled cords increase the risk of electric shock.
When operating an electric tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating an electric tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
Use of an RCD reduces the risk of electric shock.
Personal Safety
* Stay alert, watch what you are doing and use common sense when operating an electric tool. Do not use an electric tool while you are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
Use adequate personal protective equipment. • Always wear eye protection.
* Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
* Prevent unintentional starting of the tool. Ensure the switch is in the off-position before connecting to power source and /or battery pack, picking up or carrying the tool.
* Carrying electric tools with your finger on the switch or energising electric tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the electric tool on.
* A wrench or a key left attached to a rotating part of the power tools may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
This enables better control of the electric tool in unexpected situations.
* Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
- Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
Electric Tool Use and Care
Do not force the electric tool. Use the correct electric tool for your application.
The correct electric tool will do the job better and safer at the rate for which it was designed.
Do not use the electric tool if the switch does not turn it on and off.
* Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
* Disconnect the plug from the power source and /or the battery pack from the electric tool before making any adjustments, changing accessories, or storing electric tools.
Such preventive safety measures reduce the risk of starting the electric tool accidentally.
Store idle electric tools out of the reach of children and do not allow persons unfamiliar with the tool or these instructions to operate the electric tool.
Electric tools are dangerous in the hands of untrained users.
* Maintain electric tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the electric tool efficiency. If damaged, have the electrical tool repaired before use.
* Many accidents are caused by poorly maintained electric tools.
* Keep cutting tools sharp and clean.
* Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
Use the electric tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
Use of the electric tool for operations different from those intended could result in a hazardous situation.
Use the electric tools, accessories and tool bits in compliance with the mentioned instructions and with respect to the work area conditions and the type of work to be performed.
Use of the electric tool for operations different from those intended could result in a hazardous situation.
Service
* Have your electric tool serviced by a qualified repair person using only identical replacement parts.
This will ensure that the safety of the electric tool is maintained.
Electric Hedge Trimmer Safety Warnings
* Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material.
* A moment of inattention while operating the hedge trimmer may result in serious personal injury.
* Carry the electric hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer, always fit the cutting device cover. Proper handling of the electric hedge trimmer will reduce possible personal injury from the cutter blades.
Hold the electric tool by insulated gripping surfaces only because the cutter blade may contact hidden wiring or its own cord.
* Cutter blades contacting a "live" wire may make exposed metal parts of the electrical tool "live" and could give the operator an electric shock.
- Keep the power cable away from the cutting area.
While operating the hedge trimmer, the cable may be hidden in shrubs and can be accidentally cut by the blade.
6. ADDITIONAL SAFETY INSTRUCTIONS
Work Area Safety
* Only use the product in the manner and for the functions described in the Instruction Manual.
The operator or user is responsible for accidents or hazards occurring to other people or their property.
Electrical Safety
The British Standards Institute recommends using of a Residual Current Device (RCD) with a tripping current of not more than 30mA. Check your RCD every time you use the electric tool. Before use, examine the power cable for damage; replace it if there are signs of damage or ageing.
Do not use the product if the electric cables are damaged or worn.
Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected.
Your electric cable must be untangled. Tangled cables can overheat and reduce the efficiency of your product.
* Always switch off at the mains before disconnecting any plug, cable connector or extension cable.
Switch off, remove plug from mains and examine electric supply cable for damage or ageing before winding cable for storage. Do not repair a damaged cable. Replace it with a new one.
* Always wind cable carefully. Avoid kinking.
Use only on AC mains supply voltage shown on the product rating label.
Under no circumstances should an earth be connected to any part of the product.
Cables
Use only the extension cords complying with the HD 516. If in doubts, consult the expert.
Personal Safety
* Always wear suitable clothing, gloves, and stout shoes.
Thoroughly inspect the area where the product is to be used and remove all wires and other foreign objects.
All adjustments (turning the blade unit, inclining the blade head) have to be made with sheath in place, and the hedge trimmer must not rest on the blade in the process.
Before using the machine and after any impact, check for signs of wear or damage and repair as necessary.
Before using the electric hedge trimmer, always make sure that the hand guard provided is fitted.
* Never attempt to use an incomplete product or one with an unauthorised modification.
Electric Tool Use and Care
Know how to stop the product quickly in an emergency.
* Never hold the product by the guard.
Do not use the hedge trimmer if the protection equipment (hand protection, 2-hand safety switch, protective shield, quick blade-stop) are damaged.
Do not use ladders whilst operating the product.
Remove the plug from the mains
Before leaving the product unattended for any period.
Before clearing a blockage.
Before checking, cleaning or working on the appliance.
If you hit an object. Do not use your product until you are sure that the entire product is in a safe operating condition.
If the product starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
Before passing the product to another person.
Cleaning and Storing Instructions
⚠ WARNING! RISK OF INJURY! Do not touch the blades. When finishing or interrupting the work, push up the protective shield.
- Keep all nuts, bolts and screws secure to be sure the telescopic hedge trimmer is in safe working condition.
7. ASSEMBLY (Fig. 2-7)
Electric hedge trimmer assembly in the package (Fig. 2)

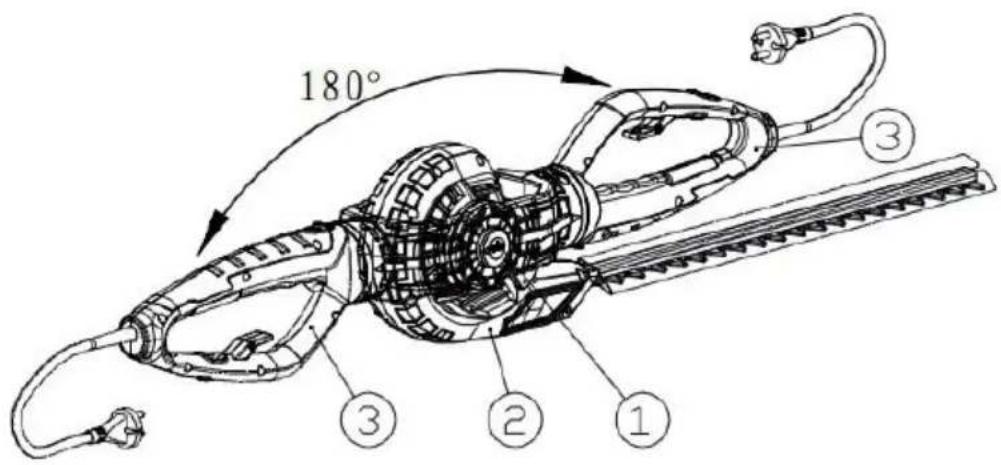

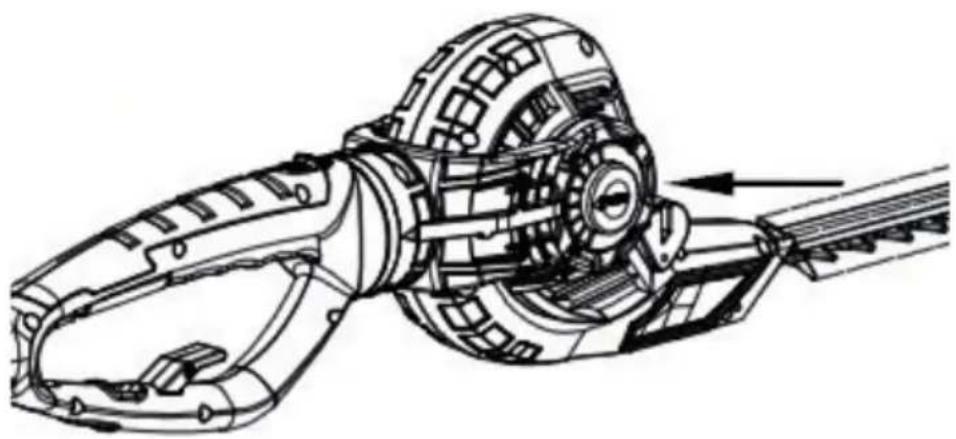

* At first, push the lockout button 1, and then turn the handle 3 (see Fig. 3)
The handle 3 can be turned in 180^ ; when unpacked, the handle 3 is in the 0^ position (Fig. 4)

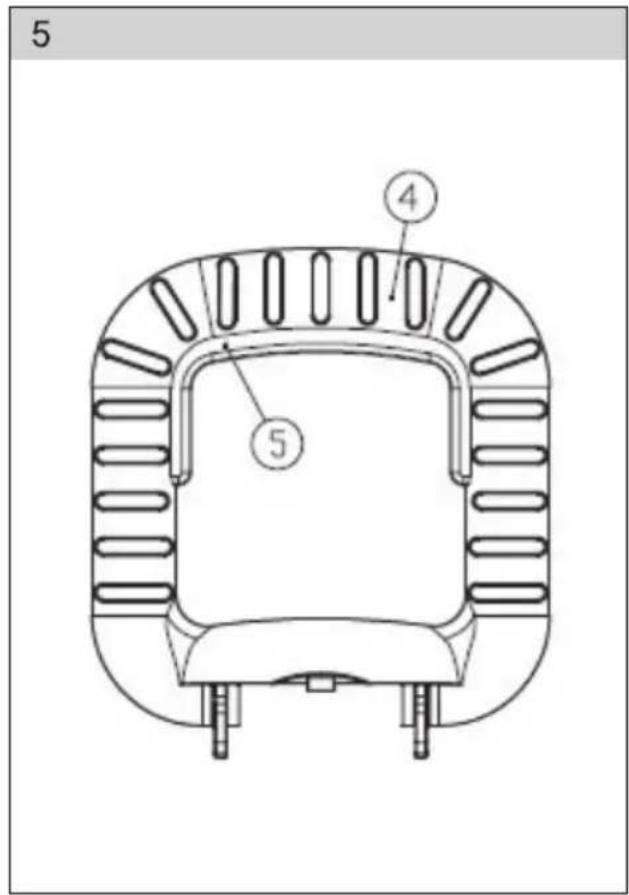

⚠ WARNING! Prior to assembly, check whether the trigger lockout 5 is not damaged on the guide handle 4, whether it can move in three directions and whether it can rotate (up, left, and right), see fig. 5.
Remove the screws 6 (Fig. 7)
* Check whether the guide handle 4 works normally (Fig. 7)

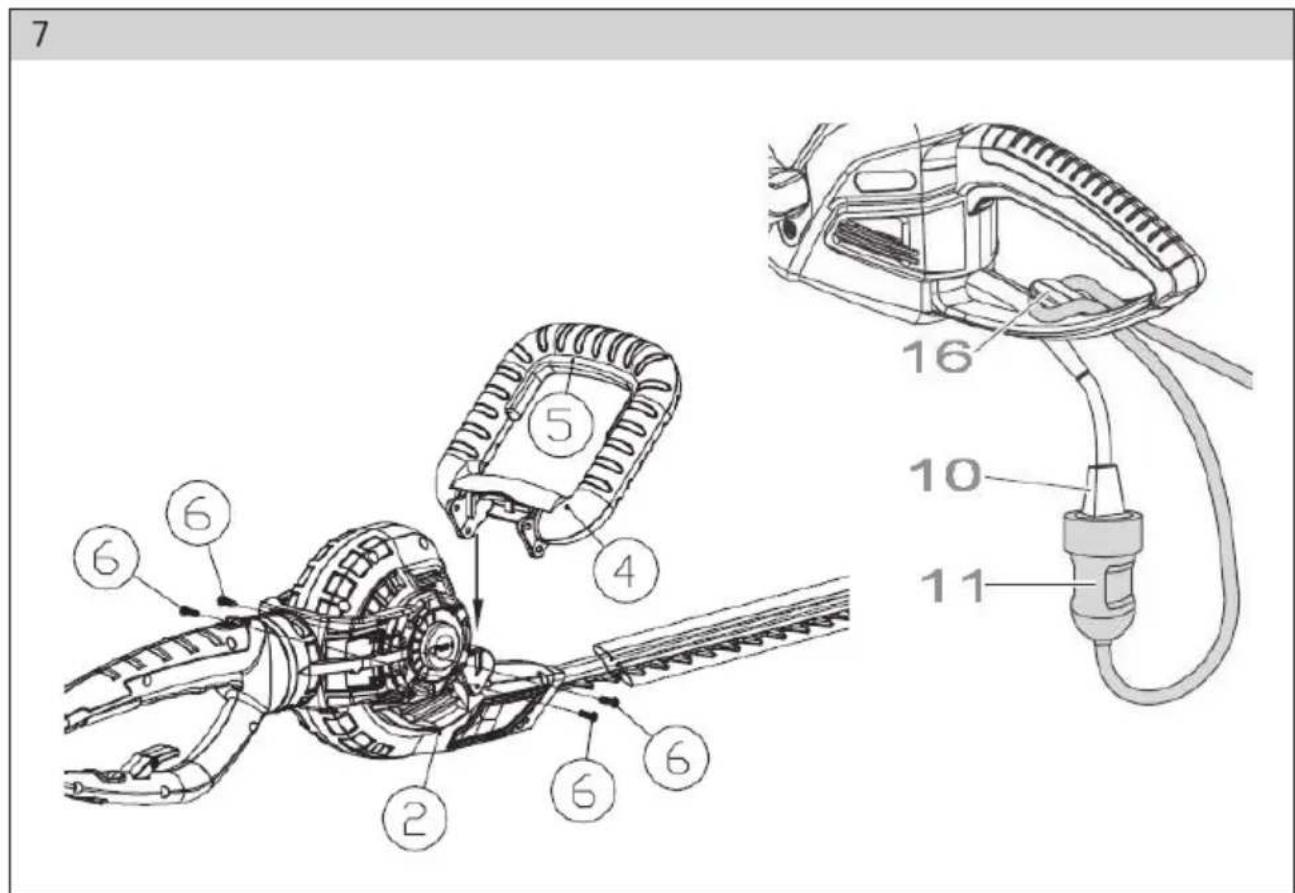

* Insert the guide handle 4 to the swivel head 2 up to the very end of the groove (four openings in the guide handle 4 and four openings on the swivel head 2 must be aligned) (Fig. 7)
* Screw four screws 6 on the guide handle 4 (Fig. 7)
* Check whether the trigger lockout 5 on the guide handle can move in three directions and whether it can rotate (up, left, right) to open the microswitch (Fig. 7)

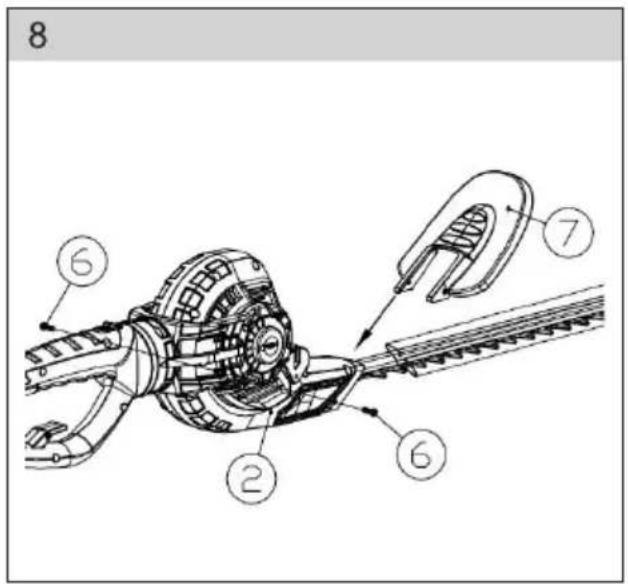

Protective Shield Attachment (Fig 8)
Remove the screws 6.
* Check whether the protection shield 7 is not damaged.
* Insert the protection shield 7 to the swivel head 2 up to the very end of the groove (two openings in the shield 7 and two openings in the swivel head 2 must be aligned).
Screw two screws 7 on the swivel head 7.
8. OPERATION (Fig. 6 and 7)

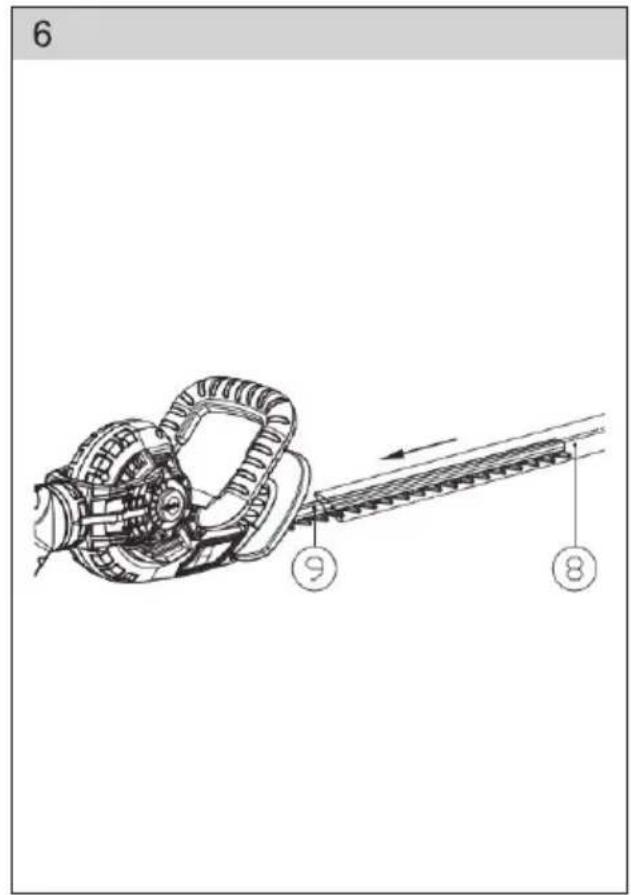

⚠ WARNING! Slide the safeguard 8 to the cutter blade 9. First insert the hedge trimmer plug into the coupling of the extension cable 11, and then plug the extension cable 8 into a mains socket. Never take hold of the protective shield 10 when connecting the hedge trimmer.
⚠ WARNING! Danger of electric shock! To avoid damage to the mains cord 11, the extension cable 16 must be inserted into the cable support 10. Always insert the extension cable 7 into the cable support.
* Loop the extension cable 11, insert the loop into the cable support 16 and pull fight.
* Insert the plug of the mains cord 10 into the socket of the extension cable 11.
Plug the extension cable 11 into a 230 V mains socket.
9. WORKING POSITIONS
The electric hedge trimmer can be used in the following working positions:

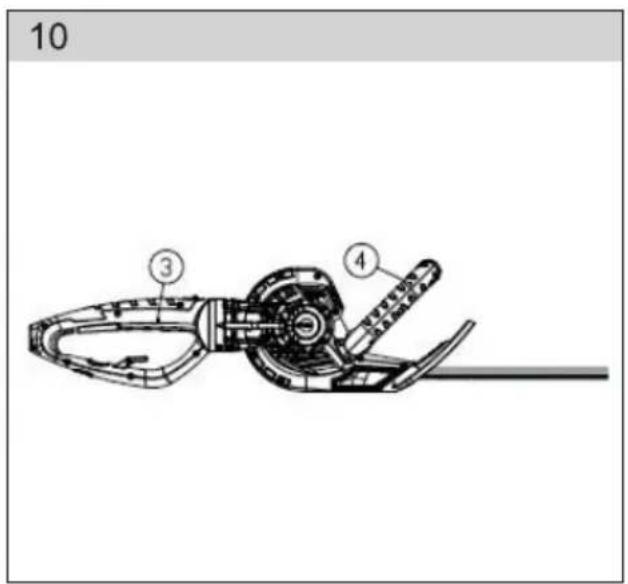

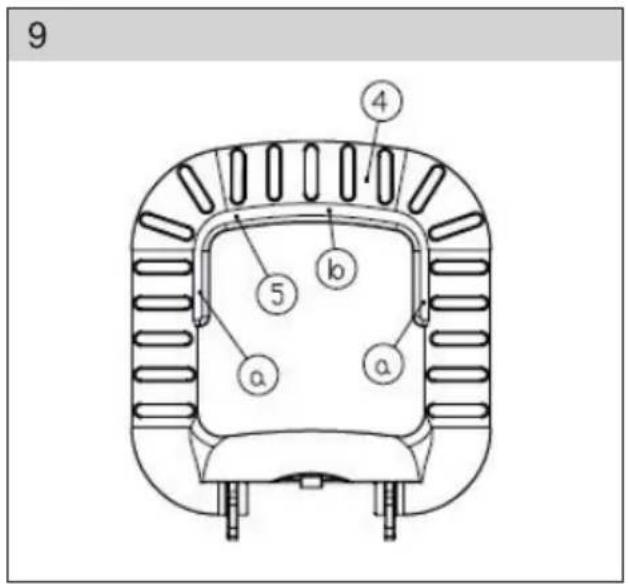

Horizontal Trimming (Fig. 9-10)
Hold the handle 3 in one hand and keep pushing the trigger 14. Hold the guide handle 4 in the other hand and keep pushing the trigger lock on the guide handle 5 (grip the guide handle 4 from side 0, a).

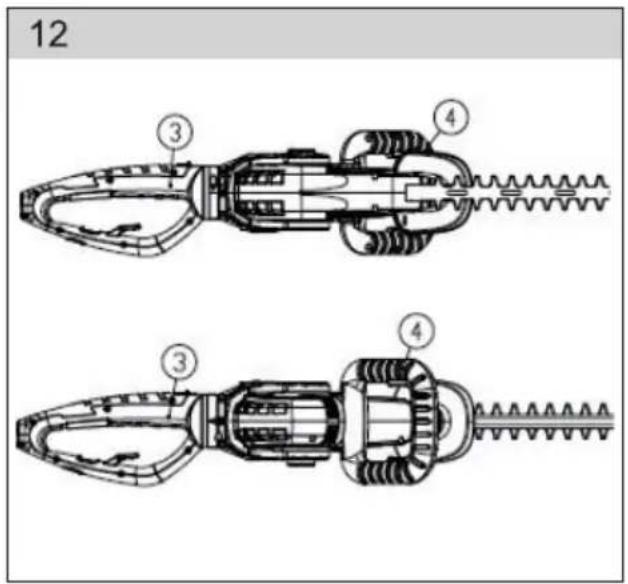

Side Trimming: Swivel the cutting unit by 90° (Fig. 12)
Hold the handle 3 in one hand and keep pushing the trigger 14. Hold the guide handle 4 in the other hand and keep pushing the trigger lock on the guide handle 5 (grip the guide handle 4 from side 0, b).

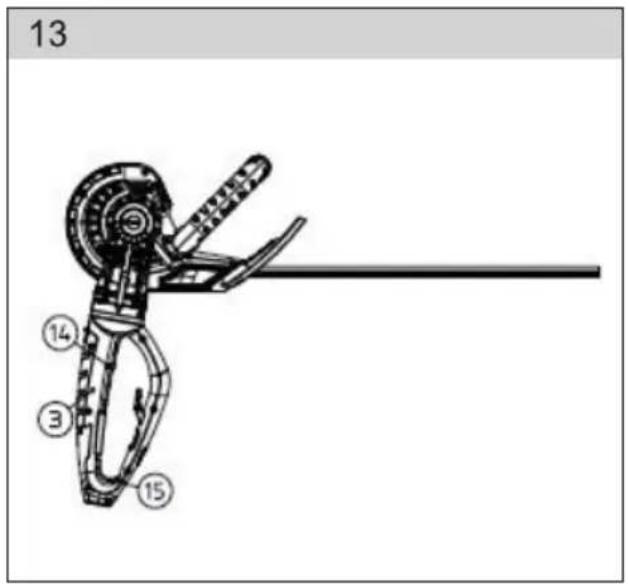

Horizontal Trimming at High Levels: the cutting head is tilted by -80^ (Fig. 13)
Hold the handle 3 in one hand and keep pushing the trigger 14. Hold the handle 3 in the other hand and keep pushing the trigger on the handle 15.

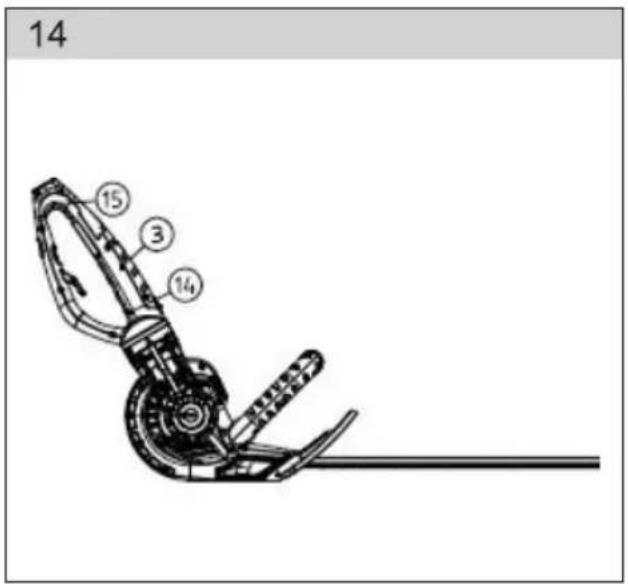

Low-Level Trimming: the cutting head is tilted by 60^ (Fig. 14)
Hold the handle 3 in one hand and keep pushing the trigger 14. Hold the handle 3 in the other hand and keep pushing the trigger on the handle 15.

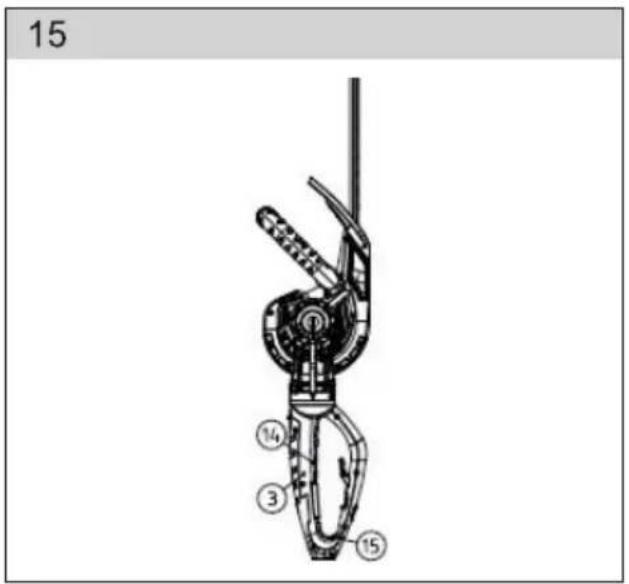

Vertical Trimming at High Levels (Fig. 15)
Hold the handle 3 in one hand and keep pushing the trigger 14. Hold the handle 3 in the other hand and keep pushing the trigger on the handle 15.

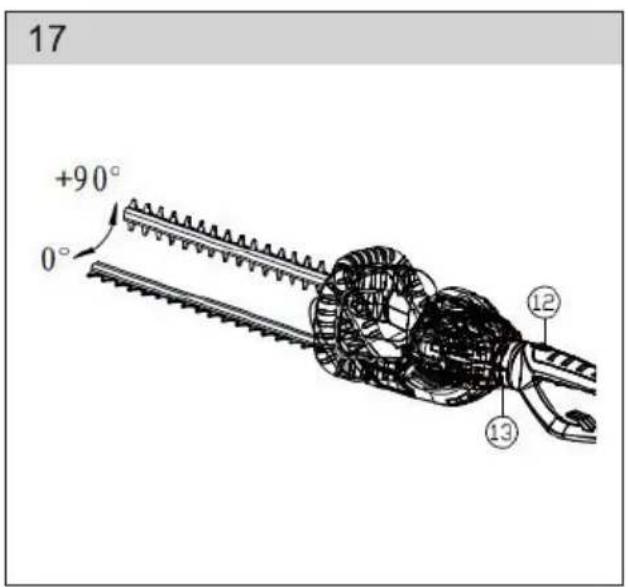

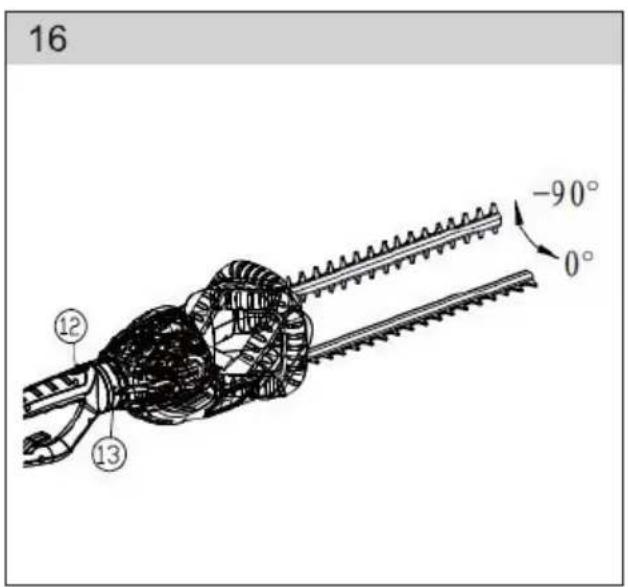

Rotating the Cutting Unit by ±90^ (Fig. 16-17)
For sideways cutting, the cutting unit can be rotated through ±90^ by means of the rotating handle 13.
The rotating handle 12 can be turned to the right or left for right-handed or left-handed users.
* Disconnect mains plug.
* Pull the slide button 12.
Rotate the handle 13 by 90° in the required direction until the slide button 12 locks into place.
The safety device prevents the electric hedge trimmer from starting when the button 12 is pressed or not locked in 0^ or ±90^ position.
Tilting the Swivel Head (Fig. 18)
For trimming at high and low levels, the swivel head 2 can be tilted at an angle of +60° to -80° in 20° increments.
* Disconnect mains plug.
Hold down the lock button 1.
- Tilt the swivel head 2 in the required direction.
Release the lock button 1 and allow it to engage.
The safety device prevents the electric hedge trimmer from starting when the lock button 1 is pressed or not locked in +60° or -80° position.
⚠ WARNING! Risk of injury! If the hedge trimmer does not switch off automatically, there is a risk of lacerations. Never override the safety devices (e.g. by strapping down one of the start buttons).

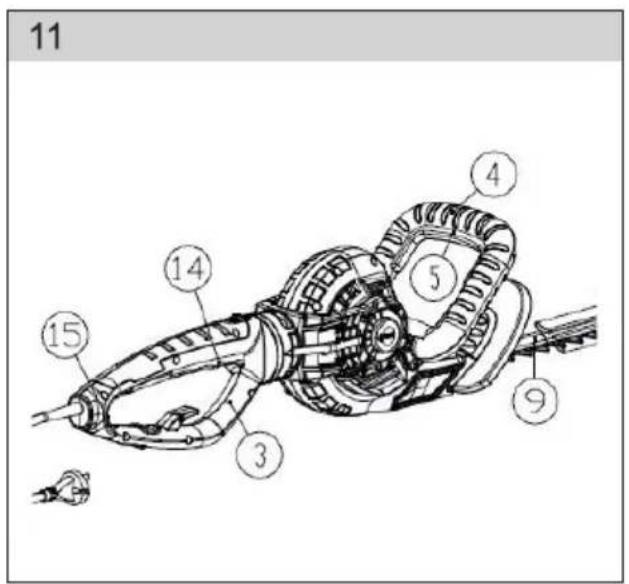

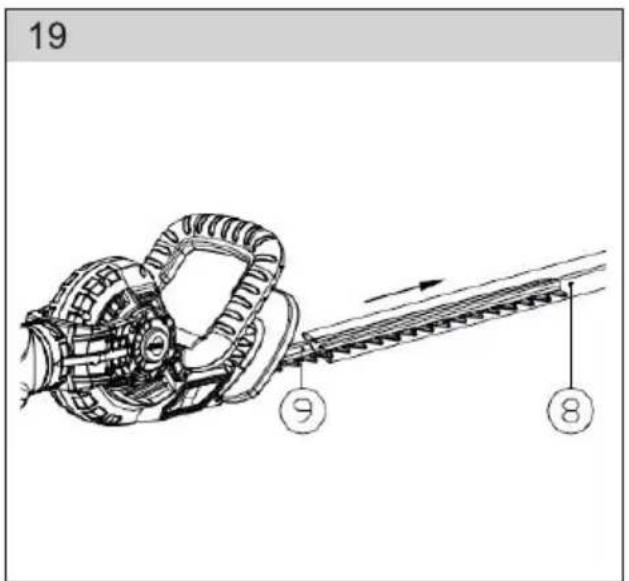

Starting the Electric Hedge Trimmer (Fig. 11, 19)
The hedge trimmer is fitted with a two-handed safety device (2 trigger buttons) to prevent the unit from being turned on by accident.
Remove the safeguard 8 from blades 9.
Hold the guide handle 4 with one hand and press the trigger 5 on the guide handle or hold the handle 3 in one hand and press the trigger 15.
Hold the handle 3 with the other hand and press the trigger 14. The electric hedge trimmer will start.
Switching the electrical hedge trimmer off:
* Release the trigger 14 and the secondary trigger 5 on the guide handle, or release both triggers 14 and 15.
* Slide the safeguard 8 over the cutter blades 9.
10. STORAGE (Fig. 6)
Store the electric hedge trimmer out of the reach of children.
* Disconnect mains plug.
Clean the hedge trimmer and slide the safeguard 9 over the cutter blades 8.
Store the hedge trimmer in a dry, frost-free place.
11. MAINTENANCE (Fig. 6)
Cleaning the Electric Hedge Trimmer
⚠ WARNING! Danger of injury/electric shock! Prior to maintenance, always unplug the mains plug and slide the safeguard 8 over the cutter blades 9.
* Clean the electric hedge trimmer with a damp cloth.
Grease the cutter blades 9 with low-viscosity oil.
* Avoid contact of oil with the plastic components of the electric hedge trimmer.
12. TROUBLESHOOTING (Fig. 6)
⚠ WARNING! Prior to troubleshooting, always unplug the mains plug and slide the safeguard 8 over the cutter blades 9.
| Fault Possible Cause Solution | ||
| Electric hedge trimmer does not start. | Extension cable is not plugged in or is damaged. | Plug in or replace the extension cable, if needed. |
| While rotating the cutting unit, the lock button did not engage in 0° or ±90° position. | While rotating the cutting unit, the lock button must engage in 0° or ±90° position. | |
| While tilting the swivel head, the lock button did not engage in the position ranging from +60° and -80°. | While tilting the swivel head, the lock button must engage in the position ranging from +60° and -80°. | |
| Electric hedge trimmer does not work continuously. | Extension cable is damaged. Plug in or replace the extension cable, if needed. | |
| Internal wire is damaged. Find the faulty point and replace the internal wire. | ||
| Trigger is damaged. Find the faulty point and replace the trigger. | ||
| Electric hedge trimmer does not work cleanly. | Blunt or damaged blades. Have the blades sharpen or thoroughly cleaned. | |
| Excessive friction due to lack of grease. | Apply the spray grease. | |
WARNING! Should other problems occur, contact the local service centre. The electric hedge trimmer shall be repaired exclusively by the local service centres or authorised dealers.
13. DECLARATION OF CONFORMITY
Product/Name: ELECTRIC HEDGE TRIMMER / FIELDMANN
Type/Model: FZN 2002E 230V, 550W
The product complies with the following directives:
The Directive of the European Parliament and the Council No. 2006/95/EC dated 12 December 2006 on the harmonisation of the laws of Member States relating to electrical equipment designed for use within certain voltage limits.
The Directive of the European Parliament and the Council No. 2004/108/EC dated 15 December 2004 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility and repealing Directive No. 89/336/EEC.
The Directive of the European Parliament and the Council No. 2006/42/EC dated 17 May 2006 on machinery, and amending Directive No. 95/16/EC.
The Directive of the European Parliament and the Council No. 2002/95/EC dated 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.
The Directive of the European Parliament and the Council No. 2005/88/EC dated 14 December 2005 amending Directive No. 2000/14/EC on the harmonisation of the laws of the Member States relating to the noise emission in the environment by equipment for use outdoors
and standards:
EN 60745-1:2006
EN 60745-2-15:2006
EN 60745-1:2009
EN 60745-2-15:2009
EN 55014-1:2006
EN 55014-2:1997/A1
EN 61000-3-2:2006
EN 61000-3-3:1995/+A1:2001/+A2:2005
CE Certification: 13
FAST ČR, a.s. is authorised to act on behalf of the manufacturer.
Manufacturer:
FAST ČR, a.s.
In Prague, 23 May 2013
Name: Zdeněk Pech
Chairman of Board
Signature and stamps:
14. TECHNICAL SPECIFICATIONS
Model ...... FZN 2002-E
Motor power input 550 W
Voltage/ frequency 230 V / 50 Hz
Speed 3200 rpm
Tooth gap of cutter blade 16 mm
Sound power level LWA ...... measured 94 dB(A) /guaranteed 96 dB(A)
Hand vibration level and vhw < 2.5 m/s ^2
Length of cutter blade 51 cm
Weight 3.4 kg
Instructions Manual - language version only.
15. DISPOSAL
INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING.
Put any used package material to the place determined by the municipality for waste disposal.
DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT
This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.
For companies in the European Union countries
Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information. Disposal in other countries outside the European Union. Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method.
This product fulfils all basic requirements of the EU directives that apply to it.
Text, design and technical specifications can change without prior notice and we reserve the right for their change.
ELEKTRICKÉ NŮŽKY NA ŽIVÝ PLOT NÁVOD K OBSLUZE
Black and white icon of a person wearing headphones inside a circle (no text or symbols)natural_image
Icon of a person reading a document inside a circle (no text or symbols)Ak dôjde k p oškodeniu alebo prerezaniu kábla, okamžite vytiahnite zástrčku z o siete.
Icon of a person reading a document inside a circle (no text or symbols)natural_image
Icon of a person wearing headphones inside a circle (no text or symbols)natural_image
Icon of a person reading a document inside a circle (no text or symbols)natural_image
Icon of a person wearing headphones inside a circle (no text or symbols)natural_image
Icon of a person reading a document inside a circle (no text or symbols)natural_image
Icon of a person wearing headphones inside a circle (no text or symbols)natural_image
Black-and-white photo of a hair clip with a long straight blade and attached cable (no text or symbols visible)
FIELDMANN®
Home & Garden Performance
- FIELDMANN®
- Home & Garden Performance
- Electric Hedge Trimmer
- INSTRUCTION MANUAL
- CONTENTS
- GENERAL SAFETY INSTRUCTIONS
- Important safety warnings
- Packaging
- Instructions for use
- SYMBOLS AND WARNINGS ON MACHINE
- MACHINE DESCRIPTION AND ITEMS DELIVERED
- Machine Description (See fig. 1)
- Items Delivered
- ELECTRIC HEDGE TRIMMER APPLICATION
- Appropriate Application
- SAFETY INSTRUCTIONS
- Work Area Safety
- Electrical Safety
- Personal Safety
- Electric Tool Use and Care
- Service
- Electric Hedge Trimmer Safety Warnings
- ADDITIONAL SAFETY INSTRUCTIONS
- Cables
- Remove the plug from the mains
- Cleaning and Storing Instructions
- ASSEMBLY (Fig. 2-7)
- Protective Shield Attachment (Fig 8)
- OPERATION (Fig. 6 and 7)
- WORKING POSITIONS
- Horizontal Trimming (Fig. 9-10)
- Side Trimming: Swivel the cutting unit by 90° (Fig. 12)
- Horizontal Trimming at High Levels: the cutting head is tilted by -80° (Fig. 13)
- Low-Level Trimming: the cutting head is tilted by 60° (Fig. 14)
- Vertical Trimming at High Levels (Fig. 15)
- Rotating the Cutting Unit by ±90° (Fig. 16-17)
- Tilting the Swivel Head (Fig. 18)
- Starting the Electric Hedge Trimmer (Fig. 11, 19)
- STORAGE (Fig. 6)
- MAINTENANCE (Fig. 6)
- Cleaning the Electric Hedge Trimmer
- TROUBLESHOOTING (Fig. 6)
- DECLARATION OF CONFORMITY
- The product complies with the following directives:
- and standards:
- Manufacturer:
- TECHNICAL SPECIFICATIONS
- DISPOSAL
- INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING.
- DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT
- For companies in the European Union countries
- ELEKTRICKÉ NŮŽKY NA ŽIVÝ PLOT NÁVOD K OBSLUZE
Brand : Fieldmann
Model : FZN 2002-E
Category : Hedge Trimmer
