Product Type	Submersible Water Pump
Model	FVC 2001-EC
Brand	Fieldmann
Voltage / Frequency	230 V ~ 50 Hz
Power Input	250 W
Maximum Flow Rate	5000 l/h
Maximum Delivery Head	6 m
Maximum Submersible Depth	5 m
Maximum Media Temperature	35 °C
Maximum Solid Particle Size	5 mm
Float Switch Activation Height	Approx. 50 cm
Float Switch Deactivation Height	Approx. 5 cm
Protection Class	IPX8
Insulation Class	Class I
Cable Length	10 m (approx.)
Hose Connection Size	1" or 1/2"
Intended Use	Clean water, chlorinated pool water
Not Suitable For	Wastewater, salt water, flammable liquids, drinking water
Included Accessories	Pump body, power cord, hose connection, pump tube bend, float switch, manual
Maintenance	Rinse with clean water after use; check float every 3 months
Warranty	24 months

Frequently Asked Questions - FVC 2001-EC Fieldmann

What is the maximum water temperature the pump can handle?

The maximum media temperature is 35 °C. Do not exceed this limit.

Can this pump be used for drinking water?

No, this pump is not designed for drinking water. It is intended for clean water and chlorinated pool water.

What does the float switch do and how do I set it?

The float switch automatically turns the pump on and off based on water level. You can adjust its position by moving the float in the holder. Ensure it can move freely and does not touch the bottom before turning off.

Why is my pump not starting?

First, check the power supply and ensure the float switch is not stuck. If the float is too low, move it to a higher position. Also verify that the pump is not clogged.

How do I clean the pump?

Disconnect from power. Rinse the pump with clean water to remove debris. For the impeller, flush with water. Clean the float and suction sieve regularly.

What is the maximum solid particle size allowed?

The pump can handle particles up to 5 mm in diameter. Larger debris may clog or damage the pump.

Can I use this pump in a garden pond with fish?

No, the pump must not be used when people, fish, or other living creatures are in the water. It is also not suitable for aggressive or chemical-laden water.

What is the maximum depth I can submerge the pump?

The maximum submersible depth is 5 m. Do not exceed this limit.

How do I store the pump when not in use?

After use, rinse the pump with clean water and dry it. Store it in a frost-free place to prevent damage from freezing.

What should I do if the pump turns off shortly after starting?

This may be due to thermal protection. Disconnect power, clean the pump and pit, and check that water temperature does not exceed 35 °C. If the problem persists, consult service.

USER MANUAL FVC 2001-EC Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Black and white photo of a small water purifier with attached cable and connector (no visible text or symbols)

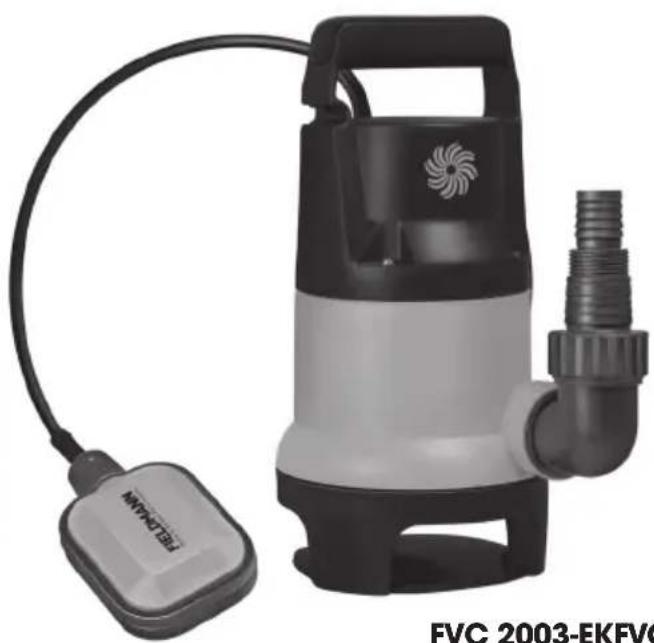

Exterior view of a water purifier with attached cable and sensor port (no text or symbols visible on the device itself)

Close-up of two black plastic pipe fittings with labeled parts (3 and 4), no text or symbols present.

Submersible Pump

USER'S MANUAL

Thank you for purchasing this submersible pump. Before you start using it, please, carefully read this user's manual and save it for possible future use.

CONTENTS

ILLUSTRATED ATTACHMENT....1

1. GENERAL SAFETY INSTRUCTIONS.... 3

Important safety notices

Packaging

User's manual

1. MACHINE DESCRIPTION AND INCLUDED CONTENTS ...... 3

2. PUTTING INTO OPERATION....4

3. OPERATING INSTRUCTIONS....5

Purpose of use

Instructions for use

Electrical safety

1. MAINTENANCE AND STORAGE 6

2. TECHNICAL SPECIFICATIONS ...... 7

3. WHAT TO DO "WHEN..." 7

4. DISPOSAL 8

1. GENERAL SAFETY REGULATIONS

Important safety notices

Carefully unpack the product and take care not to throw away any part of the packaging before you find all the parts of the product.
Read all warnings and instructions. Not following warnings or instructions may lead to injury by electrical shock, a fire and/or serious injuries.

ATTENTION: Protect yourself against electrical shock!

Packaging

The device is located in a package that prevents damage during transport. This package is a resource and so can be handed over for recycling.

Operating instructions

Before you start working with the submersible pump, read the following safety instructions and user's manual. Learn about all parts and the correct use of the device. Keep the user's manual in a safe place where it can be easily retrieved for future use. If you hand over the device to somebody else, do so together with the user's manual. Following the instructions in the included user's manual is a prerequisite for safe use of the ga machine. The user's manual also contains operating, maintenance and repair instructions.

The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual.

2. MACHINE DESCRIPTION AND INCLUDED CONTENTS

Carefully take the machine out of the packaging and check whether all the following parts are present:

Machine description (see pic. 1)

1 Pump body
2 Power cord with electrical plug
3 Hose connection with option to connect to a 1"/2" hose
4 Pump tube bend

5 Hose connection with the pump tube bend - assembled
6 Switching float
7 Height setting for the switching float

Supplied contents

Submersible pump
Operating instructions
* Hose connection with pump tube bend

If there are parts missing or they are damaged, please contact the vendor from whom you bought the machine.

Submersible pumps are installed as follows:

* in a permanent position with a rigid pipe.
in a permanent position with a fl exible pipe.
* You should never install the pump by hanging it on the outlet hose or power cord without additional support.
The submersible pump must be hung on a holder, or it must be placed on the bottom of the tank.
For the pump to function correctly the bottom part of the tank must be protected against any kind of dirt (applies to clean water pumps) and against any larger residue (for the size of dirty material see the technical specifications of the individual models).
If the water level declines too much, any residue in the pumping pit will quickly dry out and prevent the pump from starting again. It is therefore essential to regularly inspect the submersible pump (by starting it).
The float is set up in such a way that the pump may be started immediately.

After carefully reading these instructions you can prepare your pump for operation, however, keep the following points in mind:

* Check that the pump is standing on the bottom of the tank.
* Check that the outlet hose has been attached correctly.
* Check that the electrical connection is 230 V \~ 50 Hz.
* Check that the power socket is in good condition.
* Ensure that the moisture from the water can never get to the electrical power source.
* Prevent the pump from running empty.

Before putting the pump into operation, please check the following points:

The switching float is installed in such a way that it is possible to reach the activation level or the shut off level with only a small amount of force. After checking this installation, place the pump into a tank with water and carefully lift the switching float by hand and then put it down again. During this activity watch that the pump has started and then turned itself off.
* Ensure that the distance between the switching float and the pawl holder is not too small. It is not possible to guarantee correct operation when the gap is too small.
As soon as you set the switching float, check that it is not touching the underlay before the pump turns off.
The activity position of the switching float can be set by adjusting the float in the holder of the pawl.

ATTENTION: Danger of running when empty.

Note: The tank for the pump should have the minimum dimensions of 40 × 40 × 50 cm (height × width × depth), for the float to freely move with the switch.

Connecting to the mains

Your new submersible pump is equipped with a power plug, preventing discharge, meeting strict norms. The pump is designed to be connected to a safety power socket 230 V \~ 50 Hz. Check that it is in perfect condition. Insert the plug into the socket and the pump is ready for use.

ATTENTION: If the power cord or power plug are in any way damaged by an external action, do not repair the power cord and contact an authorised service centre!

ATTENTION: This repair should only be performed by an authorised service centre.

4. OPERATING INSTRUCTIONS

Purpose of use

This pump may be used anywhere, where you wish to transfer water from one location to another, e.g. at home, agriculture, gardening, plumbing and for many other applications.
This product is designed for private household use.
It is not suitable for professional use.
The submersible pump is suitable for work with water in a water distribution system and for chlorinated pool water.
It is not suitable for work with waste water in sewage systems, salt water, aggressive or easily combustible substances, for work in food processing or as a pump for water jets on garden ponds.
It is not designed for pumping drinking water!

Instructions for use

ATTENTION: Before setting up the machine or carrying out maintenance on the machine, or if the electric power cable has become jammed or is damaged, always disconnect it from the electric power socket!

Before using the submersible pump, please first carefully read all the safety instructions and instructions for use for the pump. Only after reading these instructions will you be able to safely and reliably use all the functions of the pump. You must conform to all local regulations in force in your country. These regulations are effective together with the particulars specified in these instructions.

ATTENTION: If you will be using the pump near pools or garden ponds, or in their protective zone, the electrical grid must be equipped with a circuit breaker. The pump must not be used, if there are people in the pool or garden pond! Also do not use it if there are fi sh or other living creatures in the pool or garden pond. Contact an expert company for installation.

The submersible pump is designed to pump water at a maximum temperature of 35^ C.

The pump must not be used for other liquids, particularly motor oils, cleaning agents and other chemical products!

Electrical safety

The pump can be connected to any power plug installed according to given norms.
The plug must be powered at 230 V \~ 50 Hz.

ATTENTION - Important for the protection of your personal safety. Before first starting your new submersible pump have a professional check the following items:

• Grounding
• Neutral conductor
• The current circuit breaker must conform to energy safety norms and must function perfectly.
• The electrical connection must be protected against moisture.
• If there exists a danger of the electrical connection being flooded, it must be moved higher.
• Under all circumstances prevent the circulation of aggressive liquids and coarse materials.
• The submersible pump must be protected against frost.
• The pump must be protected against running empty.
• Prevent children from accessing parts of the pump by appropriate measures.

5. MAINTENANCE AND STORAGE

This submersible pump is approved as a maintenance-free, high quality product undergoing several final inspections. We recommend you perform regular inspections and maintenance, which will ensure a long lifetime and continuous performance.

ATTENTION: Disconnect the power source before performing any maintenance.

Maintenance

If the pump is regularly moved during operation, it should be rinsed out with water after each use with clean water.
If the pump is permanently installed, the working order of the switching float should be checked every 3 months.
* Any fi brous deposits that could deposit themselves inside the pump, should be removed using a current of water.
* Mud should be cleaned from the floor of the pumping pit every 3 months.
- Remove deposits on the float using clean water.

Cleaning the pump impeller

If an excessive amount of debris accumulates in the body of the pump, flush the pump out with clean water.

6. TECHNICAL SPECIFICATIONS

	FVC 2001-EK FVC 2003-EK
Voltage/Frequency 230 V	~ 50 HZ 230 V	~ 50 HZ
Power input 250 W 400 W
Maximum transferred amount 5000 l/h 7500 l/h
Maximum delivery 6 m 5 m
Maximum submersible depth 5 m 5 m
Maximum temperature of the media	35 °C	35 °C
Maximum value of solid particles in the media	Dia. 5 mm	Dia. 35 mm
Height of the switching point: On	Approx. 50 cm	Approx. 50 cm
Height of the switching point: Turned off Approx. 5 cm	Approx. 5 cm

7. WHAT TO DO "WHEN..."

When...	Causes	Repairs
The pump does not start	- No power supply- The float does not switch	- Check the power supply- Move the float to a higher position
Not flowing	- The suction sieve is clogged- The pressure hose is bent	- Flush out the suction sieve with a current of water- Straighten the hose
The pump does not turn off	- The float cannot fall lower	- Place the pump correctly on the floor of the tank
Insufficient flow	- The suction sieve is clogged- Lowered pump capacity due to dirty and silted water	- Clean the suction sieve- Clean the pump and flush the hose with clean water
The pump turns off after a short time	- The temperature fuse stops the pump due to dirty water- The water is too hot. The temperature fuse stops the pump	- Disconnect the power plug.Clean the pump and the pumping pit- Check that the maximum water temperature of 35 °C is not exceeded

Note: Not covered by warranty:

Damage to the rotating mechanical gasket caused by running the pump empty, or by foreign objects in the water
Blocking of the running wheel by foreign objects
Damage during transport
Damage caused by unprofessional alterations by persons

8. DISPOSAL

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

FAST ^®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

Product / brand: Submersible Pump / FIELDMANN

FVC 2003-EK as factory model Q1DP-400G AC 230 - 240 V, 50Hz, 400W, Class I, IPX8

Type / model:

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Říčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive RoHS 2011/65/EU

The relevant harmonized standards and the other technical specifications:

EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1

EN 61000-3-3:2013+A1

CE

Place of issuance: Prague Name: Petr Uher - Responsible Person

Signature:

Place of issuance: Prague Name: Petr Uher - Responsible Person Date of issuance: 22.08.2022 Signature:

CE

FAST®

FAST ČR, a.s. U Sanitasu 1621, 251 01 Říčany, Czech Republic tel.: [phone], fax: [phone]

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).
