EK 100 G3-G - Receiver SENNHEISER - Free user manual and instructions

Product Type	Diversity Receiver
Brand	Sennheiser
Model	EK 100 G3-G
Frequency Range	566 – 608 MHz (Band G)
Receiving Frequencies	1,680, tunable in 25 kHz steps
Switching Bandwidth	42 MHz
Modulation	Wideband FM
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Receiver Principle	Adaptive Diversity
Sensitivity	< 4 μV, typ. 1.6 μV (52 dBA S/N)
Adjacent Channel Rejection	typ. ≥ 65 dB
Intermodulation Attenuation	typ. ≥ 65 dB
Blocking	≥ 70 dB
Squelch	Off, Low (5 dBμV), Middle (15 dBμV), High (25 dBμV)
Audio Output	3.5 mm jack, +11 dBu, mono unbalanced
Audio Output Level Adjustment	42 dB, 6 dB steps
Compander System	Sennheiser HDX
Signal-to-Noise Ratio	≥ 60 dBA
Total Harmonic Distortion	≤ 0.9%
Power Supply	2 AA batteries (1.5V) or BA 2015 accupack
Nominal Voltage	2.4 V
Power Consumption	typ. 140 mA (on), ≤ 25 μA (off)
Operating Time	typ. 8 hours
Dimensions (W x H x D)	approx. 82 x 64 x 24 mm
Weight (incl. batteries)	approx. 120 g
Temperature Range	-10°C to +55°C
Mounting	Via CA 2 camera adapter (included)
Display	Backlit orange LCD
Cleaning	Use a dry cloth; no solvents or liquids
Service	Refer to qualified personnel; use Sennheiser replacement parts
Included Accessories	2 AA batteries, CA 2 adapter, CL 100 and CL 1 line cables, manual, frequency sheet

Frequently Asked Questions - EK 100 G3-G SENNHEISER

How do I synchronize a transmitter with the EK 100 G3-G receiver?

Switch both devices on. On the receiver, go to the 'Sync' menu. Place the transmitter's infrared interface within 10 cm of the receiver's infrared interface (item 11). The receiver's frequency, name and pilot tone settings are transferred. A checkmark confirms success. Press ON/OFF to cancel.

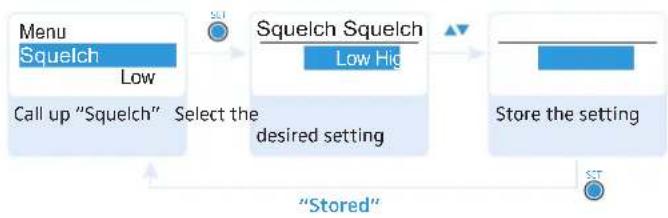

How can I adjust the squelch threshold?

In the main menu, select 'Squelch'. Choose 'Low', 'Middle', or 'High'. Lower settings are recommended when the transmitter is off to suppress hiss. The squelch can be switched off (for servicing only) by holding the DOWN button for 3 seconds; press UP to re-enable.

What does the lock mode icon mean?

A padlock icon on the display indicates that the automatic lock mode is active. This prevents accidental power-off or changes. To temporarily deactivate it, press SET, then the rocker button, then SET again when 'Unlock?' appears. The lock reactivates after 10 seconds.

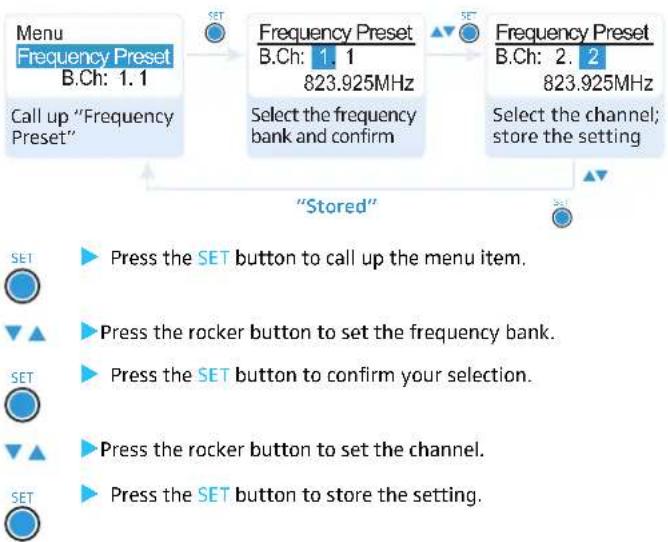

How do I change the receiving frequency?

Go to 'Menu' > 'Frequency Preset'. Press SET, then use the rocker to select the frequency bank (1-20 or U) and press SET. Then select the channel and press SET to store. For the user bank 'U', use 'Tune' in the Advanced Menu to set custom frequencies.

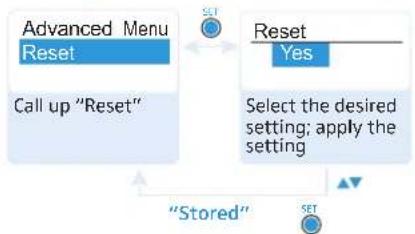

How do I reset the receiver to default settings?

In the Advanced Menu, select 'Reset'. Choose the desired reset option. Note that the pilot tone setting and user bank frequencies are not reset. Refer to the frequency information sheet for factory defaults.

What batteries or power options are supported?

You can use two 1.5V AA batteries (alkaline) or the optional Sennheiser BA 2015 accupack. The external DC 2 power adapter (12V) can also be used. The receiver does not charge standard batteries; only the accupack is rechargeable in the L 2015 charger.

How do I mount the receiver to a camera?

Use the included CA 2 camera adapter. Attach the flash mount adapter to the perforated plate, remove the belt clip, place the plate onto the receiver, and reattach the belt clip. Connect the camera's line input to the receiver's 3.5 mm jack using the supplied CL cable.

Why is there no audio output?

Check that both transmitter and receiver are on the same frequency and channel. Ensure the transmitter's RF signal is on. Verify the squelch setting is not too high. Confirm the audio output level (AF Out) is set appropriately. If the lock mode is active, unlock first.

How should I clean the receiver?

Use a dry, soft cloth to wipe the exterior. Do not use any solvents, cleaning agents, or allow liquids to enter the housing, as they can damage the electronics.

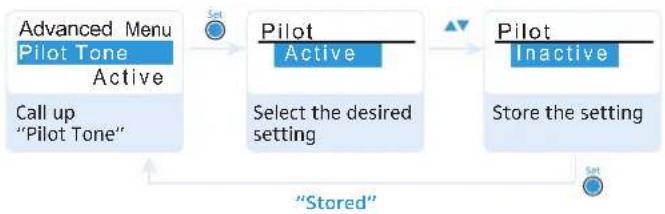

What is the pilot tone function and when should it be used?

The transmitter adds an inaudible pilot tone that the receiver uses to support the squelch, protecting against interference from other RF signals. It should be activated when using Sennheiser ew G3 or G2 transmitters, but deactivated when using G1 transmitters that do not support it.

USER MANUAL EK 100 G3-G SENNHEISER

evolutionwireless G3

EK 100

Black wireless radio device with antenna and display (no visible text or symbols)

Contents

Important safety instructions 2

The EK 100 G3 diversity receiver .... 3

The frequency bank system 3

Areas of application 4

Delivery includes 4

Product overview 5

Overview of the EK 100 G3 diversity receiver .... 5

Overview of the displays 6

Putting the diversity receiver into operation 7

Inserting the batteries/accupack 7

Charging the accupack 7

Mounting the diversity receiver to a camera 7

Using the diversity receiver 9

Switching the diversity receiver on/off 9

Deactivating the lock mode temporarily 10

Selecting a standard display 10

Using the operating menu 11

The buttons 11

Overview of the operating menu 11

Working with the operating menu 12

Adjusting settings via the operating menu 14

The main menu "Menu" 14

The extended menu "Advanced Menu" 16

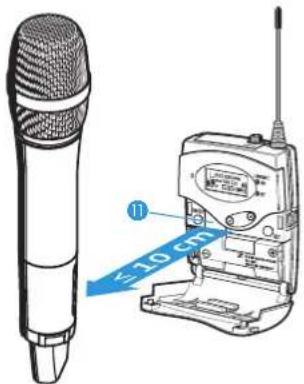

Synchronizing a transmitter with the diversity receiver 19

Cleaning the diversity receiver 21

Recommendations and tips 21

If a problem occurs ... 22

Accessories 23

Specifications 23

Manufacturer Declarations 24

Index 26

Important safety instructions

• Read this instruction manual.
• Keep this instruction manual. Always include this instruction manual when passing the product on to third parties.
• Heed all warnings and follow all instructions in this instruction manual.
• Use only a cloth for cleaning the product.
• Do not place the product near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat.
• Only use attachments/accessories specified by Sennheiser.
• Refer all servicing to qualified service personnel. Servicing is required if the product has been damaged in any way, liquid has been spilled, objects have fallen inside, the product has been exposed to rain or moisture, does not operate properly or has been dropped.
• WARNING: To reduce the risk of short circuits, do not use the product near water and do not expose it to rain or moisture.

Replacement parts

When replacement parts are required, be sure the service technician uses replacement parts specified by Sennheiser or those having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

Intended use

Intended use of the EK 100 G3 diversity receiver includes:

• having read these instructions especially the chapter "Important safety instructions",
• using the product within the operating conditions and limitations described in this instruction manual.

"Improper use" means using the product other than as described in this instruction manual, or under operating conditions which differ from those described herein.

The EK 100 G3 diversity receiver

This diversity receiver is part of the evolution wireless series generation 3 (ew G3). With this series, Sennheiser offers high-quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use. Transmitters and receivers permit wireless transmission with studio-quality sound.

Features of the evolution wireless 100 G3 series:

• Optimized PLL synthesizer and microprocessor technology
  • HDX noise reduction system
  • Adaptive diversity technology
• Switching bandwidth of 42 MHz
• Scan function (Easy Setup) for scanning the frequency banks for unused channels

Adaptive diversity

This diversity receiver uses the ground connection of the line cable as its second antenna to provide improved reception.

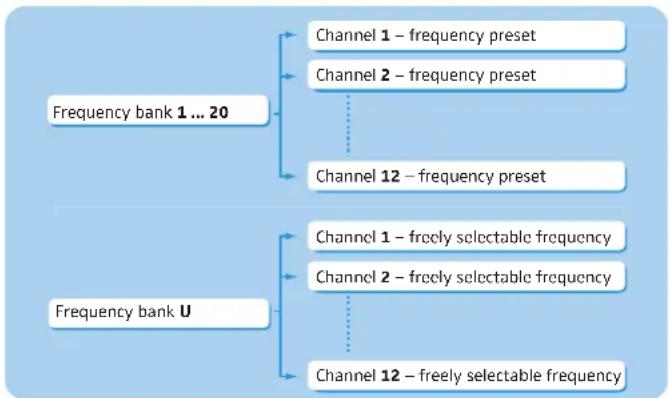

The frequency bank system

The diversity receiver is available in 6 UHF frequency ranges with 1,680 receiving frequencies per frequency range:

Each frequency range (A–E, G) offers 21 frequency banks with up to 12 channels each:

Each of the channels in the frequency banks "1" to "20" has been factory-preset to a fixed receiving frequency (frequency preset). The factory-preset frequencies within one frequency bank are intermodulation-free. These frequencies cannot be changed.

For an overview of the frequency presets, please refer to the supplied frequency information sheet. Updated versions of the frequency information sheet can be downloaded from the EK 100 G3 product page on our website at www.sennheiser.com.

The frequency bank "U" allows you to freely select and store receiving frequencies. It might be that these receiving frequencies are not intermodulation-free (see page 19).

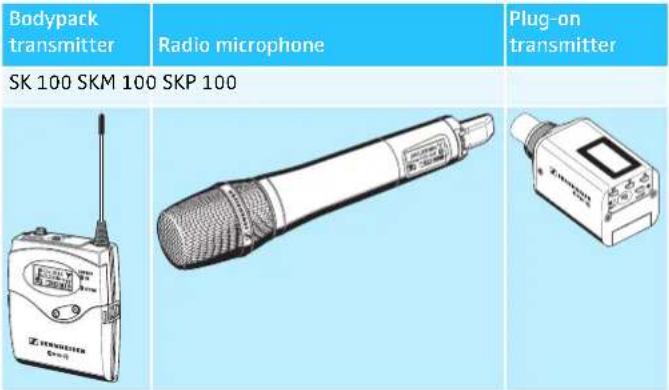

Areas of application

The receiver can be combined with the following transmitters:

These transmitters are available in the same UHF frequency ranges and are equipped with the same frequency bank system with factory-preset frequencies. An advantage of the factory-preset frequencies is that

• a transmission system is ready for immediate use after switch-on,
• several transmission systems can be operated simultaneously on the preset frequencies without causing intermodulation interference.

Delivery includes

The packaging contains the following items:

1 EK 100 G3 diversity receiver
2 AA size batteries, 1.5 V
1 CA 2 camera adapter
1 CL 100 line cable
1 CL 1 line cable
1 instruction manual
1 frequency information sheet

Product overview

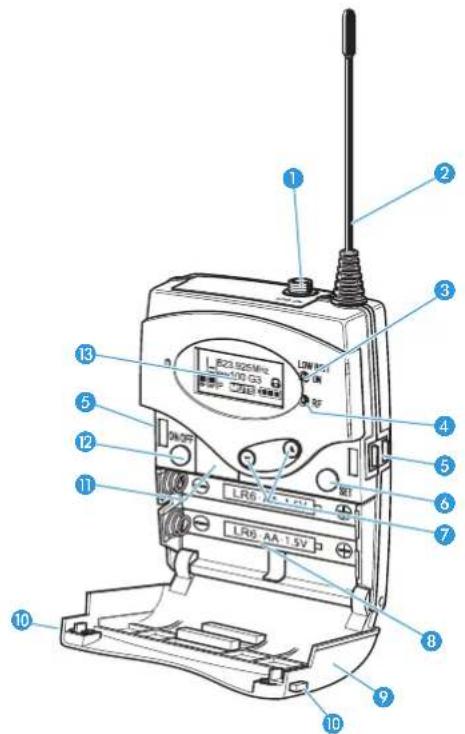

Overview of the EK 100 G3 diversity receiver

3.5 mm jack socket (LINE), lockable (the ground contact is used by antenna II)
2 Antenna I
③Operation and battery status indicator, red LED lit = ON flashing = LOW BATT
4 RF signal indication, green LED lit = RF
5 Charging contacts
6 SET button
7 ▲/▼ rocker button (UP/DOWN)
8 Battery compartment
9 Battery compartment cover
10 Battery compartment catches
Infra-red interface
12 ON/OFF button with ESC function (cancel)
13 Display panel, backlit in orange

Overview of the displays

After switch-on, the diversity receiver displays the "Frequency/Name" standard display. For further illustrations and examples of the different standard displays, refer to page 10.

The display backlighting is automatically reduced after approx. 20 seconds.

Display Meaning
1RF level “RF”(Radio Frequency)		Diversity display:Antenna input I is activeAntenna input II is activeRF signal level:Field strength of the received signalSquelch threshold level
2Audio level “AF”(Audio Frequency)		Modulation of the transmitterPeak hold functionWhen the display shows full deflection, the audio input level is excessively high.For details, see page 16.
3Frequency	Current receiving frequency (see page 16)
4Name Freely selectable name of the receiver(see page 16)
5Lock mode icon	Lock mode is activated (see page 10)
6Battery status Charge status:
		approx. 100%approx. 70%approx. 30%charge status is critical, the redLOW BATT LED is flashing:
7Muting function“MUTE”	“Mute” is only displayed on the “Frequency/Name” standard display (see page 10) when the transmitter’s RF signal is deactivated.The diversity receiver does then not output an audio signal.
or line output level AF OUT	The line output level AF OUT is only displayed on the “Frequency bank/Channel/Name” standard display (see page 10).
8Pilot tone “P”	Activated pilot tone evaluation(see page 18)

Putting the diversity receiver into operation

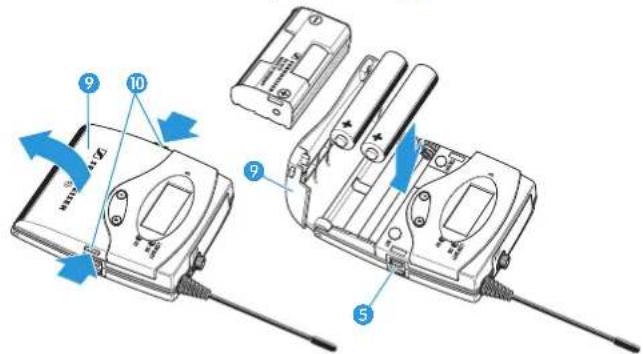

Inserting the batteries/accupack

For powering the diversity receiver, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack or the DC 2 power adapter (see "Accessories" on page 23).

Open the battery compartment by pushing the two catches 10 in the direction of the arrows and open the cover 9.

Insert the two batteries or the accupack as shown above. Please observe correct polarity when inserting the batteries/accupack.
▶ Close the battery compartment by pressing on the center of the cover 9.

The battery compartment cover 9 locks into place with an audible click.

Charging the accupack

To charge the BA 2015 accupack:

Insert the diversity receiver into the L 2015 charger (see "Accessories" on page 23).

The L 2015 charger can only charge the combination BA 2015 accupack/diversity receiver. Standard batteries (primary cells) or individual rechargeable battery cells cannot be charged.

Mounting the diversity receiver to a camera

Use the supplied CA 2 camera adapter to mount the receiver to a camera's flash mount.

Determine where on the perforated plate 14 the flash mount adapter 15 will need to be fastened so that the receiver can best be attached to the camera.

At this position, place a square nut 16 under the perforated plate 14.
▶ Fasten the flash mount adapter 15 to the perforated plate 14 using the square nut 16.

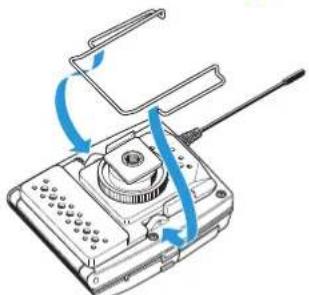

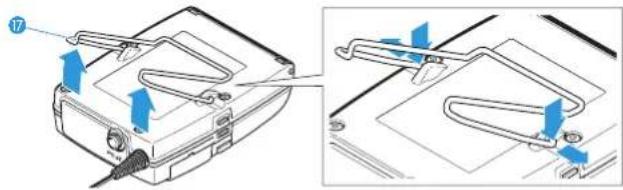

▶ Lift one side of the belt clip 17 as shown.

Press down the belt clip 17 at one fixing point and pull it out of the receiver housing.

▶ Repeat for the other side.

Place the perforated plate 14 onto the rear of the receiver.

Diagram of a radio receiver with a cable and antenna, showing no text or symbols

Reinsert the belt clip 17.

Use one of the supplied line cables to connect the line input of the camera to the socket 1.

The ground connection of the line cable serves as the antenna for the second diversity section. For details on the connector assignment, refer to the diagram on page 24.

Using the diversity receiver

To establish a transmission link, proceed as follows:

1. Switch the diversity receiver on (see next section).
2. Switch a transmitter on (see the instruction manual of the transmitter). The transmission link is established and the receiver's RF level display "RF" ① reacts.

It is vital to observe the notes on frequency selection on page 19.

If you cannot establish a transmission link between transmitter and receiver, read the chapter "Synchronizing a transmitter with the diversity receiver" on page 19.

Switching the diversity receiver on/off

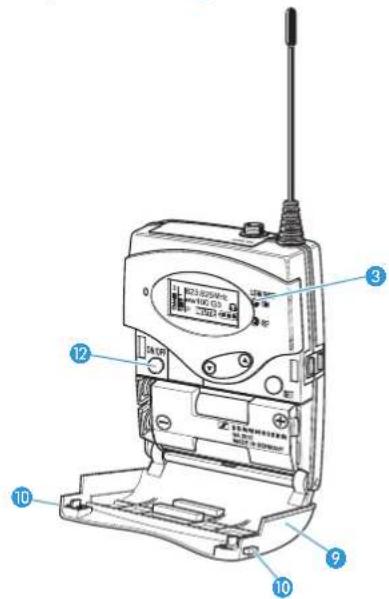

▶ Push the two battery compartment catches 10 and open the battery compartment cover 9.

To switch the diversity receiver on:

Press the ON/OFF button 12.

The red ON LED 3 lights up and the standard display "Frequency/Name" appears on the display panel.

To switch the diversity receiver off:

Keep the ON/OFF button 12 pressed until "OFF" appears on the display panel.

The red ON LED ③ goes off and the diversity receiver switches off.

When in the operating menu, pressing the ON/OFF button 12 will cancel your entry (ESC function) and return you to the current standard display.

Deactivating the lock mode temporarily

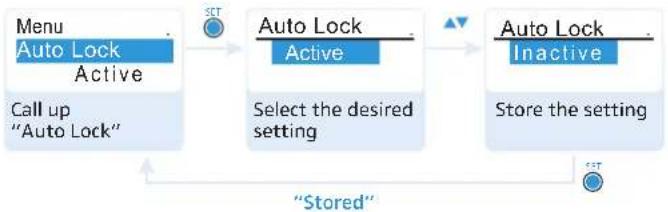

You can activate or deactivate the automatic lock mode via the "Auto Lock" menu item (see page 16). If the lock mode is activated, you have to temporarily deactivate it in order to be able to operate the receiver:

▶ Press the SET button.

"Locked" appears on the display panel.

▶ Press the rocker button.

"Unlock?" appears on the display panel.

▶ Press the SET button.

- When you are in the operating menu, the lock mode remains deactivated until you exit the operating menu.

- When one of the standard displays is shown, the lock mode is automatically activated after 10 seconds.

The lock mode icon ⑤ flashes prior to the lock mode being activated again.

Selecting a standard display

ON/OFF

Press the ON/OFF button to select a standard display.

Contents of the display Selectable standard display

"Frequency/Name" with "MUTE" display ⑦

"Frequency bank/Channel/Name" with display of the line output level "AF OUT" ⑦

For more detailed information, refer to the chapter "Overview of the displays" on page 6.

Using the operating menu

A special feature of the Sennheiser ew G3 series is the consistent, intuitive menu structure of transmitters and receivers. As a result, adjustments to the settings can be made quickly – even in stressful situations, for example on stage or during a live show or presentation.

The buttons

Button Function of the button
Press the ON/OFF button ON/OFF	·Switches the diversity receiver on and off ·Selects a standard display (see page 10) ·Cancels the entry and returns to the current standard display (ESC function)
Press the SET button SET	·Changes from the current standard display to the operating menu ·Calls up a menu item ·Enters a submenu ·Stores the settings and returns to the operating menu
Press the rocker button	·Changes to the next/previous menu item ·Changes the setting of a menu item

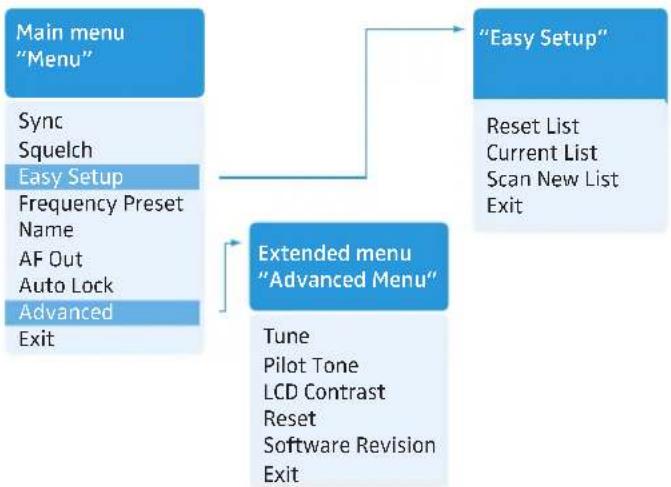

Overview of the operating menu

Display Function of the menu item Page
Main menu "Menu"
Sync Synchronizes a transmitter with the diversity receiver		14
Squelch Adjusts the squelch threshold 14
Easy Setup Scans for unused frequency presets, releases and selects frequency presets		15
Frequency Preset	Sets the frequency bank and the channel	15
Name	Enters a freely selectable name	16
AF Out	Adjusts the audio output level	16
Auto Lock	Activates/deactivates the automatic lock mode	16
Advanced	Calls up the extended menu "Advanced Menu"	16
Exit	Exits the operating menu and returns to the current standard display	-
Extended menu “Advanced Menu”
Tune Sets the receiving frequencies for the frequency bank “U”		16
		Sets the channel and the receiving frequency for the frequency bank “U”
Pilot Tone*	Activates/deactivates the pilot tone evaluation	18
LCD Contrast Adjusts the contrast of the display panel 18
Reset Resets the settings made in the operating menu		18
Software Revision	Displays the current software revision	18
Exit	Exits the extended menu “Advanced Menu” and returns to the main menu	-

Working with the operating menu

If the lock mode is activated, you have to deactivate it in order to be able to work with the operating menu (see page 10).

By way of example of the "Frequency Preset" menu, this section describes how to use the operating menu.

Changing from a standard display to the operating menu

Press the SET button. The current standard display is replaced by the main menu. The last selected menu item is displayed.

Selecting a menu item

Press the rocker button to change to the "Frequency Preset" menu item. The current setting of the selected menu item is displayed:

Menu Frequency Preset B.Ch: 1.1

Changing and storing settings

Canceling an entry

ON/OFF

Press the ON/OFF button to cancel the entry. The current standard display appears on the display panel.

To subsequently return to the last edited menu item:

SET

▶ Press the SET button repeatedly until the last edited menu item appears.

Exiting a menu item

To return to the next higher menu level:

▼ △

Change to the "Exit" menu item.

SET

Confirm your selection. You return to the next higher menu level.

To directly return to the current standard display:

ON/OFF

Press the ON/OFF button.

Adjusting settings via the operating menu

The main menu "Menu"

Synchronizing a transmitter with the diversity receiver – "Sync"

You can synchronize a suitable transmitter of the ew 100 G3 series with the diversity receiver. During synchronization, the following parameters are transferred to the transmitter:

• Current receiving frequency ("Frequency Preset", see page 15)
• Current name set for the receiver ("Name", see page 16)
• Current pilot tone setting of the receiver ("Pilot Tone", see page 18)

To transfer these parameters:

▶ Switch the transmitter and the diversity receiver on.

On the receiver, call up the "Sync" menu item. "Sync" appears on the display panel of the receiver.

Place the infra-red interface of the transmitter (see the instruction manual of the transmitter) in front of the infra-red interface of the receiver 11.

The parameters are transferred to the transmitter. When the transfer is completed, "√" appears on the display panel of the diversity receiver. The receiver then switches back to the current standard display.

To cancel the transfer:

Press the ON/OFF button 12 on the receiver.
"X" appears on the display panel of the receiver. "X also appears if:
- no transmitter was found or the transmitter is not compatible,
- no transmitter was found and the synchronization process was canceled after 30 seconds,
- you canceled the transfer.

Adjusting the squelch threshold – "Squelch"

Adjustment range: "Low", "Middle", "High", can be switched off

The squelch eliminates annoying noise when the transmitter is switched off or when there is no longer sufficient transmitter power received by the receiver.

Adjust the squelch threshold – with the transmitter switched off – to the lowest possible setting that suppresses hissing noise.

If the squelch threshold is set to "High", the transmission range will be reduced under unfavourable reception conditions.

The squelch should only be switched off for servicing purposes. With the squelch threshold set to "Low", you switch the squelch off by keeping the DOWN rocker button pressed for 3 seconds.

Display Squelch is ...

... switched on. The dotted line ⑩ displays the squelch threshold.

... switched off. The dotted line ⑩ goes off and the audio level display "AF" shows full deflection (hissing noise).

If you have accidentally switched off the squelch:

▶ Press the UP rocker button to switch the squelch on.

Scanning for, releasing and selecting frequency presets – "Easy Setup"

Menu item Function of the menu item

Reset List Releases all locked frequency presets

Current List Selects an unused frequency preset

Scan New List Automatically scans for unused receiving frequencies (frequency preset scan). If receiving frequencies are used, they will be locked; if receiving frequencies are unused, they will be released. After the frequency preset scan, you can select an unused frequency preset.

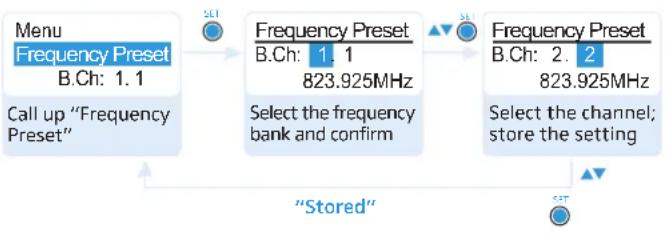

Selecting the frequency bank and the channel – "Frequency Preset"

When setting up multi-channel systems, please observe the following:

Only the factory-preset receiving frequencies within one frequency bank ("1" to "20") are intermodulation-free. It is vital to observe the notes on frequency selection on page 19.

Overview of the frequency banks and channels:

Frequency bank Channels Type
"1" to "20"	up to 12 per frequency bank	System bank: frequencies are factory-preset
"U"	up to 12	User bank: frequencies are freely selectable

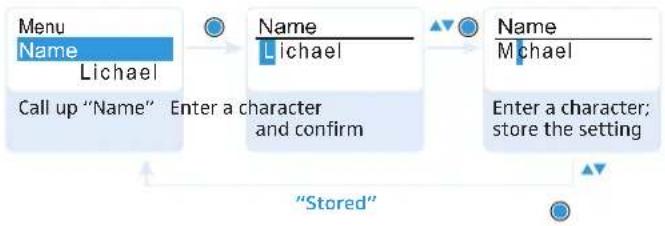

Entering a name – "Name"

Via the "Name" menu, you can enter a freely selectable name (e.g. the name of the performer) for the receiver. The name is displayed on the standard display (see page 6). The name can consist of up to 8 characters such as:

• letters (without pronunciation marks),
- numbers from 0 to 9,
• special characters and spaces.

To enter a name, proceed as follows:

Press the rocker button to select a character.

Press the SET button to change to the next segment/character or to store the complete entry.

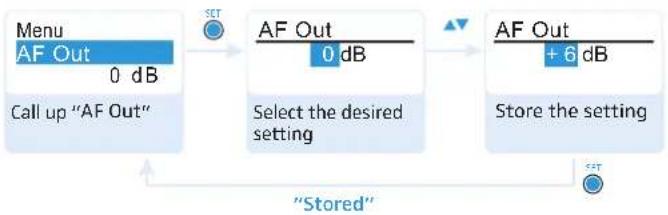

Adjusting the audio output level - "AF Out"

Adjustment range: -30 dB to +12 dB, adjustable in 6-dB steps

Via the "AF Out" menu item, you can adjust the level of the audio output Line from the receiver to the input of the connected camera.

Activating/deactivating the automatic lock mode – "Auto Lock"

The lock mode prevents that the diversity receiver is accidentally switched off or programmed during operation. The lock mode icon ⑤ on the current standard display indicates that the lock mode is activated. For information on how to use the lock mode, refer to page 10.

The extended menu "Advanced Menu"

To get into the extended menu "Advanced Menu":

From the main menu, select "Advanced".

Setting the receiving frequencies for the frequency bank "U" – "Tune"

When you have selected one of the system banks and then select the "Tune" menu, the diversity receiver automatically switches to channel 1 of the frequency bank "U". In this case, "U.1" briefly appears on the display panel.

Upon delivery, the channels of the frequency bank "U" are not assigned a receiving frequency.

Via the "Tune" menu item, you can set a receiving frequency to be stored in the current channel or you can select a different channel in the frequency bank "U" and assign this channel a receiving frequency.

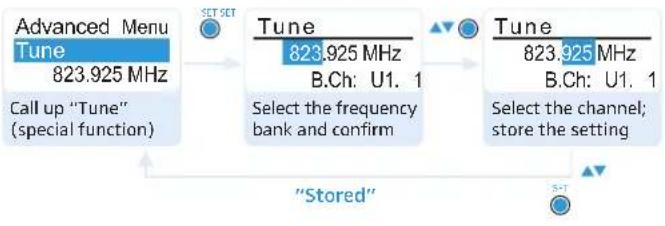

Setting a receiving frequency for the current channel

Press the rocker button until the "Tune" menu item appears.

Press the SET button.

The MHz section of the receiving frequency of the channel is highlighted.

It is vital to observe the notes on frequency selection on page 19.

▶ Press the rocker button to set the MHz section of the frequency.

▶ Press the SET button to confirm the MHz section of the frequency. The kHz section of the frequency is highlighted.

Press the rocker button to set the kHz section of the frequency.

Press the SET button to confirm the frequency. "Stored" appears on the display panel. The "Tune" menu item appears again.

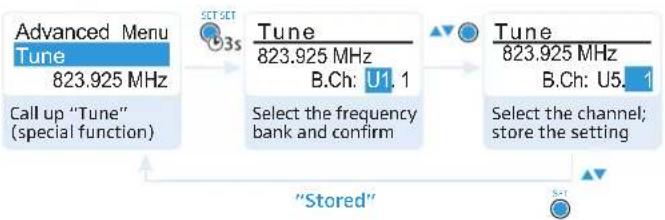

Selecting a channel and assigning this channel a frequency

Press the rocker button until the "Tune" menu item appears.

Press the SET button and keep it pressed until the frequency bank is highlighted.

▶ Press the rocker button to set the channel.

Press the SET button to confirm the channel. The frequency (MHz section) is highlighted.

Set the desired frequency (MHz and kHz section) as described in the previous chapter.

Activating/deactivating the pilot tone evaluation – "Pilot Tone"

The transmitter adds an inaudible signal, known as the pilot tone, to the transmitted signal. The diversity receiver detects and evaluates the pilot tone. The pilot tone supports the diversity receiver's squelch function, thus protecting against interference due to RF signals from other devices.

Display Meaning
No icon The pilot tone evaluation is deactivated.
P	The pilot tone evaluation is activated but the receiver does not receive a pilot tone.
P	The pilot tone evaluation is activated. The receiver receives a pilot tone.

Observe the following when combining a transmitter or receiver of the ew 100 G3 series (generation 3) with devices from an earlier evolution wireless generation:

Devices of the ew 100 G1 series (generation 1) do not support the pilot tone function.

Transmitter Receiver Make sure to ...
cw G3 / w G2 w	c/ w G2e	... activate the pilot tone function on both transmitter and diversity receiver.
cw G3 w G1	e	... deactivate the pilot tone function on the ew 100 G3 transmitter.
cw G1 w G3	e	... deactivate the pilot tone function on the ew 100 G3 diversity receiver.

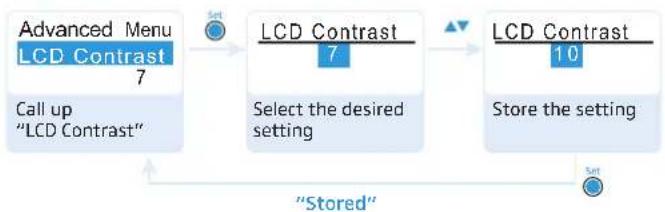

Adjusting the contrast of the display panel – "LCD Contrast"

You can adjust the contrast of the display panel in 16 steps.

Resetting the settings made in the operating menu – "Reset"

When resetting the settings made in the operating menu, only the selected settings for the pilot tone and for the frequency bank "U" remain unchanged. For an overview of the factory-preset default settings, refer to the supplied frequency information sheet.

Displaying the software revision – "Software Revision"

You can display the current software revision of the diversity receiver.

Synchronizing a transmitter with the diversity receiver

When synchronizing a transmitter with a diversity receiver, please observe the following:

Only use a transmitter and a diversity receiver from the same frequency range (see the type plates on the transmitter and the diversity receiver).
Make sure that the desired frequencies are listed in the enclosed frequency information sheet.
You can also contact your Sennheiser partner who will be pleased to calculate intermodulation-free frequencies for you.
Make sure that the desired frequencies are approved and legal in your country and, if necessary, apply for an operating license.

Upon delivery, transmitter and diversity receiver are synchronized with each other. If, however, you cannot establish a transmission link between transmitter and diversity receiver, you have to synchronize the channels of the devices:

▶ Deactivate the RF signal on all transmitters (see the instruction manual of the transmitter).
This prevents that, during the frequency scan, the channels used by switched-on transmitters are displayed as "used".
With a diversity receiver, perform a frequency preset scan to scan the frequency banks for unused channels ("Scan New List", see page 15).
▶ Select a frequency bank and a channel on this diversity receiver ("Current List", see page 15).
If you want to set up a multi-channel system, select a frequency bank with a sufficient number of unused channels for all planned transmission links.
Synchronize a transmitter with the diversity receiver (see page 14). The receiver's frequency, name and pilot tone setting are transferred to the transmitter.
OR:
▶ Manually set the transmitter to the same frequency bank and channel that you set on the receiver.
▶ Activate the RF signal on this transmitter. The transmission link is established.

If you want to set up a multi-channel system:

Repeat the following 4 steps for each additional transmission link: - Perform a frequency preset scan with the next diversity receiver.

- Select a channel from the same frequency bank as with the first diversity receiver.

– Synchronize a transmitter with the diversity receiver.

- Activate the RF signal on the transmitter.

Using freely selectable receiving frequencies

You can also freely select the receiving frequencies and store these frequencies in the frequency bank "U".

It might be that the freely selected frequencies are not inter-modulation-free

If you use frequencies from the frequency bank "U", it might be that the frequencies are not intermodulation-free.

Contact your Sennheiser partner who will be pleased to calculate intermodulation-free frequencies for you (see www.sennheiser.com).

Set each diversity receiver to the frequency bank "U".

On one of the receivers, select a channel within this frequency bank and assign this channel one of the calculated receiving frequencies (see page 17).
Synchronize a transmitter with this receiver (see page 14). OR:
Manually set the transmitter to the same frequency bank and channel that you set on the receiver.
▶ Repeat for the remaining transmitters and receivers as described above.

Cleaning the diversity receiver

CAUTION! Liquids can damage the electronics of the receiver!

Liquids entering the housing of the device can cause a short-circuit and damage the electronics.

Keep all liquids away from the receiver.
Do not use any solvents or cleansing agents.

Use a cloth to clean the diversity receiver from time to time.

Recommendations and tips

for the diversity receiver

• Make sure that the antenna and the line cable do not cross.
• For best results, make sure that the transmitter sensitivity is correctly adjusted.

for optimum reception

• Transmission range depends to a large extent on location and can vary from about 10 m to about 150 m. There should be a "free line of sight" between transmitting and receiving antennas.
• To avoid overloading the receiver, observe a minimum distance of 5 m between transmitting and receiving antennas.

... for multi-channel operation

• When operating a multi-channel system, you should only use the channels within one frequency bank. Each of the frequency banks "1" to "20" accommodates factory-preset frequencies which are intermodulation-free.
• The frequency bank "U" allows you to freely select and store receiving frequencies (see page 16).
• When using several transmitters simultaneously, interference can be avoided by maintaining a minimum distance of 20 cm between two transmitters.

If a problem occurs ...

Problem Possible cause Possible solution
Diversity receiver cannot be operated, “Locked” appears on the display panel	Lock mode is activated	Deactivate the lock mode (see page 10).
No operation indication	Batteries are flat or accupack is flat	Replace the batteries or recharge the accupack (see page 7).
No RF signal Transmitter and receiver are not on the same channel		Set the transmitter and receiver to the same channel. Synchronize the transmitter with the receiver (see page 14).

If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance.
To find a Sennheiser partner in your country, search at www.sennheiser.com under "Service & Support".

Accessories

The following EK 100 G3 accessories are available from your specialist dealer:

Cat. No. Accessory

009950 BA 2015 accupack

009828 L 2015 charger

009827 DC 2 power adapter for external DC powering (12 V)

009986 CA 2 camera adapter

005022 CL 1 line cable (jack to jack)

087046 CL 100 line cable (XLR-3 to jack)

Specifications

RF characteristics

Modulation wideband FM
Frequency ranges 516–558, 566–608, 626–668,734–776, 780–822, 823–865 MHz(A to E, G, see page 3)
Receiving frequencies 1,680 frequencies, tuneable in steps of 25 kHz
Switching bandwidth 42 MHz
Nominal/peak deviation ±24 kHz/±48 kHz
Receiver principle adaptive diversity
Sensitivity(with HDX, peak deviation)	< 4 μV, typ. 1.6 μV for 52 dBA _rms S/N
Adjacent channel rejection	typ. ≥ 65 dB
Intermodulation attenuation typ. ≥ 65 dB
Blocking ≥ 70 dB
Squelch	Off, Low: 5 dBμV, Middle: 15 dBμV,High: 25 dBμV
Pilot tone squelch	can be switched off

AF characteristics

Compander system	Sennheiser HDX
S/N ratio(1 mV, peak deviation)	≥ 60 dBA
THD	≤ 0.9%
AF output voltage(at peak deviation, 1 kHz AF)	3.5 mm jack socket: +11 dBu (mono, unbalanced)
Adjustment range of audio output level	42 dB, adjustable in steps of 6 dB

Overall device

Temperature range	-10°C to +55°C
Power supply	2 AA size batteries, 1.5 Vor BA 2015 accupack
Nominal voltage	2.4 V ---
Power consumption:
• at nominal voltage	typ. 140 mA
• with switched-off receiver	≤ 25 μA

Operating time typ. 8 hrs

Dimensions approx. 82 x 64 x 24 mm

Weight (incl. batteries) approx. 120 g

In compliance with

Europe

EMC: EN 301489-1/-9

Radio: EN 300422-1/-2

Safety: EN 60065

USA

47 CFR 15 subpart B

Approved by

Canada Industry Canada RSS 123

IC 2099A-G3EK100

limited to 806 MHz

Connector assignment

3.5 mm jack plug

wired stereo wired mono

Manufacturer Declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.

For the current warranty conditions, please visit our website at www.sennheiser.com or contact your Sennheiser partner.

In compliance with the following requirements

• RoHS Directive (2002/95/EC)
• WEEE Directive (2002/96/EC)

Please dispose of the diversity receiver at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment.

• Battery Directive (2006/66/EC)

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose of exhausted batteries.

CE Declaration of Conformity

• C€ 0682
• R&TTE Directive (1999/5/EC)

The declarations are available at www.sennheiser.com.

Before putting the device into operation, please observe the respective country-specific regulations.

Statements regarding FCC and Industry Canada

This device complies with Part 15 of the FCC Rules and with RSS-2 Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This class B digital device complies with the Canadian ICES-003.

Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.

Before putting the device into operation, please observe the respective country-specific regulations!

Index

Accessories 23

Accupack

charging 7

inserting 7

Advanced Menu (extended menu)

overview 12

settings 16

AF Out (adjusting the audio output level) 16

Auto Lock (activating/deactivating the lock mode) 16

Batteries

battery status 6

inserting 7

Buttons

function of the \~ 11

ON/OFF button 5

SET button 5

UP/DOWN button 5

Channel

assigning a frequency 17

selecting 15

setting a frequency 17

Displays

adjusting the contrast of the dis-

play panel (LCD Contrast) 18

AF (audio level) 6

AF OUT 6

LOW BATT 6

MUTE 6

RF (RF level) 6

standard displays 10

Easy Setup (scanning for, releasing and selecting frequency presets) 15

Frequency bank

selecting 15

setting a frequency 17

\~ system 3

Frequency Preset (selecting a

frequency bank/

channel) 15

Frequency presets

releasing (Reset List) 15

searching for unused \~ (Scan New

List) 15

selecting (Current List) 15

Lock mode

activating/deactivating (Auto

Lock) 16

deactivating temporarily 10

lock mode icon 6

Locked 10

LOW BATT 5

Menu (main menu)

overview 11

settings 14

Name (entering a name) 16

Operating menu

overview 11

settings 14

using 12

Pilot Tone (activating/deactivating the pilot tone evaluation) 18

Receiver

cleaning 21

mounting to a camera 7

switching off 9

switching on 9

Reset (resetting the settings made in the operating menu) 18

RF signal indication 5

Software Revision (displaying the software revision) 18

Squelch (adjusting the squelch) 14

Sync (synchronizing a transmitter with the receiver) 14

Transmitter (synchronizing with receiver) 19

Troubleshooting 22

Tune (setting the receiving frequencies for the frequency bank "U") 16

Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com

Printed in Germany Publ. 01/09 529667/A01
