USER MANUAL SK 300 G3-G SENNHEISER
evolutionwireless G3
SK 300

Instruction manual
Contents
Important safety instructions ....2
The SK 300 G3 bodypack transmitter....3
The frequency bank system.... 3
Areas of application.... 4
Delivery includes....5
Product overview....6
Overview of the SK 300 G3 bodypack transmitter...... 6
Overview of the displays 7
Putting the bodypack transmitter into operation......8
Inserting the batteries/accupack....8
Charging the accupack 8
Connecting the microphone cable/instrument cable.... 8
Attaching and positioning the microphones 9
Attaching the bodypack transmitter to clothing ..... 10
Using the bodypack transmitter.... 11
Switching the bodypack transmitter on/off 11
Deactivating the lock mode temporarily.... 12
Muting the audio signal or deactivating
the RF signal.... 13
Selecting a standard display.... 15
Using the operating menu.... 16
The buttons 16

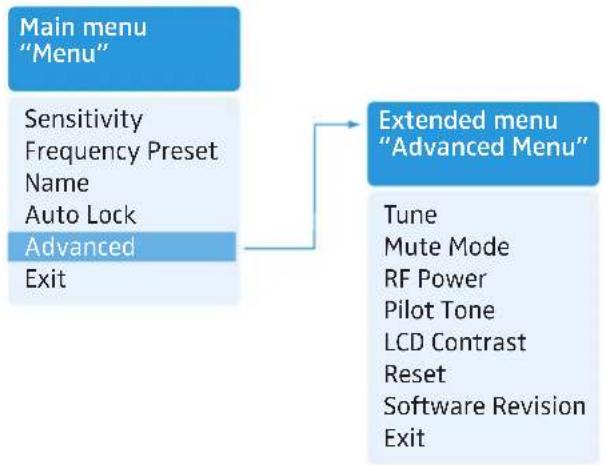

Overview of the operating menu 17
Working with the operating menu 18

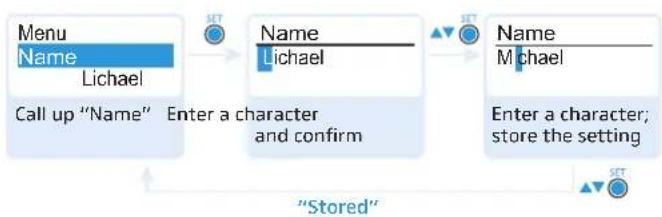

Adjusting settings via the operating menu 20
The main menu "Menu" 20

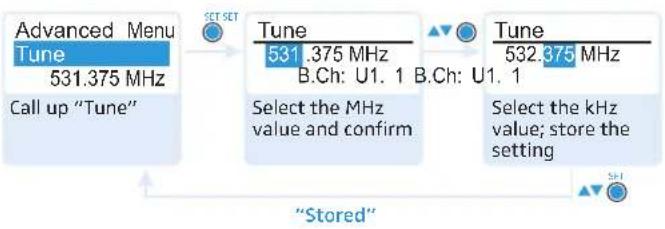

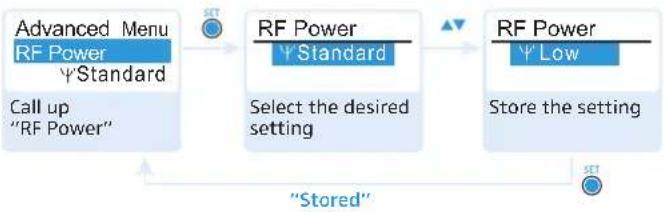

The extended menu "Advanced Menu" 22
Synchronizing the bodypack transmitter
with a receiver.... 27
Synchronizing the bodypack transmitter with the receiver – individual operation ...... 27
Synchronizing bodypack transmitters with receivers – multi-channel operation ...... 27
Cleaning the bodypack transmitter 28
Recommendations and tips 29
If a problem occurs ... 30
Accessories and spare parts.... 31
Specifications.... 32
Connector assignment 33

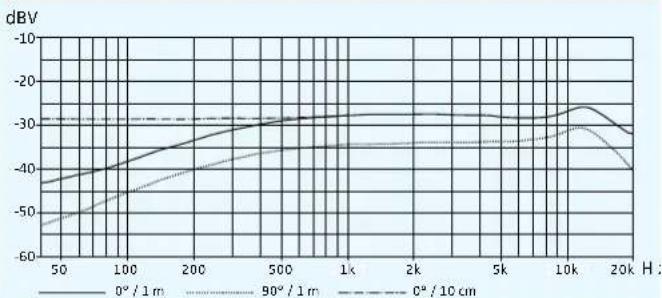

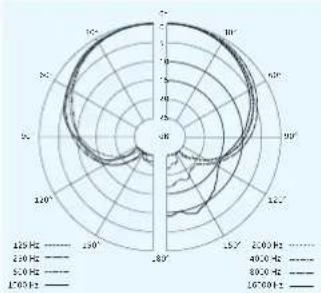

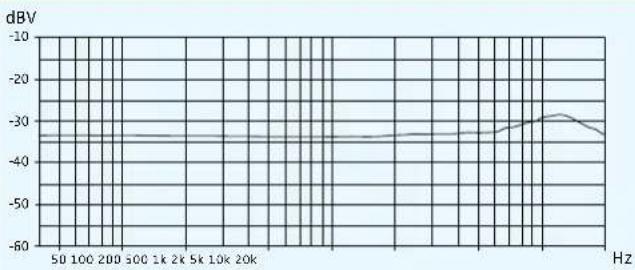

Polar diagrams and frequency response curves of the microphones.... 34
Manufacturer Declarations.... 35
Index....37
Important safety instructions
- Read this instruction manual.
- Keep this instruction manual. Always include this instruction manual when passing the product on to third parties.
- Heed all warnings and follow all instructions in this instruction manual.
- Use only a cloth for cleaning the product.
- Do not place the product near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat.
- Only use attachments/accessories specified by Sennheiser.
- Refer all servicing to qualified service personnel. Servicing is required if the product has been damaged in any way, liquid has been spilled, objects have fallen inside, the product has been exposed to rain or moisture, does not operate properly or has been dropped.
- WARNING: To reduce the risk of short circuits, do not use the product near water and do not expose it to rain or moisture.
Replacement parts
When replacement parts are required, be sure the service technician uses replacement parts specified by Sennheiser or those having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
Intended use
Intended use of the ew 300 G3 series products includes:
- having read these instructions especially the chapter "Important safety instructions",
- using the products within the operating conditions and limitations described in this instruction manual.
"Improper use" means using the products other than as described in this instruction manual, or under operating conditions which differ from those described herein.
The SK 300 G3 bodypack transmitter
This bodypack transmitter is part of the evolution wireless series generation 3 (ew G3). With this series, Sennheiser offers high-quality state-of-the-art RF transmission systems with a high level of operational reliability and ease of use. Transmitters and receivers permit wireless transmission with studio-quality sound.
Features of the evolution wireless 300 G3 series:
- Optimized PLL synthesizer and microprocessor technology
• HDX noise reduction system - Pilot tone squelch control
• True diversity technology
• Switching bandwidth of 42 MHz - Increased immunity to intermodulation and interferences in multi-channel operation
The frequency bank system
The bodypack transmitter is available in 6 UHF frequency ranges with 1,680 transmission frequencies per frequency range:

Each frequency range (A–E, G) offers 26 frequency banks with up to 24 channels each:

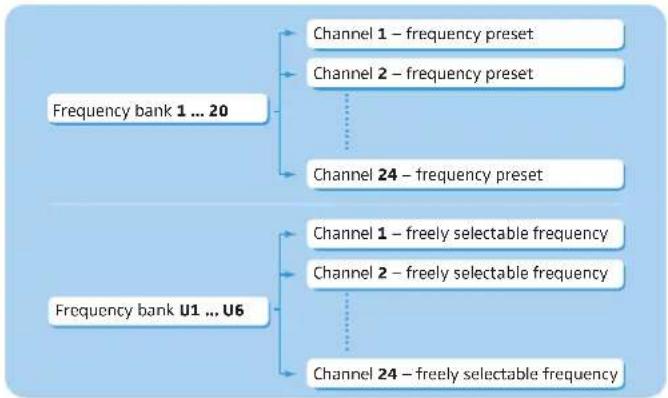

Each of the channels in the frequency banks "1" to "20" has been factory-preset to a fixed frequency (frequency preset).
The factory-preset frequencies within one frequency bank are intermodulation-free. These frequencies cannot be changed.
For an overview of the frequency presets, please refer to the supplied frequency information sheet. Updated versions of the frequency information sheet can be downloaded from the SK 300 G3 product page on our website at www.sennheiser.com.
The frequency banks "U1" to "U6" allow you to freely select and store frequencies. It might be that these frequencies are not intermodulation-free.
Areas of application
The bodypack transmitter can be combined with the EM 300 G3 rack-mount receiver.
The EM 300 G3 rack-mount receiver is available in the same UHF frequency ranges and is equipped with the same frequency bank system with factory-preset frequencies. This has the advantage that
- a transmission system is ready for immediate use after switch-on,
- several transmission systems can be operated simultaneously on the preset frequencies without causing intermodulation interference.

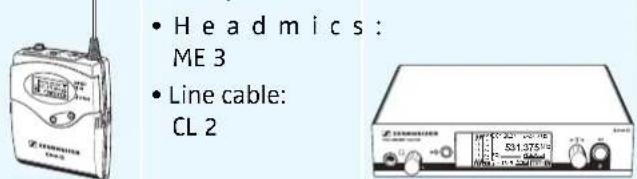

Transmitter Combinable with Receiver
SK 300 G3 • Clip-on micro- phones: ME 2, ME 4 EM 300 G3

- Headmics: ME3
• Line cable: CL 2
Overview of the microphones and line cables:
| Microphone/ line cable | Microphone type | Pick-up pattern |
| ME 2 clip-on microphone | pre-polarized condenser microphone | ○ - omni |
| ME 4 clip-on microphone | ○ - cardioid | |
| ME 3 headmic | ○ - cardioid | |
| CL 2 line cable -- |
Delivery includes
The packaging contains the following items:
1 SK 300 G3 bodypack transmitter
2 AA size batteries, 1.5 V
1 instruction manual
1 frequency information sheet
1 RF licensing information sheet
Product overview

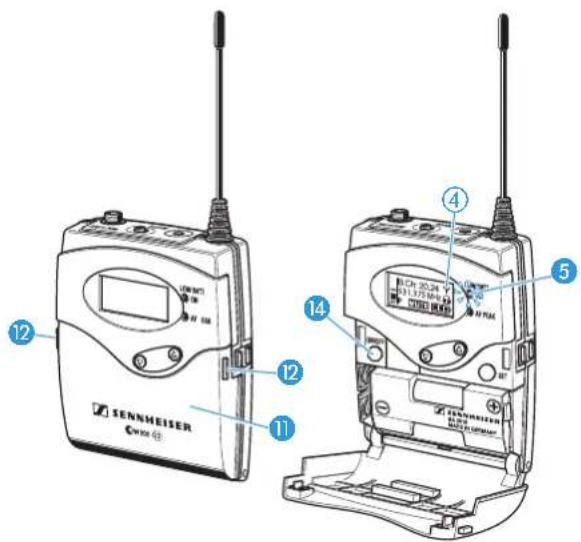

Overview of the SK 300 G3 bodypack transmitter

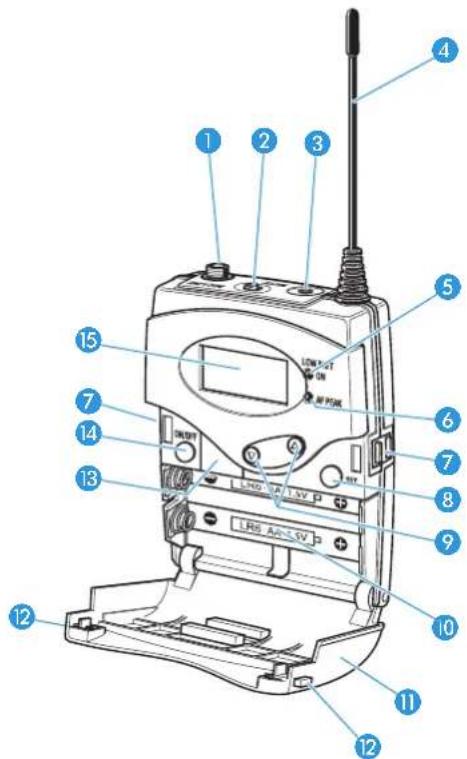

1 Microphone/instrument input (MIC/LINE), 3.5 mm jack socket, lockable

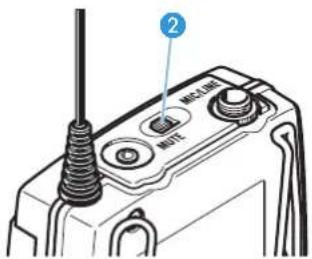

② MUTE switch
3 Socket for connection of RMS 1 external mute switch, 2.5 mm jack socket
4 Antenna
5 Operation and battery status indicator, red LED (lit = ON/flashing = LOW BATTERY)
6 Audio overmodulation indicator, yellow LED (lit = AF PEAK)
7 Charging contacts
8 SET button
9 ▲/▼ rocker button (UP/DOWN)
10 Battery compartment
11 Battery compartment cover
12 Battery compartment catches
13 Infra-red interface
14 ON/OFF button with ESC function (cancel)
15 Display panel, backlit in orange

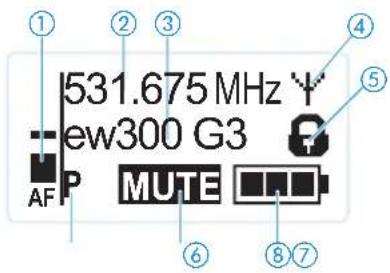

Overview of the displays

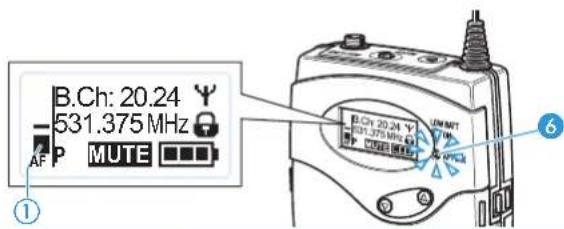

After switch-on, the bodypack transmitter displays the standard display "Frequency/Name". For further illustrations and examples of the different standard displays, refer to page 15.
The display backlighting is automatically reduced after approx. 20 seconds.

Display Meaning
① Audio level "AF"
Modulation of the bodypack transmitter with peak hold function
When the transmitter's audio input level is excessively high, the "AF" display shows full deflection and, in addition, the yellow AF PEAK LED 6 lights up:

② Frequency Current transmission frequency
③ Name Freely selectable name of the transmitter
④Transmission icon RF signal is being transmitted
⑤Lock mode icon Lock mode is activated
⑥ "P" (pilot tone) Pilot tone transmission is activated
⑦"MUTE" Audio signal is muted

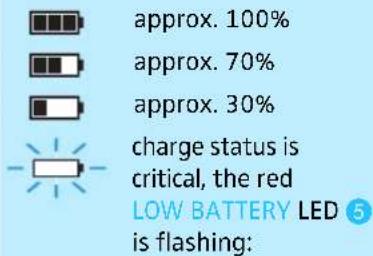

⑧ Battery status Charge status:


Putting the bodypack transmitter into operation
Inserting the batteries/accupack
For powering the bodypack transmitter, you can either use two 1.5 V AA size batteries or the rechargeable Sennheiser BA 2015 accupack (see "Accessories and spare parts" on page 31).

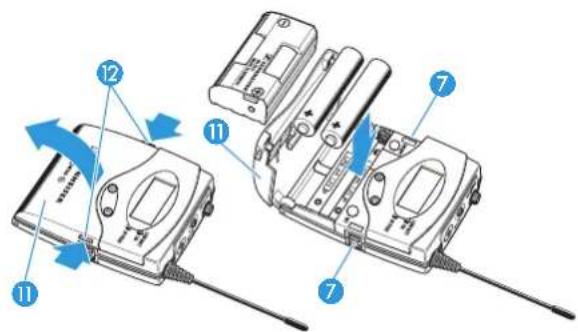

▶ Open the battery compartment by pushing the two catches 12 in the direction of the arrows and open the cover 11.

Insert the two batteries or the accupack as shown above. Please observe correct polarity when inserting the batteries/accupack.
▶ Close the battery compartment. The battery compartment cover 11 locks into place with an audible click.
Charging the accupack
To charge the bodypack transmitter with the BA 2015 accupack (see "Accessories and spare parts" on page 31) installed:
Insert the bodypack transmitter into the L 2015 charger L 2015 (see "Accessories and spare parts" on page 31).

The L 2015 charger can only charge the combination BA 2015 accupack/bodypack transmitter. Standard batteries (primary cells) or individual rechargeable battery cells cannot be charged in this way.
Connecting the microphone cable/instrument cable
The audio input is designed for the connection of both condenser microphones and other audio sources. DC powering of the condenser microphones is via the audio input (3.5 mm jack socket MIC/LINE 1).
Use one of the recommended Sennheiser microphones or the optional CL 2 line cable (see "Accessories and spare parts" on page 31).

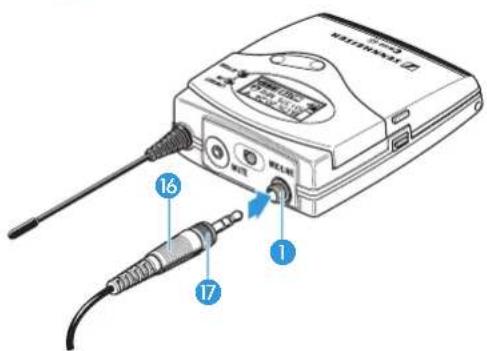

Connect the 3.5 mm jack plug 16 from the Sennheiser microphone or line cable to the 3.5 mm jack socket MIC/LINE 1.

Lock the 3.5 mm jack plug by screwing down the coupling ring 17.
Via the operating menu, adjust the sensitivity of the microphone/line input (see page 20).
Attaching and positioning the microphones
ME 2
Use the microphone clip 18 to attach the microphone to clothing (e.g. tie, lapel).
▶ Attach the ME 2 microphone as close as possible to the sound source.

The ME 2 clip-on microphone has an omni-directional pick-up pattern. It is therefore not necessary to position it precisely.
ME3
Adjust the ME 3 headmic so that a comfortable and secure fit is ensured.
▶ Position the microphone so that its sound inlet is directed towards the sound source (e.g. mouth).
ME 4
Use the microphone clip 18 to attach the microphone to clothing (e.g. tie, lapel).

The ME 4 clip-on microphone has a cardioid pick-up pattern.
▶ Position the ME 4 so that its sound inlet is directed towards the sound source (e.g. mouth).
Attaching the bodypack transmitter to clothing

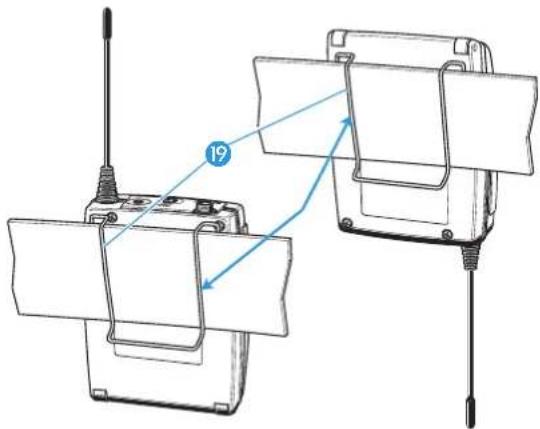

You can use the belt clip 19 to attach the bodypack transmitter to clothing (e.g. belt, waistband).

The belt clip is detachable so that you can also attach the bodypack transmitter with the antenna pointing downwards. To do so, withdraw the belt clip 19 from its fixing points and attach it the other way round.
The belt clip 19 is secured so that it cannot slide out of its fixing points accidentally.

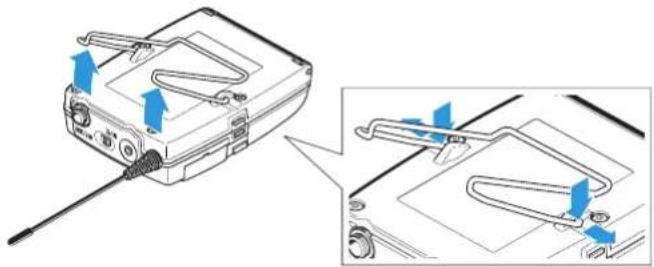

To detach the belt clip:
▶ Lift the belt clip as shown.
▶ Repeat for the other side.
Using the bodypack transmitter
To establish a transmission link, proceed as follows:
- Switch the receiver on (see the instruction manual of the receiver).
- Switch the bodypack transmitter on (see next section). The transmission link is established and the display backlighting of the receiver changes from red to orange.

It is vital to observe the notes on frequency selection on page 27.
If you cannot establish a transmission link between body-pack transmitter and receiver, refer to the chapter "Synchronizing the bodypack transmitter with the receiver – individual operation" on page 27.
Switching the bodypack transmitter on/off
▶ Push the two battery compartment catches 12 and open the battery compartment cover 11.

To switch the bodypack transmitter on (online operation):

Briefly press the ON/OFF button 14. The bodypack transmitter transmits an RF signal. The standard display "Frequency/Name" appears on the display panel. The red ON LED lights up and the transmission icon is displayed.

You can switch the bodypack transmitter on and deactivate the RF signal on switch-on. For more information, see page 12.
To switch the bodypack transmitter off:
▶ If necessary, deactivate the lock mode (see next chapter).

Keep the ON/OFF button 14 pressed until "OFF" appears on the display panel. The red ON LED 5 goes off and the display panel turns off.

When in the operating menu, pressing the ON/OFF button 14 will cancel your entry (ESC function) and return you to the current standard display.
To switch the bodypack transmitter on and to deactivate the RF signal on switch-on (offline operation):

Keep the ON/OFF button pressed until "RF Mute On?" appears on the display panel.

Press the SET button. The transmission frequency is displayed but the bodypack transmitter does not transmit an RF signal. The transmission icon ④ is not displayed. When the pilot tone function is activated on both bodypack transmitter and receiver, "RF Mute" appears on the receiver's display panel.


Use this function to save battery power or to prepare a bodypack transmitter for use during live operation without causing interference to existing transmission links.
To activate the RF signal:

Briefly press the ON/OFF button. "RF Mute Off?" appears on the display panel.

Press the SET button. The transmission icon ④ is displayed again.
Deactivating the lock mode temporarily

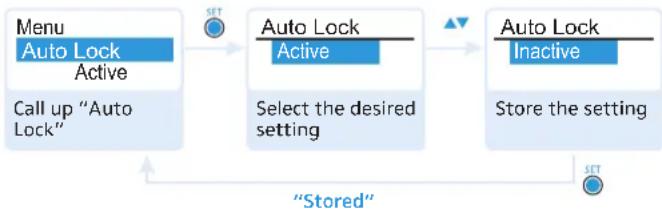

You can activate or deactivate the automatic lock mode via the "Auto Lock" menu item (see page 22).
If the lock mode is activated, you have to temporarily deactivate it In order to be able to operate the bodypack transmitter:

Press the SET button. "Locked" appears on the display panel.

Press the rocker button. "Unlock?" appears on the display panel.

▶ Press the SET button.
The lock mode is temporarily deactivated. How you are using the bodypack transmitter determines how long the lock mode remains deactivated:
When you are in the operating menu
The lock mode remains deactivated until you exit the operating menu.
When one of the standard displays is shown
The lock mode is automatically activated after 10 seconds.
The lock mode icon ⑤ flashes prior to the lock mode being activated again.

Muting the audio signal or deactivating the RF signal

The MUTE switch ② allows you to mute the audio signal or to deactivate the RF signal.
Via the "Mute Mode" menu item, you can set the desired function of the MUTE switch ② (see page 24):
| Setting | Slide the MUTE switch 2 ... | Function |
| "AF On/Off" ... | to the left (position MUTE) | Mutes the audio signal |
| ... to the right Unmutes the audio signal | ||
| "RF On/Off" ... | to the left (position MUTE) | Deactivates the RF signal (offline operation) |
| ... to the right Activates the RF signal (online operation) | ||
| "Disabled" No function | ||
From the "Mute Mode" menu item, select the desired setting (see page 24).

The settings "Push to mute" and "Push to talk" are only available in conjunction with the RMS 1 external mute switch (see page 24 and "Accessories and spare parts" on page 31).
▶ Exit the operating menu.
▶ Slide the MUTE switch ② to the left, to the position MUTE.
The bodypack transmitter reacts as indicated in the table.
The current state of the muting function or the RF signal is displayed on the display panel of the bodypack transmitter.

An additional display of the muting function appears on the receiver's display panel when
- the pilot tone function is activated on both bodypack transmitter and receiver and, in addition,
- this display has been activated via the "Warnings" menu item on the receiver (see the instruction manual of the receiver).

Audio signal is muted
| Transmitter's display panel: | "MUTE" 7 is displayed |
| Receiver's display panel: | "TX Mute" is displayed* |
| * only when activated on the receiver (see previous section) | |
Audio signal is activated (muting is deactivated)
| Transmitter's display panel: | "MUTE" 7 is not displayed |
| Receiver's display panel: | "TX Mute" is not displayed |
RF signal is deactivated
| Transmitter's display panel: | transmission icon 4 is not displayed, "MUTE" 7 is displayed |
| Receiver's display panel: | "RF Mute" is displayed* |
* only when activated on the receiver (see previous section)
RF signal is activated
| Transmitter's display panel: | transmission icon 4 is displayed, "MUTE" 7 is not displayed |
| Receiver's display panel: | "RF Mute" is not displayed |

You can also deactivate the RF signal on switch-on. For more information, refer to the chapter "Switching the bodypack transmitter on/off" on page 12.
Using the ON/OFF button, you can also activate/deactivate the RF signal during operation.
To do so, briefly press the ON/OFF button and proceed as described on page 12.
Selecting a standard display

▶Press the rocker button to select a standard display:
| Contents of the display | Selectable standard display |
![]() | “Frequency/Name” |
![]() | “Frequency bank/Channel/Frequency” |
![]() | “Name/Frequency bank/Channel” |
Using the operating menu
A special feature of the Sennheiser ew G3 series is the consistent, intuitive menu structure of transmitters and receivers. As a result, adjustments to the settings can be made quickly – even in stressful situations, for example on stage or during a live show or presentation.

Make use of the possibility to adjust settings via the operating menu of the receiver and to transfer these settings to the bodypack transmitter.

For more information on how to transfer settings to the bodypack transmitter, refer to the instruction manual of your receiver. The relevant information is marked with the sync icon.
The buttons
| Button Function of the button | |
| Press the ON/OFF button[CKZZ] | Switches the bodypack transmitter on and offCancels the entry and returns to the current standard display (ESC function)Activates/deactivates the RF signal (special function, see page 12) |
Press the SET button![]() | Changes from the current standard display to the operating menuCalls up a menu itemEnters a submenuStores the settings and returns to the operating menu |
Press the rocker button![]() | Selects a standard displayChanges to the next/previous menu itemChanges the setting of a menu item |
Overview of the operating menu
| Display Function of the menu item | |
| Main menu “Menu” | |
| Sensitivity | Adjusts the sensitivity “AF”(see page 20) |
| Frequency Preset | Sets the frequency bank and the channel (see page 21) |
| Name Enters the transmitter name(see page 21) | |
| Auto Lock Activates/deactivates the lock mode(see page 22) | |
| Advanced Calls up the extended menu“Advanced Menu” (see page 22) | |
| Exit Exits the operating menu and returnsto the current standard display | |
| Extended menu “Advanced Menu” | |
| Tune Sets the transmission frequencies forthe frequency banks “U1” to “U6”(see page 22) | |
| Mute Mode | Sets the mode for the MUTE switch(see page 24) |
| RF Power Adjusts the transmission power(see page 25) | |

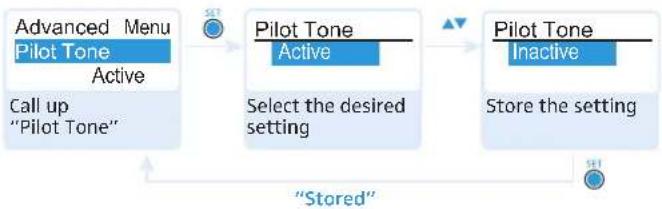

| Pilot Tone Activates/deactivates the pilot tonetransmission (see page 25) | |
| LCD Contrast Adjusts the contrast of the displaypanel (see page 26) | |

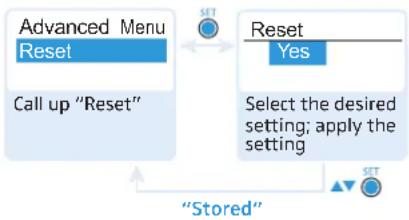

| Reset Resets the settings made in theoperating menu (see page 26) | |
| Software Revision Displays the current software revision(see page 26) | |
| Exit Exits the extended menu “AdvancedMenu” and returns to the main menu | |
Working with the operating menu

If the lock mode is activated, you have to deactivate it In order to be able to work with the operating menu (see page 12).
By way of example of the "Sensitivity" menu, this section describes how to use the operating menu.
Changing from a standard display to the operating menu

▶ Press the SET button. The current standard display is replaced by the main menu. The last selected menu item is displayed.
Selecting a menu item

▶Press the rocker button to change to the "Sensitivity" menu item. The current setting of the selected menu item is displayed:

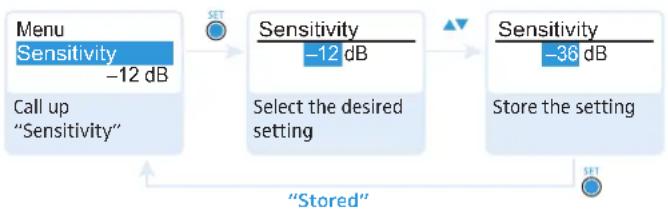

Changing and storing settings

▶ Press the SET button to call up the menu item.

▶Press the rocker button to adjust the input sensitivity.

▶ Press the SET button to store the setting.
Canceling an entry

Press the ON/OFF button to cancel the entry. The current standard display appears on the display panel.
To subsequently return to the last edited menu item:

▶ Press the SET button repeatedly until the last edited menu item appears.
Exiting a menu item

Change to the "Exit" menu item.



▶ Confirm your selection.
You return to the next higher menu level.
To directly return to the current standard display:


▶ Press the ON/OFF button.
Adjusting settings via the operating menu

Make use of the possibility to adjust settings via the operating menu of your receiver and to these settings to the bodypack transmitter.

For more information, refer to the instruction manual of the receiver. The relevant information is marked with the sync icon.
The main menu "Menu"
Adjusting the input sensitivity – "Sensitivity"
Adjustment range: 0 to -60 dB, adjustable in steps of 3 dB

The audio level display "AF" ① always indicates the audio level, even if the bodypack transmitter is muted, e.g. allowing you to check the adjusted sensitivity before live operation.

| Input sensitivity is adjusted ... | Effect/display |
| ... too high Close talking distances, speakers with loud voices or loud music passages cause overmodulation in the transmission link. The yellow AF PEAK LED 6 lights up. The audio level display “AF” 1 shows full deflection for the duration of the overmodulation. | |
| ... correctly | The audio level display “AF” 1 shows full deflection only during the loudest passages. |
| ... too low The transmission link is undermodulated. This results in a signal with high background noise. | |
The following figures are a guide to the best settings:
| Transmission situation Sensitivity setting | |
| Loud music/vocals | -30 to -21 dB |
| Presentations -21 to 0 dB | |

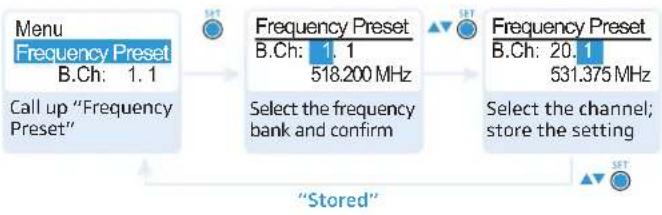

Selecting the frequency bank and the channel manually – "Frequency Preset"

When you are in the "Frequency Preset" menu item, the RF signal is deactivated.
Overview of the frequency banks and channels:
| Frequency bank | Channels Type | |
| “1” to “20” | up to 24 per frequency bank | System bank: frequencies are factory-preset |
| “U1” to “U6” | up to 24 per frequency bank | User bank: frequencies are freely selectable |

When setting up multi-channel systems, please observe the following:
Only the factory-preset frequencies within one frequency bank are intermodulation-free (see page 27).
Bodypack transmitter and receiver of a transmission link have to be set to the same frequency.
It is vital to observe the notes on frequency selection on page 27.
Entering a name – "Name"
Via the "Name" menu, you can enter a freely selectable name (e.g. the name of the performer) for the bodypack transmitter.
The name can be displayed on the standard displays "Frequency/Name" and "Name/Frequency bank/Channel". The name can consist of up to 8 characters such as:
- letters (without pronunciation marks),
- numbers from 0 to 9,
• special characters and spaces.
To enter a name, proceed as follows:

▶ Press the rocker button to select a character.

▶ Press the SET button to change to the next segment/character or to store the complete entry.
Activating/deactivating the automatic lock mode – "Auto Lock"
The lock mode prevents that the bodypack transmitter is accidentally switched off or programmed during operation. The lock mode icon ⑤ the current standard display indicates that the lock mode is activated.

▶ Press the rocker button to select the desired setting.
For information on how to use the lock mode, refer to page 12.
The extended menu "Advanced Menu"
Setting transmission frequencies and frequency banks – "Tune"

When you have selected one of the system banks and then select the "Tune" menu, the bodypack transmitter automatically switches to channel 1 of the frequency bank "U1". In this case, "U1.1" briefly appears on the display panel.
Upon delivery, the channels of the frequency banks "U1" to "U6" are not assigned a transmission frequency.
When you are in the "Tune" menu item, the RF signal is deactivated.
Via the "Tune" menu item, you can set a transmission frequency to be stored in the current channel or you can select a different channel in one of the frequency banks "U1" to "U6" and assign this channel a transmission frequency.

It is vital to observe the notes on frequency selection on page 27.
Setting a transmission frequency for the current channel

Press the rocker button until the "Tune" menu item appears.

▶ Press the SET button. The frequency selection appears.
▶ Set the desired frequency.

Press the SET button. Your settings are stored. You are back to the operating menu.
Selecting a frequency bank and a channel and assigning this channel a frequency

Press the rocker button until the "Tune" menu item appears.

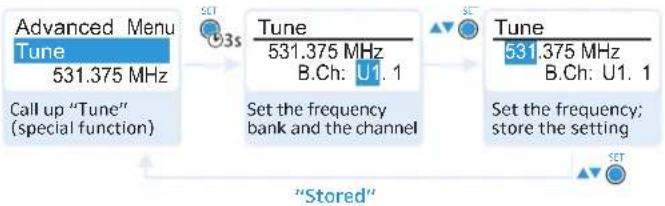

Keep the SET button pressed until the frequency bank selection appears.
▶ Set the desired frequency bank.

▶ Press the SET button. The frequency selection appears.
▶ Set the desired channel.

▶ Press the SET button. The frequency selection appears.
▶ Set the desired frequency.

▶ Press the SET button. Your settings are stored. You are back to the operating menu.
Setting the mode for the MUTE switch and the RMS 1 external mute switch – "Mute Mode"

The settings "Push to mute" and "Push to talk" are only available in conjunction with the RMS 1 external mute switch.
| Setting Switch Function | ||
| "AF On/Off" | MUTE switch | If the switch is set to position MUTE, the audio signal is muted. |
| RMS 1 external mute switch* | If you press the MIC button of the RMS 1*: The audio signal is muted.If you press the MIC button of the RMS 1* again:The muting is canceled. | |
| "RF On/Off" | MUTE switch | If the switch is set to position MUTE, the RF signal is deactivated. |
| RMS 1 external mute switch* | If you press the MIC button of the RMS 1*: The radio signal is deactivated.If you press the MIC button of the RMS 1* again:The RF signal is reactivated. | |
| "Push To Mute" | RMS 1 external mute switch* | The audio signal is muted as long as you press the MIC button of the RMS 1*. |
| "Push To Talk"* | RMS 1 external mute switch* | The audio signal is activated as long as you press the MIC button of the RMS 1*. |
| "Disabled" | MUTE switch or RMS 1 external mute switch* | The function is deactivated. |
* see "Accessories and spare parts" on page 31
** If you select "Push To Talk", the bodypack transmitter will be muted until the MIC button is pressed.

If you connect the RMS 1 external mute switch, you can only set the muting via the RMS 1.
The function of the MUTE switch is deactivated during this time.
For information on how to use the MUTE switch, refer to page 13.
Adjusting the transmission power – "RF Power"
Via the "RF Power" menu item, you can adjust the transmission power in two steps.

It is vital to observe the notes on the supplied frequency information sheet.
Activating/deactivating the pilot tone transmission – "Pilot Tone"
The bodypack transmitter adds an inaudible signal, known as the pilot tone, to the transmitted signal. The receiver detects and evaluates the pilot tone.
The pilot tone supports the receiver's squelch function (Squelch) and protects against interference due to RF signals from other devices.
Devices of the ew 300 G1 series (generation 1) do not support the pilot tone function. Therefore, please observe the following when combining a bodypack transmitter or receiver of the ew 300 G3 series (generation 3) with devices from an earlier evolution wireless generation:
| Transmitter Receiver Make sure to ... | |
| ew G3 / w G2 w C3 / w G2e... activate the pilot tone function on both bodypack transmitter and receiver. | |
| ew G3 w G1 ... deactivate the pilot tone function on the ew 300 G3 bodypack transmitter. | |
| ew G1 w G3 ... deactivate the pilot tone function on the ew 300 G3 receiver. |
Adjusting the contrast of the display panel – "LCD Contrast"
You can adjust the contrast of the display panel in 16 steps.
Resetting the settings made in the operating menu – "Reset"
When resetting the settings made in the operating menu, only the selected settings for the pilot tone and for the frequency banks "U1" to "U6" remain unchanged. For an overview of the factory-preset default settings, refer to the supplied frequency information sheet.
Displaying the software revision – "Software Revision"
You can display the current software revision of the body-pack transmitter.
For information on software updates, visit the SK 300 G3 product page at www.sennheiser.com.
Synchronizing the bodypack transmitter with a receiver
When synchronizing the bodypack transmitter with a receiver, please observe the following:

Only use a transmitter and a receiver from the same frequency range (see the type plate on the transmitter and the receiver).
Make sure that the desired frequencies are listed in the enclosed frequency information sheet.
Make sure that the desired frequencies are approved and legal in your country and, if necessary, apply for an operating license.
Synchronizing the bodypack transmitter with the receiver – individual operation
Upon delivery, the bodypack transmitter and the receiver are synchronized with each other.
If, however, you cannot establish a transmission link between bodypack transmitter and receiver, you have to synchronize the channels of the devices.
For information on automatic synchronization of the body-pack transmitter with the receiver (individual operation), refer to the instruction manual of the receiver. This information is marked with the silicon.
Alternatively, you can set the channel on the bodypack transmitter manually:
Make sure that you set the bodypack transmitter to the same frequency bank and the same channel as the receiver (see page 21).
If you still cannot establish a transmission link, refer to the chapter "If a problem occurs ..." on page 30.
Synchronizing bodypack transmitters with receivers – multi-channel operation
Combined with ew 300 G3 receivers, ew 300 G3 bodypack transmitters can form transmission links that can be used in multi-channel systems.
For information on automatic synchronization of bodypack transmitters with receivers (multi-channel operation), refer to the instruction manual of your receiver.
For more information on multi-channel operation, visit the SK 300 G3 product page at www.sennheiser.com.
Cleaning the bodypack transmitter
CAUTION! Liquids can damage the electronics of the bodypack transmitter!
Liquids entering the housing of the device can cause a short-circuit and damage the electronics.
▶ Keep all liquids away from the bodypack transmitter.
▶ Use a cloth to clean the bodypack transmitter from time to time.
Do not use any solvents or cleansing agents.
Recommendations and tips
... for the ME 2 and ME 4 clip-on microphones
- To reduce level variations to a minimum when the user turns his or her head away from the microphone, attach the microphone as centrally as possible.
- To protect the microphone against excessive sweat/moisture, avoid direct skin contact.
- Attach the microphone carefully and conduct the cable so that noise due to friction is avoided.
- Always use the ME 4 directional microphone with a windshield and direct the microphone towards the sound source (e.g. mouth).
... for the ME 3 headmic
- Always use the microphone with a pop shield and position the microphone at the corner of the mouth.
- You can vary the bass reproduction by increasing/decreasing the talking distance.
- Make sure that the sound inlet is directed towards the mouth. The sound inlet is marked with a little dot.
... for the bodypack transmitter
- Make sure that the antenna and the microphone cable do not cross.
- The antenna should hang freely and be at least 1 cm away from the body. The antenna must not be in direct contact with the skin.
- For best results, make sure that the transmitter sensitivity is correctly adjusted.
... for optimum reception
- Transmission range depends to a large extent on location and can vary from about 10 m to about 150 m. There should be a "free line of sight" between transmitting and receiving antennas.
- To avoid overloading the receiver, observe a minimum distance of 5 m between transmitting and receiving antennas.
... for multi-channel operation
- For multi-channel operation, you should only use the channels within one frequency bank. Each of the frequency banks "1" to "20" accommodates factory-preset frequencies which are intermodulation-free.
- When using several transmitters simultaneously, interference can be avoided by maintaining a minimum distance of 20 cm between two transmitters.
If a problem occurs ...
| Problem Possible cause Possible solution | ||
| Bodypack transmitter cannot be operated, "Locked" appears on the display panel | Lock mode is activated | Deactivate the lock mode (see page 12). |
| No operation indication | Batteries are flat or accupack is flat | Replace the batteries or recharge the occupack (see page 8). |
| No RF signal at the receiver | Bodypack transmitter and receiver are not on the same channel | Set the bodypack transmitter to the same channel as the receiver. |
| Synchronize the body-pack transmitter with the receiver (see page 27). | ||
| Transmission range is exceeded | Reduce the distance between bodypack transmitter and receiving antennas. | |
| Increase the transmission power (see page 25). | ||
| RF signal is deactivated ("RF Mute") | Activate the RF signal (see page 13). | |
| RF signal available, no audio signal, "MUTE" appears on the display panel | Bodypack transmitter is muted (MUTE) | Cancel the muting (see page 13). |
| Receiver's squelch threshold is adjusted too high | Reduce the squelch threshold setting on the receiver. | |
| Bodypack transmitter doesn't transmit a pilot tone | Activate or deactivate the pilot tone transmission (see page 25). | |
| Audio signal has a high level of background noise or audio signal is distorted | Bodypack transmitter's sensitivity is adjusted too low/too high | Adjust the input sensitivity (see page 20). |
If a problem occurs that is not listed in the above table or if the problem cannot be solved with the proposed solutions, please contact your local Sennheiser partner for assistance.
To find a Sennheiser partner in your country, search at www.sennheiser.com under "Service & Support".
Accessories and spare parts
The following accessories are available from your specialist dealer:
Cat. No. Product name and description
009950 BA 2015 accupack
009828 L 2015 charger
503168 CC 3 system case
009825 BPP 1 bodypack pouch
503164 RMS 1 external mute switch
Adapters
009827 DC 2 power adapter (12 V DC)
Cables
005021 CI 1 instrument cable (with 14'' (6.3 mm) jack plug)
004840 CL 2 line cable (with XLR-3F connector)
Microphones
005018 ME 2 clip-on microphone, condenser, omni-directional
005020 ME 4 clip-on microphone, condenser, cardioid
009862 HSP 2 headmic, condenser, omni-directional
009864 HSP 4 headmic, condenser, cardioid
005019 ME 3-ew headmic, condenser, cardioid
009831 MKE 2-ew Gold clip-on microphone, color black condenser, omni-directional
009832 MKE 2-ew-3 clip-on microphone, color beige condenser, omni-directional
500527 MKE 40 clip-on microphone, condenser, cardioid
Specifications
RF characteristics
| Modulation wideband FM | |
| Frequency ranges 516–558, 566–608,626–668, 734–776,780–822, 823–865 MHz(A–E, G, see page 3) | |
| Transmission frequencies 1,680 frequencies, tuneablein steps of 25 kHz | |
| 20 frequency banks, eachwith up to 24 factory-presetchannels | |
| 6 frequency banks,each with up to 24 userprogrammable channels | |
| Switching bandwidth 42 MHz | |
| Nominal/peak deviation ± 24 kHz/± 48 kHz | |
| Frequency stability ≤ ±15 ppm | |
| RF output power at 50 Ω,switchable | typ. 10 mW (low)typ. 30 mW (standard) |
| Pilot tone squelch can be switched off | |
| AF characteristics | |
| Compander system Sennheiser HDX | |
| AF frequency response microphone:80–18,000 Hzline: 25–18,000 Hz | |
| Signal-to-noise ratio(1 mV, peak deviation) ≥ 115 dBA | |
| THD ≤ 0.9% | |
| Max. input voltagemicrophone/line | 3 V _rms |
| Input impedancemicrophone/line | 40 kΩ, unbalanced/1 MΩ |
| Adjustment range of inputsensitivity | 60 dB, adjustable in 3-dBsteps |
| Overall device | |
| Temperature range –10°C to +55°C | |
| Power supply | 2 AA size batteries, 1.5 Vor BA 2015 accupack |
| Nominal voltage | 2.4 V === |
Current consumption:
at nominal voltage typ. 180 mA (30 mW)
with switched-off
transmitter ≤ 25 A
Operating time typ. 8 hrs
Dimensions approx. 82 x 64 x 24 mm
Weight (incl. batteries) approx. 160 g
In compliance with
Europe EMC EN 301489-1/-9

Radio EN 300422-1/-2
Safety EN 60065
EN 62311 (SAR)
Approved by
Canada Industry Canada RSS 123
IC 2099A-G3SK
limited to 806 MHz
USA FCC-Part 74
FCC-ID: DMO G3SK
limited to 698 MHz
Microphones
| ME 2 ME 3 ME 4 | |||
| Microphone type condenser condenser condenser | |||
| Sensitivity | 20 mV/Pa | 1.6 mV/Pa | 40 mV/Pa |
| Pick-up pattern | omni | cardioid | cardioid |
| Max. SPL | 130 dB SPL | 150 dB SPL | 120 dB SPL |
Connector assignment
3.5 mm jack plug:

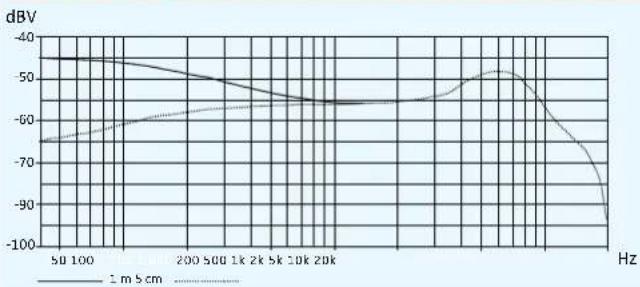

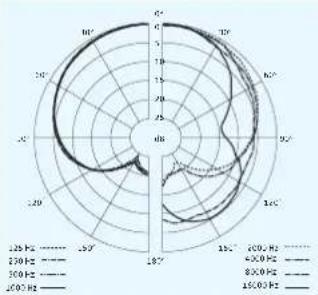

Polar diagrams and frequency response curves of the microphones
Polar diagram ME 3 Polar diagram ME 4

radar
| Frequency (Hz) | Value | |---|---| | 120 | 25 | | 230 | 25 | | 300 | 25 | | 400 | 25 | | 500 | 25 | | 600 | 25 | | 700 | 25 | | 800 | 25 | | 900 | 25 | | 1000 | 25 | | 1100 | 25 | | 1200 | 25 | | 1300 | 25 | | 1400 | 25 | | 1500 | 25 | | 1600 | 25 | | 1700 | 25 | | 1800 | 25 | | 1900 | 25 | | 2000 | 25 | | 2100 | 25 | | 2200 | 25 | | 2300 | 25 | | 2400 | 25 | | 2500 | 25 | | 2600 | 25 | | 2700 | 25 | | 2800 | 25 | | 2900 | 25 | | 3000 | 25 | | 3100 | 25 | | 3200 | 25 | | 3300 | 25 | | 3400 | 25 | | 3500 | 25 | | 3600 | 25 | | 3700 | 25 | | 3800 | 25 | | 3900 | 25 | | 4000 | 25 | | 4100 | 25 | | 4200 | 25 | | 4300 | 25 | | 4400 | 25 | | 4500 | 25 | | 4600 | 25 | | 4700 | 25 | | 4800 | 25 | | 4900 | 25 | | 5000 | 25 | | 5100 | 25 | | 5200 | 25 | | 5300 | 25 | | 5400 | 25 | | 5500 | 25 | | 5600 | 25 | | 5700 | 25 | | 5800 | 25 | | 5900 | 25 | | 6000 | 25 | | 6100 | 25 | | 6200 | 25 | | 6300 | 25 | | 6400 | 25 | | 6500 | 25 | | 6600 | 25 | | 6700 | 25 | | 6800 | 25 | | 6900 | 25 | | 7000 | 25 | | 7100 | 25 | | 7200 | 25 | | 7300 | 25 | | 7400 | 25 | | 7500 | 25 | | 7600 | 25 | | 7700 | 25 | | 7800 | 25 | | 7900 | 25 | | 8000 | 25 | | 8100 | 25 | | 8200 | 25 | | 8300 | 25 | | 8400 | 25 | | 8500 | 25 | | 8600 | 25 | | 8700 | 25 | | 8800 | 25 | | 8900 | 25 | | 9000 | 25 | | 9100 | 25 | | 9200 | 25 | | 9300 | 25 | | 9400 | 25 | | 9500 | 25 | | 9600 | 25 | | 9700 | 25 | | 9800 | 25 | | 9900 | 25 | |1311 (GHz) | -1.667 (dB) vs. -1.667 (Hz) for frequency range from -1.667 to +1.667 (dB). The chart displays a single data series with values ranging from -1.667 to +1.667. The frequency range is defined by the label '1' in the top-left corner and '1' in the bottom-left corner. The frequency range is defined by the label '1' in the bottom-right corner and '1' in the bottom-left corner. The frequency range is defined by the label '1' in the bottom center corner and '1' in the bottom left corner. The frequency range is defined by the label '1' in the bottom center corner and '1' in the bottom left corner. The frequency range is defined by the label '1' in the bottom center corner and '1' in the bottom left corner. The frequency range is defined by the label '1' in the bottom center corner and '1' in the bottom left corner. The frequency range is defined by the label '1' in the bottom center corner and '1', and it is also labeled as 'dB'.
radar
| Angle (°) | Value | |---|---| | 0 | 125 | | 30 | 110 | | 60 | 90 | | 90 | 70 | | 120 | 50 | | 150 | 30 | | 180 | 10 |Frequency response curve ME 2

line
| Frequency (Hz) | Value | | -------------- | ----- | | 50 | -35 | | 100 | -35 | | 200 | -35 | | 500 | -35 | | 1k | -35 | | 2k | -35 | | 5k | -35 | | 10k | -35 | | 20k | -35 | | 5000 | -30 | | 10000 | -28 | | 20000 | -25 |Frequency response curve ME 3

line
| Frequency | dBV (1 m 5 cm) | | --------- | -------------- | | 50 | -40 | | 100 | -45 | | 200 | -50 | | 500 | -55 | | 1k | -60 | | 2k | -65 | | 5k | -70 | | 10k | -75 | | 20k | -80 | | 300 | -90 |Frequency response curve ME 4

line
| H | 0° / 1 m | 90° / 1 m | 0° / 10 cm | |------|----------|-----------|------------| | 50 | -45 | -55 | -30 | | 100 | -40 | -45 | -30 | | 200 | -35 | -40 | -30 | | 500 | -30 | -35 | -30 | | 1k | -28 | -32 | -30 | | 2k | -27 | -31 | -30 | | 5k | -26 | -30 | -30 | | 10k | -25 | -29 | -30 | | 20k | -28 | -35 | -30 |Manufacturer Declarations
Warranty
Sennheiser electronic GmbH & Co. KG gives a warranty of 24 months on this product.
For the current warranty conditions, please visit our web site at www.sennheiser.com or contact your Sennheiser partner.
In compliance with the following requirements
• RoHS Directive (2002/95/EC)
• WEEE Directive (2002/96/EC)

Please dispose of the bodypack transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment.
• Battery Directive (2006/66/EC)

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose of exhausted batteries.
CE Declaration of Conformity
• C€ 0682①
- R&TTE Directive (1999/5/CE)
The declaration is available at www.sennheiser.com. Before putting the device into operation, please observe the respective country-specific regulations.
Statements regarding FCC and Industry Canada
This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This class B digital device complies with the Canadian ICES-003.
Changes or modifications made to this equipment not expressly approved by Sennheiser electronic Corp. may void the FCC authorization to operate this equipment.
Before putting the device into operation, please observe the respective country-specific regulations!
Index
Accupack
charging 8
inserting 8
Activating/deactivating
lock mode (Auto Lock) 22
pilot tone 25
Adjusting
contrast (LCD Contrast) 26
input sensitivity (Sensitivity) 20
transmission power 25
Advanced Menu (extended menu)
overview 17
settings 22
AF (audio level) 7
AF PEAK (overmodulation) 7
Attaching
bodypack transmitter 10
microphones 9
Audio signal, muting (Mute) 13
Auto Lock (activating/deactivating the lock mode) 22
Batteries, inserting 8
Bodypack transmitter
attaching to clothing 10
cleaning 28
resetting (Reset) 26
switching on/off 11
synchronizing with receiver 27
Buttons (function of the \~) 16
Channel
assigning a frequency 23
overview 3
selecting (Frequency Preset) 21
selecting (Tune) 22
Charging
accupack 8
battery status display 7
Cleaning (bodypack transmitter) 28
Connecting (microphone/line cable) 8
Deactivating
lock mode temporarily 12
Displays
adjusting the contrast (LCD Contrast) 26
charge status 7
overview 7
standard displays 15
Factory default settings (resetting the settings in the
operating menu) 26
Frequency
preset frequencies 3
\~ ranges 3
selecting \~ presets 21
setting the transmission \~ 22
Frequency bank
overview 3
selecting (Frequency Preset) 21
\~ system 3
Frequency Preset (selecting a frequency bank/channel) 21
Infra-red transmission 27
Inserting (batteries/accupack) 8
LCD Contrast (contrast of the display panel) 26
Line cable, connecting 8
Lock mode
activating/deactivating (Auto Lock) 22
deactivating temporarily 12
Locked (lock mode activated) 12
Menu (main menu)
overview 17
settings 20
Microphones
attaching/positioning 9
connecting the microphone cable 8
overview 4
pick-up patterns 4
polar diagrams and frequency response curves 34
suitable \~ 4
Modulation (input sensitivity/adjusting the
sensitivity) 20
Multi-channel system 27
Mute (muting the audio signal) 13
Mute Mode (setting the mode for the MUTE switch) 24
MUTE switch
function 13
setting the mode (Mute Mode) 24
Muting (audio signal) 13
Name (entering a name) 21
Offline operation (RF signal deactivated) 12
Online operation (RF signal activated) 11
Pilot tone
activating/deactivating 25
transmission 25
Reset (resetting the settings in the operating menu) 26
RF Mute On/Off (activating/deactivating the RF signal) 12
RF Power (adjusting the transmission power) 25
RF signal
activating (online operation) 11
deactivating (during operation) 15
deactivating (offline operation) 12, 13
RMS 1 external mute switch 24
Sensitivity (adjusting the input sensitivity) 20
Setting
MUTE switch (Mute Mode) 24
transmission frequency (Tune) 22
Setting up
transmission link 27
Software Revision (displaying the software revision) 26
Switching on/off
bodypack transmitter 11
Synchronizing (bodypack transmitter/receiver) 27
Transmission frequency
selecting (Frequency Preset) 21
setting (Tune) 22
Transmission power, optimizing 29
Troubleshooting 30
Tune (setting a transmission frequency) 22
Unlock (deactivating the lock mode) 12
Using
bodypack transmitter 11
operating menu 18
Sennheiser electronic GmbH & Co. KG Am Labor 1, 30900 Wedemark, Germany www.sennheiser.com
Printed in Germany Publ. 01/09 529670/A01
