D20 - Mp3 player COWON - Free user manual and instructions

Product Type	MP3 Player with Touchscreen, FM Radio, Voice Recording
Storage Capacity	8GB / 16GB / 32GB (Flash, FAT32)
Display	2.5 inch Clear LCD (320x240), 16M colors, Touchscreen
Dimensions	78.0 mm (W) x 55.4 mm (H) x 16.6 mm (T)
Weight	86 g
Buttons	3 Buttons (MENU, VOL-, VOL+), POWER & HOLD Switch
Battery	Built-in rechargeable lithium polymer; USB charge: 6 hours, AC adapter: 3 hours
Playback Time	Music: up to 90 hours, Video: up to 13 hours
Audio Playback Formats	MP3, WMA, OGG, FLAC, APE, WAV (up to 48kHz, 320kbps)
Sound Enhancement	JetEffect 5 with 48 presets, BBE+, 5-band EQ, Reverb, Stereo Enhance
Video Playback Formats	AVI, WMV, ASF (codecs: Xvid, WMV 7/8/9; resolution up to 320x240, 30fps)
FM Radio Frequency	87.5-108 MHz (KR, US, EU) or 76-108 MHz (JP)
Recording	Built-in microphone or FM radio recording
Photo Viewing	JPG (no size limit; progressive up to 1M pixels)
Document Viewer	TXT (no limit, except UTF-8 big endian)
TV Output	Composite video + stereo audio; NTSC / PAL (via optional cable)
System Requirements	Windows 2000/ME/XP/Vista/7, Mac OS 10.x/Linux (file transfer), USB 2.0
Additional Features	Built-in speaker, microphone, MicroSD card slot, Notepad, Typist, Stopwatch
Maintenance & Cleaning	Wipe with soft cloth; do not use chemicals; avoid moisture and static electricity
Safety	Do not disassemble; avoid direct sunlight; keep away from magnets; use only approved cables
Spare Parts & Repairability	Battery replacement only by official COWON service center; contact [e-mail]
General Information	User manual available at www.COWON.com; firmware upgrades from support section

Frequently Asked Questions - D20 COWON

How long does the battery take to charge?

USB charging takes about 6 hours (5V/500mA), while an approved AC adapter charges in about 3 hours (4.2V/750mA). Always use COWON-approved chargers.

Why won't the device turn on?

Ensure the battery is charged. If it’s completely discharged, charge it for a few minutes. If still not working, press the RESET button on the back. Reset only disconnects power and does not delete data.

How do I reset the device?

Press the RESET button on the back using a thin object. This only shuts off power in case of malfunction and does not affect performance or stored files.

Can I use a MicroSD card with the D20?

Yes, the D20 supports MicroSD, SDHC, and MMC cards. The maximum number of files per card is 12,000 folders and 12,000 files (8,000 music/video + 4,000 others).

The touchscreen or buttons are unresponsive.

Check if Hold mode is active. Press the Power/Hold button briefly to inactivate Hold. If still unresponsive, press the RESET button.

How do I change the sound settings?

Go to Settings > JetEffect 5. You can choose from 48 presets (including BBE+ modes) or create custom presets using the 5-band EQ, Mach3Bass, 3D Surround, MP Enhance, Stereo Enhance, and 9 Reverb modes.

Why are my video files not playing?

Ensure video format is AVI, WMV, or ASF with recommended resolution 320x240 and 30fps. If incompatible, use a conversion program like JetAudio. Also verify the file is not corrupted.

How do I update the firmware?

Download the latest firmware from www.COWON.com. Connect the D20 via USB, unzip the firmware file, and copy it to the root folder. Then safely eject and restart the device. The update will start automatically. Keep the battery fully charged and do not turn off during update.

Why does the computer not recognize the player?

Try pressing the RESET button. Connect directly to a PC USB port (not a hub). Ensure USB drivers are installed. If using Mac OS 10.5 or later, format as FAT and install latest firmware.

How can I clean the device?

Wipe gently with a soft, dry cloth. Do not use detergent or chemicals. Avoid moisture and static electricity. Keep away from sharp objects and pets to prevent scratches.

USER MANUAL D20 COWON

Abstract geometric design with diagonal hatching and a large letter 'D' above, resembling a stylized letter or symbol (no text or symbols present)

User's Guide ver. 1.0 EN

N136 Q051702

Product specification may change without notice.

Images contained in this manual may differ from the actual product.

+ Copyright Notice

General

• COWON is a registered trademark of COWON SYSTEMS, Inc.
• COWON SYSTEMS, Inc. owns the copyright to this manual, and any unauthorized distribution of its contents, whether in part or in its entirety, is strictly prohibited.
• COWON SYSTEMS, Inc. complies with laws and regulations related to records, disks, videos and games. Users are also encouraged to comply with the relevant laws and regulations.
• As soon as you purchase the product, visit the website (http://www.COWON.com), and become a registered member. You will benefit from various member services.
• This manual is based on product specifications, and various exemplary texts, illustrations, pictures, detailed functions and H/W and S/W specifications contained herein can be altered without any prior notice by the copyright owner.

BBE information

• BBE Sound, Inc. owns the license to the BBE name and information as applied to this product, in compliance with USP4638258, 5510752 and 5736897.
• BBE and the BBE symbol are registered trademarks of BBE Sound Inc.

+ Contents

Before you start! 5

Precautions

Package Components

Names of Parts and Functions

Buttons / Charging

Connecting and Disconnecting the PC

Firmware Upgrade

Basic Use 14

Main Screen (Daily Life UI)

Menu Screen I (Daily Life UI)

Menu Screen II (Visible Layered UI)

Clock Screen (Visible Layered UI)

The Most Recent Screen (Visible Layered UI)

Basic Menu

Settings

Additional 24

Product Specification

Troubleshooting

Before you start!

+ Precaution

As these precautions are provided for the correct use of the product as well as user safety, be sure to familiarize yourself with them. The company will not be held responsible for any accident that may occur due to the failure to heed these precautions. The following information applies commonly to all products manufactured and produced by COWON SYSTEMS, Inc.

• Do not use this product for other purposes than those described in this manual.
• Handle the manual, product packaging materials, accessories, etc. with care to prevent cuts and injuries to your body.
• For your safety, do not view videos, pictures and texts stored on your player while driving a vehicle. Operating other features of the player is also dangerous and may cause fatal accidents while driving.
• Wearing of earphones while operating a vehicle, exercising, or walking may impair driving, mask or prevent recognition of emergency signals, alarms, announcements, the approach of vehicles and human speech. Doing so may also be unlawful depending on the region.
• Listening at high volume (85 dB and above) for an extended period of time may harm your hearing.
• For your protection, use the player in a well lit area where the LCD screen will not cause strain to your eyes.
• Do not attempt to disassemble the player. Disassembly will void the warranty and the unit will be permanently disqualified from any warranty services.
• Be sure to use only the USB power adaptor and USB cable approved by COWON SYSTEMS, Inc.
• When connecting to a PC, use only USB ports on the mother board or a USB Host card. Using an external USB hub may not guarantee proper operation (e.g. USB ports on a keyboard or an external USB hub).

Before you start!

+ Precaution

• Do not mix directions when connecting USB cables or AC adaptors to your player or PC. Connecting USB cables incorrectly may damage your player or PC. Also, do not bend or press connection cables with heavy objects.
• Take extra care not to apply external shock or pressure when using products with displays (LCD, AMOLED, or Touch Pad) or Hard Disk Drive. Warranty may be voided if damage occurs due to the aforementioned circumstances.
• Do not drop or expose the product to hard impact. This may result in malfunctions and /or unit failure, voiding the warranty.
• Be careful not to be torn or ruptured by any sharp materials, such as animals' teeth.
• Please handle the product with care as the stainless steel back of D20 is susceptible to scratch marks.
• If you smell something burning or feel excessive heat while using the product, press the RESET button to stop operation and contact the place of purchase.
• If you find any abnormalities with the battery such as swelling, press the RESET button immediately to stop the operation and contact the place of purchase.
• Do not expose the player to water or keep it in a damp or humid location for an extended period of time. If the player is damaged from moisture as described above, product failure is then classified as a user's misuse.
• Touching the player with wet hands may cause damages and malfunctions.
• Using the player in places with high occurrences of static electricity may cause malfunctions.
• Keep the player away from magnets and direct magnetic fields, as hey can cause malfunctions.

Before you start!

+ Precaution

• Be sure to disconnect the power supply to the PC and USB power adaptor during lightning or thunder storm, to prevent danger to the user and/or the risk of fire hazards.
• Maintain the device within the temperatures specified below in order to prevent fatal damages to your player. Operating temperature: 0^ C \~ 40^ C Storage temperature: -10^ C \~ 50^ C
• Keep the player in cool and ventilated places, away from direct sunlight as it may cause deformation and damages to internal circuitry or LCD screen.
• Do not use detergent or other chemicals on the product surface as it may cause fading. If necessary, wipe the polluted area carefully with a soft cloth.
• In case of using this device primarily for a storage device, it is recommended to back up all data before use. COWON SYSTEMS Inc. is not responsible for any data loss due to hardware failure.
• All data stored in the player may become deleted when the player is serviced. Our Service Center does not backup files while repairing players. Please note that COWON SYSTEMS, Inc. is not responsible for any data loss from products entrusted to us for service.
• The price of the product may fluctuate due to unexpected commercial conditions. COWON SYSTEMS, Inc. accepts no liability to compensate for any price fluctuation.
• When formatting the removable disk, be sure to use only the specified file system written in this manual.
• 'EJECT' procedure must be performed before removing the device from the PC. The device can malfunction with MAC OS 10.5 Leopard version or later. If the device shows a problem, format it as FAT and install the latest firmware.

Before you start!

+ Package Components

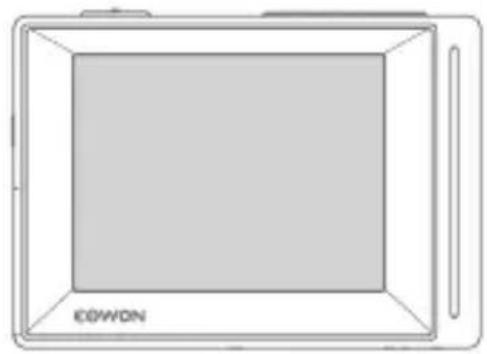

Simple line drawing of a rectangular device with a central square and side handles, labeled 'EOWON' at the bottom (no other text or symbols)

COWON D20

Line drawing of a medical or laboratory device with a coiled cable and two connectors (no text or symbols)

Earphones

Quick Guide

Line drawing of a handheld electronic device with a coiled cable (no text or symbols)

USB Cable

Line drawing of a three-pin cable with three leads (no text or symbols)

TV-Out Cable (Optional)

Line drawing of a mobile phone charger with cable and plug (no text or symbols)

AC Adapter (Optional)

* Actual package contents may differ from the above images.

Before you start!

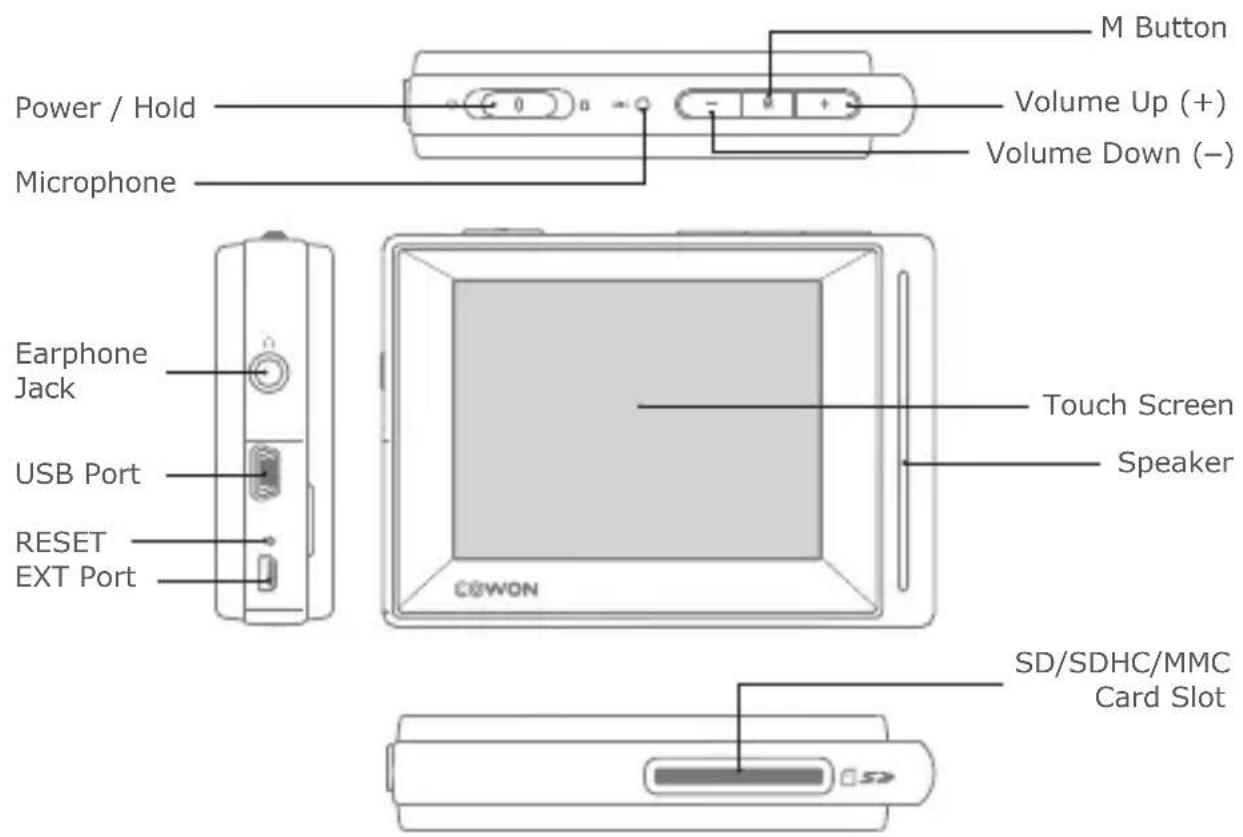

+ Names of Parts and Functions

* When buttons or touch do not work properly, please press RESET button. This reset only shuts off power in case of a device malfunction and does not affect the device's performance.

Before you start!

+ Buttons

1. Display On/Off 2. Power On/Off

Simple line drawing of a device control panel with no text or symbols

1. Hold On/Off

2. The touchscreen and buttons do not respond while in Hold mode to prevent malfunction due to unintentional operation.

3. SETTINGS ▶ System ▶ Hold Mode can be modified for General Hold or Touchscreen Hold in the System menu

1. Volume (-/+)

- Lowers or raises the volume.

1. M Button

- Returns to the menu screen.

* The D20's default Power Off setting is Sleep mode, which consumes very little power.

Before you start!

+ Charging

1

1. Connect between PC and USB /AV port using USB cable. The battery will be fully charged in about 6 hours.

2

Diagram showing a wall-mounted power plug connected to a device via cable, and a separate close-up of the device's cable with a USB port (no text or symbols present)

1. Charging by COWON approved AC adapter. The battery will be fully charged in about 3 hours.

2. When charging the player for the first time or the player has not been charged for an extended time, fully charge the battery before use.

3. COWON D20 has a built-in Lithium Polymer battery. To prolong the life of the battery, it is recommended that you charge the device frequently, as opposed to fully discharging and then charging the device.
4. When connected to a USB hub, the player may not charge properly. Please try connecting the player directly to a USB port on the PC.

Before you start!

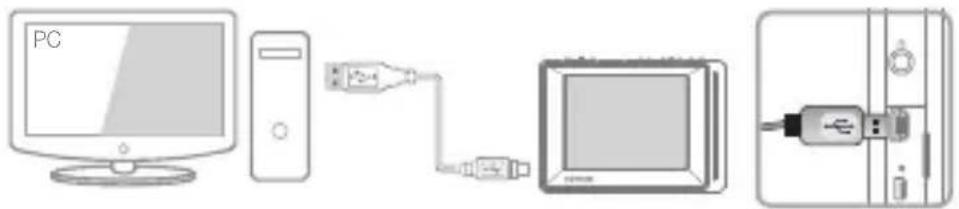

+ Connecting and Disconnecting the PC

1. Use the USB cable to connect COWON D20 to the PC.
2. COWON D20 displays the USB connected image if properly connected to the PC.
3. Also make sure to check My Computer or Windows Explorer to see if COWON D20 is properly connected to the PC.
4. Copy desired video, music, or other files to COWON D20.
5. When done, click the icon on the system tray to safely remove COWON D20 from the PC.
6. Click the popup message.
7. Safely remove the hardware and disconnect the USB cable.

• Number of files and folders recognizable
  COWON D20: up to 12,000 folders / 12,000 files (music / video file: 8,000 + others: 4,000). MicroSD card : up to 12,000 folders / 12,000 files (music / video file: 8,000 + others: 4,000).
• Disconnect the product after performing "Safely Remove Hardware" function.
• The following message may appear randomly, but it does not indicate that the product is malfunctioning. Please try again.

• If your operating system does not display the 'Safe To Remove Hardware' window, disconnect the player after all transfer operations are completed.
• Only simple file transfer operation is available for Linux and Mac OS.
•
  EJECT' procedure must be performed before removing the device from the PC.

Before you start!

+ Firmware Upgrade

Firmware is software that is embedded within the hardware.

Upgrading it can enhance system stability and provide additional features.

Please be advised that Beta (unofficial) firmware versions may cause system malfunction.

How to upgrade the firmware

1. Download the latest firmware from the SUPPORT section of the website (http://www.COWON.com).
2. Use the USB cable to connect COWON D20 to the PC.
3. Unzip the downloaded firmware and copy it to the root folder of COWON D20.
4. Perform "Safely Remove Hardware" function on your PC and disconnect the USB cable.
5. When you turn on the product, the firmware upgrade process will start.
6. Successful firmware upgrade can be confirmed by turning on the product, the version of firmware will be shown at start up.

7. The current firmware version can be checked in Settings - System - Information.

8. Fully charge the player before upgrading the firmware.

9. Do not turn the player off before the firmware update has been completed. It may damage the product, and will void any warranty.
10. Back up any important data before the firmware upgrade as any data stored on the device may be deleted during the process. COWON accepts no liability for any loss of data.

Basic Use

+ Main Screen (Daily Life UI)

Six different Daily Life UIs (Daily Life User Interfaces) are displayed throughout the 24 hours of a day, changing automatically according to the time of day.

Daily Life UI

Touch

Touch the arrow on the top right of the main screen to select from one of the six UIs, or choose the simple Clock screen instead.

If the user-defined icon in the Options is set to ○ on the Menu screen, then the last Daily Life UI selected before powering off the device remains set as the main screen.

If the user-defined icon is set to ×, then the Daily Life UI changes automatically depending on the time of day, regardless of the user's last choice.

Basic Use

+ Menu Screen I (Daily Life UI)

Drag the main screen upwards to display four menus.

* Smart Return : Drag the screen upwards while on the last menu to return to the first menu.

Drag

Rotates the screen 180 degrees.

Basic Use

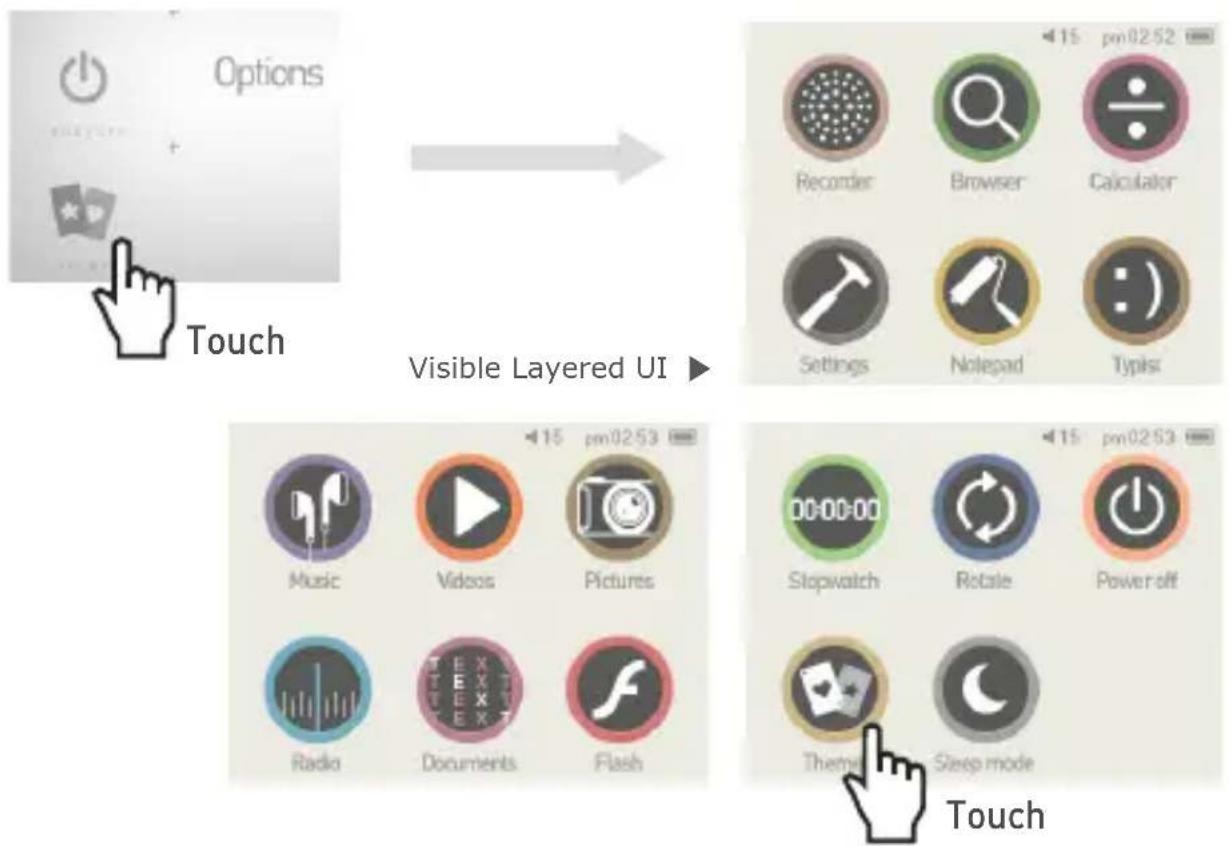

+ Menu Screen II (Visible Layered UI)

Press the Theme icon in the Options menu to change to the Visible Layered UI.

To return to the Daily Life UI, simply touch the Theme icon again.

Basic Use

+ Clock Screen (Visible Layered UI)

Drag the Visible Layered UI to the right to display the Clock screen. Drag the Clock screen upwards to display the Calendar and User Name screens.

145354

Touch and hold the Put Your Name screen to display a panel to enter the user's name. Press the keyboard-shaped icon to return to the previous screen.

Basic Use

+ The Most Recent Screen (Visible Layered UI)

Drag the Visible Layered UI to the left to display the Most Recent screen. This screen shows the most recently accessed functions, up to a maximum of 13 screens.

Three-panel image showing colorful paint caps, a keyboard key, and a keyboard with letters (W, E, R, T, G, S, D, F, B), all without any readable text or symbols.

The 13 Most Recent Items

Music / Videos / Pictures / Radio / Documents / Flash / Recorder / Browser / Calculator / Settings / Notepad / Typist / Stopwatch

Basic Use

+ Basic Menu

Music	[WXXO]		Enjoy a variety of music formats.
Videos			Watch various video files.
Radio	[7K0K]		Listen to FM Radio.
Pictures	[C0C7]		Enjoy pictures and sort out favorite pictures by albums.
Documents			Set & read documents at your preference.
Browser	[4ZZZ]	[XTD6]	Access data stored in different folders on the device.
Flash	[007K]	[T305]	Play Flash games and animations.
Recorder			Record sounds through the microphone.
Settings			Change settings at user's convenience.
Calculator			Calculate numbers using the calculator.

Basic Use

+ Basic Menu

Notepad			Draw pictures or write letters with your fingertips and save them on the device.
Typist			Type memos in the same way you would type SMS messages.
Stopwatch			Measure time and use the Lap button to time multiple events simultaneously.
Sleep Mode			Activate Sleep mode.
Brightness			Adjust the screen brightness on a scale of 1 to 10.
Power Off			Turn the device off.
Rotate			Rotate the screen 180 degrees.
Theme			Change the theme of the UI.
User Defined			If ○, the main screen remains fixed on the Daily Life UI selected by the user.If ×, the Daily Life UI changes automatically at different times during the day regardless of the user's choice.

Basic Use

+ Settings

Press Next to reveal a hidden selection screen.

Press Prev to return to the previous selection screen.

The Prev icon is inactive if you are on the first selection screen.

Touch the icon to return to the parent menu.

Basic Use

+ Settings

JetEffect 5	Select your sound effect from 48 JetEffect Presets.* Customize a preset by touching the cogwheel icon next to each user and adjusting the sound effects.
Display	Use to apply detailed settings for the COWON D20's display, such as Language, Font, Time display, Auto display off, Brightness, TV-out standard, and Screen rotation.
Time	Use to set the time, alarms, and power timers.* If an alarm is set, the device automatically enters Sleep mode when you turn it off.
Music	Use to apply detailed settings for audio, such as the Skip interval, Seek interval, Reume, Play speed, Pitch correction, Fade in, Lyrics, and Audible Navigation.
Video	Use to apply detailed settings for video, such as the Skip interval, Resume, Play speed, Pitch Correction, Subtitle, and Subtitle language.
Recording	Use to apply settings for recording, Mic quality, FM radio quality, Mic volume, and Auto sync.
System	Use to apply settings for Hold mode, Sleep mode, Beep, Audio L / R, M button screen off action, +/- key screen off action, speaker, USB mode, M long button action, Database update, Load defaults, Touch calibration, and view the firmware version and capacity of the device.

Basic Use

+ Settings

JetEffect 5

Select your sound effect from 48 JetEffect presets.	Normal / BBE / BBE ViVA / BBE ViVA 2 / BBE Mach3Bass / BBE MP / BBE Headphone / BBE Headphone 2 / BBE Headphone 3 / Rock / Jazz / Classic / Balad / Pop / Club / Funk / Hip Hop / Techno / Blues / Metal / Dance / Rap / Wide / X-Bass / Hall / Vocal / Maestro / Feel the Wind / Mild Shore / Crystal Clear / Reverb Room / Reverb Club / Reverb Stage / Reverb Hall / Reverb Stadium / Reverb Chamber / Reverb Room 2 / Reverb Club 2 / Reverb Hall 2 / Reverb Auditorium / Reverb Cathedral / Reverb Stadium 2 / Reverb Canyon / Reverb Long / User 1 / User 2 / User 3 / User 4
4 user-defined presets with equalizer, BBE+, Stereo Enhance, Reverb, etc.	User 1 / User 2 / User 3 / User 4
JetEffect 5 & BBE+ is the most sophisticated and powerful sound technology available for MP3 and PMP devices. Optimized for headphone playback of compressed audio material, BBE+ brings listeners closer to the natural presence and impact of a “live performance” than ever before.	EQ Filter Each band of the equalizer can be adjusted in detail.
	BBE Sound effect that refines the sound quality
	Mach3Bass	Provide deeper, tighter, and more musically accurate bass frequency.
	3D Surround Provide the three-dimensional surround sound effect.
	MP Enhance	Restore and enhances the harmonics lost through compression.
	Stereo Enhance	Enriche the stereo sound.
	Reverb (9 Modes)	Maximize the natural and live presence of the sound.

* You may hear distortion or noise when using extreme settings of JetEffect 5. For more information about JetEffect 5, visit us at www.COWON.com

Additional

+ Product Specification

Product Capacity	8GB / 16B / 32GB (Flash memory, FAT32 file system) 1)
Display 16M Color	2.5 inch Clear LCD (320X240), Touchscreen
Dimensions & Weight	78.0mm (W) x 55.4mm (H) x 16.6mm (T) / 86g
Buttons 3 Buttons	MENU, VOL-, VOL+), POWER & HOLD Switch
Color Black
Battery & Power	Battery Built-in	rechargeable lithium polymer battery.
	Playback Time	Music: Max. 90 hours / Video: Max. 13 hours 2)
	Battery Charging	USB: 6 hours (5V / 500mA)AC Adapter: 3 hours (4.2V / 750mA)
System Requirement	CPU Pentium III	500MHz or higher
	OS	Windows 7 / Vista / XP / 2000 / ME: All functions supported MAC OS 10.x / Linux v2.4 or higher: File transfer supported
	USB Port 2.0 High Speed (recommended)
ETC Speaker, Microphone, SD/SDHC/MMC Card Slot
Audio	Frequency Range	20Hz~20,000Hz
	Max Output Stereo, Left: 29mW, Right :29mW (16Ω earphones)
	S/N Ratio 95 dB
	File Formats	MP3/2, WMA, OGG, FLAC, APE, WAV
	Audio Codecs	MP3: MPEG 1/2/2.5 Layer 3, 320Kbps, 48KHz, Mono / StereoWMA: 320Kbps, 48KHz, Mono/StereoOGG: Q10, 44.1KHz, Mono/StereoFLAC: Compression Level 0 - 8, 44.1KHz, Mono / StereoAPE: Fast compression, Normal, High compression 16Bit, ver. 3.97~3.99WAV: 48KHz, 16bit, Mono / Stereo
	Meta Tag ID3 V1, ID3 V2.2 / V2.3, Vorbis comments

Additional

+ Product Specification

Audio	JetEffect 5	48 Presets (44 Presets + 4 User Presets)
		EQ 5-band equalizer (EQ Filter)
		BBE+ BBE, Mach3Bass, 3D Surround, MP Enhance
		Special Effect	Stereo Enhance, Reverb (9 Modes)
	Lyrics LDB 1.0,	2.0, LRC
Video	File Formats AVI, WMV, ASF
	Video Codecs	Xvid SP/ASP, WMV 7/8/9 (screen resolution, frame rate, bit rate, and other options may affect the playback of some clips)
	Video Resolution	320X240, 30fps (recommended)
	Audio Codecs MPEG 1/2/2.5 Layer 3, WMA
	Subtitle SMI
TV Output	Method Video: Composite Audio: Stereo
	Formats NTSC / PAL
Photo Supports	JPG, no limit (progressive format : up to 1M pixels)
Document Supports TXT, no limit (exception UTF-8 Unicode (big endian))
FM Radio	Frequency Range	87.5-108 MHz (KR, US, EU), 76-108 MHz (JP)
Recording Mic /	FM Radio

1) The storage capacity may differ from the actual capacity due to the space used to store system files.
2) The playback time is based on the company's own test standards, thus it may differ from the actual playback time.

Additional

+ Troubleshooting

+ I am still confused even after reading the manual.

COWON website (www.COWON.com) provides support for users of COWON products with FAQ (Frequently Asked Questions) Users are strongly encouraged to check out the website for further information regarding product usages and firmware upgrades. For individual inquiries, please contact us on-line as we will try to help you as best as we can.

+ I would like to set the device as factory default.

To reset all settings to factory default, go to SETTINGS ▶ System ▶ Load Defaults.

+ The player does not turn on.

Check if the battery is recharged or the device is connected to a power source. If the battery is completely discharged, charge the battery before you start the player. The charging time may vary depending on the battery's discharge status. If the player does not work at all, press the RESET button. For your information, RESET will just disconnect the power and does not damage the product or delete any files stored on the device.

+ The touch pad and buttons do not work properly.

The device does not respond to touch when the touch screen is on Hold. Press the Power / Hold button briefly to inactivate Hold mode.

Additional

+ Troubleshooting

+ I can't hear any sound.

Check if the volume is set to "0". Check if there is any file available in the player. If there is no file in the player, you will not hear any sound. Please note that corrupted files will result in a noise or discontinued playback. Make sure the earphones are connected properly. Impurities in the earphone jack can cause a static noise.

+ Files that I have stored do not appear in the list.

Each mode shows you a list of playable files only. To view all files that you have stored, select the Browser mode. Please note that System folder will not appear in the Browser.

+ Album image is not displayed in Music Mode.

To display an album image, the music file must have an image stored in its ID3 tag. Please save an image in the file using a program for editing ID3 tags. D20 supports Album Art 2.0 and you can store up to 6 album images.

+ Video won't play.

Make sure that your files are in a format that D20 supports (check the codecs/resolution/options). If you're unsure of a video's compatibility, use a video conversion program (e.g. JetAudio) and then play the converted version.

Additional

+ Troubleshooting

+ FM Radio does not work.

The product's earphones work as the FM Radio antenna.

Straightening the earphone cable will result in better radio reception. FM Radio reception may be poor at locations where FM Radio transmissions are shielded. If FM Radio does not work where reception should be possible, please contact our service center.

+ There is too much noise in my recordings.

The product uses ultra-small internal microphone, so it may be more susceptible to noise during recordings. The microphone should not be covered with anything during recording.

+ Characters on the display are corrupted.

Set your preferred language again in Settings ▶ Display ▶ Language. If the problem persists, set the current font to the system font. COWON products are developed based on the Korean Windows OS, and this may cause corruption of some special fonts or languages on the display.

+ Computer cannot recognize the player when connected.

Try the RESET button in the back. If you experience a frequent disconnection or unstable connectivity, connect the player directly to the USB port of the PC, rather than a separate USB hub. As COWON products use the USB connection for the main power system, unstable power supply can cause a connection failure.

Additional

+ Troubleshooting

+ Memory capacity of the player is different or smaller than specified.

The memory capacity indicated by Windows may be different from that indicated by the memory manufacturer. The actual capacity will be reduced from the original size because some space of the memory should be used as the system area for normal operation.

+ The player does not play properly when memory is full.

For the player to function properly, it requires at least 10 MB of space for saving settings and other system files.

+

'EJECT' procedure must be performed before removing the device from the PC.

The device can malfunction with MAC OS 10.5 Leopard version or later. If the device shows a problem, format it as FAT and install the latest firmware.

+ Battery Replacement

Gray icon of a battery with lightning bolt inside a circular arrow, symbolizing energy or recycling (no text)

The rechargeable batteries have limited number of charge cycles, and it will require a replacement as capacity to hold power will eventually diminish.

The rechargeable batteries in COWON products should be replaced only by official COWON service centers. Please contact [e-mail] for more information on official COWON service centers.

+ Product Disposal

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or numbers present)

COWON products contain built-in rechargeable batteries, and must be separately disposed from household waste.

Disposing the products with regular waste may cause pollution to the environment due to the waste batteries inside. Contact your local authorities for specified locations / guidance of E-waste and waste batteries, and dispose them in compliance with local regulation / guidance.

DIGITAL PRIDE.

www.COWON.com
