Product Type	3-panel LCD projector (0.79" p-Si TFT with MLA)
Dimensions (W x H x D)	19.7" x 6.5" x 14.4" (500 mm x 165 mm x 366 mm)
Weight	17.0 lbs (7.7 kg)
Native Resolution	1024 x 768 (XGA, 4:3)
Brightness	6000 lumens
Power Consumption	464W (max)
Fan Noise (Normal / Eco)	38 dB / 32 dB @ 1 meter
Lens System	Manual zoom, focus, and lens shift (horizontal & vertical); interchangeable lenses (NP11FL, NP12ZL, NP13ZL, NP14ZL, NP15ZL)
Lens Shift Range (Vertical)	+/- 0.5H (toward ceiling/floor) and -0.1H (away)
Lens Shift Range (Horizontal)	+/- 0.3W
Throw Ratio (with NP13ZL)	1.50 - 3.02:1
Screen Size (with NP13ZL)	40" - 200" diagonal
Supported Aspect Ratios	4:3, 16:9, 16:10 (with scaling)

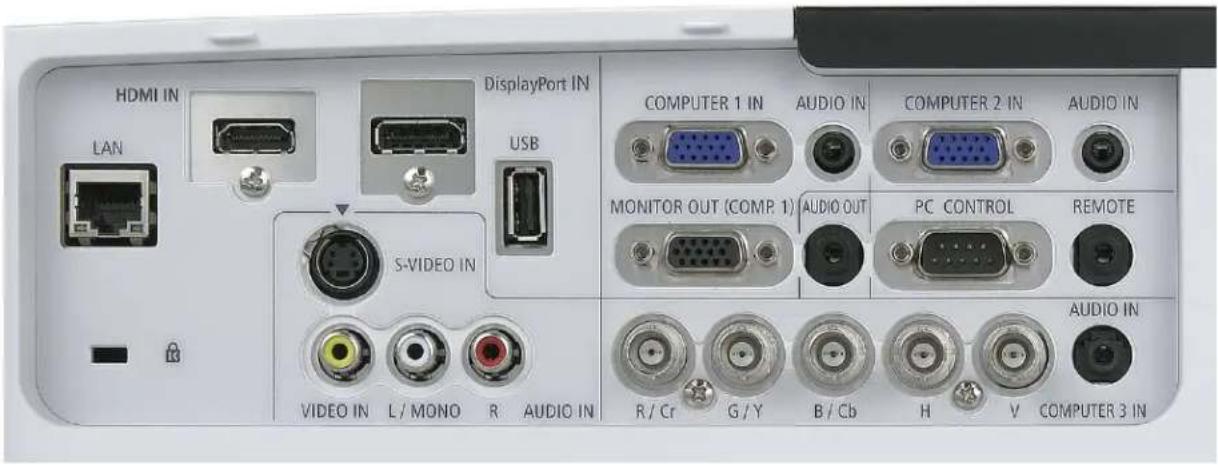

Inputs	HDMI, DisplayPort, VGA (x3), S-Video, Composite Video, Audio (L/R), USB, LAN
Control	RS-232C (D-sub 9-pin) for remote control
Network	Wired and wireless LAN ready (adapter included)
Mounting	Desktop or ceiling mount (4 x M8 screw holes)
Optional Accessories	Ceiling mount (NP3250CM), terminal cover (NP02CV), interchangeable lenses
Operating Temperature	41°F to 104°F (5°C to 40°C)
Safety	Standard safety features; do not tilt projector more than 45° to avoid lamp life reduction

Frequently Asked Questions - PA600X NEC

What is the native resolution of the NEC PA600X?

The native resolution is 1024 x 768 (XGA) with a 4:3 aspect ratio.

What is the maximum brightness of the PA600X?

The PA600X delivers 6000 lumens brightness.

Can I use different lenses with this projector?

Yes, the projector supports interchangeable lenses: NP11FL (0.8:1), NP12ZL (1.19-1.56:1), NP13ZL (1.50-3.02:1), NP14ZL (2.97-4.79:1), and NP15ZL (4.70-7.02:1).

What is the lens shift range?

Vertical lens shift: 0.5H toward ceiling/floor and 0.1H away. Horizontal lens shift: 0.3W left/right. (Note: NP11FL does not support lens shift.)

How do I calculate throw distance for a given screen size?

Use the formula C = 1.524W - 1.974 (wide) or C = 3.043W - 1.972 (tele) for NP13ZL lens, where W is image width. Refer to the installation guide for all lens formulas.

What input connections are available?

Inputs include HDMI, DisplayPort, VGA (three), S-Video, Composite Video, stereo audio, USB, and LAN.

Can the PA600X be ceiling mounted?

Yes, it supports ceiling mount using the optional NP3250CM mount kit. Use four M8 screws with a depth of 8mm.

How do I control the projector remotely?

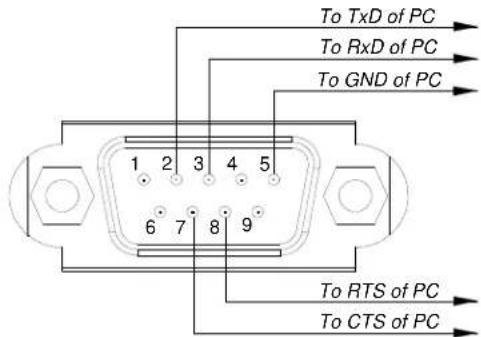

Use the RS-232C (D-sub 9-pin) port with control codes provided in the manual. Baud rate: 38400 bps (9600 bps recommended for long cables).

What aspect ratios are supported?

The projector supports 4:3, 16:9, and 16:10 with proper scaling. Menu settings allow per-source aspect ratio control.

Is networking supported?

Yes, the PA600X is network ready with integrated wired and wireless LAN adapter.

USER MANUAL PA600X NEC

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Contents

Product Description, Lens Specs, Screen/Aspect Ratio

Notes and Formula Pg1

Distance Charts and Formulas Pg 2-4

Ceiling Mount/Desktop Installation Pg 5

Lens Shift Adjustable Range____ Pg 6

C a b i n e t D i m e n s i o n Pg7

C a b i n e t D i m e n s i o n Pg 8

Cabinet Dimensions (Terminal Cover) Pg 9

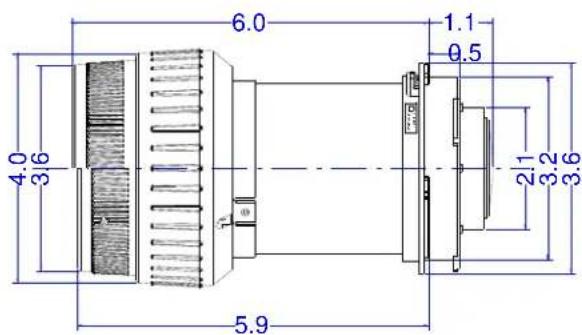

Lens Dimensions (Optional) Pg 10-11

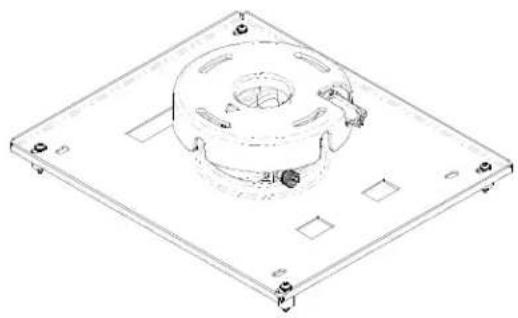

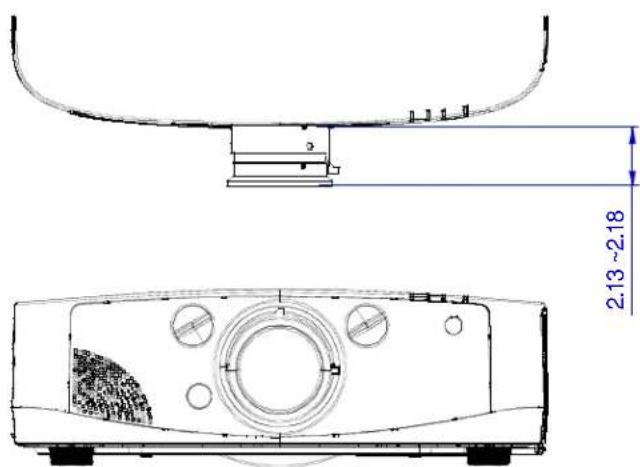

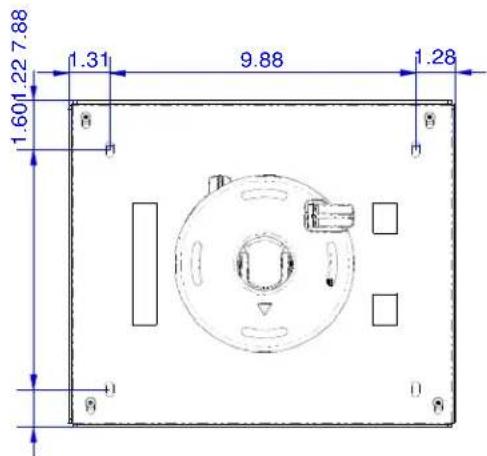

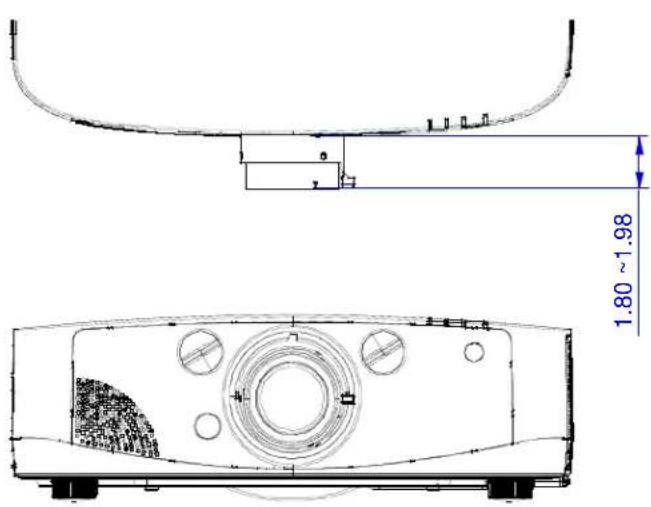

Ceiling Mount Dimensions and Input Panel Pg 12

Control Codes ____ Pg 13

White projector with visible lens and control buttons (no text or symbols)

Product Description

Type:	3 panel LCD projector,0.79 p-Si TFT w/MLA (PA500X/PA600X)0.75 p-Si TFT w/MLA (PA550W)0.76 p-Si TFT w/MLA (PA500U)					Dimensions: 19.7"(W) x 6.5"(H) x 14.4"(D)
						Weight:	PA500X/550W/600X: PA500U:	17.0 lbs 17.2 lbs.
Resolution:	1024 x 768 (4:3)1920 x 1200 (16:10)					Brightness:	PA500X: PA500U:	5000 Lumens 5000 Lu
Fan Noise:	PA500X: PA500U: PA550W: PA600X:		38 dB / 32dB @ 1 meter			@ 1 meter	PA550W: meter	5500 PMu600X:
Power Consumption:	PA500X/PA550W: PA600X: PA500U:		464W (max) 464W (max) 477W (max)			BTU's:	PA500X/PA550W: PA600X: PA500U:	1583 BTU/hour 1583 BTU/hour 1628 BTU/hour

Network Ready, integrated wired and wireless adapter
Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP11FL:	Throw Ratio: ~ 0.8:1Screen Sizes: 60"-150"	Focal Length: 13.2mmF/#:2.3	NP14ZL:	Throw Ratio: 2.97 -4.79:1Screen Sizes: 60" - 200"	Focal Length: 48.5 - 77.6mmF/#:2.2
NP12ZL:	Throw Ratio: 1.19 - 1.56:1Screen Sizes: 40" - 200"	Focal Length: 19.4 – 25.3mmF/#:2.2	NP15ZL:	Throw Ratio: 4.70 - 7.02:1Screen Sizes: 80" - 200"	Focal Length: 76.6 - 116.5mmF/#:2.2

NP13ZL: Throw Ratio: 1.50 - 3.02:1 Focal Length: 24.4 - 48.6mm
Screen Sizes: 40" - 200" F/#:1.7

Screen/Aspect Ratio

4:3, 16:9 and 16:10 screens are fully supported with proper aspect ratio control for both type sources using NEC developed scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

• For screen sizes not indicated on the projection tables, use the formulas below.
  If the figures on the tables do not match the results of formulas, use the figures in the table..
  • Distances are in inches, for millimeters multiply by 25.4.
  • Distances may vary ±5%.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Formulas: 4:3 Aspect Ratio (PA500X/PA600X—XGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width for "W" in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas:

NP11FL:	C = 0.827W - 1.374
NP12ZL:	C(Wide) = 1.214W - 1.794 ---- C(Tele) = 1.578W - 1.794
NP13ZL:	C(Wide) = 1.524W - 1.974 ---- C(Tele) = 3.043W - 1.972
NP14ZL:	C(Wide) = 3.034W - 4.844 ---- C(Tele) = 4.855W - 4.844
NP15ZL:	C(Wide) = 4.797W - 7.630 ---- C(Tele) = 7.291W - 7.630

Definitions:	4:3 Screen Formulas:
	W = Image Width	W = H
H = Image Height (size)	H = W x 3/4
C = Throw distance	Diagonal = W x 5/4

Note: Tilting the front of the projector up or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 4:3 screens

Screen Size (4:3)			Rear Lens	Zoom Lenses
			NP11FL	NP12ZL			NP13ZL		NP14ZA		NP15ZL
Diagonal inches	Width(W)	Height (H)	0.8:1	1.19 - 1.56:1			1.50 - 3.02:1		2.97 -4.79:1		4.70 - 7.20:1
	inches	inches	inches	inches			inches		inches		inches
40	32	24	25.09	37.05	-	48.7	46.8	-	95.40	92.2	150.5	NA
60	48	36	38.32	56.48	-	74.0	71.2	-	144.09	140.8	-	228.2
67	53.6	40.2	42.95	63.28	-	82.8	79.7	-	161.13	157.8	-	255.4
72	57.6	43.2	46.26	68.13	-	89.1	85.8	-	173.30	169.9	-	274.8
84	67.2	50.4	54.20	79.79	-	104.2	100.4	-	202.52	199.0	-	321.4
90	72	54	58.17	85.61	-	111.8	107.8	-	217.12	213.6	-	344.7
100	80	60	64.79	95.33	-	124.4	119.9	-	241.47	237.9	-	383.6
120	96	72	78.02	114.75	-	149.7	144.3	-	290.16	286.4	-	461.2
150	120	90	97.87	143.89	-	187.6	180.9	-	363.19	359.2	-	577.8
180	144	108	NA	173.02	-	225.4	217.5	-	436.22	432.1	-	694.3
210	168	126	NA	202.16	-	263.3	254.1	-	509.25	504.9	-	810.8
240	192	144	NA	231.29	-	301.2	290.6	-	582.28	577.7	-	927.3
270	216	162	NA	260.43	-	339.1	327.2	-	655.32	650.5	-	1043.8
300	240	180	NA	289.57	-	376.9	363.8	-	728.35	723.3	-	1160.4
400	320	240	NA	386.69	-	503.2	485.7	-	971.79	966.0	-	1548.8
500	400	300	NA	483.81	-	629.4	607.6	-	1215.23	1208.8	-	1937.2

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Formulas: 16:10 Aspect Ratio (PA550W—WXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width for "W" in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas:

NP11FL:	C = 0.819W - 1.354
NP12ZL:	C(Wide) = 1.203W - 1.794 ---- C(Tele) = 1.564W - 1.794
NP13ZL:	C(Wide) = 1.510W - 1.974 ---- C(Tele) = 3.014W - 1.972
NP14ZL:	C(Wide) = 3.005W - 4.844 ---- C(Tele) = 4.808W - 4.844
NP15ZL:	C(Wide) = 4.751W - 7.630 ---- C(Tele) = 7.221W - 7.630

Definitions:	16:10 Screen Formulas
	W = Image Width	W = H
H = Image Height (size)	H = W x 10/16
C = Throw distance	Screen Diagonal = W x 18.868/16

Distance Chart for popular 16:10 Screens (WXGA)

Screen Size (16:10)			Rear Lens	Zoom Lenses
			NP11FL	NP12ZL		NP13ZL			NP14ZA		NP15ZL
Diagonal inches	Width(W)	Height (H)	0.8:1	1.19 - 1.56:1		1.50 - 3.02:1			2.97 -4.79:1		4.70 - 7.20:1
	inches	inches	inches	inches		inches			inches		inches
40	34	21	26.49	39.1	- 51.4	49.4	-	100.5	N/A	N/A	N/A	N/A
60	51	32	40.42	59.6	- 78.0	75.0	-	151.7	148.4	- 240.4	234.7	360.6
67	57	36	45.33	66.8	- 87.4	84.1	-	169.8	166.4	- 269.2	263.2	404.0
72	61	38	48.61	71.6	- 93.6	90.1	-	181.9	178.5	- 288.4	282.2	432.9
84	71	45	56.80	83.6	- 109.3	105.2	-	212.0	208.5	- 336.5	329.7	- 505.1
90	76	48	60.89	89.6	- 117.1	112.8	-	227.1	223.5	- 360.6	353.4	- 541.2
100	85	53	68.26	100.5	- 131.1	126.4	-	254.2	250.6	- 403.8	396.2	- 606.2
120	102	64	82.18	120.9	- 157.7	152.0	-	305.5	301.7	- 485.6	477.0	- 728.9
150	127	79	102.66	151.0	- 196.8	189.8	-	380.8	376.8	- 605.8	595.7	- 909.4
180	153	95	NA	182.3	- 237.5	229.1	-	459.2	454.9	- 730.8	719.3	- 1097.2
210	178	111	NA	212.3	- 276.6	266.8	-	534.5	530.0	- 851.0	838.0	- 1277.7
240	204	127	NA	243.6	- 317.3	306.1	-	612.9	608.2	- 976.0	961.6	- 1465.5
270	229	143	NA	273.7	- 356.4	343.8	-	688.2	683.3	- 1096.2	1080.3	- 1646.0
300	254	159	NA	303.8	- 395.5	381.6	-	763.6	758.4	- 1216.4	1199.1	- 1826.5
400	339	212	NA	406.0	- 528.4	509.9	-	1019.8	1013.9	- 1625.1	1603.0	- 2440.3
500	424	265	NA	508.3	- 661.3	638.3	-	1276.0	1269.3	2033.7	2006.8	- 3054.1

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Formulas: 16:10 Aspect Ratio (PA500U—WUXGA)

The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width for "W" in the Projection Formulas.

Refer to the diagrams and charts for popular screen sizes on page 2 and 3:

Projection Formulas:

NP11FL:	C = 0.807W - 1.354
NP12ZL:	C(Wide) = 1.185W - 1.794 ---- C(Tele) = 1.541W - 1.794
NP13ZL:	C(Wide) = 1.488W - 1.974 ---- C(Tele) = 2.970W - 1.972
NP14ZL:	C(Wide) = 2.961W - 4.844 ---- C(Tele) = 4.737W - 4.844
NP15ZL:	C(Wide) = 4.681W - 7.630 ---- C(Tele) = 7.115W - 7.630

Definitions:	16:10 Screen Formulas
	W = Image Width	W = H
H = Image Height (size)	H = W x 10/16
C = Throw distance	Screen Diagonal = W x 18.868/16

Distance Chart for popular 16:10 Screens (WUXGA)

Screen Size (16:10)			Rear Lens	Zoom Lenses
			NP11FL	NP12ZL			NP13ZL			NP14ZA		NP15ZL
Diagonal inches	Width(W)	Height (H)	0.8:1	1.19 - 1.56:1			1.50 - 3.02:1			2.97 -4.79:1		4.70 - 7.20:1
	inches	inches	inches	inches			inches			inches		inches
40	34	21	26.08	38.5	-	50.6	48.6	-	99.0	N/A	N/A	N/A	N/A
60	51	32	39.80	58.6	-	76.8	73.9	-	149.5	146.2	- 236.7	231.1	360.6
67	57	36	44.65	65.8	-	86.0	82.8	-	167.3	163.9	- 265.2	259.2	404.0
72	61	38	47.87	70.5	-	92.2	88.8	-	179.2	175.8	- 284.1	277.9	432.9
84	71	45	55.94	82.3	-	107.6	103.7	-	208.9	205.4	- 331.5	324.7	- 505.1
90	76	48	59.98	88.3	-	115.3	111.1	-	223.7	220.2	- 355.2	348.1	- 541.2
100	85	53	67.24	98.9	-	129.2	124.5	-	250.5	246.8	- 397.8	390.3	- 606.2
120	102	64	80.96	119.1	-	155.4	149.8	-	301.0	297.2	- 478.3	469.8	- 728.9
150	127	79	101.14	148.7	-	193.9	187.0	-	375.2	371.2	- 596.8	586.9	- 909.4
180	153	95	NA	179.5	-	234.0	225.7	-	452.4	448.2	- 719.9	708.6	- 1097.2
210	178	111	NA	209.1	-	272.5	262.9	-	526.7	522.2	- 838.3	825.6	- 1277.7
240	204	127	NA	239.9	-	312.6	301.6	-	603.9	599.2	- 961.5	947.3	- 1465.5
270	229	143	NA	269.6	-	351.1	338.8	-	678.2	673.2	- 1079.9	1064.3	- 1646.0
300	254	159	NA	299.2	-	389.6	376.0	-	752.4	747.3	- 1198.4	1181.3	- 1826.5
400	339	212	NA	399.9	-	520.6	502.5	-	1004.9	998.9	- 1601.0	1579.2	- 2440.3
500	424	265	NA	500.6	-	651.6	628.9	-	1257.3	1250.6	- 2003.6	1977.1	- 3054.1

Note: For screen sizes not indicated in projection tables, refer to formulas above respective charts.

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Ceiling Mount Installation

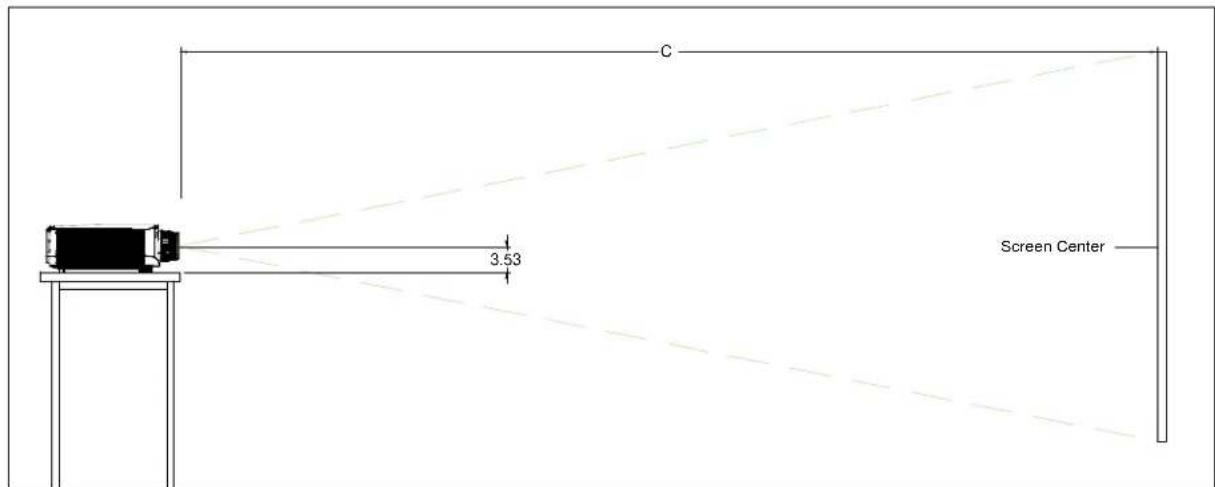

Desktop Installation

Note: Lens Shift Feature is not available to NP11FL. This lens should only be used for "zero degree"/"no-offset" applications. See below

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

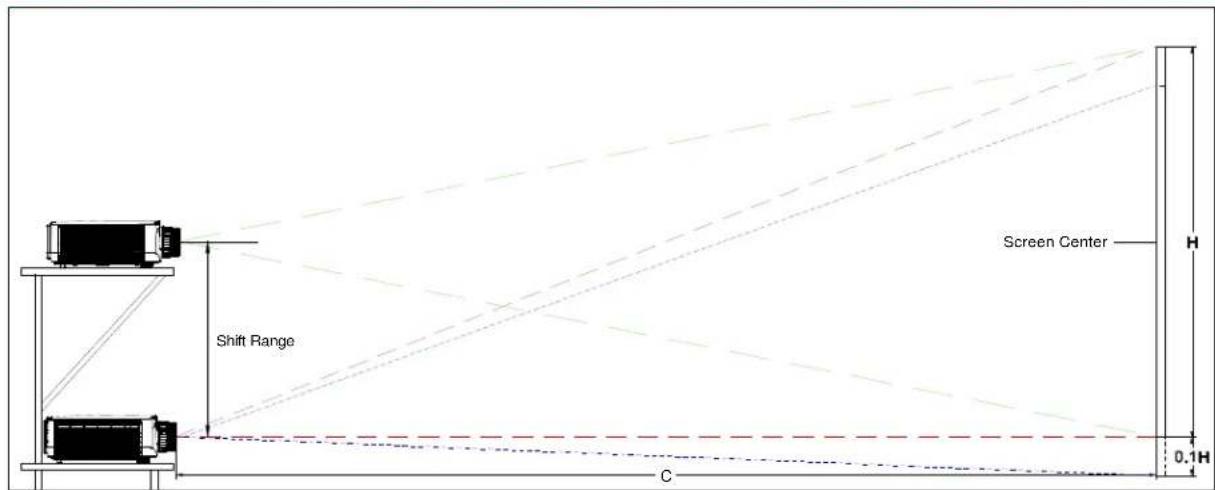

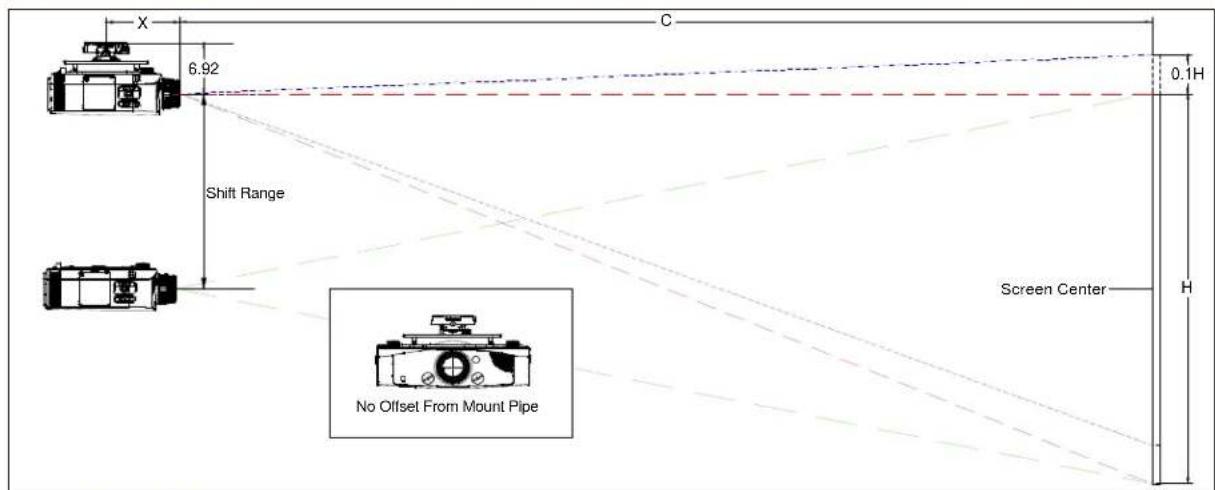

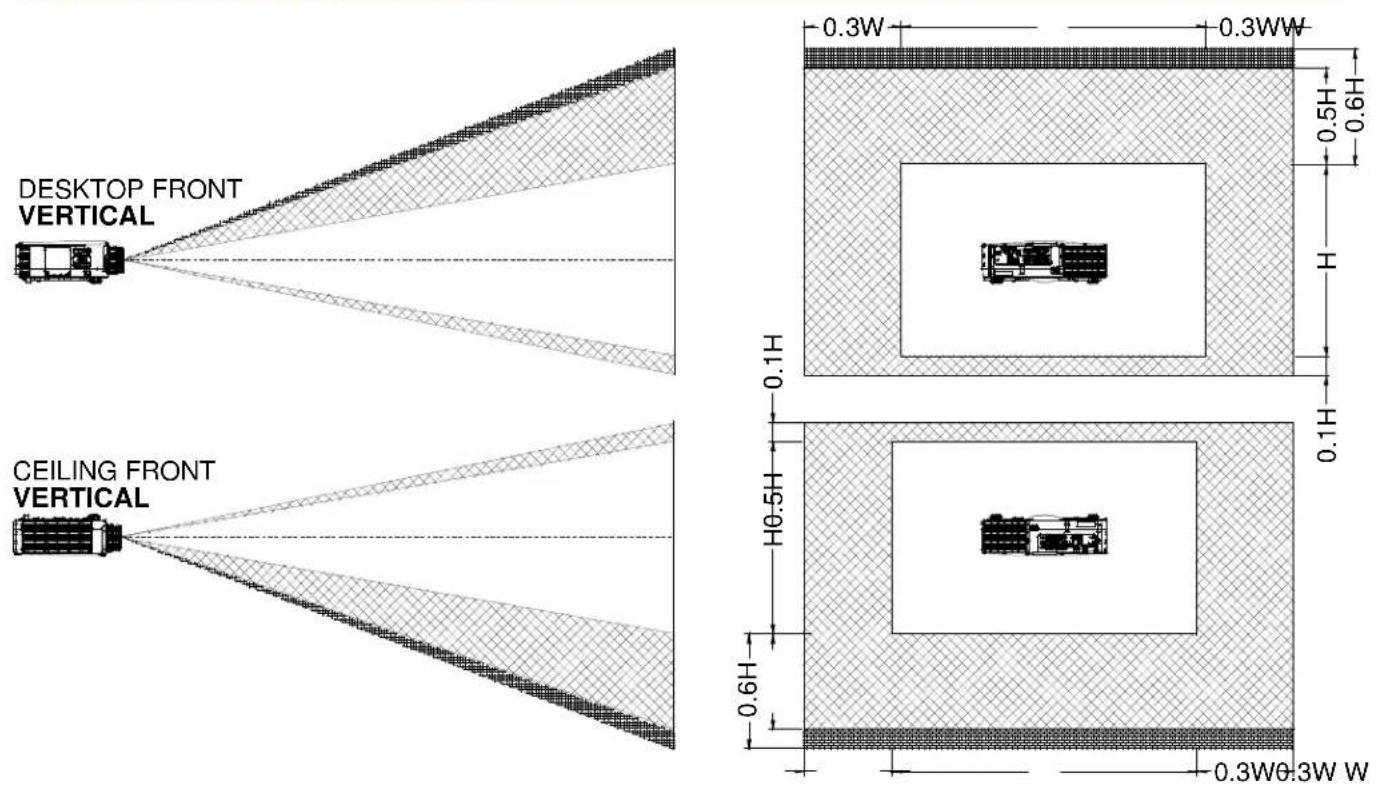

Lens Shift Adjustable Range

Lens Shift Range for Desktop and Ceiling Mount Application

The diagram below shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point.

Note: Lens shift feature is not available with NP11FL (rear lens). NP11FL should be used only for "zero degree" / "no-offset" applications.

Maximum Possible Range for NP12ZL, NP13ZL, NP14ZL, NP15ZL:

Towards ceiling/floor: 0.5H (0.6H for PA550W) Away from ceiling/floor: 0.1H

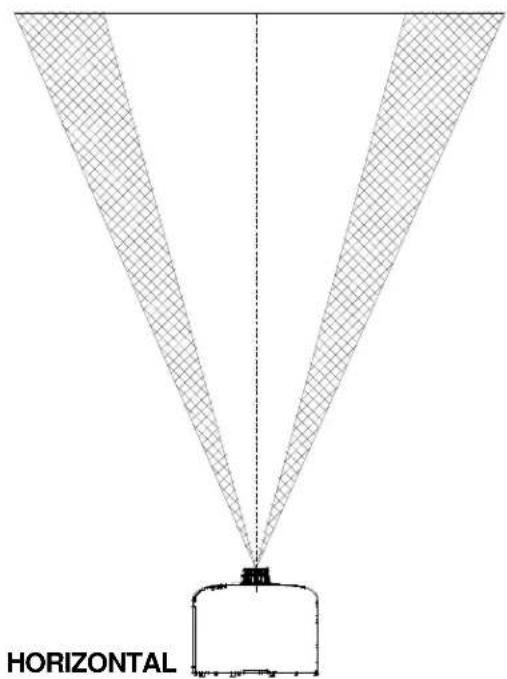

Right: 0.3W Left: 0.3W

(W: width of projected image, H: height of projected image)

Note: Horizontal lens shift range for the PA500U is 0.15W at a 200" projected image with NP13ZL

Diagram of a container with two symmetric V-shaped blades and a central body, labeled 'HORIZONTAL' at the bottom (no other text or symbols)

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

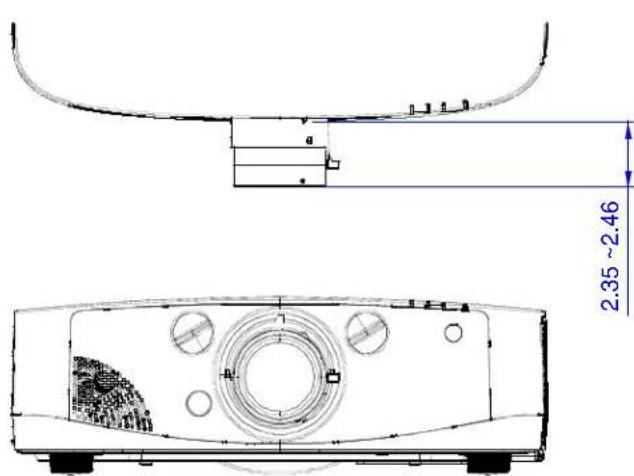

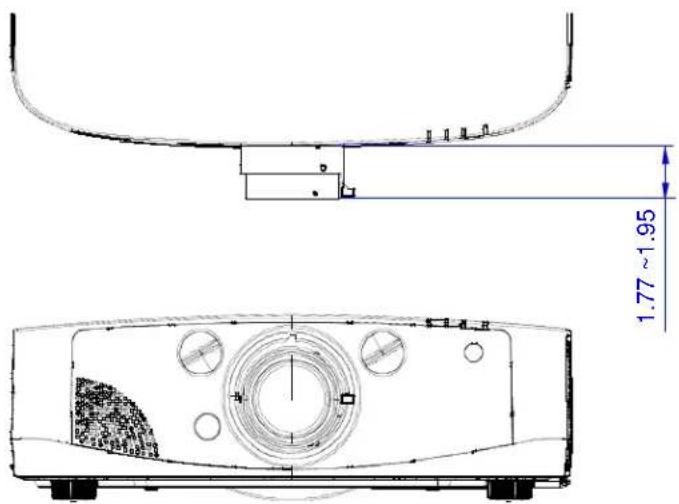

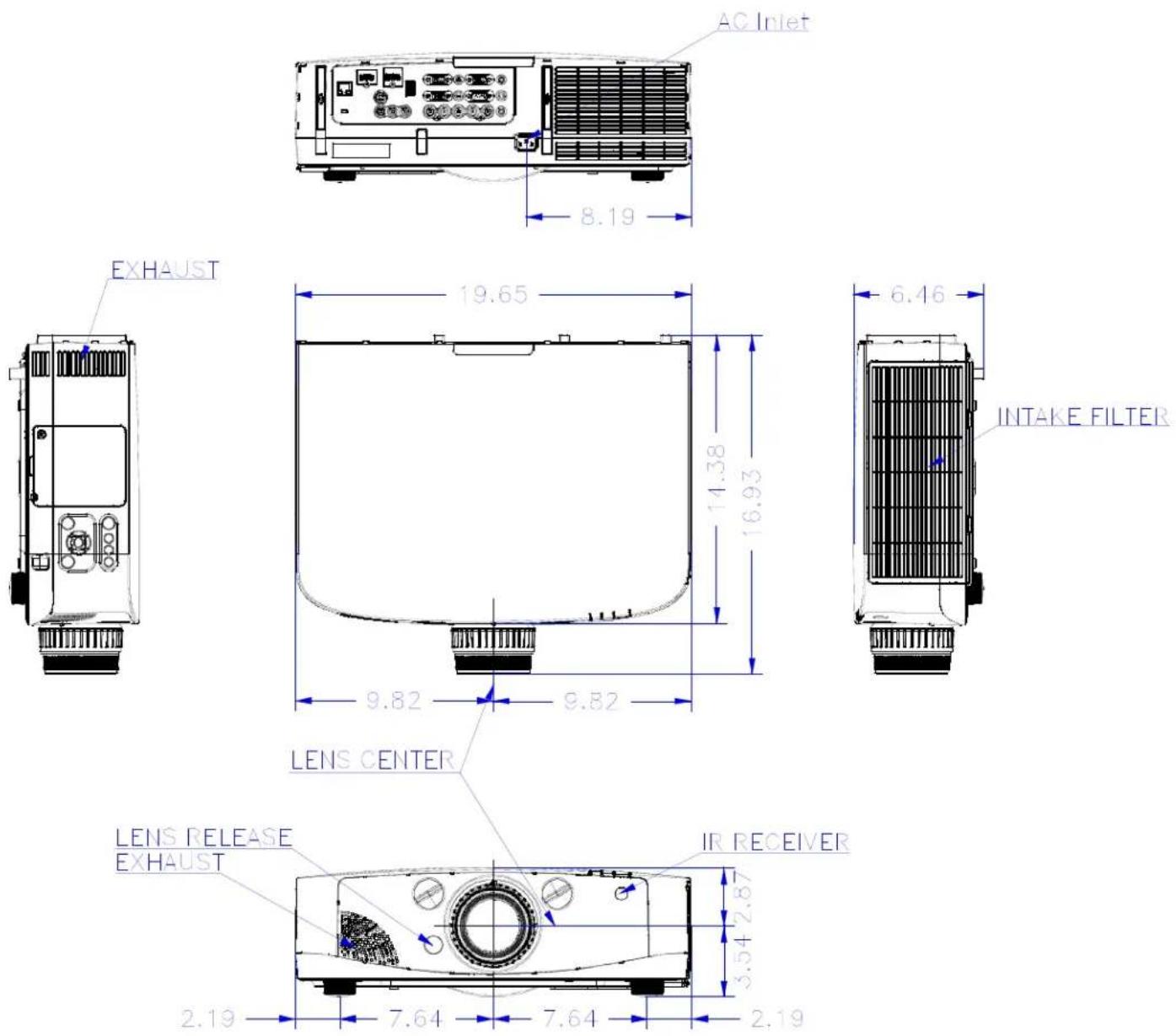

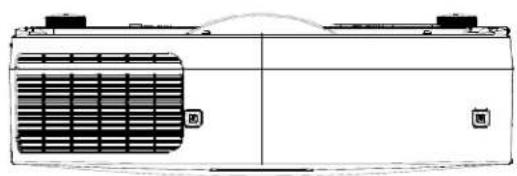

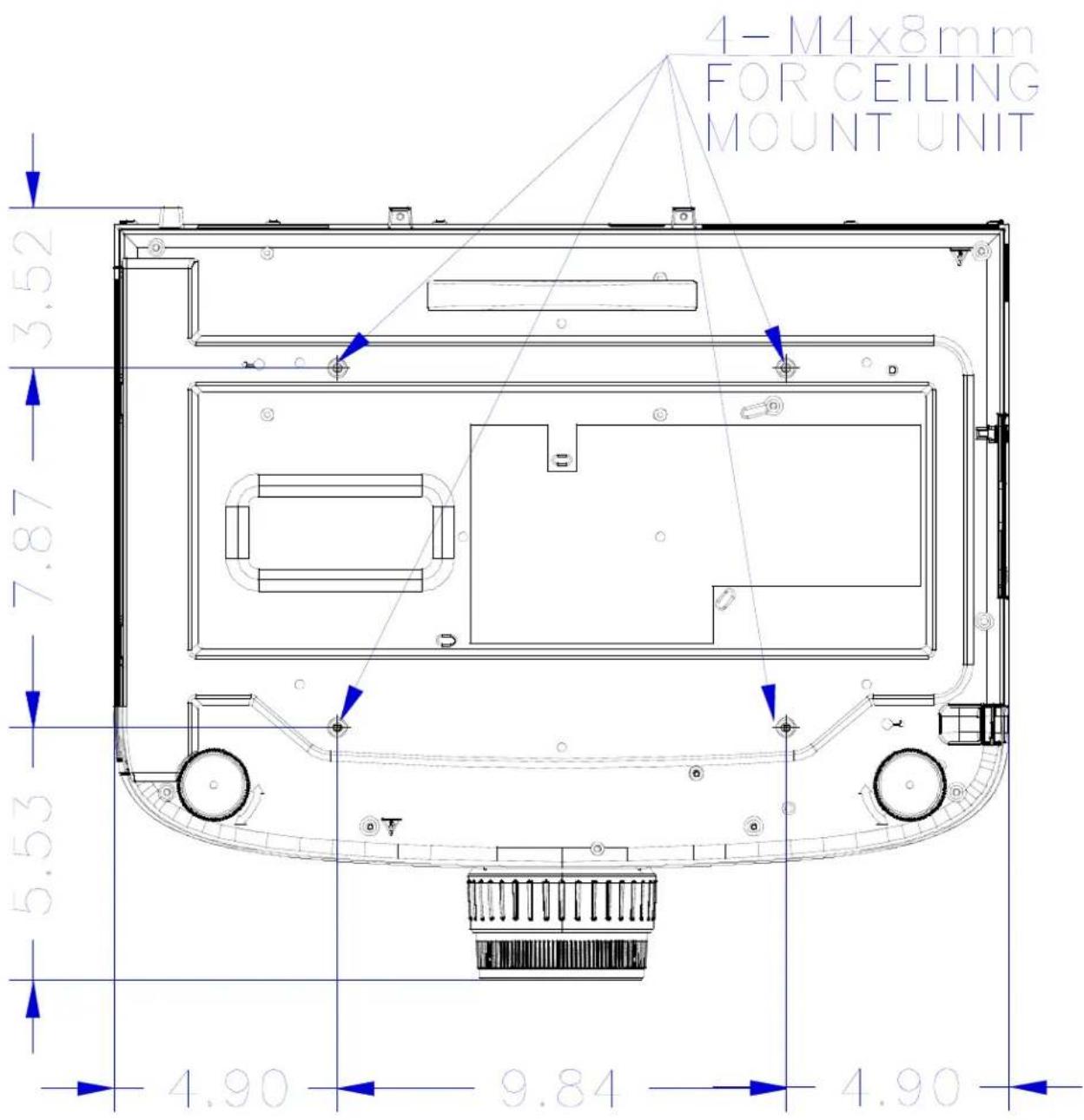

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the PA500U/PA500X/PA550W/PA600X.

Dimensions are in inches. For millimeters multiply by 25.4.

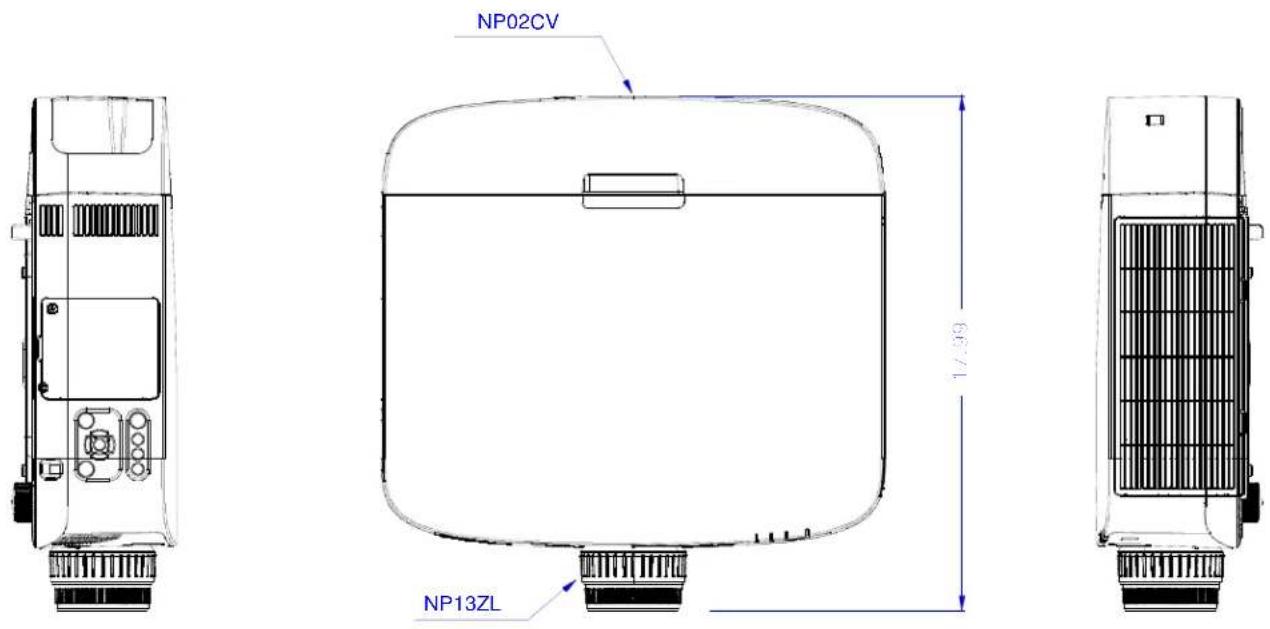

Note: Dimensions below shown with the NP13ZL lens

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Cabinet Dimensions

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Optional Terminal Cover (Part #: NP02CV)

Line drawing of a rectangular battery with a side panel and internal circuitry (no text or symbols)

NP13ZL & NP02CV

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Optional Lens Dimensions (NP11FL and NP12ZL)

NP11FL

NP12ZL

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Optional Lens Dimensions (NP14ZL and NP15ZL)

NP14ZL

NP15ZL

Technical line drawing of a mechanical component with no visible text or symbols

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

Optional Ceiling Mount Dimensions (Part #: NP3250CM)

The following diagrams show ceiling mount dimensions for the NP3250CM.

Dimensions are in inches. For millimeters multiply by 25.4.

Technical line drawing of a mechanical component with mounting holes and a central hub (no text or symbols)

Input Panel

PA500U/PA500X/PA550W/PA600X Installation Guide

Desktop and Ceiling Mount

Rev 1.5

PC Control Codes

Function

Code

Data

POWER

ON

02H

00H

00H

00H

00H

00H

02H

POWER

OFF

02H

01H

00H

00H

00H

00H

03H

INPUT SELECT COMPUTER 1

02H

03H

00H

00H

02H

01H

01H

09H

INPUT SELECT COMPUTER 2

02H

03H

00H

00H

00H

02H

01H

02H

0AH

INPUT SELECT COMPUTER 3

02H

03H

00H

00H

02H

01H

03H

0BH

INPUT SELECT HDMI

02H

03H

00H

00H

02H

01H

1AH

22H

INPUT SELECT DisplayPort

02H

03H

00H

00H

02H

01H

1BH

23H

INPUT SELECT VIDEO

02H

03H

00H

00H

02H

01H

06H

0EH

INPUT SELECT S-VIDEO

02H

03H

00H

00H

02H

01H

0BH

13H

INPUT SELECT VIEWER

02H

03H

00H

00H

02H

01H

1FH

27H

INPUT SELECT NETWORK

02H

03H

00H

00H

02H

01H

20H

28H


MUTE

ON

02H

10H

00H

00H

00H

00H

12H


MUTE

OFF

02H

11H

00H

00H

00H

00H

13H

SOUND

MUTE

ON

02H

12H

00H

00H

00H

00H

14H

SOUND

MUTE

OFF

02H

13H

00H

00H

00H

00H

15H

ON

SCREEN

MUTE

ON

02H

14H

00H

00H

00H

16H

ON

SCREEN

MUTE

OFF

02H

15H

00H

00H

00H

17H

ASPECT RATIO (4:3 Screen)

4:3

03H

10H

00H

00H

05H

18H

00H

00H

00H

30H

LETTERBOX

03H

10H

00H

00H

05H

18H

00H

00H

01H

31H

WIDESCREEN

03H

10H

00H

00H

05H

18H

00H

00H

02H

32H

ZOOM

03H

10H

00H

00H

05H

18H

00H

00H

03H

33H

ASPECT RATIO (RGB)

4:3 WINDOW

03H

10H

00H

00H

05H

18H

00H

00H

00H

30H

16:9

03H

10H

00H

05H

18H

00H

02H

00H

32H

5:4

03H

10H

00H

00H

05H

18H

00H

00H

0BH

3BH

16:10

03H

10H

00H

00H

05H

18H

00H

00H

0CH

3CH

15:9

03H

10H

00H

00H

05H

18H

00H

00H

0DH

3DH

AUTO ADJUST

02H

0FH

00H

00H

02H

05H

00H

18H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20', it is recommended changing to 9600 bps in setup menu)

Data Length: 8 bits

Parity: No Parity

Stop Bit: One bit

X on/off: None

Communications: Full duplex

PC Control Connector (D-Sub 9P)

NOTE 1: Pins 1, 4, 6, and 9 are used inside the projector.

NOTE 2: For long cable runs it is recommended to set communication speed within the projector to 9600 bps.

NOTE 3: Jumper "Request to Send" and "Clear to Send" together on both ends of the cable to simplify cable connection.
