Product Type	Deep Fryer
Brand	Tesla
Model	AirCook Q20
Capacity	2.0 L (approx. 1 kg of food)
Power Consumption	1800 W
Voltage	220-240 V, 50/60 Hz
Temperature Range	80°C to 200°C
Timer	0-60 minutes with auto shut-off
Oil Capacity	1.5 L
Dimensions (W x D x H)	28 x 30 x 35 cm
Weight	3.5 kg
Housing Material	Stainless steel and heat-resistant plastic
Basket Material	Non-stick coated wire mesh
Control Type	Mechanical thermostat with dial
Indicator Lights	Power and heating indicators
Safety Features	Overheat protection, cool-touch handle, automatic shut-off
Cleaning	Removable oil tank and basket are dishwasher-safe; wipe exterior with damp cloth
Spare Parts Available	Basket, oil tank, heating element, thermostat
Repairability Index	7 / 10 (common parts replaceable)

Frequently Asked Questions - AirCook Q20 TESLA

How much oil do I need to fill in the AirCook Q20?

The recommended oil volume is between 1.2 and 1.5 liters. Do not exceed the MAX line inside the tank.

Can I use the deep fryer without oil?

No, this is a traditional deep fryer that requires oil or fat. For oil-free cooking, consider an air fryer.

What types of oil can I use?

Use high-smoke-point oils like canola, vegetable, sunflower, or peanut oil. Avoid butter, margarine, or olive oil as they burn easily.

How do I clean the deep fryer?

Unplug and let it cool completely. Remove the oil tank and basket; they are dishwasher-safe. Wipe the interior and exterior with a damp cloth. Never immerse the base in water.

Why does the fryer turn off during use?

The automatic overheat protection may activate if the oil temperature exceeds 200°C or if the fryer is covered. Let it cool, then reset by unplugging for 10 minutes.

How long does it take to preheat the oil?

Approximately 8-12 minutes to reach 180°C, depending on the oil volume and starting temperature. The heating indicator light will go off when ready.

Can I fry frozen foods directly?

Yes, but pat off excess ice to reduce oil splatter. Fry in small batches to avoid temperature drop.

How often should I change the oil?

Change oil after 8-10 uses or if it becomes dark, smells unpleasant, or smokes. Filtering between uses can extend its life.

What is the maximum frying capacity per batch?

Do not fill the basket more than half full (approx. 500-600g of food) to ensure even cooking and prevent oil overflow.

Where can I find spare parts for the AirCook Q20?

Spare parts such as baskets, oil tanks, and heating elements are available through Tesla customer service or authorized retailers. Check the manual for part numbers.

USER MANUAL AirCook Q20 TESLA

thank you for choosing the TESLA AirCook Q20.

Please read the safe use rules carefully before use and follow all normal safety rules.

IMPORTANT SAFETY NOTICE

THIS PRODUCT IS FOR DOMESTIC USE ONLY.

Read and understand all instructions. Failure to follow the instructions below may result in electric shock, fire, or serious injury. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions and situations that may occur.

This appliance is a complex electromechanical device, please pay attention to the following instructions:

• Do not fill the container with oil. The appliance is not intended for cooking classic deep-fried dishes. Filling the container with oil may present a risk of creating a dangerous situation. The healthy method of frying is based on the principle of hot air circulation, which requires no or very little oil.
• Do not prepare foods with a high fat content in the appliance.
• Never switch on an empty appliance.
• Do not add more food than the recommended amount.
• Never immerse the cover, which contains electrical components and heating elements, in water or rinse it under running water.
• Do not allow water or other liquids to enter the appliance to avoid electric shock.
• Do not cover the air intake and air outlet openings when the appliance is in operation.
• Extra caution is required when using the appliance near children.
• It is not recommended that children use the appliance independently without the supervision of an adult.
• Protect the power cord from hot surfaces.
  • The appliance is not designed to be operated using an external timer or a separate remote control.
• Do not pour cold water into the heated removable container.
• Keep the appliance away from flammable and volatile substances.
• Do not place the appliance on a wall or directly next to other appliances.
• Do not place anything on top of the appliance or place it on the hob, there is a risk of damaging it.
• Do not use the appliance for purposes other than those described in this user manual.
• Do not leave the appliance unattended.
• During hot air frying, hot steam is released through the air outlet holes. Keep your hands and face away from the steam and air vents when removing the inner container from the appliance.
• Unplug the appliance immediately if it emits dark smoke.
  • Before cleaning, unplug the power cord and let the appliance cool down.
• Do not use the appliance in an excessively warm, dusty or humid environment.
• Check that the voltage indicated on the appliance corresponds to the local nominal voltage. Connect the device only to a grounded outlet. Always make sure the plug is properly inserted into the socket.

• Use only original TESLA accessories intended for this model.

• If the power cord is damaged, it must be replaced by a TESLA authorized service center or similarly qualified person to avoid injury.

• Do not repair the appliance, as you risk electric shock and void the warranty.
• The manufacturer and importer to the European Union is not responsible for damages caused by the operation of the device, such as injuries, scalds, fire, injuries, impairment of other things, etc.

CAUTION, HOT SURFACE

• DO NOT place the appliance on a flammable surface!
- Do not place the appliance on or near flammable materials such as a tablecloth or curtain.
- When the appliance is in operation, the temperature of accessible surfaces may be higher. Do not touch the heated surface, otherwise burns may occur.
- Use the handle to remove and carry the heated container and basket. Place the heated container and basket only on heat-resistant surfaces. After removing the container from the appliance, be careful not to get scalded by the hot steam released from the food.
- Do not move the hot appliance, you can burn yourself with hot food, oil or liquid.
• Before cleaning, unplug the appliance and let it cool down completely.

After hot air frying, the outer container, the frying rack and the cooked food will be very hot. Extreme care must be taken when handling the hot outer container and frying grid.

IMPORTANT INFORMATION ABOUT THE POWER CABLE

To reduce the risk of electric shock, do not attempt to modify the cable connector in any way. The length of the power cord reduces the risk of entanglement or tripping over the power cord. Do not use this appliance with an extension cord. Connect the power cord directly to an electrical outlet only.

PREPARATION - BEFORE FIRST USE

1. Remove all packaging and advertising stickers.
2. Place the appliance on a stable, level and heat-resistant surface.
3. Wipe the appliance with a soft damp cloth and dry it thoroughly.
4. When using, ensure a free space of at least 15 cm next to the appliance and 50 cm above the appliance.

A

B

APPLIANCE OPERATION

1. Connect the appliance to the electrical outlet.
2. Carefully pull out the basket from the body of the appliance, put the food in the basket and insert it into the body of the appliance.
3. The appliance will not operate until the outer container is completely closed.

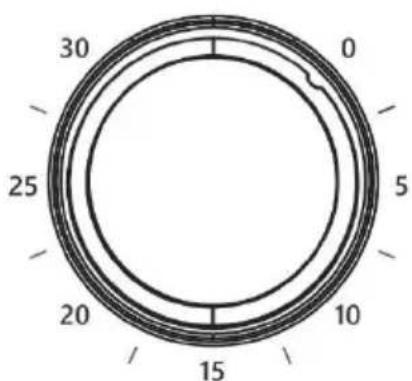

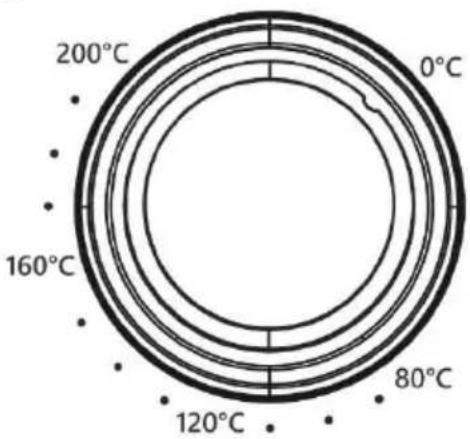

4. Set the heating temperature in °C with switch A, then set the heating duration in minutes with switch B.
5. The heating countdown starts and when it is finished, the appliance switches off.
6. If you want to turn off the appliance manually, turn switch B to position 0 (zero).
7. Check that the food is well cooked. If they are not yet cooked properly, put the basket back into the appliance and set the timer for a few extra minutes at the same temperature.

ADDITIONAL FUNCTIONS

Automatic resumption of heating

If you remove the food basket from the body of the appliance, the appliance will automatically suspend heating and the display will temporarily turn off. When you put the food basket back in, the appliance automatically resumes heating.

Protection against overheating

If the appliance overheats, it automatically switches off. Allow the appliance to cool down before using it again.

WARNING:

• Always be careful when removing the basket during/after cooking - hot steam may escape!
- Removable basket and food will be hot! Do not touch hot surfaces.
- Do not use sharp or metal utensils that can scratch the non-stick surface.
- Do not turn the basket upside down, as excess oil that has accumulated at the bottom of the basket will flow onto the food.

COOKING TIPS

• Preheating the appliance before adding food will generally ensure the best cooking results.
- Shake or turn the food halfway through the cooking time to ensure even browning. Shaking usually requires smaller foods that are stacked, such as chips or nuggets.
- A few minutes before the end of the cooking time, check whether the food is sufficiently cooked and if necessary, cook it longer.
- Make sure the meat has reached a safe cooking temperature.
- An air fryer works much like a toaster oven; follow the preparation instructions on the package or in the oven recipe.
- Smaller pieces of food usually require slightly less cooking time than larger pieces.
- When cooking multiple batches in a row, preheat only the first batch.
- Soak fresh potato fries in water for 15 minutes to remove starch before frying. Then pat the fries dry and mix with 1 tablespoon of oil to make them crispier.
• To get a crispier surface, we recommend spraying/mixing the food with classic table oil.

CLEANING AND MAINTENANCE

NEVER immerse the cord, plug or appliance in water or any other liquid.

• Clean the appliance after each use.
  • Before cleaning, unplug the appliance and let it cool down completely.
• We recommend cleaning the appliance immediately after it cools down, before food residues dry out.
• Wipe the base of the appliance and the exterior with a damp cloth.
• Removable parts that are intended for contact with food can be washed in a dishwasher, but we still recommend hand washing for longer protection (durability) of the non-stick surface.
• To maintain the non-stick layer as long as possible, do not use sharp or metal objects, abrasive cleaning materials or rough sponges and wire brushes.
• Wash these parts under warm running water with the addition of neutral kitchen detergent and a soft sponge. Then rinse them with clean water, dry them properly and put them back in their place.
• If residue sticks to the bottom of the removable basket, fill it with hot soapy water and let it soak in, then wash it with a soft sponge.

TROUBLESHOOTING

Problem	Solution
The appliance does not work.	Check that the device is really connected to the mains.
	Insert the outer container completely into the appliance.
The food is not fully cooked.	Place smaller portions of food in the removable basket.If the basket is too full, the food may be undercooked.
	Increase the temperature or cooking time.
The food is not evenly cooked.	Ingredients that are stacked on top of each other or close to each other need to be shaken or turned during cooking.
The food is not crispy after frying.	Spraying food with a small amount of oil can increase crispiness.
The fries were not cooked well.	Add a small amount of oil, approx. 15 ml. When making raw potato chips, soak uncooked chips in water for 15 minutes to remove starch before frying. Dry them before adding a small amount of oil.
	Cut uncooked French fries into 0.5 cm x 7 cm strips.
White smoke comes out of the appliance.	When using for the first time, the appliance may produce white smoke.It's alright.
	Make sure the baskets and the inside of the appliance are properly cleaned and free of grease.
	Cooking fatty foods will cause oil to leak into the outer container. This oil will produce white smoke and the container may be hotter than usual. This is normal and should not affect cooking.Handle the container with care.

TECHNICAL SUPPORT

Do you need advice on setting up and operating the TESLA AirCook Q20?

Contact us: www.tesla-electronics.eu.

CONSUMABLES AND ACCESSORIES

Consumables can be purchased in the official eshop of the TESLA brand eshop.tesla-electronics.eu.

WARRANTY REPAIR

For warranty repair, contact the dealer where you purchased the TESLA product.

The warranty does NOT apply to:

• using the device for other purposes
• normal wear and tear of the appliance
- failure to observe the "Important Safety Instructions" listed in the user manual
• electromechanical or mechanical damage caused by improper use
• damage caused by natural elements such as water, fire, static electricity, overvoltage, etc.
• damage caused by unauthorized repair
- unreadable device serial number

DECLARATION OF CONFORMITY

We, TESLA Electronics LTD, declare that this equipment is in compliance with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

This product meets the requirements of the European Union.

If this symbol is attached to the product, please inquire about your local separate collection system for electrical and electronic products. Please follow local regulations and do not dispose of old products in normal household waste. Proper disposal of the old product helps prevent potential negative consequences for the environment and human health.

As the product is being developed and improved, we reserve the right to modify the user manual. The current version of this user manual can always be found at www.tesla-electronics.eu.

Design and specifications are subject to change without notice, printing errors reserved.
