HGS-1500GR - Iron Heinner - Free user manual and instructions

Product Type	Steam Iron
Model	HGS-1500GR
Brand	Heinner
Power Consumption	1500 W
Voltage	220-240 V ~ 50/60 Hz
Soleplate Material	Stainless Steel or Ceramic (not specified)
Water Tank Capacity	200 ml (estimated)
Steam Output	Continuous steam up to 25 g/min
Steam Burst	Yes, up to 100 g/min
Spray Function	Yes
Anti-Drip System	Yes
Self-Cleaning Function	Yes
Auto Shut-Off	Yes, after 30 seconds horizontal / 8 minutes vertical
Cord Length	2.0 m (estimated)
Dimensions (L x W x H)	Approx. 30 x 12 x 15 cm
Weight	Approx. 1.2 kg
Care and Cleaning	Unplug, allow to cool, wipe soleplate with damp cloth; descale regularly
Safety Features	Auto shut-off, heat-resistant handle, stable heel rest
Spare Parts Availability	Contact Heinner support or authorized service centers
Repairability	Professional repair recommended; user-replaceable parts: water tank (if damaged)

Frequently Asked Questions - HGS-1500GR Heinner

How do I fill the water tank?

Open the water inlet cover, tilt the iron slightly, and pour water using the measuring cup. Do not exceed the MAX level.

What type of water should I use?

Use distilled or demineralised water to prevent scale buildup. Avoid tap water if it is hard.

How do I activate the steam burst?

Press the steam burst button firmly. Wait a few seconds between bursts to let the iron heat up.

Why is my iron not producing steam?

Ensure the water tank is filled, temperature is set to steam range (above 2 dots), and allow time for heating. If still no steam, perform self-cleaning.

How do I clean the iron?

Unplug and cool. Wipe the soleplate with a damp cloth. For stubborn stains, use a non-abrasive cleaner. Do not immerse in water.

How often should I descale the iron?

Descales every 1-2 months depending on water hardness. Use the self-clean function: fill tank, set to max steam, hold over sink, press self-clean button.

What does the auto shut-off feature do?

The iron switches off automatically if left unattended: after 30 seconds horizontally or 8 minutes vertically on its heel.

Can I use the iron on delicate fabrics?

Yes, set the temperature dial to the appropriate setting (e.g., silk or nylon). Use caution and avoid steam.

What should I do if the iron leaks water?

Leaking may occur if the iron is not hot enough. Set temperature to at least 2 dots. If persists, check for overfilling or damaged water tank.

Where can I find spare parts?

Contact Heinner customer service or visit an authorized service center. Some parts like water tank cover may be available online.

USER MANUAL HGS-1500GR Heinner

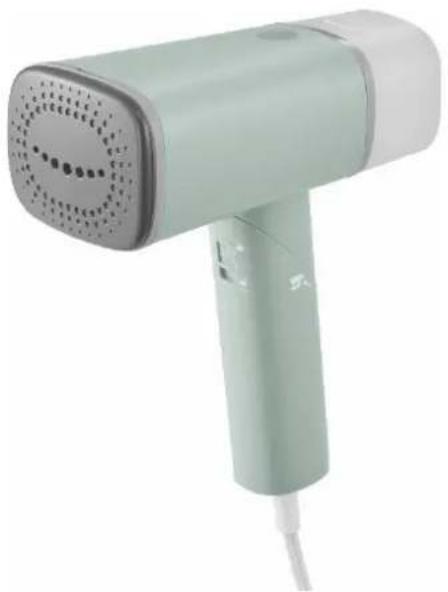

Product photo of a light green hair dryer with a white handle and digital display (no visible text or symbols)

• Aparat de călcat vertical cu abur
• Putere: 1300-1500W
• Culoare: verde

Modern hair dryer with green body and white handle, no visible text or symbols

• Garment steamer
  • Power: 1300-1500W
• Color: green

Thank you for choosing this product!

I. INTRODUCTION

Please read this instruction manual carefully before using it and keep it for later information. This manual is conceived for offering you all of the necessary info regarding installation, using and maintenance of the machine. For a correctly and safely use of the machine, please, read this manual before installation and using.

II. PACKAGE CONTENTS

Garment steamer
Instruction Manual
Warranty card
➢ Declaration of conformity
Brush

III. SAFETY MEASURES

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Children should be supervised to ensure that they do not play with the appliance.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Care should be taken when using the appliance due to the emission of steam.
6. Unplug the appliance during filling and cleaning.
7. The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
8. The fabric steamer must not be left unattended while it is connected to the supply mains.
9. The fabric steamer is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking
10. Keep the fabric steamer and its cord out of reach of children less than 8 years of age when it is energized or cooling down.
11. The liquid or steam must not be directed towards equipment containing electrical components, such as the interior of ovens.
12. Don't touch the hot metal surface; don't let the steam on the human body, the steam will burn.
13. Don't let the power cord touch the hot surface of the appliance.
14. In order to avoid electric shock, do not be immersed in water or other liquid.
15. Do not use wet hands to touch the product.
16. Do not fill in with any other liquid except pure water,
17. The product is for household use only, please do not use it for commercial purpose.

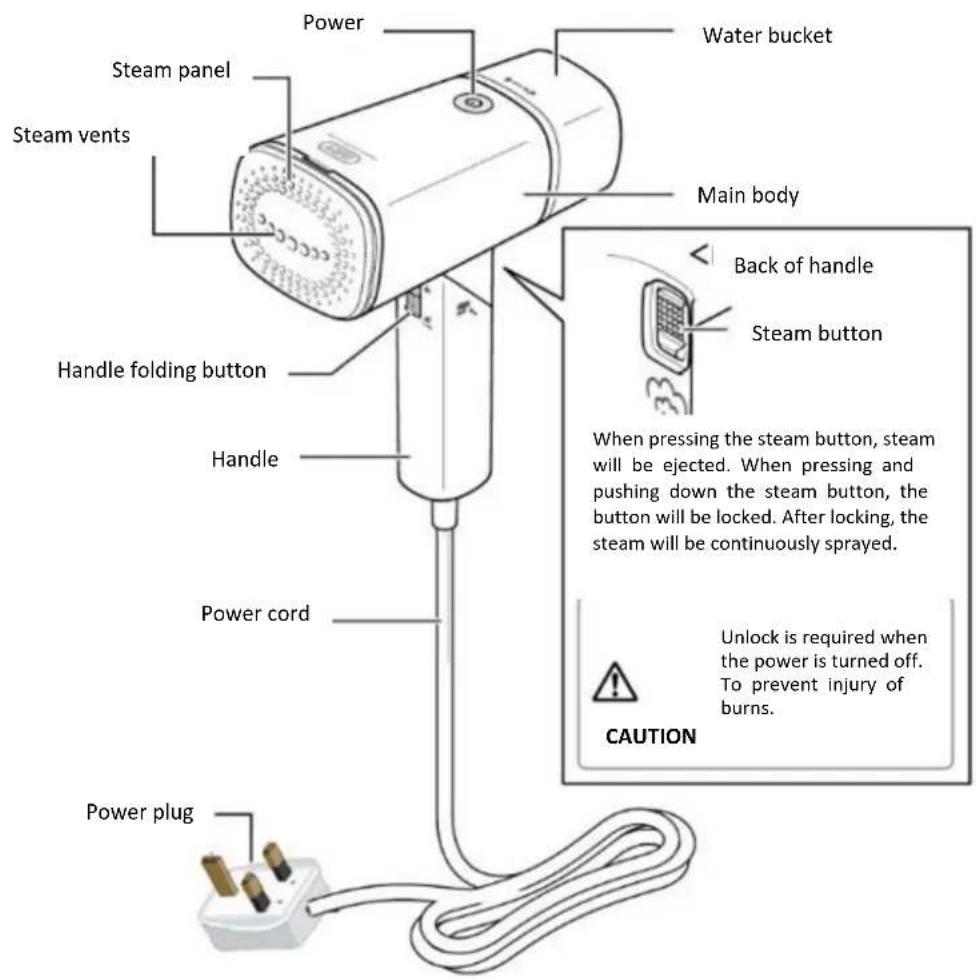

IV. PRODUCT DESCRIPTION

V. USING THE APPLIANCE

Take off all the viscose and protective film before use at first time. According to the following instructions:

1. Before use steam, filling the water tank to MAX, the maximum capacity of the water tank is 140ml.

2. Please make sure to provide voltage and rated nameplate on the corresponding requirements before use.

3. Please insert the power plug int to power socket.

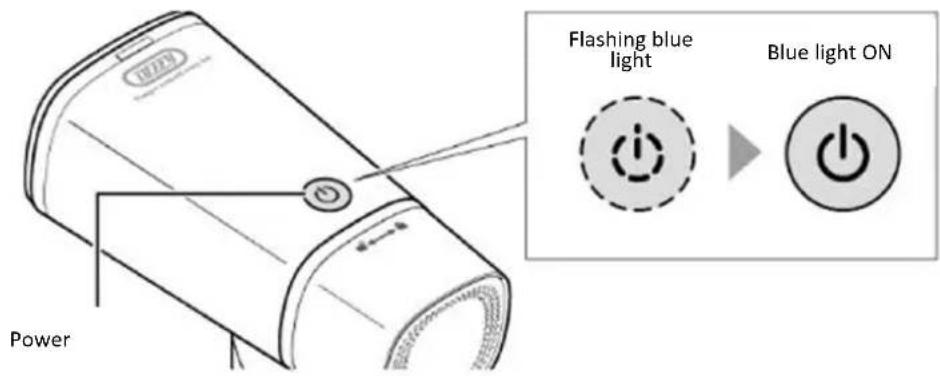

4. Put power plug into the socket and turn on the power button, the indicator lighting with flashing, the appliance goes to preheat. After 30 seconds later, the indicator stop flashing and keep lighting, the appliance complete to preheat, press the steam switch for using steam function (when the light is flashing, pressing the steam switch do not respond)

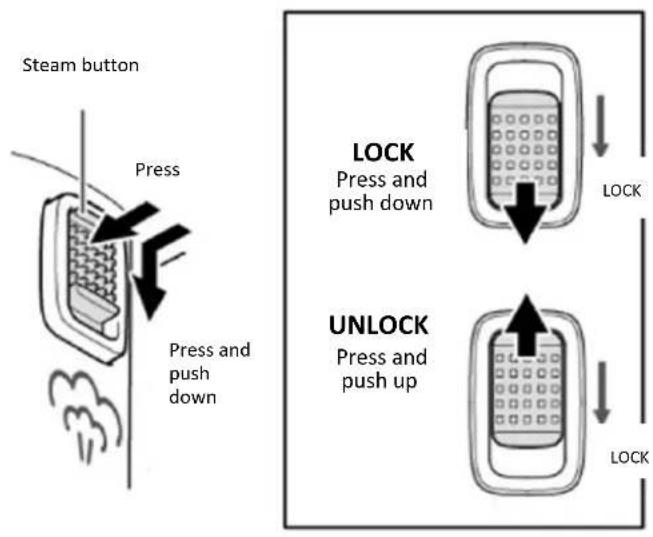

1. Press the steam button, when pressing the steam button, steam will be ejected. When pressing and pushing down the steam button, the button will be locked. After locking, the steam will be continuously sprayed.

Caution: Water may drip when the steam starts coming out. Be Careful not to get the cloth wet. Be sure to unlock it after use.

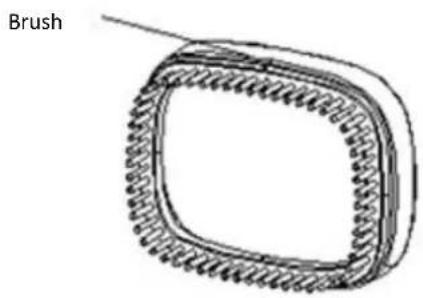

1. You can iron clothes directly with the brush installed on the machine.
2. You can use the machine in different directions at any time, but pay attention to that the metal panel is very hot, do not touch it.
3. After power on and heating, use the steam function for 8 minutes or put it at rest, the power will be cut off automatically, and the indicator light will change from normally on to flashing. Press the steam switch button again to resume normal use.
4. After use, unplug the power line, disconnect the power supply.
5. The handle can be folded up, and the water tank can be detached for convenient storage.

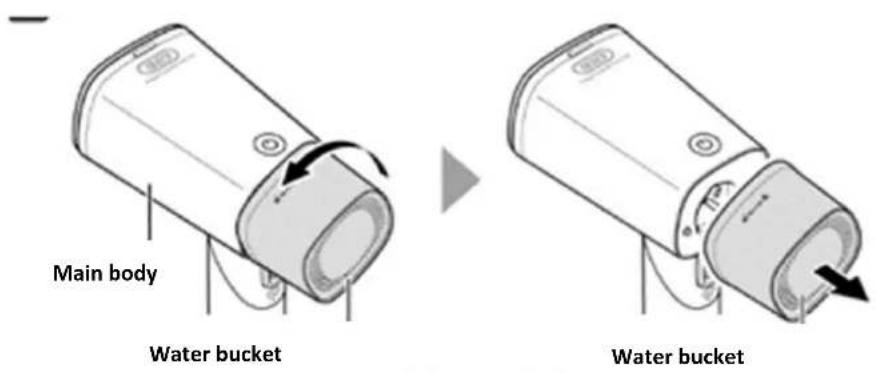

FILLING THE WATER BUCKET WITH WATER

Open the filler cap of the water tank

Line drawing of a kitchen appliance with a handle and control knob (no text or symbols)

Filler cap
Water bucket

Water bucket

Simple line drawing of a person using a tool to clean or brush the cup (no text or symbols)

Filler cap

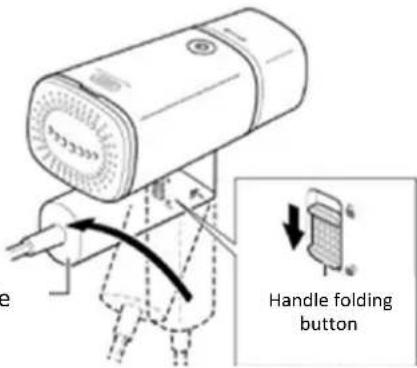

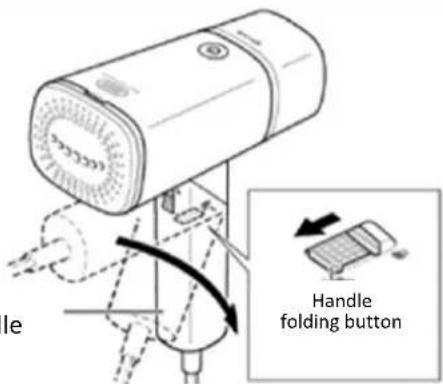

How to fold and unfold

Unlock the handle folding button on the handle, rotate the handle and fix it when you hear a "click" sound from the handle.

Handle

Unlock the handle folding button on the handle, rotate the handle and fix it when you hear a "click" sound from the handle.

Handle

VI. CLEANING AND MAINTENANCE

1. Pull plug off, disconnect the power supply
   Warning: stainless steel plate is very hot, burn care!
2. Surface with a cloth to scrub the cloth products, cannot be too wet, so as not to solution into the machine.
   Note: Please note when cleaning, do not let water or solution into the machine
   In order to make a smooth stainless steel panel, try to avoid metal friction Stainless Steel panel!
   Warning: do not put the machine into the water or other cleaning solution!

Rated voltage	220-240 V
Rated frequency	50/60Hz
Power	1300-1500W

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION.

Copyright © 2013 Network One Distribution. All rights reserved.

www.heinner.com, http://www.nod.ro

http://www.heinner.com, http://www.nod.ro

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, no 3-5, Bucharest, Romania

Tel: [phone], www.heinner.com, www.nod.ro
