Product Type	Refrigerator (fridge compartment only, no freezer)
Brand	Liebherr
Model	SRsdh 5220
Climate Classification	SN (10°C to 32°C), N (16°C to 32°C), ST (16°C to 38°C), T (16°C to 43°C), SN-ST (10°C to 38°C), SN-T (10°C to 43°C)
Temperature Range	Fridge: 2°C to 9°C (factory set 5°C, recommended 4°C)
Display	Touch display with status display, menus, sleep mode
Main Functions	SuperCool, PowerCool, HolidayMode, SabbathMode, E-Saver, CleaningMode, Door alarm, Input lock, WiFi, Demo mode, Reminder, Display brightness, Temperature unit (°C/°F)
SmartDevice Compatible	Yes, requires SmartDeviceBox; WiFi connection via SmartDevice app
Cooling Technology	Automatic defrosting, fan with FreshAir activated carbon filter, energy-optimised control
Storage Compartments	Adjustable shelves (divisible shelf), door racks (with bottle holder), VarioSafe drawer, EasyFresh Safe drawer (humidity control), vegetable drawer, bottle holder
EasyFresh Safe	Drawer with compartment lid for humidity regulation (reduce/increase humidity)
VarioSafe	Removable drawer with two height positions for small groceries
Bottle Holder	Sliding holder in door rack to secure bottles
FreshAir Carbon Filter	Replace every 6 months; reminder in display; disposable with household waste
Defrosting	Automatic; water drains through outlet and evaporates; clean drain opening regularly
Cleaning	CleaningMode (60 min) for convenient cleaning; use soft cloth and pH-neutral cleaner; no steam cleaners
Safety Features	Child lock (input lock), door alarm, SabbathMode (STAR-K certified), flammable refrigerant R600a (warning), electrical safety (disconnect by plug)
Spare Parts Availability	Functional parts and stockable parts available for 15 years
Energy Saving	E-Saver mode, HolidayMode, proper ventilation, avoid direct sunlight
Certifications	EU Declaration of Conformity; STAR-K Kosher certification for SabbathMode; open source software licences

Frequently Asked Questions - SRsdh 5220 LIEBHERR

How do I set the temperature on my Liebherr SRsdh 5220?

On the Touch display, navigate to the temperature function (usually '5 °C'). Tap the Confirm symbol, then use the navigation arrows to adjust the temperature. The recommended fridge temperature is 4 °C. Wait 24 hours for the temperature to stabilize.

How do I activate SuperCool?

SuperCool quickly cools a large quantity of fresh food. From the main menu, tap the SuperCool icon, then press Confirm. The function deactivates automatically after 18 hours. It increases cooling power and may be louder temporarily.

What is HolidayMode and how do I use it?

HolidayMode sets the fridge compartment to 15 °C to save energy during long absences. Empty the fridge and EasyFresh, then activate HolidayMode from the display (beach icon). The temperature rises and the appliance runs efficiently. To deactivate, tap the Holiday icon and confirm.

How do I clean the refrigerator?

Use CleaningMode from the display to switch off the fridge section while cleaning (lasts 60 min). Empty the appliance, remove shelves and drawers, and wipe with a soft cloth and pH-neutral cleaner. Do not use steam cleaners or abrasive agents. Rinse and dry thoroughly before reactivating.

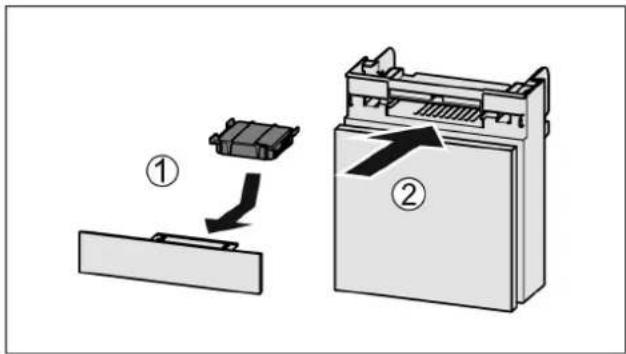

How do I replace the FreshAir carbon filter?

The filter is located above the fan inside the fridge. Pull out the compartment, remove the old filter, and insert a new one until it clicks. Liebherr recommends replacing it every 6 months. A reminder appears on the display. Filters are available from the Liebherr store.

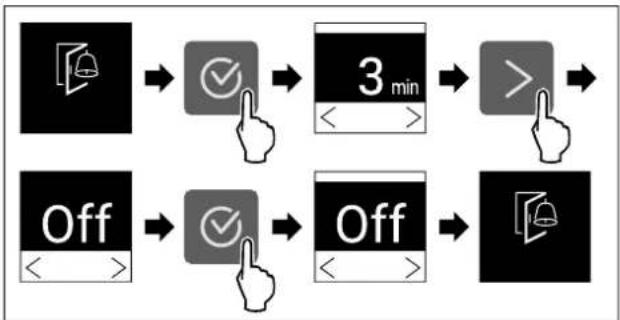

What does the door alarm mean and how do I turn it off?

The door alarm sounds if the door is left open too long (adjustable: 1, 2, 3 min or off). To silence it, close the door or press the Confirm symbol. You can change the delay time in the Settings menu under 'Door alarm'.

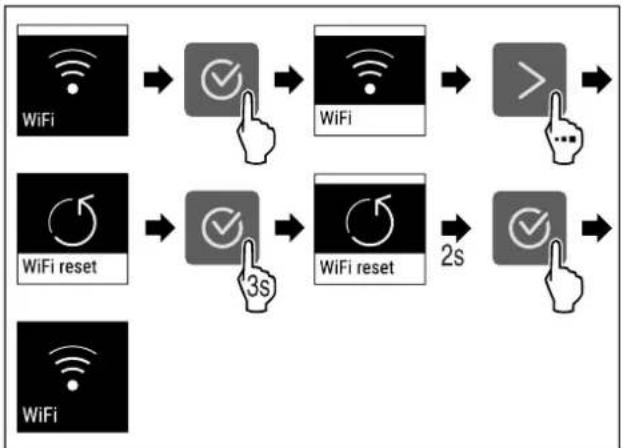

Can I connect the fridge to WiFi?

Yes, the Liebherr SRsdh 5220 is SmartDevice-compatible. You need to purchase and install a SmartDeviceBox, then download the SmartDevice app. In the display, go to WiFi settings and follow the steps to connect. Note: this function is not available in Russia, Belarus, or Kazakhstan.

What should I do if an error code appears on the display?

An error code indicates a malfunction. Press the Confirm symbol to view the error code, write it down, then press Confirm again to return to status. Contact Customer Service with the error code and appliance information (model, service number, serial number) for assistance.

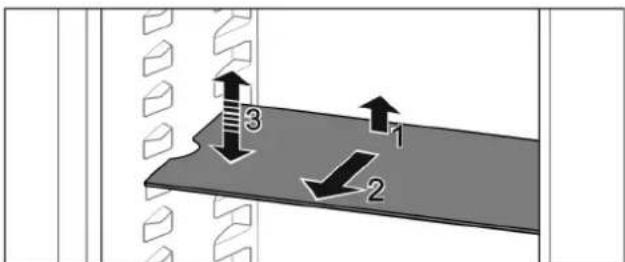

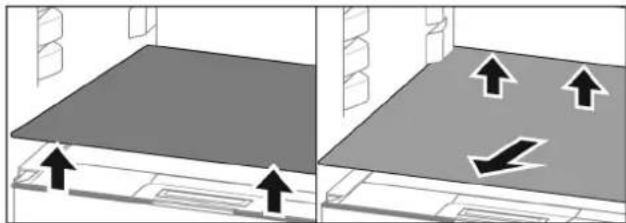

How do I remove or adjust the shelves?

Shelves have pull-out stops. Lift the shelf at the front and pull forward. To change height, lift or lower it onto the desired support rails. For the divisible shelf, you can remove glass panels individually. Always ensure pull-out stoppers are positioned correctly after adjustment.

What are the best storage practices for this fridge?

Store perishable items like meat and fish in the coldest zone (bottom shelf). Use the EasyFresh drawer for fruits and vegetables with adjustable humidity. Keep liquids in closed containers. Do not block the fan vents. Follow best-before dates and package odor-prone foods.

USER MANUAL SRsdh 5220 LIEBHERR

Abstract graphic with three gray blocks: a padlock, a snowflake with asterisks, and a power button symbol (no text or labels)

Solid dark blue background with no visible text, symbols, or patterns.

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Abstract gray-scale icons including a bell, star, Wi-Fi signal, and Wi-Fi symbol (no text or labels)

LIEBHERR

Contents

1 General safety instructions.... 3

2 Appliance at a glance.... 4

2.1 Scope of delivery.... 4

2.2 Overview of the appliance and equipment...... 4

2.3 SmartDevice....4

2.4 Appliance range of use.... 5

2.5 Conformity.... 5

2.6 Spare parts.... 5

3 Functionality of the Touch display.... 5

3.1 Navigation and symbol explanation.... 5

3.2 Menus....6

3.3 Sleep mode....6

4 Putting into operation....6

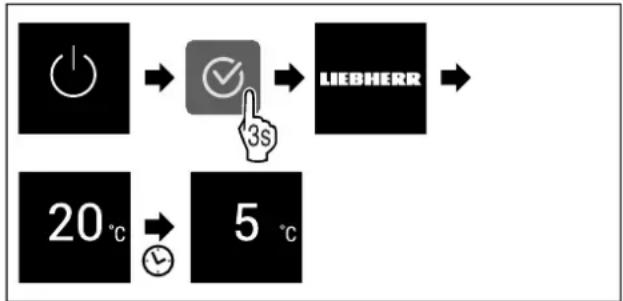

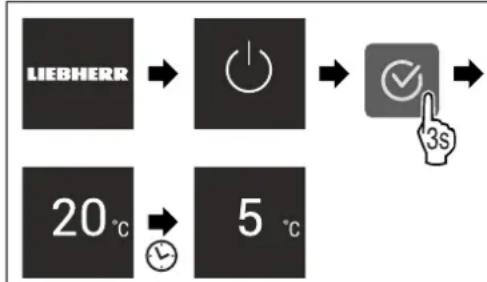

4.1 Switching on appliance (first use)....6

5 Storage....7

5.1 Information regarding storage....7

5.2 Fridge compartment....7

5.3 EasyFresh 7

5.4 Storage times....7

6 Saving energy....7

7 Controls....8

7.1 Controls and displays....8

7.1.1 Status display....8

7.1.2 Display symbols....8

7.2 Appliance functions....8

7.2.1 Notes on the appliance functions....8

Switching the appliance off and on....8

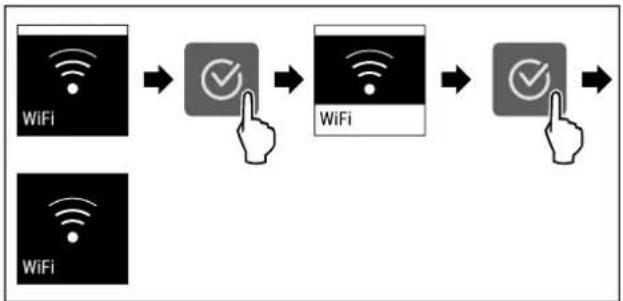

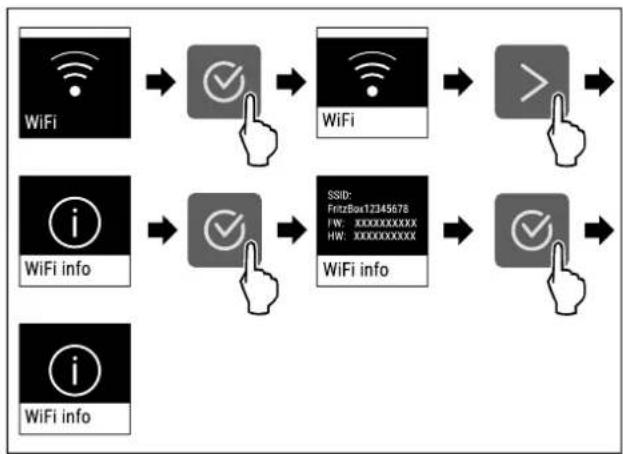

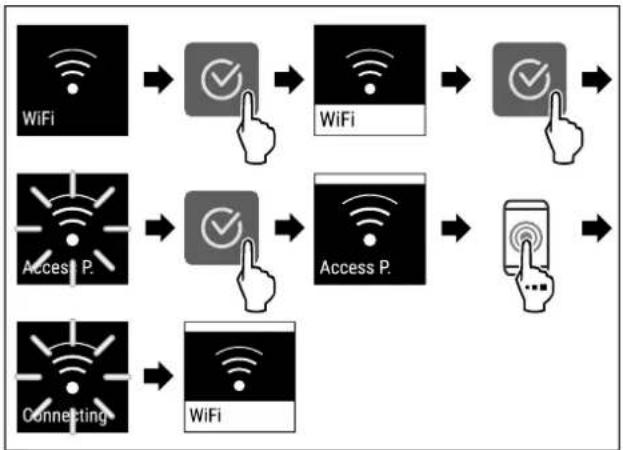

WiFi....8

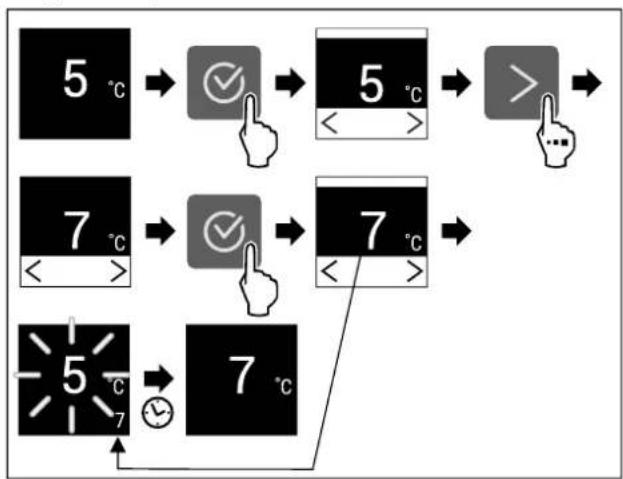

Temperature....9

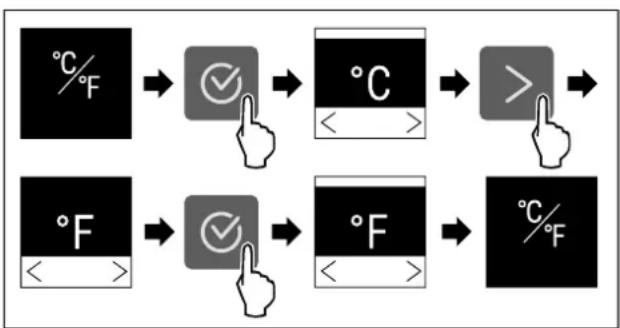

°C/ Temperature unit....10

SuperCool....10

PowerCool....10

HolidayMode....11

SabbathMode....11

E-Saver 12

CleaningMode....12

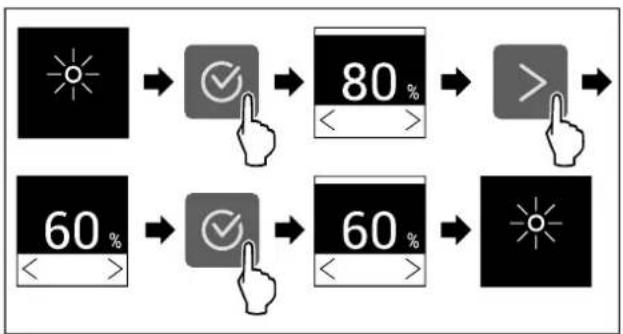

Display brightness....12

Door alarm....13

Input lock....13

Device information....14

Software....14

Reminder....14

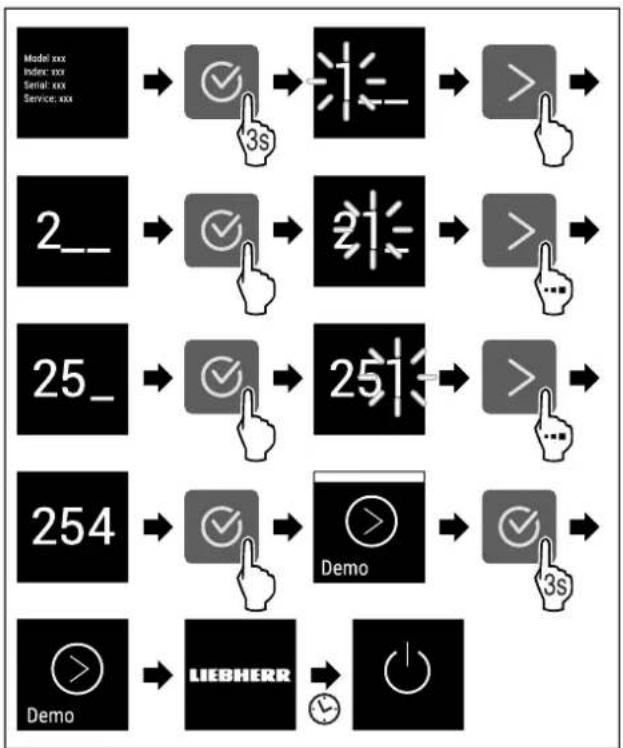

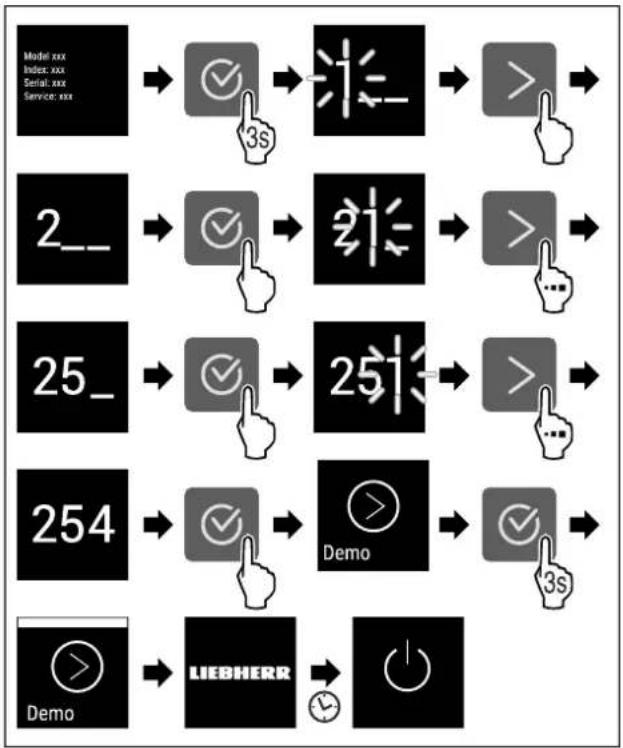

Demo mode....14

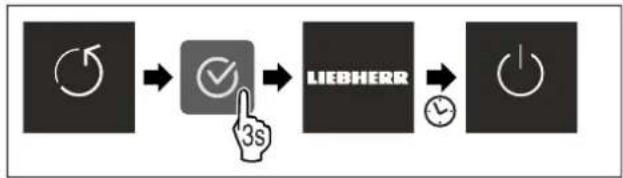

Resetting to factory settings....15

7.3 Messages.... 15

7.3.1 Overview of warnings....15

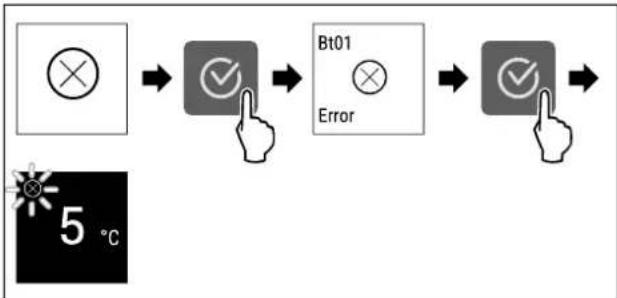

7.3.2 Ending warnings....16

7.3.3 Overview of reminders....16

7.3.4 Ending reminders....16

8 Features.... 16

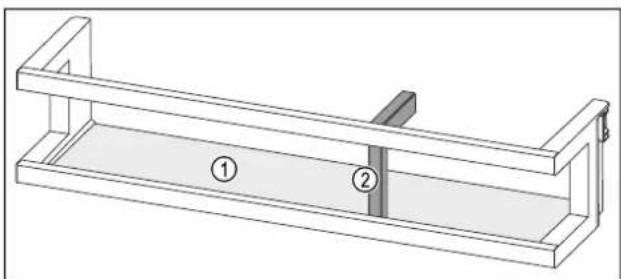

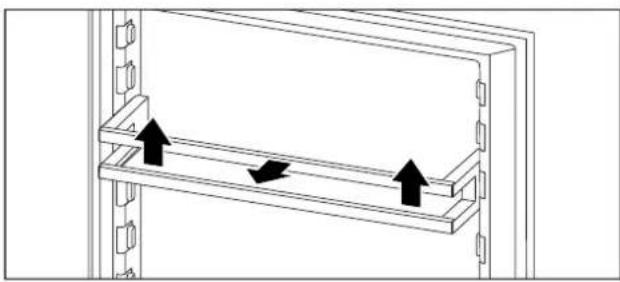

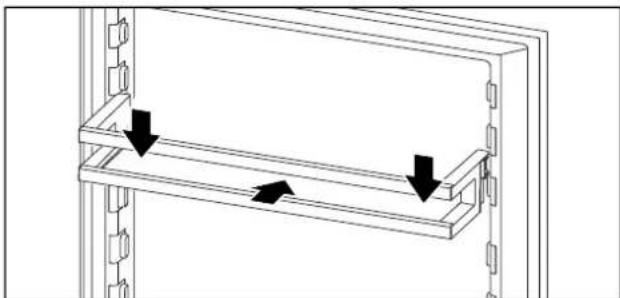

8.1 Door rack.... 16

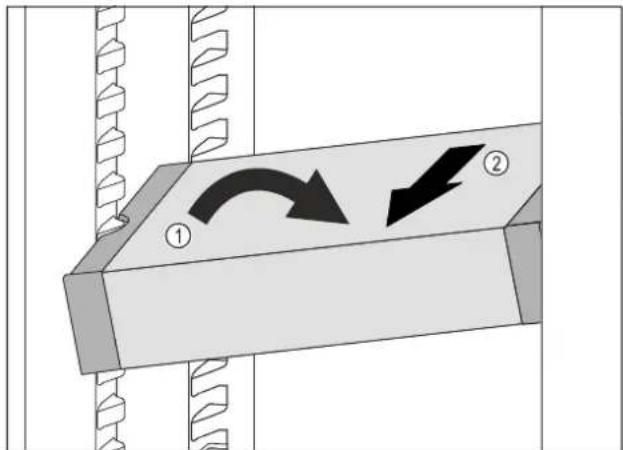

8.2 Shelves.... 17

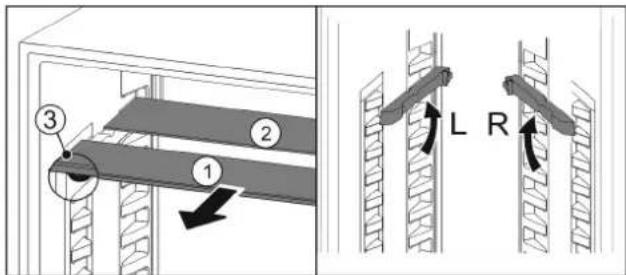

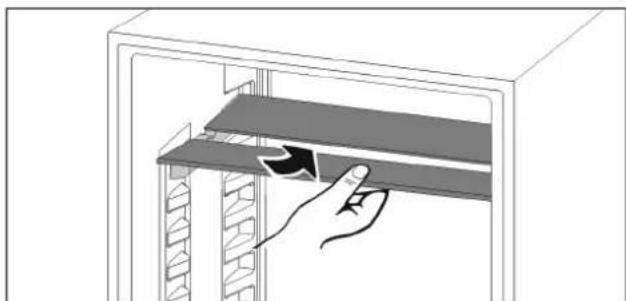

8.3 Dividing shelf.... 17

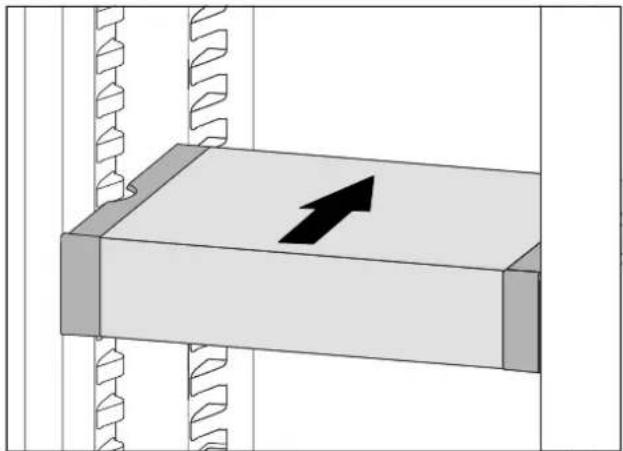

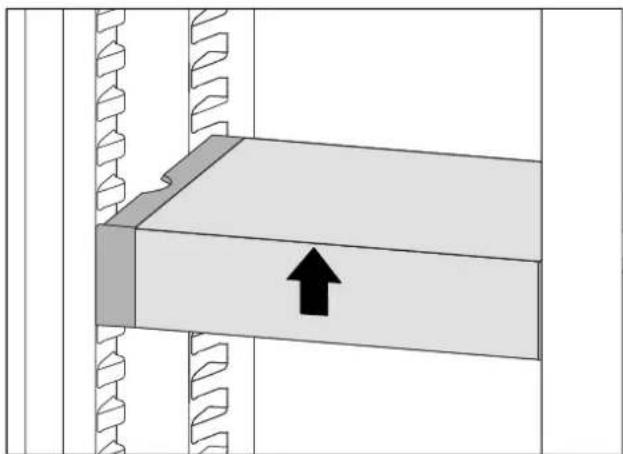

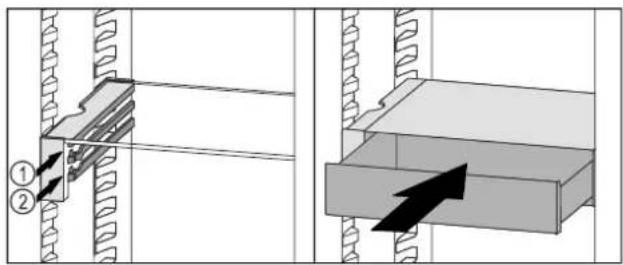

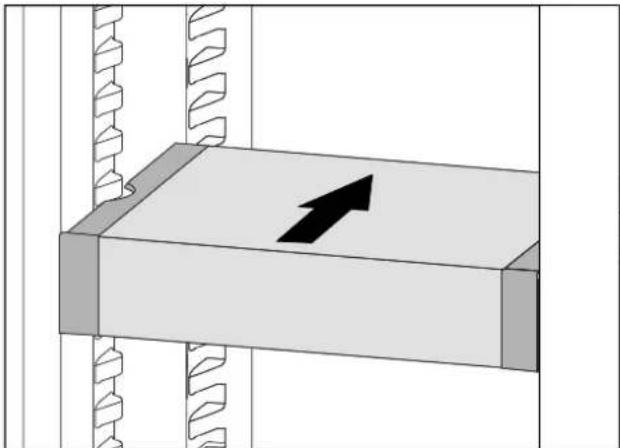

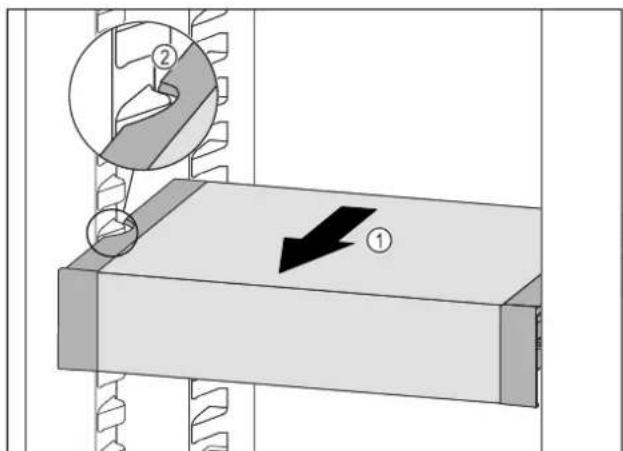

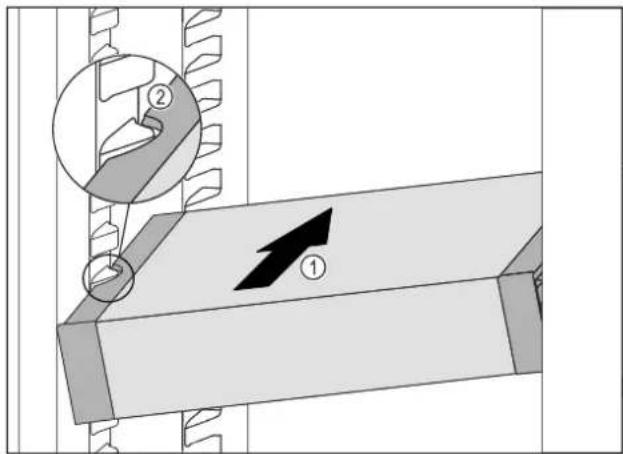

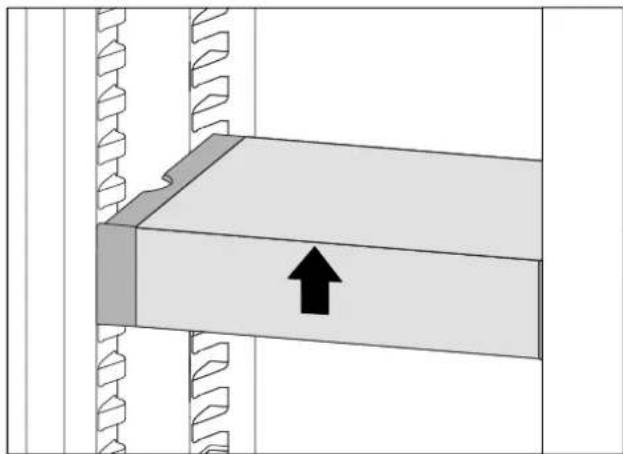

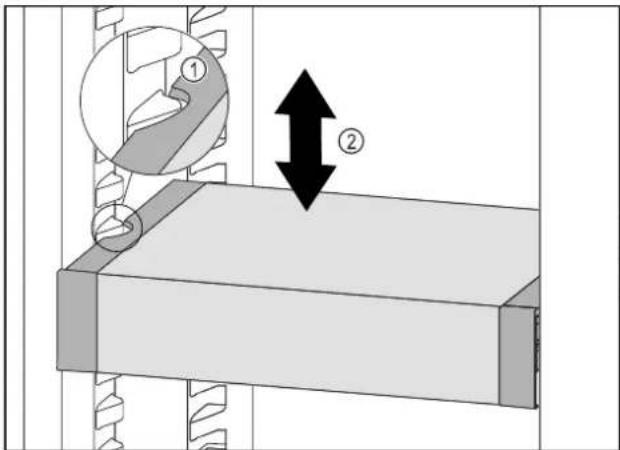

8.4 VarioSafe 18

8.5 Drawers.... 20

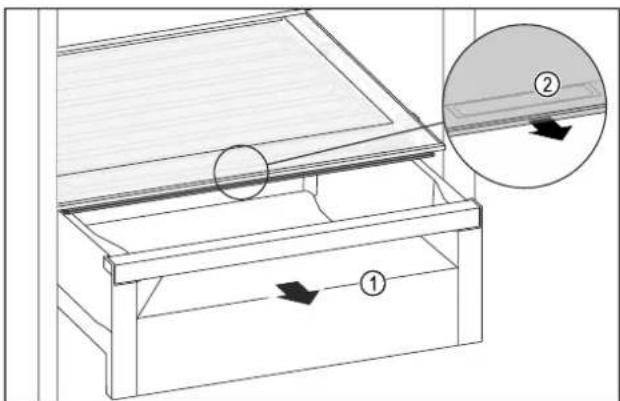

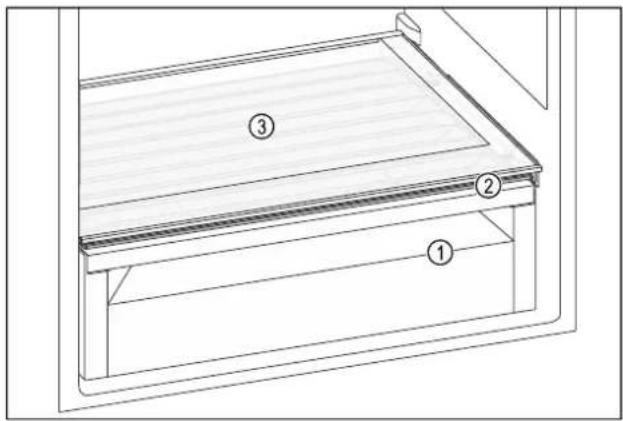

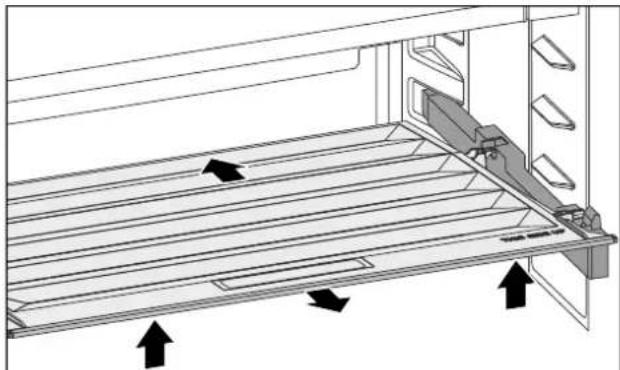

8.6 Compartment lid for EasyFresh Safe.... 20

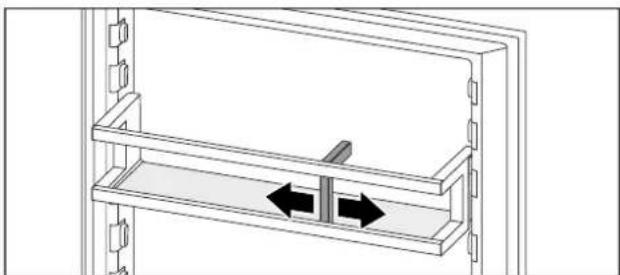

8.7 Bottle holder.... 21

9 Maintenance.... 21

9.1 FreshAir carbon filter.... 21

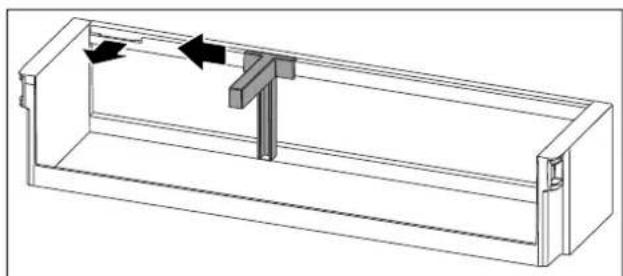

9.2 Removing the bottle holder.... 22

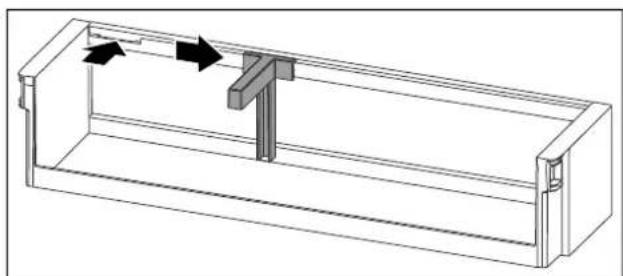

9.3 Inserting the bottle holder.... 22

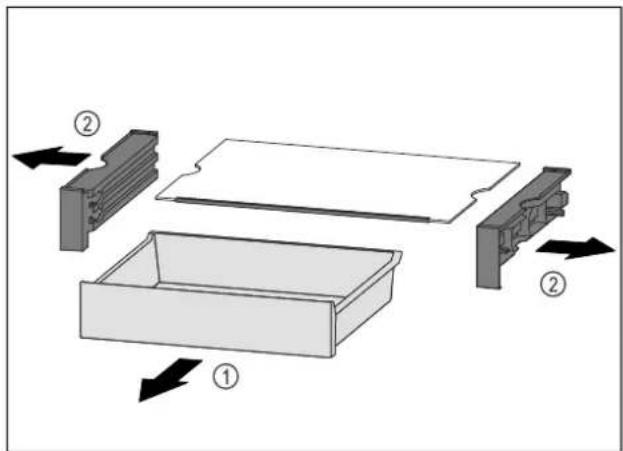

9.4 Disassembling / assembling pull-out systems..... 22

9.5 Compartment lid for EasyFresh Safe 22

9.6 Defrosting the appliance.... 22

9.7 Cleaning the appliance.... 23

10 Customer help.... 23

10.1 Technical specifications.... 23

10.2 Operating noises.... 23

10.3 Technical fault.... 24

10.4 Customer Service.... 25

10.5 Model plate.... 25

11 Shutting down.... 25

12 Disposal.... 25

12.1 Preparing appliance for disposal.... 25

12.2 Disposing of the appliance in an environmentally friendly manner.... 26

The manufacturer is continually working on the further development of all types and models. Please be aware that we reserve the right to make changes to the shape, equipment and technology.

Symbol	Explanation
	Read instructionsPlease read the information in these instructions carefully to understand all of the benefits of your new appliance.
	Additional information on the InternetThe digital manual with additional information can be found via the QR code on the front of the manual or by entering the service number at home.liebherr.com/fridge-manuals.The service number can be found on the serial tag:[IMAGE]Fig. Example illustration

Symbol Explanation

Check appliance

Check all parts for transport damage. If you have any complaints, please contact your agent or customer service.

Differences

These instructions apply to a range of models, so differences are possible. Sections that apply to certain models only are marked with an asterisk (*).

Instructions and results

Instructions are marked with a ▶ Results are marked with a ▷

Videos

Videos about the appliances are available on the YouTube channels of Liebherr-Hausgeräte.

Open source licences:

The appliance contains software components that use open source licences. Information on the open source licences used can be found here: home.liebherr.com/open-source-licences

These operating instructions apply to:

SR..h 52..

1 General safety instructions

Please keep these instructions in a safe place and pass them on to any subsequent owners.

Read these operating instructions carefully before use to ensure safe and correct use of the appliance. Follow the instructions, safety instructions and warning messages included at all times. They are important for ensuring you can operate and install the appliance safely and without any problems.

Danger for the user:

• This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experience and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards.
  Children must not play with this appliance. Cleaning and user maintenance work must not be carried out by children without adult supervision. Children aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from the appliance unless they are under continuous adult supervision.
• The socket must be easily accessible so that the appliance can be disconnected quickly from the electricity in an emergency. It must not be located in the area behind the appliance.
• When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
• In the event of a fault pull out the mains plug or deactivate the fuse.
• Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

• Only customer service or other specially trained staff may repair or perform other operations on the appliance.

• Only assemble, connect and dispose of the appliance according to the instructions.

• Special lights, such as LED lights on the appliance, are used to illuminate the interior of the appliance and are not suitable for room lighting.

Fire hazard:

- This appliance contains a refrigerant which is environmentally friendly, but flammable. Leaking refrigerant may ignite. It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland, the authorised Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs where the gas system is being opened or charged.

- The coolant used (information on the model plate) is ecofriendly but also flammable. Any leaking coolant may ignite.

• Do not damage the refrigerant circuit pipes.
• Do not handle ignition sources inside the appliance.
• Do not use electrical appliances inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).

• If the refrigerant leaks: remove any naked flames or ignition sources from the vicinity of the leakage point. Properly air the room. Inform customer services.

• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

• Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appliance on fire.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

- Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

- Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

• Avoid prolonged skin contact with cold surfaces or refrigerated/frozen goods or take protective measures, e.g. wear gloves.
• Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

• Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.
• Do not use sharp implements to remove the ice.

Risk of crushing:

- Do not hold the hinge when opening and closing the door. Fingers may get caught.

Symbols on the appliance:

This symbol may be located on the compressor. It relates to the oil in the compressor and makes reference to the risk that: Swallowing or inhaling can be fatal. This advice is only relevant to recycling. There is no danger in normal operation.

This symbol is located on the compressor and indicates the danger of flammable materials. Do not remove the sticker.

This or a similar sticker may be located on the rear of the appliance. This sticker indicates that there are vacuum insulation panels (VIP) or perlite panels in the door and/or housing. This advice is only relevant to recycling. Do not remove the sticker.

Please note the warning messages and other specific advice in the other chapters:

	DANGER	indicates an immediately hazardous situation which will lead to death or serious injuries if it is not avoided.
	WARNING indicates a hazardous situation which may lead to death or serious injuries if it is not avoided.
	CAUTION indicates a hazardous situation which may lead to minor or moderate injuries if it is not avoided.
	NOTICE indicates a hazardous situation which may lead to damage to property if it is not avoided.
	Note indicates useful instructions and tips.

2 Appliance at a glance

2.1 Scope of delivery

Check all parts for transport damage. Contact your dealer or customer service in the event of complaints. (see 10.4 Customer Service)

Your new appliance comes with the following parts:

• Standalone appliance
• Features (depending on the model)
• Installation materials (depending on the model)
• "Quick Start Guide"
• "Installation Guide"

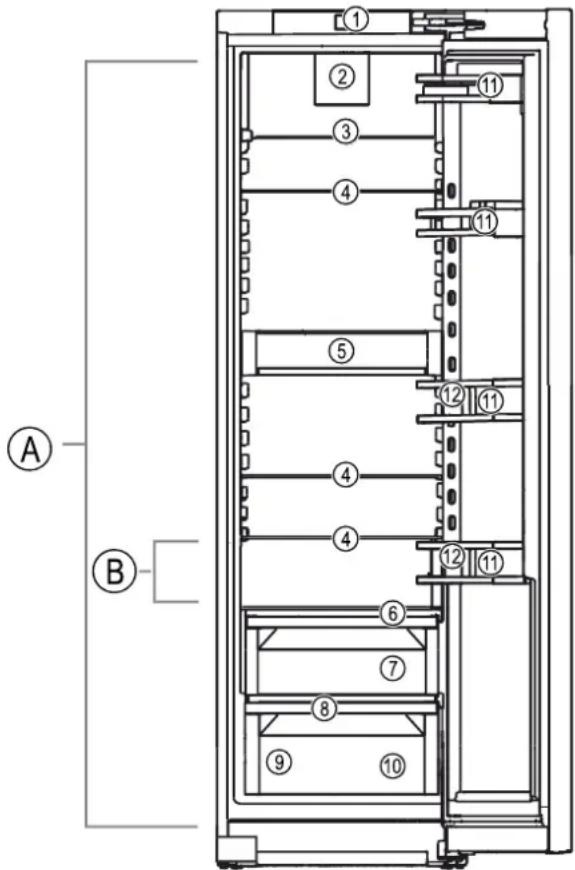

2.2 Overview of the appliance and equipment

Fig. 1 Example illustration

Temperature range

(A) Fridge section
(B) Coldest area

Equipment

(1) Controls (7) EasyFresh Safe
(2) Fan with FreshAir activated charcoal filter
(3) Divisible shelf [9] Type plate
(4) Shelf (10) Vegetable drawer
(5) VarioSafe (11) Door rack
(6) Compartment lid for EasyFresh Safe

(8) Defrost water drain

[Non-Text]

(12) Bottle holder

2.3 SmartDevice

SmartDevice is the networking solution for your refrigerator. If your appliance SmartDevice-enabled or compatible, you can quickly and easily connect your appliance to your WiFi. With the SmartDevice app, you can operate your appliance from a mobile device. Additional functions and setting options are available in the SmartDevice SmartDevice app.

SmartDevice-compatible appliance:

Your appliance is compatible for use with the SmartDeviceBox. You must first purchase and install the SmartDeviceBox. In order to connect your appliance to the WiFi, you need to download the SmartDevice app.

More information smartdevice.liebherr.com

about SmartDe-

vice:

home.liebherr.com/shop/de/deu/smartdevicebox.html

Downloading the SmartDevice app:

After installing and configuring the SmartDevice app, you can connect your appliance to your Wi-Fi (see WiFi) using the SmartDevice app and the appliance's Wi-Fi function.

Note

The SmartDevice function is not available in the following countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

2.4 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in a domestic or household-like environment. This includes, for example, use:

• in staff kitchens, bed and breakfast establishments,
• by guests in country houses, hotels, motels and other accommodation,
• for catering and similar services in the wholesale trade.

The appliance is not suitable for freezing food;

The appliance is not suitable as a built-in unit.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

• Storing and refrigerating medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Device Directive 2007/47/EC
• Use in outdoor areas with very high humidity
• Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classification applying to your appliance is printed on the rating plate.

Note

▶ Keep to the specified ambient temperatures in order to guarantee that the appliance works properly.

Climate classification	for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C

2.5 Conformity

The refrigerant circuit has been tested for leaks. The appliance complies with the applicable safety regulations and with the corresponding directives.

The full text of the EU Declaration of Conformity is available on the following website: www.Liebherr.com

2.6 Spare parts

The spare parts availability for functional parts and stockable parts of the equipment is 15 years.

3 Functionality of the Touch display

You operate your appliance using the Touch display. You select appliance functions in the Touch display (hereafter referred to as display) by tapping them. If you do not perform any action on the display for 10 seconds, the display either jumps back to the higher-level menu or directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate the display. The following table describes these symbols.

Symbol	Description
	Press the Next navigation arrow:Navigates to the next option in the menu.
	Press the Back navigation arrow:Jumps back one option in the menu.
	Press the navigation arrow several times in succession:Navigates in the menu to the desired function.
	Press the Confirm symbol:Activates/deactivates function.Open submenu.
	Press the Confirm symbol together with the back icon:Jumps back one menu level.
[SY4W]	Arrow with clock:It takes more than 10 seconds for the following message to appear in the display.
[XOH3][OZ3K] [O36K] [ESAT]	Arrow with a time indication:It takes the specified amount of time until the following message appears in the display.
Symbol Description
	“Open Settings menu” symbol:Navigates to the Settings menu and opens the settings menu.If necessary: Navigate to the desired function in the Settings menu.(see 3.2.1 Opening the Settings menu)
	“Open Advanced menu” symbol:Navigates to the Advanced menu and opens the advanced menu.If necessary: Navigate to the desired function in the Advanced menu.(see 3.2.2 Opening the Advanced menu)
No action for 10 seconds	If you do not perform any action on the display for 10 seconds, the display either jumps back to the higher-level menu or directly to the status display.
Close the door and open it again.	If you close the door and immediately open it again, the display jumps directly back to the status display.

Note: Illustrations of the display are shown in the English version.

3.2 Menus

The appliance functions can be found in various menus.

Menu	Description
Main menu When you switch the appliance on, you are automatically in the main menu.From here you can navigate to the most important appliance functions, to the Settings menu and to the Advanced menu.
Settings menu	The Settings menu contains additional appliance functions for setting up your appliance.(see 3.2.1 Opening the Settings menu)
Advanced menu	The advanced menu contains special appliance functions for setting up your appliance. Access to the Advanced menu is protected by the numerical code 151.(see 3.2.2 Opening the Advanced menu)

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

▶ Carry out action steps according to the illustration.

▶ Settings menu is open.

▶ If necessary: Navigate to the desired function.

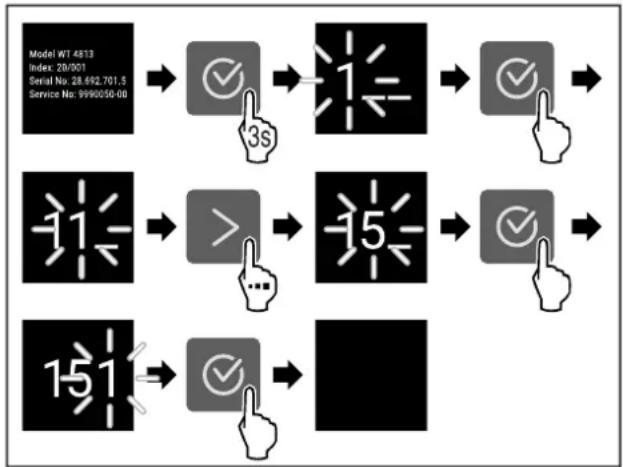

3.2.2 Opening the Advanced menu

Fig. 3

Fig. 4 Example illustration, access with numerical code 151

▶ Carry out action steps according to the illustration.

▶ The expanded menu is open.

▶ If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display switches to sleep mode. In sleep mode, the display brightness is dimmed.

3.3.1 Ending sleep mode

▶ Press any navigation key.

▶ Sleep mode is ended.

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

☐ The appliance has been installed and connected in accordance with the installation instructions.

☐ All adhesive strips, adhesive and protective films and transport locks are removed from inside and on the appliance.

☐ All marketing leaflets are removed from the drawers.

☐ You are familiar with the functionality of the Touch display. (see 3 Functionality of the Touch display)

Switch on the appliance using the Touch display:

▶ If the display is in sleep mode: Press the confirmation symbol.
▶ Carry out action steps according to the illustration.

Fig. 5 Example illustration

▶ Status display appears.
The appliance cools to the temperature set at the factory.
The appliance starts in demo mode (status display with DEMO appears): If the appliance starts in demo mode, you can deactivate demo mode within the next 5 minutes. (see Demo mode)

More information:

- Start the SmartDevice for the first time. (see 2.3 SmartDevice) and (see WiFi)

Note

The manufacturer recommends:

▶ Stock with food: Wait for around 6 hours until the set temperature is reached.
▶ Observe the notes on storing food. (see 5.1 Information regarding storage)

Note

Accessories can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.

5 Storage

5.1 Information regarding storage

WARNING

Fire hazard from electrical appliances! If you use electrical appliances in the food area of your appliance, they can cause a fire.

▶ Do not use electrical appliances in the food area of the appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power goes down if ventilation is not sufficient.

▶ Always keep air slots clear.

Observe the following specifications for storage:

• Keep the air vents on the fan free.
• Package or cover foods that readily take on or give off odours or taste in closed containers.
• Package raw meat or fish in clean, closed containers. This will prevent meat or fish from touching or dripping onto other food.
• Keep liquids in closed containers.
• Leave space between goods to ensure good air circulation.
• Store food according to the instructions on the packaging.
• Always observe the best-before date indicated on the packaging.

Note

Failure to follow these guidelines can lead to foodstuffs spoiling.

5.2 Fridge compartment

The air circulation in the appliance creates different temperature zones. You will find the different temperature zones in the appliance and equipment overview. (see 2.2 Overview of the appliance and equipment)

5.2.1 Arranging your food properly

▶ Upper area and door: Store butter, cheese, tinned food and tubes.
▶ Coldest temperature zone: Store perishable foods such as pre-cooked meals, meat and lunch meats.
▶ Bottom shelf: Store raw meat or fish.

5.3 EasyFresh

EasyFresh is great for non-packaged foods, such as fruit and vegetables.

The humidity inside the drawer depends on the humidity content of the food inside it, and the frequency at which it is opened. The humidity can be regulated. (see 8.6 Compartment lid for EasyFresh Safe)

5.3.1 Arranging your food properly

▶ Store unpackaged fruit and vegetables.
If the humidity is too high:
▶ Regulate the humidity.

5.4 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date indicated on the packaging still applies.

5.4.1 Fridge section

Always follow the best-before date stated on the packaging.

6 Saving energy

• Pay attention to good ventilation. Do not cover ventilation holes or grids.
• Always keep the fan air slits clear.
• Do not place the appliance in direct sunlight or near radiators or similar sources of heat.
• If the appliance is placed directly next to an oven, the energy consumption may increase slightly. This is dependent on the service life and usage intensity of the oven.
• Energy consumption depends on the installation conditions, e.g. the ambient temperature (see 2.4 Appliance range of use). A warmer ambient temperature can increase the energy consumption.
• Open the appliance for as short a time as possible.
• The lower the temperature is set the higher the energy consumption.
• Sort your food: home.liebherr.com/food.
• Keep all food properly packed and covered. This prevents frost from forming.
• Only take food out for as long as necessary so that it doesn't warm up too much.
• Inserting warm food: allow to cool down to room temperature first.
• For longer periods of absence, use HolidayMode (see HolidayMode).

7 Controls

7.1 Controls and displays

7.1.1 Status display

Fig. 6
(1) Temperature display of the fridge section
The Status display shows the set temperature and is the home display. From there, you can navigate to the options and settings.

7.1.2 Display symbols

Display symbols provide information on the current appliance status:

Symbol	Appliance status
	StandbyThe appliance or temperature zone is switched off.
	Flashing numberAppliance is working. Temperature flashes until the set value is reached.
	Flashing symbolAppliance is working. Setting is made.
	Bar grows steadilyFunction is activated.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your appliance is fully functional.

Before you alter, activate or deactivate the device functions, make sure that the following requirements are met:

☐ You have read and understood the descriptions of how the display works. (see 3 Functionality of the Touch display)
☐ You have familiarised yourself with the operating and display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously saved settings are saved.

Make sure that the following requirements are fulfilled:

☐ Handling instructions (see 11 Shutting down) are carried out.

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 7

Fig. 8

▶ Carry out action steps according to the illustration.
▶ Appliance is switched off.
The standby symbol appears in the display.
▶ Display turns black.

Switching on the appliance

If the display is in sleep mode:

▶ Press any navigation key.

Fig. 9 Example illustration

▶ Carry out action steps according to the illustration. When the appliance starts in demo mode:

▶ Deactivating demo mode. (see Deactivating demo mode)

▶ The appliance is switched on.

▶ Previous settings are restored.

The appliance cools to the target temperature set.

WiFi

Use this function to connect your appliance to WiFi. You can then operate it via the SmartDevice app on a mobile device. You can also use this function to disconnect or reset the WiFi connection.

To connect your device to WiFi, you need the SmartDeviceBox.

More information on the SmartDevice: (see 2.3 SmartDevice)

Note

The SmartDevice function is not available in the following countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

☐ You have purchased and inserted a SmartDeviceBox. (see 2.3 SmartDevice)
☐ You have installed the SmartDevice app (see apps.home.liebherr.com).
☐ Registration in the SmartDevice app is completed.

Simple line drawing of a document icon with a gear symbol (no text or labels)

Fig. 10

Fig. 11
Carry out action steps according to the illustration.
▶ Connection is established.

Disconnecting from the WiFi

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 12

Fig. 13
▶ Carry out action steps according to the illustration.
There is no connection.

Resetting the WiFi connection

Simple line drawing of a document with a gear symbol (no text or labels)

Fig. 14

Fig. 15
▶ Carry out action steps according to the illustration.
▶ WiFi connection and other WiFi settings are reset to factory settings.

Showing information about the WiFi connection

Simple line drawing of a document with a gear symbol (no text or labels)

Fig. 16

Fig. 17
▶ Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

• Frequency of door opening
• Duration of door opening
• Room temperature of the installation site
• Type, temperature and quantity of food

Temperature zone	Factory-set temperature	Recommended setting
5 °C Fridge section	5 °C 4 °C

Setting the temperature

Fig. 18 Example illustration
▶ Carry out action steps according to the illustration.
▶ Temperature is set.

Temperature unit

Use this function to set the temperature unit. You can set degrees Celsius or degrees Fahrenheit as the temperature unit.

Setting the temperature unit

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 19

Fig. 20 Example illustration: Switch from degrees Celsius to degrees Fahrenheit.

▶ Carry out action steps according to the illustration.
▶ The temperature unit is set.

SuperCool

You can use this function to activate or deactivate SuperCool. If SuperCool is activated, then the appliance increases the cooling capacity. It allows you to achieve lower cooling temperatures. You can activate SuperCool when you would like to cool a large quantity of food quickly.

If the function is active, the appliance operates at higher power. As a result, the appliance's operating noise may be temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

- When you would like to store fresh food in the fridge section: Activate the function when inserting food.

Fig. 21

Fig. 22

▶ Carry out action steps according to the illustration.
▶ SuperCool is activated.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours. However, you can also deactivate SuperCool manually at any time:

Fig. 23

Fig. 24

▶ Carry out action steps according to the illustration.
▶ SuperCool is deactivated.
The appliance continues to run in normal mode.
The appliance cools to the temperature set previously.

PowerCool

You can use this function to activate or deactivate PowerCool. PowerCool ensures optimised temperature layers for cooling your food.

The function applies to the fridge section.

Application:

• At higher room temperatures (as of approx. 35 °C)
• At high humidity, e.g. on summer days
• When storing moist food, in order to prevent condensate forming in the interior

Note

The fan may also run even if the function is deactivated. It therefore ensures even temperature distribution in the appliance.

If the function is active, the device operates at higher power. As a result, the device's operating noise may be temporarily louder and energy consumption will increase.

Activating PowerCool

Fig. 25

Fig. 26

▶ Carry out action steps according to the illustration.
▶ PowerCool is activated.

Deactivating PowerCool

Fig. 27

Fig. 28
▶ Carry out action steps according to the illustration.
▶ PowerCool is deactivated.

HolidayMode

You can use this function to activate or deactivate Holiday-Mode. If you activate HolidayMode, the fridge section is set to 15 °C. This saves you energy during longer periods of absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15 °C.

EasyFresh cools to 15 °C.

SuperCool is deactivated.

PowerCool is deactivated.

Activating HolidayMode

▶ Empty the fridge section completely.
▶ Empty EasyFresh completely.

Fig. 29

Fig. 30

▶ Carry out action steps according to the illustration.
▶ HolidayMode is activated.
▶ Temperature display shows HolidayMode symbol.

Deactivating HolidayMode

Fig. 31

Fig. 32

▶ Carry out action steps according to the illustration.
▶ HolidayMode is deactivated.
The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate SabbathMode. If you activate this function, some electronic functions are switched off. As a result, your device meets the religious requirements for Jewish holidays such as Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Reminders are not implemented. The set time interval stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The defrosting cycle operates only for the specified time, without considering the appliance consumption.

After a power failure, the appliance returns to SabbathMode.

Device status

Note

This appliance has certification from the “Institute for Science and Halacha”. (www.machonhalacha.co.il)

You can find a list of STAR-K-certified appliances at www.star-k.org/appliances.

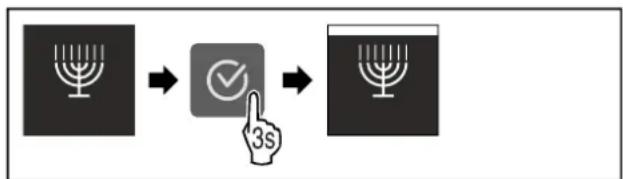

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food!

If you have SabbathMode activated and a power failure occurs, no message appears in the status display about the power failure. Once the power is restored, the appliance continues to operate in SabbathMode. The power failure may mean that food spoils and the consumption of this food could lead to food poisoning.

After a power failure:

▶ Do not consume food that was frozen and has thawed out.

Simple line drawing of a document with a gear symbol, no text or labels present

Fig. 33

Fig. 34

▶ Carry out action steps according to the illustration.
▶ SabbathMode is activated.
The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after 80 hours. However, you can also deactivate SabbathMode manually at any time:

Fig. 35

▶ Carry out action steps according to the illustration.
▶ SabbathMode is deactivated.

E-Saver

You can use this function to activate or deactivate Energy saving mode. If energy saving mode is activated, the energy consumption decreases and the temperature in the device increases. The food remains fresh, but the shelf life is shortened.

Temperature zone	Recommended setting(see Setting the temperature)	Temperature with active E-Saver
5 °Fridge section	4 °C 7 °C

Temperatures

Activating E-Saver

Fig. 36

Fig. 37

▶ Carry out action steps according to the illustration.
▶ Energy saving mode is activated.

Deactivating E-Saver

Fig. 38

Fig. 39

▶ Carry out action steps according to the illustration.
▶ Energy saving mode is deactivated.

CleaningMode

You can use this function to activate or deactivate CleaningMode. CleaningMode enables the appliance to be cleaned conveniently.

This setting applies to the fridge section.

Application:

- Clean the fridge section. (see 9.7 Cleaning the appliance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal tone sounds.

Device status

Activating CleaningMode

Fig. 40

Fig. 41

Carry out action steps according to the illustration.

▶ CleaningMode is activated.

The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after 60 minutes. However, you can also deactivate Cleaning-Mode manually at any time:

Fig. 42

▶ Carry out action steps according to the illustration.

▶ CleaningMode is deactivated.

The appliance cools to the temperature set previously.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

- 40%

- 60%

- 80%

- 100 % (pre-setting)

Setting the brightness

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 43

Fig. 44 Example illustration: Switch from 80 % to 60 %.
▶ Carry out action steps according to the illustration.
The brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm. The door alarm sounds if the door is open for too long. The door alarm is activated on delivery. You can set how long the door may be open before the door alarm sounds.

The following values can be set:

• 1 minute
• 2 minutes
• 3 minutes
• Off

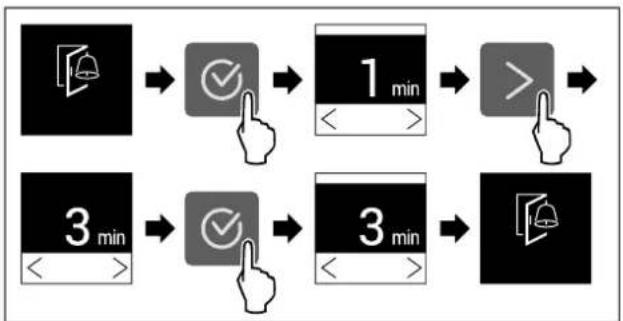

Setting the door alarm

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 45

Fig. 46 Example illustration: Change door alarm from 1 minute to 3 minutes.
▶ Carry out action steps according to the illustration.
The door alarm is set.

Deactivating the door alarm

Simple line drawing of a document with a gear symbol, no text or labels present

Fig. 48

Fig. 49
▶ Carry out action steps according to the illustration.
▶ The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input lock. The input lock prevents the appliance being operated accidentally, e.g. by children.

Application:

• Avoid unintentional modification of functions.
• Avoid unintentional switching off of the device.
• Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate in the menus but you cannot select or change other functions.

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 50

Fig. 51

▶ Carry out action steps according to the illustration.

▶ Input lock is activated.

Deactivating the input lock

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 52

Fig. 53

▶ Carry out action steps according to the illustration.

▶ Input lock is deactivated.

Device information

Use this function to indicate the model name, index, serial number and service number of your device. You will need the device information when you contact customer service. (see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Functionality of the Touch display)

Indicating the device information

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 54

▶ Carry out action steps according to the illustration.
▶ Display indicates device information.

Software

Use this function to indicate the software version of your device.

Indicating the software version

Simple line drawing of a document icon with no text or symbols

Fig. 56

Fig. 57

▶ Carry out action steps according to the illustration.
▶ Display indicates software version.

Reminder

Use this function to activate or deactivate the reminders. The function is activated on delivery.

If the function is activated, the following reminders will appear:

- Replace the FreshAir activated carbon filter (see Replace the FreshAir activated carbon filter)

Activating the reminder

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 58

Fig. 59

▶ Carry out action steps according to the illustration.
▶ Reminder is activated.

Deactivating the reminder

Simple line drawing of a document with a gear icon, no text or symbols present

Fig. 60

Fig. 61

▶ Carry out action steps according to the illustration.
▶ Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to demonstrate appliance features. If you activate demo mode, all refrigeration functions are deactivated.

If you switch on your appliance and "Demo" appears in the status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appliance will be reset to factory defaults. (see Resetting to factory settings)

Activating demo mode

Simple line drawing of a document with a gear icon, no text or symbols present

Fig. 62

Fig. 63
Carry out action steps according to the illustration.
▶ Demo mode is activated.
▶ Appliance is switched off.
▶ Switch on the appliance. (see 4.1 Switching on appliance (first use))
▶ “DEMO” appears in the status display.

Deactivating demo mode

Simple line drawing of a document with a gear symbol, no text or labels present

Fig. 64

Fig. 65

▶ Carry out action steps according to the illustration.

▶ Demo mode is deactivated.

▶ Appliance is switched off.

▶ Switch on the appliance. (see 4.1 Switching on appliance [first use])

▶ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults. All settings you have made so far are reset to their original settings.

Performing a reset

Simple line drawing of a document with a gear symbol (no text or labels)

Fig. 66

Fig. 67

▶ Carry out action steps according to the illustration.

▶ Device is reset.

▶ Device is switched off.

▶ Restart the device. (see 4.1 Switching on appliance (first use))

7.3 Messages

There are two categories of messages:

Category	Importance
Warning W	Warnings appear in the event of a door alarm or malfunction.Simple warnings can be cancelled by yourself.In the event of serious malfunctions, you must contact customer service. (see 10.4 Customer Service)
Reminder	Reminders remind you of general processes.You can carry out these operations to end the message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

- Warning appears on the display.

- The alarm tone sounds at an ever-increasing volume.

- The interior lighting pulsates for some warnings.

Message	Cause Exit the message
Door alarm	The message appears if the door is open for too long.	Carry out action steps. (see Door alarm)
Message Cause Exit the message
Error	The message appears if there is an appliance error. A component of the appli-ance has a fault.	Carry out action steps. (see Error)

7.3.2 Ending warnings

Door alarm

Fig. 68 Example illustration

▶ Carry out action steps according to the illustration.
-or- ▶ Close the door.
The display returns to the status indicator.

You can set how long the door may be open before the door alarm sounds. (see Setting the door alarm)

Error

Fig. 69 Example illustration

▶ Press the confirmation symbol.

▶ Error code is displayed.

▶ Note the error code.

▶ Press the confirmation symbol.

The display returns to the status indicator.

▶ Contact Customer Service. (see 10.4 Customer Service)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

- Reminder appears on the display.

- Alarm tone sounds.

- The interior lighting pulsates for some reminders.

The following reminders can be deactivated (see Deactivating the reminder):
- Replace the FreshAir activated carbon filter

Message	Cause Exit the message
[IMAGE]Replace the FreshAir activated carbon filter	The message appears when the FreshAir activated carbon filter needs to be replaced.	Carry out action steps. (see Replace the FreshAir activated carbon filter)

7.3.4 Ending reminders

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated carbon filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.

Fig. 70 Example illustration

▶ Press the confirmation symbol.

▶ Replace the activated carbon filter. (see 9.1 FreshAir carbon filter)

▶ Activated carbon filter ensures optimum air quality in the cooling unit.

▶ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deactivate it. (see Deactivating the reminder)

8 Features

8.1 Door rack

Door racks are suitable for storing drinks and food. You can move door racks for your own individual use and take them apart for cleaning. However, Liebherr recommends using the door racks in the position in the door as delivered from the factory.

Technical line drawing of a mechanical bracket or support structure with no visible text or symbols

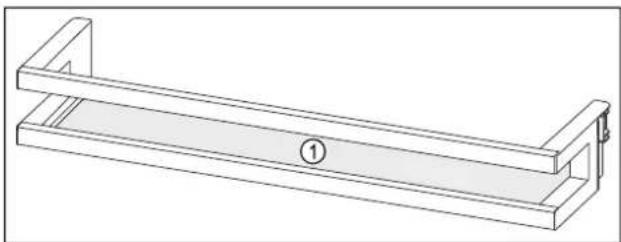

Fig. 71 Example illustration, Door rack

(1) Shelf

Technical line drawing of a mechanical assembly with two numbered components (① and ②), no text or symbols present.

Fig. 72 Example illustration, Door rack with bottle holder (1) Shelf (2) Bottle holder

The following table shows examples of what can be stored in each door rack. Do not exceed the maximum loading weight of the door.

Door rack	Food
Door rack (see Fig. 71) Butter, cheese, tinned food, tubes
Door rack Food
Door rack with bottle holder (see Fig. 72)	BottlesThe sliding bottle holder secures the bottles in the door rack.

8.1.1 Removing the door rack

Diagram of a mechanical assembly with two arrows indicating direction, no text or symbols present

Fig. 73 Example illustration

▶ Push the door rack upwards.
▶ Pull the door rack forward.

8.1.2 Inserting the door rack

Technical line drawing of a structural frame with two downward arrows indicating internal components (no text or symbols)

Fig. 74 Example illustration

▶ Slide in the door rack.
▶ Press the door rack down.

8.2 Shelves

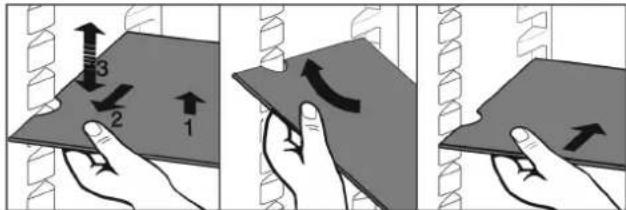

8.2.1 Adjusting/removing the shelves

The shelves are prevented from being pulled out accidentally by pull out stops.

Fig. 75

▶ Lift the shelf and pull forward.
▶ Line up the side runner.
▶ Adjust the height of the shelf: Lift or lower it to the desired height and slide it in.

-or-

Fig. 76

Remove the shelf completely: Pull it out to the front.
▶ Easier removal: Set the shelf at an angle.
▶ Insert the shelf again: Slide it in all the way.
The pull-out stoppers point downwards.
The pull-out stoppers are behind the front support.

You can also remove the shelf above the EasyFresh compartments.

Two-panel diagram showing a gray panel with arrows indicating upward and downward motion, no text or symbols present.

Fig. 77

Removing the shelf:

▶ Lift the shelf at the front and back.

▶ Pull it out towards you.

Do not store any goods on the compartment cover below! Inserting the shelf:

▶ Place the shelf at an angle, sloping down towards the back.
The pull-out stoppers point downwards.
▶ Slide the shelf into place.

8.3 Dividing shelf

8.3.1 Using the dividing shelf

The shelves are prevented from being pulled out accidentally by pull out stops.

Diagram showing a hand interacting with a wall-mounted panel or fixture, no text or symbols present

Fig. 78

▶ Push the dividing shelf underneath as shown.

Fig. 79

Adjusting the height:

Features

▶ Pull the glass panels out Fig. 79 (1) from the front, one at a time.
▶ Release the support rails and click in at the height you want.
▶ Slide in the glass panels one at a time.
▶ Flat pull-out stoppers at the front, right behind the support rails.
▶ High pull-out stoppers at the back.

Using both shelves:

▶ Hold the glass panel with one hand and pull it to the front.
The glass panel Fig. 79 (1) and trim strip are at the front.
The stops Fig. 79 (3) point down.

8.4 VarioSafe

The VarioSafe offers space in the refrigerator compartment for small groceries, packages, tubes and jars, for example.

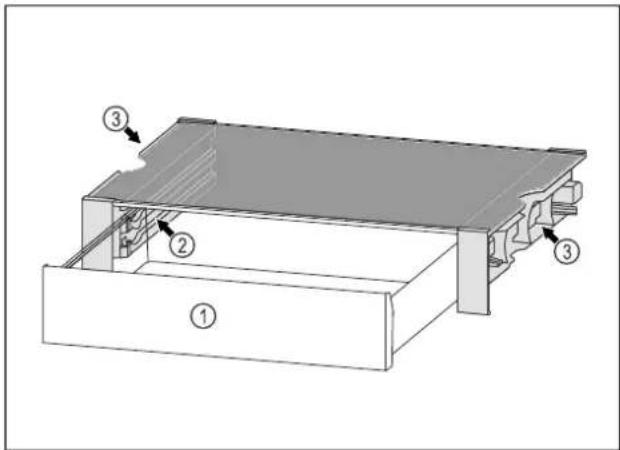

Fig. 80

(1) VarioSafe drawer (3) Recesses on the left and right side panel

(2) Side panels with ribs for VarioSafe drawer

8.4.1 Inserting the VarioSafe

Fig. 81
▶ Insert the VarioSafe into the fridge section at an angle Fig. 81 (1) until the recesses in the side Fig. 81 (2) of the VarioSafe are at the level of the support rib in the fridge section.

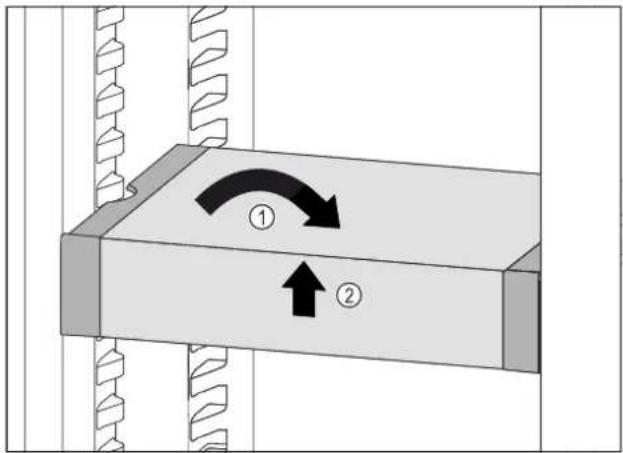

Fig. 82

▶ Set VarioSafe straight. Fig. 82 (1)

▶ Lift VarioSafe at the front. Fig. 82 (2)

Diagram of a mechanical assembly with a central block and two side grooves, featuring an upward-pointing arrow (no text or symbols present)

Fig. 83

▶ Lift VarioSafe up toward the front.

▶ Push VarioSafe in to the rear.

▶ Lower VarioSafe.

▶ VarioSafe audibly engages.

▶ VarioSafe is inserted.

8.4.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator compartment.

Diagram of a mechanical assembly with a highlighted component and an upward arrow (no text or symbols)

Fig. 84
▶ Lift VarioSafe at the front.

Fig. 85

▶ Pull VarioSafe forwards until the recesses in the side of the VarioSafe are at the level of the support rib in the refrigerator compartment. Fig. 85 (1)
▶ Move VarioSafe up or down in the refrigerator compartment until the desired height is reached. Fig. 85 (2)

Diagram of a mechanical assembly with a central block and two side teeth, showing an upward-pointing arrow (no text or symbols present)

Fig. 86

▶ Lift VarioSafe at the front.

▶ Push VarioSafe in to the rear.

▶ VarioSafe audibly engages.

▶ VarioSafe is offset in height.

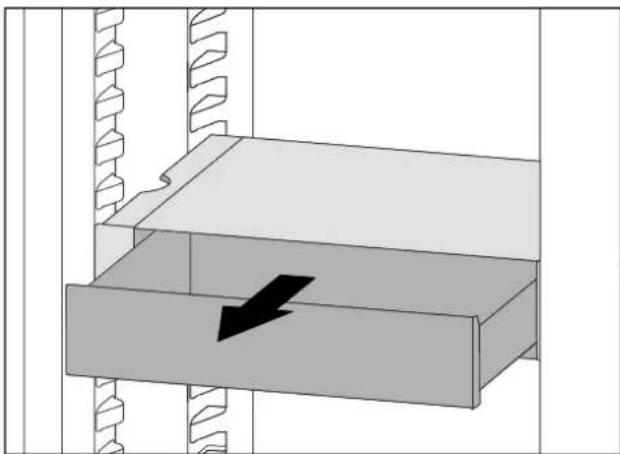

8.4.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights. If you would like to store taller foodstuffs in the VarioSafe drawer, slide the VarioSafe drawer in on the bottom rib. If you would like to store smaller foodstuffs in the VarioSafe drawer, slide the VarioSafe drawer in on the top rib.

Diagram of a mechanical assembly with a downward arrow indicating force or direction (no text or symbols present)

Fig. 87

▶ Pull out the VarioSafe drawer as far as it will go.

▶ Lift the VarioSafe drawer up at the front.

▶ Remove the VarioSafe drawer to the front.

Fig. 88

▶ Lift the VarioSafe drawer up at the front.

▶ Place the VarioSafe drawer behind the stoppers on desired rib Fig. 88 (1) or Fig. 88 (2).

▶ VarioSafe drawer is offset in height.

8.4.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Diagram of a mechanical assembly with a highlighted component and an upward arrow (no text or symbols)

Fig. 89
▶ Lift VarioSafe at the front.

Fig. 90
▶ Pull VarioSafe forwards Fig. 90 (1) until the recesses in the side of the VarioSafe are at the level of the support rib in the fridge section. Fig. 90 (2)

Fig. 91

▶ Set VarioSafe in refrigerator compartment at an angle. Fig. 91 (1)

▶ Take VarioSafe out to the front. Fig. 91 (2)

▶ VarioSafe is removed.

8.4.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if you want to clean the VarioSafe or if you need to install or remove parts.

Fig. 92

▶ Remove VarioSafe as a whole. (see 8.4.4 Removing the VarioSafe)

▶ Disassemble VarioSafe according to the illustration.

8.5 Drawers

You can remove the drawers for cleaning.

The way to remove/insert the drawers varies depending on the pull-out system. Your appliance can contain various pull-out systems.

Note

The energy consumption increases and the cooling power goes down if ventilation is not sufficient.

▶ Always keep the inside vents at the rear wall clear.

8.5.1 Drawer on rails

Removing drawer

Simple 3D diagram of a rectangular block with an arrow indicating direction, no text or symbols present

Fig. 93
▶ Remove drawer as shown in the illustration.

Inserting drawer

Pure diagram of a 3D object with an arrow symbol, no text or labels present

Fig. 94
▶ Insert drawer as shown in the illustration.

8.6 Compartment lid for EasyFresh Safe

The compartment lid ensures constant levels of humidity. The compartment lid is directly on the drawer and can be covered by shelves or additional drawers.

Fig. 95 Example illustration, compartment lid for EasyFresh Safe

(1) EasyFresh Safe (3) Shelf

(2) Compartment lid for EasyFresh Safe

8.6.1 Reducing the air humidity in the drawer

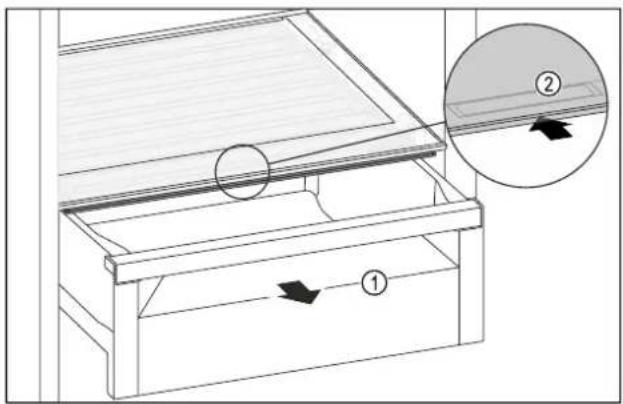

Fig. 96

▶ Pull out the drawer Fig. 96 (1).
▶ Grasp the recessed grip Fig. 96 (2) on the compartment lid and pull the compartment lid forwards at the same time.
When the drawer is closed, there is a small gap between the compartment lid and the drawer.

8.6.2 Increasing the air humidity in the drawer

Fig. 97

▶ Pull out the drawer Fig. 97 (1).

▶ Grasp the recessed grip Fig. 97 (2) on the compartment lid and push the compartment lid backwards at the same time.

When the drawer is closed, the compartment lid seals with the drawer.

8.7 Bottle holder

8.7.1 Using the bottle holder

Technical line drawing of a mechanical assembly with two arrows indicating movement or force direction (no text or symbols)

Fig. 98

▶ Push the bottle holder onto the bottles.

The bottles are prevented from falling over.

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the fan.

It guarantees the best air quality.

☐ Replace the carbon filter every 6 months. When the reminder is set, a message on the display prompts you to change it.
☐ The carbon filter can be disposed of with the regular household waste.

Note

FreshAir activated charcoal filters can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.

9.1.1 Removing the FreshAir carbon filter

Fig. 99

▶ Pull out the compartment Fig. 99 (1).

▶ Remove the carbon filter Fig. 99 (2).

9.1.2 Inserting the FreshAir carbon filter

Fig. 100

▶ Insert the carbon filter as shown in the diagram Fig. 100 (1).

The carbon filter clicks into place. If the carbon filter is pointing downwards:

▶ Push the compartment in Fig. 100 (2).

The carbon filter is now ready for use.

9.2 Removing the bottle holder

Technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Fig. 101

▶ Slide the bottle holder to the side as far as the recess.
▶ Remove the bottle holder forwards.

9.3 Inserting the bottle holder

3D technical line drawing of a mechanical component with arrows indicating direction (no text or symbols)

Fig. 102

▶ Insert the bottle holder in the recess.

▶ Push the bottle holder to the desired position to the side.

9.4 Disassembling / assembling pull-out systems

9.4.1 Notes on disassembly

You can disassemble some of the pull-out systems for cleaning. Your appliance can contain a variety of pull-out systems.

The following pull-out systems can be disassembled or cannot be disassembled:

Pull-out system	can be disassembled / cannot be disassembled
Drawer on rails	cannot be disassembled

9.5 Compartment lid for EasyFresh Safe

You can remove the compartment lid for cleaning.

9.5.1 Removing the compartment lid

Ensure that the following requirements are met:

☐ The shelf directly above the drawer has been removed. (see 8.2 Shelves)
☐ The drawer directly below the compartment lid has been removed. (see 8.5 Drawers)

Technical line drawing of a mechanical assembly with directional arrows indicating flow or movement (no text or symbols present)

Fig. 103

▶ Push the compartment lid backwards.

▶ Lift the compartment lid forwards.

▶ Remove the compartment lid forwards and upwards at an angle.

9.5.2 Inserting the compartment lid

Fig. 104

If the THIS SIDE UP lettering is at the top:

▶ Insert the rear retaining parts into the relevant rear openings.

▶ Push the compartment lid backwards.

▶ Lower the compartment lid forwards and engage the front retaining parts into the openings.

▶ Move the compartment lid into the required position.

9.6 Defrosting the appliance

WARNING

Improper defrosting of the appliance! Injuries and damage.

Do not use mechanical equipment or other methods to speed up the defrosting process other than those recommended by the manufacturer.
▶ Do not use electrical heating or steam-cleaning appliances, naked flames or defroster sprays to defrost.
▶ Do not use sharp objects to remove ice.

Defrosting is performed automatically. The water from the thawing process drains through the outlet and evaporates.

Water drops or a thin layer of frost or ice can form on the back wall; this is a completely normal part of the appliance's function. This must not be removed.

A layer of frost or ice can from briefly due to the energy-optimised control of the device.

▶ Clean the drain opening at regular intervals. (see 9.7 Cleaning the appliance)

9.7 Cleaning the appliance

9.7.1 Ready

WARNING

Danger of electric shock!

▶ Remove the refrigerator connector or interrupt the power supply.

WARNING

Risk of fire

▶ Do not damage the refrigeration circuit.

▶ Empty the appliance.

▶ Remove mains connector.

-or-

▶ Activate CleaningMode. (see CleaningMode)

9.7.2 Clean the housing

NOTICE

Improper cleaning!

Damage to the appliance.

▶ Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
▶ Do not uses abrasive sponges or steel wool which may cause scratches.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

WARNING

Risk of injury and damage as a result of hot steam! Hot steam can lead to burns and can damage the surfaces.

▶ Do not use any steam cleaners!

▶ Wipe the housing down with soft, clean cloth. If very dirty, use lukewarm water with a neutral cleaner. Glass surfaces can also be cleaned with glass cleaner.

9.7.3 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

▶ Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
▶ Do not uses abrasive sponges or steel wool which may cause scratches.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

▶ Plastic surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
▶ Metal surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.
▶ Drain hole: remove deposits using a thin item (for example a cotton bud).

9.7.4 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

▶ Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
▶ Do not uses abrasive sponges or steel wool which may cause scratches.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some detergent:

• Door rack
• Shelf
• Dividing shelf
• VarioSafe
• Compartment lid for EasyFresh Safe
• Drawer

Wash in the dishwasher up to 60 °C:

• Bottle rack
• Holder of the dividing shelf

▶ To disassemble components: see the relevant section.

▶ Clean the components.

9.7.5 After cleaning

▶ Wipe the appliance and the components dry.
▶ Connect and switch on the appliance.
The temperature is cold enough:
▶ Place the food inside.
▶ Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range
Cooling 2 °C	to 9 °C

10.2 Operating noises

The appliance makes different noises when it is on.

• At higher temperatures the appliance uses less energy but works for longer. It is quieter.
• At lower temperatures the food is cooled faster. It is louder.

Examples:

• Functions on (see 7.2 Appliance functions)
• Fan running
• Food recently added
  • High ambient temperature
• Door open for a while

Noise	Possible cause Type	of noise
Bubbling and splashing	Coolant flowing into the cooling circuit.	Normal operating noise
Hissing Coolant	sprays into the cooling circuit.	Normal operating noise
Noise Possible cause	Type of noise
Humming The	appliance is cooling. The volume depends on the cooling output.	Normal operating noise
Suction noises Soft	-closing door is being opened and closed.	Normal operating noise
Humming and rustling	The fan is running.	Normal operating noise
Clicking Components	are switched on and off.	Normal switching noise
Rattling or humming	Valves or flaps are working.	Normal switching noise

Noise Possible cause	Type of noise Lifting
Vibration Improper setup	Defective noise	Level the appliance using the adjustable feet.

Noise Possible cause	Type of noise Lifting
Rattling Components, items inside the appliance	Defective noise	Secure components.Leave enough space between the items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reliably and has a long service life. In the unlikely event that a fault occurs during operation, please check whether it is due to an operating error. If so, you will be charged for the callout and repair costs even if it falls within the warranty period.

You can fix the following faults yourself.

10.3.1 Appliance function

Defect	Cause Remedy
The appliance is not working.	→ The appliance is not switched on.	► Switch the appliance on.
	→ The power plug is not properly plugged into the socket.	► Check the power plug.
	→ There is something wrong with the power outlet fuse.	► Check the fuse.
	→ Power cut	► Keep the appliance closed.
	→ The IEC socket is not plugged into the appliance correctly.	► Check the IEC socket.
Temperature is not cold enough.	→ The appliance door is not closed properly.	► Close the appliance door.
	→ The ambient temperature is too high.	► Problem solution: (see 2.4 Appliance range of use)
	→ The appliance was opened too many times or for too long.	► Wait to see if the required temperature corrects itself. If not, contact Customer Service. (see 10.4 Customer Service)
	→ The temperature is set incorrectly.	► Turn down the temperature and check after 24 hours.
	→ The appliance is too close to a heat source (oven, radiator, etc).	► Move the appliance or the heat source.
The door seal is defective or needs to be replaced for another reason.	→ The door seal can be replaced. It can be replaced without the need for special tools.	► Contact Customer Service. (see 10.4 Customer Service)
The appliance builds up too much ice or condensation.	→ The door seal may have slipped out of its groove.	► Check that the door seal is well fitted in the groove.
The exterior surfaces of the	→ The heat of the refrigeration circuit is used to avoid condensation.	► This is normal.
Defect Cause Remedy
appliance are warm.*

10.3.2 Features

Defect Cause Remedy
The internal light does not come on.	→ The appliance is not switched on. ▶	Switch the appliance on.
	→ The door was open for longer than 15 minutes.	▶ Interior lighting switches off automatically after about 15 minutes when the door is open.
	→ The LED interior light is faulty or the lid is damaged.	▶ Contact Customer Service. (see 10.4 Customer Service)

10.4 Customer Service

First check whether you can rectify the fault yourself (see 10 Customer help). If you cannot rectify the problem, contact Customer Service.

You can find the address at home.liebherr.com/service.

WARNING

Unprofessional repair! Injuries.

▶ Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see 9 Maintenance)
A damaged mains cable may only be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person.
In the case of appliances with an IEC connector, the change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is available:

□ Appliance name (model and index)
□ Service no. (Service)
Serial no. (S no.)
▶ Call up the appliance information via the display. (see Device information)
▶ Refer to the type plate for appliance information. (see 10.5 Model plate)
▶ Note down the appliance information.
▶ Notify customer service: Report errors and the appliance information.
This will help us to provide you with a faster, more accurate service.
▶ Follow further instructions from Customer Service.

-or-

10.5 Model plate

The model plate is behind the drawers on the inside of the appliance.

Fig. 105

(1) Appliance description (3) Serial no.

(2) Service no.

▶ Note the data on the model plate.

11 Shutting down

▶ Empty the appliance.
▶ Switch off appliance. (see Switching the appliance off and on)
▶ Pull the mains plug out of the socket.
Remove the IEC socket if required: Pull the IEC socket out of the appliance plug and move it to the left and right at the same time.
▶ Clean appliance. (see 9.7 Cleaning the appliance)
Leave the door open, so that no unpleasant odours arise.

12 Disposal

12.1 Preparing appliance for disposal

Li-Ion

Liebherr uses batteries in some of its appliances. In the EU, for environmental reasons, legislation obliges the end user to remove these batteries before disposing of old appliances. If your appliance contains batteries, a corresponding notice is attached.

Lamps If you can remove the lamps yourself without destroying them, also remove these before disposal.

▶ Take the appliance out of operation.
▶ If possible: remove lamps without destroying them.

12.2 Disposing of the appliance in an environmentally friendly manner

The appliance still contains valuable materials and must be disposed of separately from unsorted municipal waste.

Dispose of batteries separately from the old appliance. To do this, you can return the batteries free of charge to retailers as well as recycling centres and collection centres for recyclable materials.

Lamps Dispose

of removed lamps

via the respective collection systems.

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly, but also flammable. The oil contained in the appliance is flammable. Escaping coolant and oil can ignite if the concentration is high enough and in contact with an external heat source.

▶ Do not damage the pipelines of the coolant circuit and the compressor.
▶ Observe the notes on transporting the appliance.
▶ Transport the appliance without damaging it.
▶ Dispose of batteries, lamps and the appliance according to the above specifications.

home.liebherr.com/fridge-manuals

fridge

Issue date: 20260218

Part number index: 7086375-00
