GSP12-6ES - Dishwasher PKM - Free user manual and instructions

Product Type	Free-standing Dishwasher
Brand	PKM
Model	GSP12-6ES
Dimensions (H x W x D)	84.5 x 59.8 x 60.0 cm
Net Weight	40.0 kg
Gross Weight	43.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1760-2100 W
Capacity	12 place settings
Energy Efficiency Class	E
Noise Level	52 dB(A) - Class D
Programmes	Intensive, Eco, 90 min, Rapid
Additional Functions	Delay start (3/6/9 h), Half Load, Child Lock
Interior Material	Stainless steel + plastic
Heating Element	Hidden
Water Softener	Yes, adjustable (H1-H6)
Rinse Aid Adjustment	Yes, 6 levels
Filter System	3-stage: main, coarse, fine filter
Spray Arms	2 (upper and lower)
Cutlery Basket	1
Foldable Cup Shelves	Yes
Adjustable Feet	2
Overflow Protection	Yes
Condensation Strip	Included

Frequently Asked Questions - GSP12-6ES PKM

How do I install the dishwasher?

Installation must be done by a qualified professional. Unpack the appliance, remove transport protections, install the condensation strip under the worktop, connect the cold water supply hose (0.04-1 MPa pressure), connect the drain hose (max height 1000 mm, min 400 mm for raised installation), and connect to a properly grounded 250V/10A socket. Check for leaks before first use.

What should I do before first use?

Ensure the appliance is level, all connections are tight, and the water tap is open. Set the water softener consumption according to your local water hardness (see manual). Fill the water softener container with 1.5 kg of dishwasher salt after adding 500 ml water. Fill the rinse aid container (max 140 ml). Load detergent into the main wash compartment. Run the 'Rapid' programme immediately after filling salt to avoid corrosion.

How do I set the water softener level?

Switch on the appliance. Within 60 seconds, press and hold the 'Programme' button for 5 seconds to enter setting mode. Press 'Programme' repeatedly to cycle through levels H1 to H6, where H1 is off and H6 adds salt every cycle. The LEDs indicate the current level. Press 'On/Off' to save and exit.

Why is the rinse aid indicator on?

The rinse aid container is low. Refill with dishwasher rinse aid (not other chemicals) by turning the lid anticlockwise, pouring in up to 140 ml, and closing tightly. Adjust the consumption level (1 to 6) by turning the rotary knob inside the container; level 4 is default. If you see white stripes, decrease the level; if spots appear, increase it.

Which detergent should I use?

Use only detergents specifically designed for dishwashers (powder, gel, or tabs). For normal soil, use about 1 tablespoon of powder or one tab. For heavily soiled loads, add extra detergent to the pre-wash compartment if using a programme with pre-wash. Avoid using hand dish soap as it creates foam. Check the manufacturer's dosage instructions.

How do I start a cleaning programme?

Load the dishes, add detergent, close the door, and open the water tap. Press 'On/Off' to turn on the appliance. Press 'Programme' repeatedly to select your desired programme (Intensive, Eco, 90 min, or Rapid). Optional: press 'Delay' for delayed start (3/6/9 h), or 'Half Load' for smaller loads. Press 'Start/Pause' to begin. The programme starts after about 10 seconds.

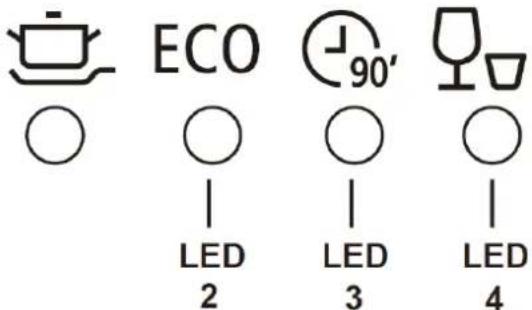

What do the error codes mean?

Error codes are shown by LED 1-4 flickering. If LED 4 flickers: long water inlet (check tap, pressure). If LED 4 and 3 flicker: temperature issue (heating element malfunction). If LED 2 flickers: overflow/leak (turn off water, call service). If LED 1,2,4 flicker: communication error (short circuit). In case of overflow, close main water valve before calling for service.

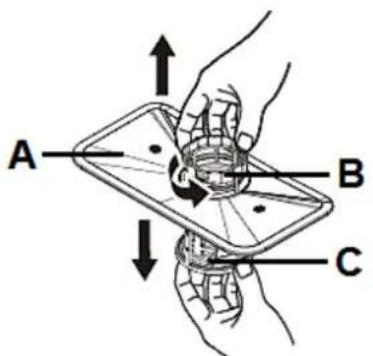

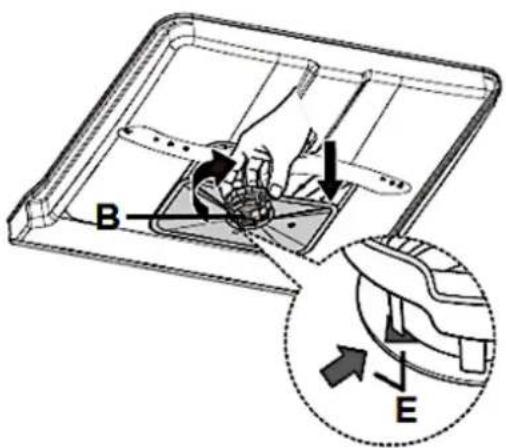

How do I clean the filter system?

Turn the coarse filter anticlockwise and lift the entire filter system out. Separate the fine filter by pulling it downward, then press the upper pins on the coarse filter to remove it from the main filter. Clean all components with warm water and a soft brush. Reassemble in reverse order and turn the coarse filter clockwise to lock. Never operate without filters installed. Clean once a week.

How do I clean the spray arms?

To remove the upper spray arm, hold the nut in the middle of the upper rack and unscrew the arm. For the lower arm, simply pull it upward. Clean the arms with warm soapy water and use a soft brush to clear the nozzles. Rinse thoroughly and reinstall, ensuring they rotate freely. Clean regularly to prevent clogging.

What should I do if the dishes are not drying properly?

Check if you have enough rinse aid and adjust the consumption level if needed. Ensure the dishes are placed correctly (not touching each other) and that the spray arms can rotate. Use a program with drying (e.g., Eco). Wait at least 15 minutes after the cycle ends before unloading. If problems persist, check that the water softener is set correctly for your water hardness.

USER MANUAL GSP12-6ES PKM

Front view of a white stainless steel kitchen appliance with control buttons (no visible text or symbols)

Simple line drawing of a cabinet with an elevator and directional arrow (no text or symbols)

KONDENSWASSER-SCHUTZSTREIFEN

Line drawing of a faucet with a valve and handle (no text or symbols)

Technical diagram showing a screwdriver inserted into a threaded component, with no visible text or symbols.

Diagram showing a hand operating a device with a magnified inset highlighting the mechanism (no text or symbols present)

Line drawing of a simple kitchen sink with a grid-patterned wall and side table (no text or symbols)

Diagram showing a mechanical assembly with rotating components and a final view of a grid-like structure (no text or symbols)

Technical diagram of a mechanical component with labeled parts B and an arrow indicating rotation (no text or symbols beyond labels)

B

GROBFILTER

A	OBERER SPRÜHARMHALTER
B	OBERER SPRÜHARM
C	NABE

D

UNTERER SPRÜHARM

E

WEICHE BÜRSTE

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety information....77

1.1 Signal words....78
1.2 Safety instructions....78

1. Installation....82

2.1 Unpacking and positioning....82
2.2 Summary of the installation steps....83
2.3 Condensation strip....83

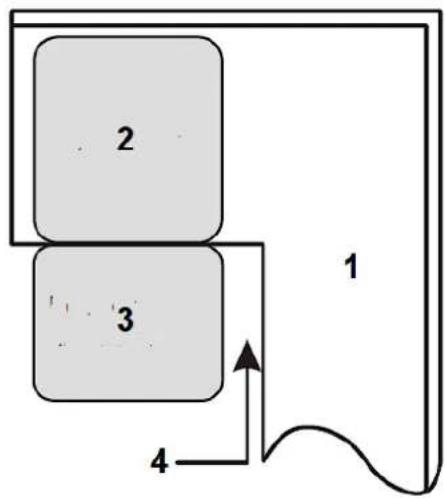

2.4 Space requirement 84
2.5 Installation of the water supply hose (cold water) 85

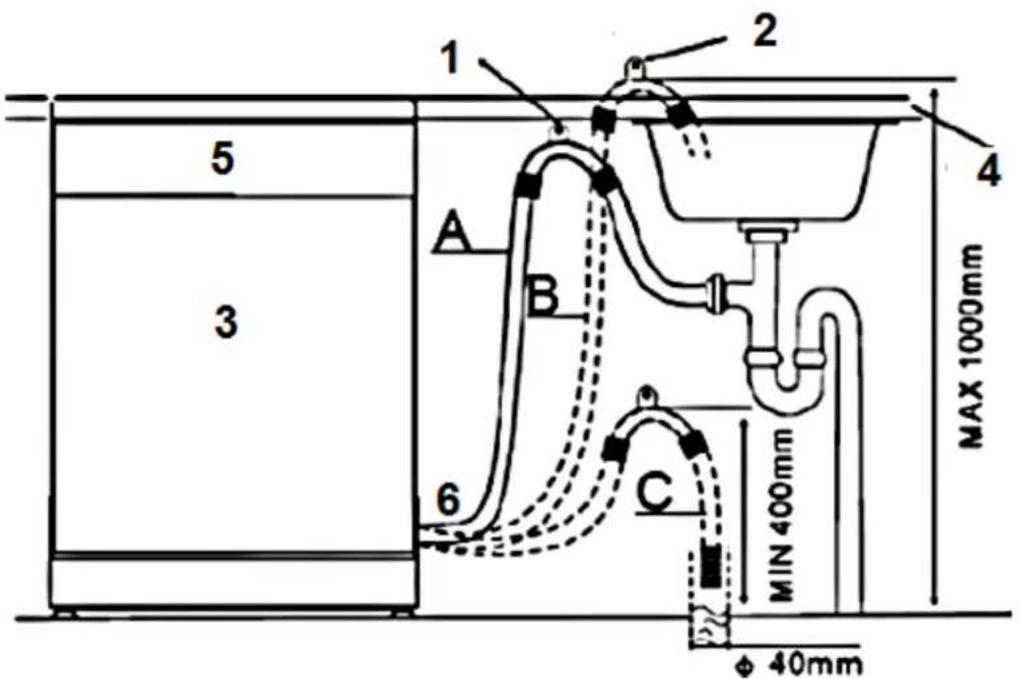

2.6 Installation of the water drain hose 87
2.7 Raised level installation 89
2.8 Electrical connection....90
2.9 Installation of the appliance....91
2.10 Proper levelling....92
2.11 Installation of the front decoration panel....92
2.12 Adjustment of the door spring tension Fehler! Textmarke nicht definiert.
2.13 Fixing of the top spacer ...... Fehler! Textmarke nicht definiert.
2.14 Fixing of the appliance...... Fehler! Textmarke nicht definiert.

1. View of the appliance and control panel....93

3.1 View of the appliance....93
3.2 View of the control panel: operating buttons and indicators....95

1. Before the first use 97

4.1 Water softener (= dishwasher salt) 98

4.1.1 Filling of the water softener container....99
4.1.2 Water hardness levels / water softener consumption .... 100
4.1.3 Setting of the water softener consumption....101

4.2 Rinse aid....103

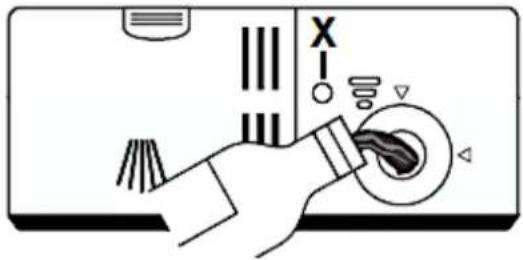

4.2.1 Filling of the rinse aid container....104

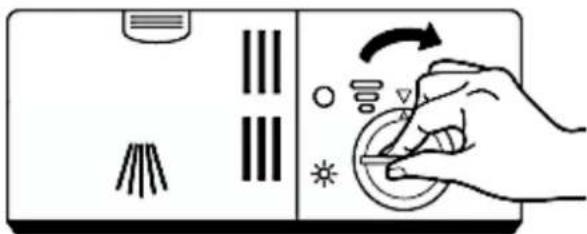

4.2.2 Setting of the rinse aid consumption....105

4.3 Dishwasher detergent....106

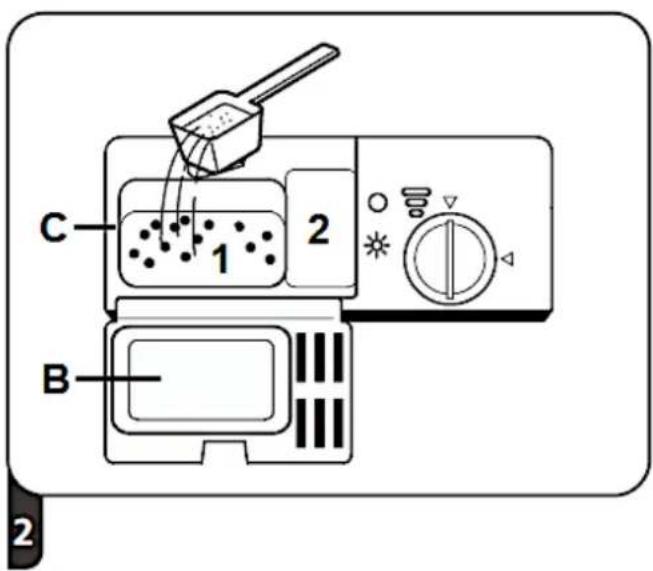

4.3.1 The detergent container....107

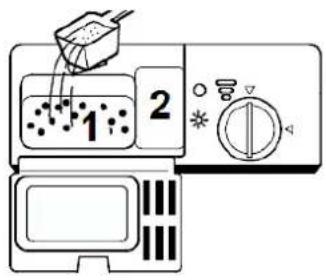

4.4 Summary of the basic functions....109

1. Dish racks 112

5.1 General loading instructions 112

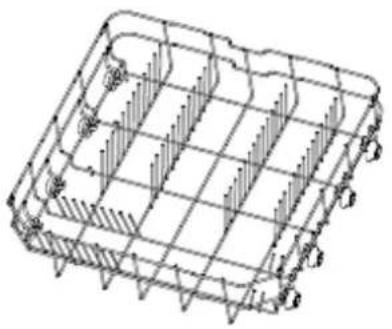

5.2 Upper dish rack....113

5.2.1 Foldable cup shelves.... 113

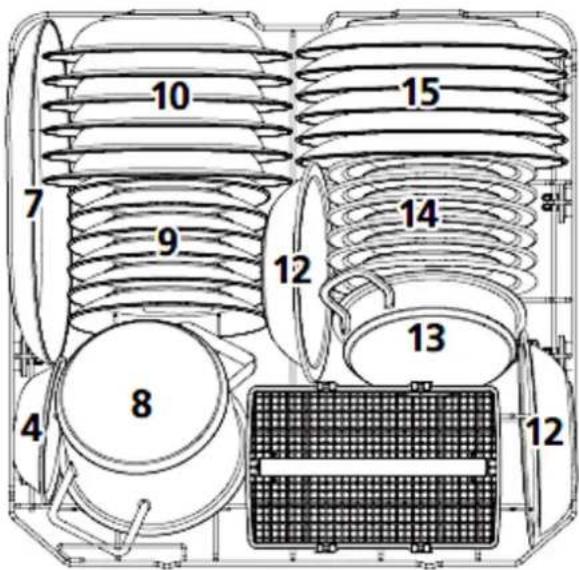

5.3 Lower dish rack....114
5.4 Cutlery basket....115
5.5 Unsuitable dishes / cutlery....117
5.6 Damage to glasses and dishes 117

1. The cleaning programmes .... 118

6.1 The additional programme functions.... 118
6.2 Starting of a cleaning programme....119

6.2.1 Selection of an additional programme function....120

6.3 How to change a running cleaning programme .... 122
6.4 Subsequent addition of dishes....123
6.5 End of a cleaning programme....123

1. Environmental protection .... 124

7.1 Environmental protection: disposal 124
7.2 Environmental protection: energy saving....124

1. Cleaning and maintenance....125

8.1 The filter system 125

8.1.1 Cleaning of the filter system....126

8.2 Cleaning of the spray arms....129
8.3 Cleaning of the appliance and the control panel....130
8.4 Cleaning of the door and the door seals 131
8.5 Frost protection....131
8.6 Decommissioning....132

1. Troubleshooting....132

9.1 Error codes.... 136

1. Technical data.... 137
2. Waste management.... 138
3. Guarantee conditions.... 139

Do not dispose of this appliance together with your domestic waste. The appliance must be disposed of at a collecting centre for recyclable electric and electronic appliances. Do not remove the symbol from the appliance.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless, follow the instructions in such a case. Delivery without content.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.
i Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.
i Technical modifications as well as misprints shall remain reserved.

EU - DECLARATION OF CONFORMITY

★ The products, which are described in this instruction manual, comply with the harmonised regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

MAKE SURE THAT THIS MANUAL IS AVAILABLE TO ANYONE USING THE APPLIANCE AND MAKE SURE THAT IT HAS BEEN READ AND UNDERSTOOD PRIOR TO USING THE DEVICE.

READ THE SAFETY INFORMATION AND SAFETY INSTRUCTIONS CAREFULLY BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME.

All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly made connections must be done by an authorised professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
The appliance is intended for private use only as well as to be used (1) in staff kitchen areas of shops, offices and other working environments; (2) by clients in hotels, motels, B&B and other residential type environments; (3) for catering and similar non-retail applications.
The appliance is intended for cleaning tableware and cookware in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.
This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

1.1 Signal words

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or severe injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or severe injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

1.2 Safety instructions

DANGER!

To reduce the risk of electrocution.

1. Non-observance of the instructions of this instruction manual will endanger the life of the user and can cause damage to the appliance.
2. All electrical work to connect the appliance to the mains must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations. RISK OF ELECTRIC SHOCK!
3. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged. RISK OF ELECTRIC SHOCK!
4. The technical data of your energy supplier must meet the data on the rating plate of the appliance.
5. Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).
6. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the aftersales service or the shop you purchased the appliance at. ^25 Original spare parts should be used only.
7. Always check that the power cord is not placed under the appliance or damaged by moving the appliance.
8. When the power cord is damaged, it must be replaced by the manufacturer or an authorised aftersales service or a qualified professional only.

9. Never pull the power cord to unplug the appliance. Always use the power plug itself to unplug the appliance. RISK OF ELECTRIC SHOCK!

10. Never touch the power plug, the power switch or other electrical components with wet or damp hands. RISK OF ELECTRIC SHOCK!

WARNING!

To reduce the risk of burns, electrocution, fire or injury to persons.

1. Under certain conditions hydrogen is generated in a hot-water system, which has not been used within a fortnight or longer. Hydrogen is explosive. If you have not operated the hot-water system within such a period of time, open all hot-water taps and let the water flow for several minutes to release the hydrogen. During this period do not smoke and do not use any open flames or naked light, because hydrogen is flammable.

2. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD.

3. Do not connect the appliance to the electric supply unless all packaging and transit protectors have been removed.

4. Operate the appliance with 220 \~ 240 V / 50 Hz AC only. All connections and energy-leading components must be replaced by an authorised professional. Any repairs should be carried out by an authorised aftersales service.

5. Do not use a socket board or a multi socket when connecting the appliance to the mains.

6. Never cut or remove the earth connection of the power cord.

7. A dedicated and properly grounded socket (250 V / 10 A) meeting the data of the plug is required to minimise any kind of hazard.

8. The technical data of your energy supplier must meet the data on the model plate of the appliance.

9. Your domestic circuit must be equipped with an automatic circuit breaker.

10. Do not modify the appliance.

11. Turn off the power before you install the appliance and before you connect it to the mains. RISK OF FATAL ELECTRIC SHOCK!

12. While the appliance is operating it is dangerous to open its door as hot water may spurt out. RISK OF SCALDING! RISK OF BURNS!

13. When a rinse cycle has been completed, wait a few minutes before opening the door as hot vapour may escape. RISK OF SCALDING!

14. Do not touch the heating elements during operation or immediately after operation. RISK OF BURNS!

15. Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

16. When a cleaning programme has finished, wait at least 20 minutes before cleaning the interior of the appliance so the heating elements can cool down.

17. Never immerse the appliance, the power cord or the plug into water or any other liquid. RISK OF ELECTRIC SHOCK!
18. Dishwasher-detergents are very alkaline and so they are extremely dangerous when swallowed. Skin and eyes should not come in contact with dishwasher-detergents. Always keep such detergents out of reach of children. RISK OF CHEMICAL BURN!
19. Keep dishwasher-detergents and additives away from children. Keep children away from the appliance when its door is open as some detergent may be still in the appliance.
20. When all indicators on the control panel flicker, the appliance malfunctions. Disconnect the appliance from the mains and the water-supply immediately in such a case.
21. Do not operate the appliance without the filters installed.
22. Children must never play with the appliance.
23. Never operate the appliance unattended.
24. Strictly observe the instructions in chapter INSTALLATION.

CAUTION!

1. Do not sit or stand on the dish rack or the door of the appliance. RISK OF INJURY! RISK OF BREAKAGE!
2. Do not place any heavy items on the open door as the appliance can tilt forwards.

3. When you load the dishwasher:
   a. check that sharp-edged items will not damage the door seals.
   b. check that items do not project through the bases of the racks.
   c. place sharp knives with the handle at the top or horizontally to avoid injuries.

4. Do not leave the door open so that no one can trip on it.

NOTICE

1. The spray arms may be equipped with a transport protection. Remove the transport protection before installing the appliance.
2. After the installation of the water supply and wastewater disposal as well as before the first operation, all water hose connections – even on the appliance itself – must be checked for leakage. The manufacturer is not liable for any damage caused by improper installation.
3. Water softener (dishwasher salt) causes corrosion unless you activate a cleaning programme immediately after the filling of the

dedicated container. Corrosion can damage the appliance beyond repair! The manufacturer is not liable for any damage caused by corrosion due to improper operation. RISK OF CORROSION!

1. Whenever you fill water softener into the dedicated container, water will escape which contains dissolved salt. This water as well as not dissolved salt particles will cause corrosion. When refilling water softener, you always must initiate a complete cleaning programme immediately after. RISK OF CORROSION! Any damage caused by corrosion is not covered by the guarantee.

2. Never operate the appliance without the filter inserted properly.

3. Only use a water softener (= dishwasher salt) which is suitable for dishwashers. The water hardness depends on your place of residence. Hard water in a dishwasher generates deposits of minerals and salts on your dishes and in the appliance. The water softener removes minerals and salts from the water.

4. Use a rinse aid which is suitable for a dishwasher only. Never use other chemical substances, e.g., dishwasher cleaners or liquid cleaners; otherwise, you will damage the appliance.

5. Only use a detergent and additives which are suitable for dishwashers. Do not use soap, cleaning agents, hand wash detergents etc.

6. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright (vertical) position.

7. Never use the door for moving the appliance as you will damage the hinges.

8. The appliance must be transported and installed by at least two persons.

9. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.

10. The connection to the water supply should be carried out by a qualified professional.

11. Do not operate the appliance unless all components are installed properly.

12. Do not stand or lean on the racks or the door.

13. Plastic-made items must not touch the heating elements.

14. Only wash dishwasher-proof plastic-made items in the appliance. Such items are labelled by their manufacturer.

15. After each rinse cycle check that the water-softener container is empty.

16. Never use cleaning sprays to clean the door as they can damage the lock and electric components.

17. The appliance is intended for the cleaning of max. 12 place settings.

18. Clean the appliance regularly (s. chapter CLEANING AND

MAINTENANCE).

1. The rating plate must not be removed or made illegible, otherwise all terms of the warranty become invalid!

SAVE THESE INSTRUCTIONS.

★ The manufacturer and distributor are not responsible for any damage or injury in the event of failure to comply with these instructions.

2. Installation

The water inlet and drainage installation must be carried out by a qualified professional.
i Use brand-new hoses and connector kids only.
i We recommend securing the water supply with a back-pressure valve.

NOTICE! After the installation of the water supply and wastewater disposal as well as before the first operation, all water hose connections – even on the appliance itself – must be checked for leakage. The manufacturer is not liable for any damage caused by improper installation.

2.1 Unpacking and positioning

⚠ WARNING! While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children and pets. CHOKING HAZARD! RISK OF INJURY!

1. Unpack the appliance carefully. Completely remove the transport-protection. Be careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
2. The spray arms may be equipped with a transport protection. Remove the transport protection before installing the appliance.
3. Install the appliance in a dry and well-ventilated place.
4. Always install the appliance near of a water supply line, a water-drain-device and a safety plug.
5. Install the appliance on a level, dry and solid floor. Check the correct installation with a spirit level.

6. The back of the appliance must face the wall. The sides must be aligned to the adjacent pieces of furniture and/or walls.

7. Connect the appliance to the mains properly.

8. The rating plate is inside the appliance or at the back.

2.2 Summary of the installation steps

1. Install the condensation strip properly (s. chapter 2.3 CONDENSATION STRIP).
2. Install the water supply hose (s. chapter 2.5 INSTALLATION OF THE WATER SUPPLY HOSE (COLD WATER).
3. Install the water drain hose (s. chapter 2.6 INSTALLATION OF THE WATER DRAIN HOSE).
4. Connect the appliance to the mains (s. chapter 2.7 ELECTRICAL CONNECTION.
5. Install the appliance in the installation opening (s. chapter 2.9 INSTALLATION OF THE APPLIANCE).
6. Level the appliance properly (s. chapter 2.10 PROPER LEVELLING).
7. Install the front decoration panel (s. chapter 2.11 INSTALLATION OF THE FRONT DECORATION PANEL).
8. Adjust the door spring tension (s. chapter 2.12 ADJUSTMENT OF THE DOOR SPRING TENSION.
9. Fix the appliance in the installation opening (s. chapter 2.14 FIXING OF THE APPLIANCE).

2.3 Condensation strip

INSTALLATION OF THE CONDENSATION STRIP (DEPENDING ON MODEL)

1. Before installation: you must install the condensation strip ^26 on the bottom side of the worktop to protect it from the water vapor released by the appliance. The condensation strip deflects the water vapor from the worktop.
2. You will find the condensation strip inside your appliance. ^27
3. Clean the bottom side of the worktop properly before you install the condensation strip.
4. Remove the protective foil from the adhesive surface of the condensation strip.
5. Stick the condensation strip on the bottom side of the worktop.
6. The condensation strip must be flush with the edge of the work surface.

Simple line drawing of a cabinet with an arrow indicating upward motion (no text or symbols)

CONDENSATION STRIP

NOTICE! Improper installation of the condensation strip may cause damage to the worktop.

2.4 Space requirement

SPACE REQUIREMENT OF THE APPLIANCE

A B		C (door closed)	C 1 (door open / 90°)
845 mm	598 mm	600 mm	min. 1175 mm

LATERAL SPACE REQUIREMENT OF THE OPEN DOOR

To open the door of the appliance freely the lateral minimum distance of the open door to a cabinet, wall, etc. must be at least 50 mm (s. fig. below).

1	CABINET / WALL ETC.
2	DISHWASHER
3	DOOR OF THE DISHWASHER (open)
4	MINIMUM DISTANCE of the open door to a Cabinet / wall = 50 mm.

2.5 Installation of the water supply hose (cold water)

The installation of the water and drain connection must be carried out by a qualified professional.
The appliance is equipped with a water supply and a water drain hose which can be installed on the right or left ^28 to ensure proper installation.
Use brand-new hoses and connector kids only.
We recommend securing the water supply with a back pressure valve. ^29
The water pressure must be between 0.04 and 1 MPa.
i Ask the aftersales service if the water pressure has different values.

SAFETY WATER SUPPLY HOSE ^30

The safety water supply hose is a double-walled hose. The safety system blocks the flow of water if the supply hose breaks and water flows into the space between the supply hose and the outer corrugated hose.

HOW TO CONNECT THE WATER SUPPLY HOSE

Connect the cold-water inlet hose to a 34 inches thread. When the water supply hose is new or was not used for an extended period of time, let the water flow until it is clear of any contamination.

NOTICE! Otherwise, the water inlet may be blocked and the appliance will be damaged.

	1	Pull the complete water supply hose out of its storage compartment at the back of the appliance.
	2	Fix the water supply hose with the 34 inches thread on the tap.
	3	Open the water supply completely before you operate the appliance.

NOTICE! When connecting to drinking water make sure that you connect the appliance using a safety device against drinking water contamination through backflow (according to DIN EN 1717). We recommend that installation, including water supply and electrical connections, and repairs are carried out by a qualified technician.

NOTICE! A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended to disconnect the hose and to plug the hole.

NOTICE! After the installation of the water supply and wastewater disposal as well as before the first operation, all water hose connections – even on the appliance itself – must be checked for leakage. The manufacturer is not liable for any damage caused by improper installation.

HOW TO DISCONNECT THE WATER SUPPLY HOSE

1. Turn off the water supply completely (close water tap).
2. Decrease the water pressure by pressing the pressure reduction button to protect you and the room from spilled water.
3. Finally remove the water supply hose from the tap.

2.6 Installation of the water drain hose

The installation of the water and drain connection must be carried out by a qualified professional.
The appliance is equipped with a water supply and a water drain hose which can be installed on the right or left ^31 to ensure proper installation.
Use brand-new hoses and connector kits only.

HOW TO CONNECT THE WATER DRAIN HOSE

1. Insert the water drain hose (5) into a drainpipe (6) with a diameter of at least 40 mm or into a sink (s. below, installation A or installation B).
2. Do not bend or squeeze the water drain hose (5).
3. The free end of the water drain hose must not be higher than 1000 mm and must not be immersed into water to avoid reflux (s. fig. below).

A	INSTALLATION A: SINK
B	INSTALLATION B: DRAINPIPE, ∅ min. 40 mm
1	BACK OF THE DISHWASHER
2	WATER INLET
3	WATER OUTLET
4	POWER CORD
5	WATER DRAIN HOSE
6	DRAINPIPE
7	SINK
8	WORKTOP

1. Fix the water drain hose properly, using a clamp (s. fig. below).

Technical diagram showing a screwdriver inserted into a threaded component, with no visible text or symbols.

When installed to a fixed drain the water drain hose must be connected properly to avoid any leaks.

When the sink is higher than 1000 mm the excess water cannot be drained directly. Drain excess water in a suitable container which is held outside and lower than the sink.

If the length of the water drain hose is not sufficient, apply to your authorised service for an extension made from the same material as the original water drain hose. The length of the water drain hose (including extension) should not exceed 4 metres; otherwise, the performance of the appliance will be reduced.

i If the water drain hose is longer than 4 metres the dishes will not be cleaned properly. Check that the connection does not leak. Fix the outlet hose with a hose-holder.

NOTICE! After the installation of the water supply and wastewater disposal as well as before the first operation, all water hose connections – even on the appliance itself – must be checked for leakage. The manufacturer is not liable for any damage caused by improper installation.

2.7 Raised level installation

✿ Partially and fully integrated appliances can be installed at a raised level when connected properly. ^32

A collar enables the bending of the drain hose. There is a holding device on the collar to fix the collar. The drain hose must have a height of at least 400 mm at the top of the collar. Look at the drawing below for the connection options A, B or C.

1	Hang the hook of the WATER DRAIN HOSE on the worktop
2	HOOK OF THE DRAIN HOSE
3	DISHWASHER
4	WORKTOP
5	FRONT of the appliance
6	WATER DRAIN HOSE

NOTICE! The TOP OF THE HOSE must be at a height between 400 and 1000 mm. The free end of the hose must not be immersed in liquids (water, etc.).

NOTICE! After the installation of the water supply and wastewater disposal as well as before the first operation, all water hose connections – even on the appliance itself – must be checked for leakage. The manufacturer is not liable for any damage caused by improper installation.

2.8 Electrical connection

⚠️ DANGER! Do not modify the plug provided with the appliance, if it will not fit the outlet, have a proper outlet installed by a qualified electrician (not covered by the guarantee).

⚠ WARNING! Do not use any extension cords, multiple sockets or adapters. RISK OF FIRE!

⚠ WARNING! The appliance must be properly grounded before initial operation. Find related information on the rating plate. Connect the appliance to a properly grounded safety socket only. The connection must be carried out in accordance with the current local and legal regulations. RISK OF ELECTRIC SHOCK!

⚠ WARNING! Always ensure that the power cord is not bent or squeezed during installation.

The voltage and the frequency of the power supply must meet the data on the rating plate.

❖ The appliance is equipped with a safety plug.

You need a properly grounded and dedicated safety socket relevant to the plug (250 V / 10 A).

WARNING! Otherwise, severe accidents may occur or your appliance may be damaged.

If any malfunction occurs, the grounding will reduce the risk of electric shock as the electrical flow will prefer the way of 'least resistance.
The appliance must be properly grounded before initial operation. If you are in doubt that the appliance is grounded properly, a qualified professional should check the status of the electrical installation (not covered by the guarantee).

2.9 Installation of the appliance

The back of the appliance must face the wall. The appliance must be equipped with an inlet and outlet hose, which can be installed on the left or right. ^33
The appliance must be installed near an existing water inlet and outlet and near a safety socket.

HOW TO INSTALL THE APPLIANCE IN THE INSTALLATION OPENING

1. Prepare an installation opening according to the figure below.
   Depending on where your safety socket is located, you may need to cut a hole in one side of the cabinet.

1	820 mm
2	min. 580 mm
3	Distance between cabinet bottom and floor = 100 mm
4	For the Connections for power cord, water inlet, water outlet: 80 mm

1. Install the appliance in the installation opening.

⚠ WARNING! The power cable and the hoses must not be kinked or bent when installing the appliance in the installation opening.

1. The free space between the top of the appliance and the worktop must be less than 5 mm; see also chapter 2.10 PROPER LEVELLING.

2. The door of the appliance must be aligned with the adjacent cupboard doors.

2.10 Proper levelling

The appliance must stand in a stable and level position to ensure proper operation. The supporting feet must stand firmly on the ground so that the appliance does not wobble. Adjust the supporting feet accordingly. The firm contact of the supporting feet with the ground also ensures that the appliance does not vibrate or move unintentionally.
The dishwasher must also be levelled horizontally so that the dish racks operate properly and the cleaning efficiency is guaranteed.
The maximum permissible inclination angle under the entire appliance is 2^ . Adjust the appliance with its supporting feet horizontally. Check with a spirit level.

Diagram showing a hand holding a device with an arrow indicating rotation (no text or symbols present)

2.11 Installation of the free standing

1. Type 1: Fitting between existing cabinets.

The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached. (s. fig. below).

Line drawing of a kitchen sink with a grid-patterned wall and side table (no text or symbols)

The laminated top of the machine does not require any particular care since it is heatproof, scratchproof and stainproof.

1. Type 2: Underneath existing work top.

(When fitting beneath a work top)

In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a). (s. fig. below).

NOTICE! After removing the work top, the screws must be screwed again under the rear edge of the top (b).

3. View of the appliance and control panel

3.1 View of the appliance

Fig. similar: modifications are possible.

1	INNER PIPE	4	CONTROL PANEL
2	LOWER SPRAY ARM	5	DETERGENT CONTAINER
3	FILTER SYSTEM	6	WATER SOFTENER CONTAINER

ACCESSORIES

CUTLERY BASKET

UPPER DISH RACK

incl. cup shelf (A))

3D wireframe diagram of a mechanical component with labeled points A and B (no text or symbols beyond labels)

LOWER DISH RACK

Technical line drawing of a 3D mechanical component with internal grid structure (no text or symbols)

3.2 View of the control panel: operating buttons and indicators
        direction LR
        P1["P"] --> P2["ECO"]
        P2 --> P3["CO"]
        P3 --> P4["CO"]
        P4 --> P5["CO"]
        P5 --> P6["CO"]
        P6 --> P7["CO"]
        P7 --> P8["CO"]
        P8 --> P9["CO"]
        P9 --> P10["CO"]
        P10 --> P11["CO"]
        P11 --> P12["CO"]
        P12 --> P13["CO"]
        P13 --> P14["CO"]
        P14 --> P15["CO"]
        P15 --> P16["CO"]
        P16 --> P17["CO"]
        P17 --> P18["CO"]
        P18 --> P19["CO"]
        P19 --> P20["CO"]
        P20 --> P21["CO"]
        P21 --> P22["CO"]
        P22 --> P23["CO"]
        P23 --> P24["CO"]
        P24 --> P25["CO"]
        P25 --> P26["CO"]
        P26 --> P27["CO"]
        P27 --> P28["CO"]
        P28 --> P29["CO"]
        P29 --> P30["CO"]
        P30 --> P31["CO"]
        P31 --> P32["CO"]
        P32 --> P33["CO"]
        P33 --> P34["CO"]
        P34 --> P35["CO"]
        P35 --> P36["CO"]
        P36 --> P37["CO"]
        P37 --> P38["CO"]
        P38 --> P39["CO"]
        P39 --> P40["CO"]
        P40 --> P41["CO"]
        P41 --> P42["CO"]
        P42 --> P43["CO"]
        P43 --> P44["CO"]
        P44 --> P45["CO"]
        P45 --> P46["CO"]
        P46 --> P47["CO"]
        P47 --> P48["CO"]
        P48 --> P49["CO"]
        P49 --> P50["CO"]
        P50 --> P51["CO"]
        P51 --> P52["CO"]
        P52 --> P53["CO"]
        P53 --> P54["CO"]
        P54 --> P55["CO"]
        P55 --> P56["CO"]
        P56 --> P57["CO"]
        P57 --> P58["CO"]
        P58 --> P59["CO"]
        P59 --> P60["CO"]
        P60 --> P61["CO"]
        P61 --> P62["CO"]
        P62 --> P63["CO"]
        P63 --> P64["CO"]
        P64 --> P65["CO"]
        P65 --> P66["CO"]
        P66 --> P67["CO"]
        P67 --> P68["CO"]
        P68 --> P69["CO"]
        P69 --> P70["CO"]
        P70 --> 8
    end
    subgraph Right_Circuit
        direction LR
        A["A"] -->|Input| Left_Circuit
    end
    subgraph Left_Double_Circuit
        direction LR
        B["B"] --> A
    end
    subgraph Right_Double_Circuit
        direction LR
        C["C"] --> D["E"] --> F["D"] --> G["F"] --> H["G"] --> I["H"] --> J["H"] --> K["H"] --> L["H"] --> M["H"] --> N["H"] --> O["H"] --> Q["H"] --> R["H"] --> S["H"] --> T["H"] --> U["H"] --> V["H"] --> W["H"] --> X["H"] --> Y["H"] --> Z["H"] --> AA["H"] --> AB["H"] --> AC["H"] --> AD["H"] --> AE["H"] --> AF["H"] --> AG["H"] --> AH["H"] --> AI["H"] --> AJ["H"] --> AK["H"] --> AL["H"] --> AM["H"] --> AN["H"] --> AO["H"] --> AP["H"] --> AQ["H"] --> AR["H"] --> AS["H"] --> AT["H"] --> AU["H"] --> AV["H"] --> AW["H"] --> AX["H"] --> AY["H"] --> AB["Y"] --> AC["Y"] --> AD["Y"] --> AE["Y"] --> AF["Y"] --> AG["Y"] --> AH["Y"] --> AI["Y"] --> AJ["Y"] --> AK["Y"] --> AL["Y"] --> AM["Y"] --> AN["Y"] --> AO["Y"] --> AP["Y"] --> AQ["Y"] --> AR["Y"] --> AS["Y"] --> AT["Y"] --> AU["Y"] --> AV["Y"] --> AW["Y"] --> AX["Y"] --> AY["Y"] --> AB["Y"] --> AC["Y"] --> AD["Y"] --> AE["Y"] --> AF["Y"] --> AG["Y"] --> AH["Y"] --> AI["Y"] --> AJ["Y"] --> AK["Y"] --> AL["Y"] --> AM["Y"] --> AN["Y"] --> AO["Y"] --> AP["Y"] --> AQ["Y"] --> AR["Y"] --> AS["Y"] --> AT["Y"] --> AU["Y"] --> AV["Y"] --> AW["Y"] --> AX["Y"] --> AY["Y"] --> AL["Y"] --> AM["Y"] --> AN["Y"]

OPERATING BUTTONS

A		«ON/OFF»-BUTTON➢ Button to switch the appliance on / off.
B		«PROGRAMME»-BUTTON➢ Button to select the desired cleaning programme.➢ Press this button repeatedly to switch through the different cleaning programmes.➢ See also chapter 6. THE CLEANING PROGRAMMES.
C		«DELAY»-BUTTON➢ You can set a delayed programme start.➢ You can select a delay period of 3, 6 or 9 hours.➢ See also chapter 6.2.1 SELECTION OF AN ADDITIONAL PROGRAMME FUNCTION.
D		«HALF LOAD» - BUTTON➢ Select this programme function if you want to clean max. six place settings or less.➢ See also chapter 6.2.1 SELECTION OF AN ADDITIONAL PROGRAMME FUNCTION.
E		«LOCK» - BUTTON➢ Buttons to activate the child safety lock.See also chapter 6.2.1 SELECTION OF AN ADDITIONAL PROGRAMME FUNCTION.
F		«START / PAUSE» - TASTE➢ Start or pause the corresponding cleaning programme.

INDICATORS

1		PROGRAMME INDICATOR: « INTENSIVE »This indicator goes on when the cleaning programme « INTENSIVE » is activated.This cleaning programme is suitable for the cleaning of heavily soiled objects such as pots and pans and heavily dried food residues on plates, bowls, etc.See also chapter 6. THE CLEANING PROGRAMMES.
2		PROGRAMME INDICATOR: « ECO »This indicator goes on when the cleaning programme « ECO » is activated.This cleaning programme is suitable for the cleaning of normally soiled dishes (pots, plates, glasses, bowls, etc.). Standard programme for daily use.See also chapter 6. THE CLEANING PROGRAMMES.
3		PROGRAMME INDICATOR: « 90 MIN. »This indicator goes on when the cleaning programme « 90 MIN. » is activated.This cleaning programme is suitable for the daily cleaning of slightly and normally soiled dishes (pans, plates, glasses, bowls, etc).See also chapter 6. THE CLEANING PROGRAMMES.
4		PROGRAMME INDICATOR: « RAPID »This indicator goes on when the cleaning programme « RAPID » is activated.This cleaning programme is suitable for the cleaning of lightly soiled dishes pots, plates, glasses, bowls, etc.) without dried food residues.See also chapter 6. THE CLEANING PROGRAMMES.
5		WARNING INDICATOR: « RINSE AID »This indicator will go on when you must refill the RINSE AID CONTAINER.See also chapter 4.2 RINSE AID et seq.
6		WARNING INDICATOR: « WATER SOFTENER » (DISHWASHER SALT)This indicator goes on when you must refill the WATER SOFTENER CONTAINER.See also chapter 4.1 WATER SOFTENER (DISHWASHER SALT) et seq.
7		WARNING INDICATOR: « WATER FAUCET »This indicator goes on when no water is reaching the dishwasher..
8		OPERATIONAL STATUS INDICATORS: « DELAY »One of the operational status indicators (3, 6 or 9 h) goes on when the function programme « DELAYED PROGRAMME START » is activated.The respective indicator displays the selected delay time (3, 6 or 9 h).See also chapter 6.2.1 SELECTION OF AN ADDITIONAL PROGRAMME FUNCTION.

4. Before the first use

BEFORE YOU START OPERATING THE APPLIANCE, CHECK THAT

1. the appliance is positioned and levelled properly.
2. the inlet valve is opened.
3. the connections of the hoses do not leak.
4. the appliance is plugged in properly.
5. the power is switched on.
6. the hoses are not knotted.
7. you have removed the complete packaging material.

BEFORE YOU OPERATE THE APPLIANCE FOR THE FIRST TIME:

a) set the water softener consumption (s. chapter 4.1.3 SETTING OF THE WATER SOFTENER CONSUMPTION.
b) pour 500 ml water into the container of the water softener and pour in the water softener (= dishwasher salt); s. chapter 4.1.1 FILLING OF THE WATER SOFTENER CONTAINER et seq.
c) pour in the rinse aid (s. chapter 4.2.1 FILLING OF THE RINSE AID CONTAINER).
d) use suitable dishwasher detergent (s. chapter 4.3 DISHWASHER DETERGENT et seq.).

4.1 Water softener (= dishwasher salt)

NOTICE! Use a water softener (= dishwasher salt) which is suitable for dishwashers only. Other water softeners and salts, especially table salt, will damage the water softener container.

NOTICE! Whenever you fill water softener into the dedicated container, water will escape which contains dissolved salt. This water as well as not dissolved salt particles will cause corrosion. When refilling water softener, you always must initiate a complete cleaning programme immediately after. RISK OF CORROSION! Any damage caused by corrosion is not covered by the guarantee.

NOTICE! Water softener (dishwasher salt) causes corrosion unless you activate a cleaning programme immediately after the filling of the dedicated container. Corrosion can damage the appliance beyond repair! The manufacturer is not liable for any damage caused by corrosion due to improper operation. RISK OF CORROSION!

You must fill in the water-softener manually; please use the water-softener filler hole. Open the lid and pour approx. 1.5 kg of water-softener into the container; then close the lid properly.

4.1.1 Filling of the water softener container

NOTICE! You must refill the container when the water softener indicator (« \$») goes on. As long as the water softener has not dissolved, the water softener indicator can also light up when the container is full. If you have spilled water softener during filling, you can set a special soaking programme to wash out any residues.

Only use a water softener (= dishwasher salt) which is suitable for dishwashers. Other water softeners and salts, especially table salt, will damage the water softener container.
The manufacturer shall not guarantee against and is not liable for any damage caused by an unsuitable water softener.
Fill the container only shortly before you start a programme, otherwise spilled residuals of the water softener may remain in the appliance and cause corrosion.
The control light on the control panel goes off after the first programme.

THE WATER SOFTENER CONTAINER IS BENEATH THE LOWER DISH RACK. FILL THE CONTAINER AS FOLLOWS.

1. Remove the lower dish rack and unscrew the lid of the water softener container (s. below, fig. A).
2. When you fill the container for the first time, pour approx. 500 ml water into the container (s. below, fig. B).
3. Put the equipped funnel in the opening and pour approx. 1.5 kg water softener (=dishwasher salt) in the container (s. below, fig. C). It is normal that a small amount of water runs out of the container.
4. Close the lid carefully (s. below, fig. D).
5. The water softener indicator usually goes off after the container has been filled.
6. After filling the water softener container, start a cleaning programme immediately; e.g. the programme «RAPID» (see also chapter 4.4 SUMMARY OF THE BASIC FUNCTIONS and chapter 6.2 STARTING OF A CLEANING PROGRAMME). Otherwise, the filter system, pump or other important components of the appliance may be damaged. Failure to do so will void the guarantee!

i After filling the water softener container, you may still have to add water up to its maximum limit.

NOTICE! Whenever you fill water softener into the dedicated container, water will escape which contains dissolved salt. This water as well as not dissolved salt particles will cause corrosion. When refilling water softener, you always must initiate a complete cleaning programme immediately after. RISK OF CORROSION! Any damage caused by corrosion is not covered by the guarantee.

NOTICE! Water softener (dishwasher salt) causes corrosion unless you activate a cleaning programme immediately after the filling of the dedicated container. Corrosion can damage the appliance beyond repair! The manufacturer is not liable for any damage caused by corrosion due to improper operation. RISK OF CORROSION!

4.1.2 Water hardness levels / water softener consumption

The water hardness values in the table below are given in degrees of German hardness (°dH), in degrees of French hardness (°fH), in degrees Clarke (°Clarke) and in mmol/l.
- Select the degree of water hardness according to the requirements in your place of residence.
You need to get the information on the local water hardness range. You can receive all relevant information from your local water supplier.
The appliance is equipped with 6 water softener consumption levels (H1 - H6). It is recommended to set the consumption level according to the table below (see also chapter 4.1.3 SETTING OF THE WATER SOFTENER CONSUMPTION.

WATER HARDNESS				WATER HARDNESSLEVEL(APPLIANCE SETTING)
°dH	°fH	°CLARKE	MMOL/L
0 - 5	0 - 9	0 - 6	0 - 0,9	H1
6 - 11	10 - 20	7 - 14	1,0 - 2,0	H2
12 - 17	21 - 30	15 - 21	2,1 - 3,0	H3*
18 - 22	31 - 40	22 - 28	3,1 - 4,0	H4
23 - 34	41 - 60	29 - 42	4,1 - 6,1	H5
35 - 45	61 - 98	43 - 69	6,2 - 8,0	H6
1^ dH = 1,78^ fH = 1,25^ Clarke = 0,178 mmol/l

* = FACTORY SETTING

°dH °fH °Clarke
degrees of German hardness	degrees of French hardness	degrees Clarke (British)

i Water softener (= dishwasher salt) is added to a running programme by the appliance automatically. When and how much water softener the appliance adds to a running programme depends on the individually set water softener level (H1 - H6); see table below.

SET WATER HARDNESS LEVEL	WATER SOFTENER IS ADDED:	WATER SOFTENER CONSUMPTION IN GRAMME / PROGRAMME RUN
H1	no water softener is added.	0
H2	every 10th programme run	9
H3	every 5th programme run	12
H4	every 3rd programme run	20
H5	every 2nd programme run	30
H6	each programme run	60

Each programme run with a water softener supply consumes an additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the respective programme duration is extended by 4 minutes.

4.1.3 Setting of the water softener consumption

It is required to set the proper amount of the water softener based on the water hardness range to optimise and customise the water softener consumption.
You can set the consumption of water softener from H1 to H6. Water softener is not required when the value H1 is set.
Six water softener consumption levels can be selected. The water softener consumption level should always be set according to the water hardness of your region. We recommend setting the level relevant to the table of the water hardness range above (s. chapter 4.1.2 WATER HARDNESS LEVELS / WATER SOFTENER CONSUMPTION).
You need to get the information on the local water hardness range. You can receive all relevant information from your local water supplier.

STEP 1: ENTER WATER SOFTENER SETTING MODE

1. Switch on the appliance using the «ON / OFF»-BUTTON (s. chapter 3.2 VIEW OF THE CONTROL PANEL: OPERATING BUTTONS AND INDICATORS).
2. Within 60 seconds after you have switched on the appliance, press and hold the «PROGRAMME» - BUTTON for more than 5 seconds.
3. The appliance is now in water softener setting-mode.
4. The display indicates the current status of the water softener consumption: e.g. water softener level «H3» (s. table below).

STEP 2: SETTING OF THE WATER SOFTENER CONSUMPTION

1. To select the proper water softener consumption setting according to your local requirements, press the «PROGRAMME»-BUTTON repeatedly until the desired water softener level (H 1 - H 6) is indicated on the display (s. table below).
2. Each press of the «PROGRAMME»-BUTTON changes the consumption setting by one level. The settings are consecutive: H1→H2→H3→H4→H5→H6→H1 (s. table below).
   Water softener (= dishwasher salt) is added to a running programme by the appliance automatically. When and how much water softener the appliance adds to a running programme depends on the individually set water softener level (H 1 - H 6); s. relevant table in chapter 4.1.2 WATER HARDNESS LEVELS / WATER SOFTENER CONSUMPTION.

WATER HARDNESS RANGE	SETTING OF THE WATER SOFTENER CONSUMPTION	PROGRAMME INDICATORS
°dH		LED 2**	LED 3**	LED 4**
0 - 5	H 1	-	-	on
6 - 11	H 2	-	on	-
12 - 17	H 3*	-	on	on
18 - 22	H 4	on	-	-
23 - 34	H 5	on	-	on
25 - 55	H 6	on	on	-

*	FACTORY SETTING
**	SEE FIG. BELOW.

STEP 3: EXIT WATER SOFTENER SETTING MODE

➢ Press the «ON / OFF»-BUTTON to save the water softener consumption setting and exit the setting mode.

4.2 Rinse aid

• Your appliance is designed for using rinse aid. The rinse aid is added automatically during operation and supports the spot-free and perfect drying of the dishes.
  The rinse aid container is inside the appliance near the dishwasher detergent container.
  Max. capacity of the container: approx. 140 ml.
  Do not overfill the container; otherwise, severe foam formation may occur.
  Do not forget to close the flap of the rinse aid container after refilling.

When the rinse aid indicator « ✉» is off, the colour of the rinse aid indicator «X» ^34 indicates the needed quantity of rinse aid.
Dark spot = container filled to capacity.
The smaller the spot the emptier the container (s. fig. below). The container should be filled not less than 25 %.

	FULL
	75 %
	50 %
	25 %; REFILL!
	EMPTY
X	RINSE AID INDICATOR35

4.2.1 Filling of the rinse aid container

1. To open the rinse aid container (B), turn the lid (A) anticlockwise and remove it (s. fig. below, arrow direction).

A

LID OF THE RINSE AID CONTAINER

B	RINSE AID CONTAINER
X	RINSE AID INDICATOR

1. Pour the rinse aid into the container. Do not overfill the container (max. 140 ml): rinse aid indicator «X» = dark spot = container filled to capacity (s. fig. below).

1. Replace the lid (as shown on the figure below) and turn it firmly (in clockwise direction / s. fig. below, arrow direction).

Do not forget to replace and tighten the lid of the rinse aid container after filling.

4.2.2 Setting of the rinse aid consumption

To achieve a better drying performance, the rinse aid consumption can be set individually.

i Six consumption levels can be selected ( 1 - 6^36 ). The higher the consumption level, the higher the rinse aid consumption:

a. «1» = minimal rinse aid consumption.
b. «2» = very low rinse aid consumption.
c. «3» = low rinse aid consumption
d. «4» = medium rinse aid consumption.
e. «5» = high rinse aid consumption.
f. « 6» = highest rinse aid consumption.

If water drops or scale marks are on your dishes after cleaning, increase the amount of rinse aid.
If whitish stripes are on glasses or bluish film is on the cutlery after cleaning, decrease the amount of rinse aid.

HOW TO SET THE RINSE AID CONSUMPTION LEVEL

Y

1. Turn the rotary knob to the desired rinse aid consumption level.

a. Start with rinse aid consumption level «4».
b. Select rinse aid consumption level «5» when stains have occurred or the drying is not satisfying.
c. Select rinse aid consumption level «6» if these problems occur again.

i Rinse aid consumption level «5» ^37 is the default setting.

ROTARY KNOB

4.3 Dishwasher detergent

DISHWASHER DETERGENTS ARE DIVIDED INTO 2 GROUPS DUE TO THEIR CHEMICAL COMPOSITION:

▶ conventional, alkaline detergents with caustic components.
low-alkaline concentrated detergents with natural enzymes.

"Normal" programmes combined with concentrated detergents prevent pollution and are also good for your dishes. Such programmes support the cleaning effect of the enzymes. Therefore, "normal" programmes combined with concentrated detergents are as effective as "intensive" programmes.

THERE ARE 3 KINDS OF DISHWASHER DETERGENTS:

1. with phosphate and chlorine.
2. with phosphate / without chlorine
3. without phosphate / without chlorine

Most recent powdered dishwasher detergents usually do not contain any phosphate, so they do not soften the water. In such a case add a water softener (= dishwasher salt) even if the hardness of water is e.g., 6^ dH. Otherwise, white spots may occur on your dishes and glasses.

Dishwasher detergents without chlorine only bleach slightly, so they do not remove tough stains. In such a case select a programme with a higher temperature.

DISHWASHER TABS

Dishwasher tabs of different manufacturers may need different periods of time for cleaning your dishes. So, some kinds of tabs cannot be used when operating a short programme. Always select long lasting programmes to clean your dishes completely.

3in1 DISHWASHER TABS

3in1 detergents contain a combination of detergent, rinse aid and water softener. Check that the water hardness of your water supply meets the information given on the packaging of the 3in1 detergent. Strictly observe the instructions of the manufacturer of the 3in1 detergent. If a problem occurs when using a 3in1 product for the first time, contact the info-hotline of the manufacturer of the 3in1 product. When using a 3in1 product, the indicators for the rinse aid and water softener are no longer useful. It may be helpful to set the water hardness to the smallest possible value.

4.3.1 The detergent container

You must fill the container matching the information of the programme schedule (s. chapter 6. THE CLEANING PROGRAMMES).
◆ Use detergents which are suitable for dishwashers only.
◆ Always keep your detergent dry.
◆ Fill the container just before starting a cleaning programme.
The detergent and rinse aid consumption of your appliance is lower than the consumption of conventional appliances. In general, you need 1 tablespoon of detergent for a normal programme.

You need to increase the amount of detergent if your dishes are heavily soiled.

Use detergents which are suitable for dishwashers only.

Always note the manufacturer's dosage instructions on the packaging of your dishwasher detergent.

HOW TO FILL THE DETERGENT CONTAINER

1. When the lid of the detergent container (B) is closed, press the release button (A) and the lid opens (s. below, fig. 1).

A	RELEASE BUTTON: press this button to open the lid.
B	LID OF THE DETERGENT CONTAINER

1. Always add a certain amount of detergent to the detergent compartment of the MAIN WASH CYCLE (1 / s. below, fig. 2). The amount of the main wash detergent depends on the selected cleaning programme (s. chapter 6. THE CLEANING PROGRAMMES). Use detergents which are suitable for dishwashers only.

Always note the manufacturer's dosage instructions on the packaging of your dishwasher detergent.

The marks indicate the dose levels. If your dishes are heavily soiled, add an extra amount of detergent to the detergent compartment of the PRE-WASH CYCLE (2 / s. below, fig. 2) and select a programme that includes a pre-wash cycle. The amount of the pre-wash detergent depends on the selected cleaning programme. See chapter 6. THE CLEANING PROGRAMMES.

B	LID OF THE DETERGENT CONTAINER
C	DETERGENT CONTAINER
1		Detergent compartment of the MAIN WASH CYCLE
2		Detergent compartment of the PRE-WASH CYCLE

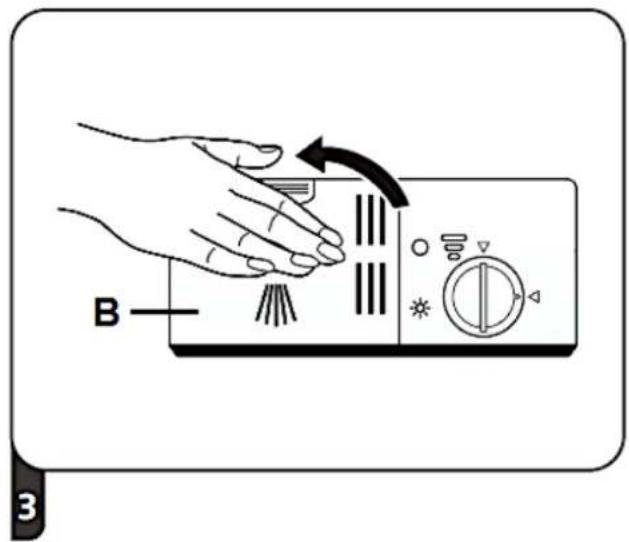

1. Close the lid of the detergent container and press it down until the latch snaps into place (s. below, fig. 3).

B	LID OF THE DETERGENT CONTAINER

4.4 Summary of the basic functions

⚠ WARNING! The summary below contains brief information about the basic functions of the appliance only and does not replace the instruction manual. It is essential to read the complete instruction manual before initial operation; otherwise, you are not adequately informed about potential operational risks as well as the additional functions of the appliance.

HOW TO SWITCH ONTHE APPLIANCE	Switch on the appliance using the «ON/OFF»-BUTTON (s. chapter 3.2 VIEW OF THE CONTROL PANEL: OPERATING BUTTONS AND INDICATORS).
FILLING OF THEDETERGENTCONTAINER	DETERGENTCOMPARTMENT 1For each wash cycle.DETERGENTCOMPARTMENT 2For wash cycles including pre-wash only.
STATUS OF THE RINSEAID	MECHANICALINDICATOR X^38 Electric indicator of the control panel. ^39
STATUS OF THE WATER SOFTENER	FOR MODELS WITH ELECTRIC WATER SOFTENING SYSTEM ONLY.➢ Electric indicator of the control panel.➢ If the appliance is not equipped with an electric indicator, please estimate the point in time to refill relevant to the number of wash cycles.	Fig. similar.
LOADING OF THE DISH RACKS	➢ Remove larger quantities of food remnants.➢ Please soak burnt-in food remnants; then load the racks.
SELECTION OF A PROGRAMME	➢ Press the «PROGRAMME»-BUTTON repeatedly until the programme indicator of the desired cleaning programme goes on.
STARTING OF A PROGRAMME	➢ Open the tap first and then close the door.➢ Press the «START / STOP»- BUTTON to start the set cleaning programme. The programme starts after approx. 10 seconds.
END OF A PROGRAMME	➢ Switch off the appliance using the «ON/OFF»- BUTTON.➢ OPENING THE DOOR: wait a few minutes before you open the door after a cleaning programme has finished as hot steam may escape.⚠ WARNING! Open the door carefully. Hot water vapour can escape when the door has been opened!
CLOSE THE TAP, UNLOAD THE RACKS	➢ Close the tap.➢ Wait approx. 15 minutes, before you unload the racks.➢ Unload the lower rack first.

⚠ WARNING! Open the door of the appliance very carefully. Hot water vapour can escape when the door has been opened! RISK OF SCALDING!

⚠ WARNING! When a cleaning programme has finished, wait at least 20 minutes before cleaning the interior of the appliance so the heating elements can cool down. RISK OF BURNS!

5. Dish racks

- Observe the instructions given in this chapter to reach the best performance of your appliance. The features and design of the racks depend on model.

5.1 General loading instructions

❖ Remove any remnants of food from the dishes.
You do not need to rinse the dishes under flowing water.
Soak burnt food on pots and pans.
◆ Cutlery and dishes must never block the rotating spray arms.
◆ Place cups, glasses and pots upside down.
◆ The dishes must not touch or cover each other.
◆ Glasses must not touch each other.
The lower dish rack is intended for large objects and / or objects which are hard to clean.
The upper dish rack is intended for delicate and light dishes such as glasses and cups.
- After cleaning, empty the lower rack first; so remaining water cannot drop from the upper rack into the lower one.

LOAD THE DISH RACKS AS FOLLOWS:

▶ objects such as cups, glasses, pots and pans upside down.
- curved objects and objects with recesses in a slanted position, so the water can drain off.
➢ arrange the dishes safely and tightly in the rack so they cannot tip over.
the dishes must not block the rotating spray arms.
➢ do not put very small objects in the appliance as they may easily drop out of the racks.

5.2 Upper dish rack

The upper dish rack is intended for delicate and light dishes such as glasses, cups, saucers, small platters and bowls and small, flat pans. When you have filled the rack, the dishes must not be moved by the sprayed water (spray arms).

HOW TO LOAD THE UPPER DISH RACK

When you have filled the dish rack, the tableware must not be moved by the sprayed water (spray arms).

EXAMPLE OF HOW TO LOAD THE UPPER DISH RACK

TYPE	DISHES	TYPE	DISHES
1	CUPS	4	DESSERT BOWLS
2	SAUCERS	5	GLASSES
3	GLASS BOWL	6	MUGS

5.2.1 Foldable cup shelves

The cup shelves of the upper dish rack can be folded in (s. fig. below, arrows).

Diagram showing a container array with rotating arrows and a final structure with downward arrow (no text or symbols)

Fig. similar: modifications are possible.

5.3 Lower dish rack

The lower dish rack is intended for objects which are hard to clean such as pots, pans, lids, platters and bowls.

HOW TO LOAD THE LOWER DISH RACK

Place platters and lids at the sides of the rack and do not block the rotating spray arms.

◆ Place pots and bowls upside down.

The maximum diameter of plates positioned in the lower dish rack in front of the detergent container must not exceed 19 cm, otherwise they may obstruct the automatic opening of the detergent container during a cleaning programme in progress.

EXAMPLE OF HOW TO LOAD THE LOWER DISH RACK

TYPE	DISHES	TYPE	DISHES
7	OVAL SERVING PLATE	12	BOWLS (MELAMINE)
8	SMALL POT	13	POT
9	DESSERT PLATES	14	DESSERT PLATES (MELAMINE)
10	SOUP PLATES	15	DINNER PLATES
11	CUTLERY BASKET

FOLDING SHELVES ^40 OF THE LOWER DISH RACK

You can fold the folding shelves of the lower dish rack to provide free space for bigger items (s. fig. below, arrows).

Technical line drawing of a mechanical housing or container with numbered components (1 and 2), no readable text or symbols present.

5.4 Cutlery basket

Place long objects vertically and safely in the appliance so they do not block the spray arms.

HOW TO LOAD THE CUTLERY BASKET

Place the cutlery (except sharp knives) with the handles at the bottom.

EXAMPLE OF HOW TO LOAD THE CUTLERY BASKET

TYPE	CUTLERY	TYPE	CUTLERY
1	SOUP SPOONS	5	DESSERT SPOONS
2	FORKS	6	SERVING SPOONS
3	KNIVES	7	SERVING FORK
4	TEA / COFFEE SPOONS	8	GRAVY LADLE

CAUTION!

1. Do not let any items extend through the bottom.
2. Always load sharp items with the sharp side down.

5.5 Unsuitable dishes / cutlery

THE FOLLOWING OBJECTS ARE NOT SUITABLE TO BE WASHED IN A DISHWASHER:

1. cutlery with handles made of wood, horn, china or mother-of-pearl.
2. not heat-resistant objects.
3. cutlery with glued components, which are not heat-resistant.
4. objects with components of synthetic resin.
5. objects made of copper and/or tin.
6. objects made of leaded crystal.
7. objects made of steel which show signs of rust or are lightly corrosive.
8. any object made of wood.
9. objects made of synthetic fibres.
10. objects soiled by cigarette ashes, wax, lacquers and paints.

THE FOLLOWING OBJECTS ARE NOT SUITABLE TO BE WASHED IN A DISHWASHER:

1. some glass types may become dead or cloudy after many cleaning programmes.
2. objects made of silver or aluminium may decolourise.
3. glazed motifs may dull when often washed in a dishwasher.

5.6 Damage to glasses and dishes

POSSIBLE CAUSES	MEASURES
Type of the glasses/dishes or their production method.	Use dishwasher-proof glasses and dishes only.
The chemical composition of your detergent.	Use a mild dishwasher detergent. The manufacturer of the detergent provides information about its chemical properties.
Temperature of the water and duration of the programme.	Select a programme with a lower temperature and duration.

6. The cleaning programmes

Programme	Information	Description	Detergent in gramme PW / MW **	Duration Consumption in min./kWh/l
Intensive	Suitable for extremely dirty dishes with heavily dried food residues.	Pre-wash (50 °C)Main wash (65°)RinseRinseRinse (65 °CDrying)	4 / 16 gor1 - 2 tabs	205 min.1.621 kWh17.8 l
ECO*	Suitable for normally soiled dishes.Standard programme for daily use.	Pre-washMain wash (45°)RinseRinse (60 °CDrying)	4 / 16 gor1 - 2 tabs	230 min.0.923 kWh11.0 l
90 min.	Suitable for daily cleaning of slightly and normally soiled dishes / pans.	Main wash (65°)RinseRinse (65 °CDrying)	- / 20 gor1 tab	90 min.1.350 kWh11.5 l
Rapid	Suitable for lightly soiled dishes without drying.	Main wash (50°)RinseRinse (55 °C)	- / 20 gor1 - 2 tabs	30 min.0.751 kWh11.2 l
*	EN 60436 standard test programme subject to following conditions:➢ load capacity: 12 place settings➢ upper dish rack in low position.➢ rinse aid setting: max.➢ water softener level: H 3This programme is suitable for the cleaning of normally soiled dishes and the most efficient programme in terms of its combined energy and water consumption for that kind of dishes.
**	PW = pre-wash / MW = main wash

6.1 The additional programme functions

6.2 Starting of a cleaning programme

1. Open the door of the appliance.

2. Pull the dish racks out of the appliance.

3. Load the lower dish rack first and then the upper one.

4. Pour the dishwasher detergent and the water softener (=dishwasher salt) in the relevant containers: s. chapter 4.1 WATER SOFTENER (= DISHWASHER SALT) et seq. / chapter 4.2 RINSE AID et seq. and chapter 4.3 DISHWASHER DETERGENT et seq.

5. Close the door properly.

6. Open the tap! During operation, the appliance must be supplied with water (full water pressure).

7. Switch on the appliance using the «ON/OFF»-BUTTON (s. chapter 3.2 VIEW OF THE CONTROL PANEL: OPERATING BUTTONS AND INDICATORS).

8. Press the «PROGRAMME»-BUTTON repeatedly to set a desired cleaning programme: INTENSIVE - UNIVERSAL - ECO - GLASS - 90 MIN. - RAPID. The programme indicator of the set cleaning programme goes on.

9. Press the corresponding button(s) to select an additional programme function (s. chapter 6.2.1 SELECTION OF AN ADDITIONAL PROGRAMME FUNCTION.

10. Press the « START / STOP » - BUTTON to start the set cleaning programme.

11. The programme starts after approx. 10 seconds.

12. The operational status indicator of the appliance goes on.

6.2.1 Selection of an additional programme function

FOLLOWING ADDITIONAL PROGRAMME FUNCTIONS CAN BE SELECTED:

1. Press the corresponding button(s) to select an additional programme function.
2. Press the corresponding button(s) once or repeatedly, until the indicator of the desired programme function or combination ^41 is displayed.

i If the selected cleaning programme cannot be combined with the desired programme function(s), these functions cannot be selected or will be cancelled and the indicators switches off automatically.

PROGRAMME FUNCTION: « DELAYED PROGRAMME START »

You can set a delayed programme start.
Set the cleaning programme and the desired additional programme function(s) first and then activate this function using the « DELAY » - BUTTON: « 📄 ».
You can select a delay period from 3, 6 or 9 hours.
◆ Each press of the button « DELAY » - BUTTON increases the delay period by three hours.

The programme function « DELAYED PROGRAMME START » may not be available for all cleaning programmes (see also chapter 6.1 THE ADDITIONAL PROGRAMME FUNCTIONS).

HOW TO ACTIVATE THE PROGRAMME FUNCTION « DELAYED PROGRAMME START »

1. Switch on the appliance using the « ON / OFF » - BUTTON.
2. The appliance is now in STANDBY MODE.
3. Set the desired cleaning programme using the «PROGRAMME» - BUTTON. Use the corresponding buttons to set the desired additional programme functions.

i Always observe the instructions in chapter 6.2 STARTING OF A CLEANING PROGRAMME.
4. The programmable delay period is 3, 6 or 9 hours. To activate the delayed programme start, press the « DELAY » - BUTTON (« 📄 ») repeatedly until the operational status indicator of the desired delay period (3, 6 or 9 hours) goes on.
i Each press of the « DELAY » - BUTTON increases the delay period by three hours.
5. Close the door of the appliance properly.
6. The set cleaning programme starts automatically after the set delay time has elapsed.
i If the selected cleaning programme cannot be combined with the desired programme function(s), these functions cannot be selected or will be cancelled and the indicators switches off automatically.

The programme function « HALF LOAD » can be set for some cleaning programmes.
Select this programme function if you want to clean max. six place settings or less. If you put more than six place settings in the appliance and still select this programme function, the cleaning effect of the appliance may be reduced.
- The energy and water consumption of a cleaning programme may be reduced by this programme function.

NOTICE! Do not use this programme function when the dishwasher is fully loaded, otherwise the cleaning effect of the appliance will be reduced.

The programme function « HALF LOAD » may not be available for all cleaning programmes (see also chapter 6.1 THE ADDITIONAL PROGRAMME FUNCTIONS).

HOW TO ACTIVATE THE PROGRAMME FUNCTION « HALF LOAD »

1. Switch on the appliance using the « ON / OFF » - BUTTON.
2. The appliance is now in STANDBY MODE.

3. Set the desired cleaning programme using the «PROGRAMME» - BUTTON. Use the corresponding buttons to set the desired additional programme functions.
   i Always observe the instructions in chapter 6.2 STARTING OF A CLEANING PROGRAMME.

4. Press the « HALF LOAD » - BUTTON (« 12 ») once to activate the programme function « HALF LOAD » for the set cleaning programme.

5. The operational status indicator of this function goes on.

6. The programme function « HALF LOAD » is activated.

If the selected cleaning programme cannot be combined with the desired programme function(s), these functions cannot be selected or will be cancelled and the indicators switches off automatically.

PROGRAMME FUNCTION: « CHILD SAFETY LOCK »

- Your appliance is equipped with a CHILD SAFETY LOCK.

You can lock the control panel of the dishwasher to protect it from operation by children or unintentional operation.

HOW TO ACTIVATE THE CHILD SAFETY LOCK

1. Press and hold the buttons «DELAY Ⓤ» und «HALF LOAD ½ » simultaneously for 3 seconds.

2. The operational status indicator goes on.

3. The child safety lock is activated and all operating buttons are locked (except the «ON / OFF»-BUTTON).

HOW TO DEACTIVATE THE CHILD SAFETY LOCK

1. Press and hold the buttons «DELAY Ⓤ» und «HALF LOAD 12 » simultaneously for 3 seconds.
2. The operational status indicator goes off.
3. The child safety lock is deactivated and all operating buttons are released.

6.3 How to change a running cleaning programme

⚠ WARNING! While the appliance is operating it is dangerous to open its door as hot water may spurt out. RISK OF SCALDING! RISK OF BURNS!

You can only change a cleaning programme when it has run a short period of time. Otherwise, the detergent has dissolved and the dishwater has been drained. In such a case you must refill the detergent container.

1. Press the « START / STOP » - BUTTON to interrupt the current cleaning programme.

2. Press and hold the «PROGRAMME»-BUTTON for more than 3 seconds. The current cleaning programme is cancelled and the appliance is in STANDBY MODE.

3. Set the new cleaning programme using the «PROGRAMME»-BUTTON.

4. The programme indicator of the previously set cleaning programme goes off and the programme indicator of the newly set cleaning programme goes on.

5. Press the « START / STOP » - BUTTON to start the newly set cleaning programme.

6. The cleaning programme starts after approx. 10 seconds.

6.4 Subsequent addition of dishes

⚠ WARNING! While the appliance is operating it is dangerous to open its door as hot water may spurt out. RISK OF SCALDING! RISK OF BURNS!

You can put dishes later in the appliance unless the detergent container has opened.

1. Press the « START / STOP » - BUTTON to interrupt the current cleaning programme.

2. Wait 5 seconds before you open the door of the appliance.

3. Now you can add dishes.

4. Close the door of the dishwasher properly.

5. Press the « START / STOP » - BUTTON again to continue the interrupted cleaning programme.

6. The cleaning programme starts after approx. 10 seconds.

6.5 End of a cleaning programme

⚠ WARNING! Wait a few minutes before you open the door as hot damp may escape. RISK OF SCALDING!

1. An acoustic signal sounds at the end of a cleaning programme. ^42 The operational status indicator of the appliance goes off.
2. Switch off the appliance using the «ON / OFF»-BUTTON.
3. Close the tap!
4. Open the door carefully.
5. Wait approx. 15 minutes before you take out the dishes. The dishes are still hot and will break easily.
6. It is normal that the appliance is wet inside.

7. Environmental protection

7.1 Environmental protection: disposal

Appliances bearing this symbol « — » must not be disposed of together with household waste throughout the EU. To prevent potential damage to the environment or human health from uncontrolled waste disposal and to promote the sustainable reuse of material resources, responsibly supply the appliance to a recycling centre.

7.2 Environmental protection: energy saving

• Try to load the appliance up to its particular maximum capacity. Smaller loads are uneconomical.
  For smaller loads, use the programme function «HALF LOAD». ^43
  ◆ Ensure that the installation room is well ventilated.
  The pre-rinsing of dishes leads to increased water and energy consumption and is not recommended.
• Cleaning dishes in a household dishwasher generally consumes less energy and water during the utilisation phase than cleaning them manually (if the household dishwasher is used according to the instructions).

⚠ WARNING! Disconnect the appliance from the mains before you clean or maintain it. RISK OF ELECTRIC SHOCK!

⚠ WARNING! When a cleaning programme has finished, wait at least 20 minutes before cleaning the interior of the appliance so the heating elements can cool down. RISK OF BURNS!

⚠ WARNING! Never use a cleaner spray as you may damage the lock and the electrical components. RISK OF ELECTRIC SHOCK! RISK OF DAMAGE!

NOTICE! Never operate the appliance without the filters inserted properly. RISK OF DAMAGE!

NOTICE! Any damage caused to the appliance by cleaning products will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

1. Always keep the appliance clean so that unpleasant odours do not occur.

2. Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise, you will damage the surface of the appliance.

8.1 The filter system

The filter system protects the pump against remnants of food and other objects. These remnants can clog the filters after a while. The filter system comprises a coarse filter, a flat filter and a micro filter.

THE FILTER SYSTEM COMPRISES A MAIN FILTER (A), A COARSE FILTER (B) AND A FINE FILTER (C)

A	The MAIN FILTER shreds remnants with a special nozzle on the bottom of the spray arm.
B	The COARSE FILTER catches remnants such as bones and glass which may clog the drain. To remove the remnants gently squeeze the filter on the top and take it out.
C	The FINE FILTER catches remnants in the drain so they cannot soil the tableware again.

8.1.1 Cleaning of the filter system

The filter system protects the pump against remnants of food and other objects. These remnants can clog the filters after a while. Clean the filters regularly.
◆ Check the status of the filters after each cleaning programme.
❖ Remove large food particles and any remnants after a cleaning programme has ended by rinsing the filters with flowing water.
You can use a suitable cleaning brush for the cleaning of the fine and coarse filter.
We recommend cleaning the entire filter system once a week.
Do not knock against the filters as you will damage them. Your appliance will not work properly if the filters are damaged.
◆ Always install the filters properly.
◆ Improperly installed filters may damage the appliance and dishes.

i We recommend cleaning the entire filter system once a week.

When you remove the coarse filter, you can remove all filters of the system. Remove any remnants and clean the filters with flowing water.

HOW TO REMOVE / INSTALL THE FILTER SYSTEM

1. Turn the coarse filter (B) anticlockwise to loosen the filter system and then lift the entire filter system (s. fig. below). Remove the filter system from the bottom of the appliance.

B

COARSE FILTER

1. Separate the fine filter (C) from the filter system by pulling it downwards (s. fig. below).

2. Separate the coarse filter (B) from the filter system: press the upper pins gently and pull the coarse filter out of the main filter (A / s. fig. below).

A	MAIN FILTER
B	COARSE FILTER
C	FINE FILTER

1. The three components of the filter system (main filter, coarse filter and fine filter) are now separated from each other (s. fig. below).

A	MAIN FILTER
B	COARSE FILTER
C	FINE FILTER

1. Clean the individual filters thoroughly as described above under « HOW TO CLEAN THE FILTER SYSTEM ».

2. You can use a suitable cleaning brush (D) for the cleaning of the fine (C) and coarse filter (B / s. fig. below).

B	COARSE FILTER
C	FINE FILTER
D	SUITABLE CLEANING BRUSH

1. To reconnect the individual filters, please proceed in reverse order.

2. Insert the entire filter system in the bottom of the appliance properly.

3. Turn the coarse filter (B) clockwise to fix the entire filter system (s. fig. below, arrows / E).

B	COARSE FILTER
E	ARROWS

NOTICE! Do not operate the appliance without the filters installed.

NOTICE! Any damage caused to your appliance by improper removal or installation of the filter system will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

8.2 Cleaning of the spray arms

- Clean the spray arms regularly as chemicals and minerals may clog the nozzles and bearings.

HOW TO REMOVE / INSTALL THE SPRAY ARMS

1. To remove the upper spray arm (B), hold the nut (C / in the middle of the upper dish rack) and unscrew the spray arm (s. fig. below).

A	UPPER SPRAY ARM HOLDER
B	UPPER SPRY ARM
C	NUT

1. To remove the lower spray arm (D), pull it out upwards (s. fig. below, arrow).

D

LOWER SPRAY ARM

1. Clean the spray arm with warm soapy water and the nozzles with a soft brush (E / s. fig. below).
2. Rinse the spray arms thoroughly using flowing water (s. fig. below).

E

SOFT BRUSH

1. Proceed in reverse order to install the spray arms properly.
2. Ensure that the spray arms can rotate freely.

NOTICE! Any damage caused to your appliance by improper removal or installation of the spray arms will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

8.3 Cleaning of the appliance and the control panel

- Clean the exterior of the appliance with a suitable polish.

• Clean the control panel with a soft damp cloth and dry it carefully.
  Never use sharp-edged items, scouring pads, scouring agents, paper towels or other abrasive and aggressive detergents to clean any component of the appliance.

NOTICE! Any damage caused to the appliance by cleaning products will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

8.4 Cleaning of the door and the door seals

⚠ WARNING! Never clean the door or the door seals with a cleaner spray as you may damage the lock and the electrical components. RISK OF ELECTRIC SHOCK! RISK OF DAMAGE!

NOTICE! Never use sharp-edged items, scouring pads, scouring agents, paper towels or other abrasive and aggressive detergents to clean the door of the appliance.

• Clean the sides of the door with a warm damp cloth.
• Clean the exterior surface with a suitable polish.
• Clean the door seals with a damp sponge; otherwise, remnants of food may generate unpleasant odours.
  Never use sharp-edged items, scouring pads, scouring agents, paper towels or other abrasive and aggressive detergents to clean the door of the appliance.

NOTICE! Any damage caused to the appliance by cleaning products will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

8.5 Frost protection

If your appliance is situated in an unheated place during winter, consult a qualified technician to carry out the following measures ^44 .

1. Disconnect the appliance from the mains.
2. Remove any water from the water inlet pipe and the valve.
3. Connect the water inlet pipe with the valve again.

4. Remove the filters. Remove any water from the drain.

5. Turn off the water supply and disconnect the water inlet pipe from the water valve.

NOTICE! If the appliance cannot work due to icing, please contact the aftersales service. ^45

8.6 Decommissioning

1. When you do not operate the appliance for a certain period of time, e.g., during holidays / vacancies, let a programme run (empty appliance) before.
2. Disconnect the plug and turn off the water supply of the appliance.
3. Leave the door slightly ajar to protect the seals and to avoid the generation of unpleasant odours.

9. Troubleshooting

⚠️ DANGER! Never try to repair the appliance yourself. Repairs carried out by unauthorised persons can cause severe damage. If the appliance does not operate properly, please contact the aftersales service.

ERROR
POSSIBLE CAUSE (S)	MEASURES
DRAIN PUMP DOES NOT WORK.
1. Kink in drain hose.2. Filter is clogged.3. Kitchen sink is clogged.	1. Check the drain hose.2. Check the coarse filter.3. Check the kitchen sink.
ERROR
POSSIBLE CAUSE (S)	MEASURES
APPLIANCE DOES NOT WORK AT ALL.
1. The fuse in the fuse box is tripped.2. The appliance is not supplied with energy.3. Low water pressure.4. The door is not closed properly.	1. Check the fuse box.2. Check that the appliance is supplied with energy / the door is closed properly / the plug is in the socket.3. Check the water supply and the water pressure.4. Ensure that the door of the dishwasher is closed properly.

NOISE.

1. Some noise is normal.2. Dishes are placed improperly. Small objects dropped out of the racks.3. Knocking sound inside the appliance: The spray arms touch items during operation.4. Motor hums.5. Knocking sound in the water lines can be caused by the kind of installation or the diameter of the water lines.

1. The detergent container has opened.2. Check the position of the dishes.3. Interrupt the programme and realign the items touched by the spray arms.4. Appliance was not used regularly. Even if you do not use the appliance regularly, let it operate once a week.5. The proper function of the appliance is not affected. If you are in doubt, contact a qualified professional (not covered by the guarantee).

STAINED INTERIOR.

1. Detergent contains colorants.	1. Use colorant-free detergents only.
DRAIN PUMP DOES NOT WORK.
2. Kink in drain hose.	2. Check the drain hose.
3. Filter is clogged.	3. Check the coarse filter.
4. Kitchen sink is clogged.	4. Check the kitchen sink.

FOAM IN THE APPLIANCE.

1. Unsuitable detergent.2. Spilled rinse aid.

1. Use dishwasher detergent only.2. Remove any spilled rinse aid immediately. Open the door and wait until the foam has evaporated.

ERROR

POSSIBLE CAUSE (S)	MEASURES
DISHES ARE NOT CLEAN.
1. Unsuitable programme.2. Dishes are placed improperly.	1. Select a stronger programme.2. Check the position of the dishes. The dishes must not block the spray arms.
CLOUDINESS ON GLASSWARE.
1. Soft water in combination with too much detergent.	1. If you have soft water, use less detergent. Select a short programme for glassware.
WHITE FILM ON INNER SURFACES.
1. Minerals in hard water.	1. Clean the interior with a soft sponge and dishwasher detergent. Wear rubber gloves! Use dishwasher detergent only to avoid formation of foam.
TABLEWARE IS NOT DRIED PROPERLY.
1. Improper use of the dish rack.2. Not enough rinse aid.3. Tableware has been removed from the appliance too early.4. Cutlery and tableware are made of low-quality materials.	1. Load the dish rack properly.2. Check the quantity of the rinse aid. Refill if needed.3. Wait at least 15 min., before you remove the tableware.4. Do not clean such items using the appliance.
SOME DETERGENT IS LEFT IN THE CONTAINER.
1. Dishes block the container of the detergent	1. Place the dishes properly.
STEAM.
1. Normal.	1. There is some steam coming through the vent near the door latch during drying and water draining.

ERROR
POSSIBLE CAUSE (S)	MEASURES
BLACK OR GREY SPOTS OR RUST SPOTS ARE ON THE TABLEWARE.
1. Aluminium-made objects touched the dishes.2. The items are not corrosion resistant.3. The lid of the water softener container is not close properly.4. You have not started a programme after you added the water softener. The remaining water softener is now affecting the running programme.	1. Clean the marks with a mild abrasive cleaner by hand.2. Do not clean such items using the appliance.3. Close the lid properly.4. Always start the rapid programme without adding any tableware when you have added some water softener.

WATER REMAINS ON THE BOTTOM OF THE APPLIANCE.

1. Normal.

1. A small amount of clean water around the outlet keeps the water seal functioning.

SPOTS AND FILM ON GLASSES AND CUTLERY.

1. Extremely hard water.2. Extremely low temperature of the water supply.3. The appliance is overfilled.4. The dishes are placed improperly.5. Old or wet detergent.6. The rinse aid container is empty.7. Improper detergent dosage.

1. Check the water hardness.2. Check the temperature of the water supply.3. Do not overfill the appliance.4. Always place the dishes properly.5. Always use proper detergent.6. Refill the rinse aid container.7. Dose the detergent properly.

HOW TO REMOVE SPOTS FROM GLASSWARE.

a) Remove all metal-made objects.

b) Do not use a detergent.

c) Select the longest programme.

d) Start the programme. After 18 - 22 minutes the main-wash cycle begins.

e) Open the door pour 2 cups of white vinegar in the appliance (bottom).

f) Close the door and let the complete programme run. If these measures fail, repeat the procedure but use 14 cup (60 ml) of citric acid crystals instead of the vinegar.

i If the appliance shows a malfunction not noted on the schedule above or if you have checked all items on the above schedule but the problem still exists, please contact the aftersales service.

9.1 Error codes

Error codes are indicated by the corresponding LED combinations of the LEDs 1,2,3,and 4 (s. fig. and table below).

ERROR CODE(LED COMBINATION)	MEANING	POSSIBLE CAUSES
LED 4 flickers slightly	Long water inlet time.	➢ Tap is closed.➢ Water intake is restricted.➢ Water pressure is too low.
LED 4 and LED 3 flicker slightly	Required temperature is not reached.	➢ Malfunction of the heating element➢ Please contact the aftersales service.
LED 2 flickers slightly	Overflow / leakage	➢ An element of the appliance leaks.➢ Please contact the aftersales service.
LED 1, LED 2 and LED 4 flicker slightly	Communication error between main board and display board.	➢ Short circuit / cable breakage.➢ Please contact the aftersales service.

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, remove the water before restarting the dishwasher.

10. Technical data

Type	Dishwasher, free standing
Control	Electronic
Capacity	12 place settings
Energy efficiency class1	E
Energy efficiency index (ECO)	55.9
Drying performance index (ECO)	1.065
Drying efficiency class6	A
Energy consumption / standard programme (ECO)3	0.923 kWh
Annual energy consumption (ECO)2	92 kWh
Water consumption / standard programme (ECO)3	11.0 L
Annual water consumption (ECO)2	1100 L
Noise emission dB(A) re 1 pW	52 dB(A)
Noise emission class5	D
Power	1760-2100 W
Energy consumption /off-mode	0.49 W
Energy consumption /on-mode	/
Standard cleaning programme / duration4	ECO / 230 minutes
Interior	Stainless steel + plastic
Heating elements	Hidden
Programmes	Intensive / ECO/ 90 min. / Rapid
Cleaning temperatures	45 °C / 50°C / 60 °C/65°C
Programme function: delayed-programme-start	✓ /3 ,6, 9 hours
LED-display	-
Control panel	Electronic buttons
Spray levels	2
Cutlery basket	1
Upper dish racks	1
Lower dish rack	1
Cup shelves	✓ / foldable
Adjustable feet	2
Child lock	✓
Water softener function	✓
Adjustment of the rinse aid amount	✓
Dishwasher detergent and pre-rinse container	✓
Overflow protection	✓
Aqua Stop	-
Dimensions: appliance H*W*D in cm	84.50*59.80*60.00
Weight net / gross in kg	40.00 43.50

◆ Technical modifications reserved.

* According to Regulation (EU) No. 2019/2017
1	On a scale from Λ (highest efficiency) to G (lowest efficiency) according to the new EU standard.
2	Based on 100 standard cleaning cycles using cold water fill and low power modes. The actual energy and water consumption values depend on the type of use.
3	Based on the standard cleaning cycle using cold water fill and low power modes. The actual energy and water consumption values depend on the type of use.
4	This programme is suitable for the cleaning of normally soiled dishes and the most efficient programme in terms of its combined energy and water consumption for that kind of dishes.
5	On a scale from Λ (highest efficiency) to D (lowest efficiency).
6	On a scale from Λ (highest efficiency) to G (lowest efficiency).

11. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD! RISK OF INJURY!
2. Old and unused appliances must be sent for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorised condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non-common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeure or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Aftersales service information on the leaflet inside this instruction manual.
