SC-BS33ED111 - Scale Scarlett - Free user manual and instructions

Product Type	Digital Bathroom Scale
Brand	Scarlett
Model	SC-BS33ED111
Dimensions (approx.)	30 x 30 x 2 cm
Weight (approx.)	1.2 kg
Power Supply	2 x AAA batteries (included)
Maximum Capacity	180 kg / 396 lb
Graduation	0.1 kg / 0.2 lb
Display	LCD, backlit
Material	Tempered glass platform
Units	kg / lb / st
Auto-Off	Yes, after 10 seconds
Low Battery Indicator	Yes
Overload Indicator	Yes
Step-On Activation	Yes
High Precision Sensors	Yes
Easy Clean Surface	Wipe with damp cloth
Safety	Anti-slip feet, rounded edges
Accessories Included	Batteries, user manual
Color	White / Black (depending on variant)

Frequently Asked Questions - SC-BS33ED111 Scarlett

How do I turn on the scale and take a measurement?

Simply step onto the center of the scale. The step-on activation feature turns it on automatically. Stand still until your weight is displayed.

How do I change the unit from kg to lb?

Press the unit button on the back or bottom of the scale to switch between kg, lb, and st.

What should I do if the scale displays "Err" or "Lo"?

"Lo" indicates low battery – replace the batteries. "Err" may indicate overload or an unstable surface; ensure the scale is on a flat, hard floor and you are within the maximum weight.

How do I clean the scale?

Wipe the surface with a soft damp cloth. Do not use abrasive cleaners or immerse in water.

Why does the scale show different weights each time?

Ensure the scale is on a hard, level surface. Weigh at the same time of day (preferably morning). Body weight can fluctuate due to hydration and meals.

What type of batteries does the scale use?

The scale requires 2 AAA batteries. They are included with the device.

Can I use the scale on carpet?

For accurate readings, place the scale on a hard, flat surface like tile or wood. Carpet may cause inaccurate measurements.

How do I replace the batteries?

Open the battery compartment on the underside of the scale, insert two new AAA batteries with correct polarity, and close the cover.

Is the scale safe for pregnant women?

Yes, the scale uses standard strain gauge technology and is safe for all users. However, always consult your doctor regarding weight management during pregnancy.

What is the maximum weight capacity?

The maximum capacity is 180 kg (396 lb). Exceeding this may damage the sensors.

USER MANUAL SC-BS33ED111 Scarlett

1. Body
2. Display
3. Electrodes
4. 2 batteries 1.5V AAA (included)
5. Batteries compartment

UA ОПИС

Pure technical line drawing of a rectangular frame with four circular ends and a small labeled component (no text or symbols)

MAX180 kg

1.3 / 1.35 kg

mm23280280

2x1,5V AAA

GB INSTRUCTION MANUAL IMPORTANT SAFEGUARDS

- To avoid breakdown during use read this guide carefully before operating the appliance. Mishandling can cause breakdown of the appliance.

- Only for domestic use. The appliance is not designed for industrial or commercial use.

- Do not expose the scale to shocking.

- Do not jump on the scale.

- Do not overload the scale.

- It is forbidden for use by persons with medical implants (for example, with pacemakers). Otherwise, faulty operation of implants might occur.

- Do not use during pregnancy.

- Attention! Do not step on the scale if your feet or the scale surface are wet – you might slip.

- Batteries may be life-threatening if swallowed.

- Store the batteries and the scale out of the reach of children. The person who swallowed a battery, should immediately consult a doctor.

- Do not allow wrapping material getting into the hands of children (choking hazard).

- It is forbidden to recharge or restore batteries in other manner, disassemble them, or throw into fire.

- Measuring body fat percentage and other parameters in children below 10 years of age may yield invalid results.

- Diagnostic scale may be used for simple weighing without determining water, body fat or muscle mass parameters in children of any age. Minimum weighing limit is 2 kg.

- Unreliable results of measuring body water, body fat or muscle mass might occur in professional athletes, persons prone to oedema, persons with irregular leg-to-body ratio.

- Never try to repair this appliance by yourself. In case of failure, contact the nearest seller.

- If the product has been exposed to temperatures below 0^ for some time it should be kept at room temperature for at least 2 hours before turning it on.

- The manufacturer shall reserve the right to introduce minor changes into the design of the scale, which do not affect its safety, performance capacity or functionality of the appliance.

- Manufacturing date is indicated on the unit and/or on packing as well as in accompanying documents in the following format XX.XXXX where first two figures XX is the month of production, and following four figures XXXX is the year of production.

BATTERRIES USAGE RULES

- Battery contains harmful substances for human body. Keep the wrapping materials out of reach of children (choking hazard). . The person who swallowed a battery, should immediately consult a doctor.

- .Change the batteries regularly. Change all batteries at once using the elements of the same type.

- It is forbidden to recharge or restore batteries in other manner, disassemble them, or throw into fire or hot-wire.

- Discharged battery can be a reason of scale breakdown. Remove the batteries compartment in case of long out-of-action time.

- If one of the batteries is discharged, put protection gloves and clean the batteries compartment with dry cloth.

- Batteries may contain toxic substances harmful for health and environment. The batteries should be disposed in strict compliance with existing law. Do not dispose the used batteries to the waste bin.

- Do not throw the batteries into fire! Highly explosive!

- The principle behind this scale is bioelectrical impedance analysis (B.I.A.). The measurement of the percentage of different tissues occurs within seconds with electric current, which passes through high-effective sensor on scales platform and which is not perceptible for a human, safe and harmless.

- It is important that during measurement you take into account the following: measurement of the body fat percentage must be performed only barefoot; it is advisable that you slightly moisturize the soles of your feet. Absolutely dry soles might be the cause of an unsatisfactory result, as they possess extremely low electric conductivity.

- If, when measuring the percentage of fat, muscle tissue, bone and water content, the obtained sum of all components has become greater than 100%, this is not a sign of scale defect. It can be explained from the physiological point of view. Operation of the diagnostic scale is based on the analysis of bioimpedance, which determines the amount of fat and water in muscle and bone tissues themselves. Thus the variation of different parameters should be taken into account separately from each other, without summarizing the obtained results.

- This model is working with Bluetooth, compatible with smartphones on IOS and Android platforms. Use "OKOK-International" program for convenient checking and fixation of measurements.

HELPFUL HINTS

• Make sure the scale places on a flat, even and firm level surface. Do not put the scale onto a carpet or soft surfaces.
• To ensure correct weight measurement it is advisable that the scale stand in the same place. By moving the scale you risk putting it on an uneven surface, which might affect the correctness of your weight reading.
• To ensure correct weight measurement you need to weigh at the same time, without clothes or footwear, and before eating.
• To ensure precise weight measurement it is not recommended to weigh earlier than 2 hours after waking.
• Step on the scale. Do not lean against anything, stand straight.

LIMITATIONS

- The measuring of fat percentage and other measurements may be unreliable and inexact in the following cases:

- For children younger than 10 years old

• for professional sportsmen and bodybuilders;

• for pregnant women;

• for people with hyperthermia, at dialysis treatment, edema, osteoporosis;

• for people taking cardiovascular pills (with cardio and vascular abnormalities)

- for people taking vasohypotonic and vasohypertonic pills

GETTING STARTED

- Insert type AAA batteries observing polarity into a special compartment at the bottom of the scale. Close the compartment. The scale is ready to operate.

WEIGHING

Note! When the scales are turned on, the ambient temperature is displayed in the lower right corner of the display

• Input your personal data to get a precise measuring body fat percentage and other body measurements
• The scale has a memory for 8 persons data which can be used by your family.
• Connect the Internet using your smartphone(WI-FI, 3G or 4G are recommended)
• Switch on Bluetooth function.

- Download "OKOK International" App in "Google App" or "App Store"

• Install the App on your smartphone, run the application and follow the directions

- Check in in App. Enter your e-mail address to "e-mail" field and your password to "password" field.

- Set up the necessary settings according to following directions

- Choose the measurement system (metric)

- Insert your name, sex, date of birth and height

- Confirm your usual weight diapason

- Press "Measure" button

- Press "Connect" button after your smartphone will find the scale.

- Give a name to the scale

- Step on the scale

- The scale will show your weight on display.

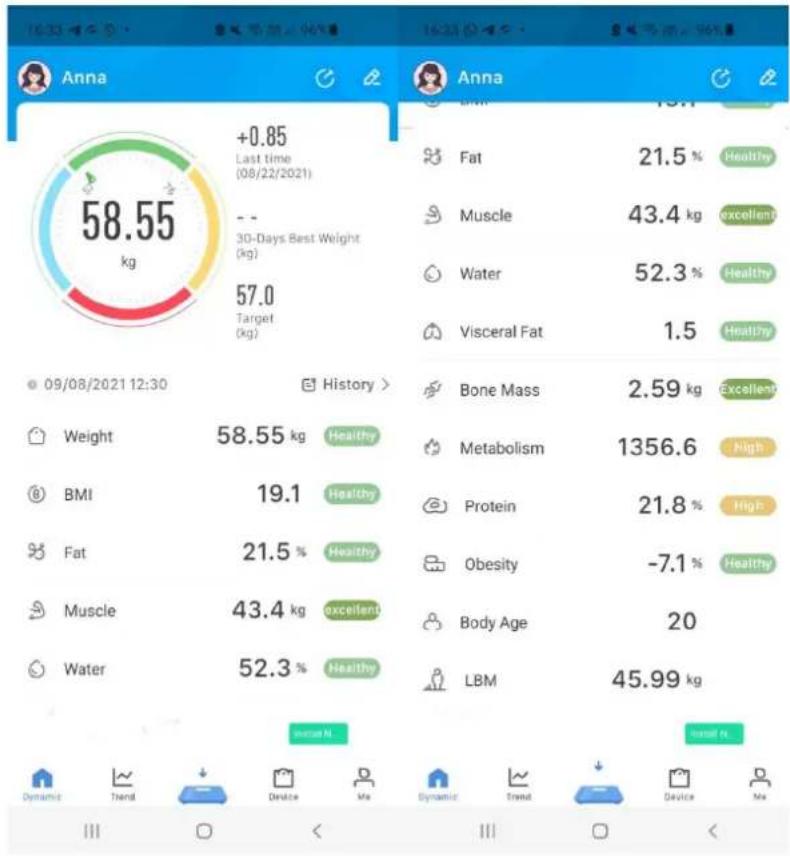

- The results of your measurements and their key will be shown on display.

• These measurements will allow you to monitor your weight and health carefully.

NEW USER ADDING

• The application allows you to enter data for 8 users.
• Press "Profile" button in the App to add a new user and press "add". Enter personal information: name, sex, date of birth and height.

AUTOMATIC RESET FUNCTION

- Your scale has an automatic reset function. After the data is displayed on the screen, the data will be reset in a few seconds and the screen will show 0.0 again. You may conduct the weighing again or start the weighing by setting a new user.

CLEANING AND MAINTENANCE

• Wipe the scale with a soft cloth using a detergent and wipe dry.
• Do not use organic solvents, aggressive chemicals or abrasives.

STORAGE

• Observe all requirements from the CLEANING AND MAINTENANCE Section.
• Make sure there are no objects on the scale during storage.
• Store the scale in a cool dry place.

The symbol on the unit, packing materials and/or documentations means used electrical and electronic units should not be toss in the garbage with ordinary household garbage. These units should be pass to special receiving point.

The symbol on the unit, packing materials and/or documentations means the battery used in this product not be toss in the garbage with ordinary household garbage.

For additional information about actual system of the garbage collection, address to the local authority. Valid utilization will help to save valuable resources and avoid negative work on the public health and environment which happens with incorrect using garbage.
